Good Thing, Small Package: Audi’s 610HP DTM Four-Cylinder

Typically, downscaling in motorsport is never a good thing.

While we understand that – sometimes – needs must, the news that the Deutsche Tourenwagen Masters would replace their naturally aspirated V8s with turbocharged inline-fours in 2019, was generally met with at least a little bit of apprehension. Much like other series’, the soundtrack of DTM in recent years was part of the allure for the casual fan. While teams must now follow an all new set of engine regulations for the forthcoming season, along with following strict fuel restrictions of 95kgs per hour, it almost could have been bleak. Almost.

Instead, these new restrictions and regulations have inspired the engineers at Audi Sport to get creative, as I’m sure they also have at BMW and Aston Martin, who will be the first non-German team in DTM since Alfa Romeo left in 1996.

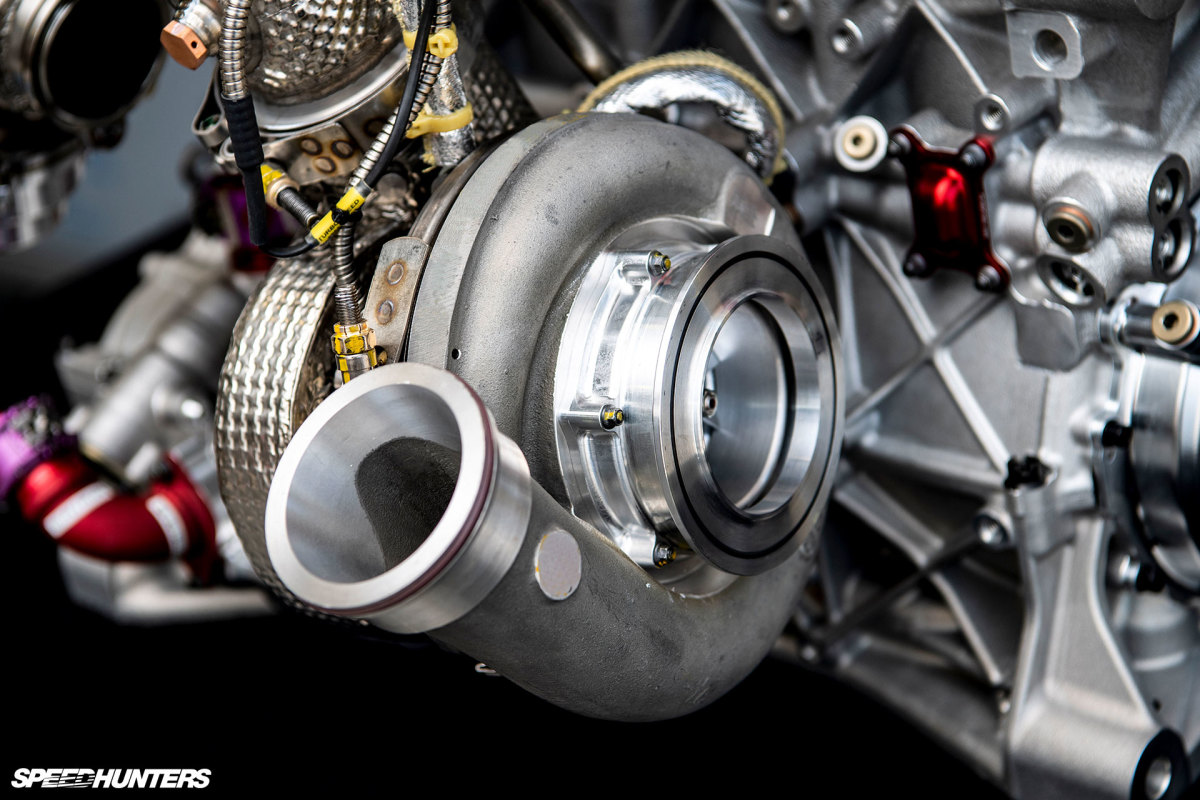

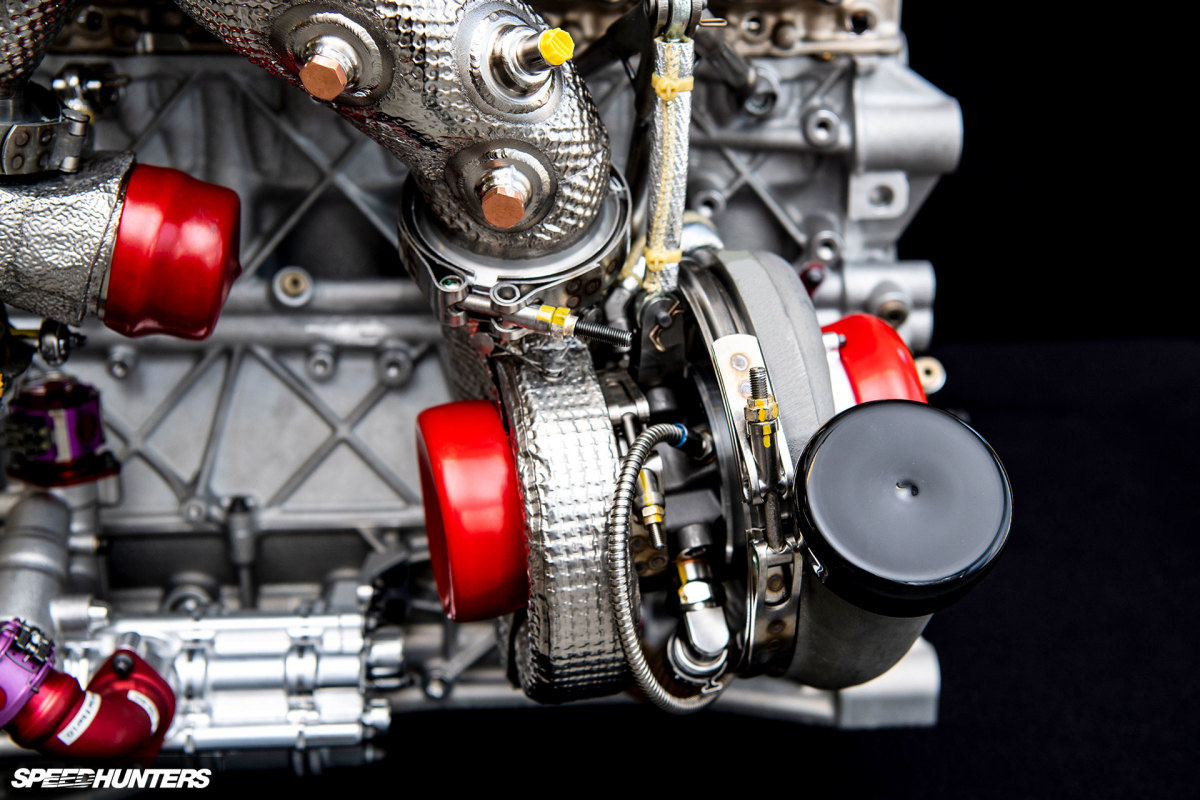

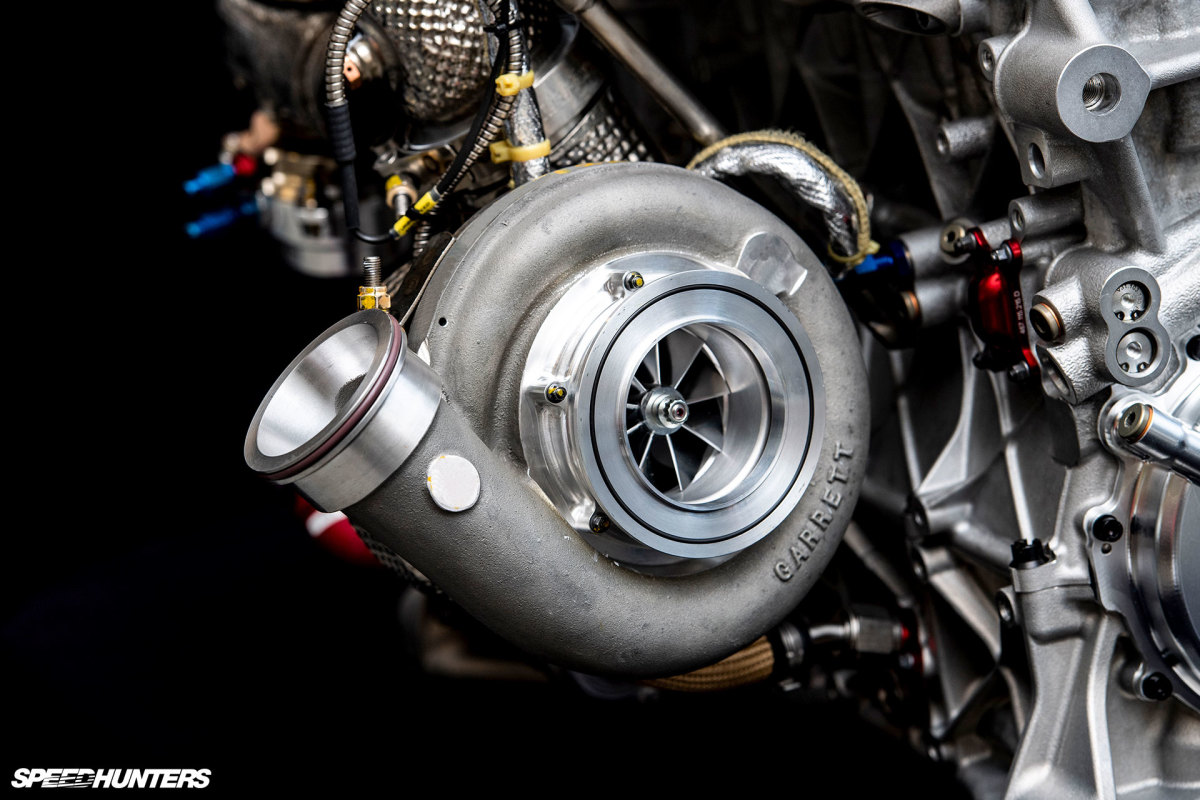

Where the previous V8s peaked at over 500hp, the new inline-fours will start their careers with over 600hp, but that’s not the only talking point around these new engines. With a maximum capacity of 2.0-litres, the new turbocharged engines feature a 30hp ‘push-to-pass’ feature along with anti-lag and a shift point of 9,500RPM. It will achieve these figures running 102RON pump fuel, roughly equivalent to 95-octane in the US. Mounted longitudinally, the cars remain rear wheel drive.

That’s not all, either, as there’s a significant weight saving with the new engines, too. The previous V8s weighed 148kgs (326lbs) but the new motors weigh just 85kgs (187lbs) instead. This brings the overall weight of the RS5 DTM to sub-1000kgs (2204lbs) resulting in a power-to-weight ratio of approximately 1.6kgs per horsepower.


From our perspective, maybe the most interesting aspect of all this is that the regulation which states that an engine must last an entire season has been retained. Where the famous turbo Formula One engines of the ’80s were all but disposable, these motors need to survive some 6,000kms (3,728miles) split into multiple, short sprint runs across nine rounds.

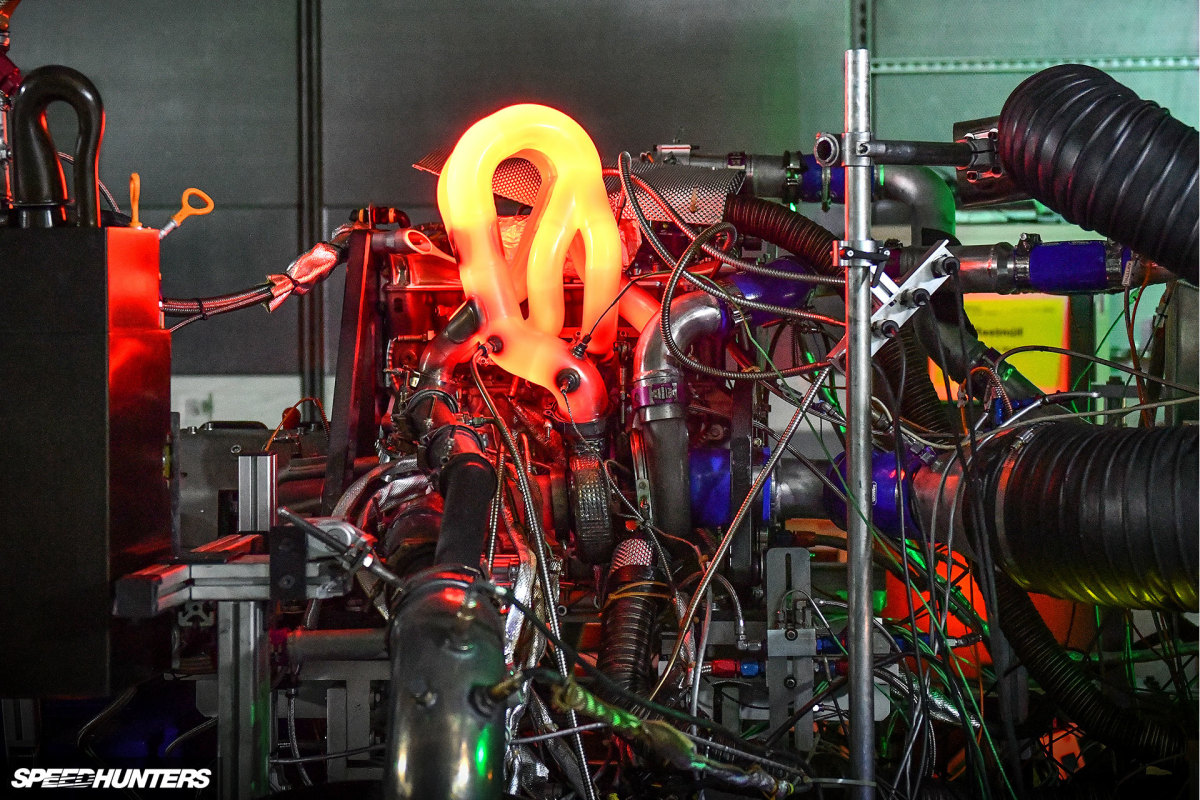

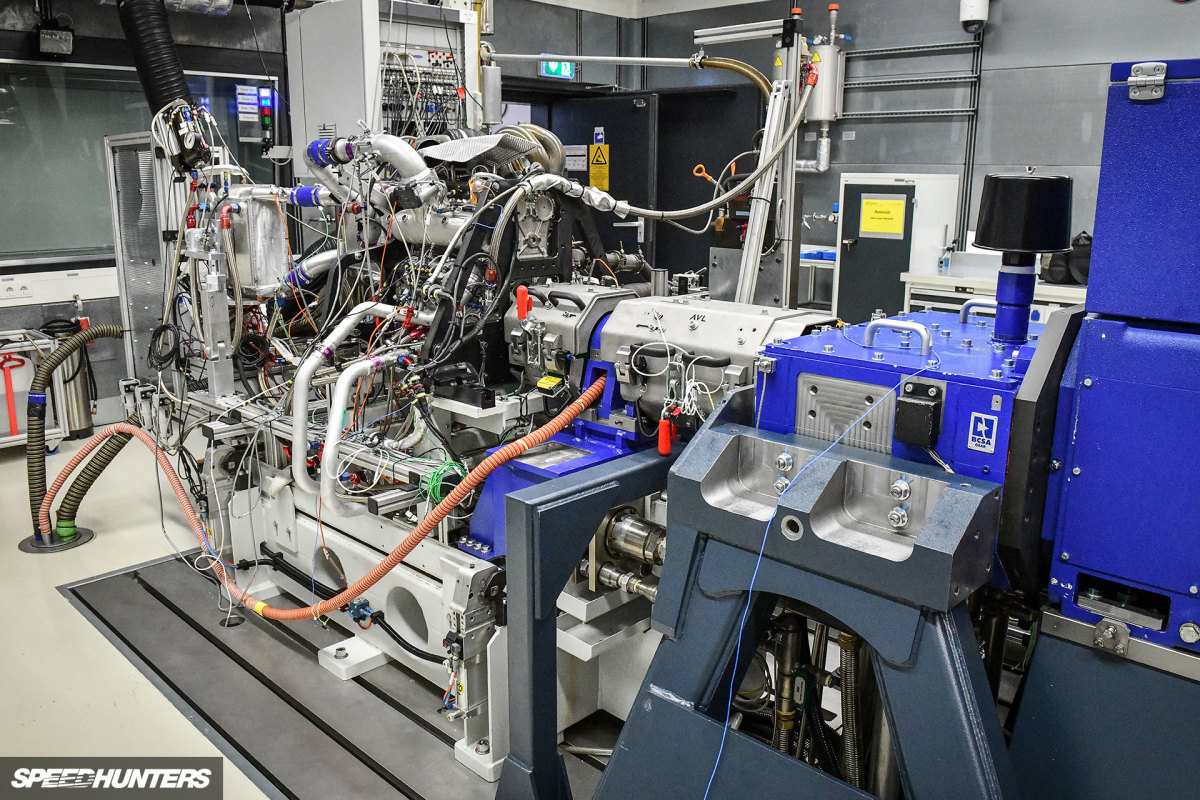

“The format of the DTM is a great challenge,” said Stefan Dreyer, Head of Powertrain Development at Audi Motorsport in their press release. “The long mileage, distributed to many events with short runs, is really tough. Plus, the four-cylinder engine’s vibration behaviour totally differs from that of the V8. That posed a huge challenge during the development of the engine and also to our dynamometers.”

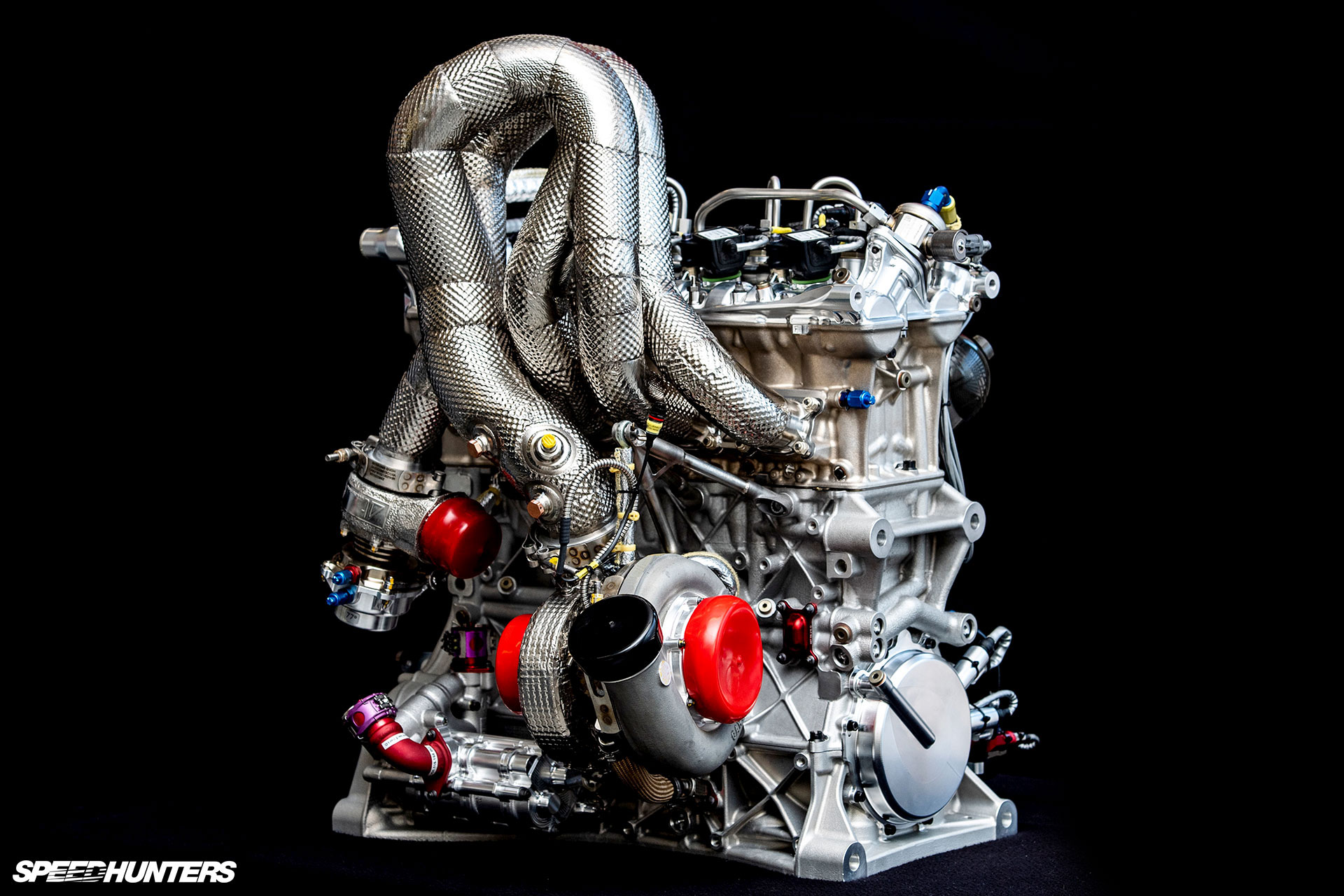

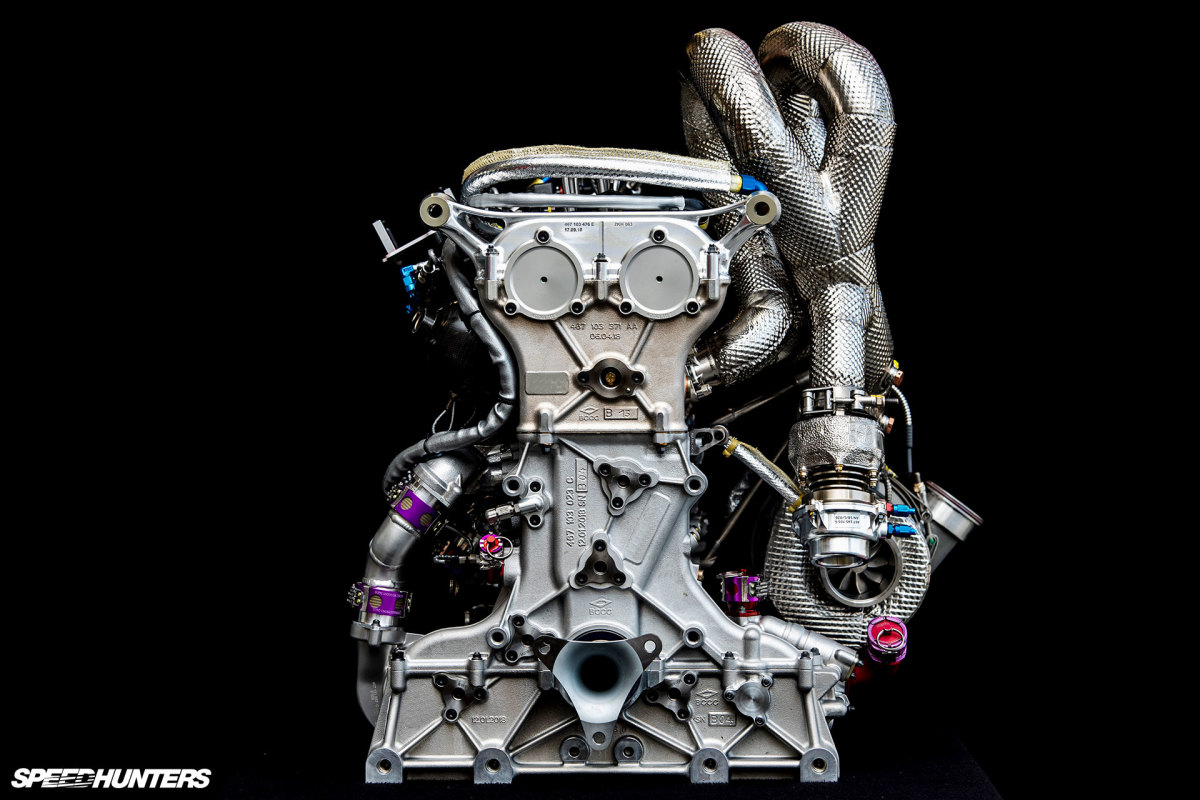

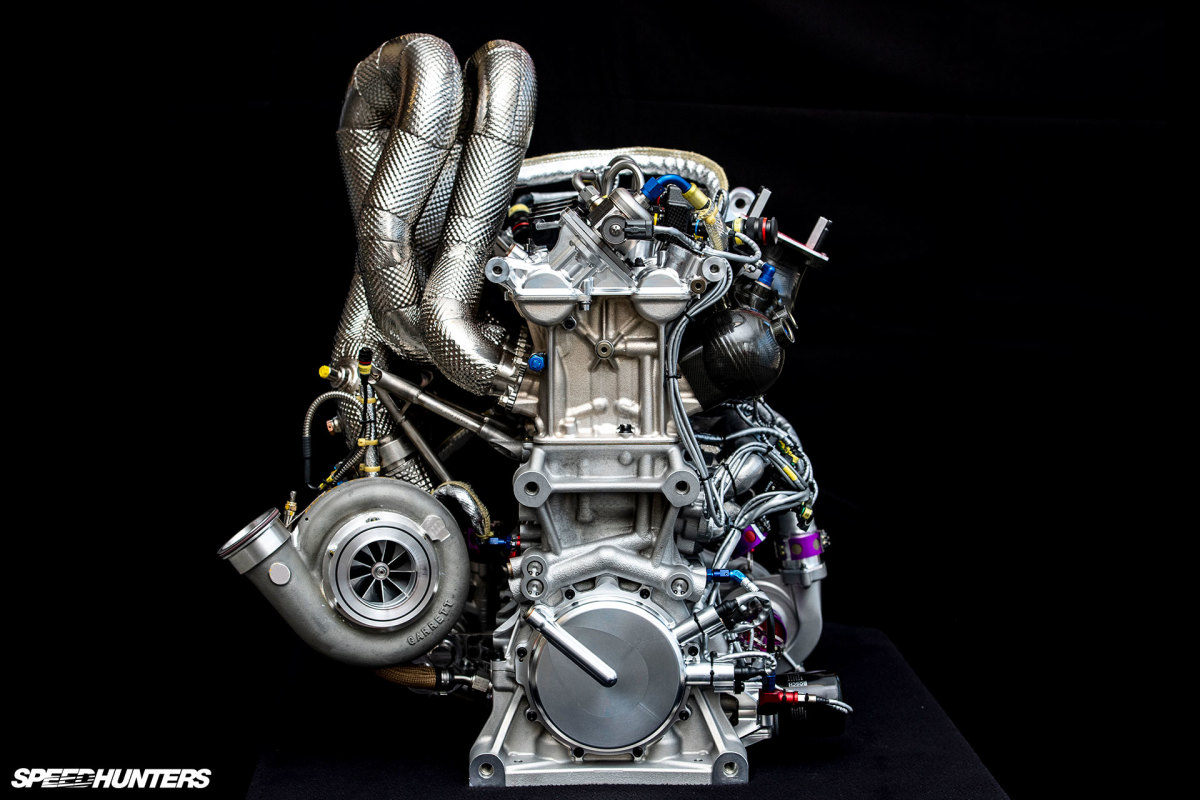

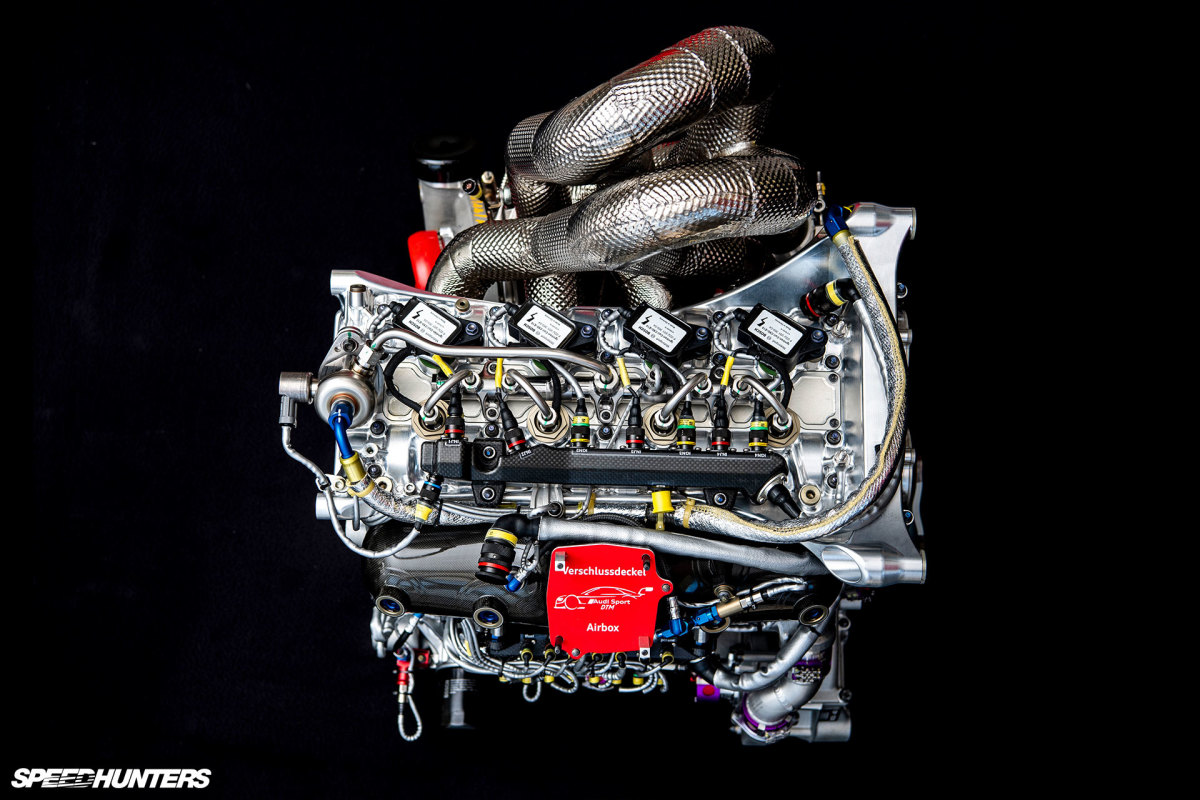

This new 2.0-litre TFSI has been designed and built from scratch, requiring roughly 2,000 new components. Its lightweight design features some new approaches which will potentially find their way into Audi’s production cars in the future.

If the result of these DTM regulation changes mean that we can go faster, for longer in the near future, then consider us fully on-board.

Now, where’s my measuring tape? I’m full sure this will fit in the front of Project GTI…

Paddy McGrath
Instagram: pmcgphotos
Twitter: pmcgphotos

Photos & Video by Audi Sport
