As a professional engine tuner, my passion is getting the best out of an engine. Perhaps that’s maximum power, but it could equally mean improved fuel economy and perfect driveability. Just because an engine rolled off the production line a certain way doesn’t mean that’s the end of the story. Modifying cars is always about improving, polishing, refining and personalising – and this same philosophy can be just as easily applied to the engine.
If you love modifying engines as much as I do, then you’re in luck. Right now we have access to some of the most advanced engines ever produced, but more importantly we also have access to the technology to tweak them, refine them and optimise them. And that technology is what we’re going to be discussing today.
In this story we’re going to investigate the options available for tuning your engine. I’m talking about optimising the fuel delivery and ignition timing to suit your specific modifications – not bolt on hardware. There are literally hundreds of options in the marketplace for tuning your engine, but essentially they’re all trying to do the same thing. Modern engines may have a lot of complexities, but when we get down to bare bones it always comes back to fuel and ignition.
There are plenty of options for tuning an engine, but broadly speaking they can be broken down into re-flashing the factory ECU (engine control unit or electronic control unit), or fitting a standalone engine management system, and I’ll explain what those terms mean now. Re-flashing is a technique where some smart people have decoded the mapping in the factory ECU and provided us with a software package that allows us to tune the ECU in a similar way to how the factory engineers do the job. Since you’re using the factory ECU for this method, there’s no need to cut or modify any wiring, which simplifies the job.

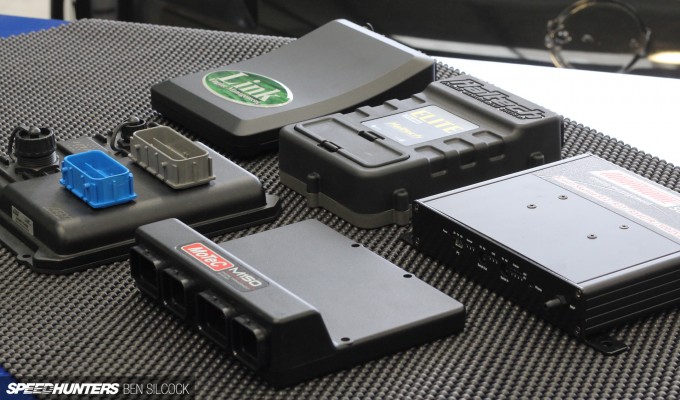

A standalone ECU on the other hand has been designed from scratch specifically to provide complete control over the engine tuning. Standalone ECUs are available from a wide range of manufacturers and are developed with the ability to control almost any engine you can think of. Some are designed as a plug-in replacement for the factory ECU and use all of the factory wiring and sensors, while others need to be wired to your engine and may require additional sensors.
The Pros & ConsSo here begins the confusion… In many popular cars you may have the option of using either type of tuning solution – re-flashing or a standalone ECU. So which is the best and which should you choose? The hard part is that there isn’t always a clear-cut answer as to which is the best option. Often you can get similar results using either option, which is even more confusing. And contrary to what many think, one brand of ECU won’t necessarily make any more power than another. If you’re supplying the same amount of fuel and ignition timing then the power will be the same – there’s no magic here. The key to choosing is properly understanding the pros and cons of each option and weighing these up against your requirements.

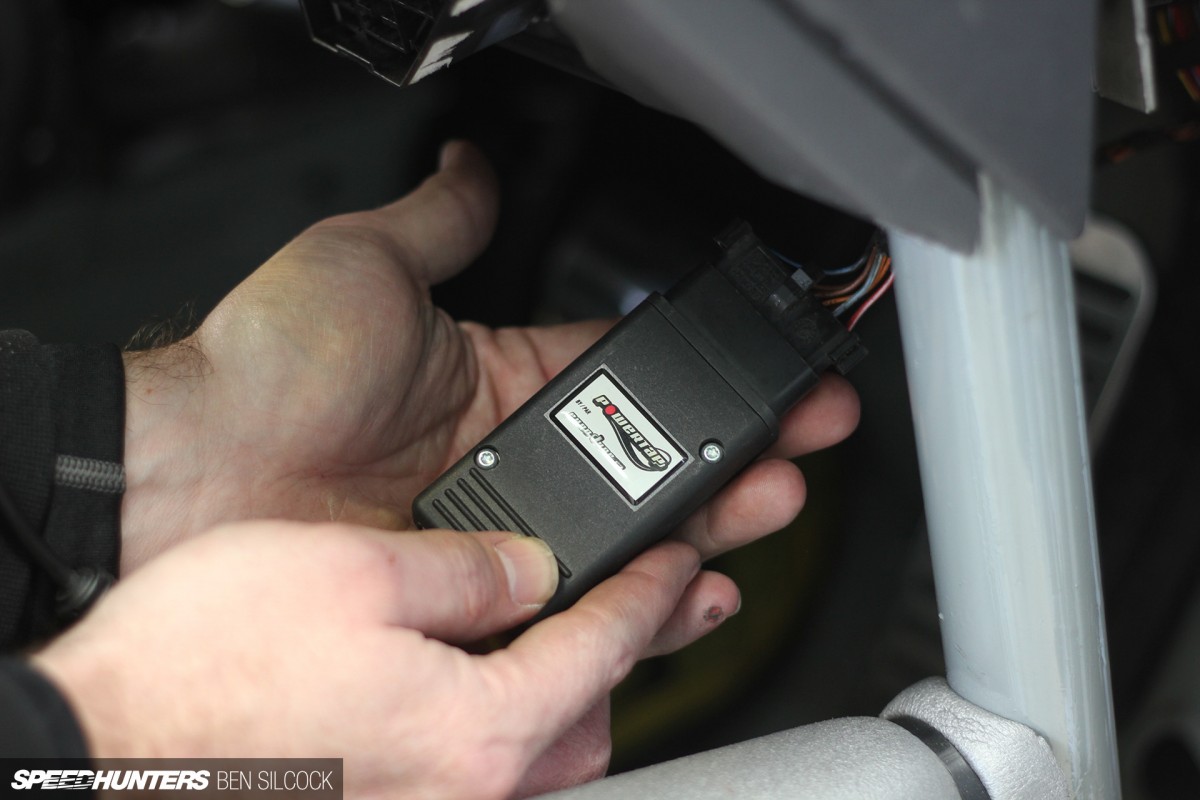

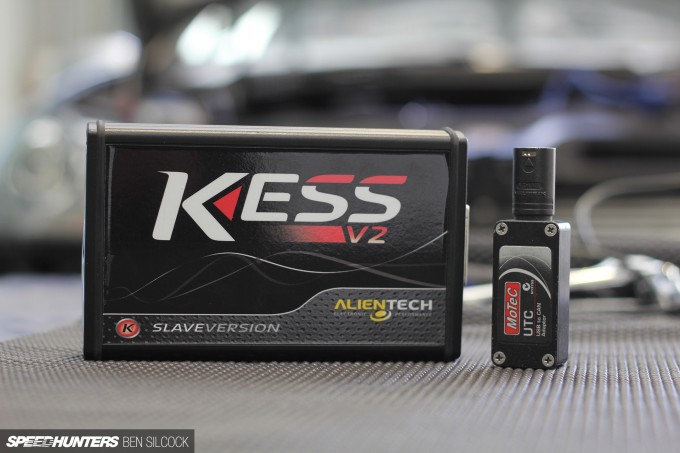

When it comes to the cleanest and most cost-effective solution, re-flashing the factory ECU is an easy winner. Re-mapping the engine can be done by plugging a special cable into the OBD-II port, and from there the maps can be read out of the ECU, modified as needed and then ‘flashed’ back in. Re-flashing is an option for many cars produced from about the year 2000 onwards, but not every car in production is supported.
In the past, a big drawback with re-flashing was the limitations of the stock ECU’s design, and if you wanted functions that weren’t included in the factory ECU you were out of luck. Development in the re-flashing industry has been feverish though, and there are a number of smart people and companies out there who have hacked the factory ECU code to add extra features or support not normally available. I’m talking about supporting the addition of a turbocharger to a naturally aspirated engine, flat shifting, multiple maps, flex-fuel support and more. There’s almost no limit to what can be achieved with the stock ECU in the right hands. As an example of that, several people in the Mitsubishi Lancer Evo tuning community have exceeded 1000whp on a stock ECU.
Re-flashing is also becoming more and more popular on late-model cars as the integration of all the vehicle electronics becomes more complex. In fact, with some late-model cars it may be your only viable option. Read my last article for a bit more insight as to why it’s getting harder to fit a standalone ECU these days.
But there are some downsides. In most cases, making changes to the tuning with re-flashing isn’t something that’s done live. This means you can’t make a change to the fuel or ignition timing and instantly see the results like you can with a standalone ECU. Instead, the changes are made to the map and then the engine is shut down and the modified map is flashed back into the ECU. This in itself is a time consuming process, which can take anywhere from a minute through to 15 minutes or more to perform. Understandably, if you’re making very large changes to the entire map, then the tuning process can take a very long time.
If you have questions, support from a manufacturer may also be variable depending on the product you’re using. If it’s a professional re-flash product such as COBB, EcuTek, HP Tuners or EFI Live, then customer support is available. Many people in the Mitsubishi and Subaru communities are using open source (freely available) software for re-flashing, which is great from a cost perspective, but often support is lacking, meaning hours of trawling internet forums searching for answers.

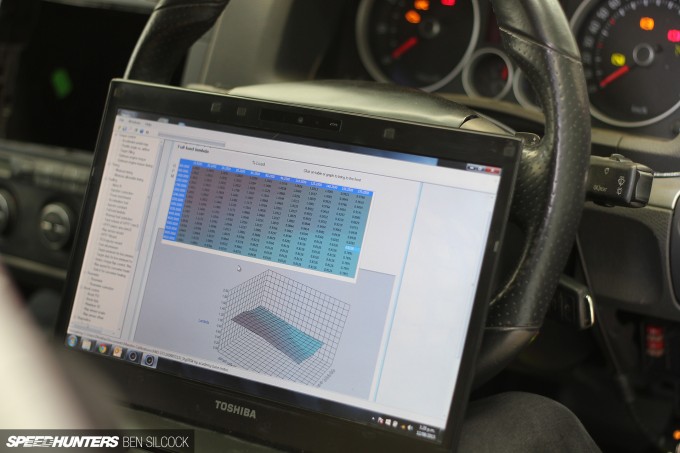

In comparison to re-flashing, a standalone ECU can be tuned in real-time, which means when you make a change and press enter, you can instantly see the results of that change. This makes it much faster to optimise the tune as you’ll immediately know if you’re heading in the right direction. Since a standalone ECU isn’t restricted by the stock ECU, wiring or sensors, it’s also easy to add additional sensors. Many standalone ECUs will also offer advanced functions such as on-board data logging and motorsport features like launch control, anti-lag and traction control. Lastly, if you have any problems, you can jump on the phone and get advice directly from the company that manufactured the ECU.
So which way should you go? Sadly there isn’t a single rule that I can write here that will cover every application – and I really wish there was. But I can share with you some of my own experiences with both options…
If you’re only considering some minor modifications like an exhaust and air intake, then the answer is simple – a re-flash is what you need. You’ll get to make the most of your new parts for a reasonably low outlay, and you can be sure that the car is still going to do everything it did when it was standard – start well from cold, control idle speed and offer perfect driveability.
If on the other hand you’re looking at building a serious race car then I’d be much more inclined to suggest a standalone ECU. Yes, often it is possible to get away with running a modified engine on a stock ECU, but more often than not there is no real advantage in doing so. The cost savings over a top-shelf standalone system ends up being almost insignificant in the bigger scheme of a maximum-effort build, and they are much faster to tune. A standalone ECU nicely integrates all the advanced motorsport features you could hope for, along with live real-time tuning and advanced data analysis, and this can be invaluable on the track.
If you’re somewhere in the middle of these two options then things can be a little murkier. In this situation the decision might be better made based on the person who is going to do the tuning. Basic re-flashing to suit simple modifications is relatively straightforward and most competent tuners can achieve a great result. If you’re getting serious though, and looking at perhaps adding 50 per cent or more to your engine power, then the job becomes more complex and a strong knowledge of the system you’re working with is essential. Unlike an aftermarket ECU, the inner workings of a factory ECU can be very complex, and depending on the re-flash software being used manufacturer support may be non-existent, hence making it more challenging to get a great result.
The other consideration is what other features you want from your engine. Motorsport features such as launch control, traction control and anti-lag may not be possible with some re-flash software, or may be pretty primitive in their ability.
The scenario you want to avoid is investing a lot of time and money into getting your tune right with re-flashing, only to eventually realise that you were operating beyond the limits of the ECU and end up with a second-rate result. I have seen this more often where a customer has started down the modification path with a few simple bolt-on additions backed up by a re-flash, only to go nuts later and end up swapping to a standalone ECU. If you can think really seriously about your long-term plans at the start of a project, this can help you make the right choice at the start, and ultimately you’ll save money and end up with a better result.
As with many things in the world of modified cars, our options aren’t always completely clear and obvious when it comes to tuning. If you’ve still got questions, ask them in the comments section below and I’ll do my best to help you out.
Andre Simon
Instagram: hpa101
Website: www.learntotune.com
Images by Ben Silcock
OFFICIAL SPEEDHUNTERS SUPPLIERS
*uploading pics in the back end of my new stand alone ECU*
Well that was good timing!
*uploading pics in the back end of my new stand alone ECU*
Well that was good timing!
*uploading pics in the back end of my new stand alone ECU*
Well that was good timing!
Would a standalone ECU be a good idea in the case of a AE92 Corolla with a carbbed 4A if it's gonna be converted to injection?
Depends on the scenario. In not familiar with the Toyota options but I run an 80 vw pickup on carbs. If I want to change back to injection i could use one of the factory systems available to that era or a stand alone. If I was upgrading the engine for max performance I'd want stand alone. If I simply wanted to get rid of the carb I'd just put the factory digi back on as it can handle the stock configuration and can be pulled or bought for a much lower cost. Just have to do homework on what is available from factory and if it will support where you want to end up.
Great article. I'm loving the reflashes I've gotten on my GTI, Can't wait to do another after a turbo upgrade.
Any chance of getting a story on that mkv GTI in the pics? Looks like a sweet oem plus race car build.. never seen a rear diffuser like that.
CescNavarroMartin Pretty good stock ECU available for the 4A but make sure you get the right injectors to match it. There were both high and low impedance ones available depending on model and year. Quite confusing.
CescNavarroMartin megasquirt
CescNavarroMartin megasquirt
I live in Cincinnati OH, and spend a lot of time between here and Chicago. I also have family in Detroit. I am looking for a good BMW builder and tuner. I heard there are a few places in Chicago. I would really appreciate if anyone could point me in the right direction. Thank you
I live in Cincinnati OH, and spend a lot of time between here and Chicago. I also have family in Detroit. I am looking for a good BMW builder and tuner. I heard there are a few places in Chicago. I would really appreciate if anyone could point me in the right direction. Thank you
Mworks garage here in cincy, it's brian cains sho
MIKRI MAUS Find RKtunes. He can handle almost anything BMW for tuning with good customer service.
MIKRI MAUS Find RKtunes. He can handle almost anything BMW for tuning with good customer service.
Stand alone ECUs for late model are lagging behind with direct injection support. I can count on one had how many aftermarket ECUs can handle DI, and cars with DI still have a lot of complex nannies that haven't been figured out yet for extreme tuning.
Good stuff! Thanks for the info!!!!
ANOTHER KNOWLEDGE BOOST!!!! YES! KEEP EM COMING PLEASE!
stand alone all the time...we are wiring and tuning every year minim 2-3 dozen and the customers are all happy...
quality starts at pectel, liferacing ans syvecs
ps. power does change from one ecu to the other, mastly in racing conditions where prediction and real accuracy makes a difference, on the dyno there is plenty of time for a consecvent afr and advance, but on a racetrack things change.
Awesome article, great read. Could someone with a good eye tell me what kind of wheels are on that golf?
MIKRI MAUS check out fluidmotorunion
The diffuser on that VW makes it looks like it didn't make it to the bathroom on time.
The diffuser on that VW makes it looks like it didn't make it to the bathroom on time.
I'd like to see a comparison between Pro EFI, AEM INFINITY and Haltech ELITE.
whats the best??
I'd like to see a comparison between Pro EFI, AEM INFINITY and Haltech ELITE.
whats the best??
TarikLaaraj trying to pick a 'best' is difficult when you're comparing a few ECUs that are in the same sort of price point and share similar spec lists. Basically the answer is that all three ECUs are excellent and will do a great job of running most engines. I recommend starting by listing what features you need for your project, as well as how many inputs and outputs you will be using. This will then make sure the ECU you choose will do what you need it to do.
Beyond the basics though, particularly if you're using a tuning shop to do the tuning, I'd always recommend going with an ECU they are familiar with. This way they're likely to get the best results in the fastest time and they will know all the little tricks, tips and time savers for their particular ECU of choice.
TarikLaaraj trying to pick a 'best' is difficult when you're comparing a few ECUs that are in the same sort of price point and share similar spec lists. Basically the answer is that all three ECUs are excellent and will do a great job of running most engines. I recommend starting by listing what features you need for your project, as well as how many inputs and outputs you will be using. This will then make sure the ECU you choose will do what you need it to do.
Beyond the basics though, particularly if you're using a tuning shop to do the tuning, I'd always recommend going with an ECU they are familiar with. This way they're likely to get the best results in the fastest time and they will know all the little tricks, tips and time savers for their particular ECU of choice.
Mattlubo I'll check with the owner and reply after the weekend for you
xracer6 No problem! Glad you enjoyed it
eVox You're right, DI support is still in its relative infancy in standalone ECUs. The tide is turning though with the likes of Life Racing and Motec among others now offering standalone DI ECUs. Often the complexity isn't actually in running the engine though as a lot of CAN bus decoding is needed to keep the rest of the vehicle systems operating as intended. This right now makes reflashing the most sensible option for a DI engine unless you're planning to strip it bare and build a dedicated race car.

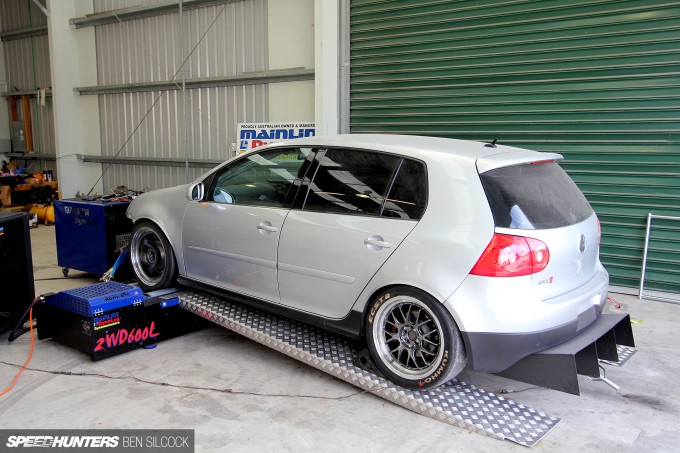

KootenayDub the Golf pictured is being built up as an endurance race car to compete in 1 hour and 3 hour endurance races. It's a tidy car but might fall a little short of SH feature worthiness I'm afraid
