Project LS Gets A Custom Exhaust

After introducing Project LS to the SH Garage last month, my newly-acquired Lexus is now well on its way to being converted from an ugly old tank, to something still old, but better looking and vastly improved all round. First on the list was a brand new custom exhaust system.

An easy way to get the 1UZ-FE V8 up front sounding better in these cars is to simply cut out some of the (many) factory-fitted mufflers and replace them with sections of straight pipe. I could have done that – I don’t have a huge budget for this project after all – but I’d rather do the job properly. This is where Francois from FatBoy Fab Works comes into the picture.

stefan-kotze-speedhunters-lexus-ls400-exhaust (22)

Having seen the amazing custom work Francois did on his own V12 twin-turbo Toyota Hilux project (which I’ll be featuring soon), I knew he was the man for this job.

stefan-kotze-speedhunters-lexus-ls400-exhaust (27)

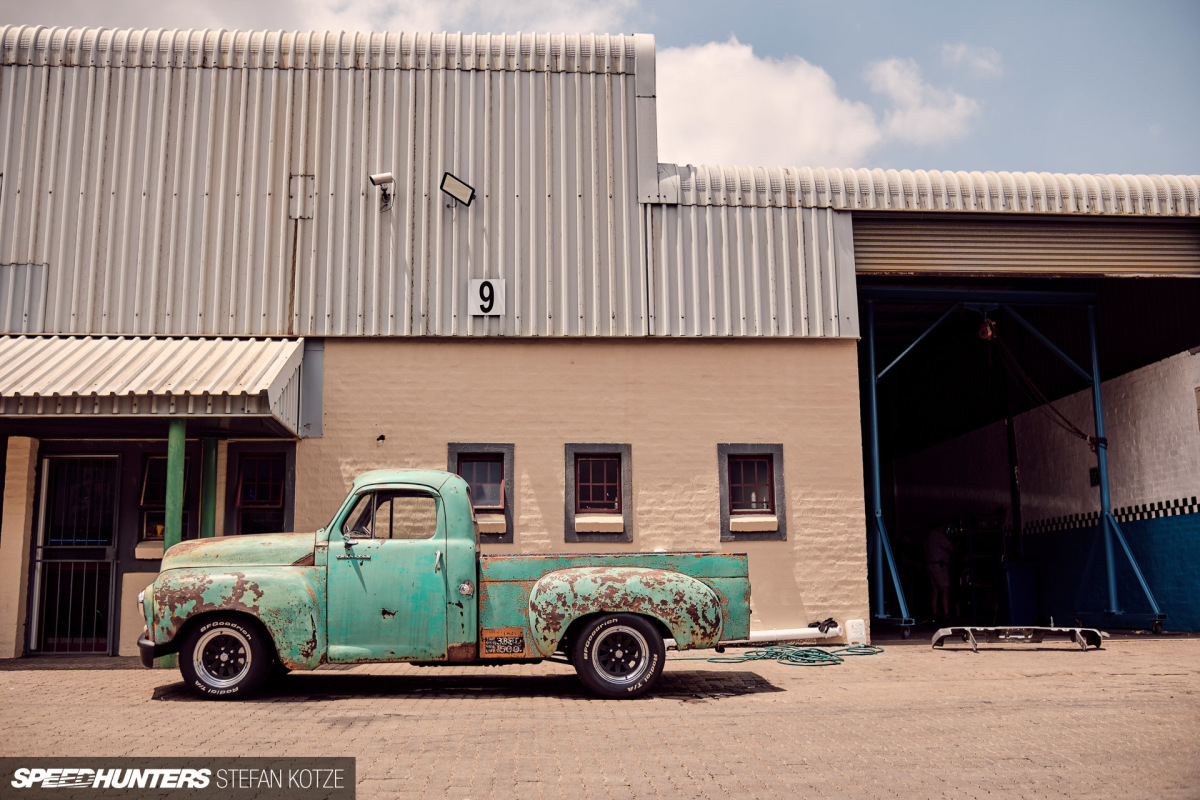

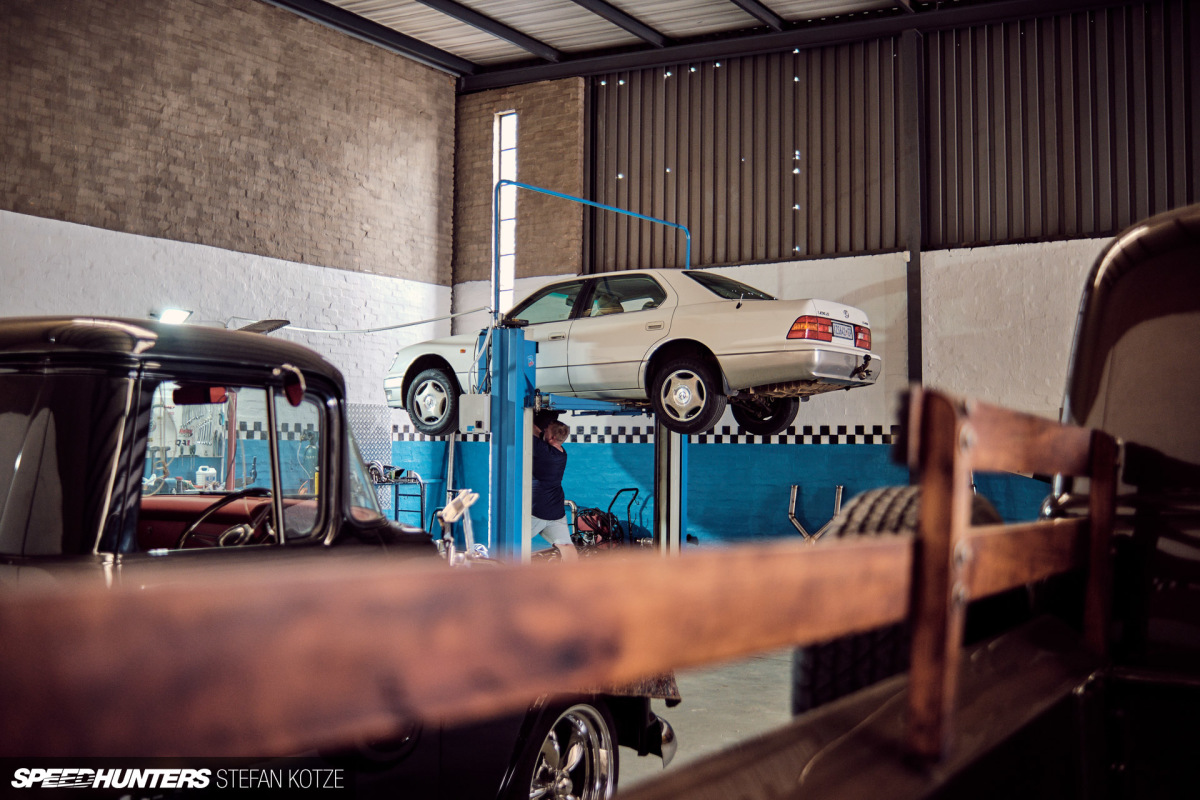

Francois usually works out of his own shop in Pretoria, but he builds so many exhausts and headers for the guys at McNabs Engineering, that he’s set up his own section in their shop, which is a lot closer to me. So that’s where we decided to complete the two-day custom exhaust build.

stefan-kotze-speedhunters-lexus-ls400-exhaust (21)

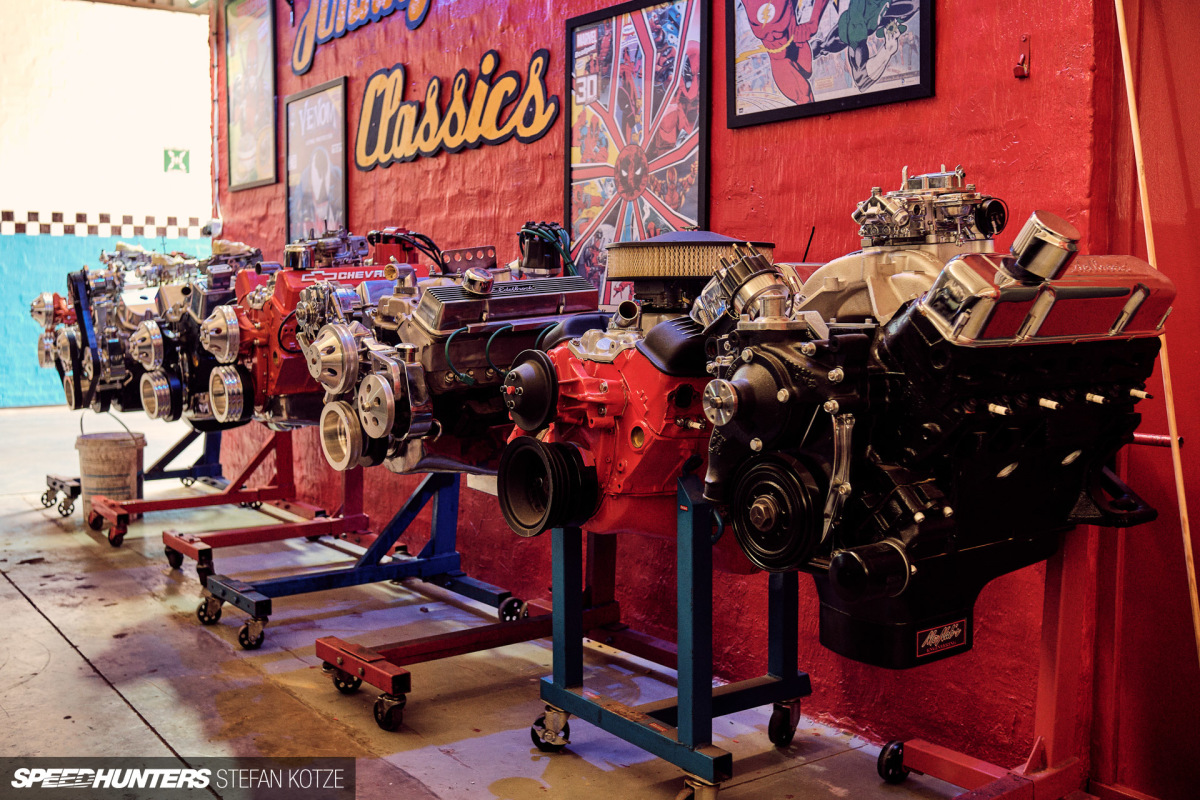

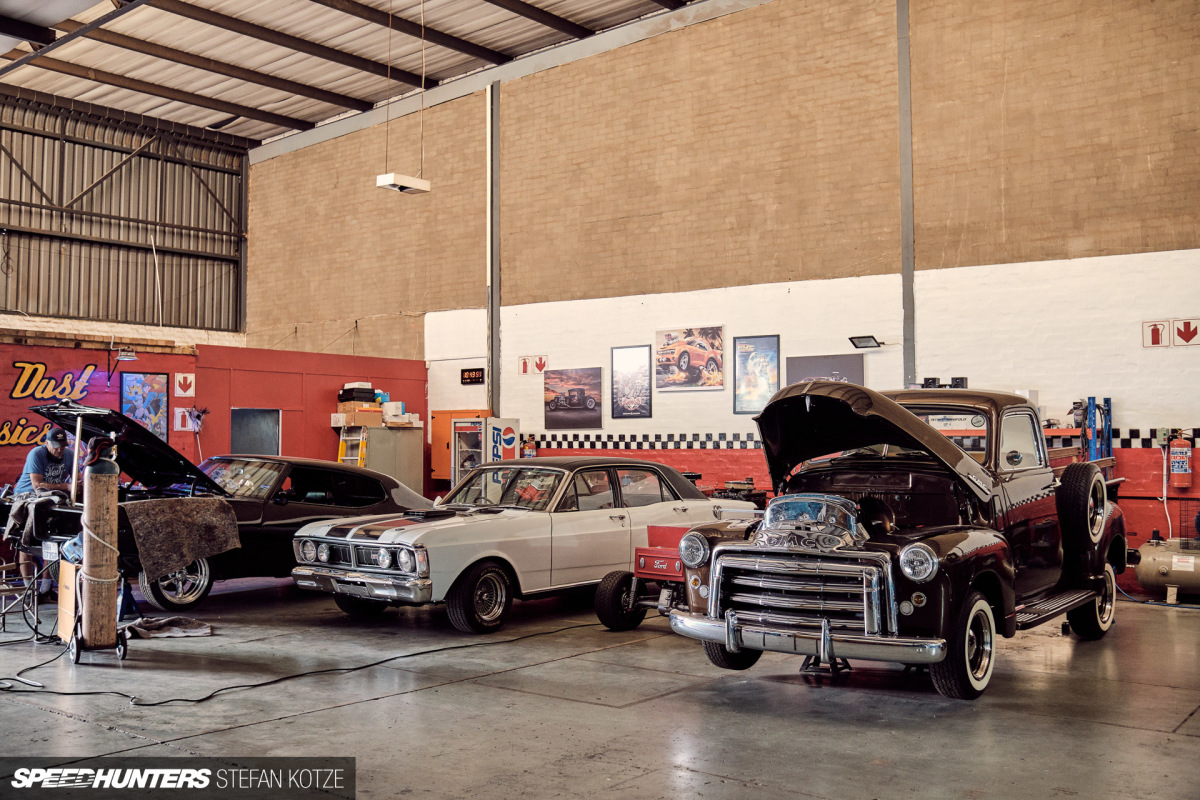

There’s some seriously cool old school muscle around the McNabs Engineering shop, so I certainly didn’t mind hanging around the place while Francois worked his magic.

stefan-kotze-speedhunters-lexus-ls400-exhaust (31)

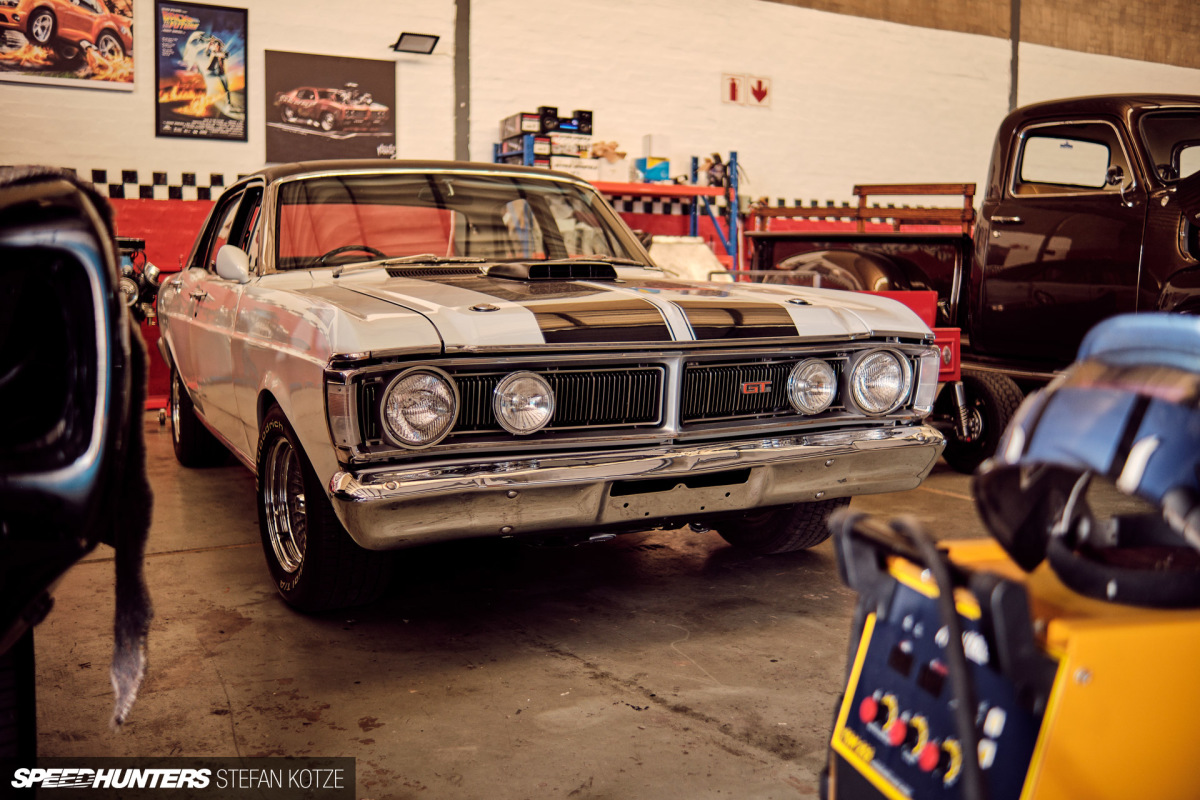

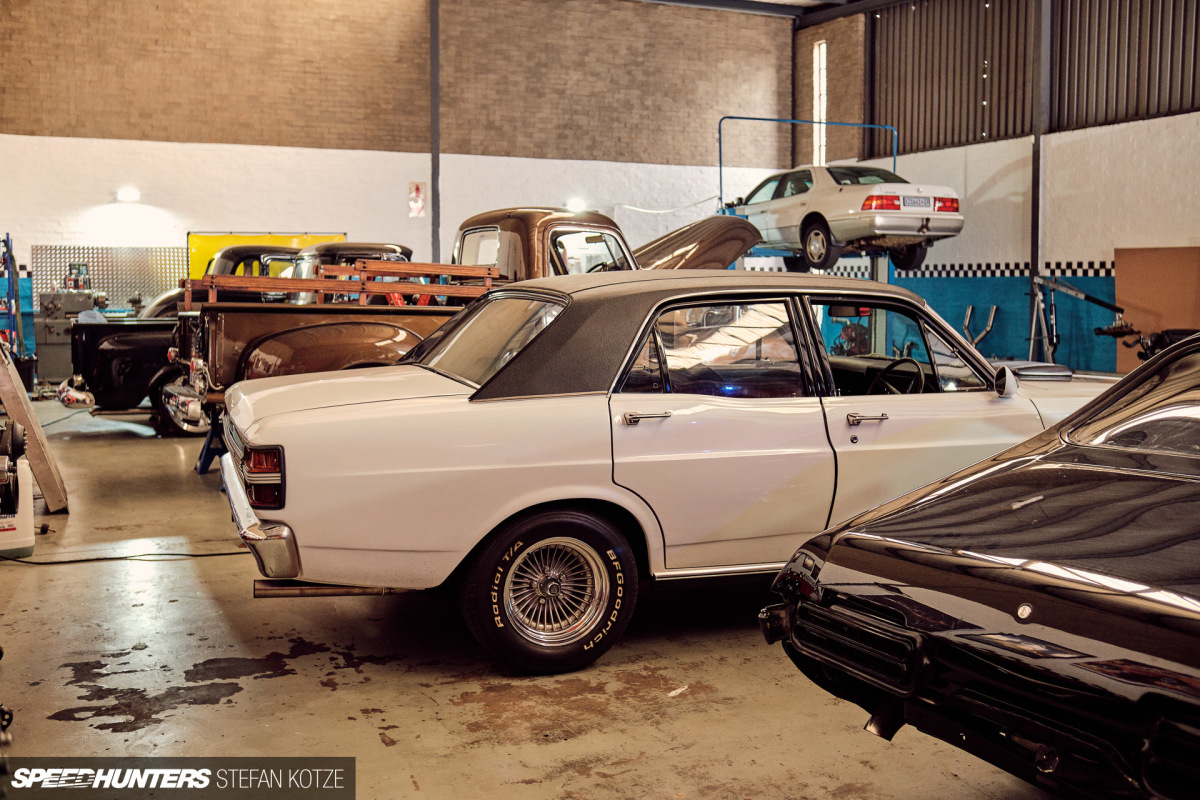

I’m quite sure that this Ford Fairmont GT will eventually be shipped back to Australia (the model was originally manufactured in Australia, but shipped to South Africa in CKD form for local assembly) as most of them have been exported in recent years.

stefan-kotze-speedhunters-lexus-ls400-exhaust (1)
stefan-kotze-speedhunters-lexus-ls400-exhaust (6)

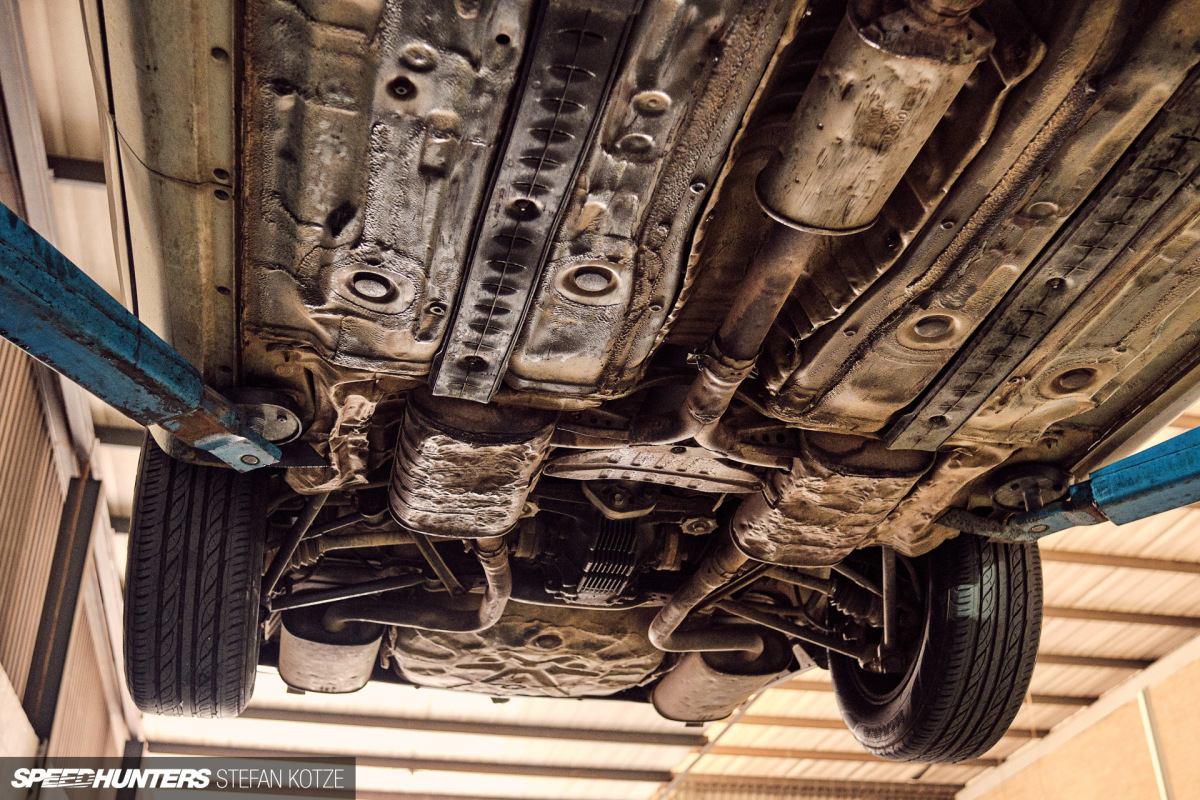

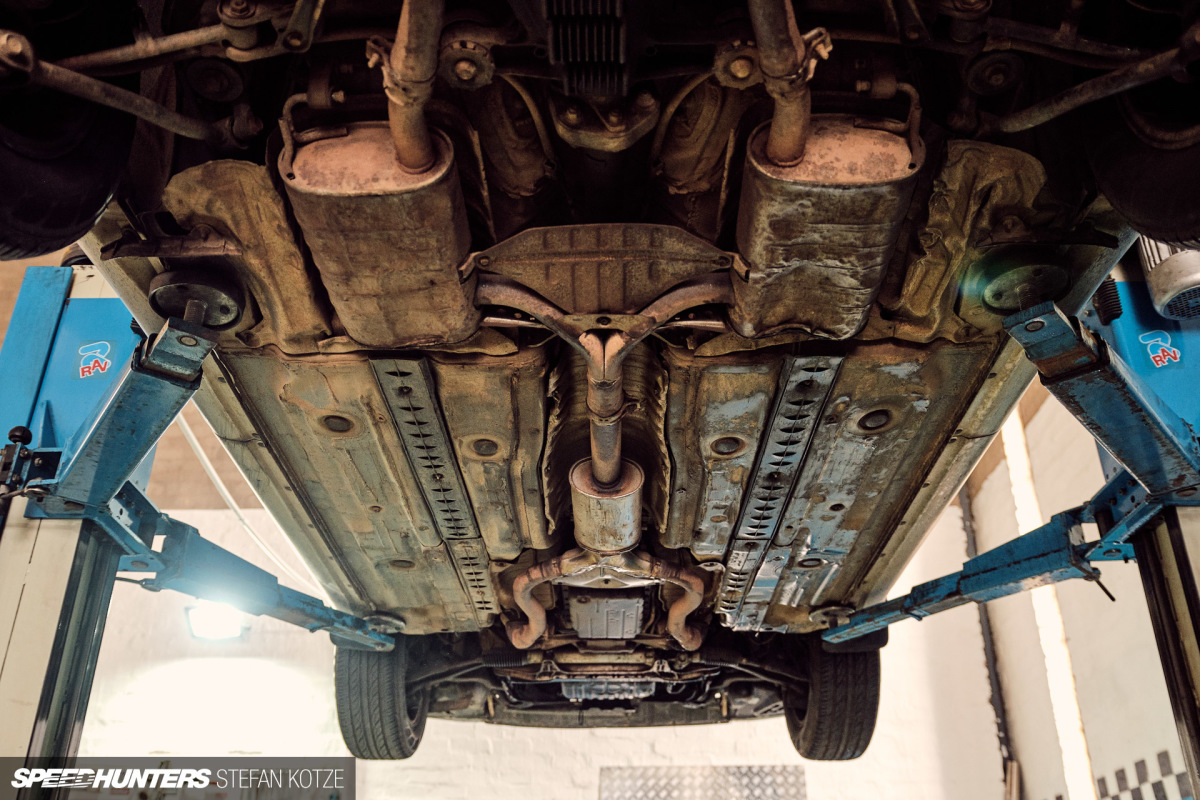

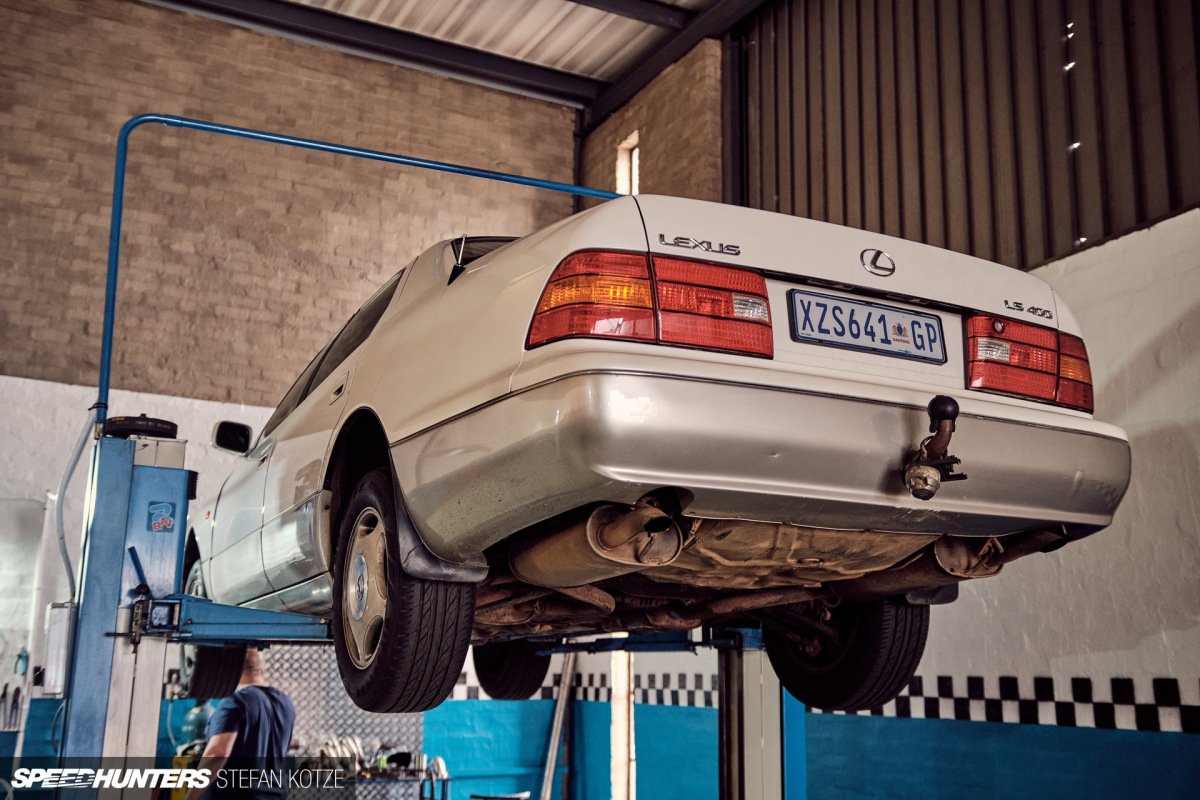

After salivating over all the classic metal around the shop for a while, Francois got my car onto the lift to instantly reveal just how badly beaten-up the exhaust was from 22 years and almost 300,000km of use. The rest of the underside was pretty filthy too.

stefan-kotze-speedhunters-lexus-ls400-exhaust (10)

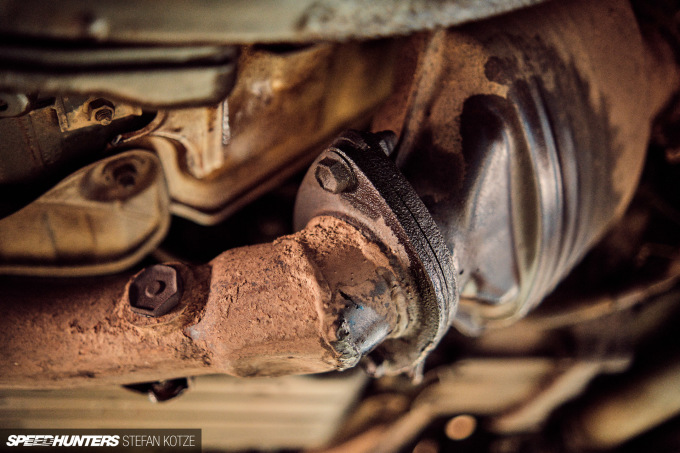

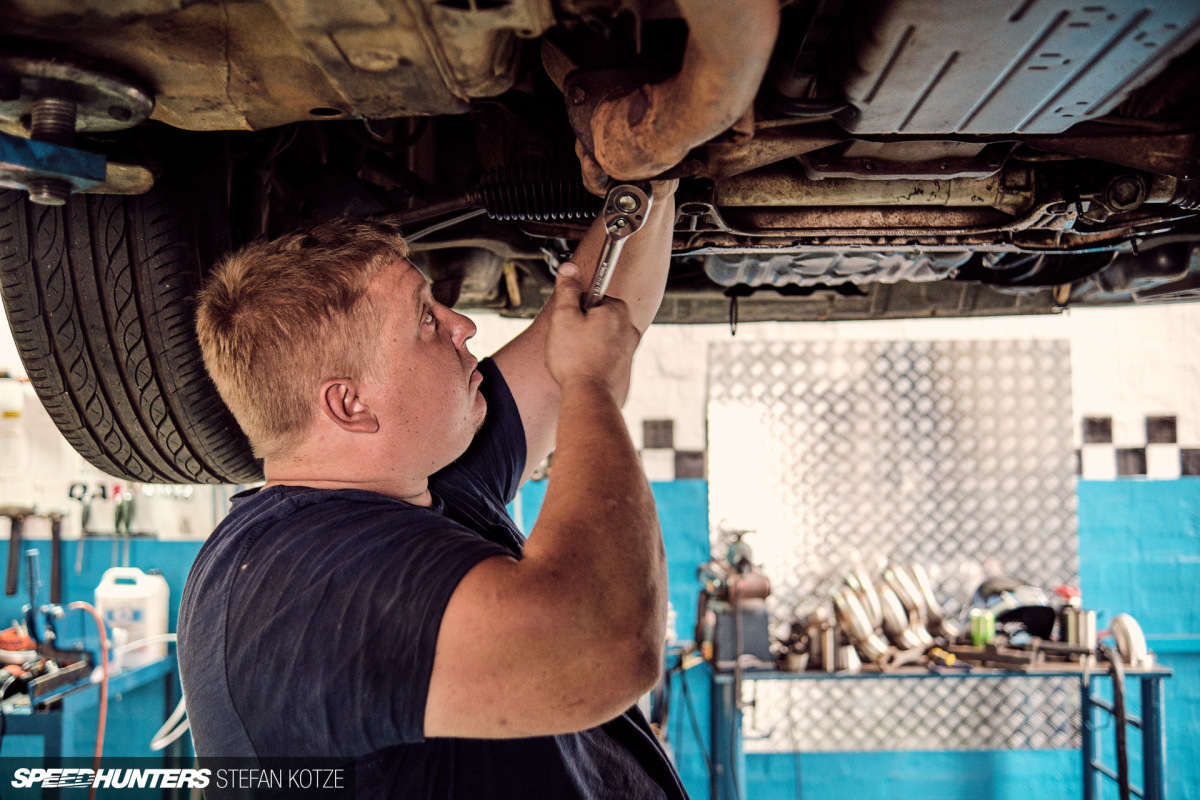

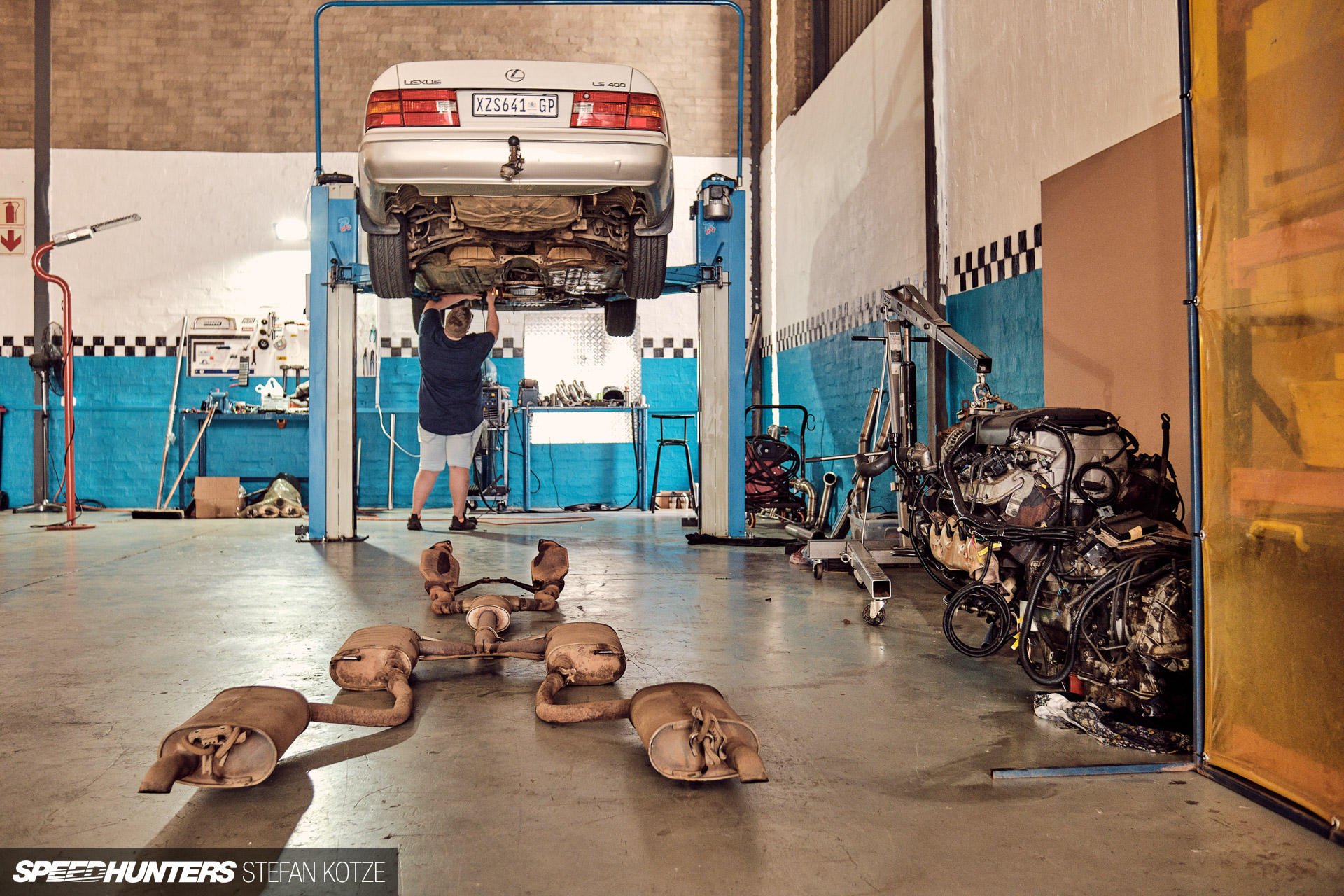

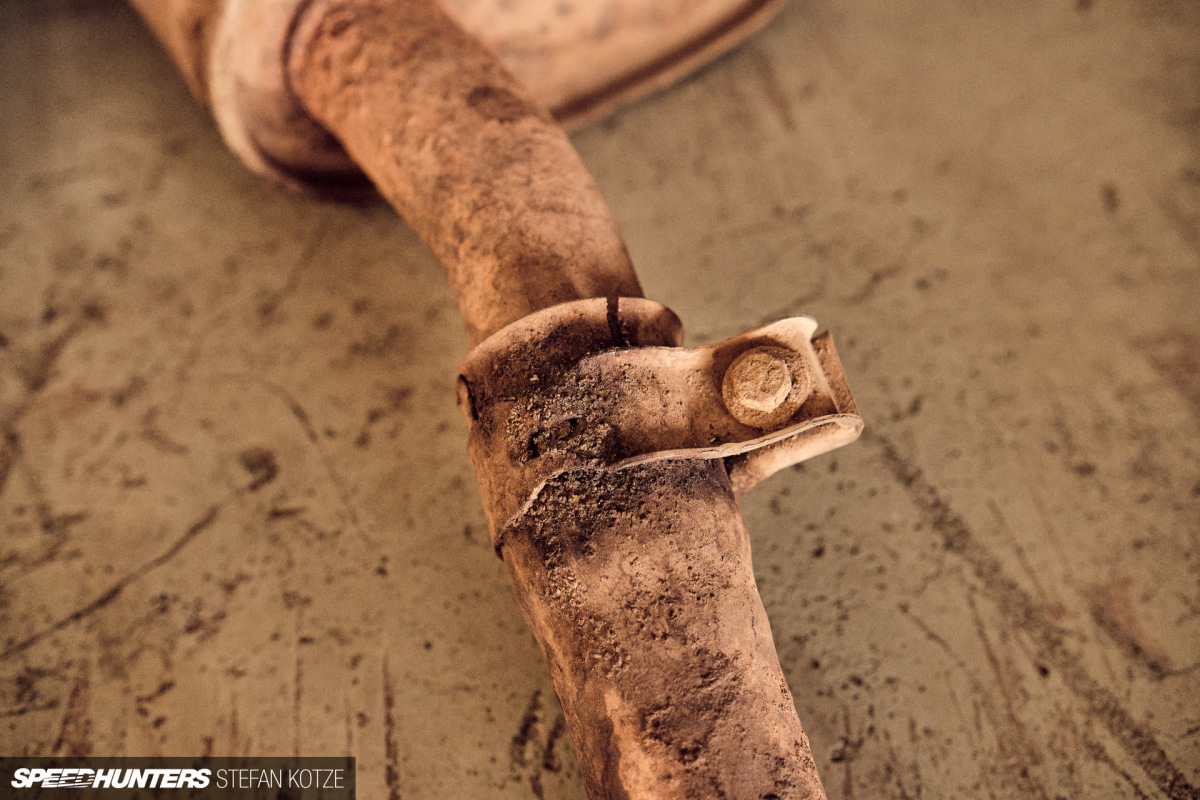

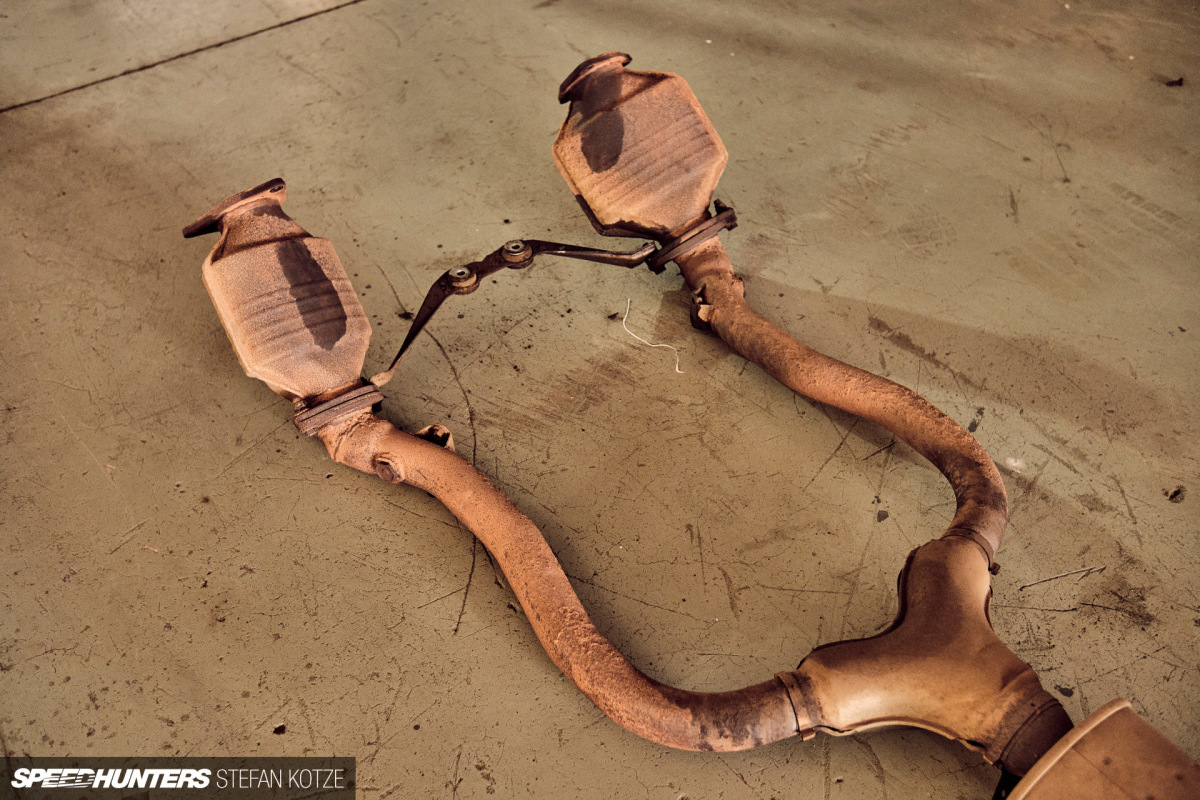

The exhaust system itself came off with relative ease, but the bolts on the manifold flange were seized tight. No matter what Francois tried, they couldn’t be wound out.

stefan-kotze-speedhunters-lexus-ls400-exhaust (12)
stefan-kotze-speedhunters-lexus-ls400-exhaust (11)

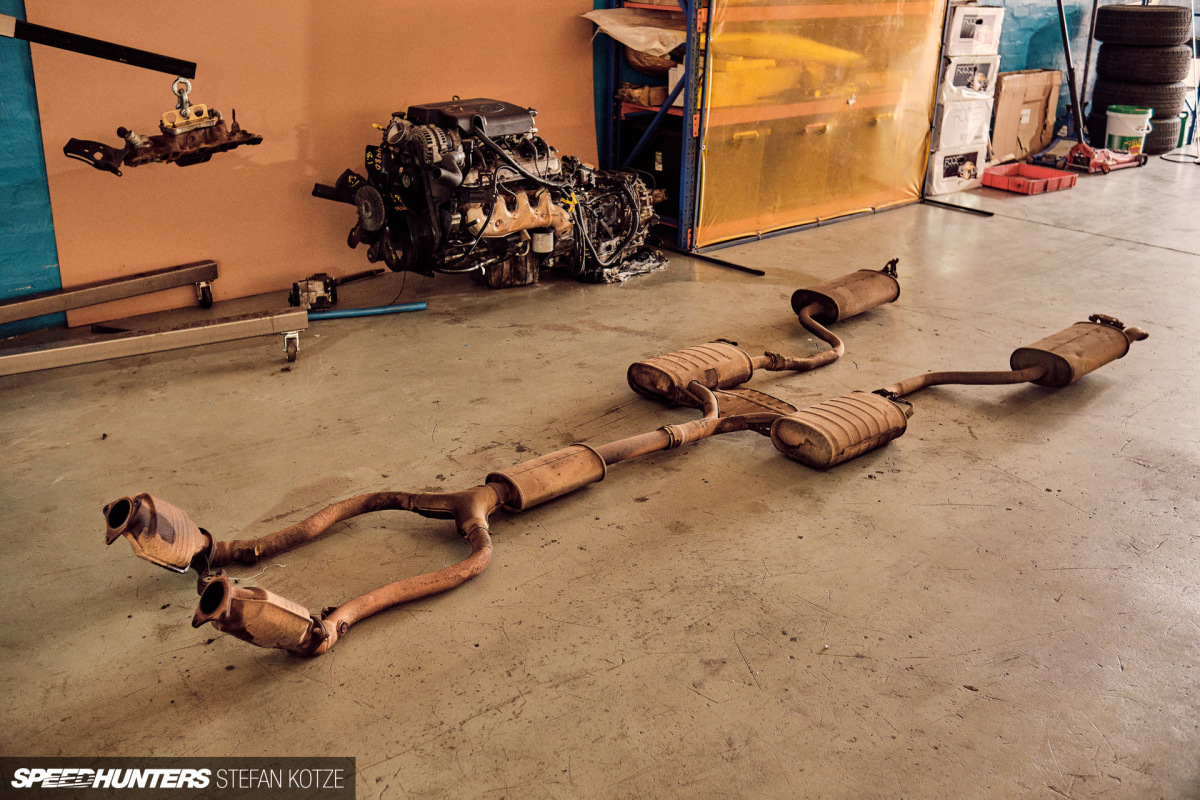

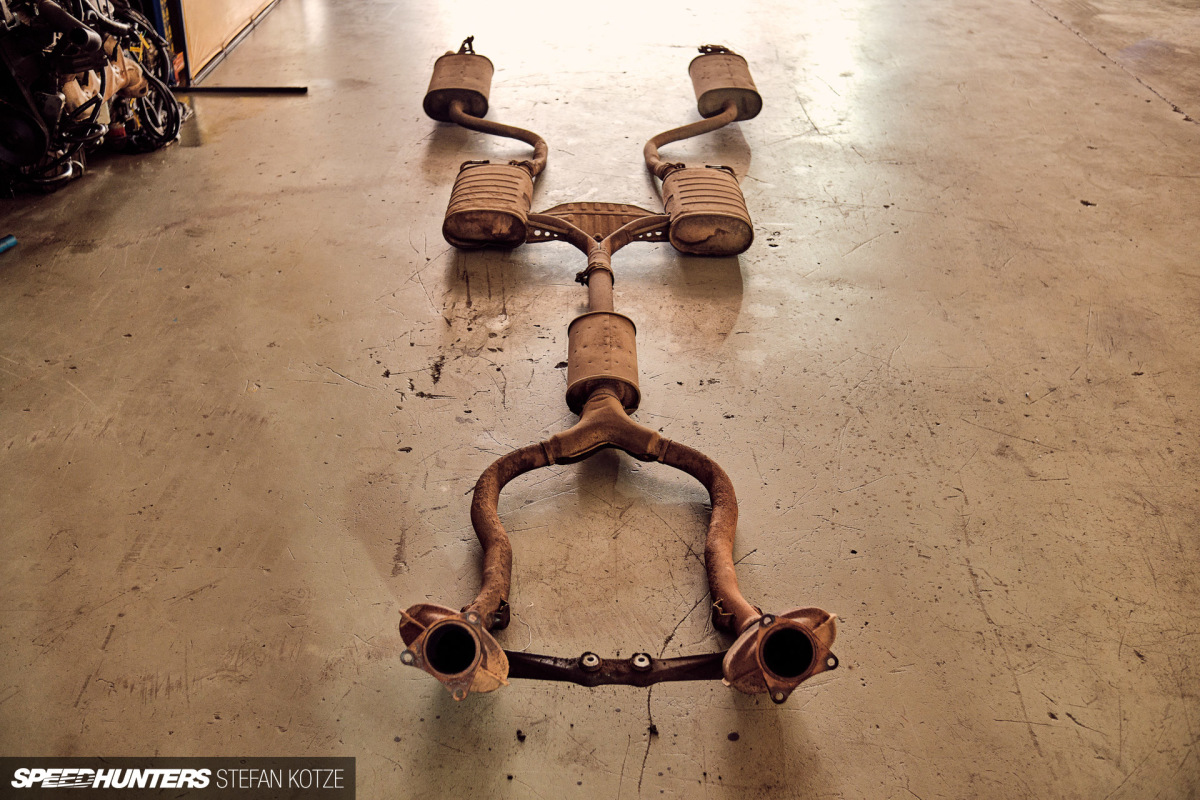

If you’re wondering how Lexus made the V8 in the LS 400 so quiet, here’s why…

stefan-kotze-speedhunters-lexus-ls400-exhaust (18)
stefan-kotze-speedhunters-lexus-ls400-exhaust (33)

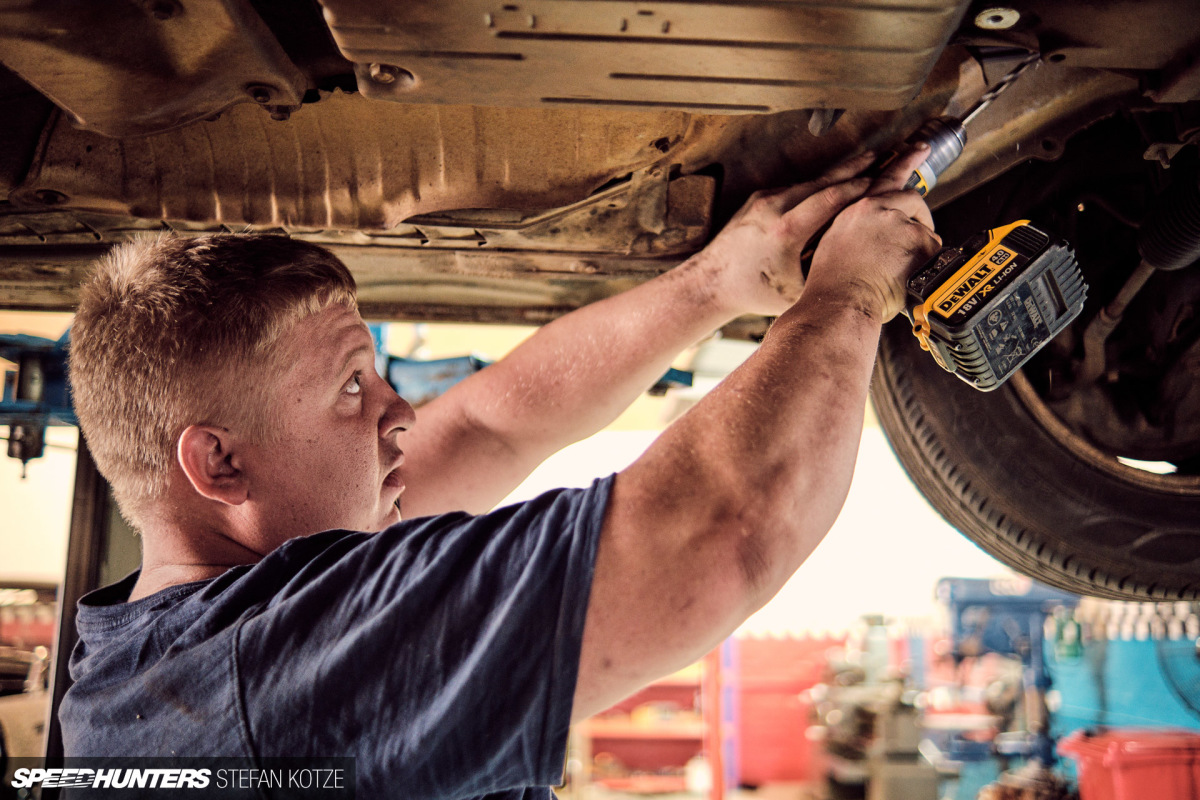

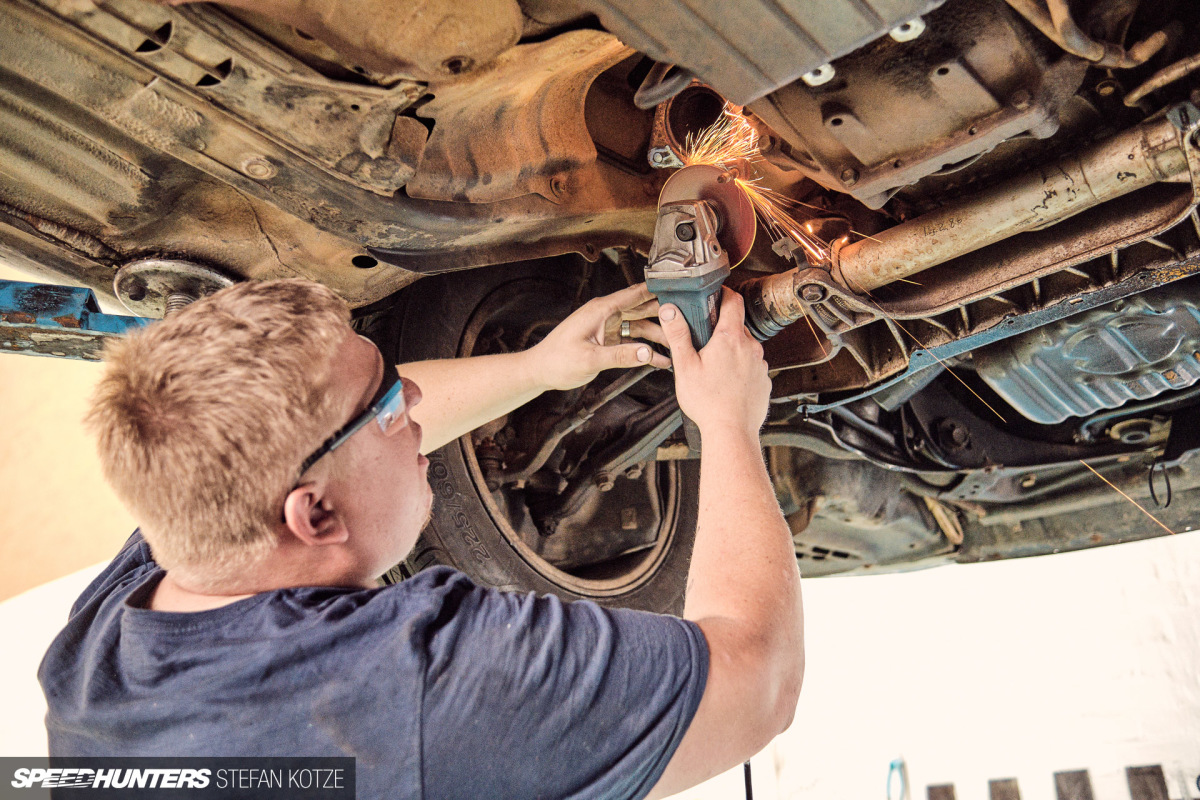

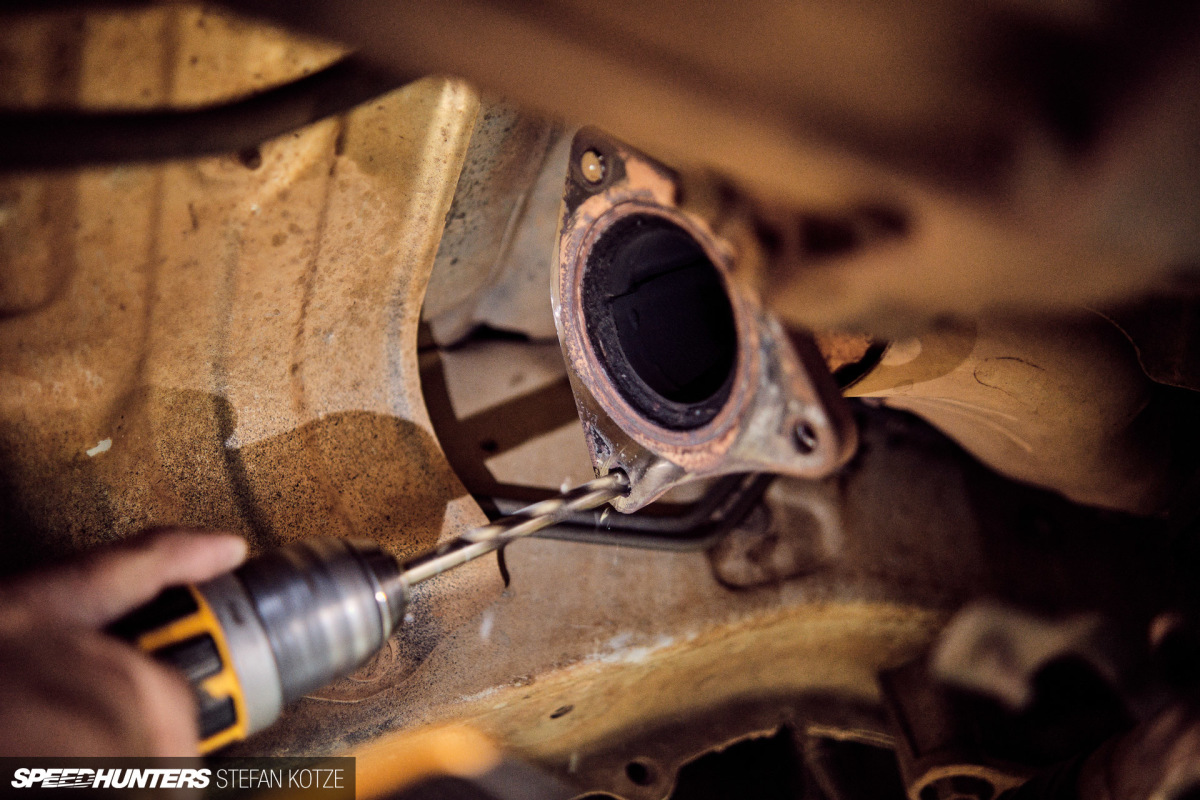

After hammering, drilling and grinding for longer than he’d care to remember, Francois finally got the bolts removed. Now he could start on the custom exhaust.

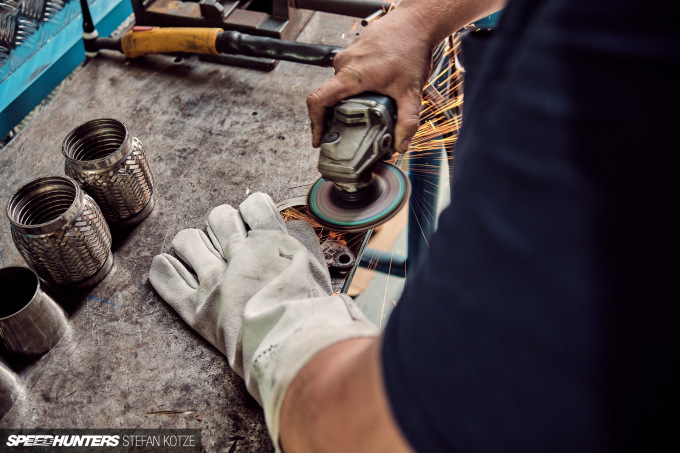

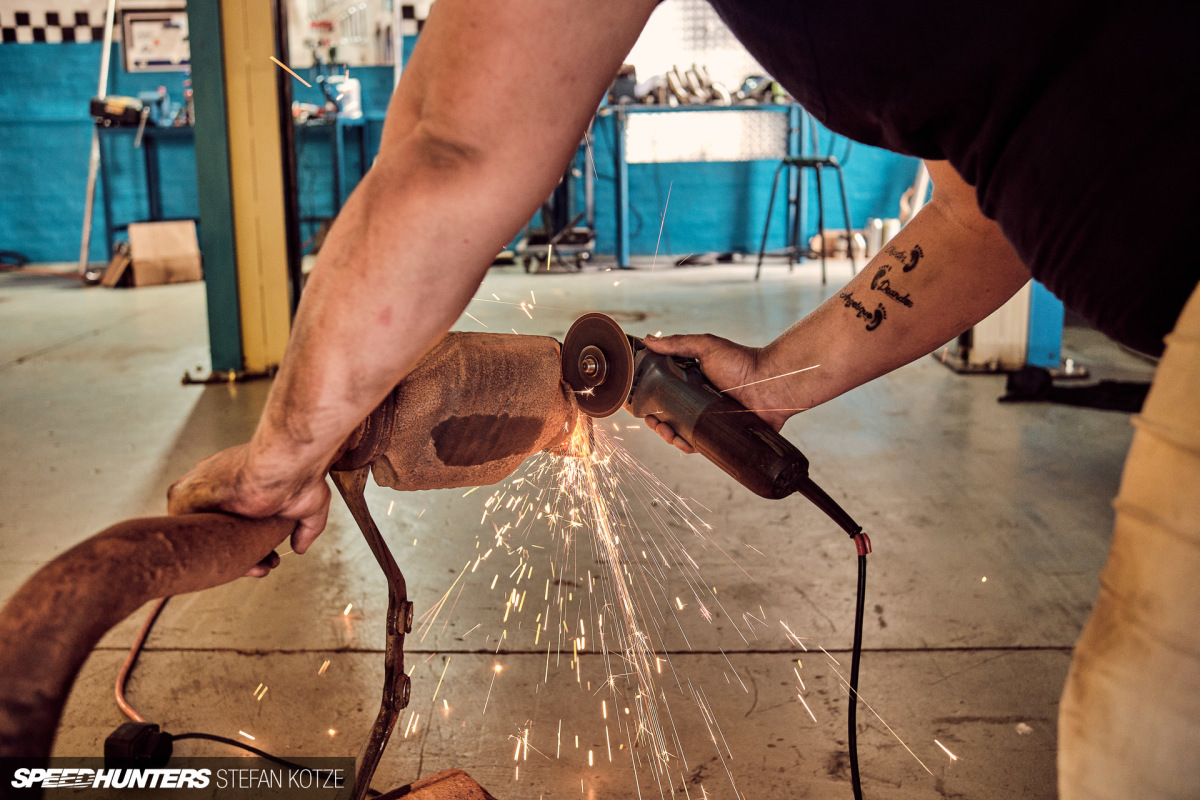

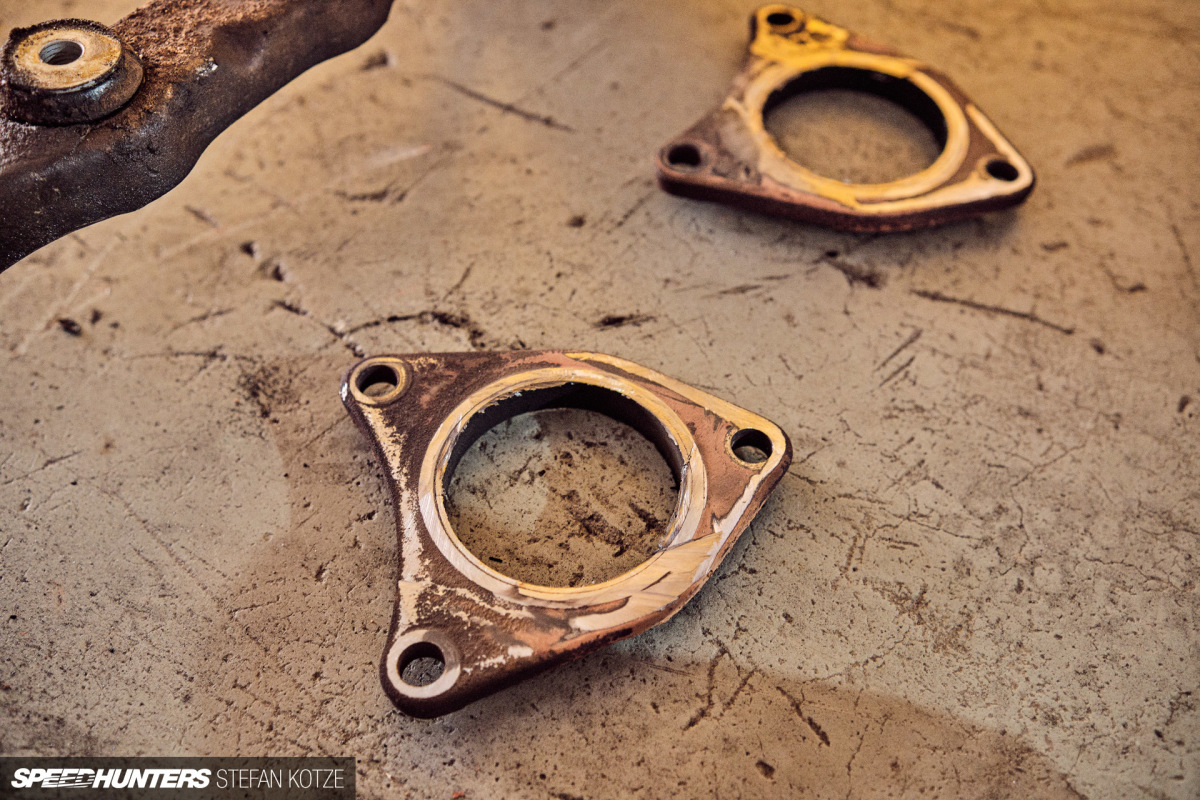

The first job was to cut the flanges off the original exhaust and clean then them up so they could be reused with the new system.

stefan-kotze-speedhunters-lexus-ls400-exhaust (45)

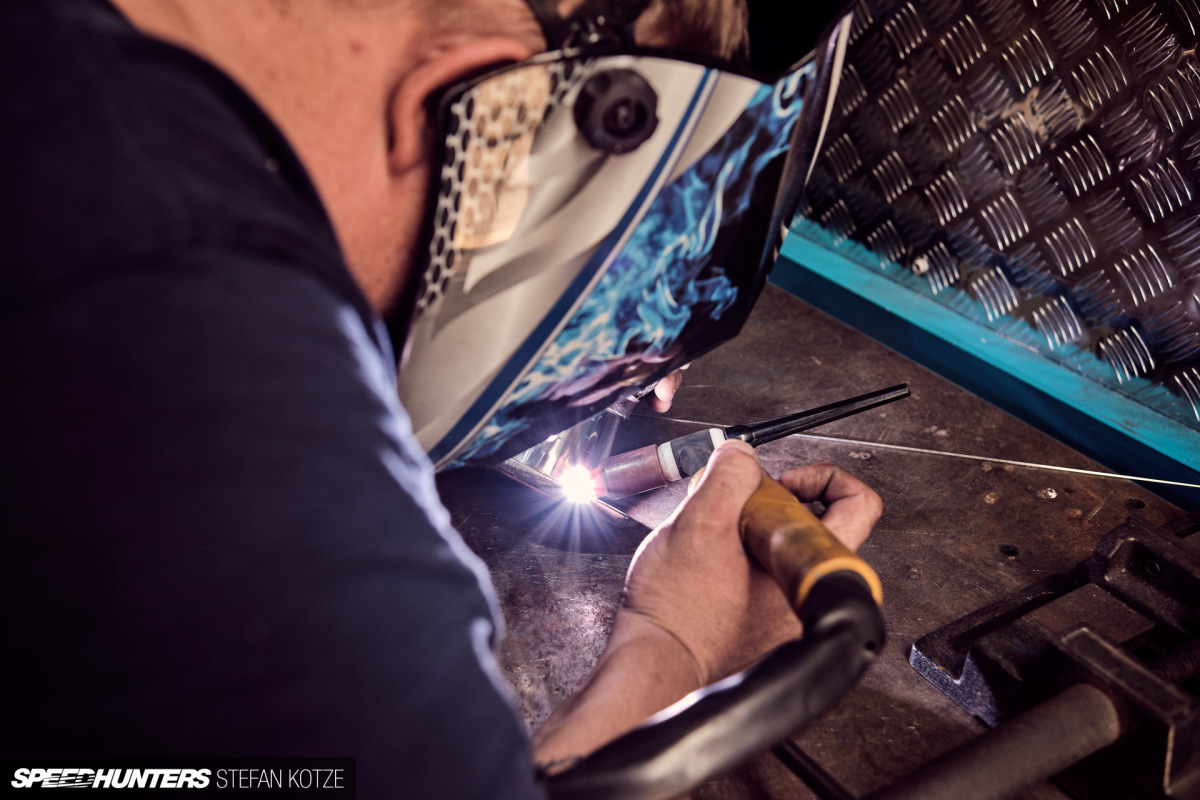

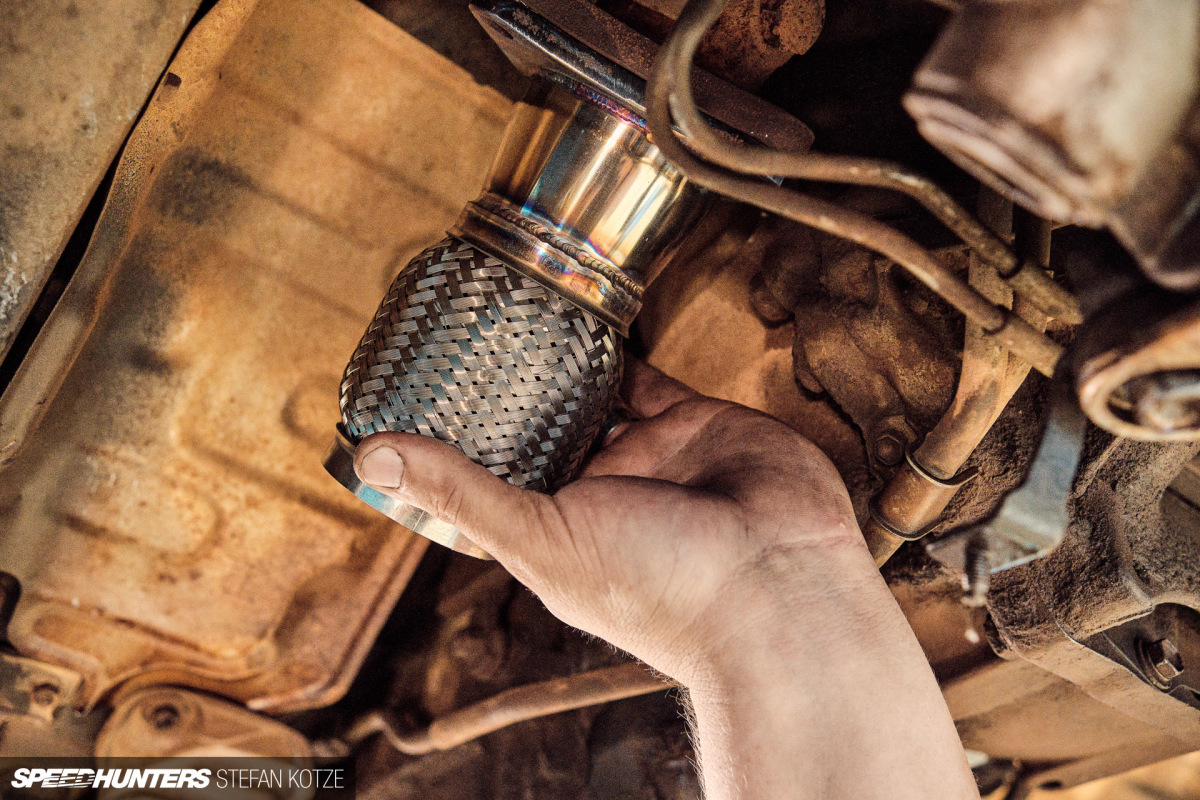

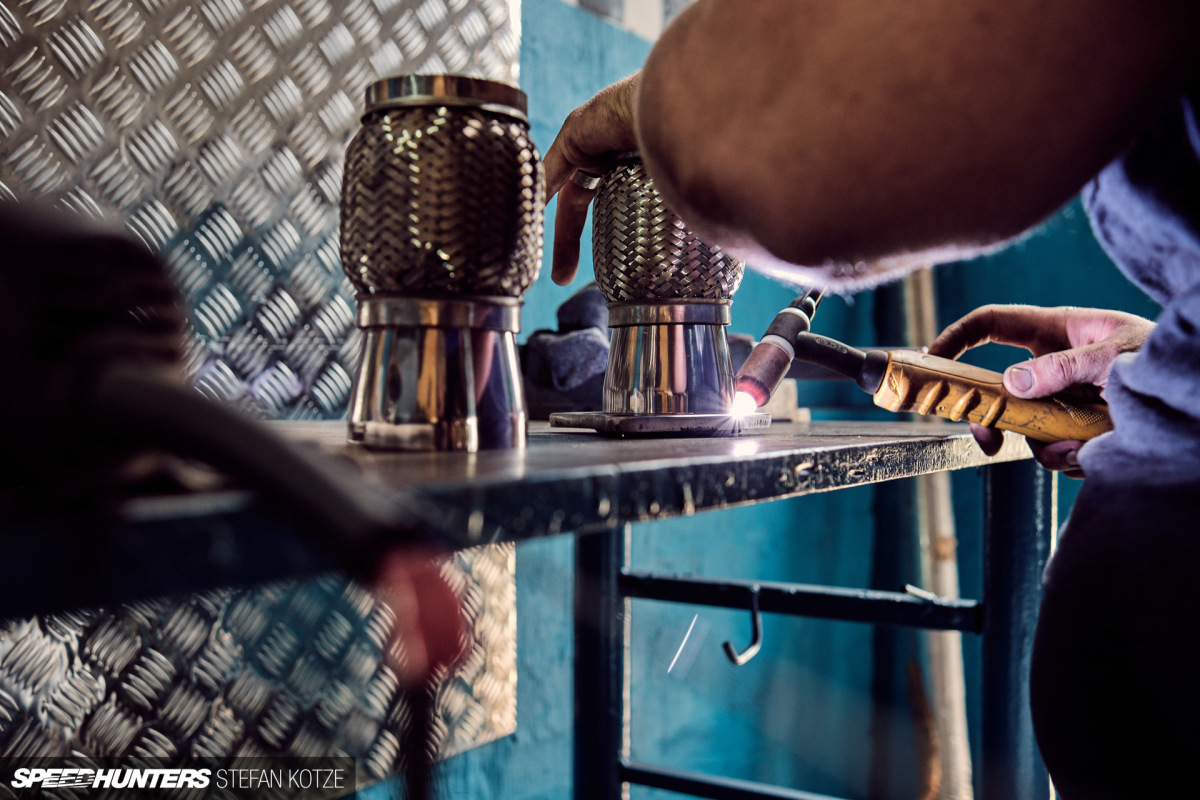

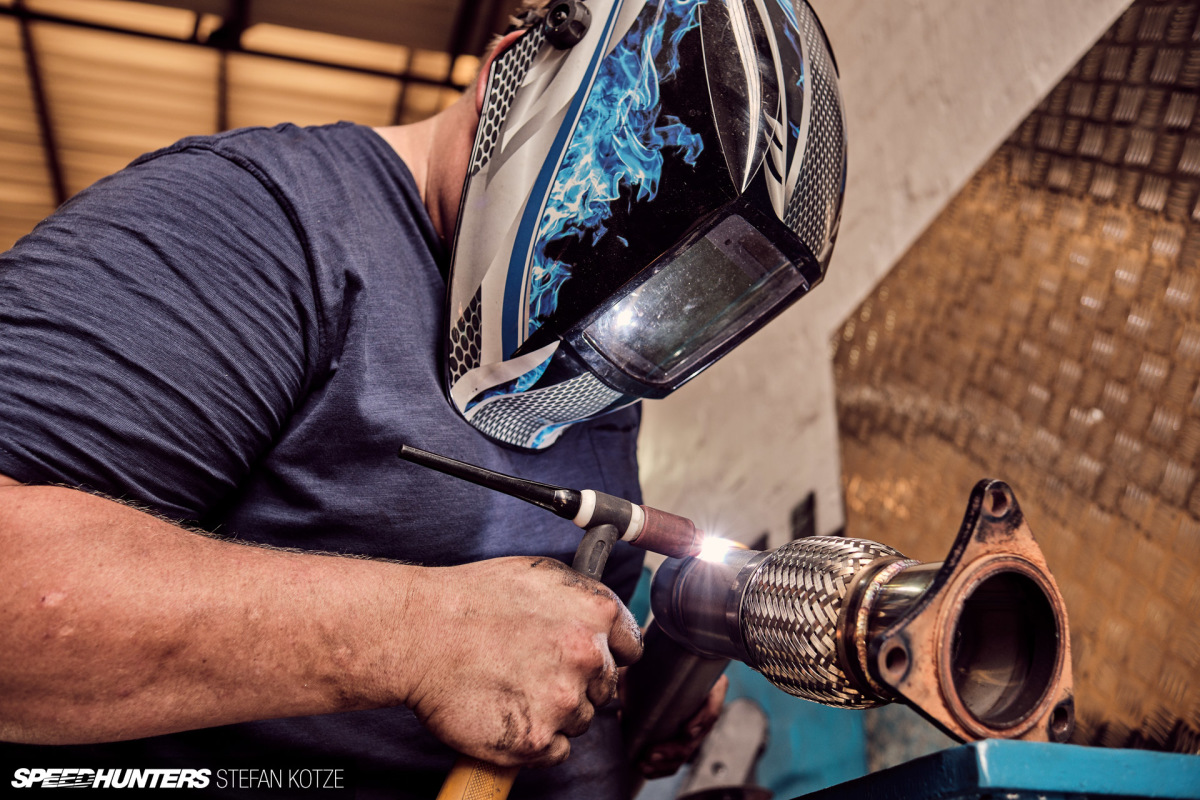

Francois then used his TIG welder to weld the flanges onto a pair of flexis.

Even though I tried to look away as much as possible, I had to take a peek here and there to be able to shoot the photos, resulting in mild arc eye for a couple of days. Trust me, that was not fun.

stefan-kotze-speedhunters-lexus-ls400-exhaust (48)
stefan-kotze-speedhunters-lexus-ls400-exhaust (50)

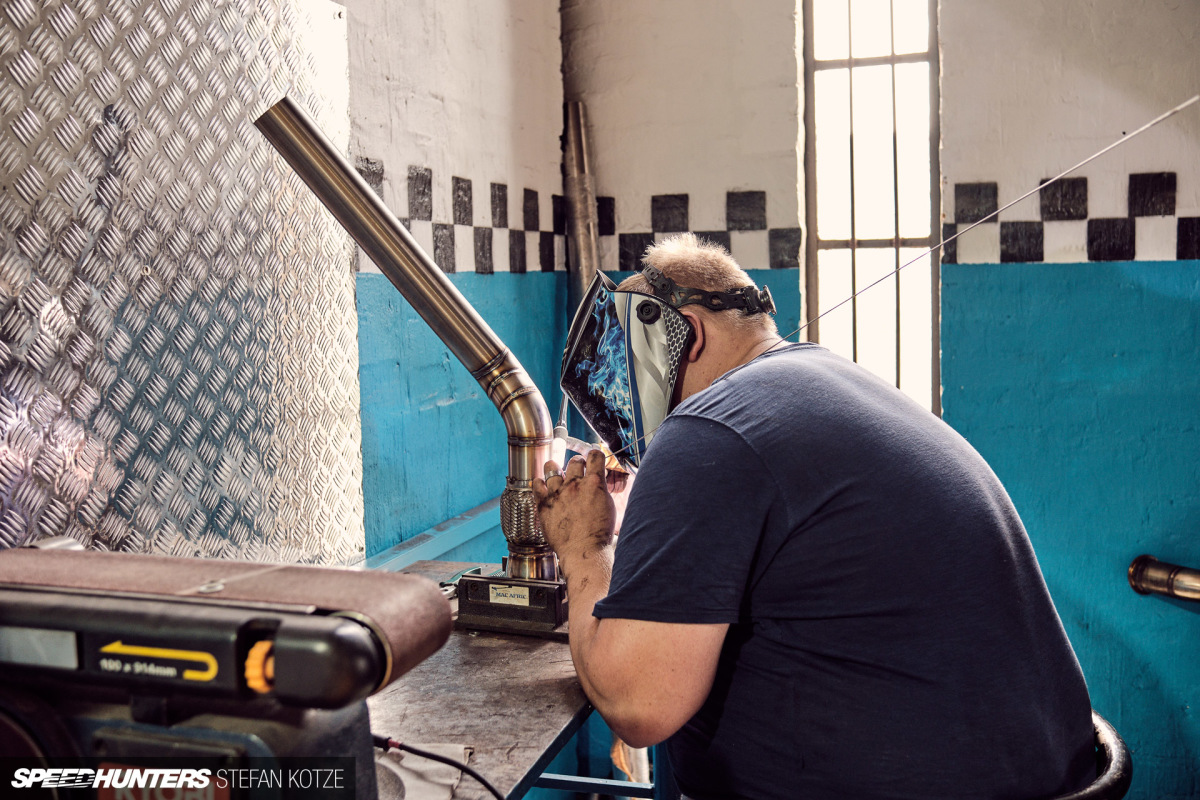

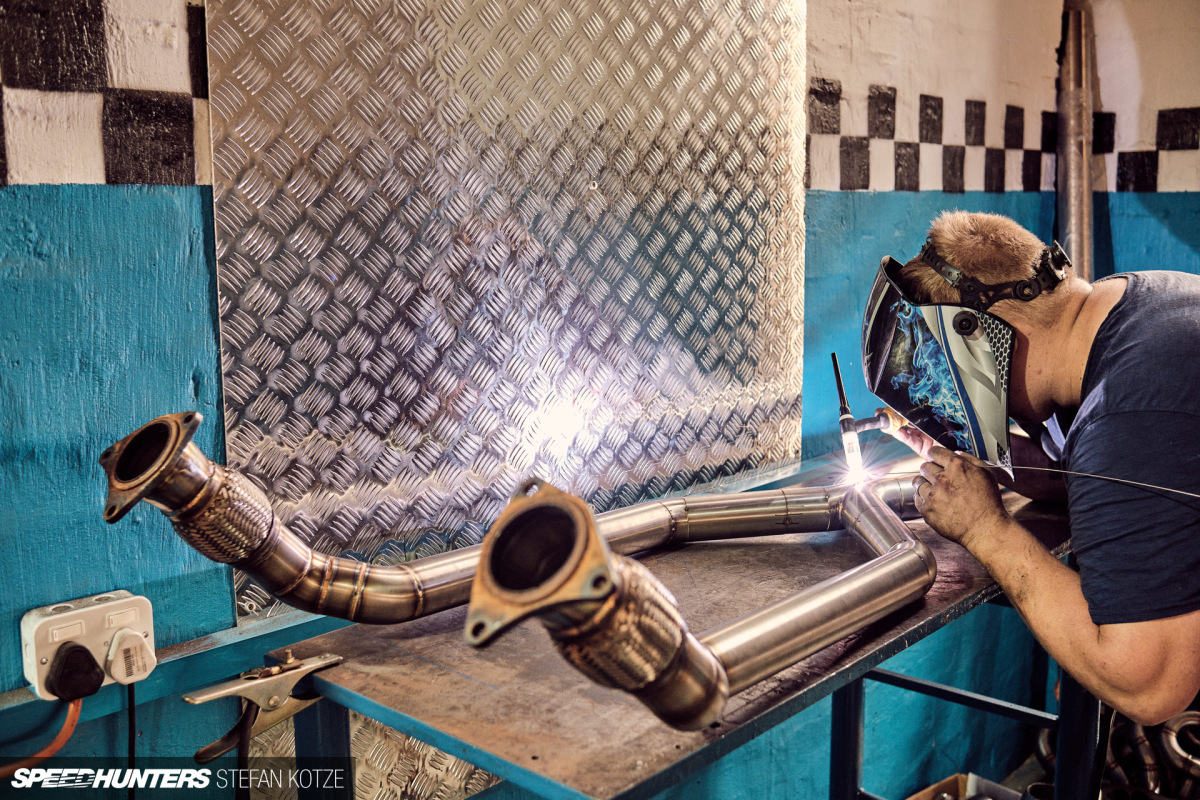

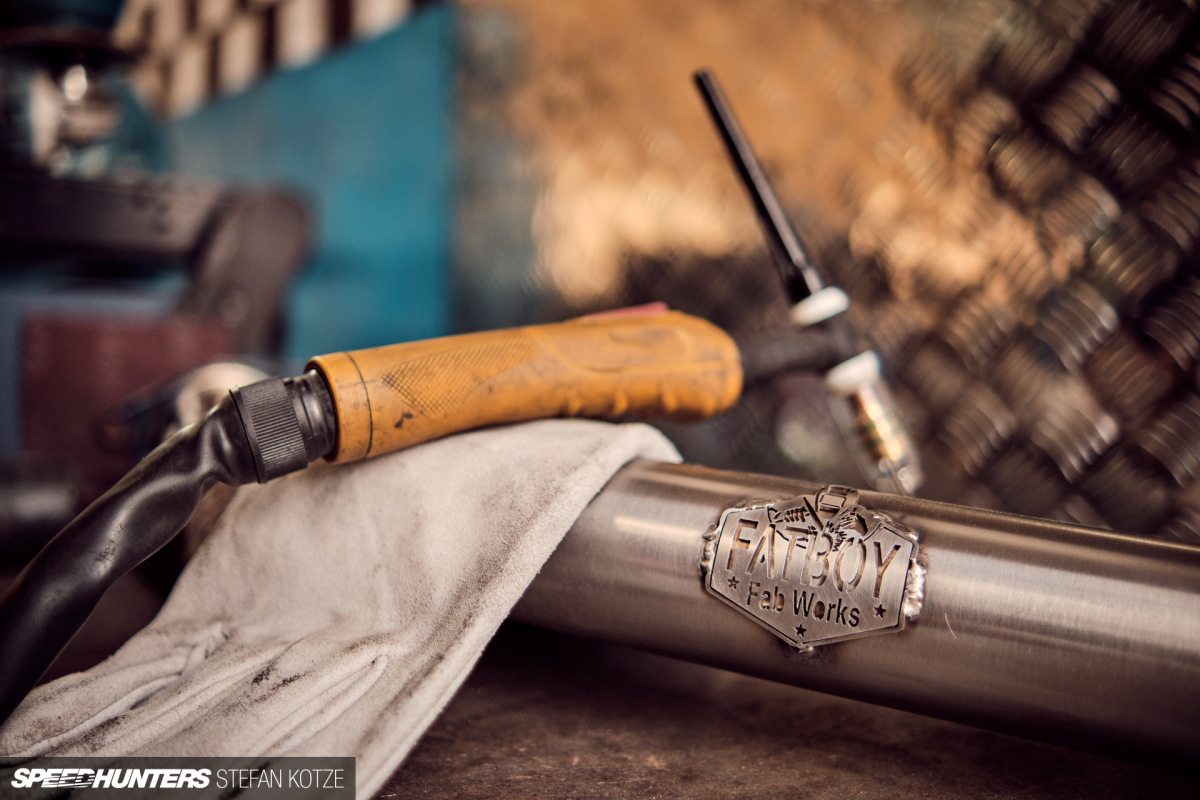

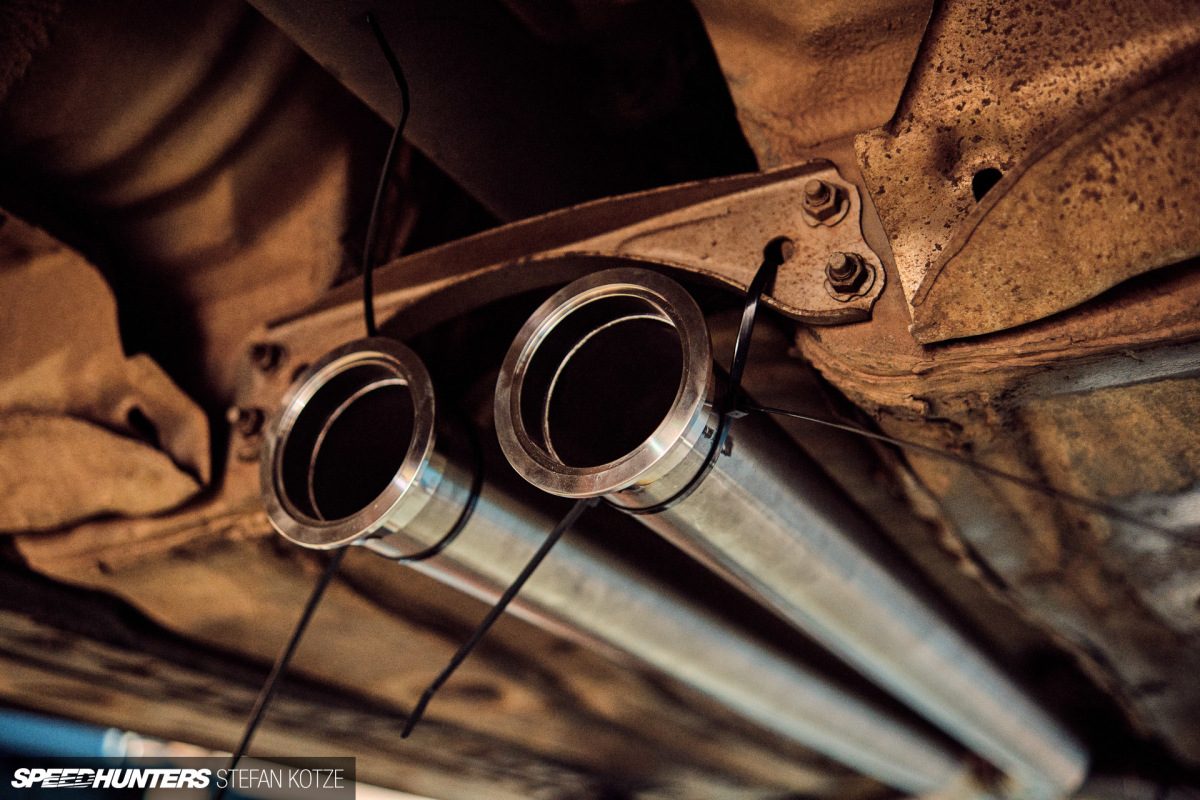

Next, Francois began test-fitting pieces of 63mm stainless steel exhaust piping, measuring then cutting and tacking on new sections as he made his way down the car.

stefan-kotze-speedhunters-lexus-ls400-exhaust (56)
stefan-kotze-speedhunters-lexus-ls400-exhaust (65)

By the end of the first day, Francois had completed the front sections, plus the important x-pipe in the middle. There were no mufflers fitted at this point, but that didn’t stop me driving home for the night. And yes, it was LOUD.

I must admit, it was fun though, and the cold-start the next morning was pretty crazy.

stefan-kotze-speedhunters-lexus-ls400-exhaust (69)

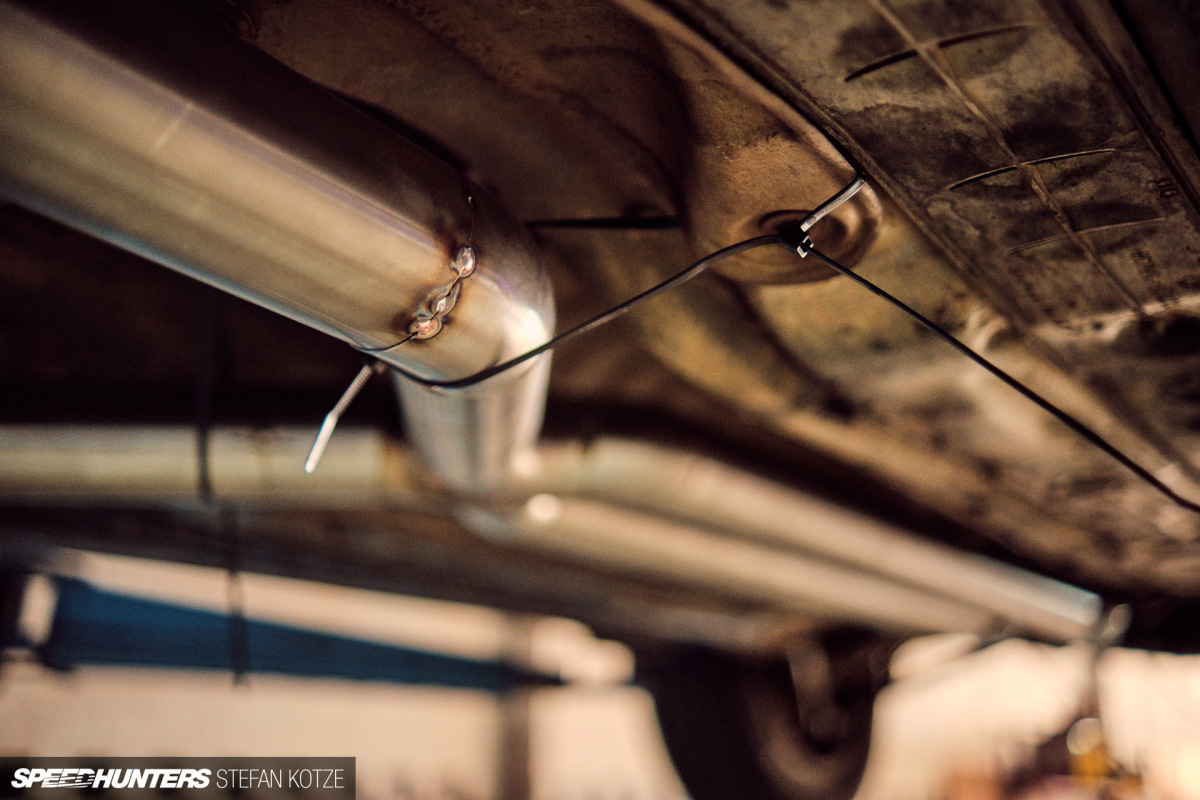

The next morning, after a return 30-minute drive to the shop, Francois got straight into adding two small resonators plus a pair of oval mufflers right at back of the car, and all the required stainless steel piping in between. After lining it all up, the final welding took place before the exhaust hangers were added.

stefan-kotze-speedhunters-lexus-ls400-exhaust (74)

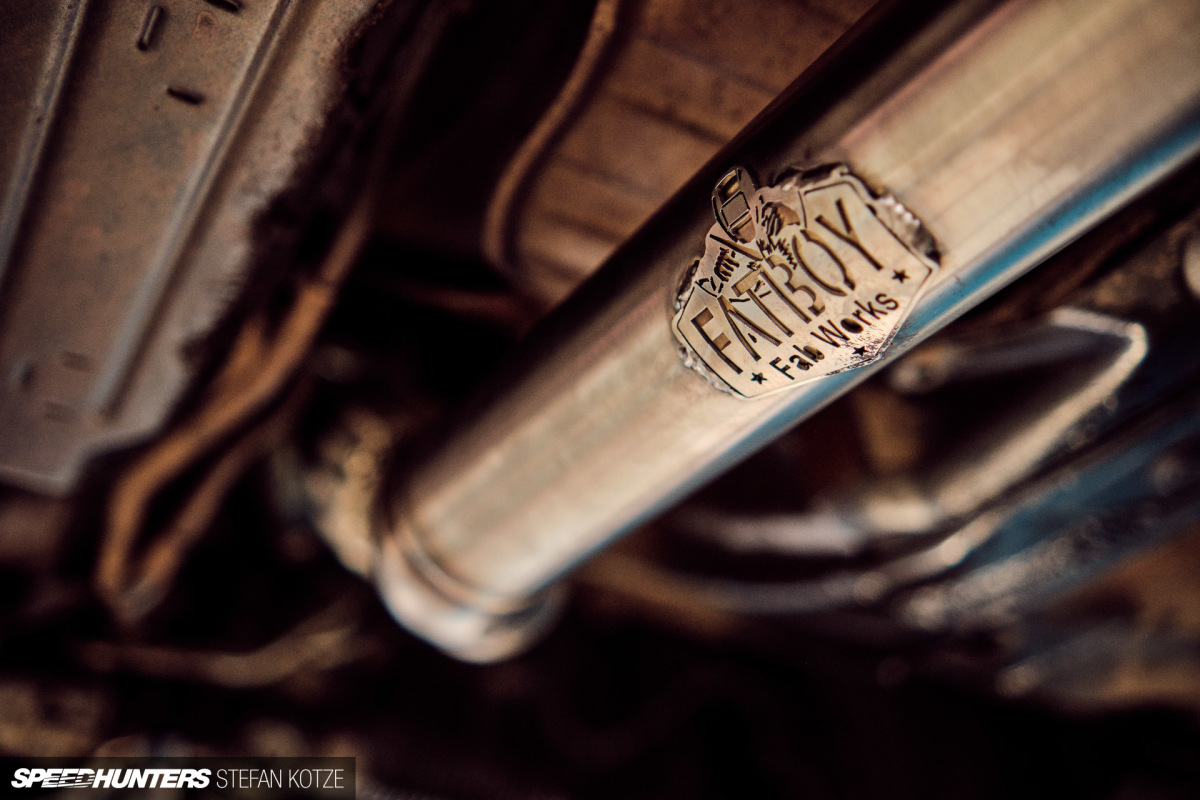

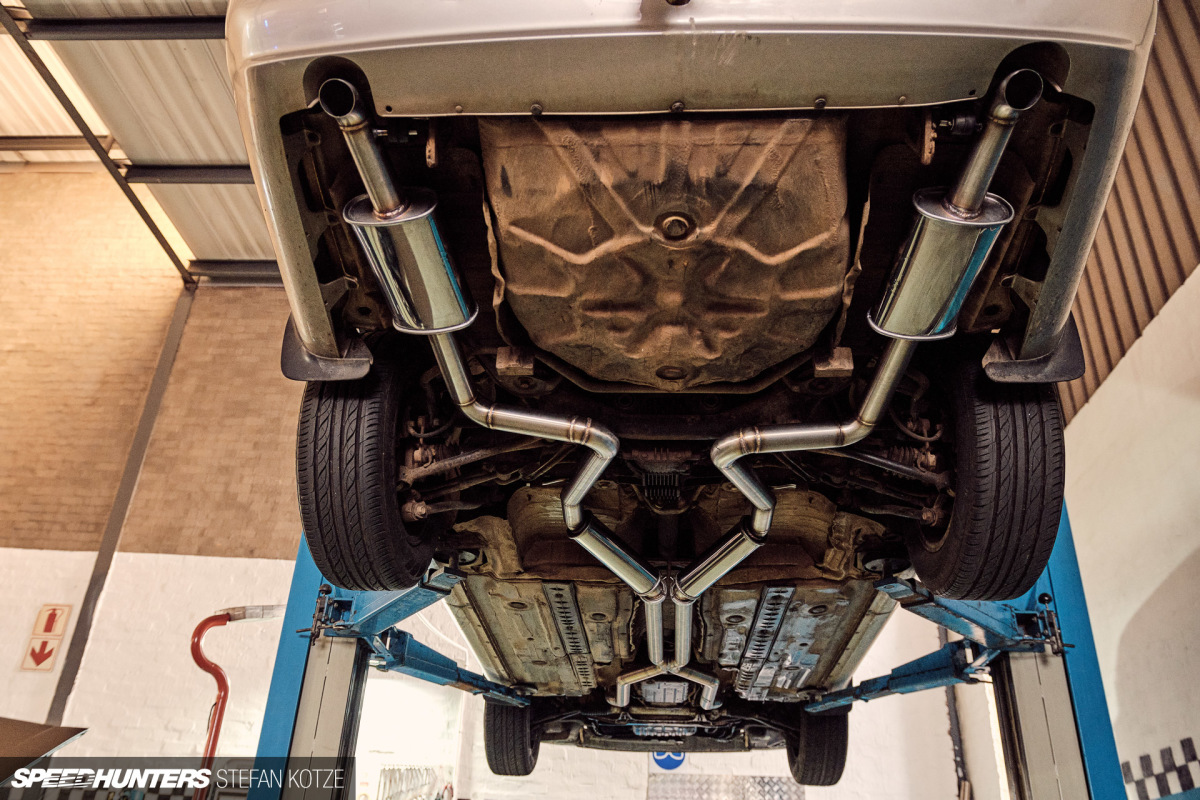

Looking at the finished product, I was amazed by how well it came out. The overall design and Francois’ workmanship is perfect.

My eventual idea is to do cut-outs in the bottom of the rear bumper so the exhaust can exit there, but before that happens the car needs to go in for a full respray, so Francois just angled the exhaust ends down factory-like as a temporary solution.

The best part of the exhaust is obviously how it sounds, but don’t take my word for it, just have a listen above. It has a really nice deep burble on idle, without being too loud, and there’s no drone at cruising speeds. Then, when you really step on it, it sounds epic.

What’s next? Well, as we speak, a bunch of Air Lift Performance suspension parts are on the way, and I think I’ve finally settled on a new exterior paint colour. More on those things next time.

Stefan Kotzé
Instagram: stefankotzemedia
info@stefankotze.com
www.stefankotze.com
