Cooking Up The Right Recipe For Project 912SiX

Last month I gave you guys the breakdown on how Project 912SiX came to light, and this time around I want to elaborate on the build process.

Before diving into the details, I’d like to excuse the majority of images throughout this story, as they were shot on an iPhone. I’ll explain why a bit later, but for now, we move into the update.

If you’ve read any of my features before, you may recollect a few of my notes that talk about having a theme for your build. That’s something I still stand behind, because frankly, every build should have some sort of aspiration or ethos it’s working towards. Some may argue against that, claiming that it’s okay to just slap a bunch of parts together and call it quits. Though that could possibly work, over the years I’ve learned that builds with a primary target to achieve are often the ones that end up standing out. It helps create a sort of flow and understanding of the car, while also giving you direction in how to modify accordingly, hopefully ending up with a well-rounded car with a proper sense of occasion regardless what that may be. Which leads me to my end goal – making the driving characteristics of my 912 as similar to a ’73 RS as possible.

Why Though?

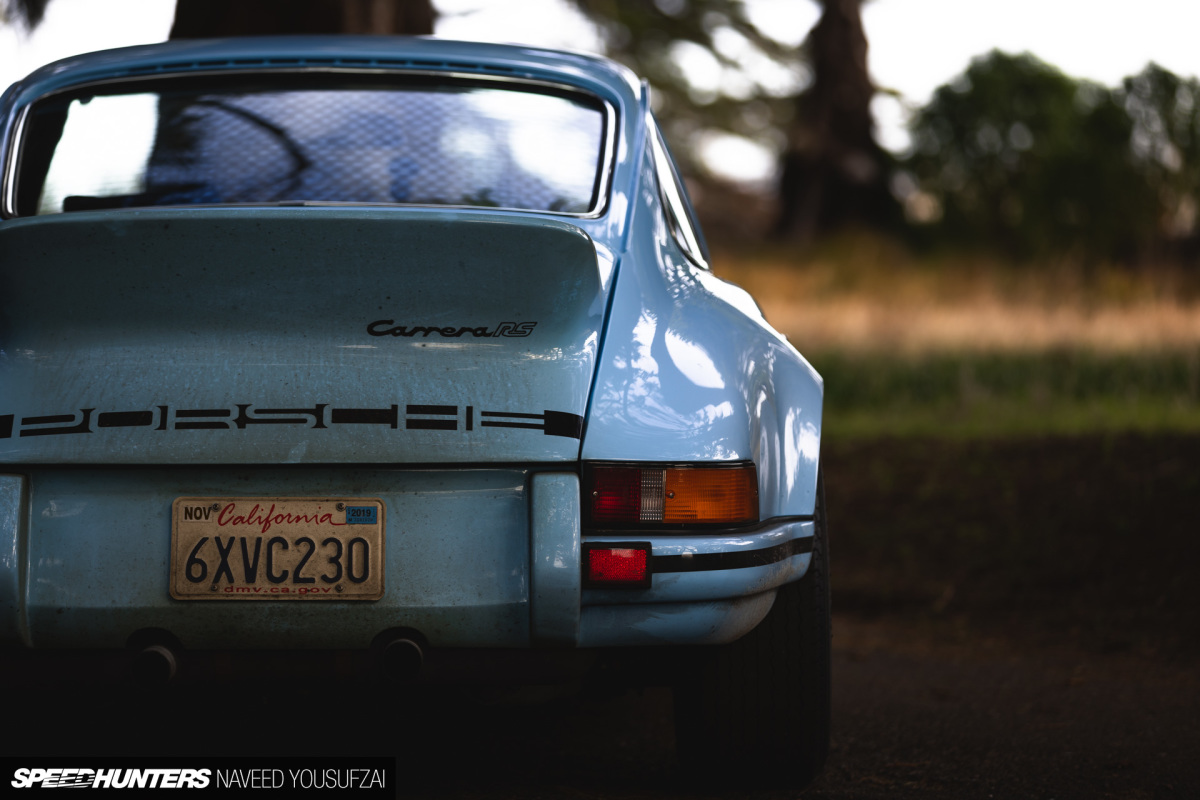

IMG_9170G-911RS-For-SpeedHunters-By-Naveed-Yousufzai

From the moment I sat in my friend G’s ’73 RS, my heart was won over. It was quite literally the pinnacle of air-cooled long-hood 911s, and for very good reason. It’s light, rigid, raw, and visceral with an indescribable amount of driver feedback. Everything could be felt in the driver’s seat, all whilst retaining its signature 911 charm. It’s truly a factory race car for the road, and also the exact opposite of where the 912 sat in its original state. There’s no way I could’ve settled for the four-banger variant of a Porsche – I needed that exact RS recipe.

The Nitty-Gritty
IMG_7464Project-912SiX-For-SpeedHunters-By-Naveed-Yousufzai

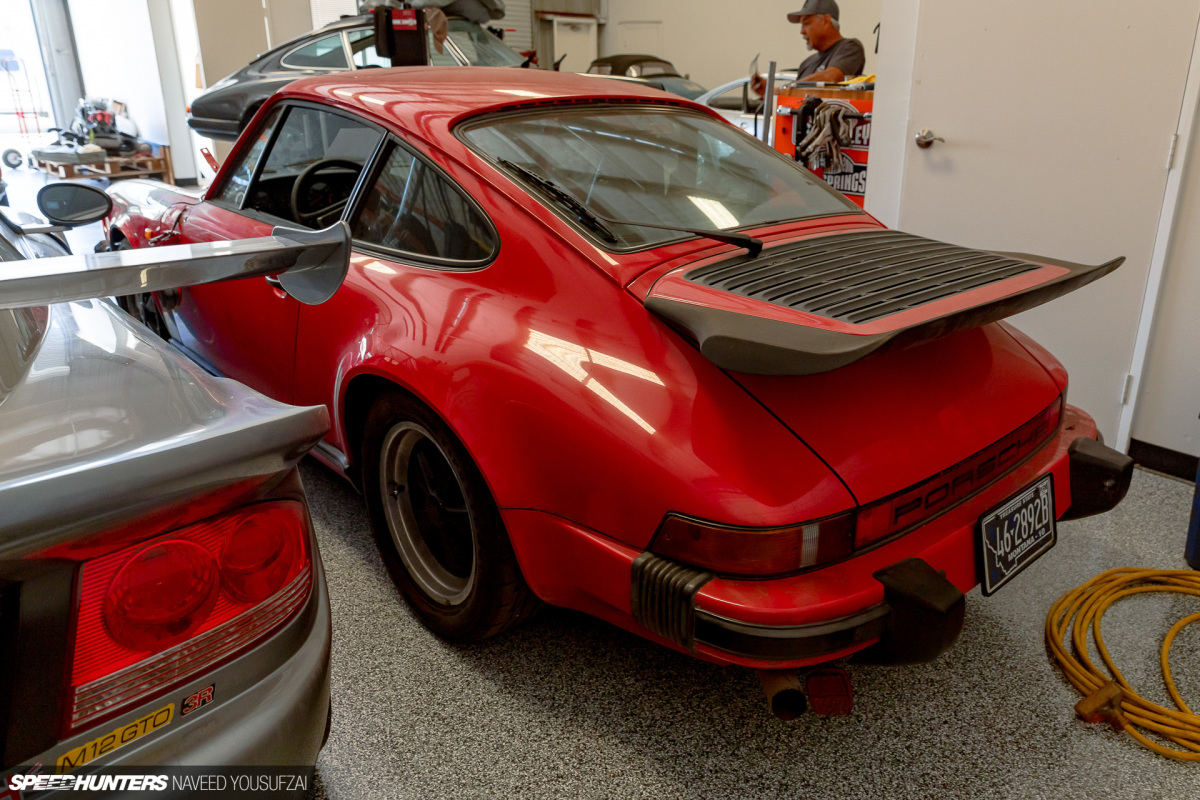

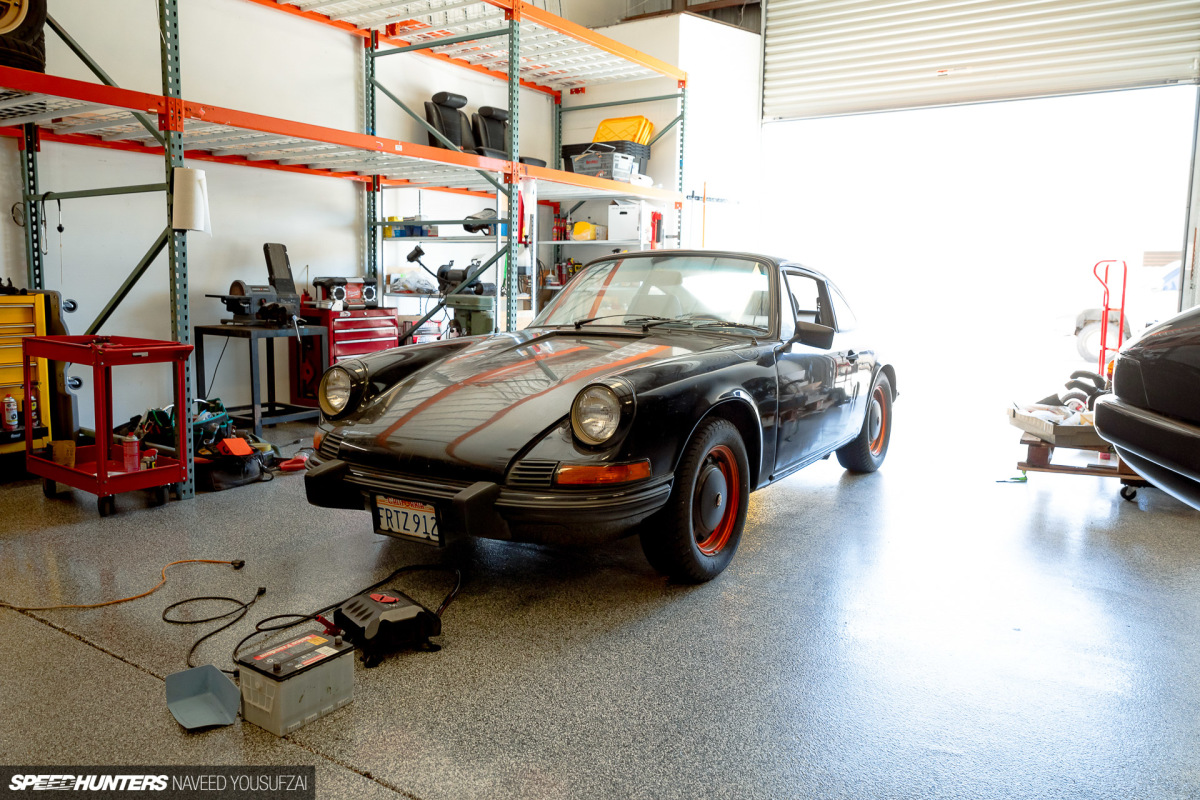

With that goal in mind, I dropped the car off to my buddy Erik at Sports Purpose Garage in Livermore, California, in hopes of achieving a modest fraction of that same driving experience. Before you guys hound me on not doing the build myself, I’ll note that I had many reasons for not taking it on, the two primary factors being that I don’t have a garage to work out of (and a homeowners association that flags me the moment I get any of my cars up on jacks), and mostly because of time, or lack thereof. If I did it myself, the learning curve would be vast as I’d never taken on this caliber of a project myself (besides an engine swap on my old S30 Datsun Z with the help of a few friends over a weekend). And being that I didn’t have a fun car to drive, I was eager to get back behind the wheel of my own car, so I made sure that I budgeted accordingly to simply have the pros handle it for me in a timely manner. Sometimes, it’s just easier to go that route, and for me, this was the best option. This is also the reason why the images are mostly cellphone pics, as my builder Erik rests his expertise in building cars, not taking photos.

IMG_7494Project-912SiX-For-SpeedHunters-By-Naveed-Yousufzai

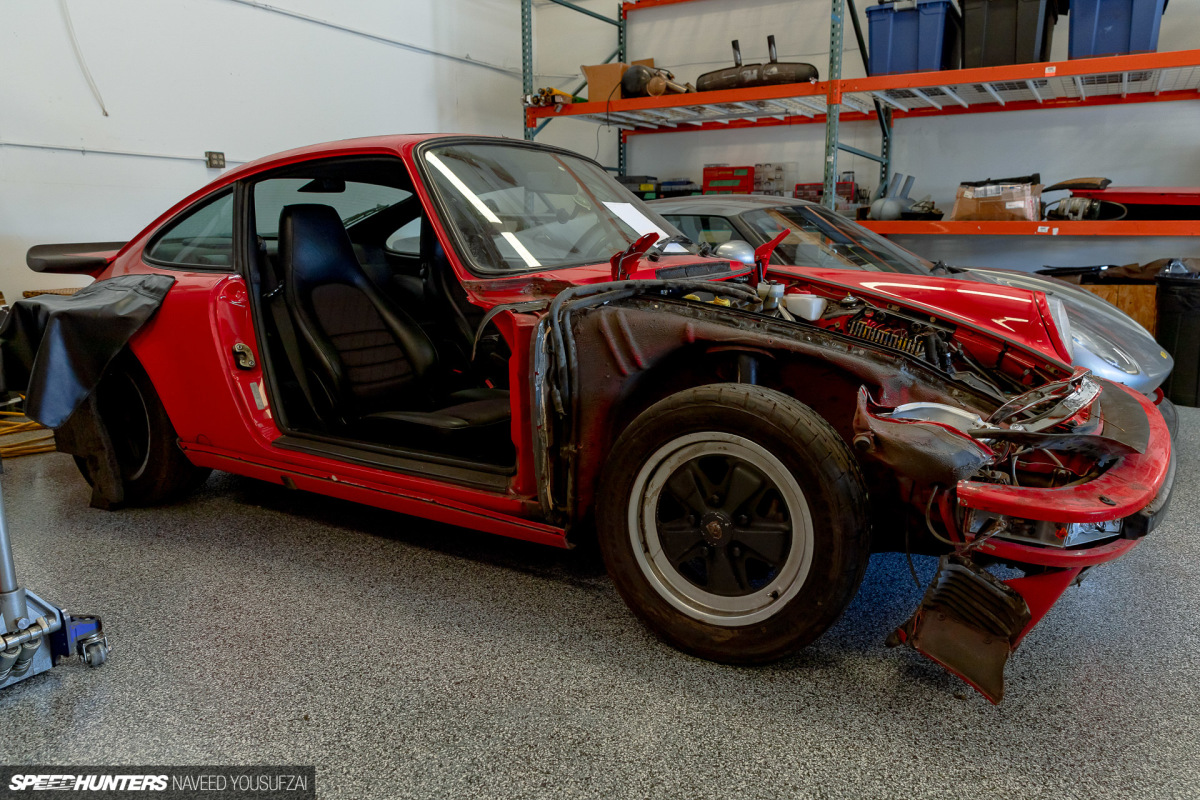

IMG_7447Project-912SiX-For-SpeedHunters-By-Naveed-Yousufzai

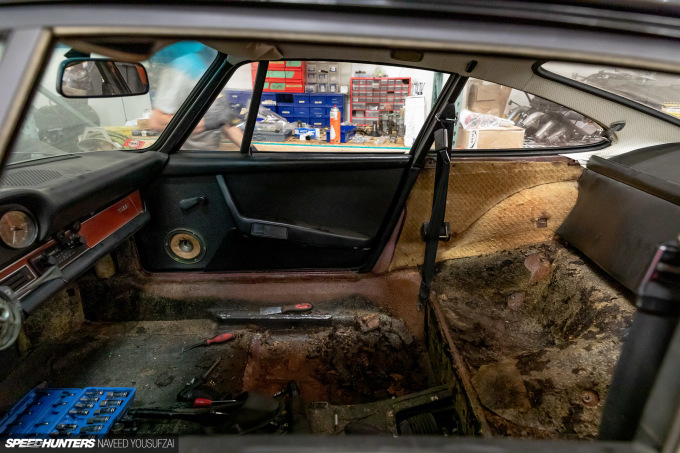

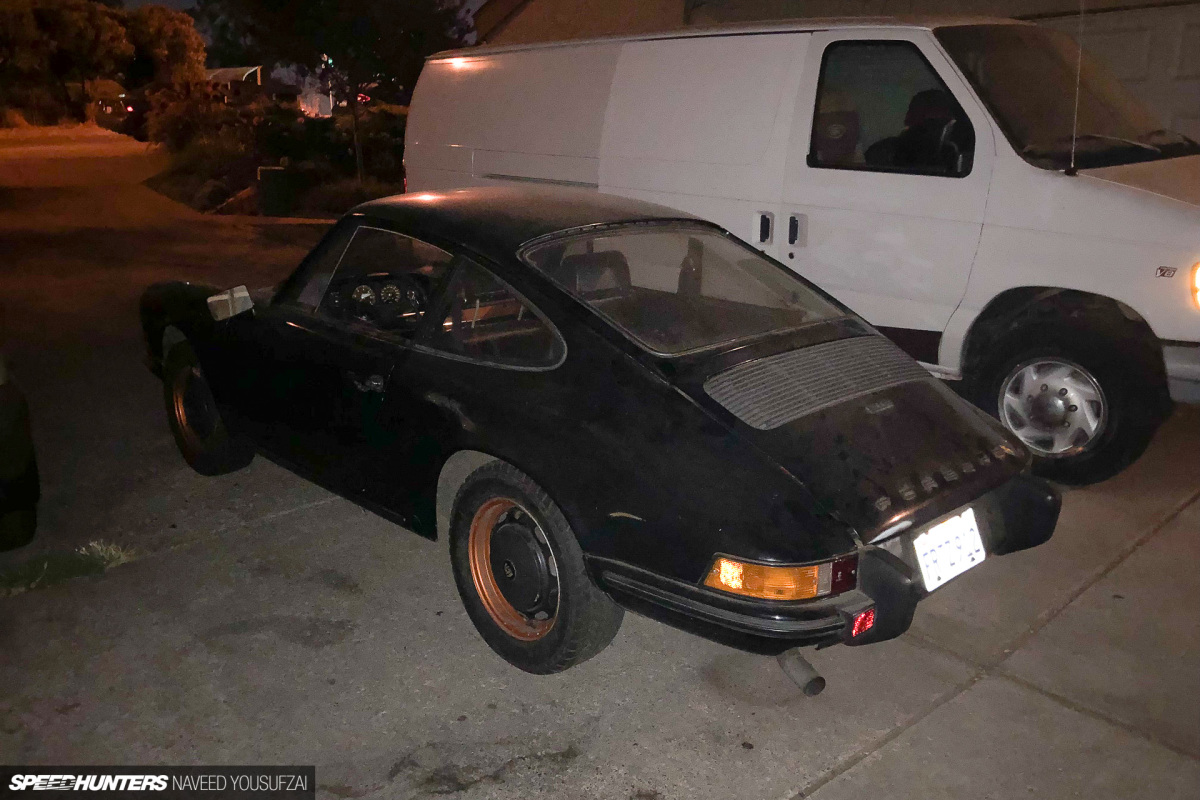

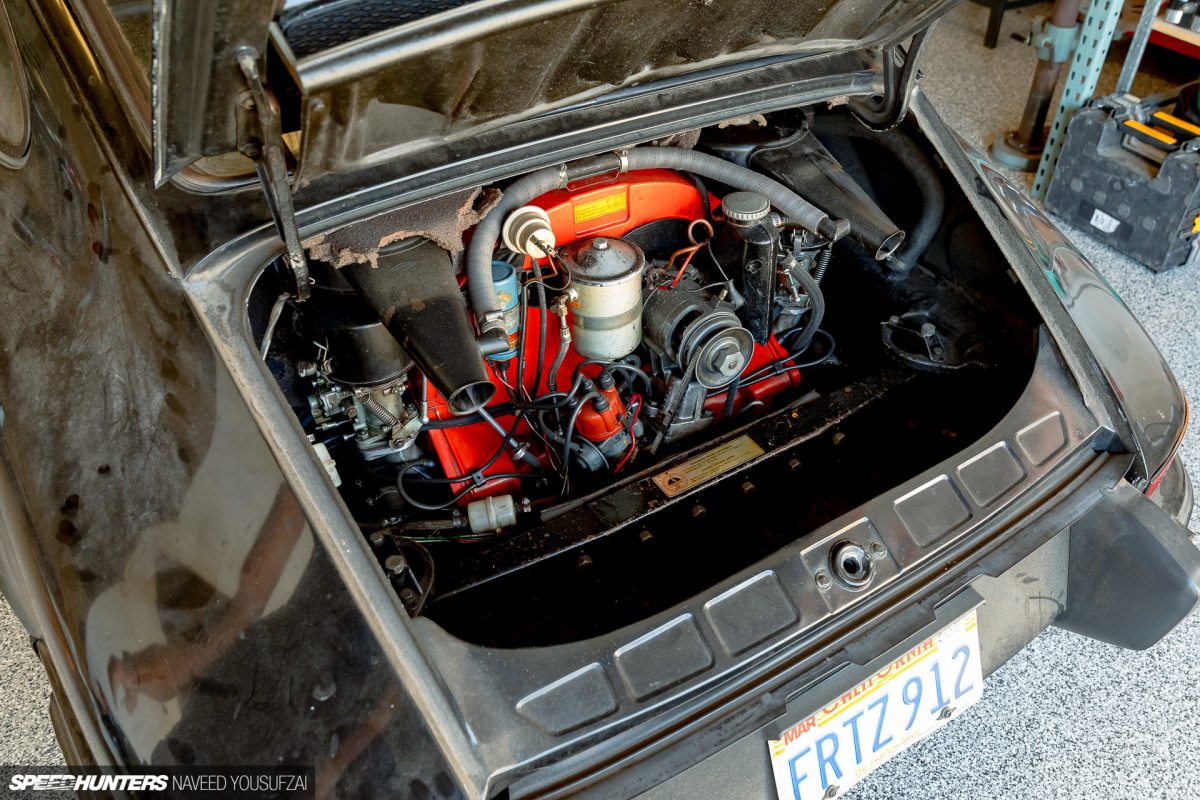

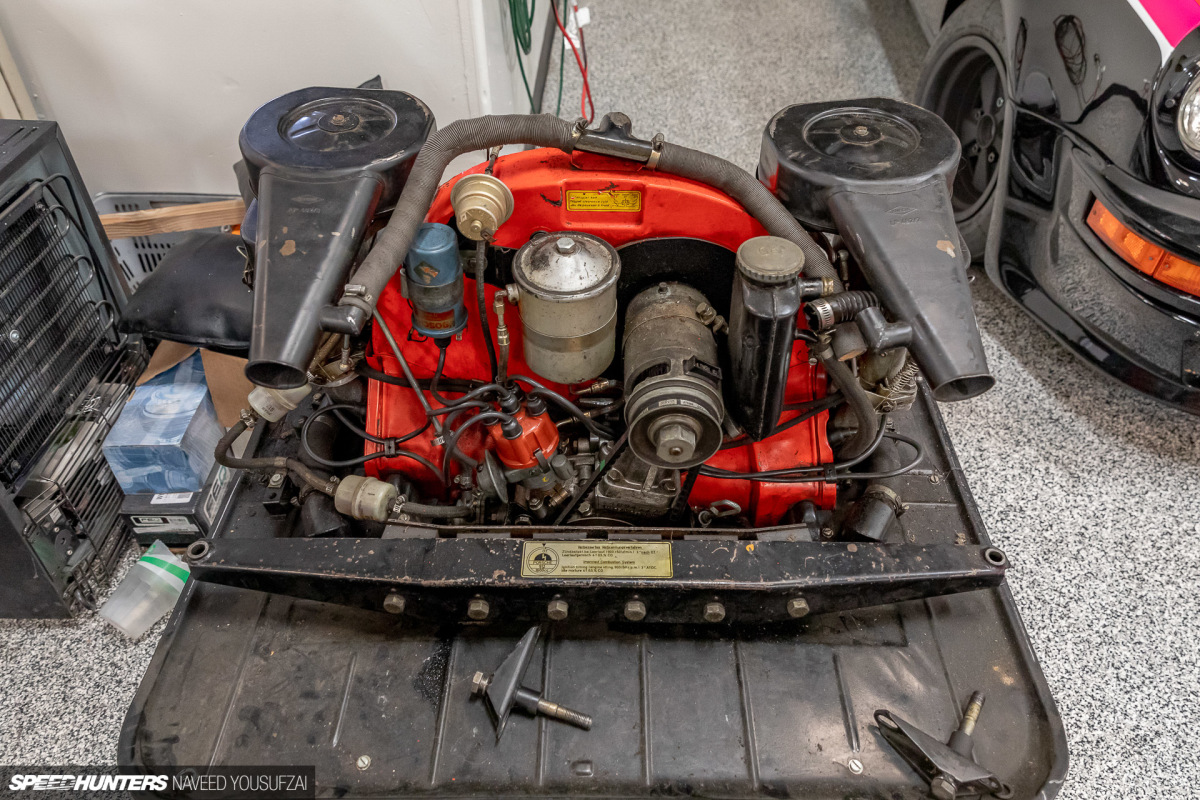

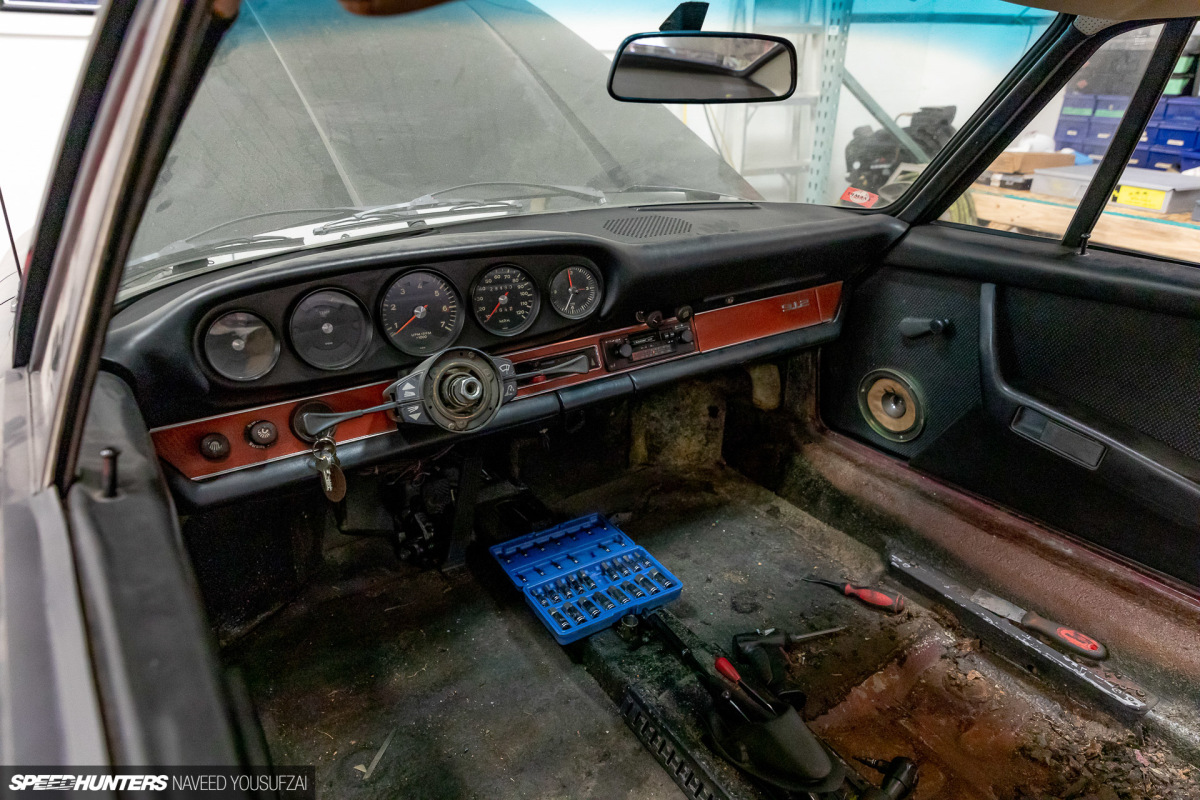

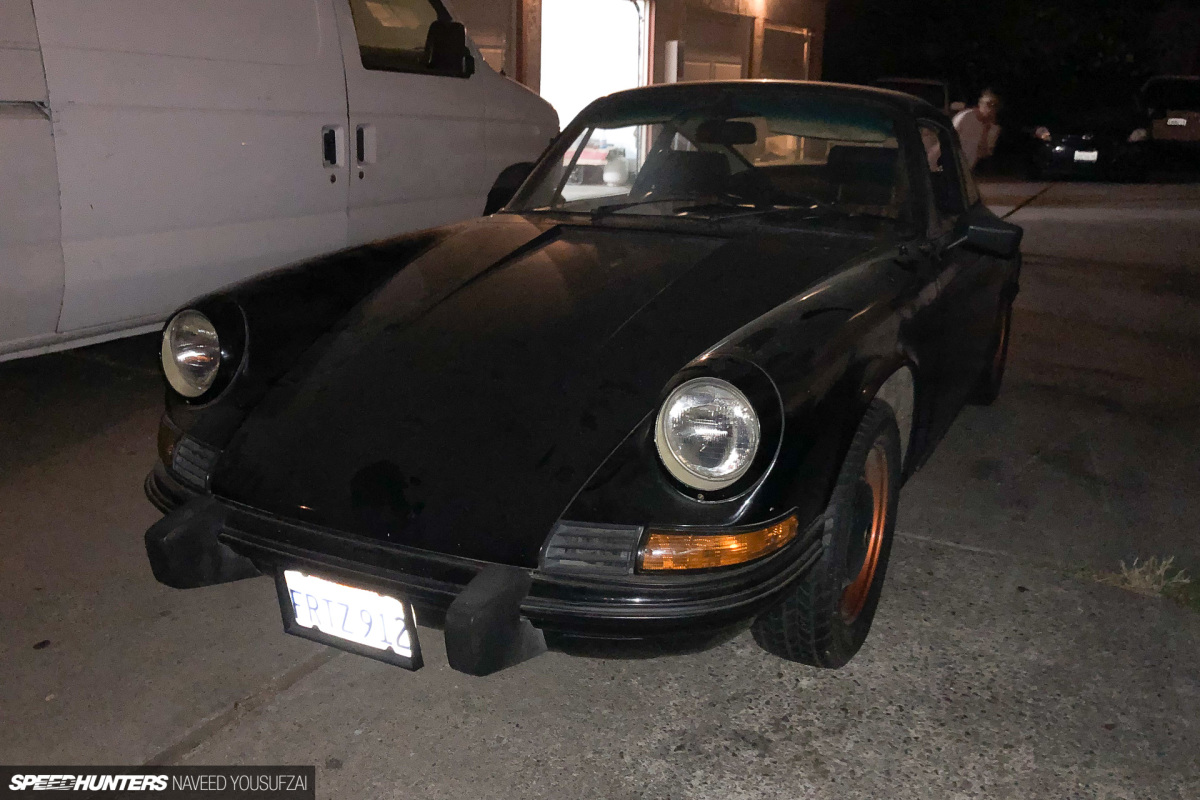

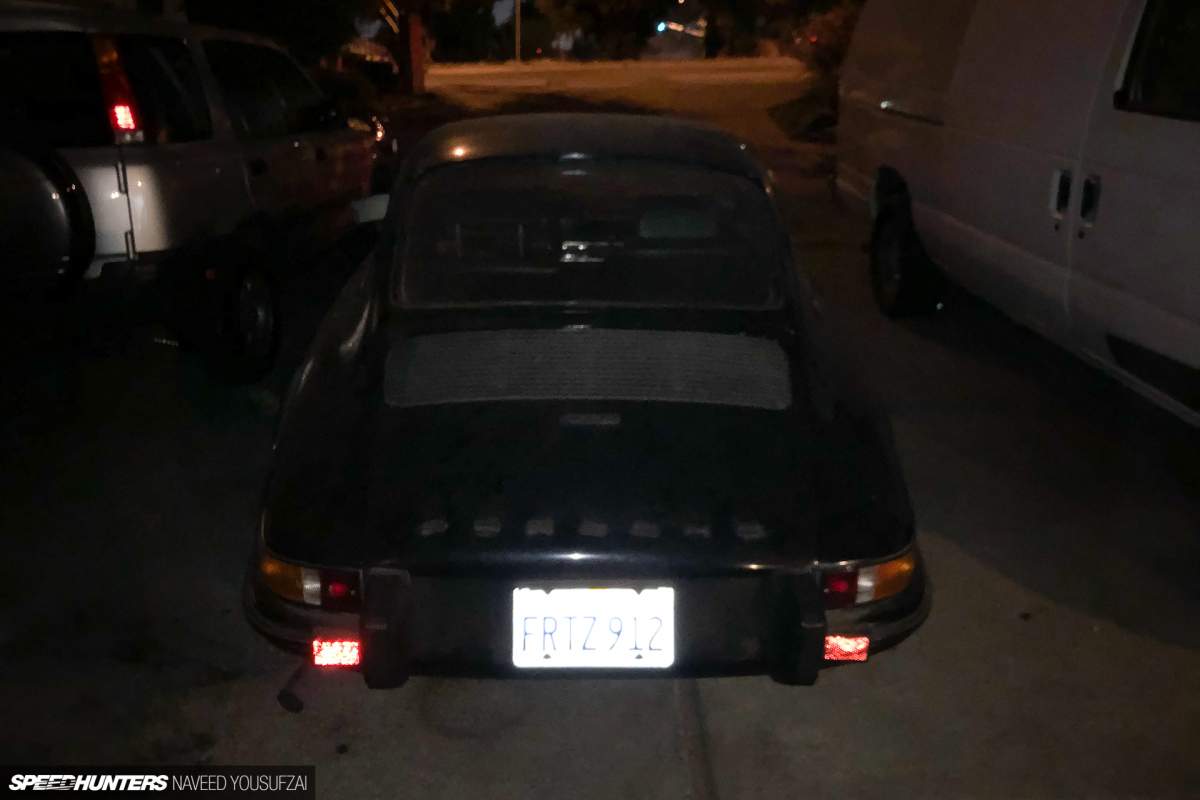

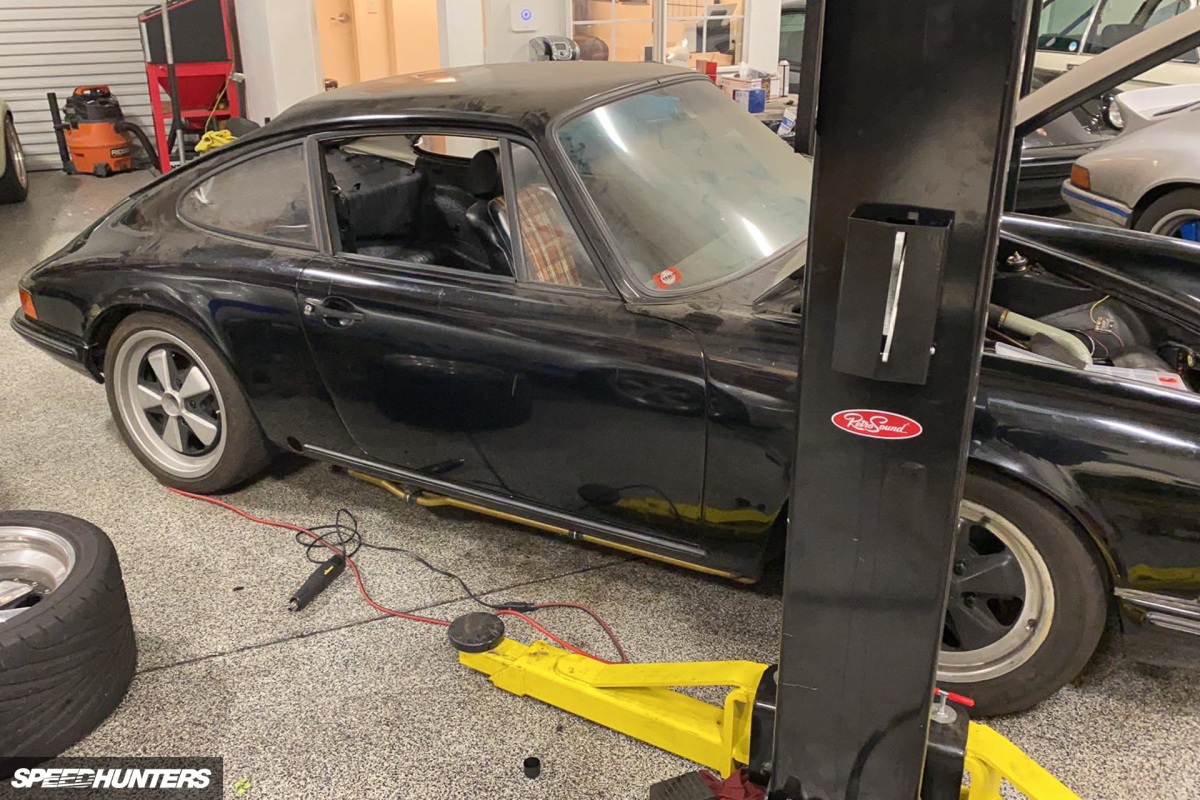

Anyway, when I purchased the 912 it wasn’t running and we didn’t know why. But it didn’t really matter either, as the plans were to gut everything underneath, essentially using only the unibody of the car. I had it towed straight to Erik’s garage the same night I purchased it, where the Euro Carrera donor was also awaiting its new and soon-to-be home.

IMG_7471Project-912SiX-For-SpeedHunters-By-Naveed-Yousufzai

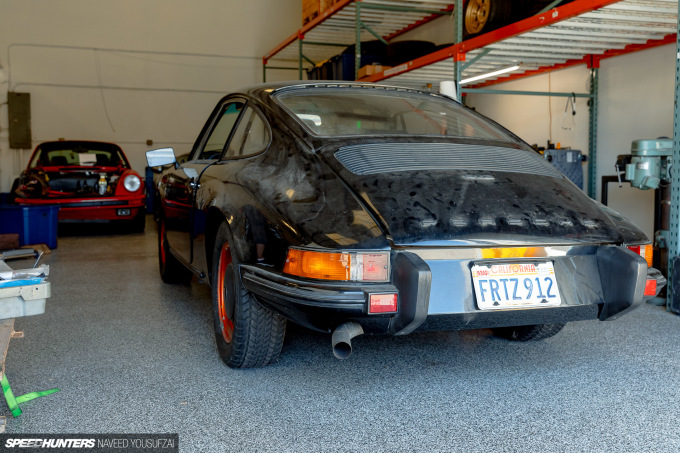

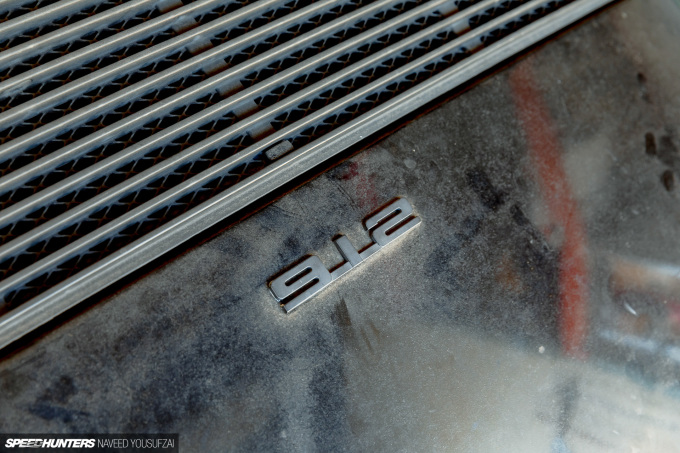

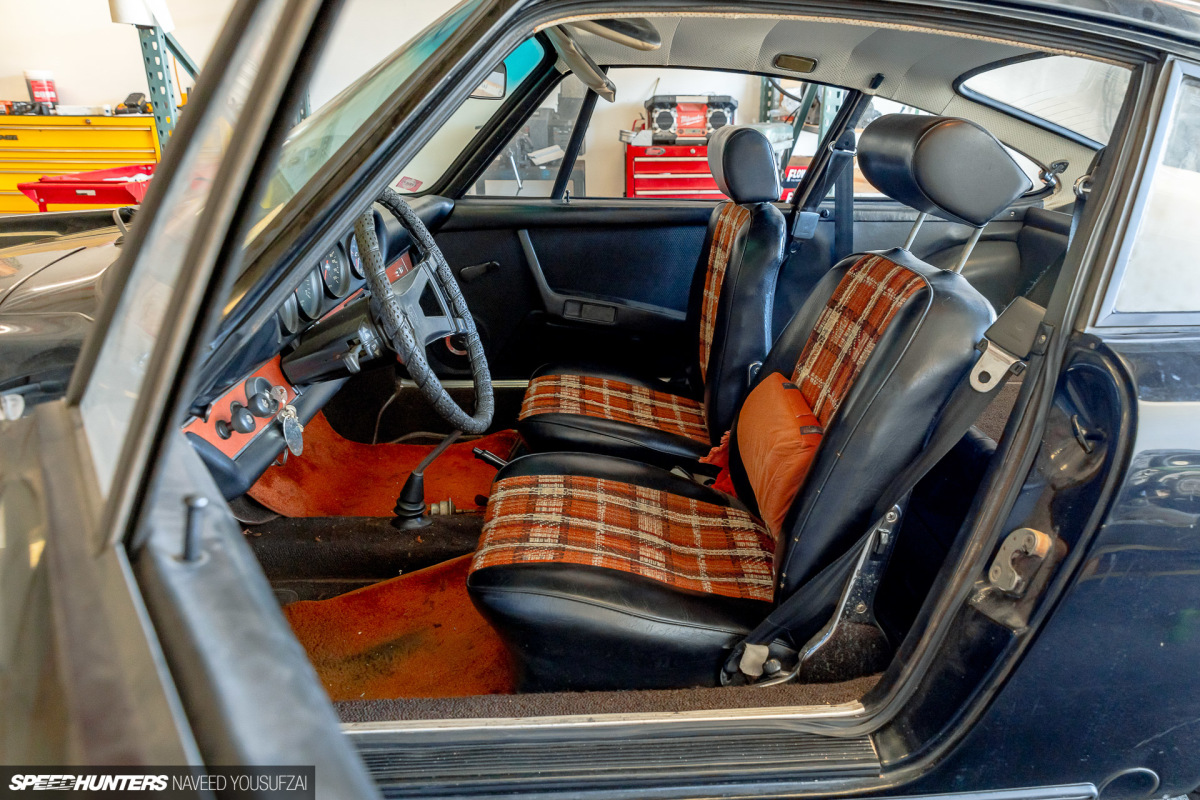

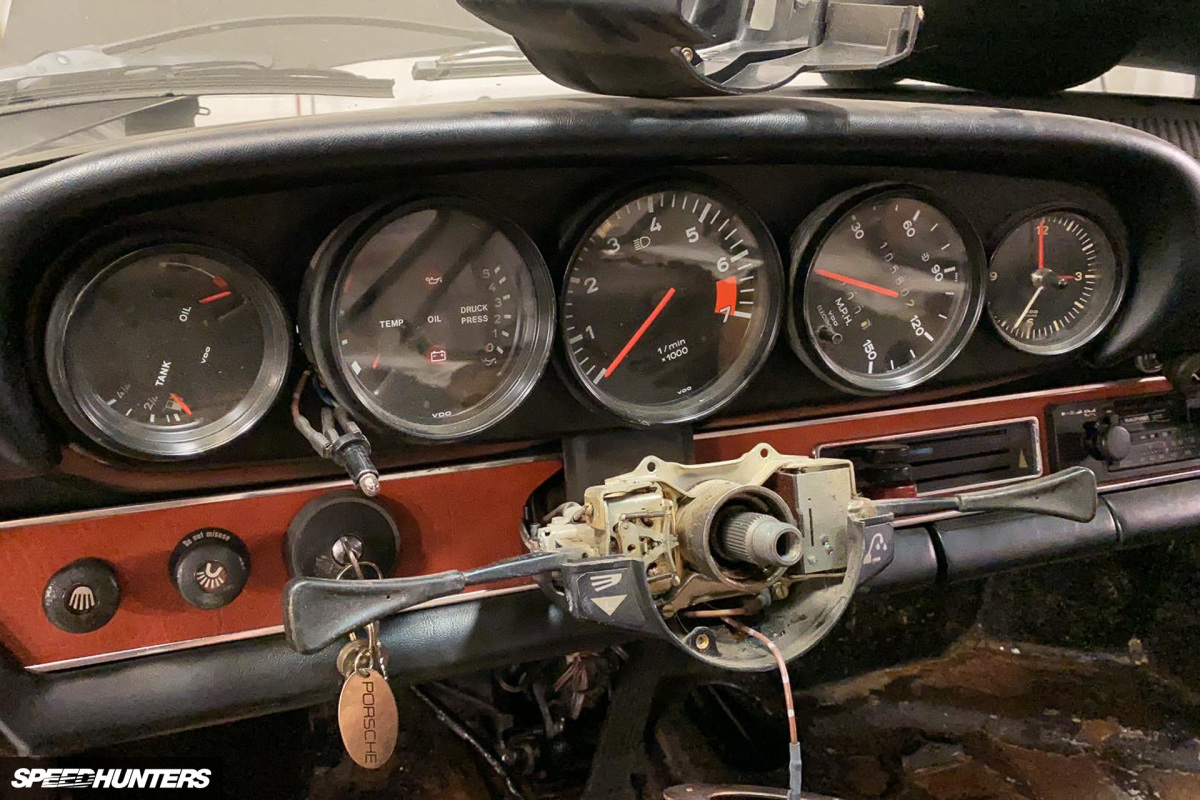

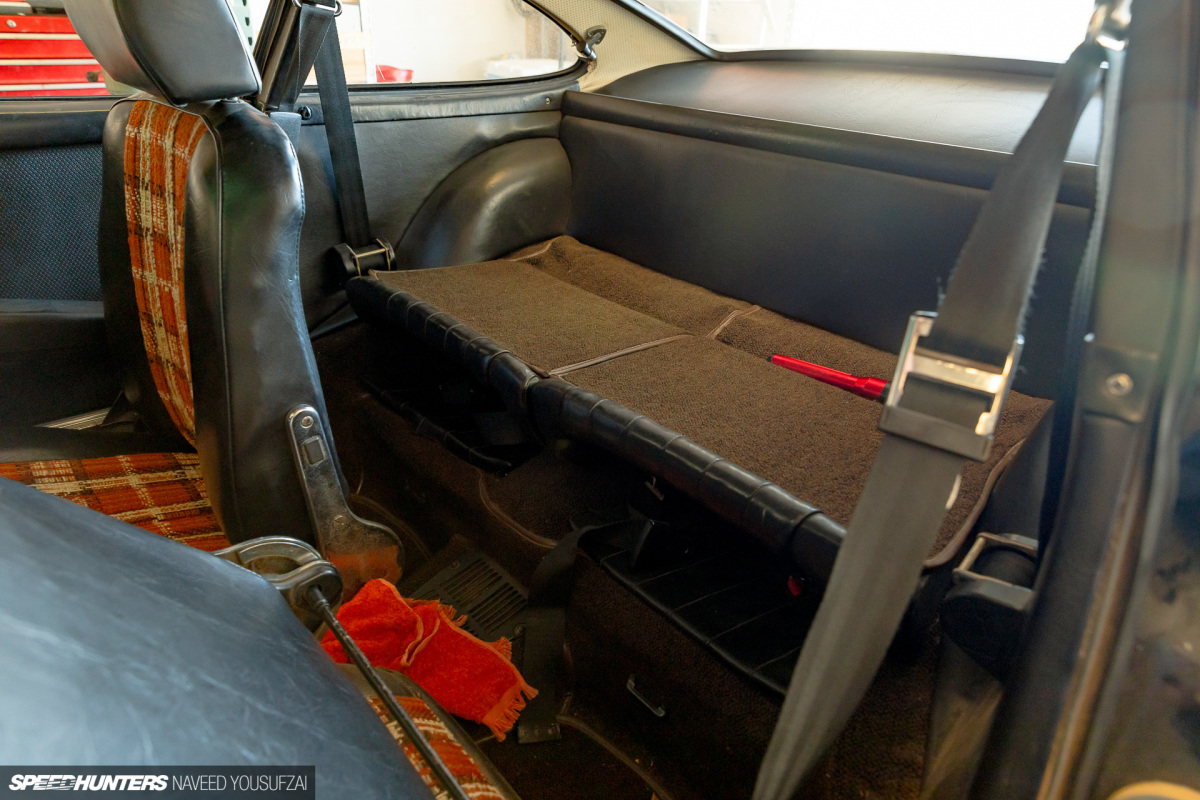

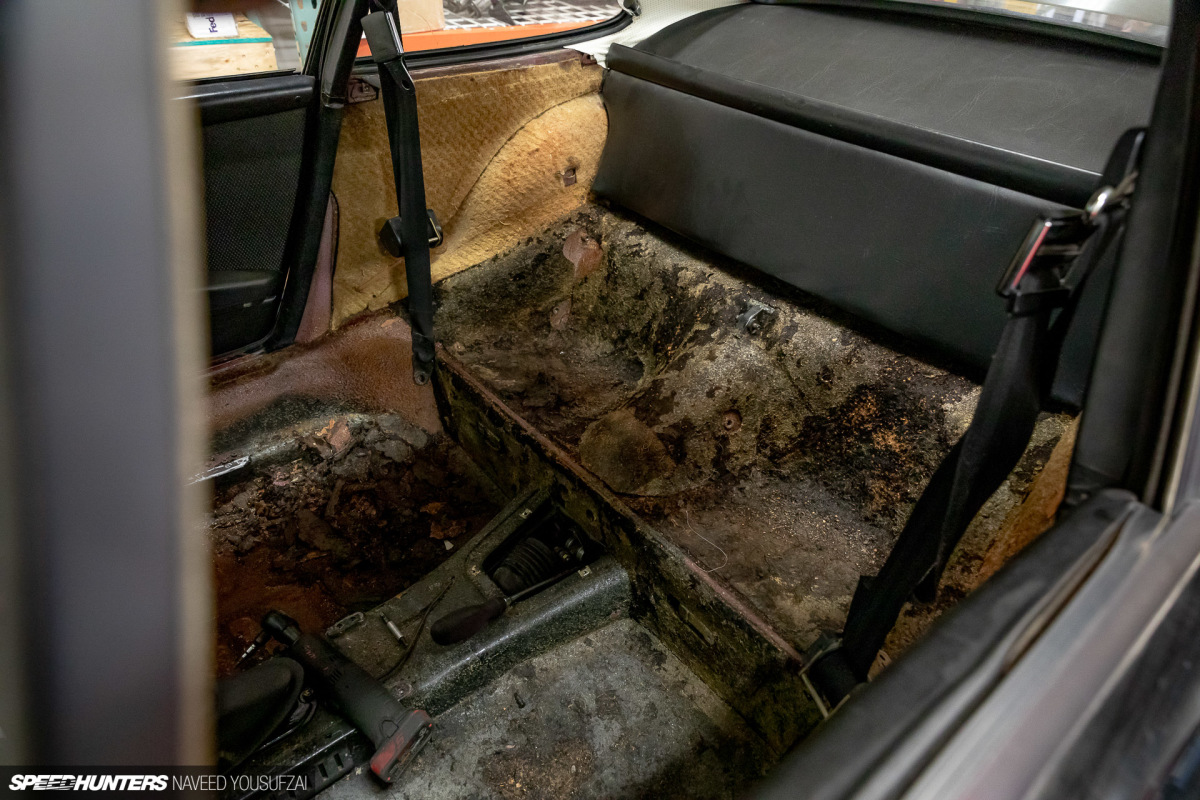

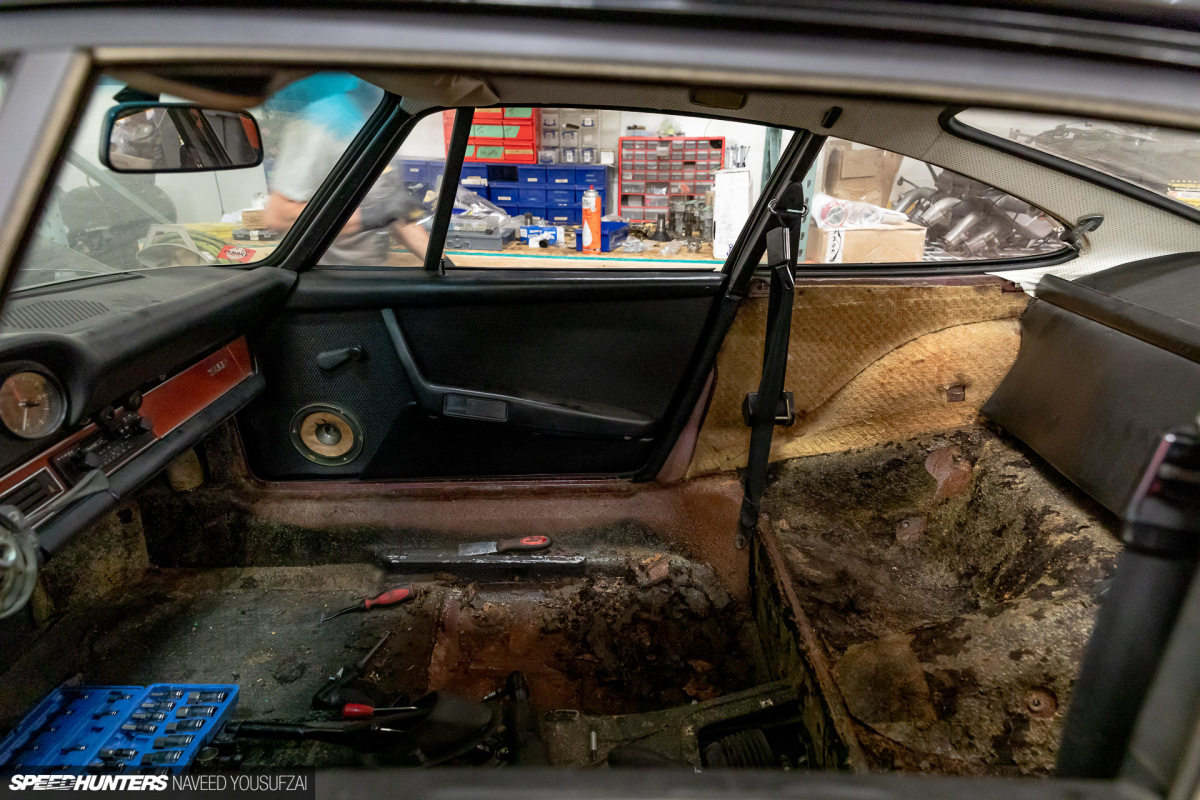

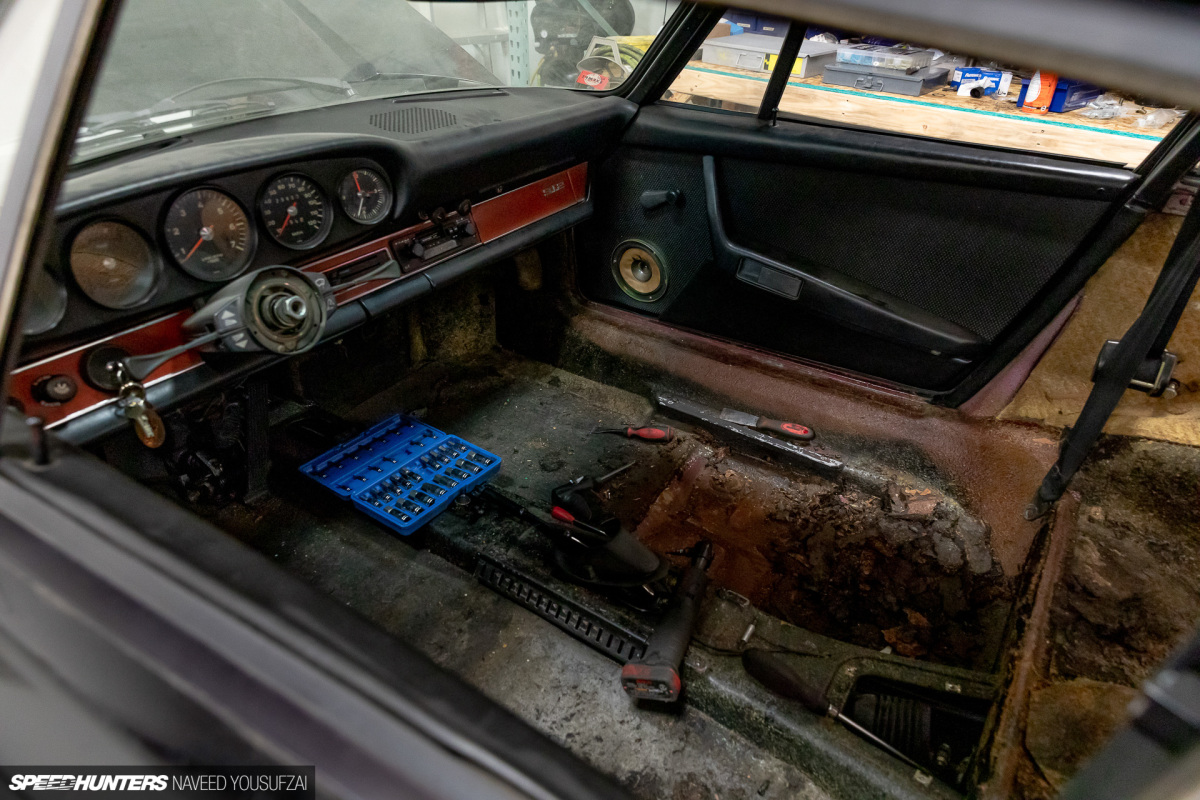

The next morning, I finally saw my 912 in the sunlight. Erik greeted me with a huge smile on his face, and proceeded to explain how great the car was in terms of its condition. The body was pretty straight despite its worn-down black repaint, and there wasn’t a spec of rust to be found given it being a Bay Area car all of its life. If I recall correctly, Erik’s words were, “Dude, you did great!”, instantly relieving me of all worries on whether I had just wasted a bunch of cash on a pile of garbage. I got lucky on the gamble honestly.

Mechanicals
73513644_928911874143991_3030482783223939072_nProject912SiX-For-SpeedHunters-By-Naveed-Yousufzai

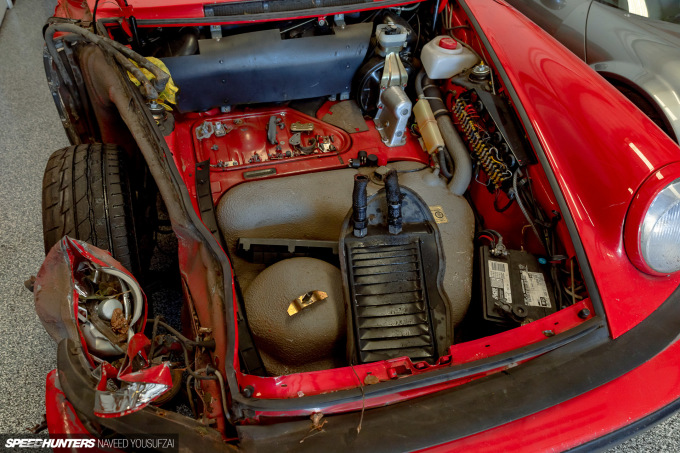

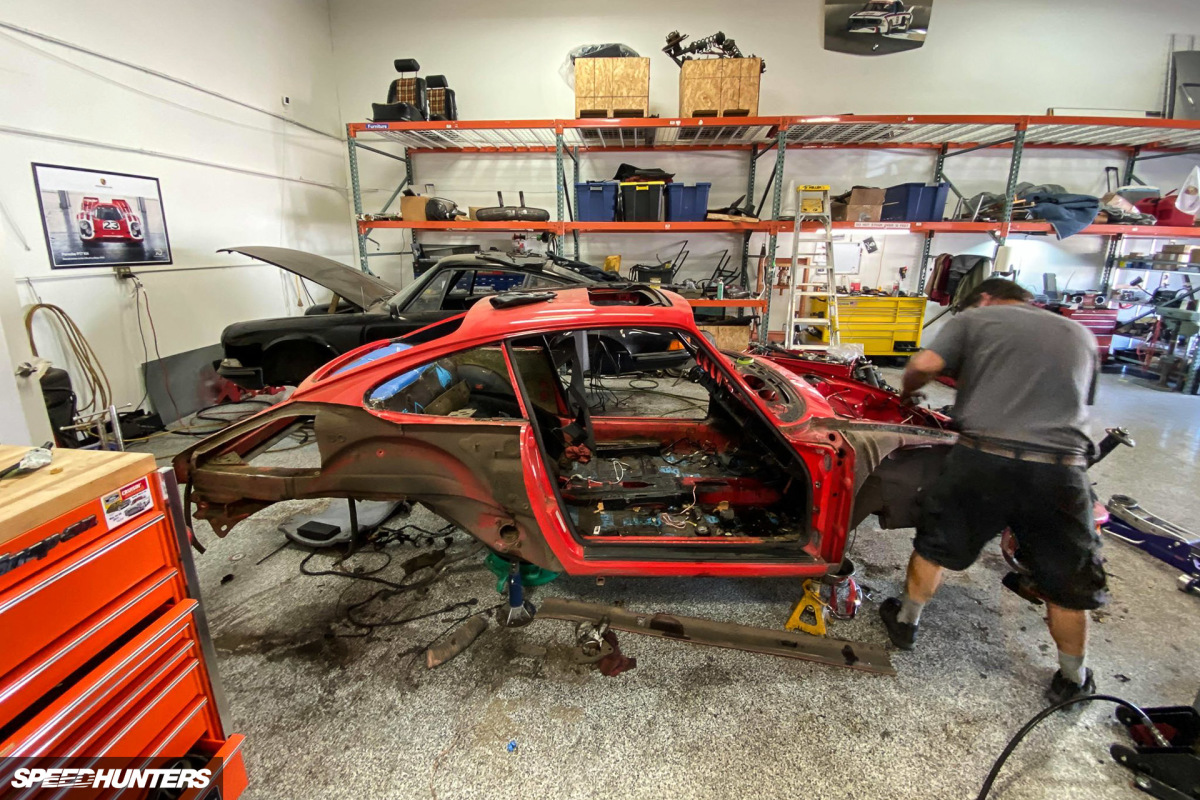

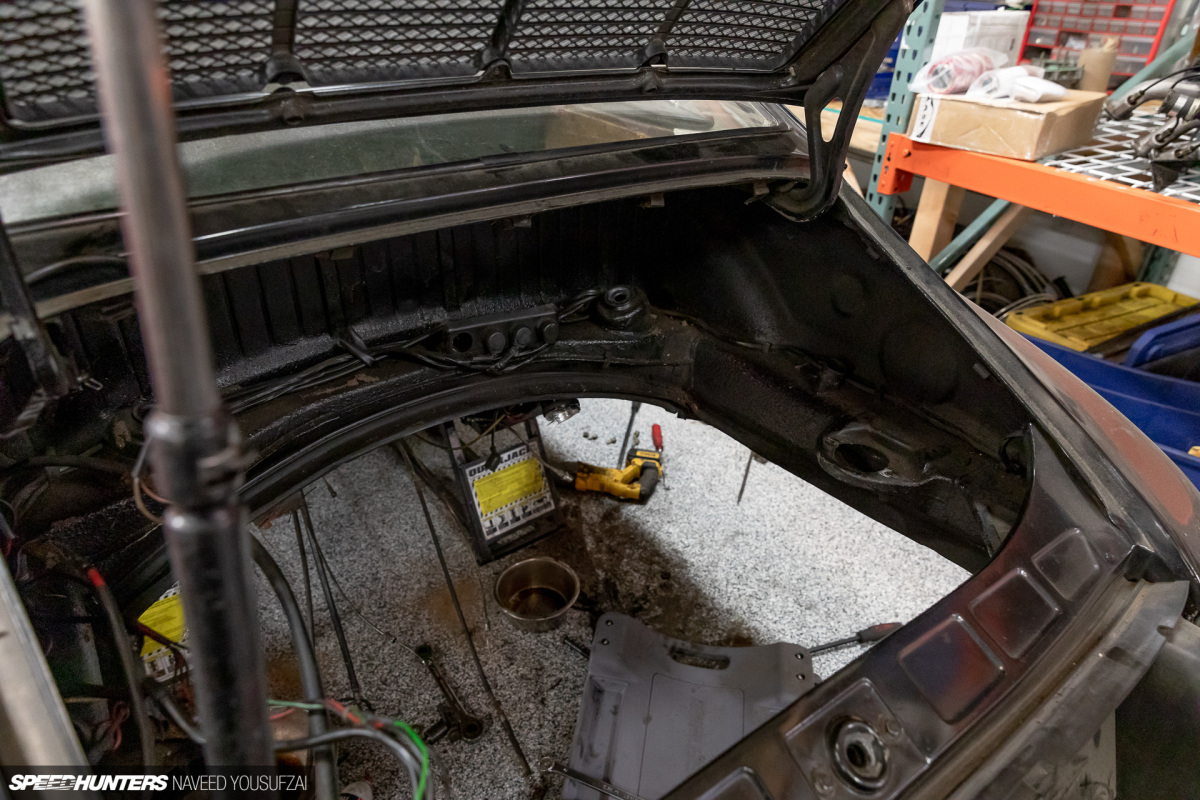

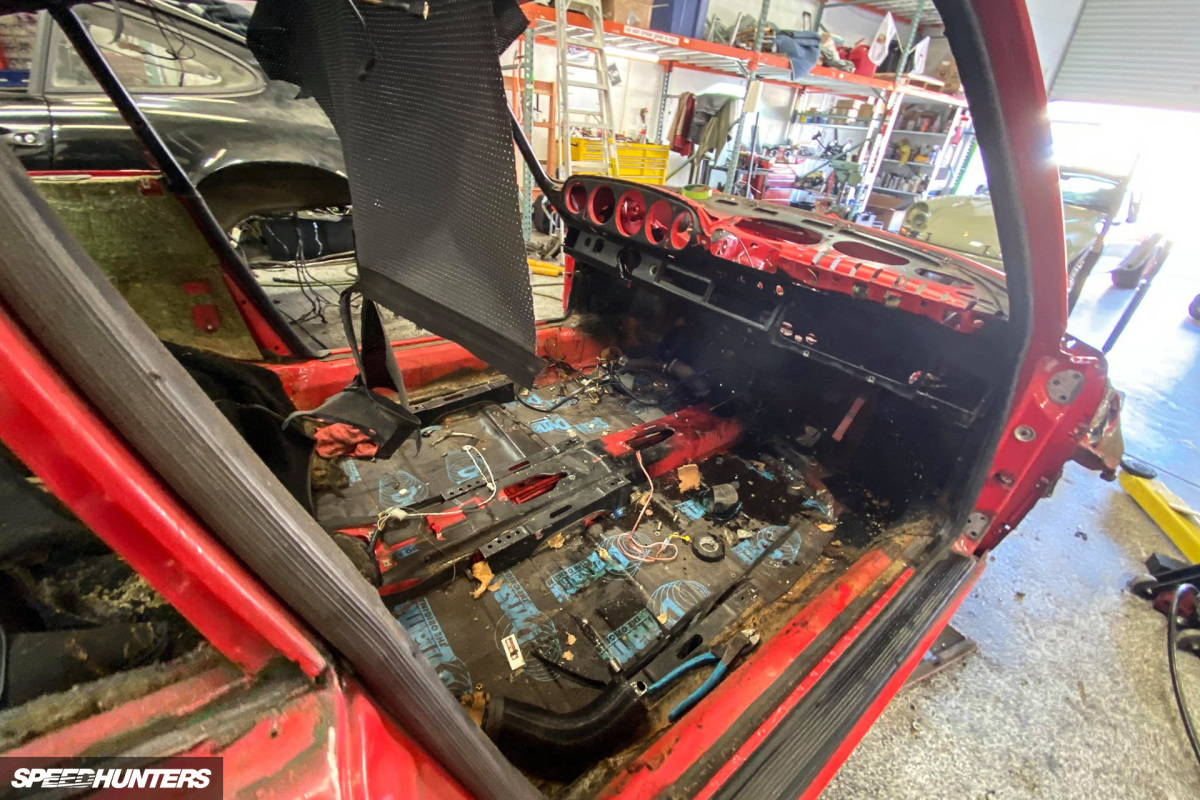

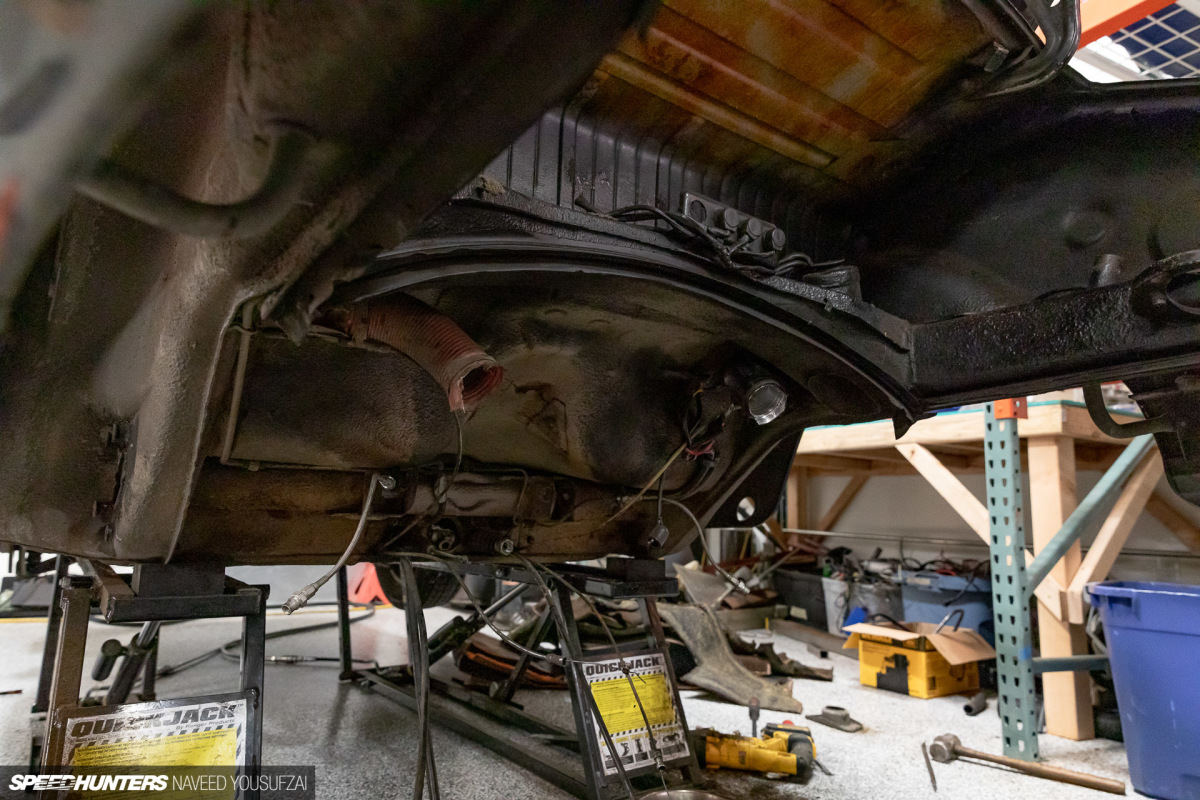

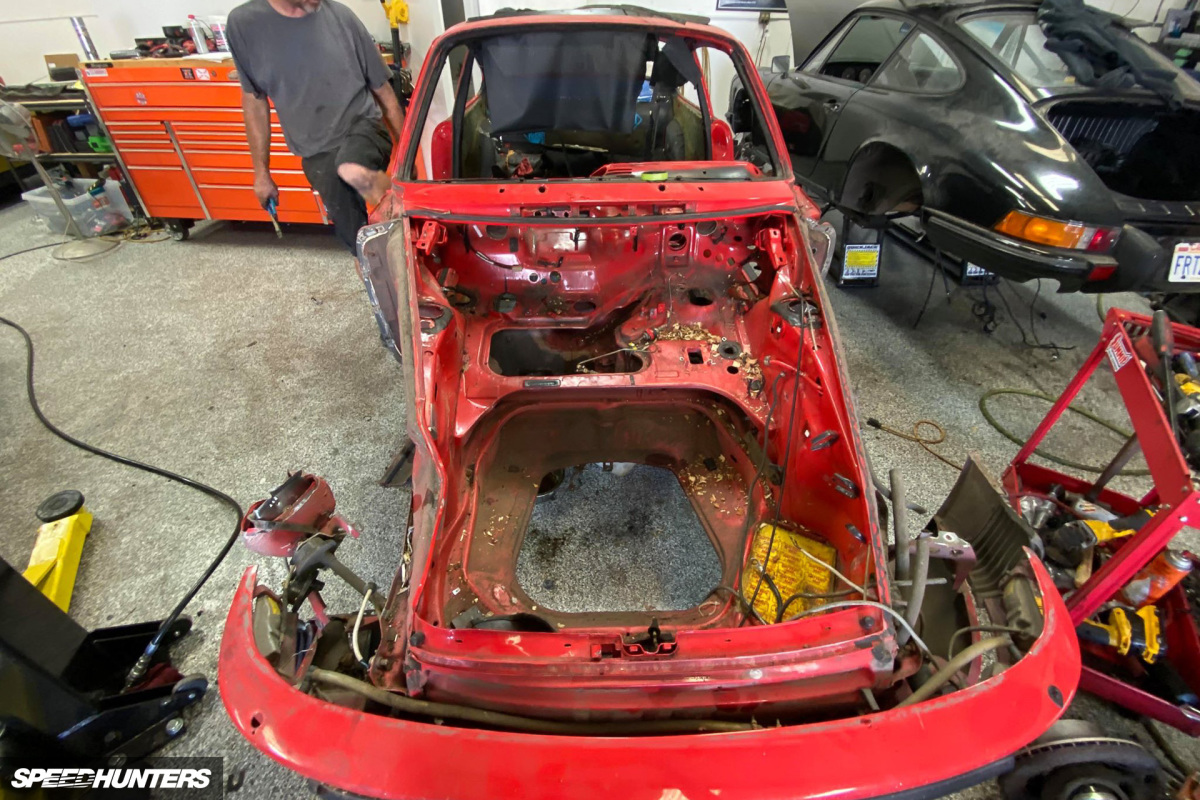

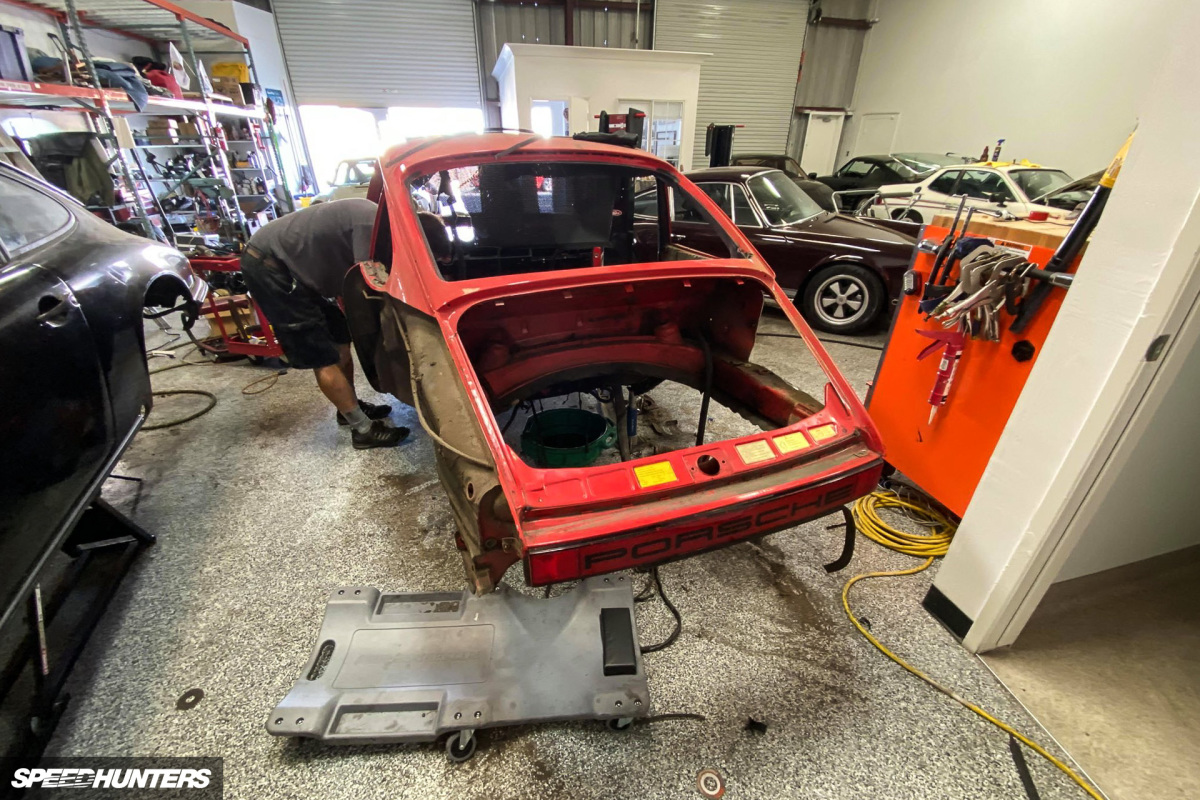

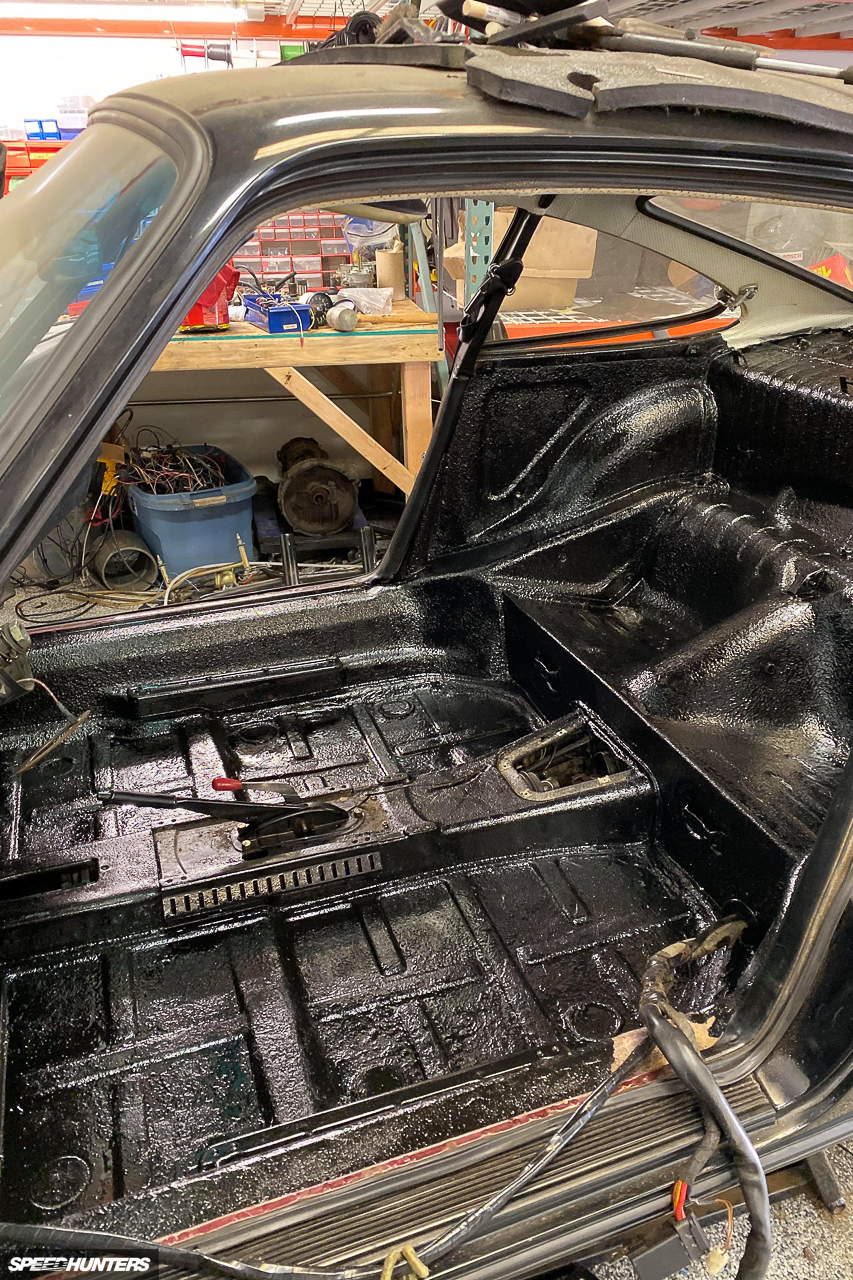

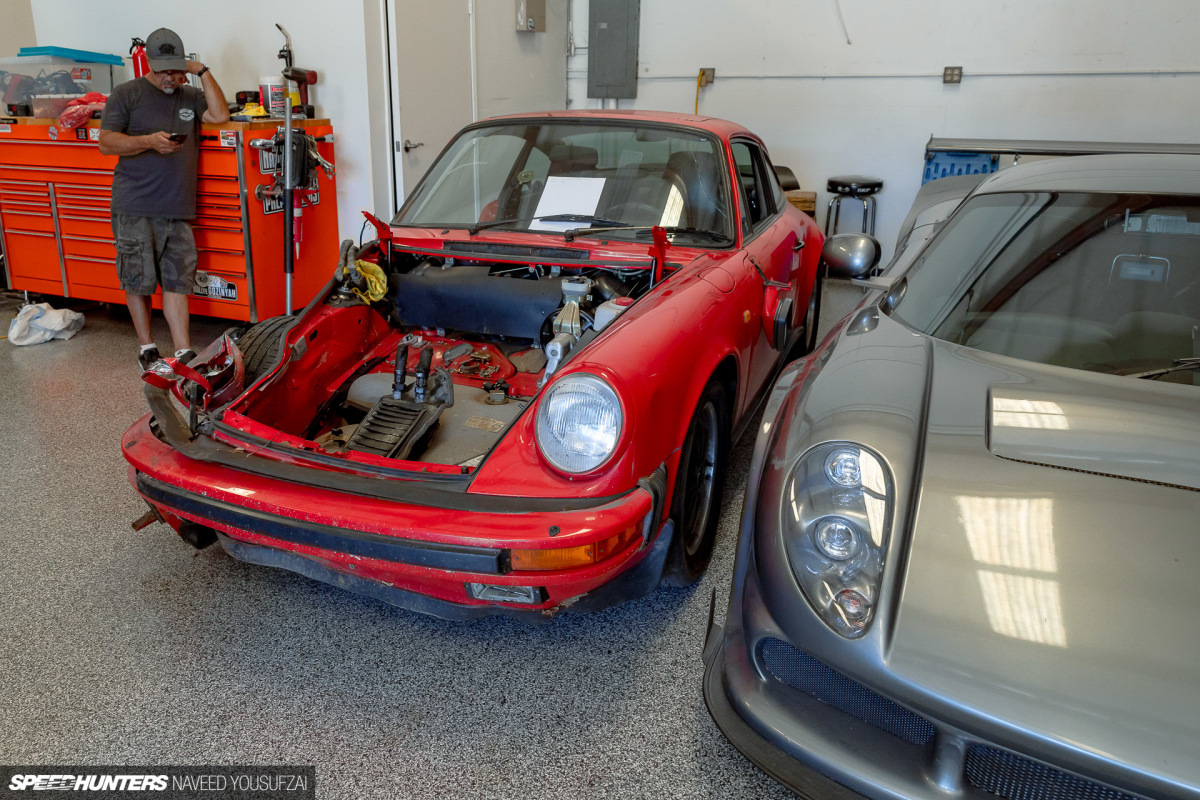

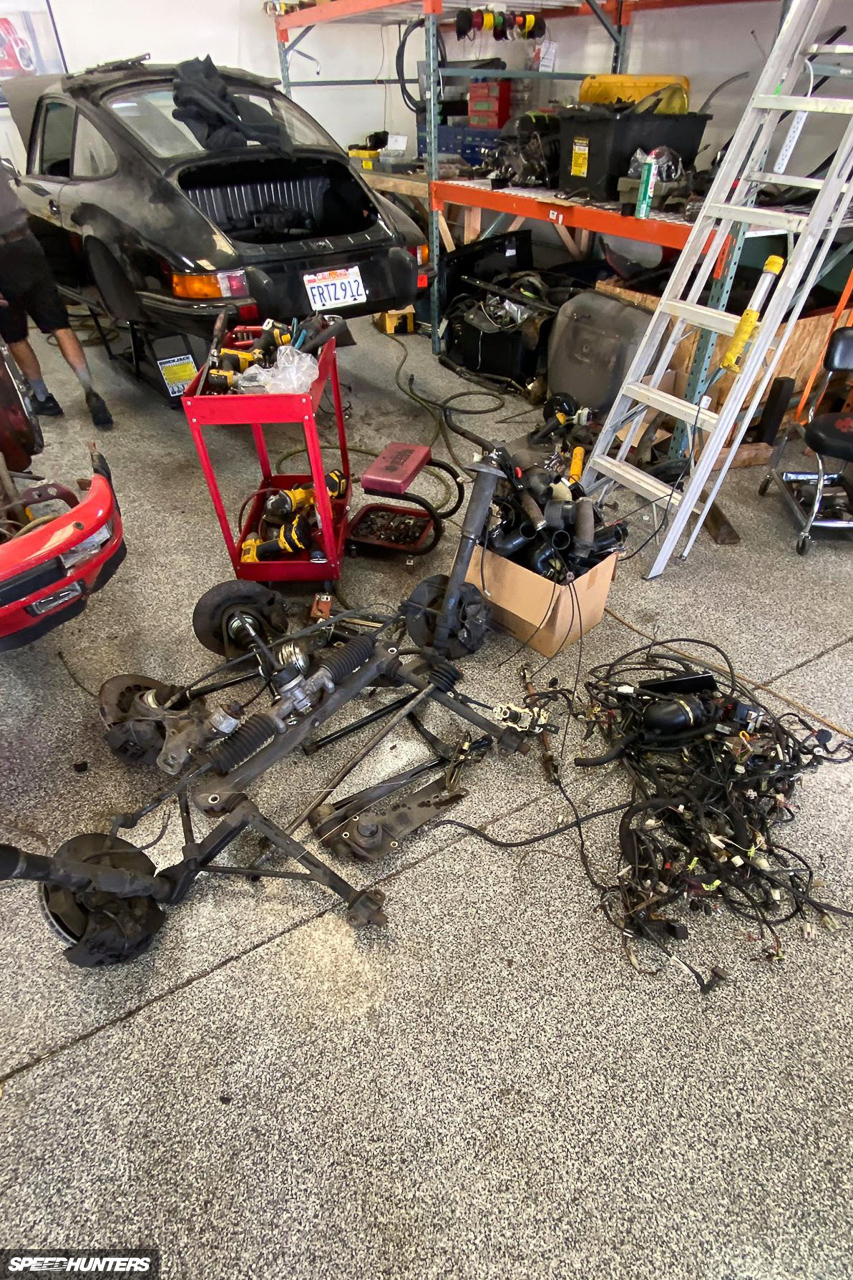

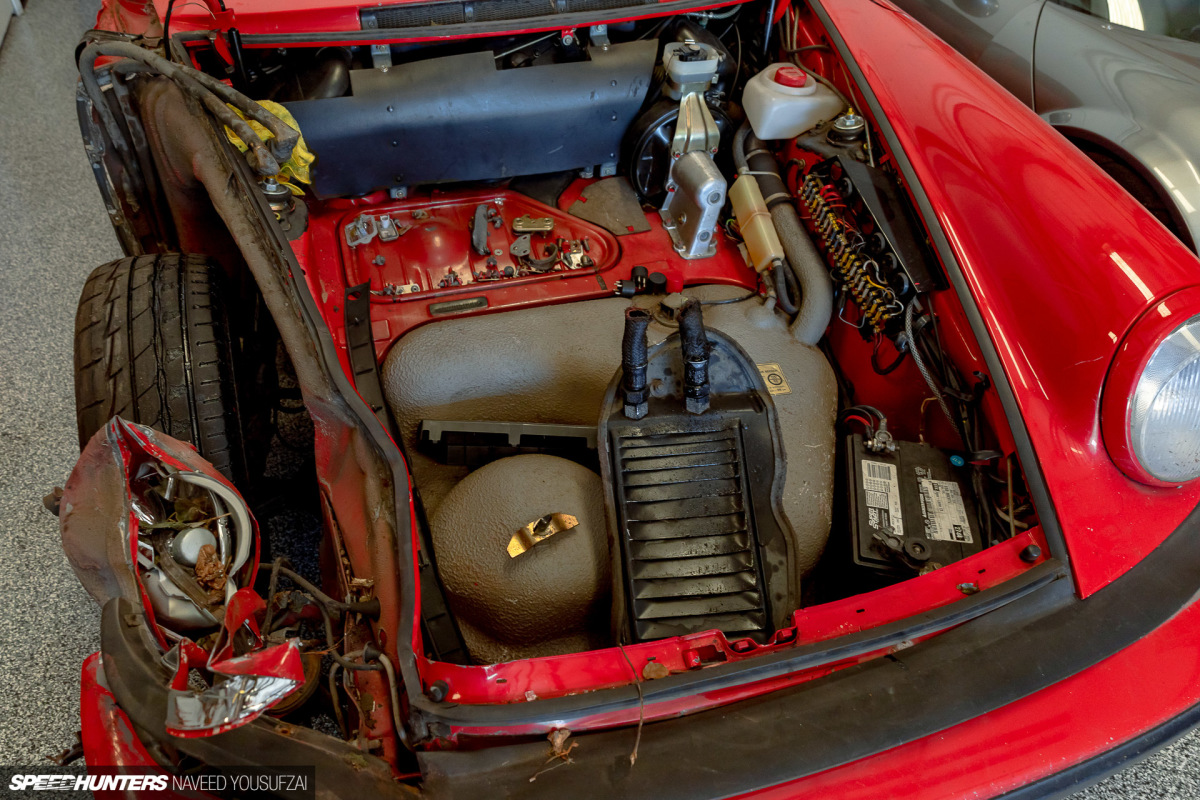

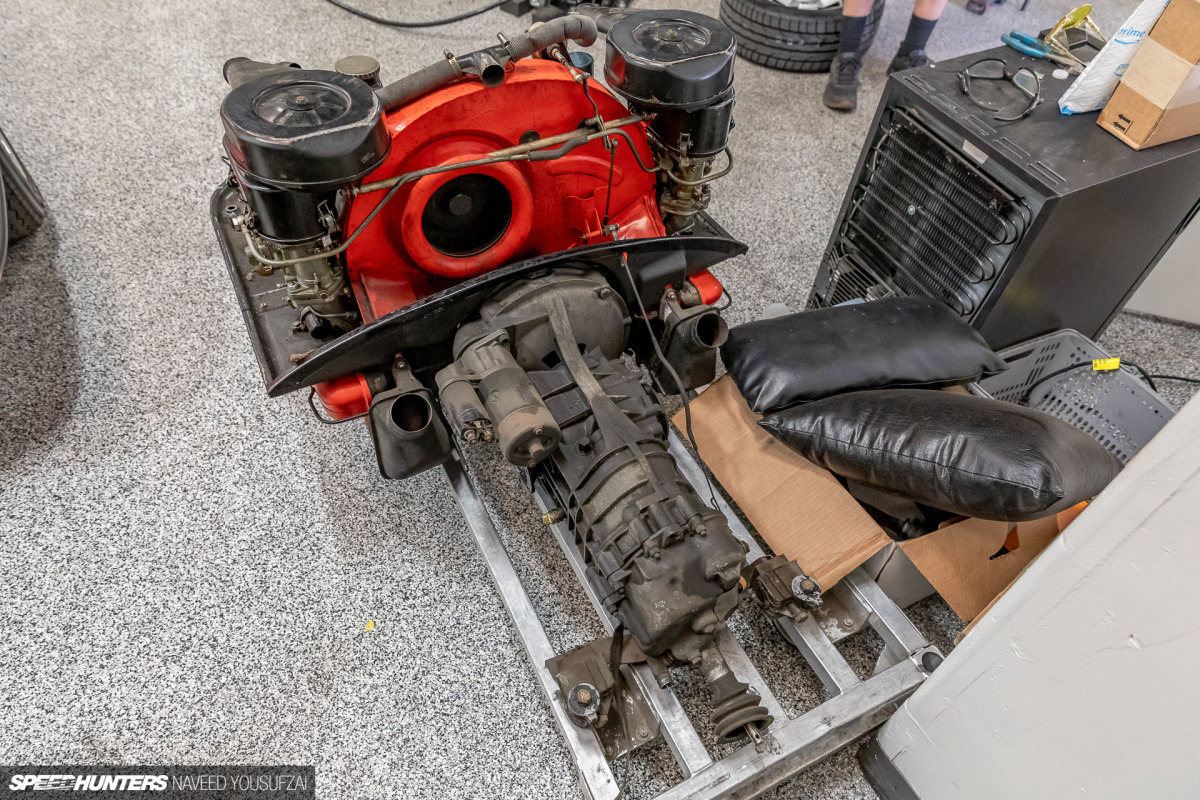

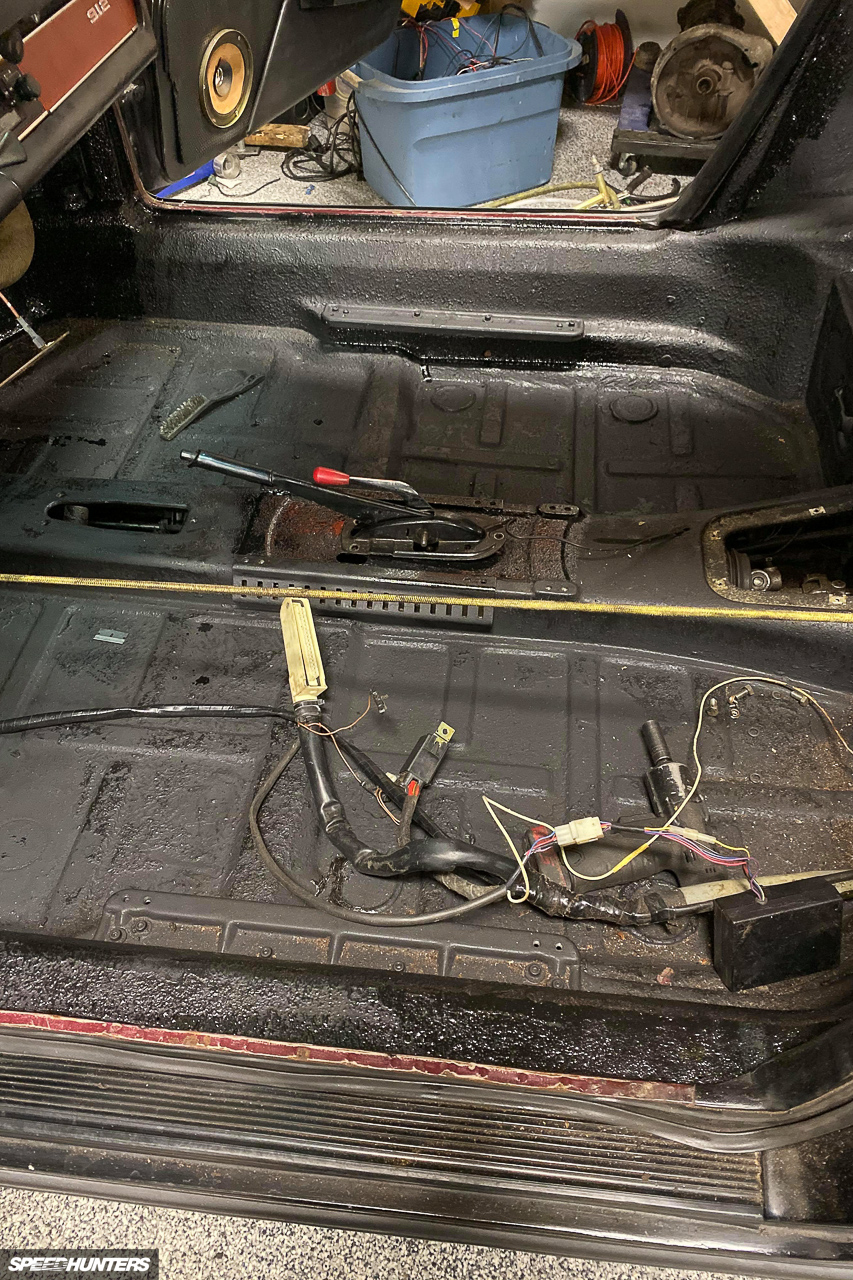

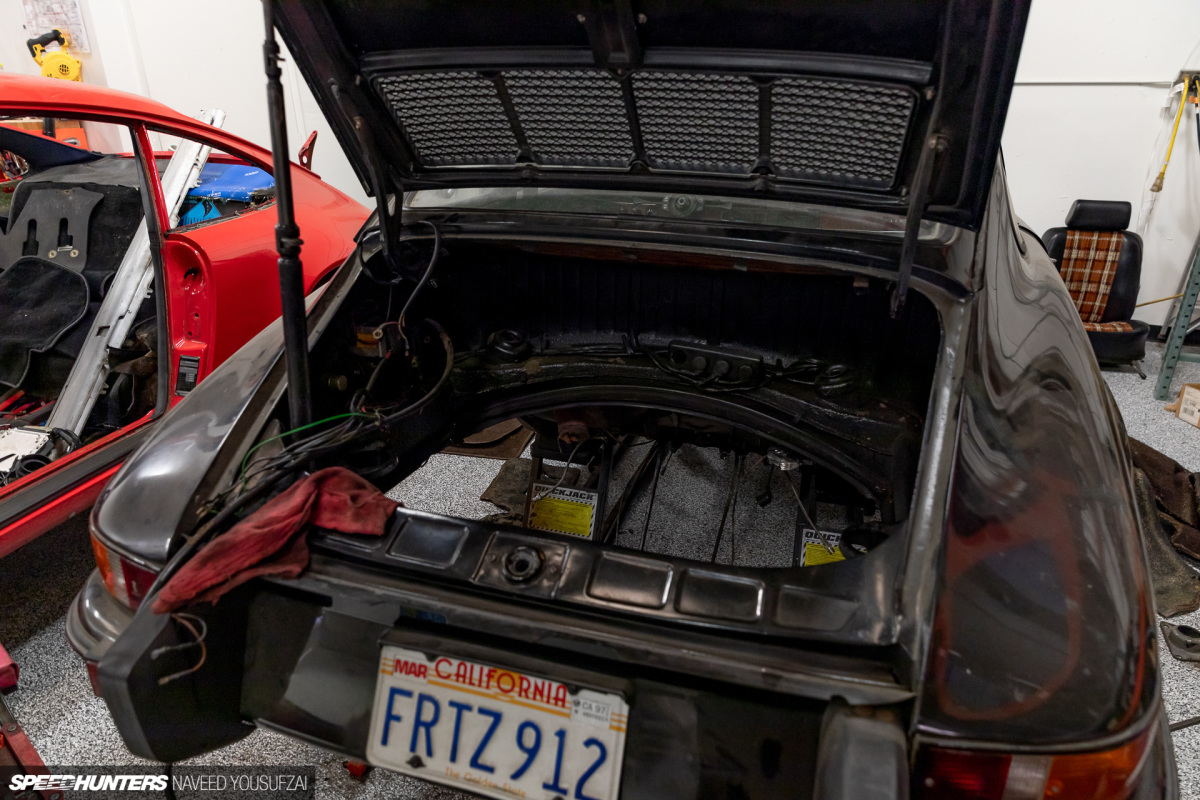

Over the course of the next three months, the 912 underwent its soul-reviving transplant. The first steps were to strip both cars down as much as possible. Since all the additional and excess parts would be listed for sale, I had Erik remove pretty much every bit of the 911, and nearly as much on the 912, minus the essentials needed like the seats, headlights, taillights, and other miscellaneous pieces that would be replaced later on.

IMG_9147Project912SiX-For-SpeedHunters-By-Naveed-Yousufzai
IMG_9172Project912SiX-For-SpeedHunters-By-Naveed-Yousufzai

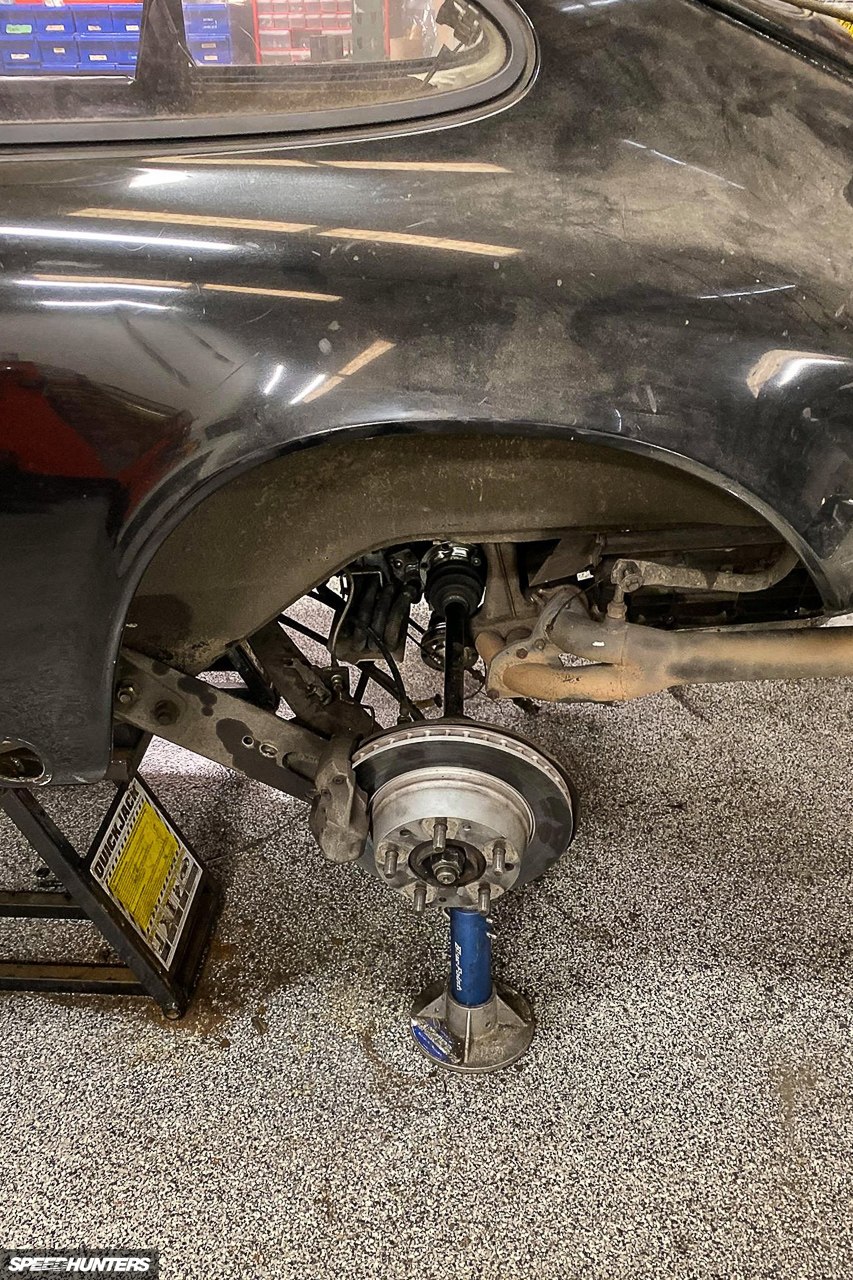

We would be stripping the 912 as much as possible for weight reduction, so the majority of the suspension components on the 911 would suffice, given that the 912 would be 800lbs (363kgs) lighter than the 911. Plus, the majority of these pieces were aluminum versus the original steel material used from factory, so most would consider it an upgrade either way.

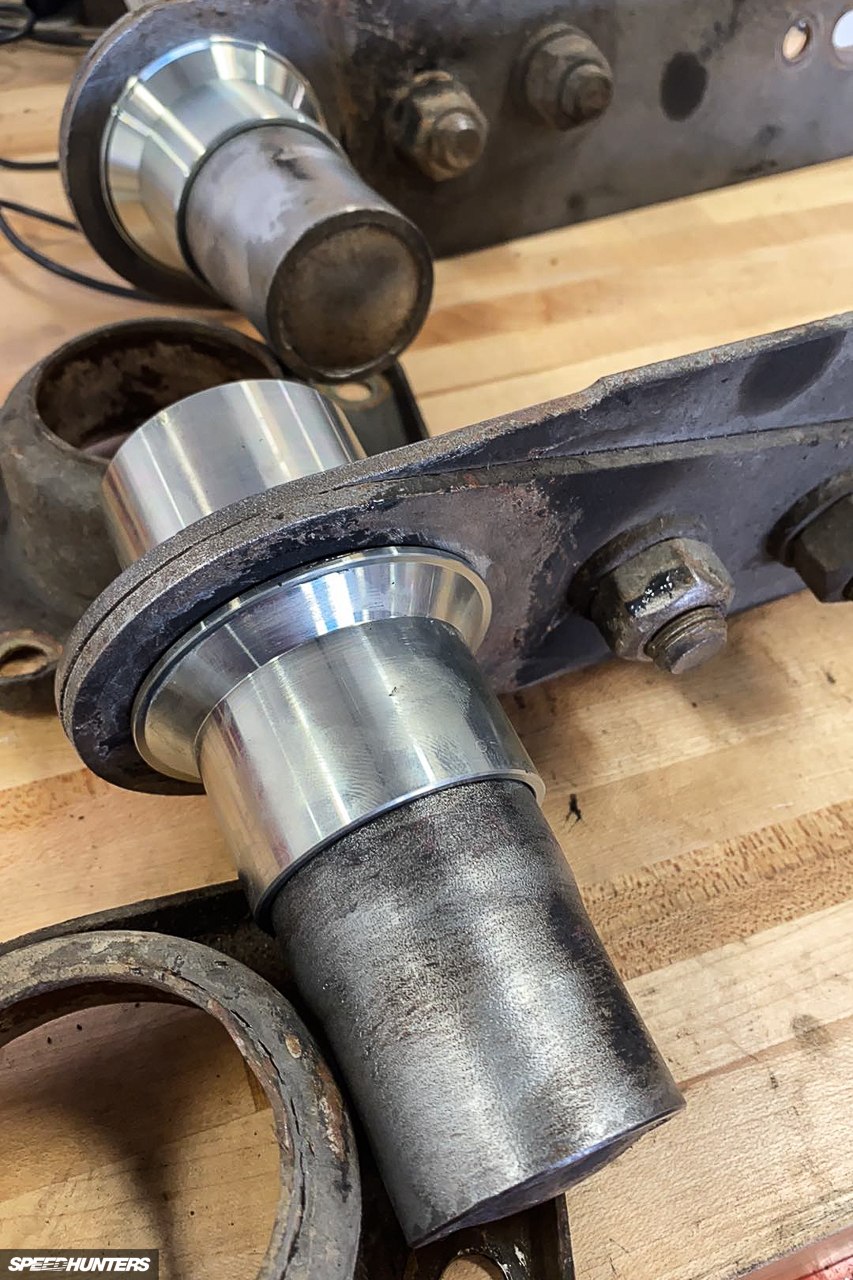

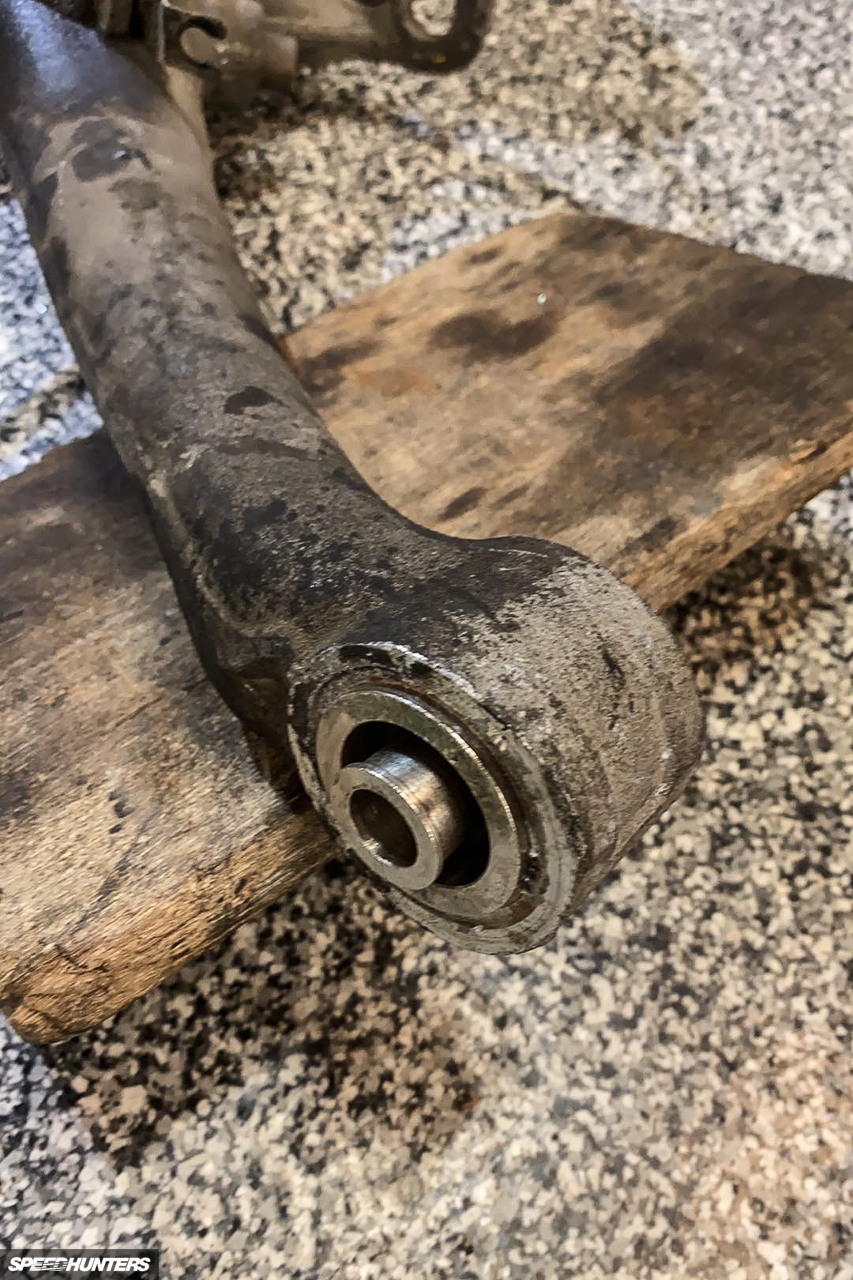

With that understanding, we retained the adjustable BILSTEIN struts, aluminum control arms and trailing arms, and the Euro-spec torsion bars. Upon removal though, we figured it would be best to at least upgrade the bushings and spring plates on the car, so we decided to go with the obvious choice from Elephant Racing, as they have quite the proven track record for delivering excellent performance-grade pieces.

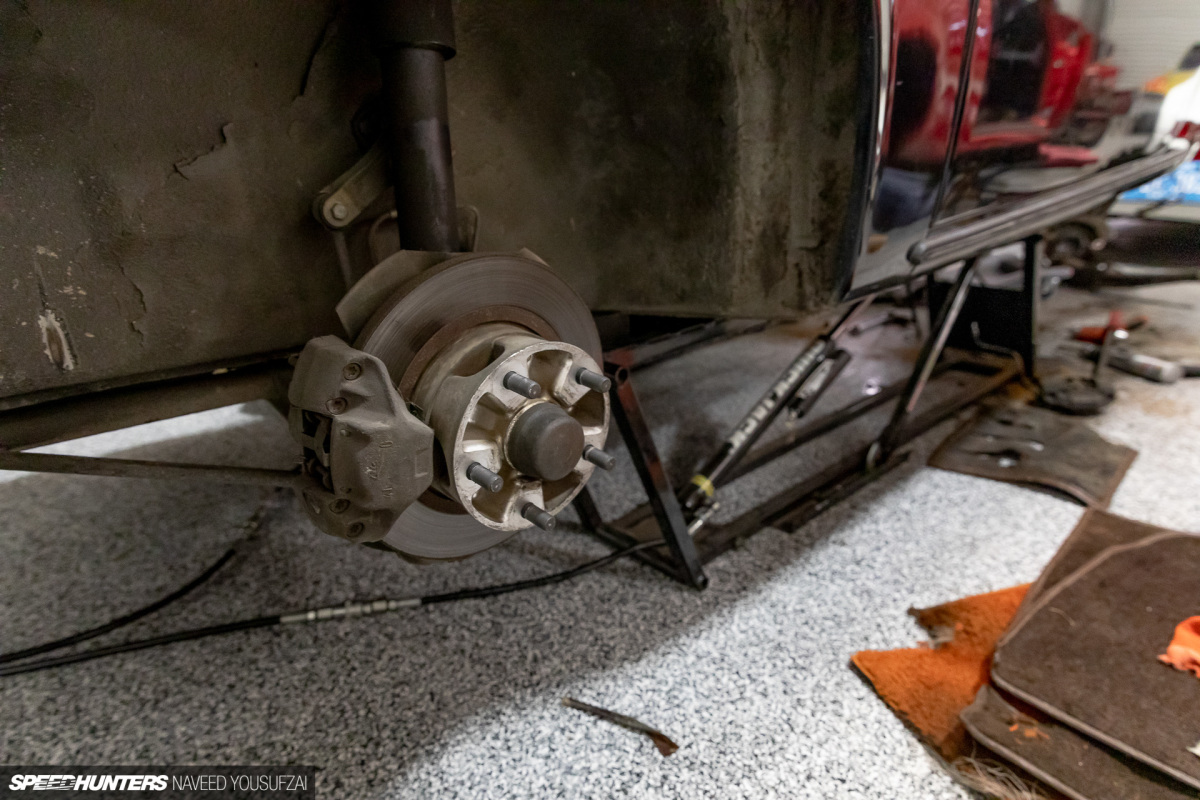

The brakes from the Euro Carrera would also be considered an upgrade from the factory 912 fare, being that they have larger calipers and rotors, so those were retained as well. I really lucked it on these modifications as G had serviced most of the parts on his car prior to me purchasing it from him.

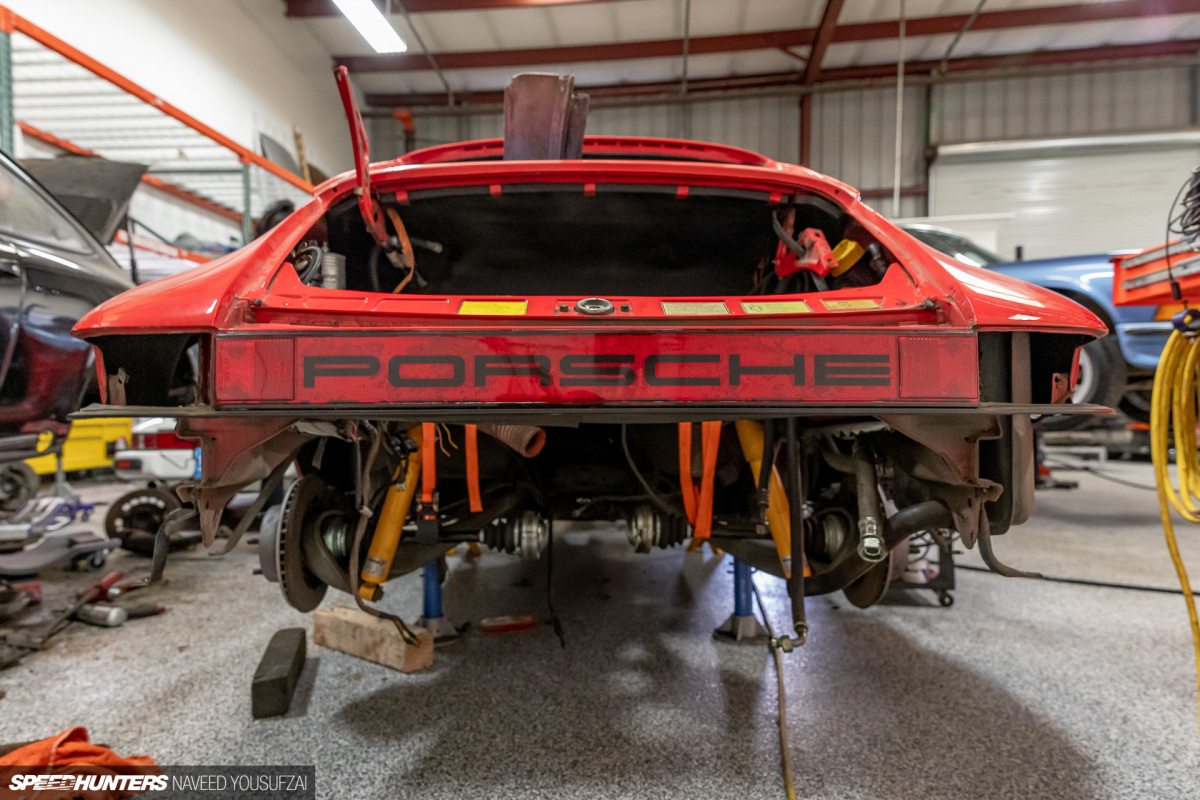

IMG_9178Project912SiX-For-SpeedHunters-By-Naveed-Yousufzai

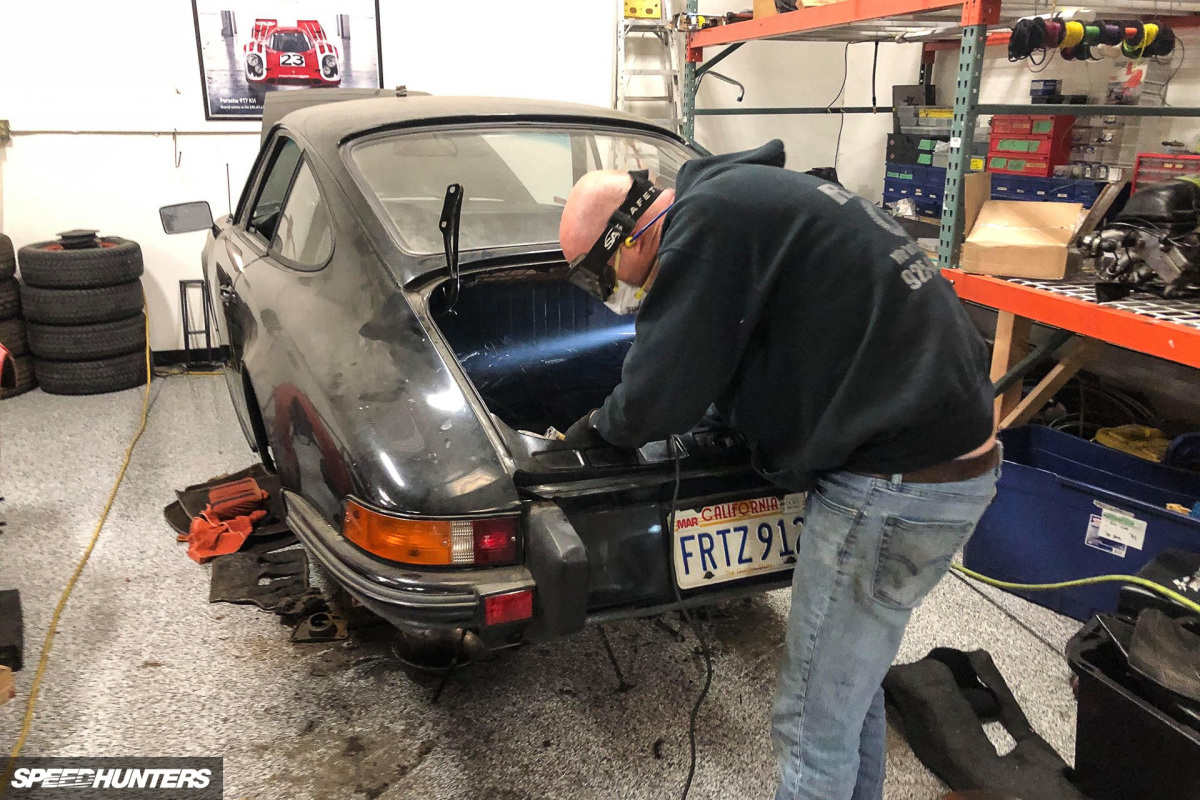

72299502_515537179278147_468448960533495808_nProject912SiX-For-SpeedHunters-By-Naveed-Yousufzai

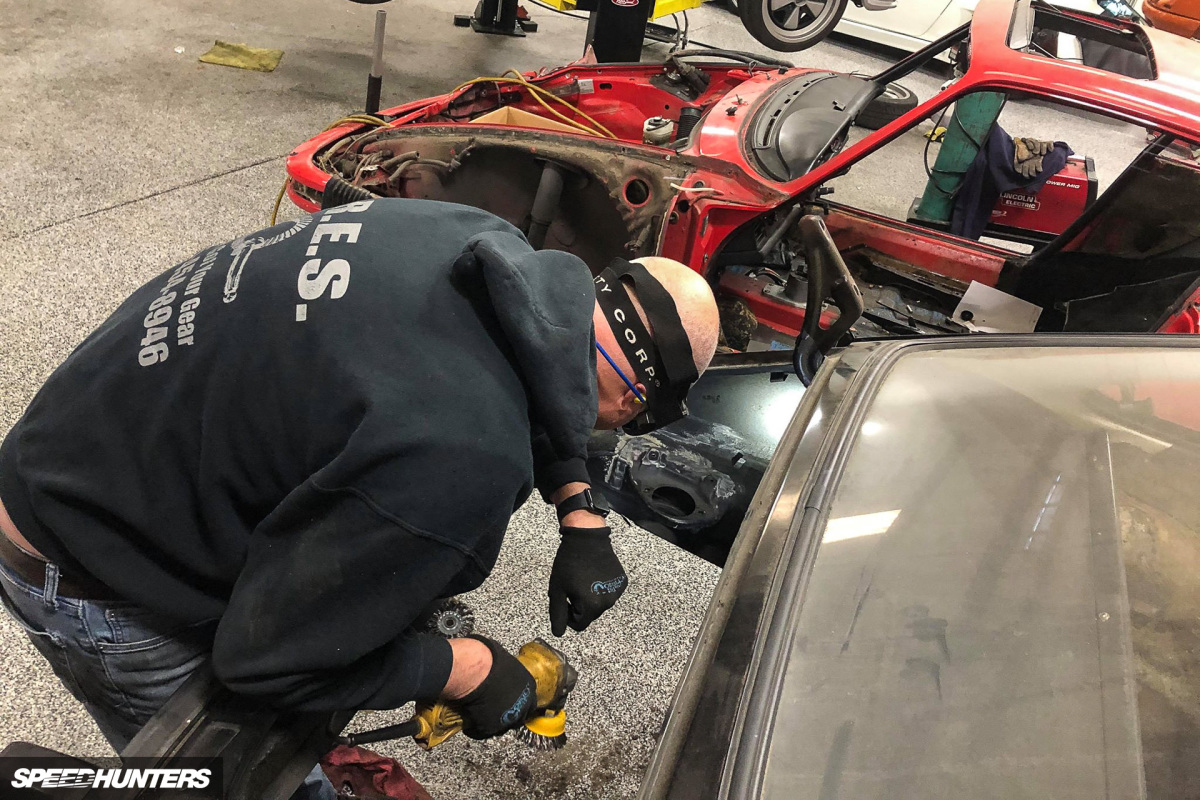

72420103_545028466327071_7263478859398381568_nProject912SiX-For-SpeedHunters-By-Naveed-Yousufzai

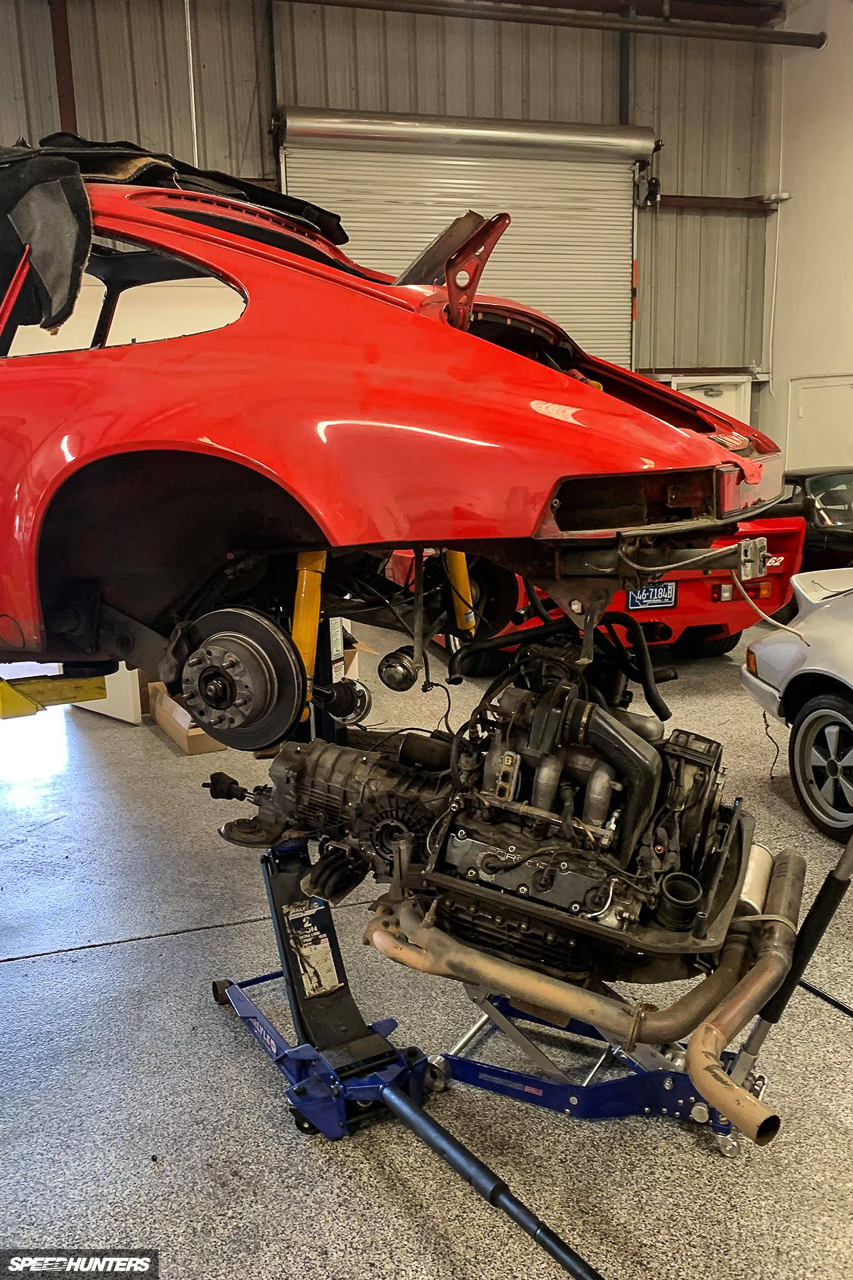

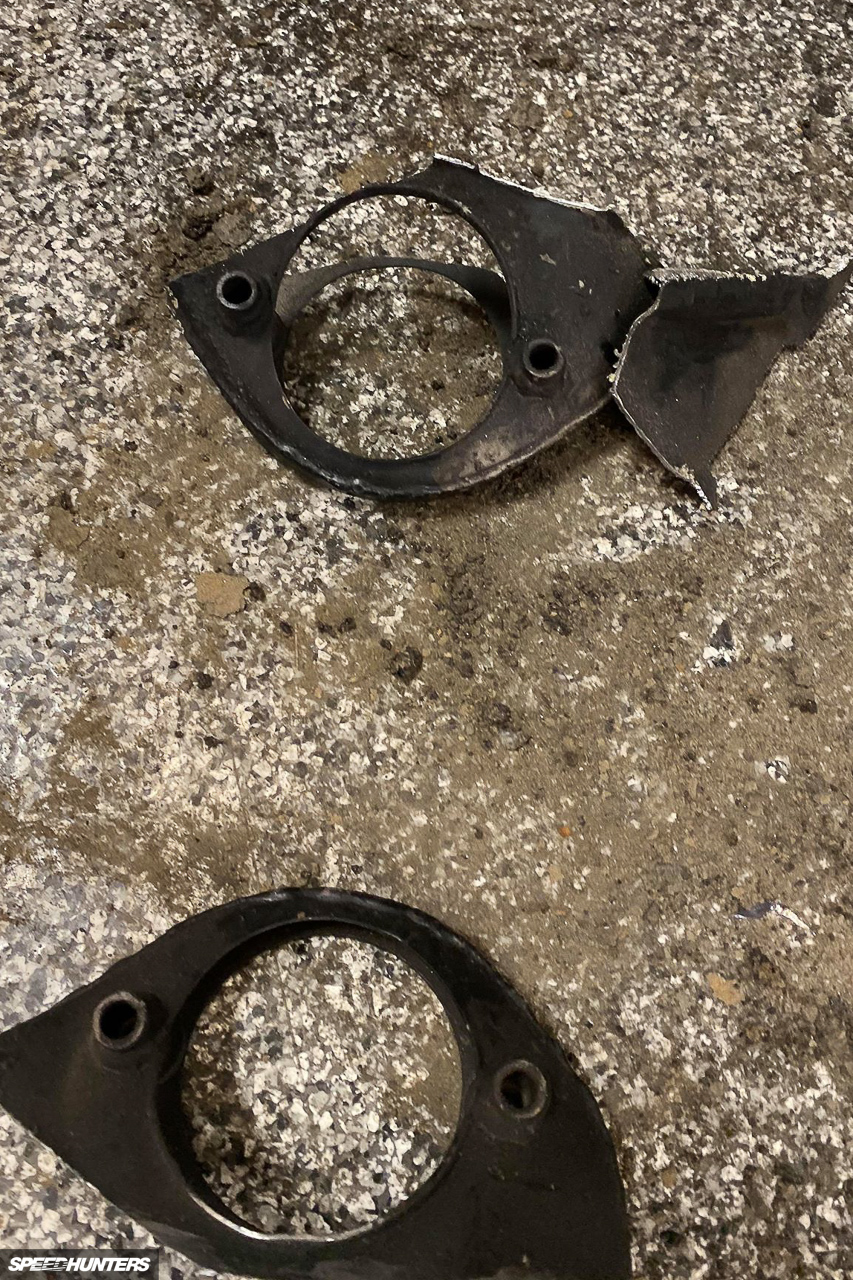

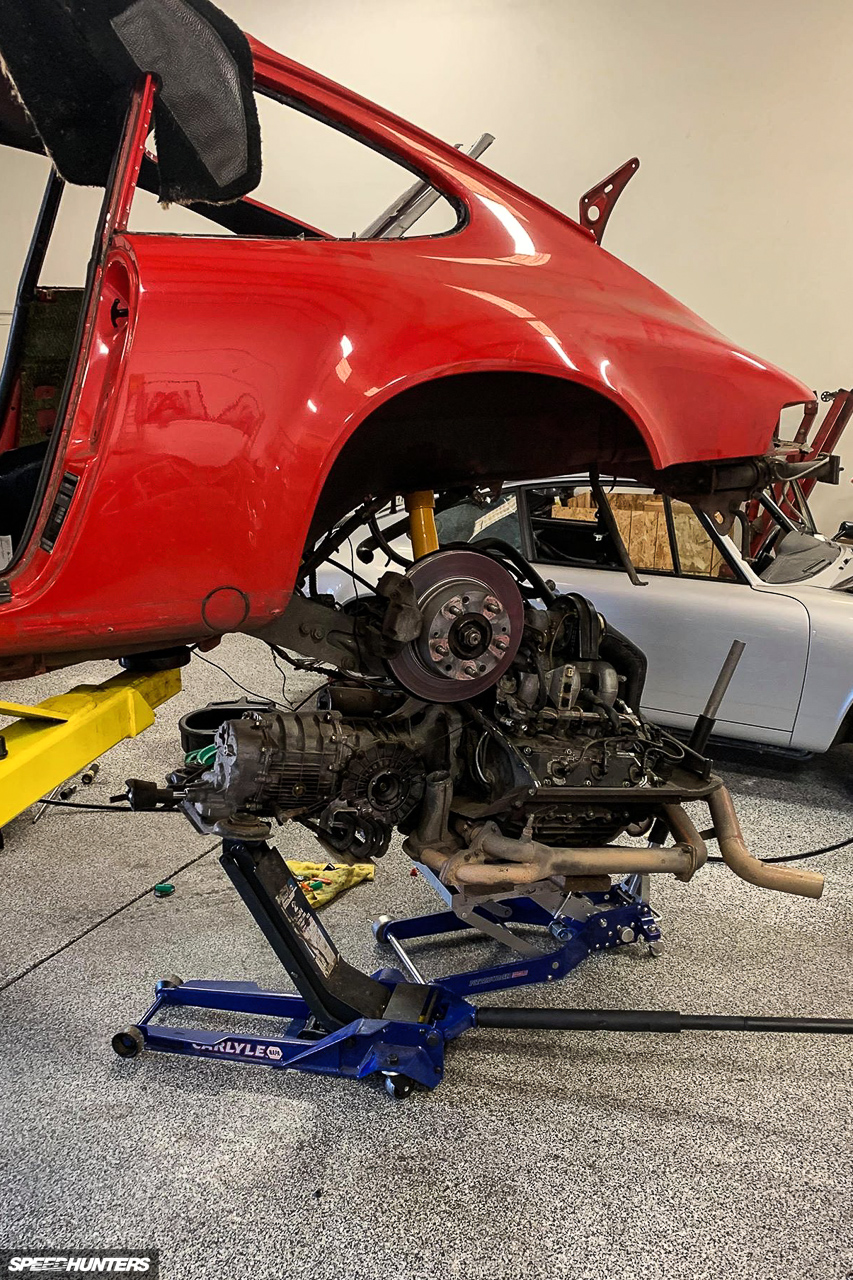

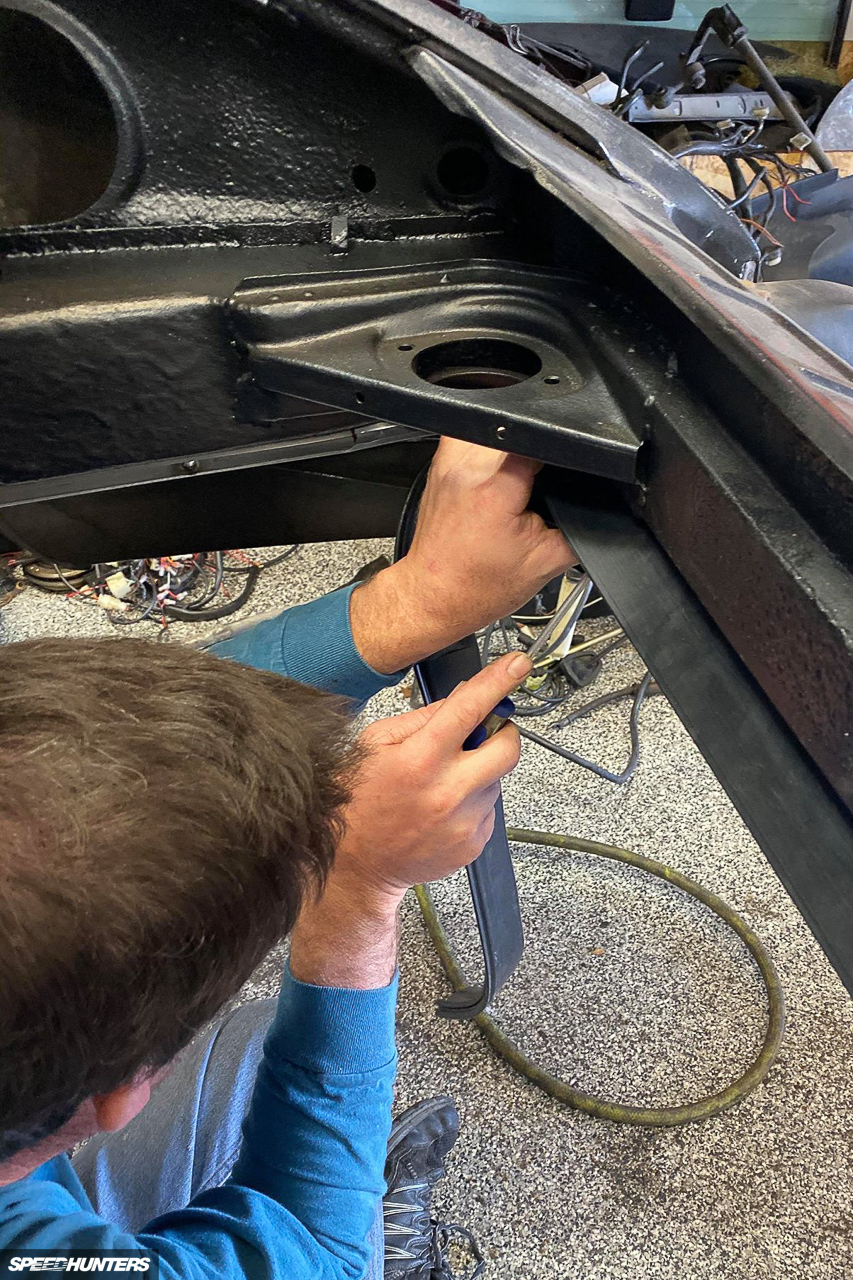

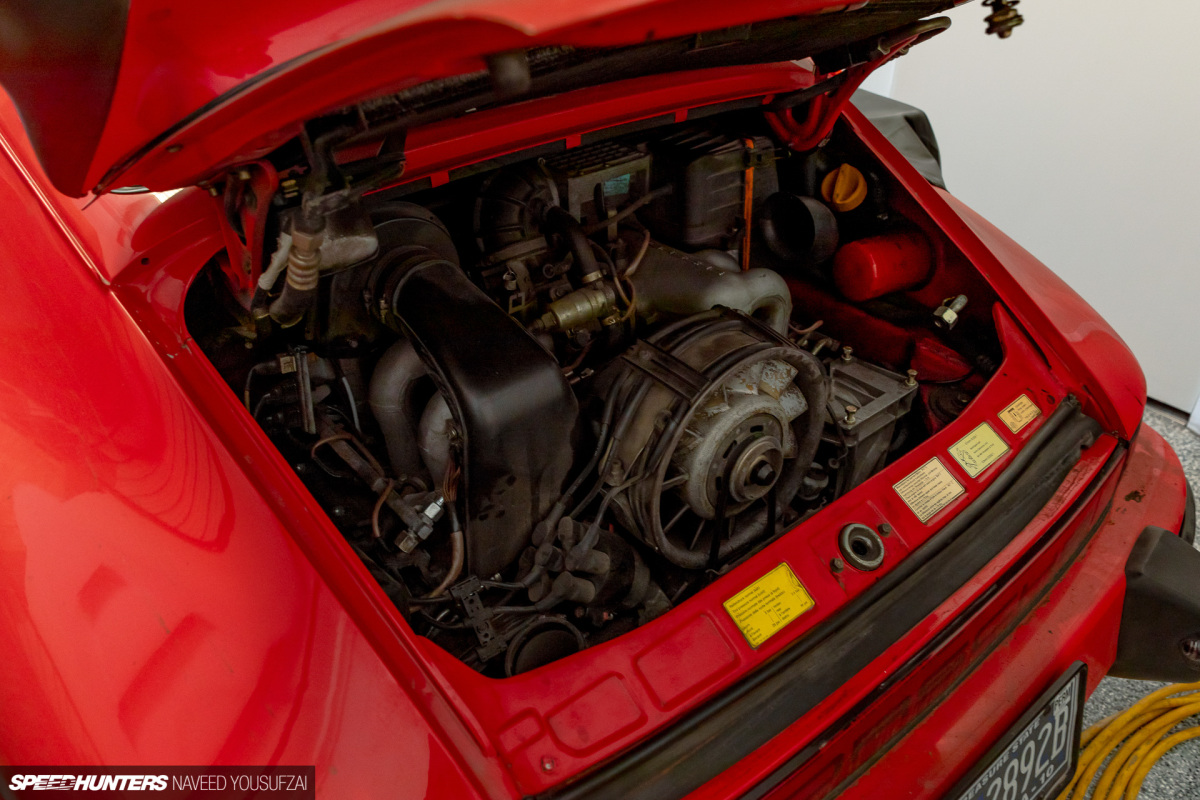

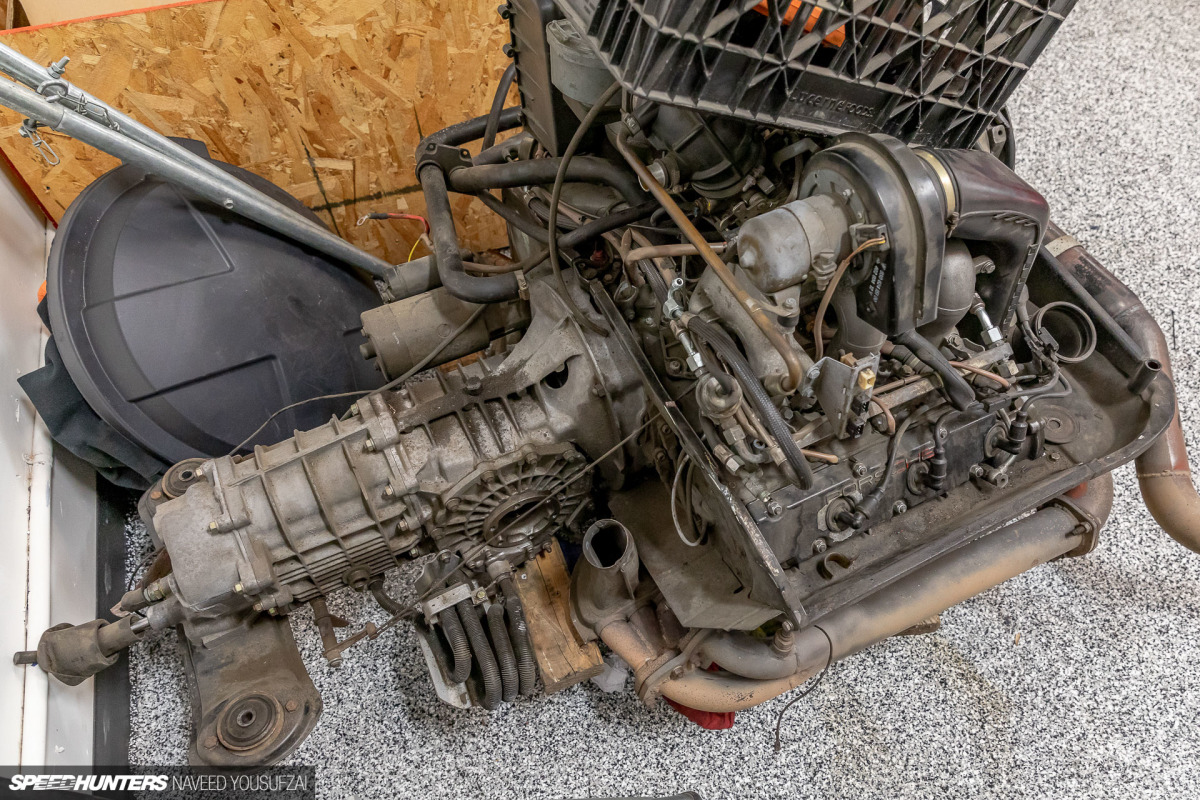

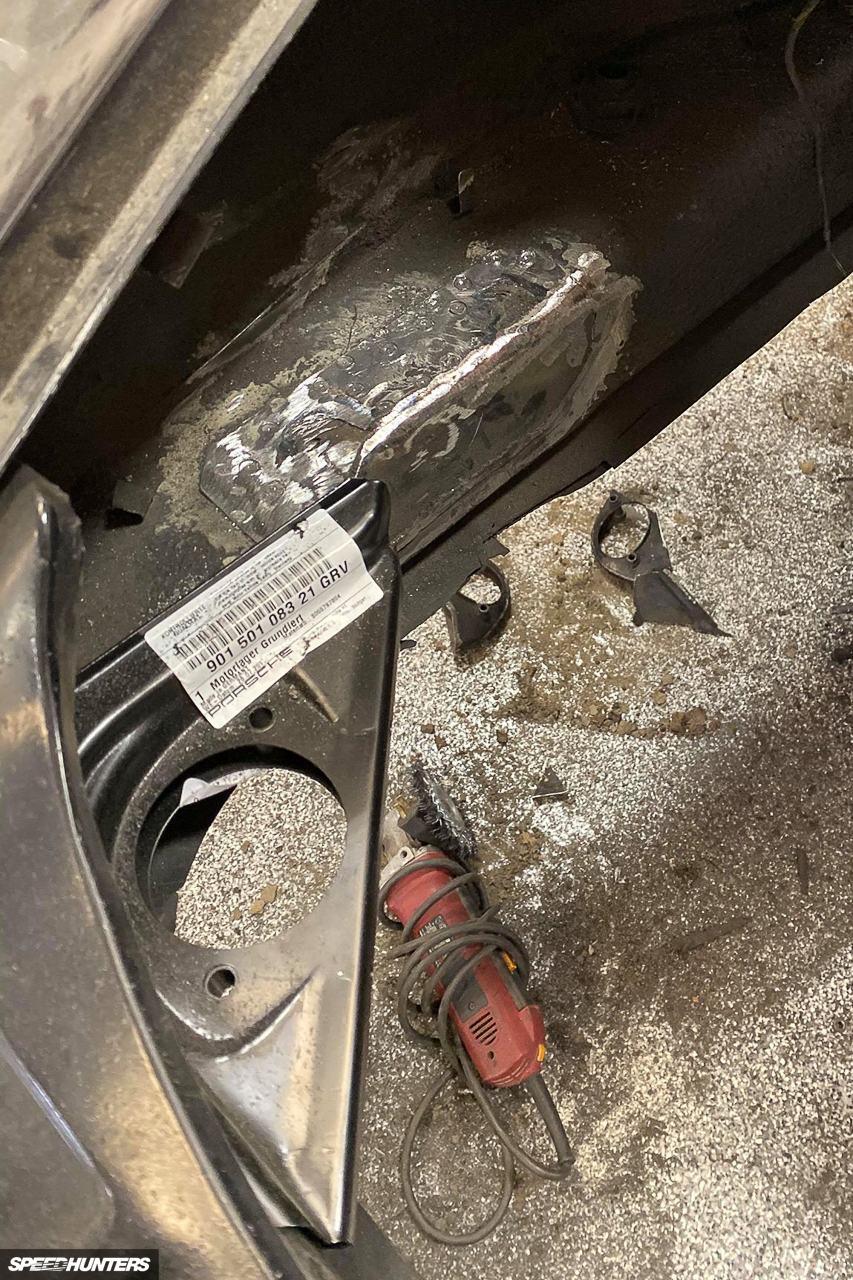

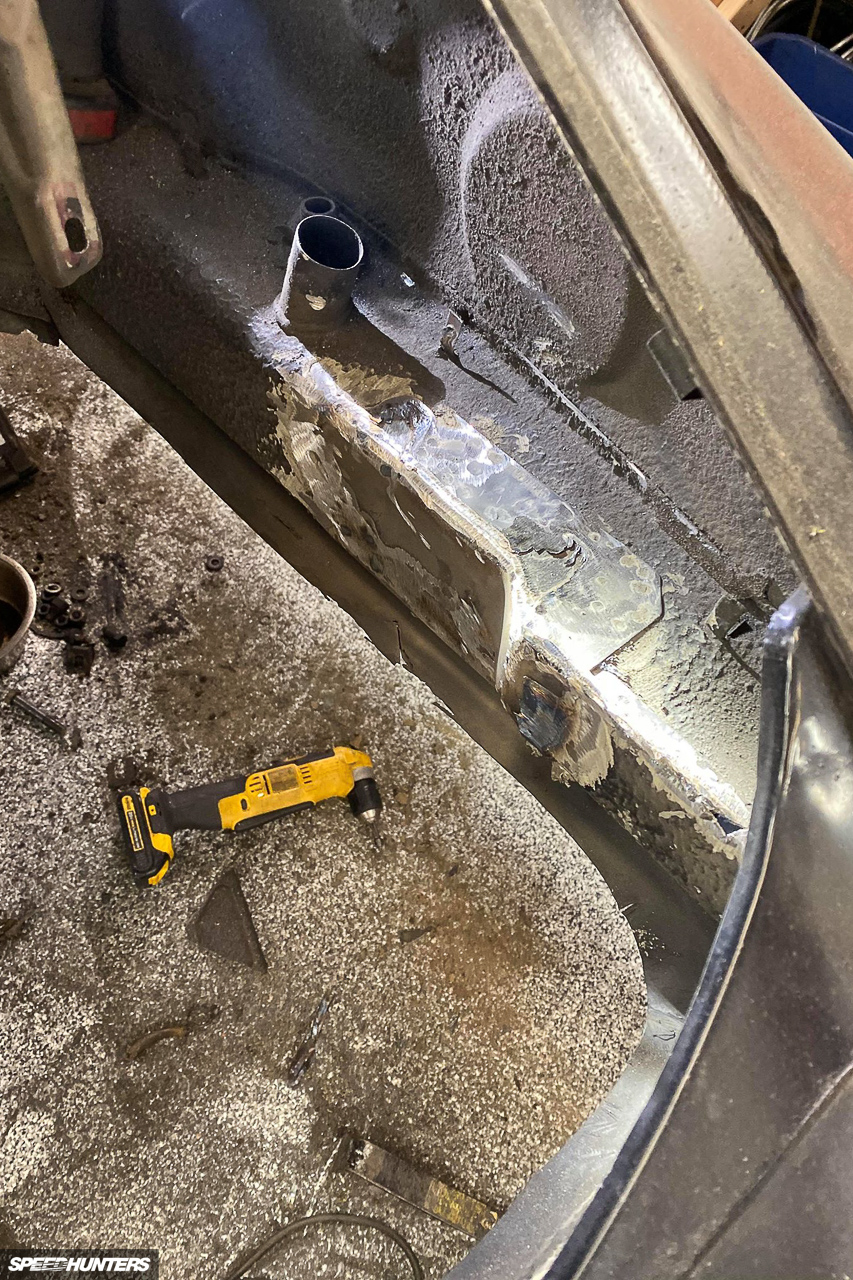

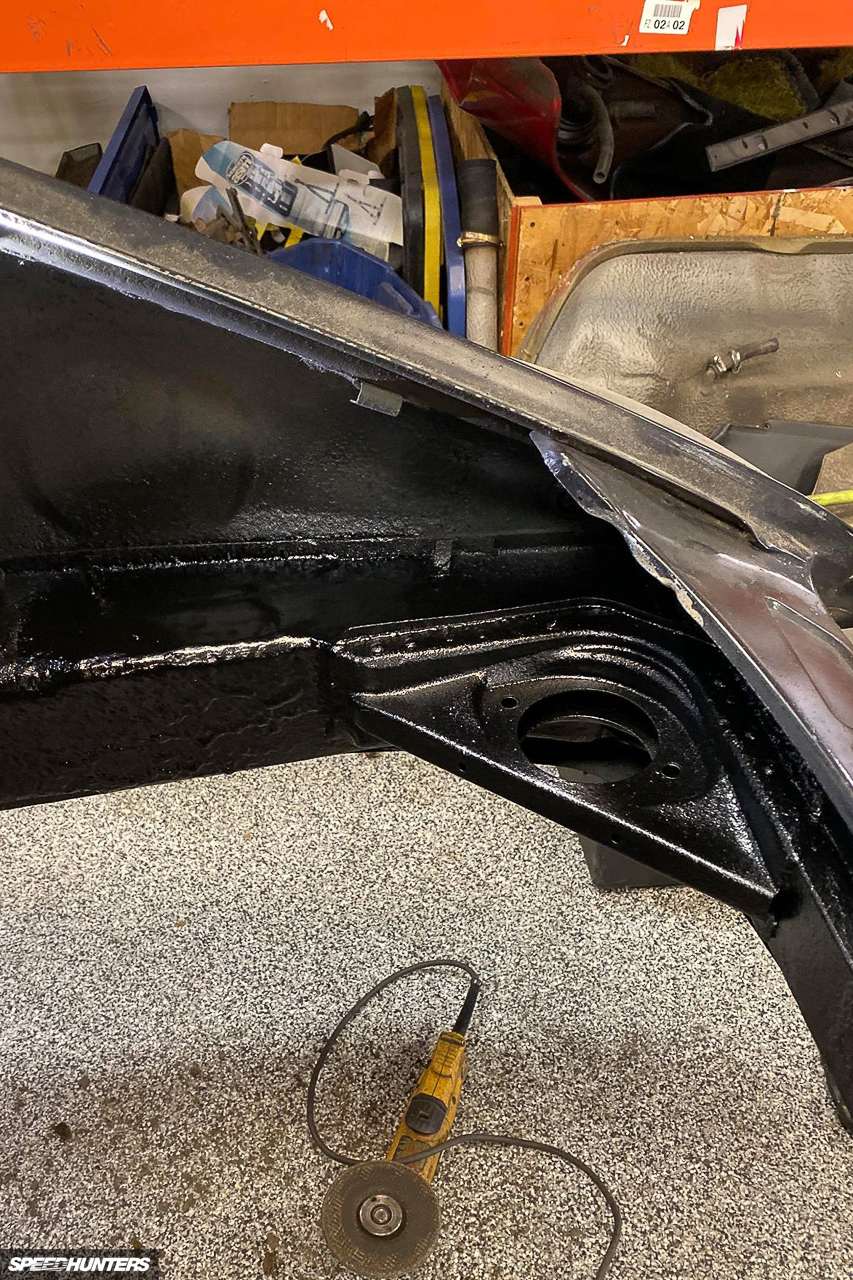

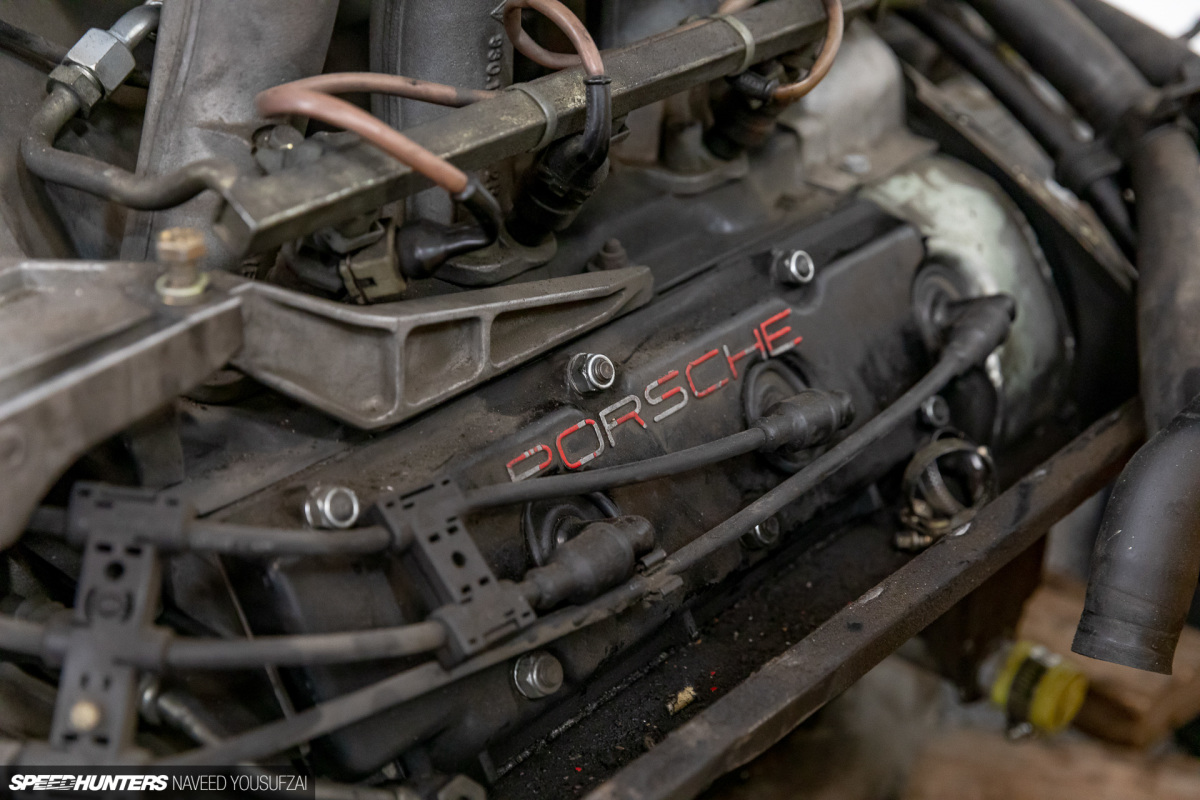

Moving on to the engine, the Euro 3.2-liter flat-six, rebuilt 915 transmission and wiring harness were all removed from the Euro Carrera and set aside until the new motor mounts arrived for the 912. Once they did, Erik welded them in along with the new oil tank and filler, and finished up the job with a fresh coat of paint prior to the engine install.

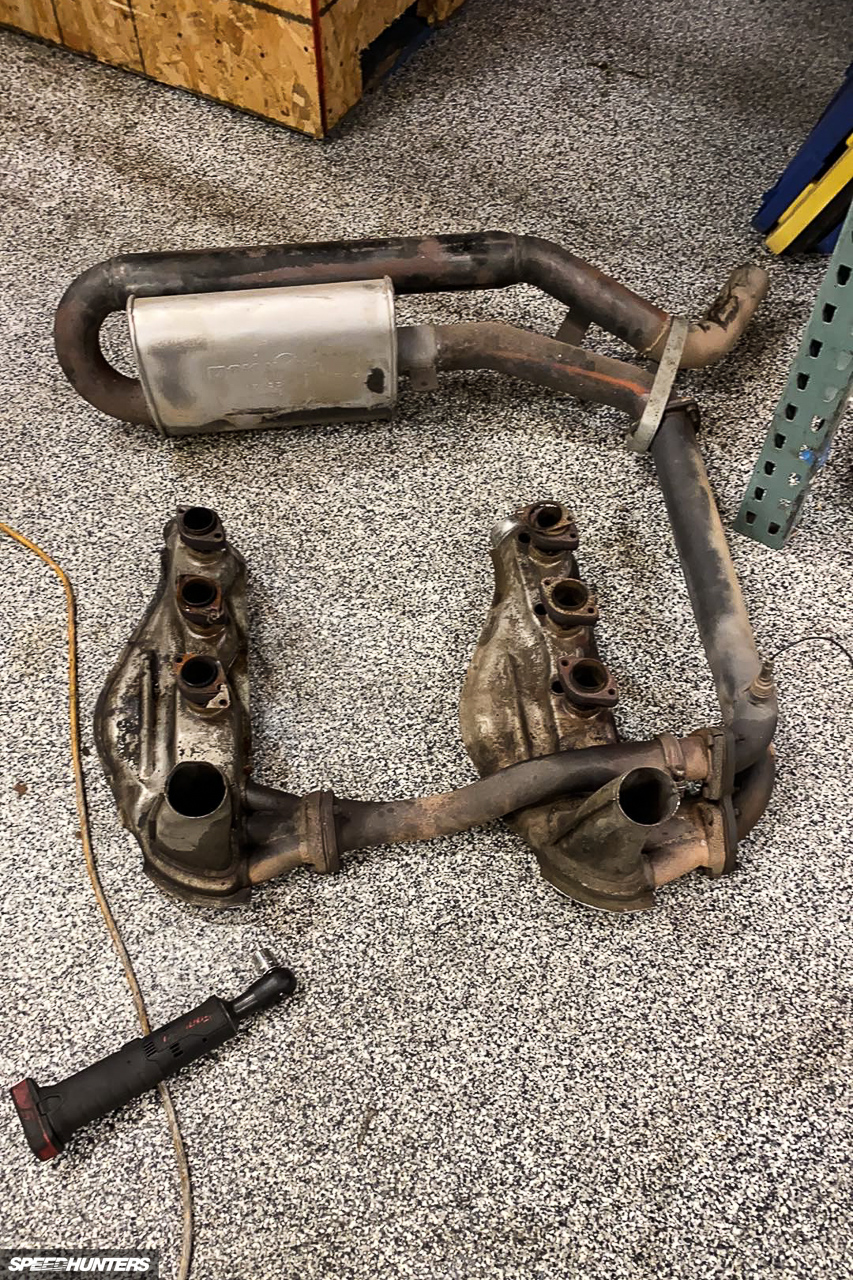

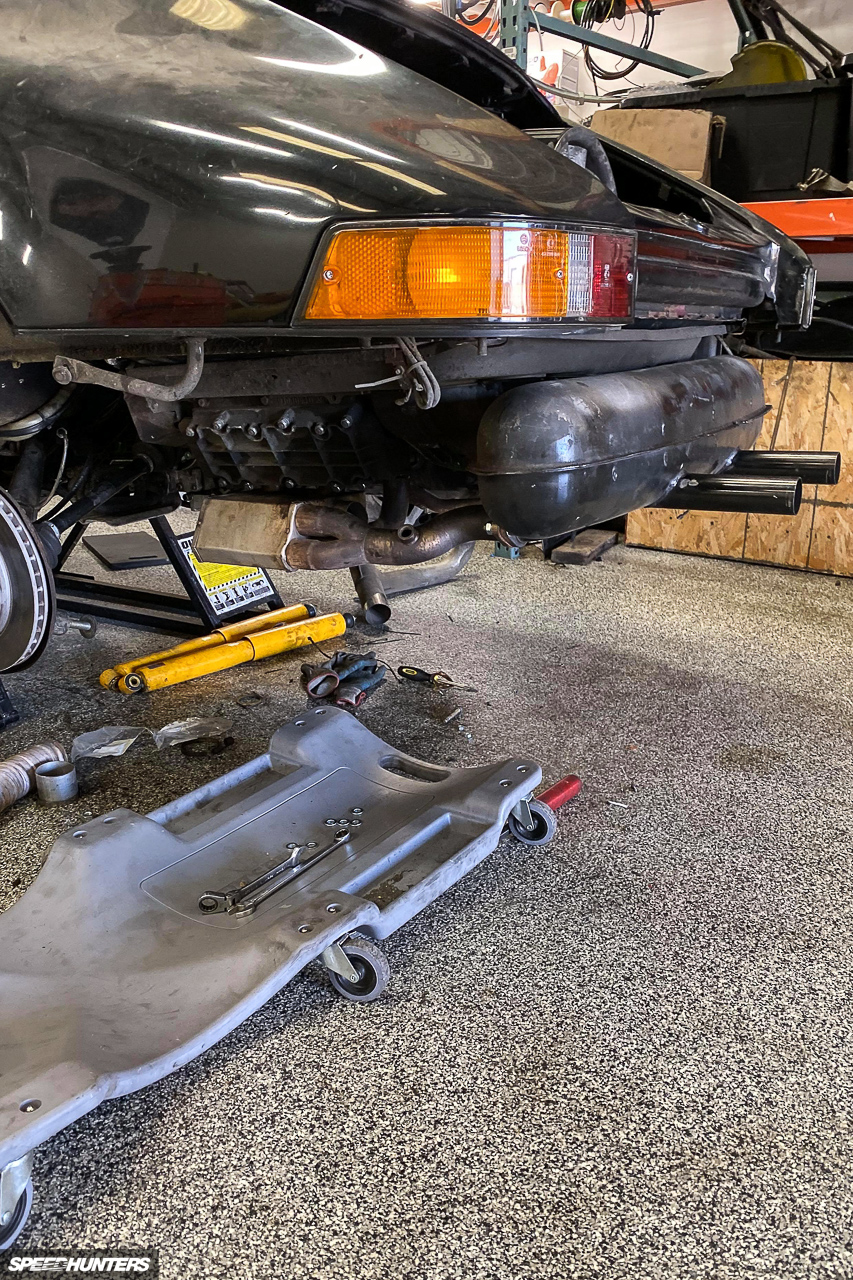

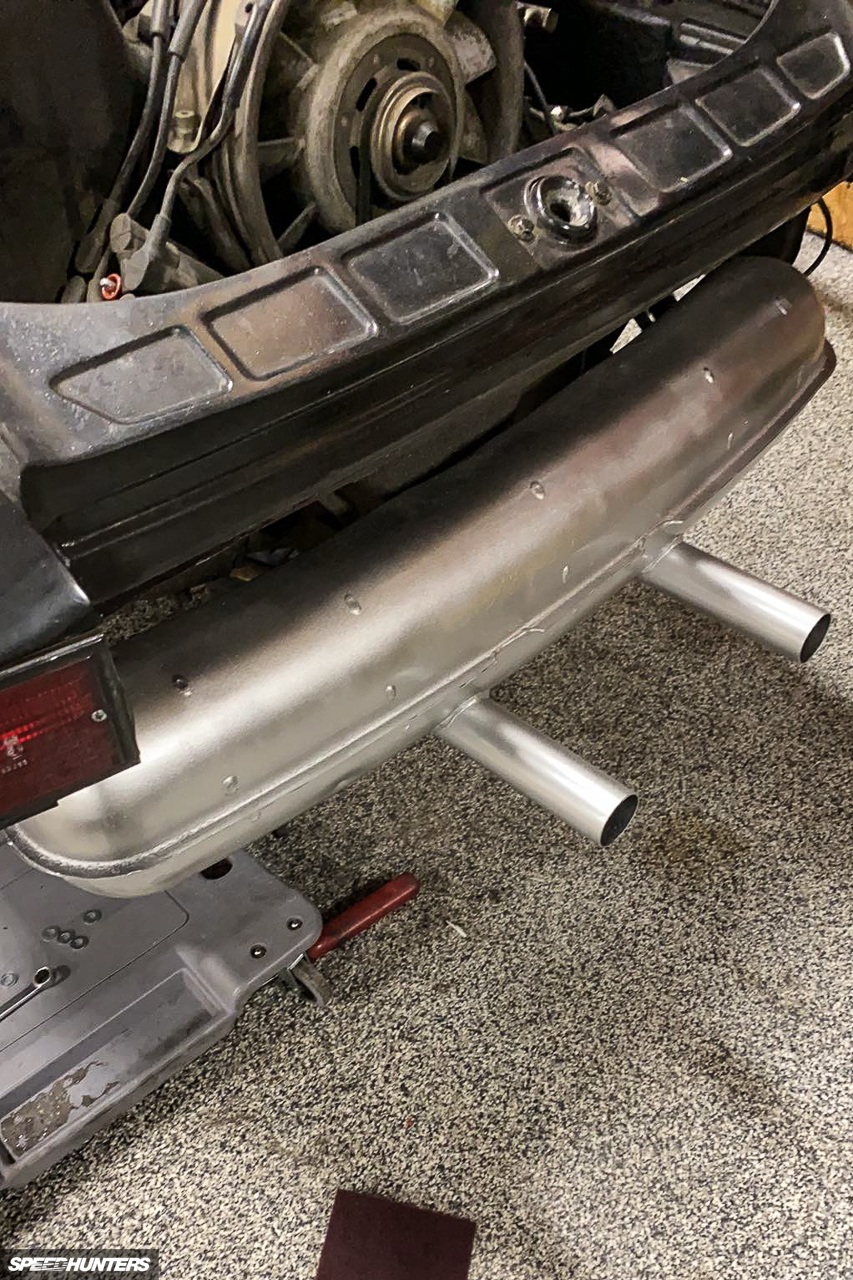

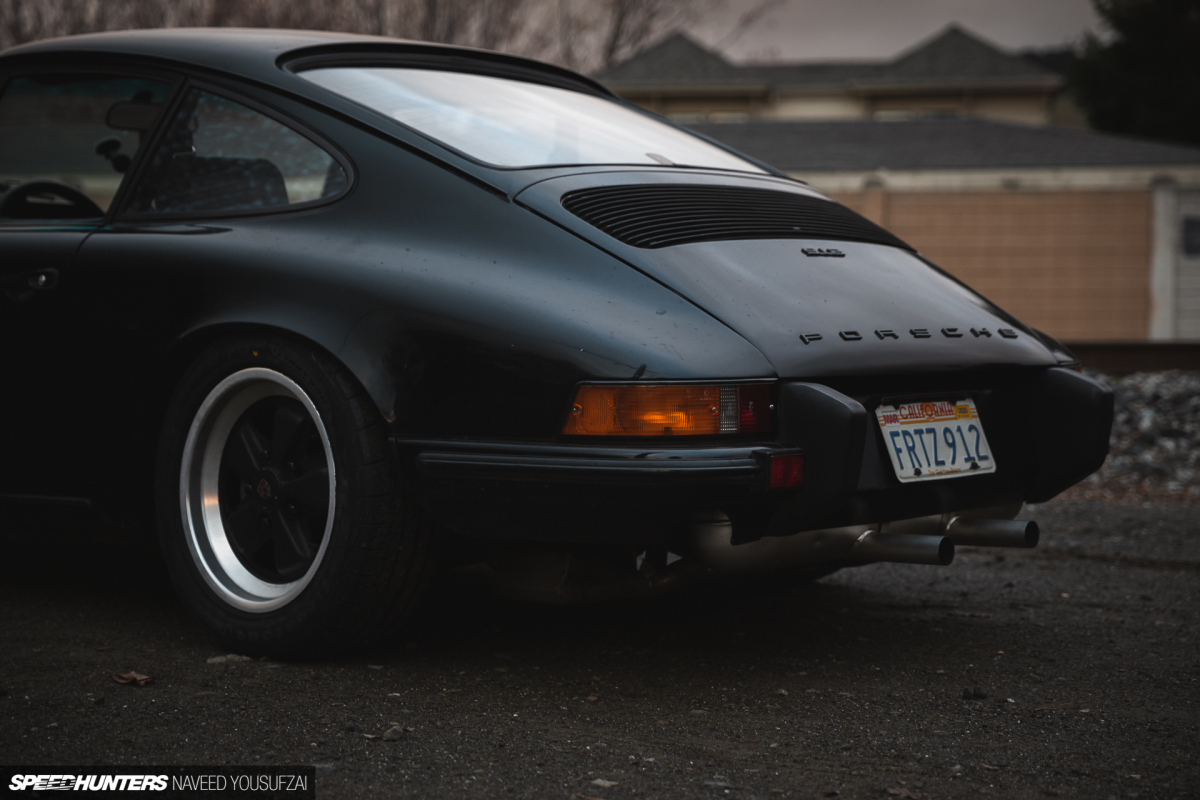

At this point, I realized that I had yet to purchase an exhaust setup for the car, so I started looking around to see what I could come up with. Despite searching for a few days, I came up short; the struggle was that I wanted to retain the heater in my car, and for those who don’t know, Porsches use the headers as heaters. A dumbed-down explanation of this is that the heat that is generated from the header gets passed through a filtration system, and is then forced into the cabin. Most aftermarket headers lose this aspect, and if I wanted to go with the OEM upgrade (known as SSIs), I’d have to fork out quite a bit of cash to get the right set that still worked. As fate would have it yet again, Erik told me that one of our mutual friends was selling a set of M&K aftermarket headers, and they actually designed this set to retain the heat-exchanging element. After a few back and forth negotiations, we made a deal on the set, along with a Dansk 2-in-and-2-out exhaust to match, resulting in a serious gain in horsepower and torque over the factory exhaust. And of course, a much throatier sound overall.

77169091_2433916496676400_2892737096072560640_nProject912SiX-For-SpeedHunters-By-Naveed-Yousufzai

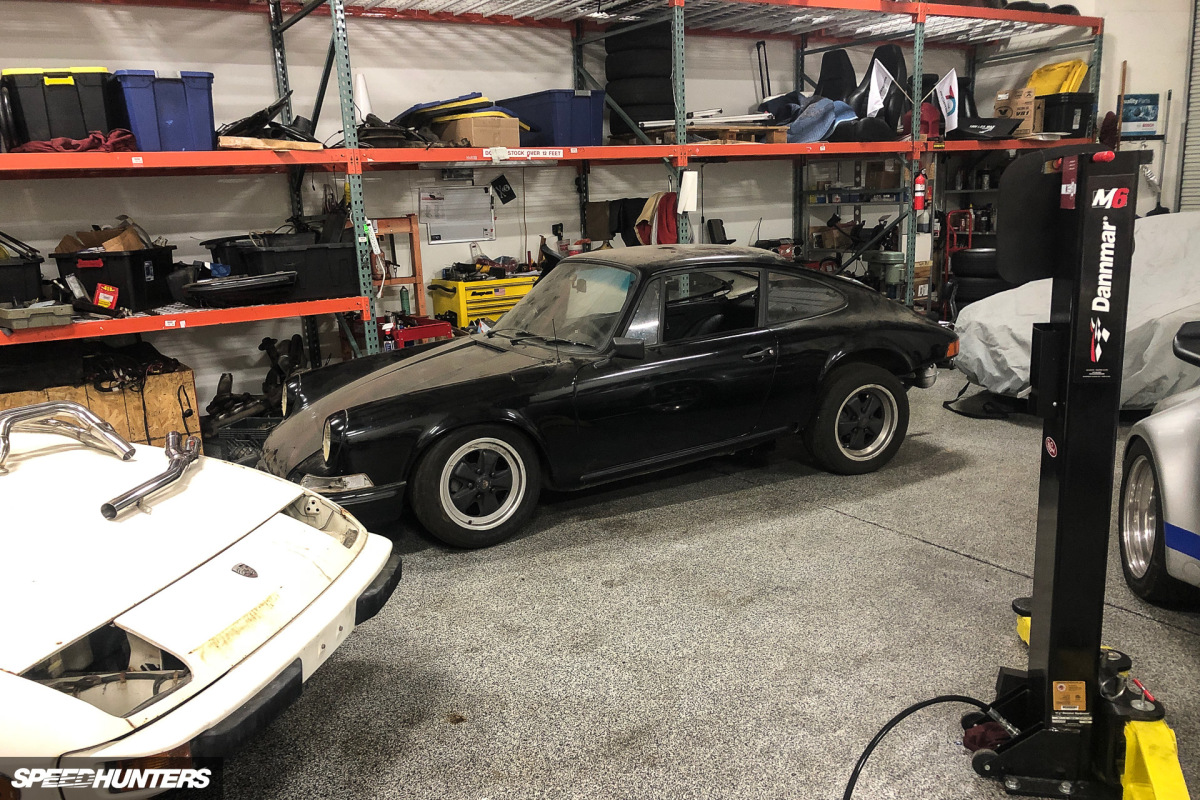

With everything mechanically sorted about two months in, Project 912SiX finally started to look like a car again. The motor, drivetrain, and electrical components were all in, and the car could actually move under its own power. The last thing left was to get everything dialed in and functioning correctly.

79164343_585207378717411_5343993945443532800_nProject912SiX-For-SpeedHunters-By-Naveed-Yousufzai
78862066_511174269481926_2433855531673190400_nProject912SiX-For-SpeedHunters-By-Naveed-Yousufzai

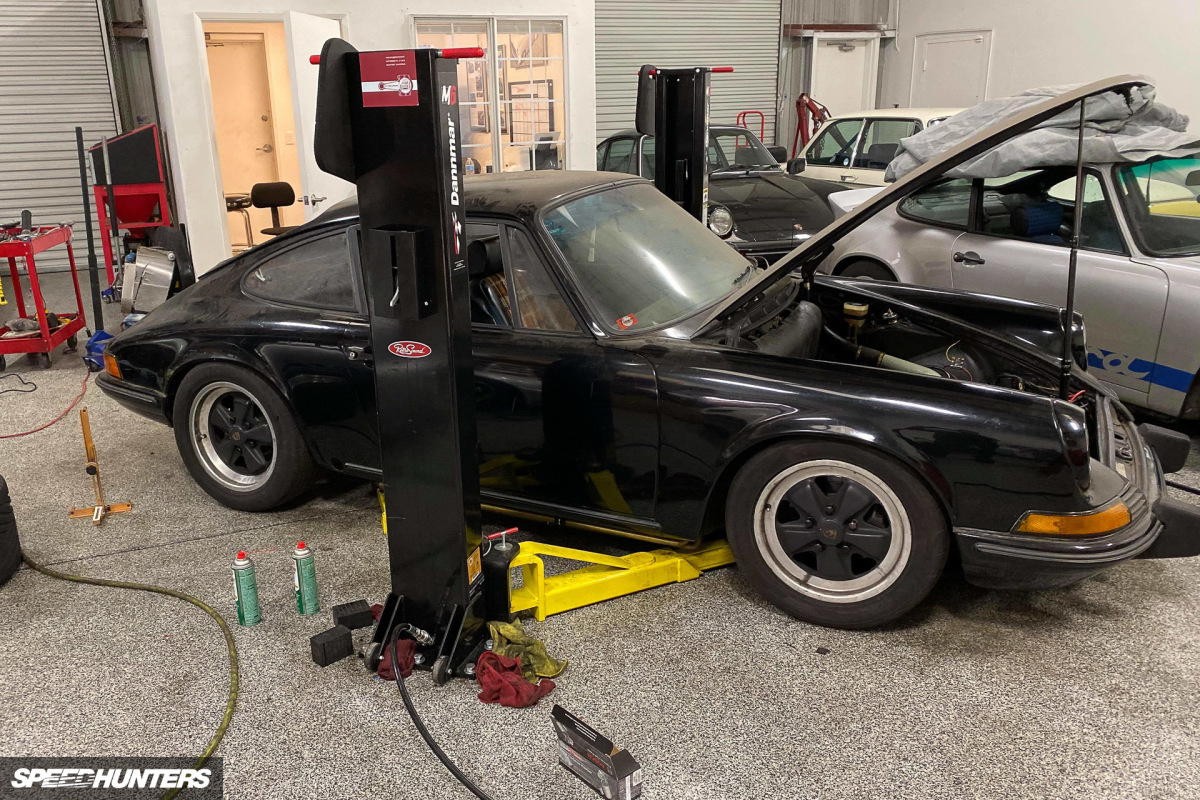

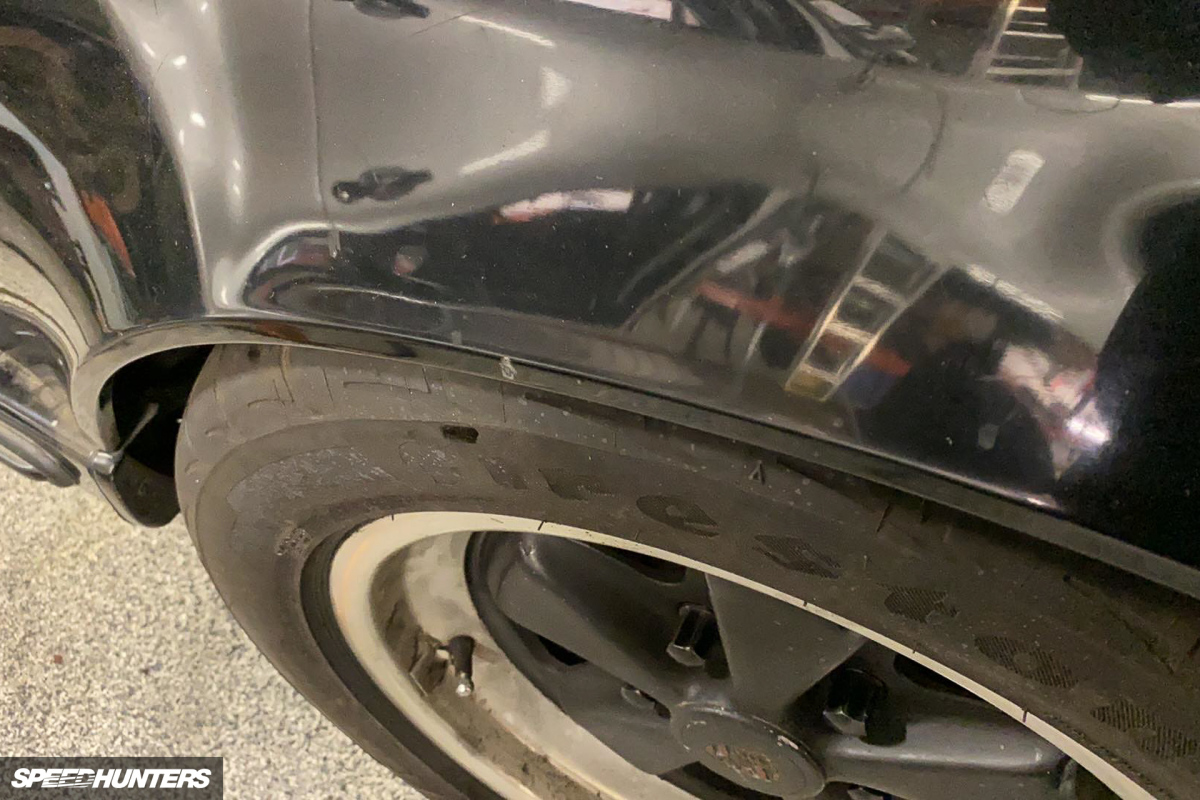

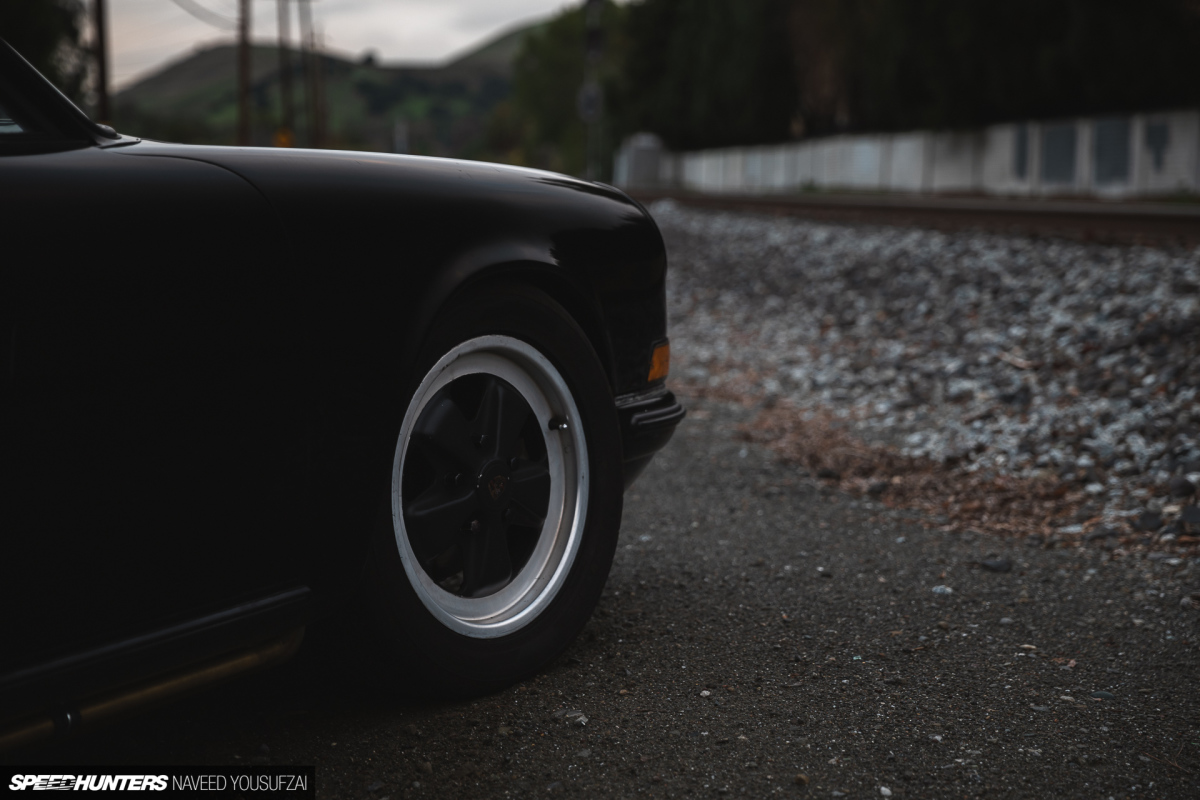

When dialing in the suspension bits on the car, I told Erik it needed to have an aggressive yet functional stance. The Euro Carrera’s 16×6-inch and 16×7-inch Fuchs would surely do the trick in terms of wheel fitment, but the struggle would be making them fit. After all, the 912 is narrow-body still, and it came with 5.5-inch steelies all around from the factory. So the extra width was a bit of a challenge. Needless to say, Erik managed to roll and pull the rear fenders just enough to get the 205s tucked nicely under the rear tub. That, and an aggressive alignment with corner balancing brought form to meet function.

Sorted
IMG_2619Project-912SiX-For-SpeedHunters-By-Naveed-Yousufzai
IMG_2596Project-912SiX-For-SpeedHunters-By-Naveed-Yousufzai

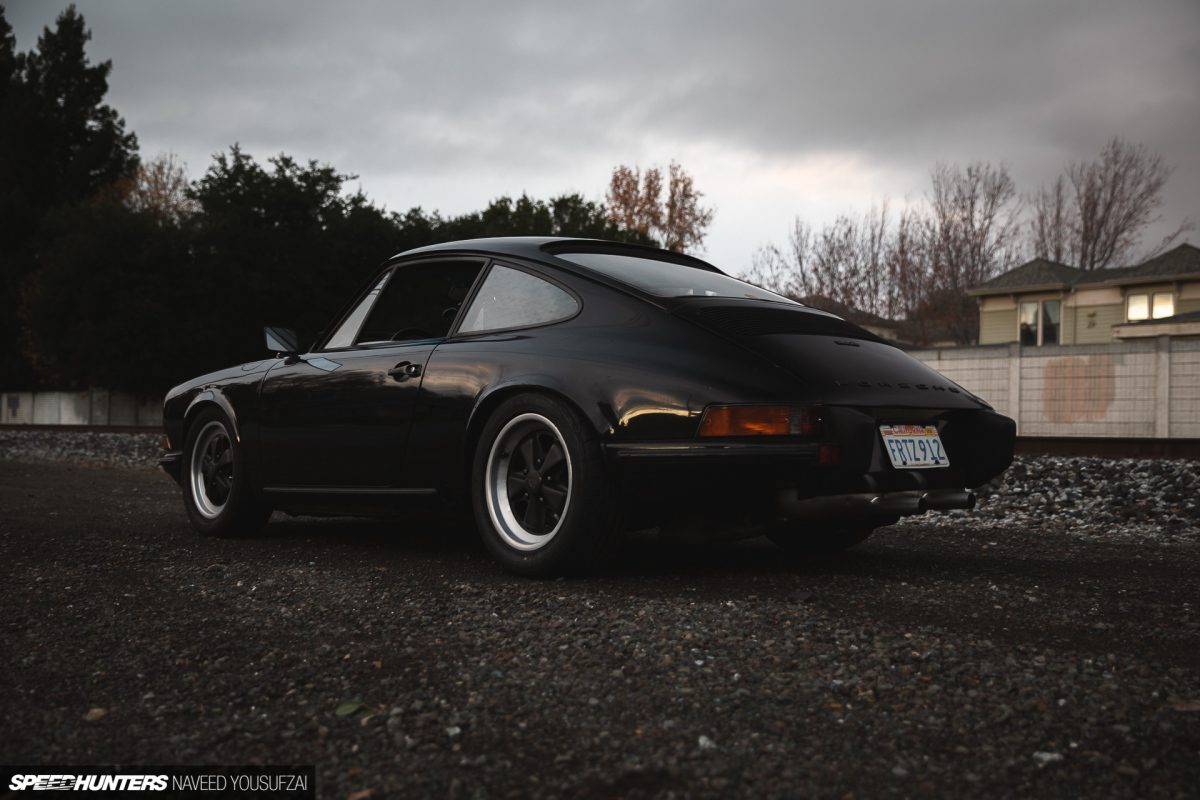

IMG_2576Project-912SiX-For-SpeedHunters-By-Naveed-Yousufzai

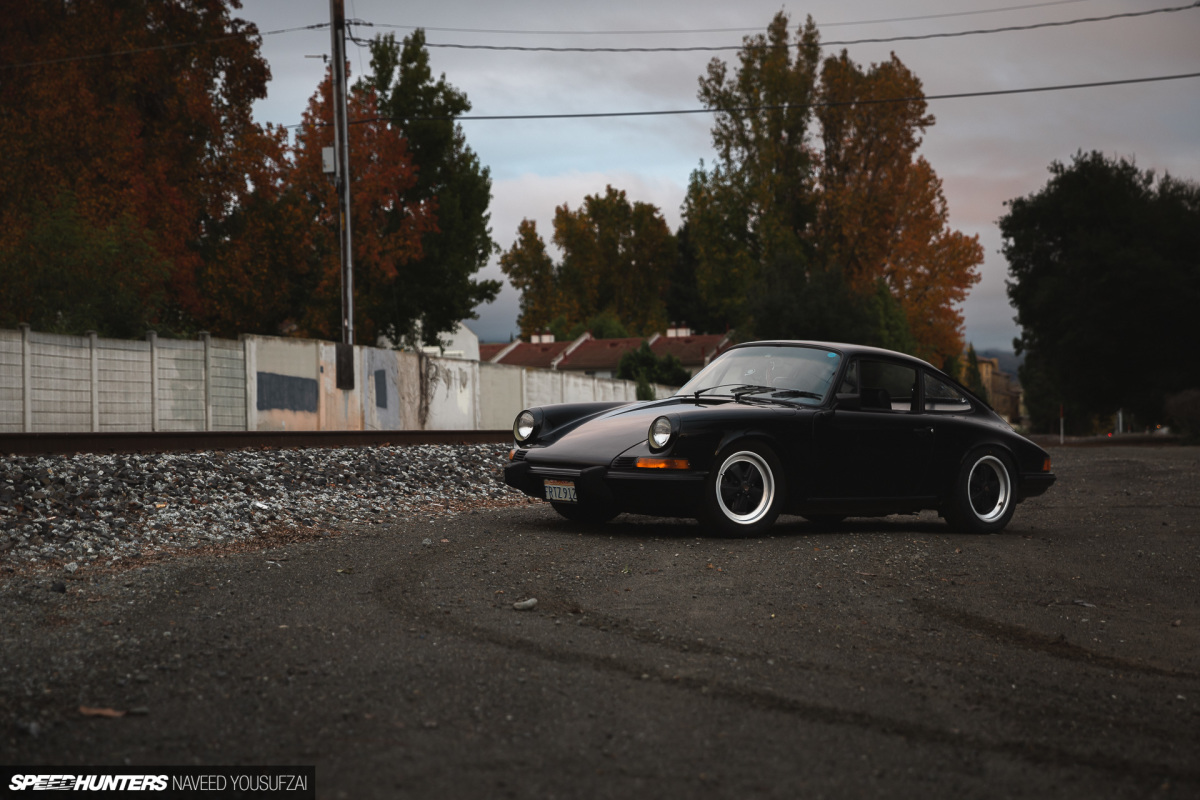

IMG_2488Project-912SiX-For-SpeedHunters-By-Naveed-Yousufzai

Finally, at the end of month three, the car was finally considered done (mechanically). I brought it back home and drove the hell out of it for the following few weeks, trying to sort out all of the kinks after the swap. To my surprise, there really wasn’t too many things that were out of sync. A few small adjustments were made to the alignment and ride height after wearing off my rear paint from a few spirited drives, but other than that, everything else was pretty well sorted.

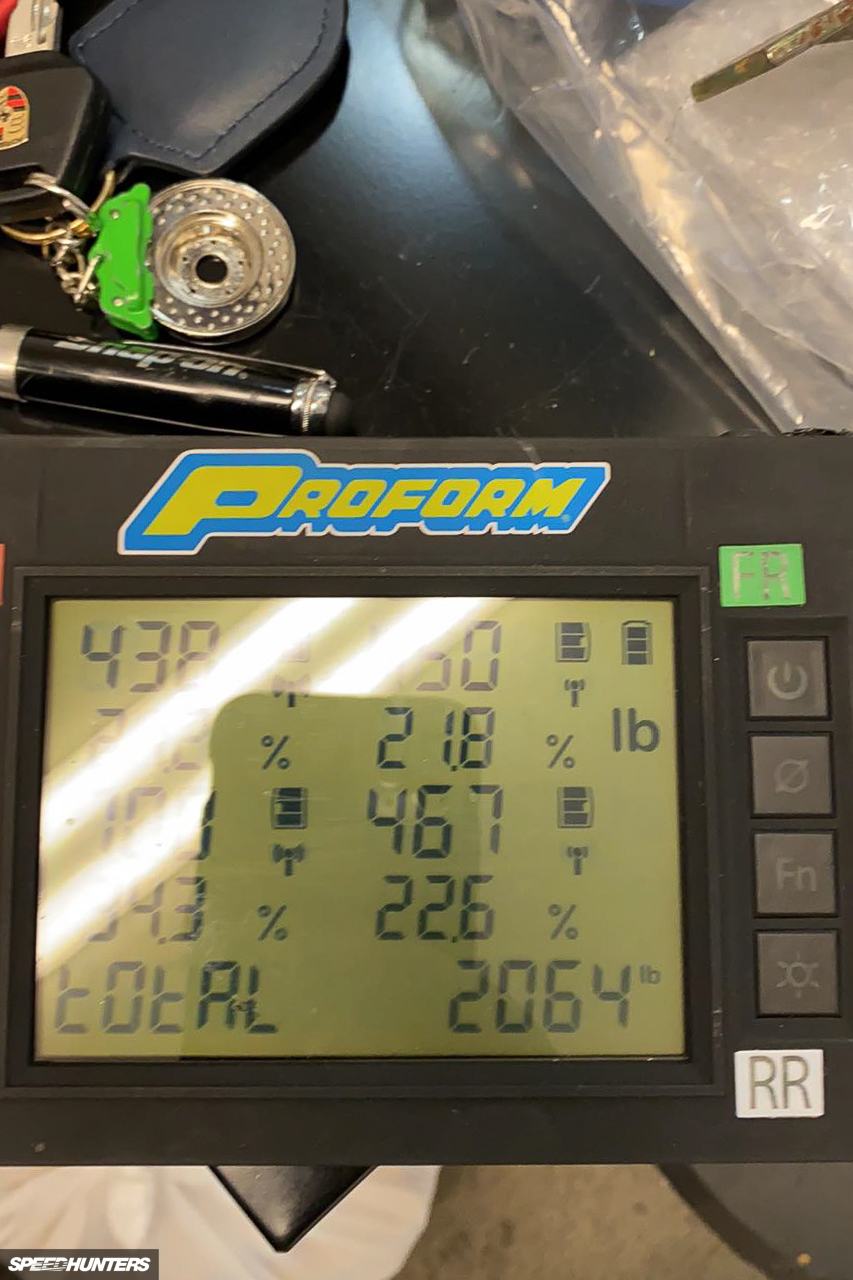

79501156_964441917272376_3041654577276387328_nProject912SiX-For-SpeedHunters-By-Naveed-Yousufzai

The big question in mind was how close or comparable was the driving experience to the end goal of the ’73 RS? I’m happy to report that it’s quite close. Sure, I don’t have the smell and sound of carbs, but the power-to-weight ratio is pretty much spot on. The overall end weight of the car came in at 2,064lbs (936kgs), and with the upgraded exhaust and tune in the 912, we are estimating about 210-220 wheel horsepower, which brings me on par with where the RS stands. Pair this with the upgraded drivetrain and suspension components all around and you end up with a hard bargain to rival the million-dollar end goal.

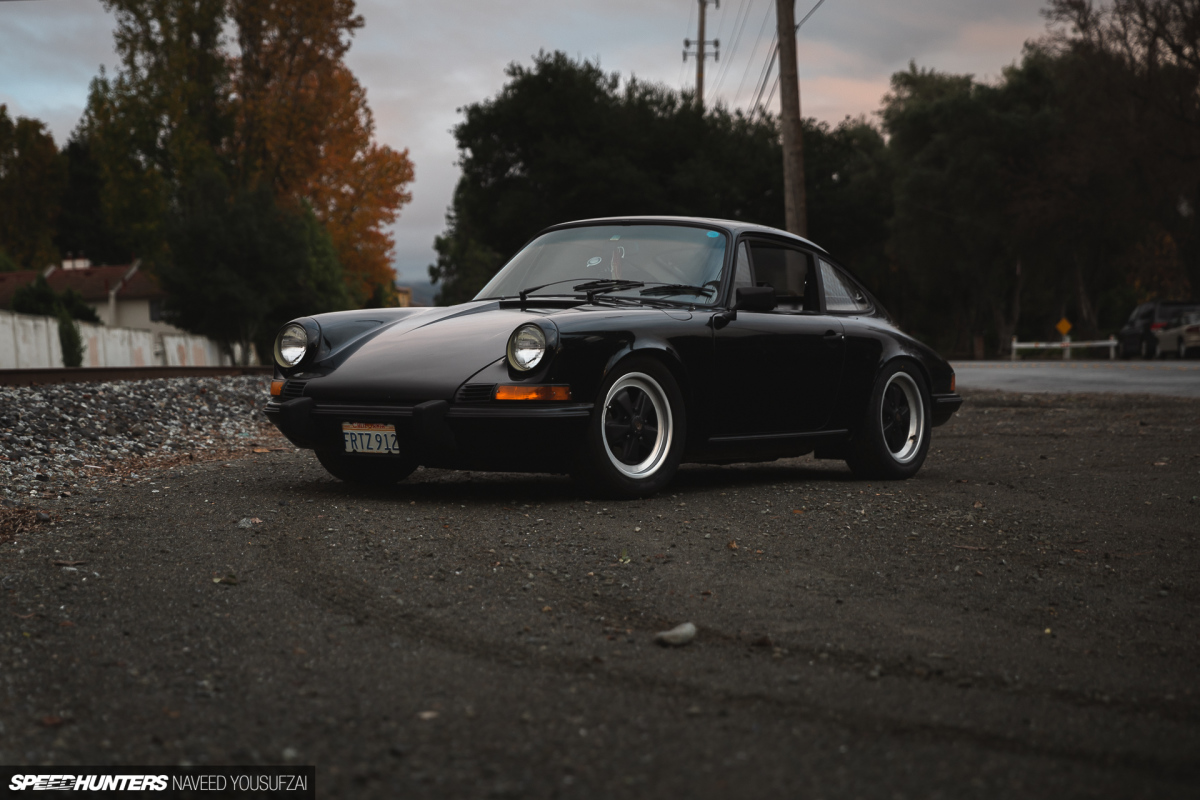

IMG_2492Project-912SiX-For-SpeedHunters-By-Naveed-Yousufzai

All that’s left now is making it pretty. More on that in the next update…

Naveed Yousufzai
Instagram: eatwithnaveed
