Bigger Is Better: A 4.1L 997 GT3
Location Hunting, Again

After wrapping up a little trip around SharkWerk’s workshop, Alex Ross and I took his buddy Ralph’s 540hp Porsche GT3 out for a spin.

If you haven’t caught on by now, this is a shop that builds cars to be driven, and driven hard. And if you aren’t familiar with the SharkWerks 4.1-liter upgrade, worry not, we’ll dive into it here.

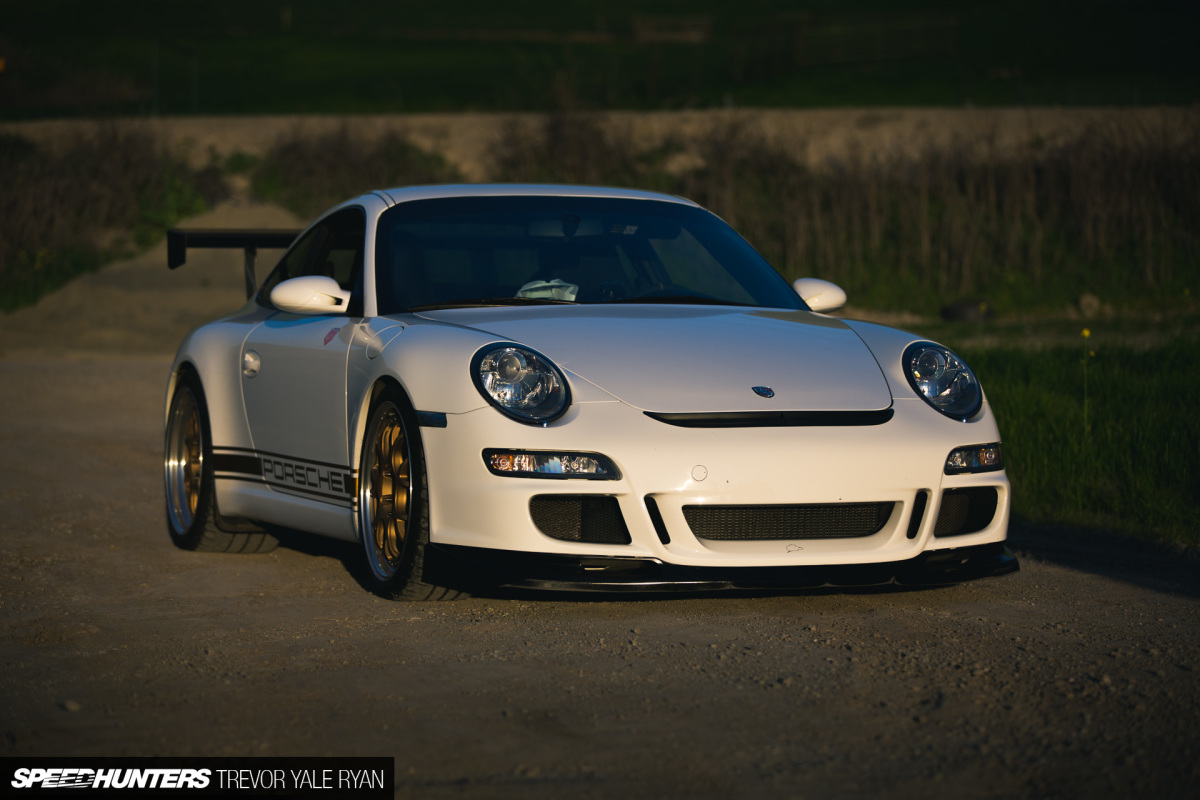

2018-SH-SharkWerks-GT3-Trevor-Ryan_003

I’d previously scouted a location that I thought was pretty cool, one that I hadn’t used before. Unfortunately, before I was able to take even one photo a police officer rolled up out of nowhere. He didn’t think my spot on the dirt trail was that good; in fact, he thought it wasn’t much of a spot at all for a car to be…

I was able to snag this on my way back to the 997, but I didn’t want to push our luck.

2018-SH-SharkWerks-GT3-Trevor-Ryan_002

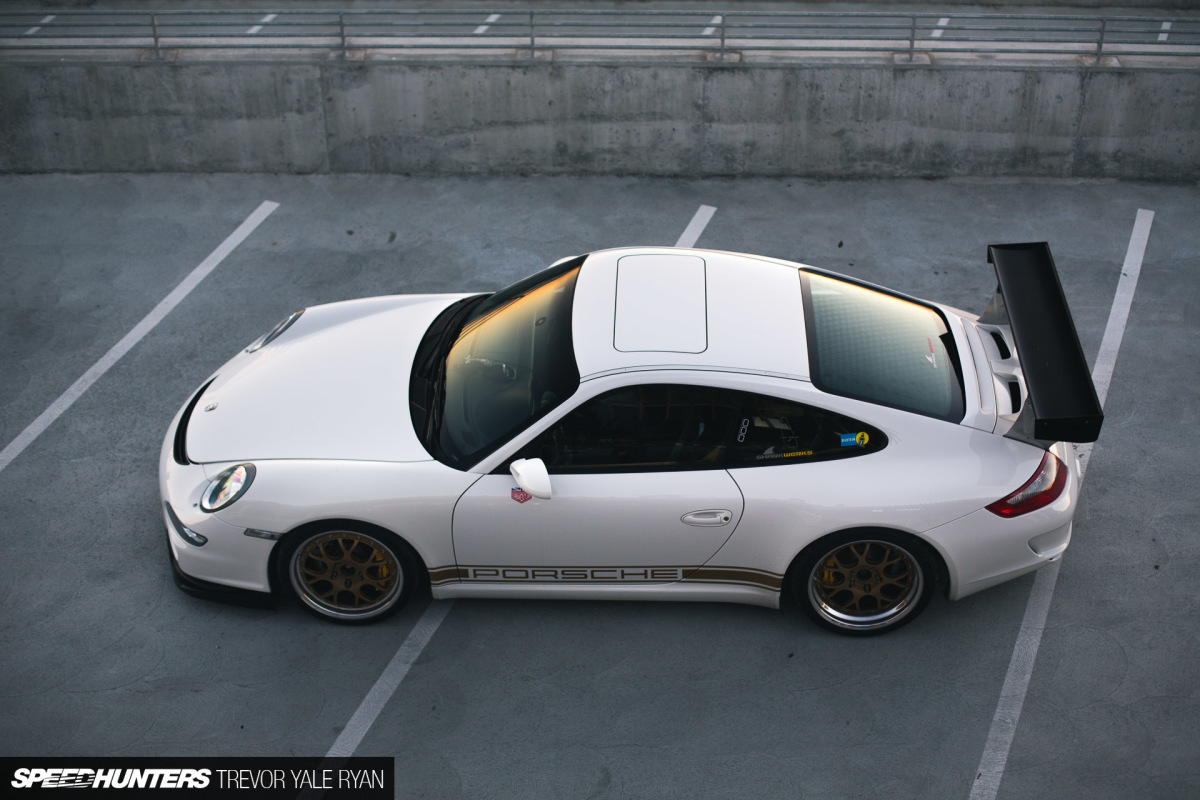

Luckily, a proven parking garage was nearby and I was able to get into the build here. Before we jump into the car, though, you ought to know a bit about the owner.

Ralph is pretty much the SharkWerks torture test; at 70 years old he’s something of an original outlaw, if you will. Working for Vasek Polak in the 1950s and ’60s in Manhattan Beach on Porsche race cars, he owned a Speedster and two 356s before he was 18.

That should give you a at least a bit of an idea about the man behind this particular machine.

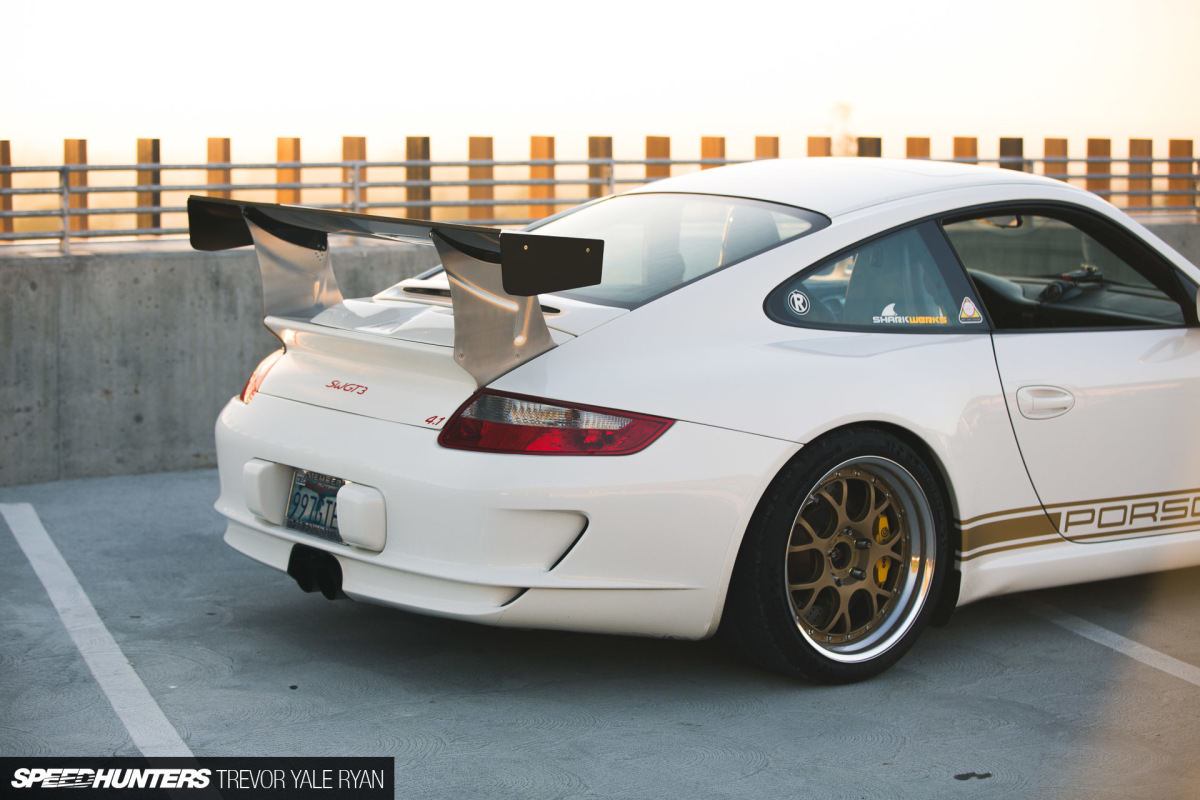

2018-SH-SharkWerks-GT3-Trevor-Ryan_005

As for the car, minus the phenomenal Cup wing, it’s a fairly understated affair. Most of the improvements that have been made to the GT3 are ones that you can’t see, but instead, feel. The difference behind the wheel is immediately noticeable; the stability upon turn in, and feedback through the apex, the responsiveness (and sound) on corner exit, and so on.

These are things that a Porsche is already good at, so what’s the secret sauce that SharkWerks has been pouring all over their cars to make them so incredible to drive?

Four Point What?
2018-SH-SharkWerks-GT3-Trevor-Ryan_006

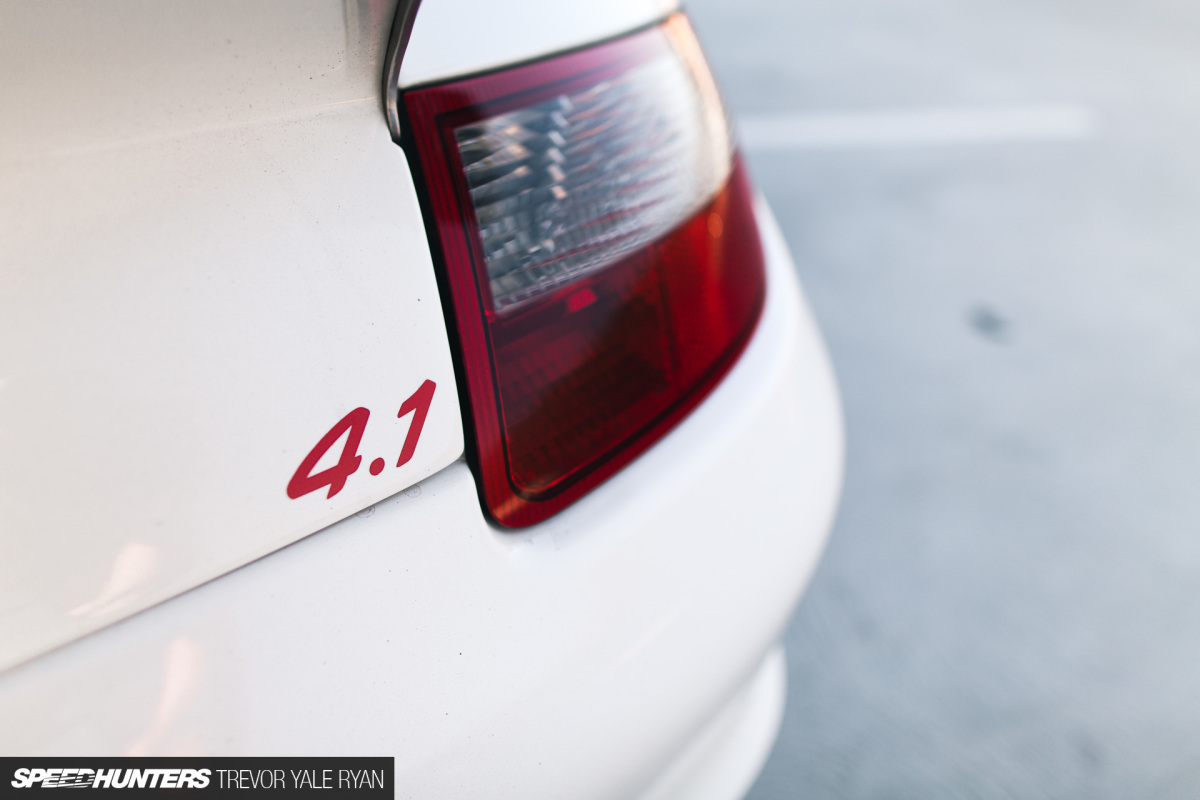

First off, there’s no replacement for displacement, as we say the good ol’ US of A. The car now has the SharkWerks/EVOMS 4.1L, but as a 2007 997 GT3 Ralph’s car originally came with the 3.6L. The factory engine was certainly no slouch, though, making 415 or so horses at around 7,600rpm.

SharkWerks, along with R&D partner Evolution Motorsports, have said phooey to that (no offense Porsche), and reckons that extending the peak power out to 7,950rpm provides for a better driving experience. In fact, the upgraded and lightened crankshaft in the setup is capable of over 9,500rpm, which is just incredible to think of out of the 4.1-liter flat-six. You get the bonus of an extra 125hp too, so it’s a righteous kick in the pants when you give it the beans.

2018-SH-SharkWerks-GT3-Trevor-Ryan_004

Of course, the power comes on a lot sooner in the 4.1, and you’ll enjoy the significant increase in torque throughout the entire rev range. This is made possible with the SharkWerks/EVOMS 104.5mm bore piston and cylinder set that makes use of steel liners with Teflon-coated pistons and titanium wrist pins.

This trickery has saved 20 grams per piston and makes for a much smoother and faster-revving engine as well.

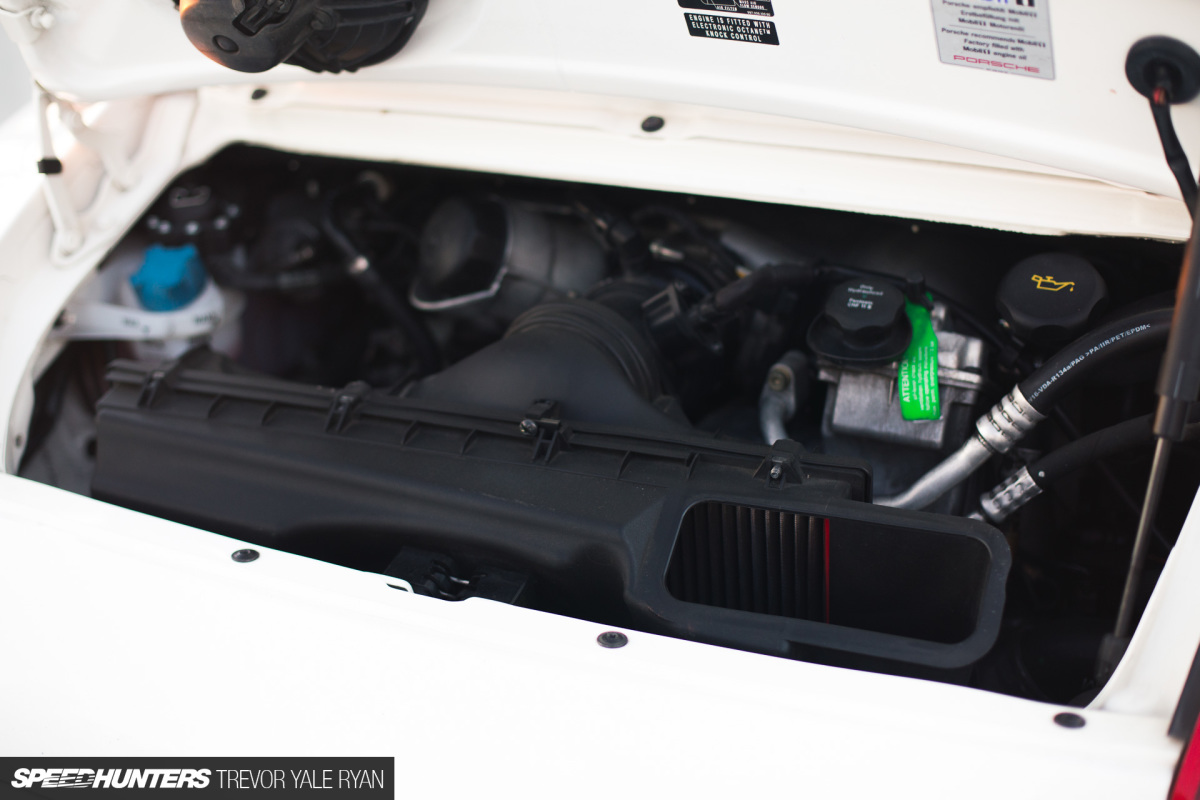

2018-SH-SharkWerks-GT3-Trevor-Ryan_007

The rods, which make for an 80.44mm stroke together with that upgraded crankshaft, are also an EVOMS collaboration. The gents have opted to stay away from titanium for their street motors as it tends to get a bit stretchy over time, instead going with a forged tool steel and a lightweight-as-possible design.

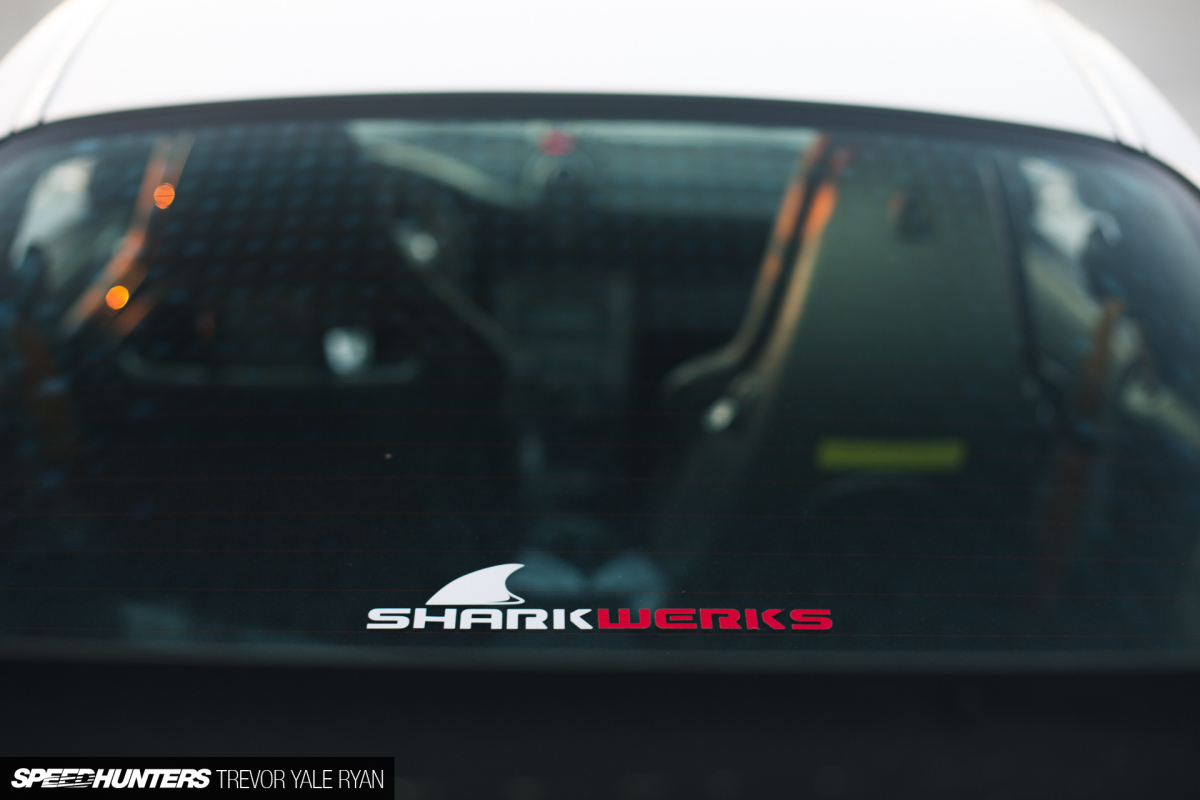

2018-SH-SharkWerks-GT3-Trevor-Ryan_008

I think I ought not to share the actual spec, but the compression ratio in the 4.1L setup is higher than even the latest the factory 991 GT3 RS ratio (12.9:1). To ensure longevity of the now 540hp engines, John Bray of EVOMS and James Hendry over at SharkWerks have applied a variety of race-prep techniques to the engine case as well as every bit inside.

Thousands and thousands of test miles went into creating this setup and ensuring it was reliable, as is the SharkWerks way. The result is that anyone with the cash can experience the something that even Porsche itself is unable to deliver to the masses.

2018-SH-SharkWerks-GT3-Trevor-Ryan_009

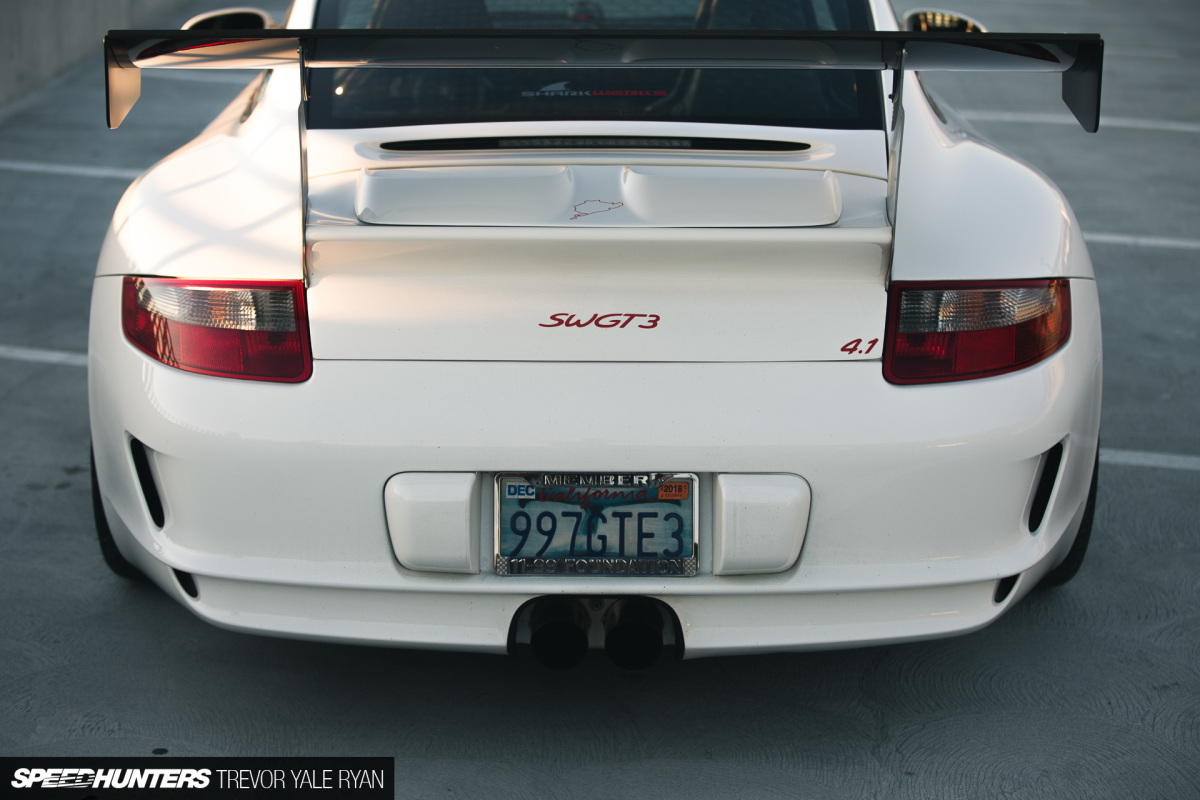

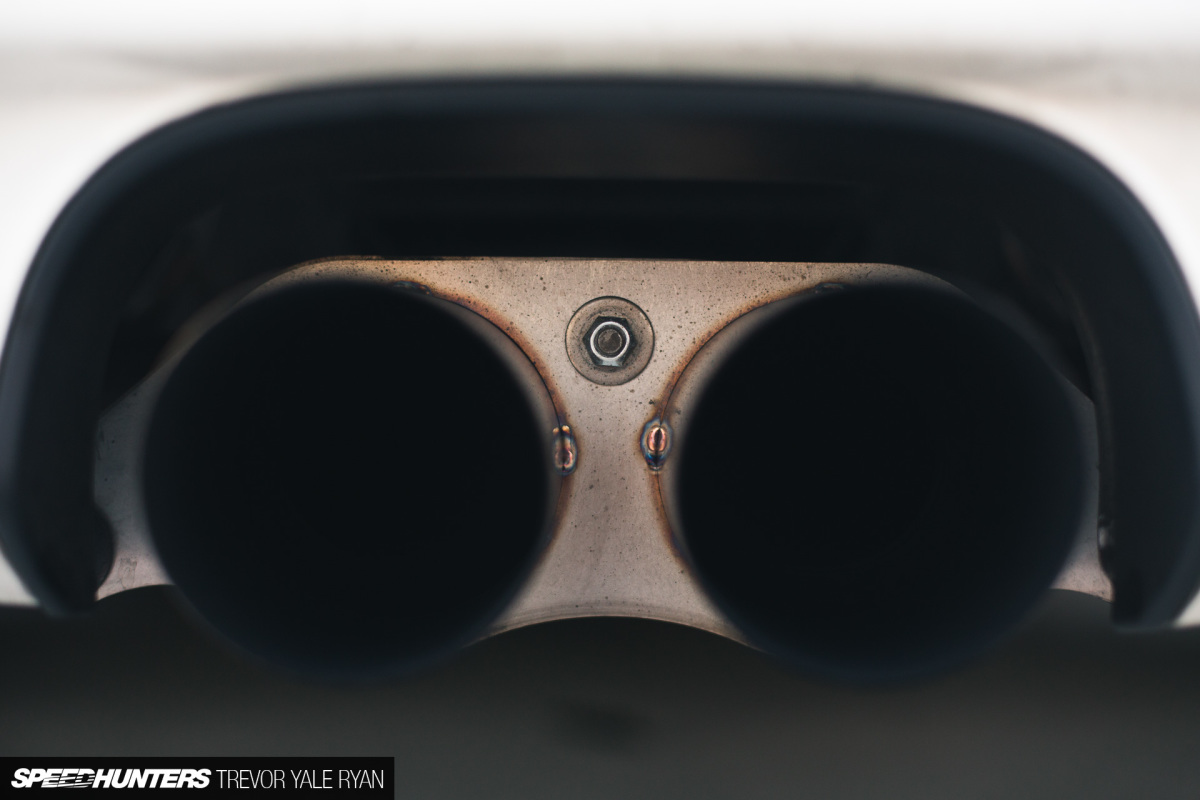

To make things even better, SharkWerks has fitted the 997 with their street exhaust which saves 19 pounds (8.6kg) off the back end of the car.

If you opt for their (very, very loud) track setup, you’ll drop a whopping 57 pounds (25.8kg). They told me this option is “strictly for the track, or crazy nutters.”

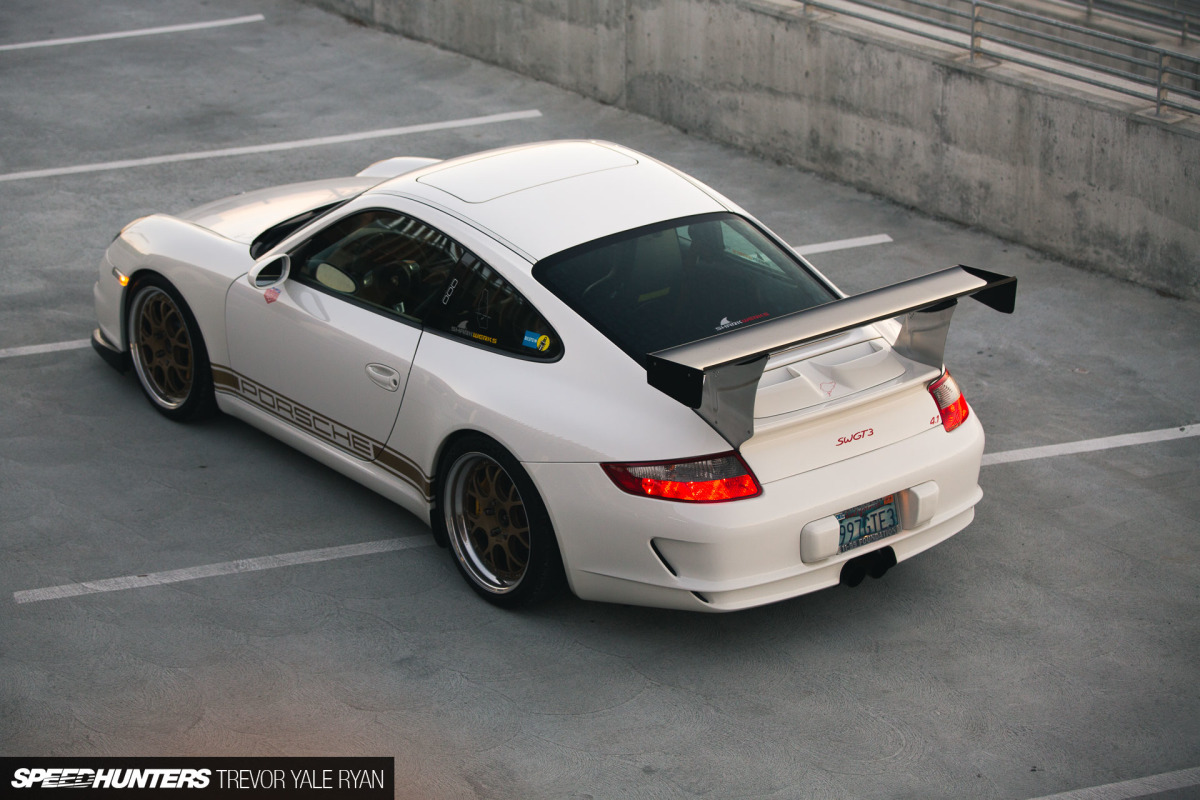

2018-SH-SharkWerks-GT3-Trevor-Ryan_010

The terrifically-built motor makes an already great car something exceptional. Of course, on Ralph’s GT3 SharkWerks didn’t stop there.

Everything Else

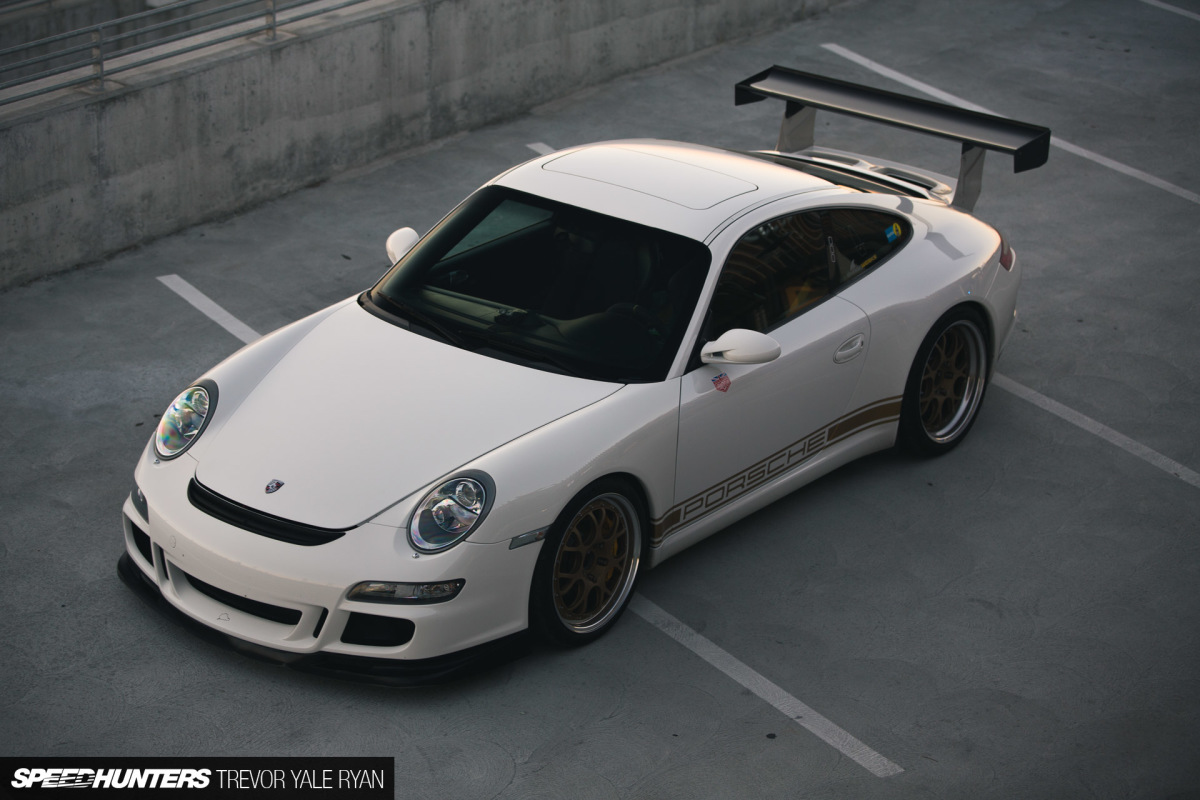

2018-SH-SharkWerks-GT3-Trevor-Ryan_011

While not extremely obvious, every aspect of this car has been improved: the looks, the handling, the driver feedback, and the power delivery which I’ve already covered.

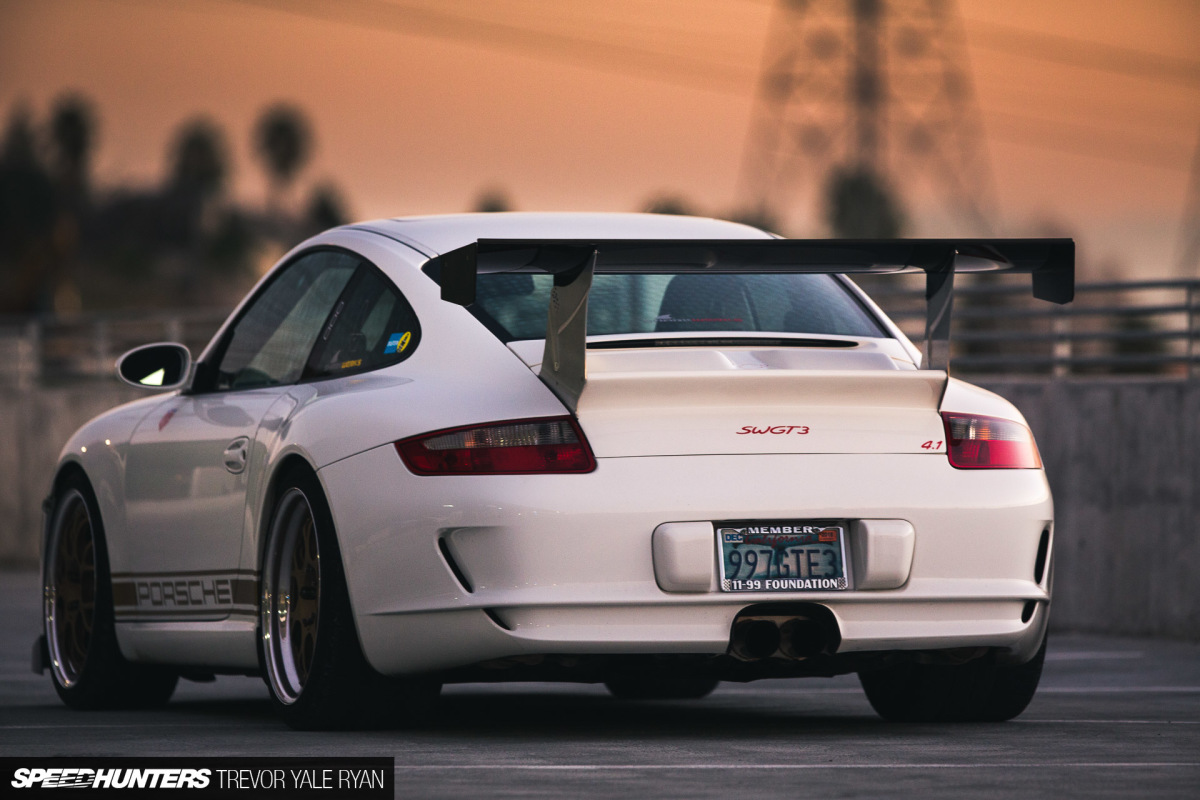

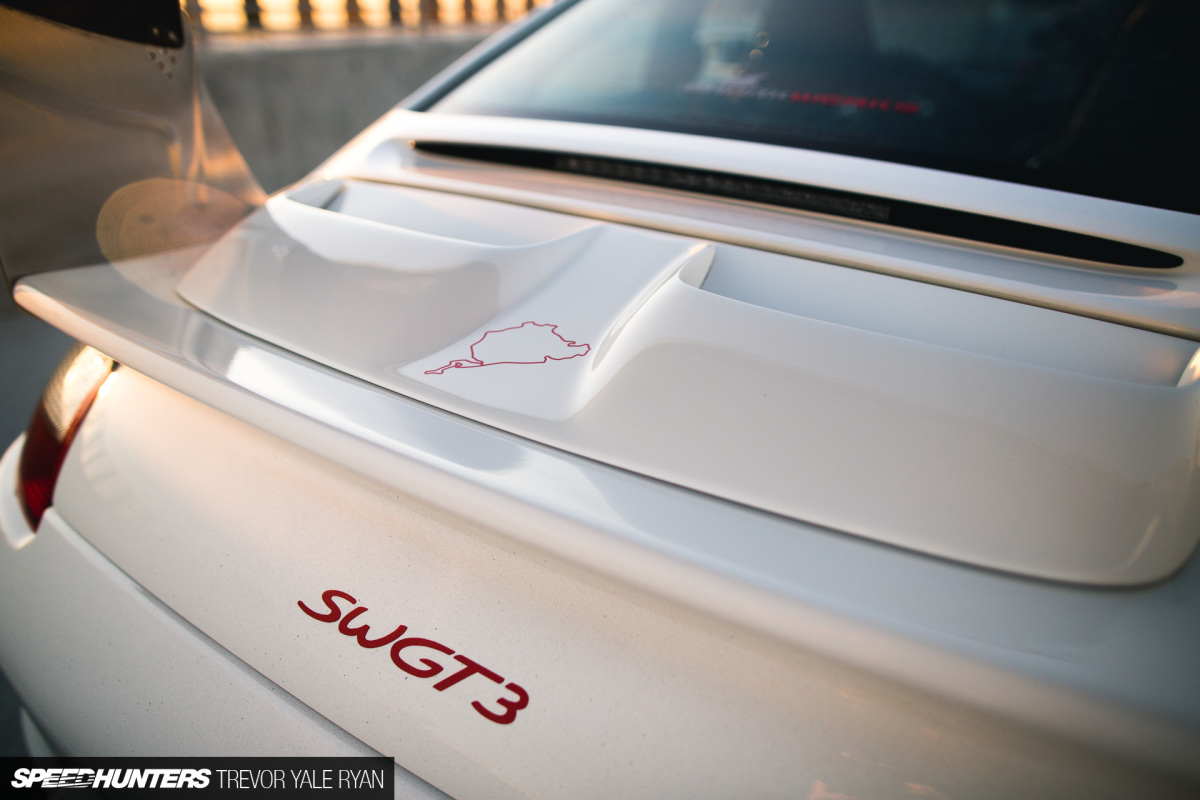

The most noticeable modifications are the big Cup car wing that’s been added (which comes with that super-cool deck lid) and the Cup front spoiler. While not huge game changers at lower speeds, Ralph is definitely one to take the car up and over the 100mph mark at just about every chance he gets.

2018-SH-SharkWerks-GT3-Trevor-Ryan_015
2018-SH-SharkWerks-GT3-Trevor-Ryan_018

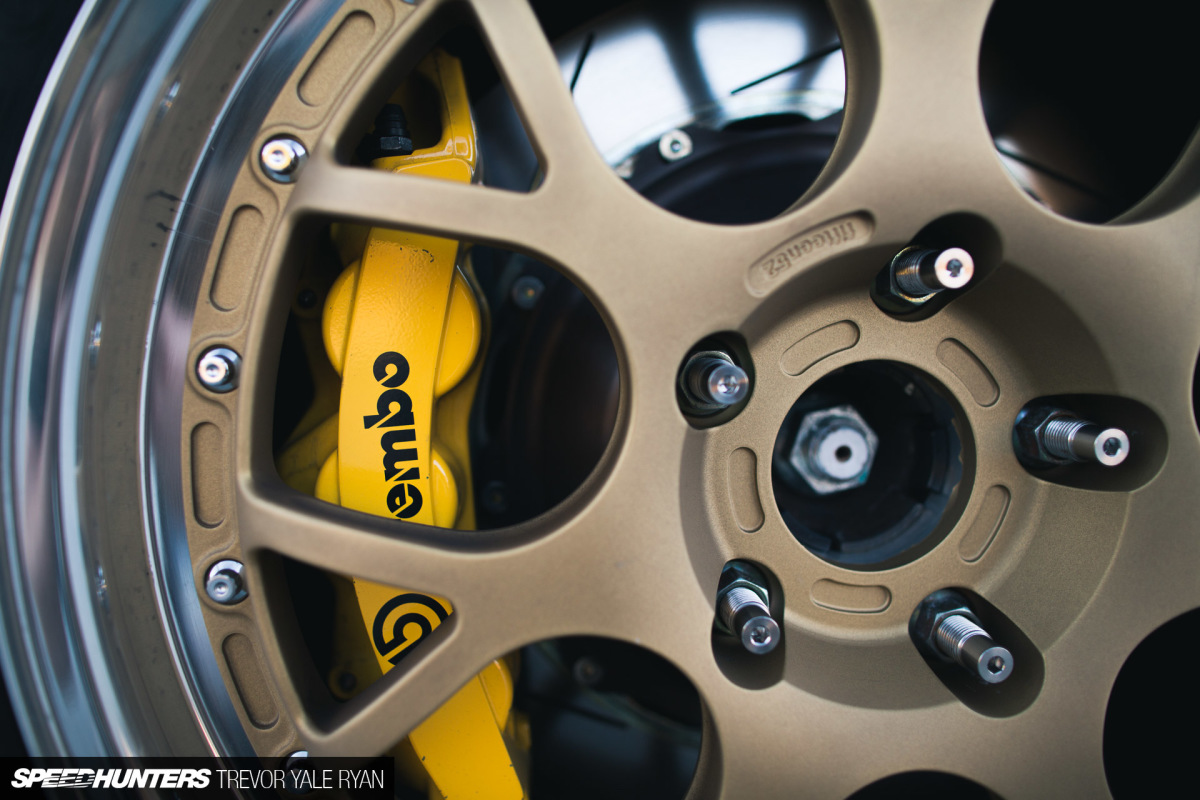

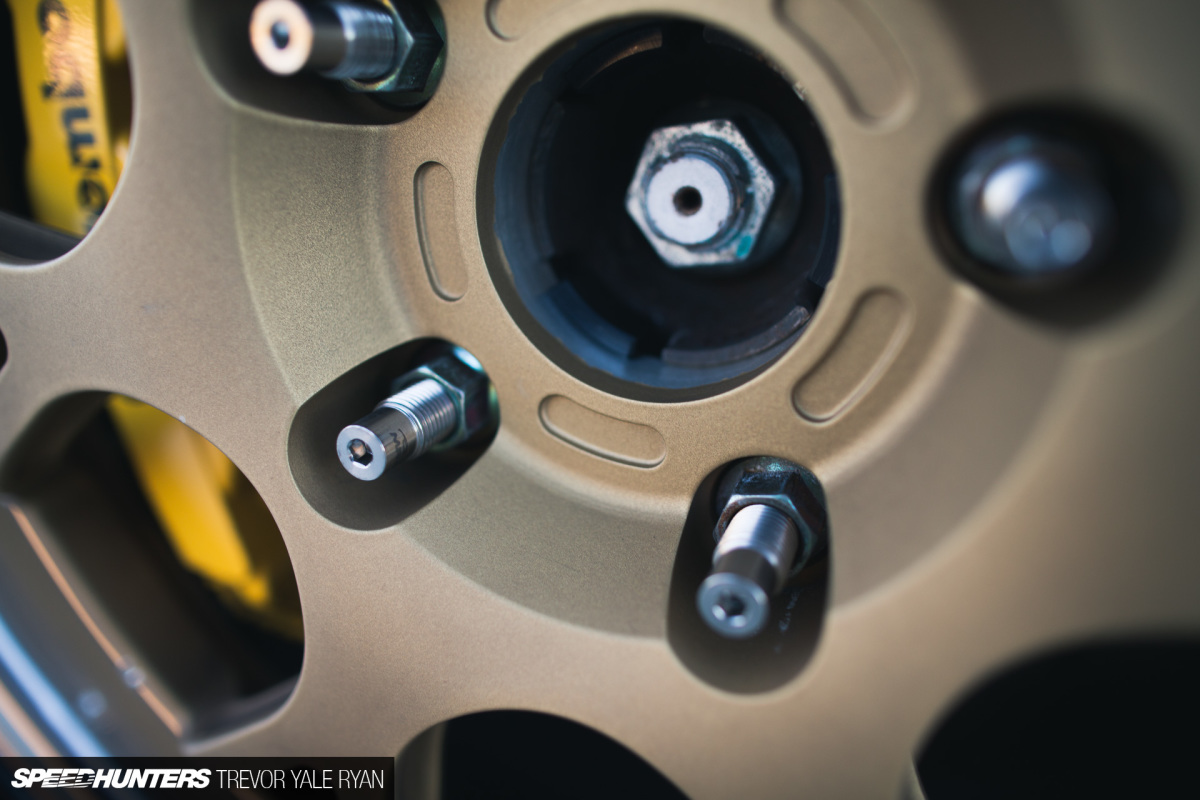

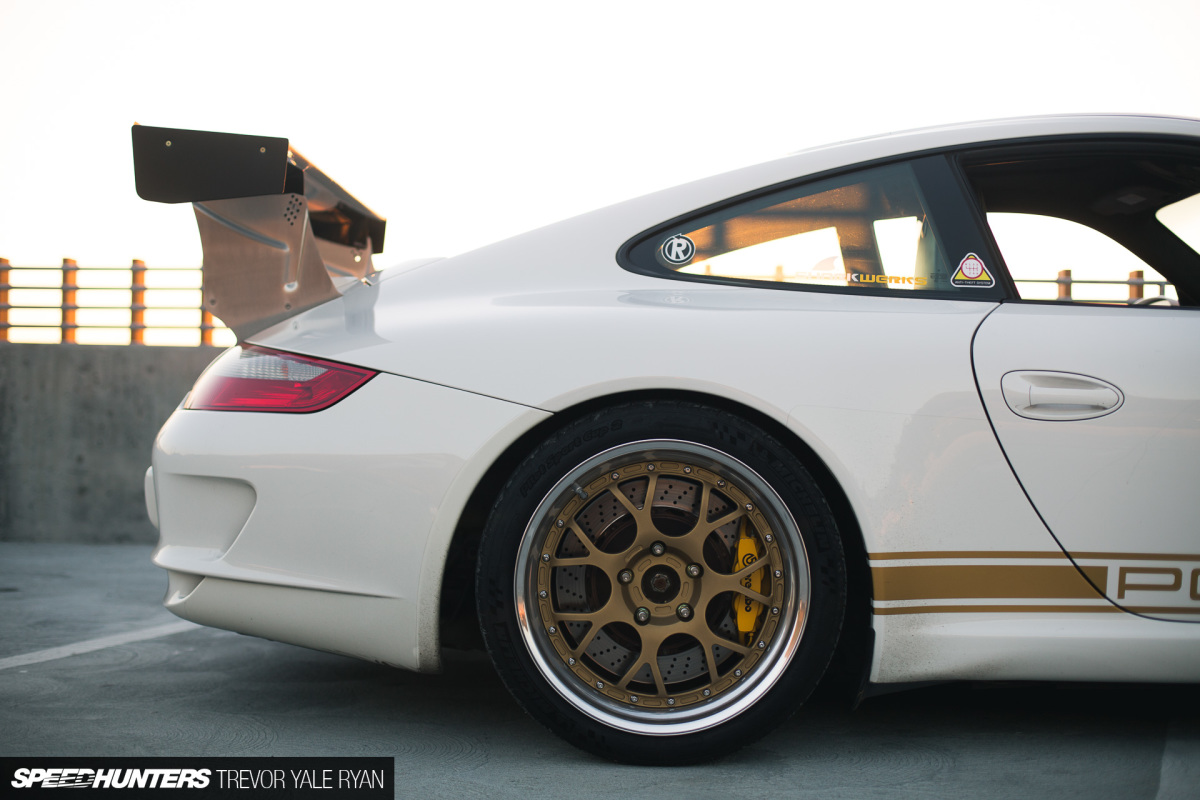

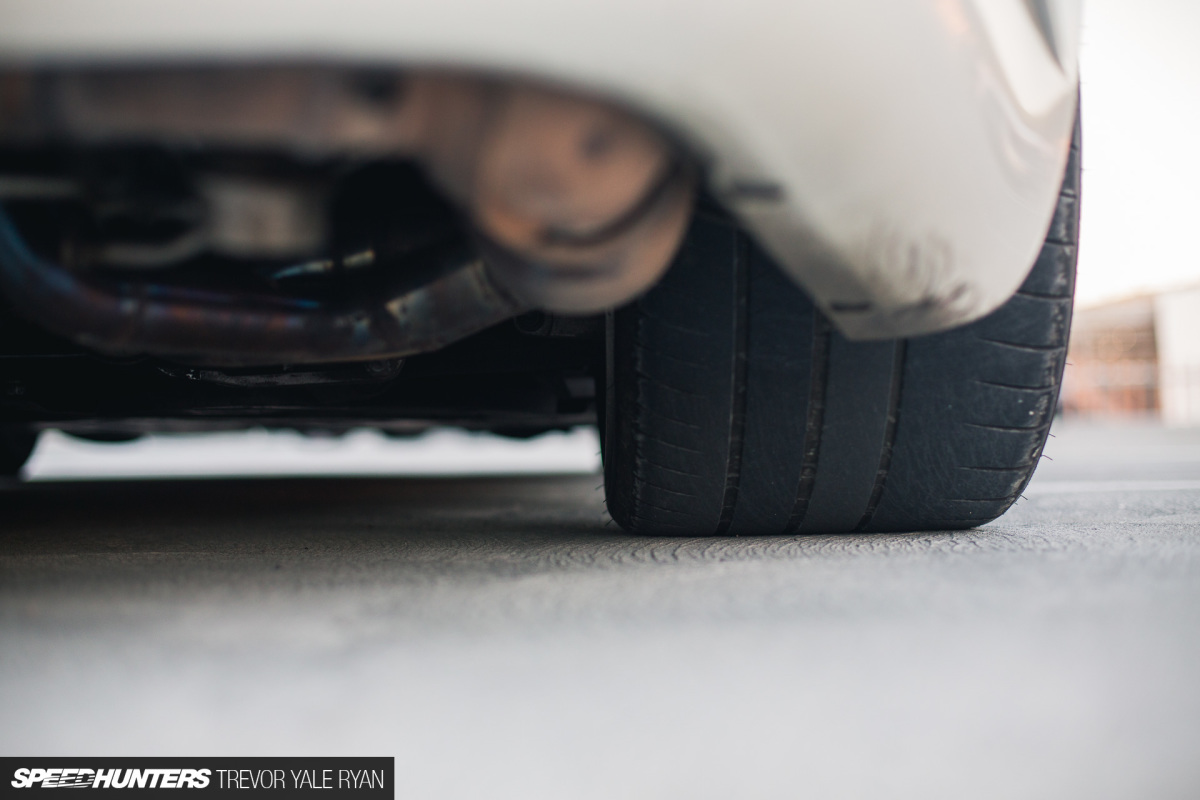

The wheels are forged three-piece Fifteen52 Apex RSRs in 19×9-inch and 19×12-inch, wrapped with meaty Michelin Sport Cup 245 and 305-series rubber. Inside the beefy wheels are Brembo GT brakes front and back which make use of 15-inch and 14-inch rotors.

The handling is tidily taken care of with RSS/SharkWerks adjustible links, bump steer kit, inner mono-balls and adjustable thrust arm bushings up front.

2018-SH-SharkWerks-GT3-Trevor-Ryan_019

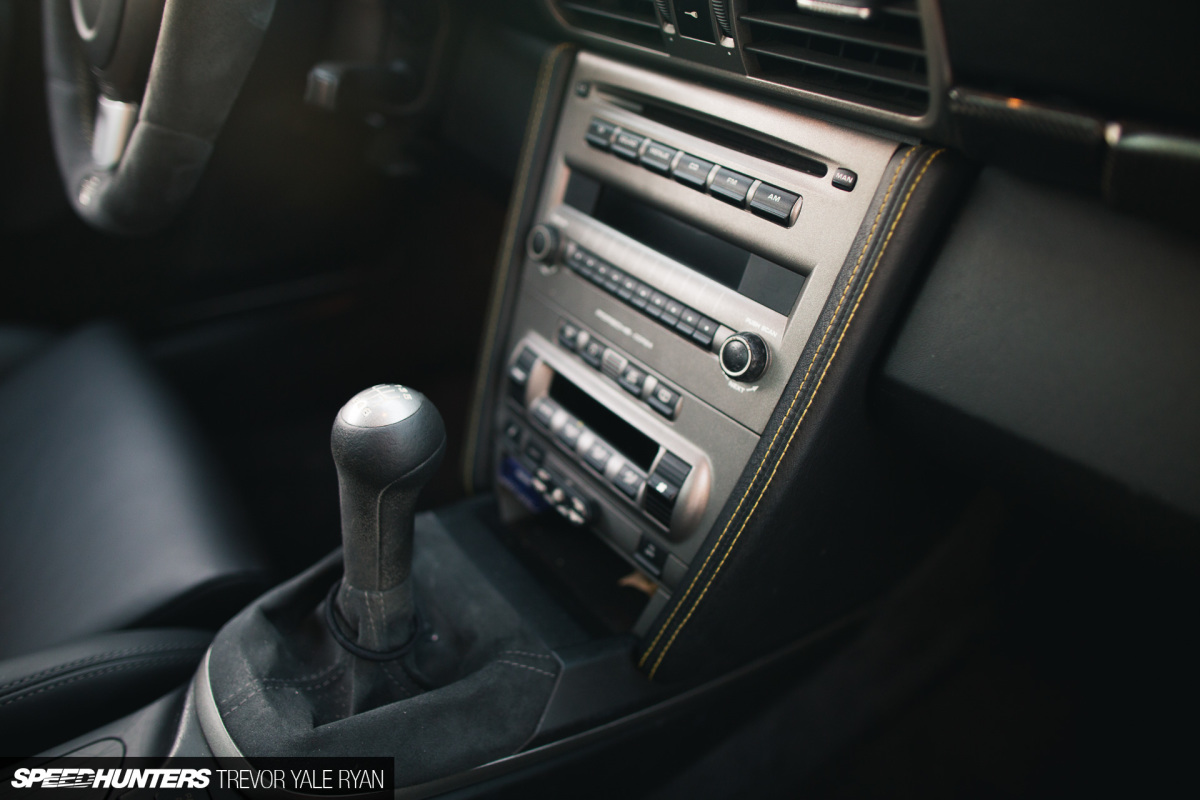

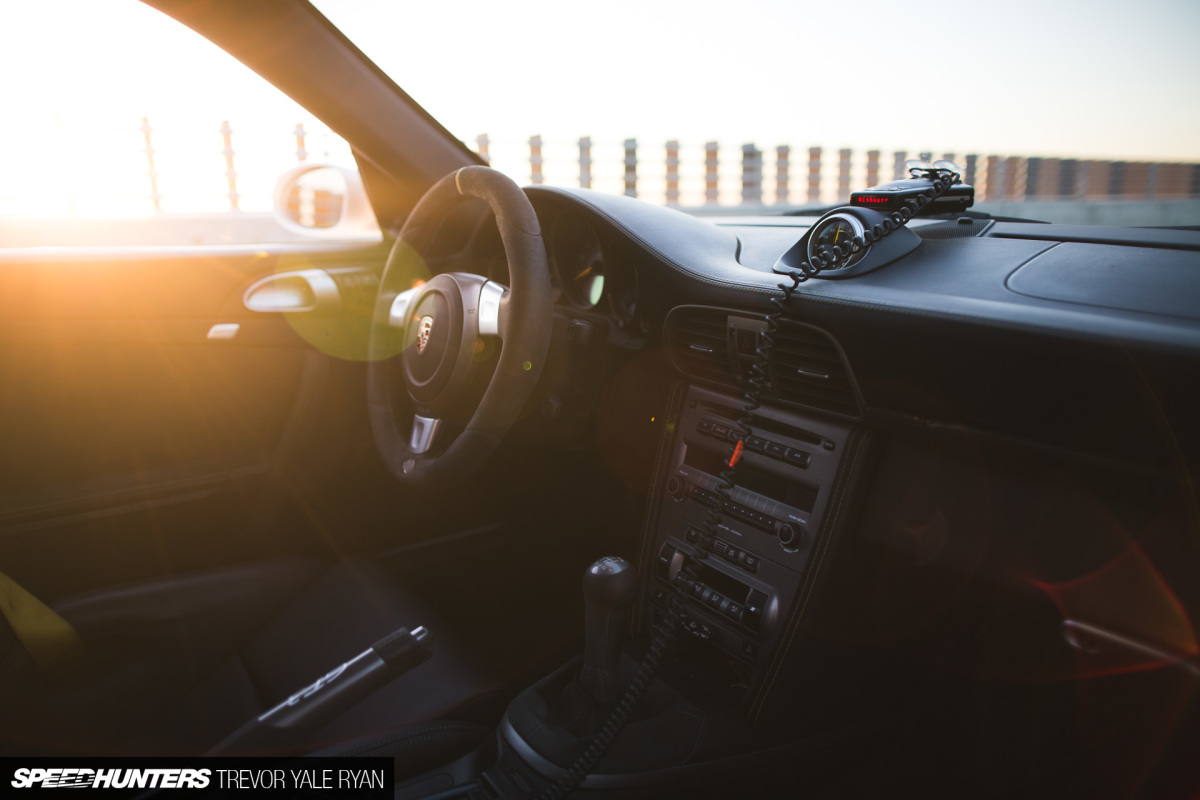

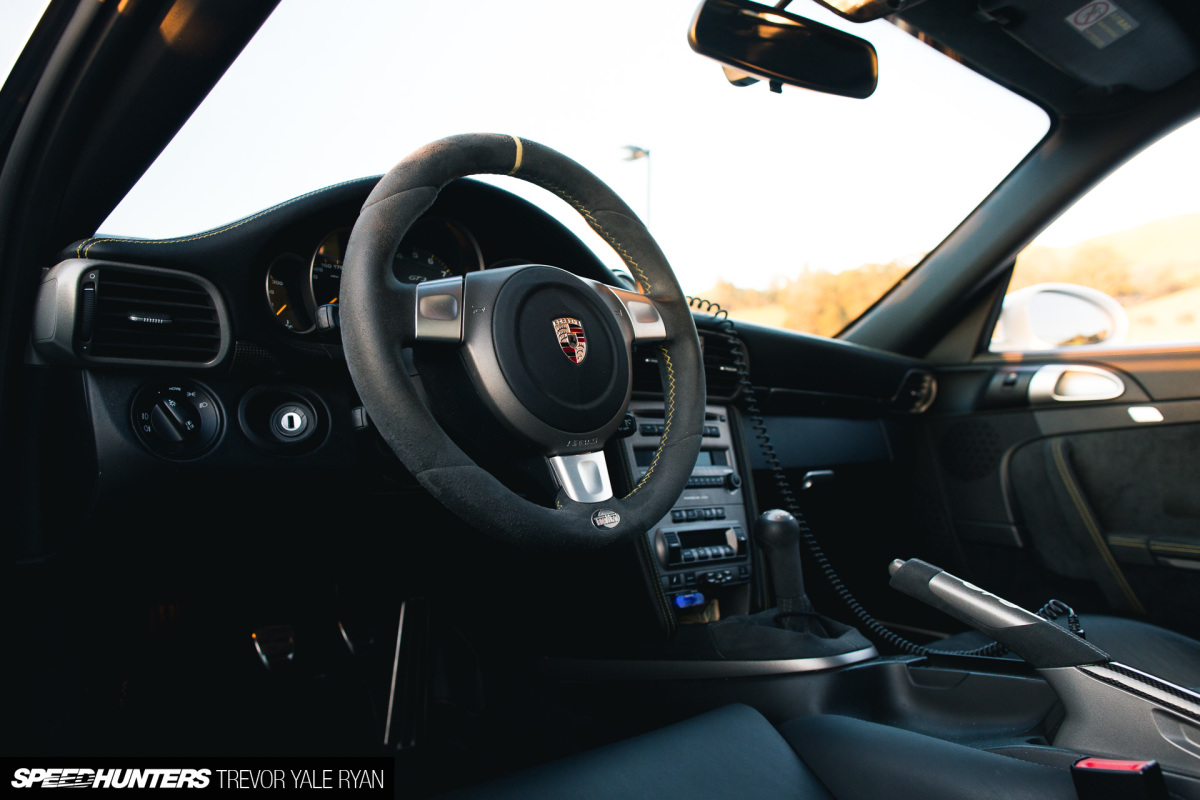

Inside the car, not a whole lot has changed. From the factory, it’s already a quite pleasant place to have a sit. It took a few passes before I realized that the wheel is a TechArt piece, not a factory one. It’s pretty simple inside, and worth noting it does have the proper three pedals.

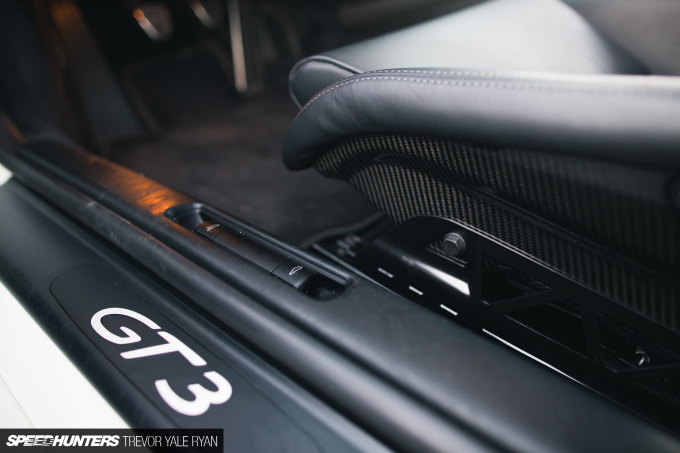

2018-SH-SharkWerks-GT3-Trevor-Ryan_023

The carbon fiber bucket seat is second to none and hugged me quite nicely. I’ve put on a few pounds since becoming a Speedhunter last year and the list of seats that fit me well seems to be shrinking as I do the opposite.

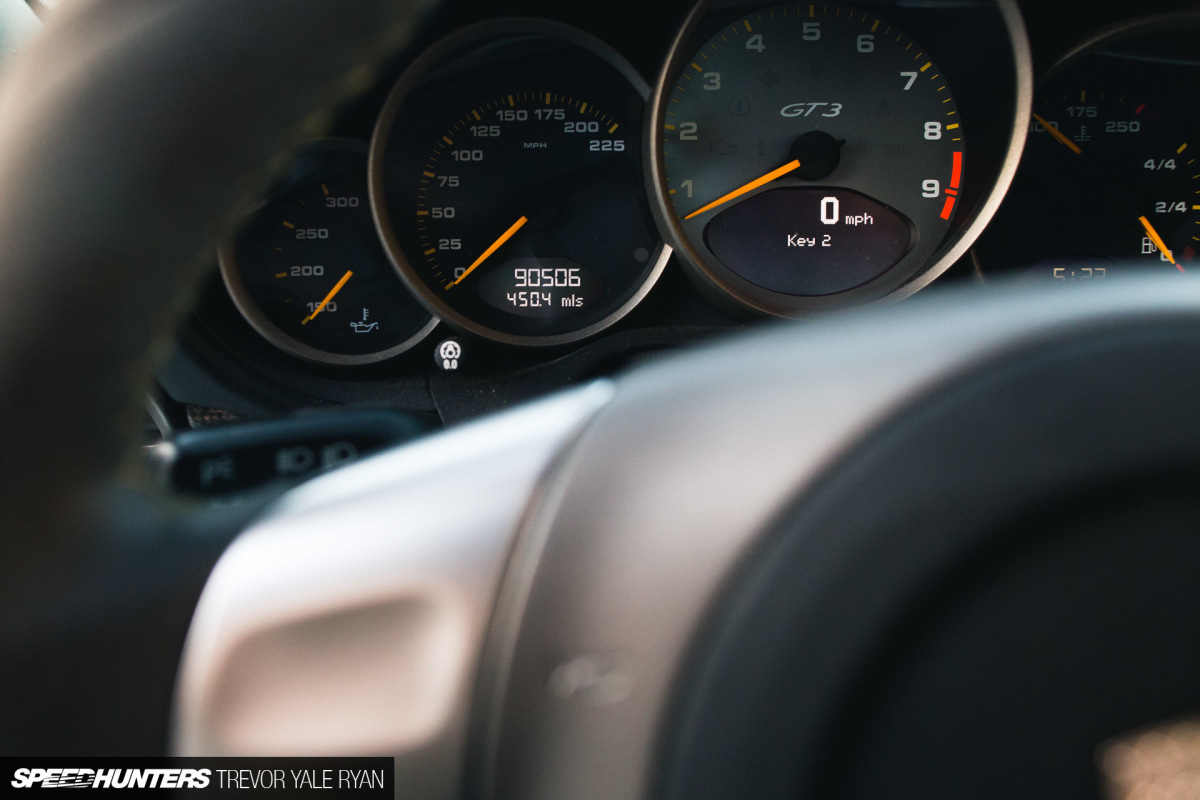

2018-SH-SharkWerks-GT3-Trevor-Ryan_024

Check out that odometer. For a guy who owns a lot of other Porsches it’s hard to believe that Ralph has clocked up nearly 10,000 miles a year since this thing came off the showroom floor.

But looking around the car, it’s pretty obvious that Ralph is a guy who just loves to drive his Porsches. He even carries around an extra lip for when he inevitably destroys the current one at speed.

2018-SH-SharkWerks-GT3-Trevor-Ryan_027

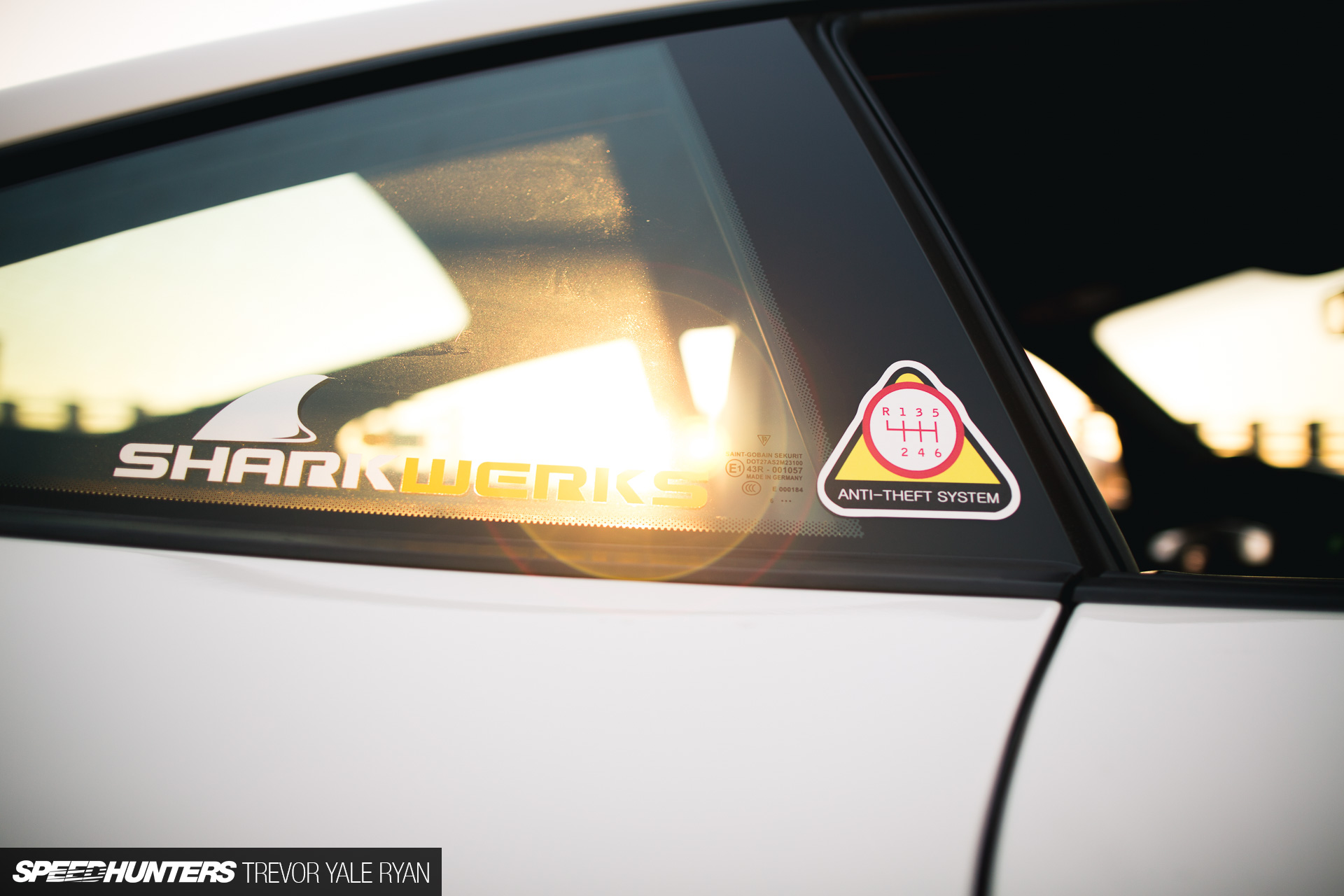

Thus, Ralph has been the perfect test bed for the 4.1 setup along with other SharkWerks upgrade parts.

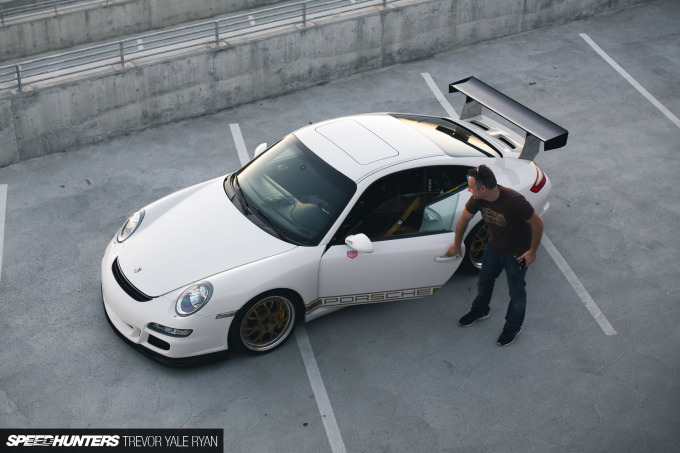

2018-SH-SharkWerks-GT3-Trevor-Ryan_028

Alex tells me they’re really quite lucky that Ralph’s taken a liking to them — both his driving ability and Porsche expertise are absolutely tops, as they say.

2018-SH-SharkWerks-GT3-Trevor-Ryan_029

As I had a last look around the 4.1, Alex caught up on the emails I’d been sidetracking him from all day.

I finally concluded that everything about this car is exactly what it should have been from the factory — it’s far better than even the more recent 4.0 and RS variants. I understand it just isn’t quite possible when you have production numbers to meet and marketing teams and investors and who knows what all else.

But since Porsche won’t do it, we can be thankful for shops like SharkWerks who gladly will.

Trevor Yale Ryan
Instagram: tyrphoto
TYRphoto.com

Cutting Room Floor

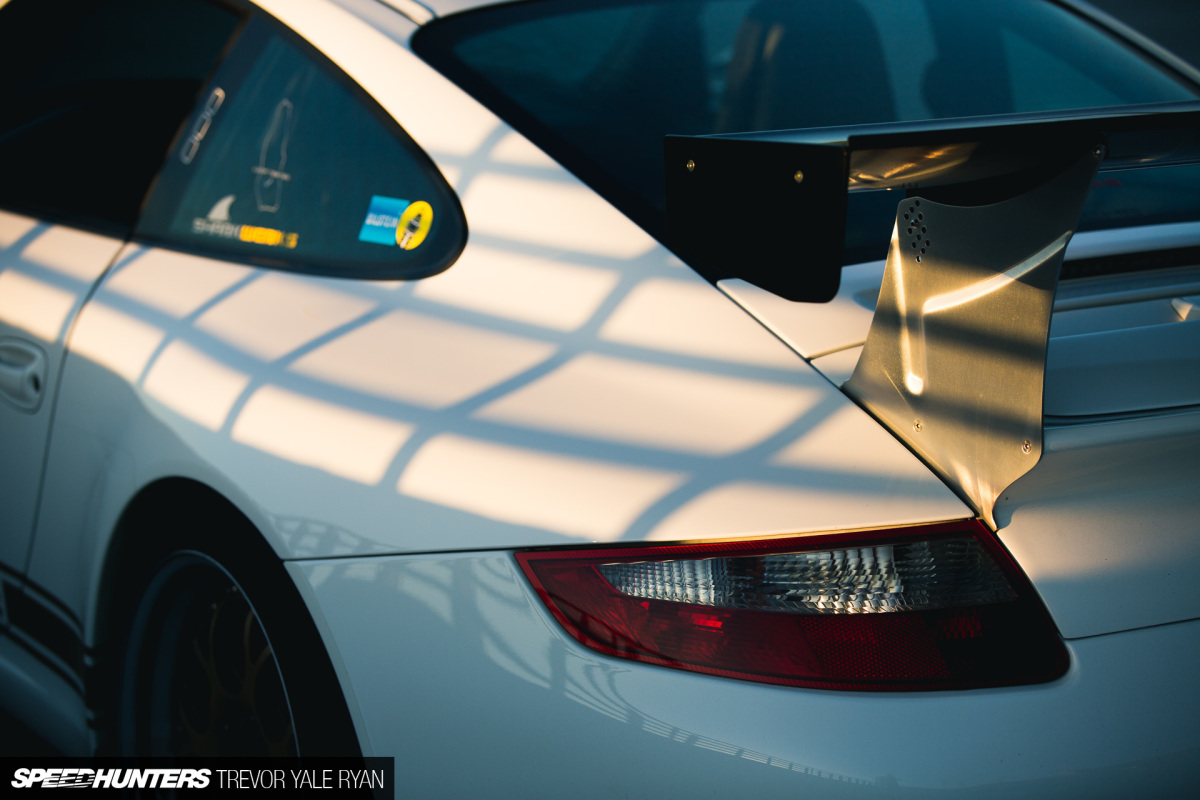

2018-SH-SharkWerks-GT3-Trevor-Ryan_033

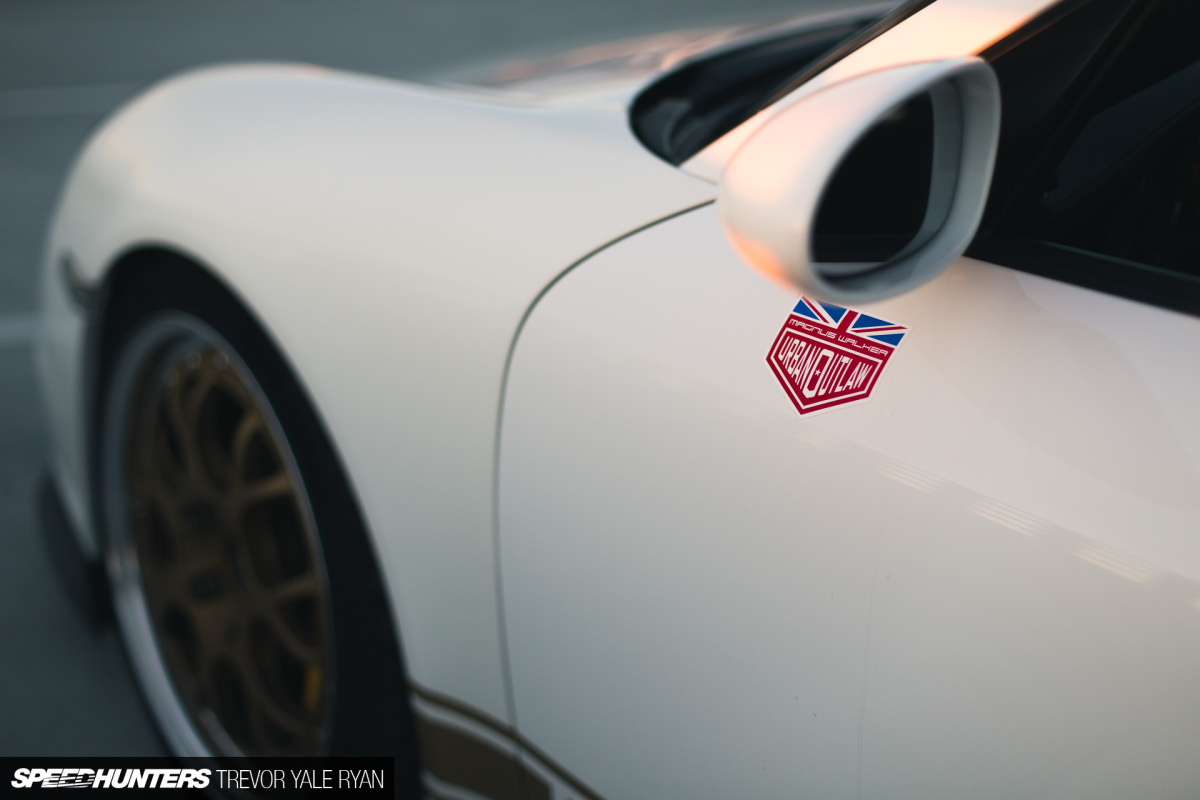

2018-SH-SharkWerks-GT3-Trevor-Ryan_034

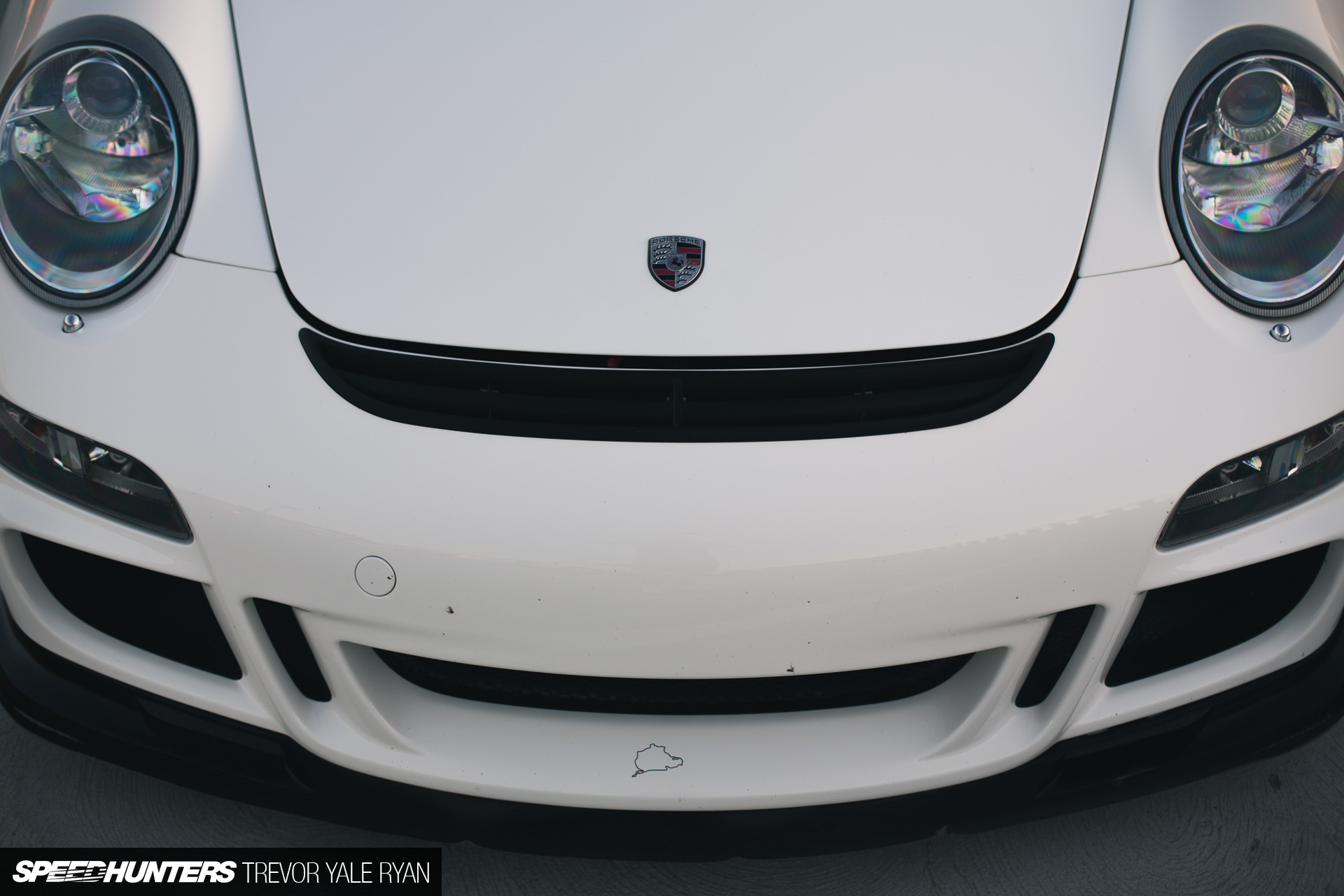

2018-SH-SharkWerks-GT3-Trevor-Ryan_035

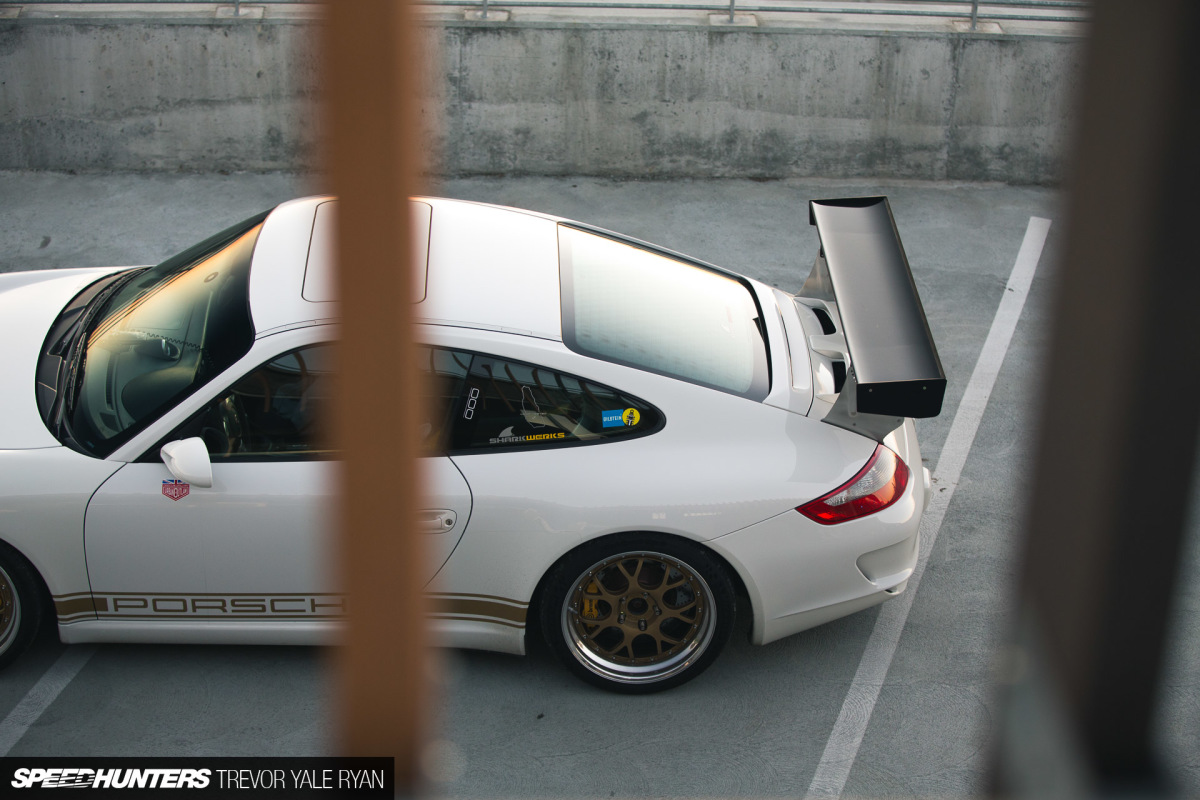

2018-SH-SharkWerks-GT3-Trevor-Ryan_036

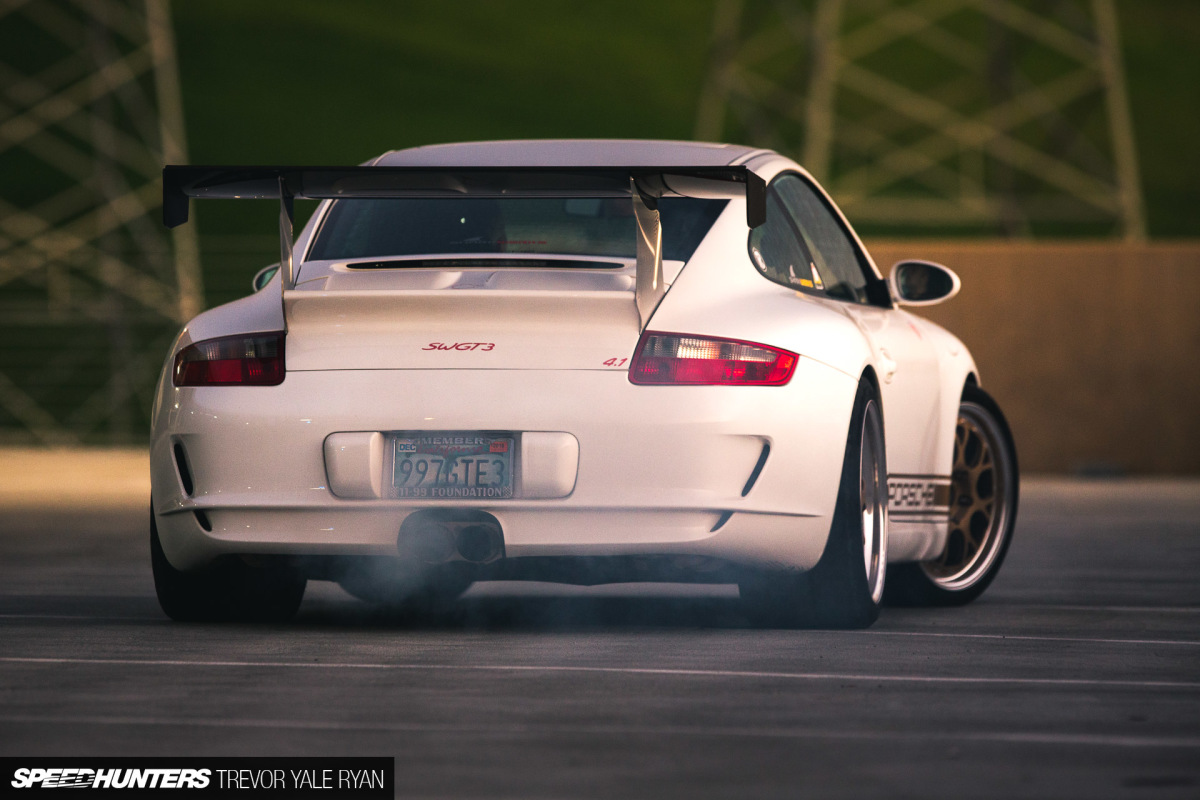

2018-SH-SharkWerks-GT3-Trevor-Ryan_037

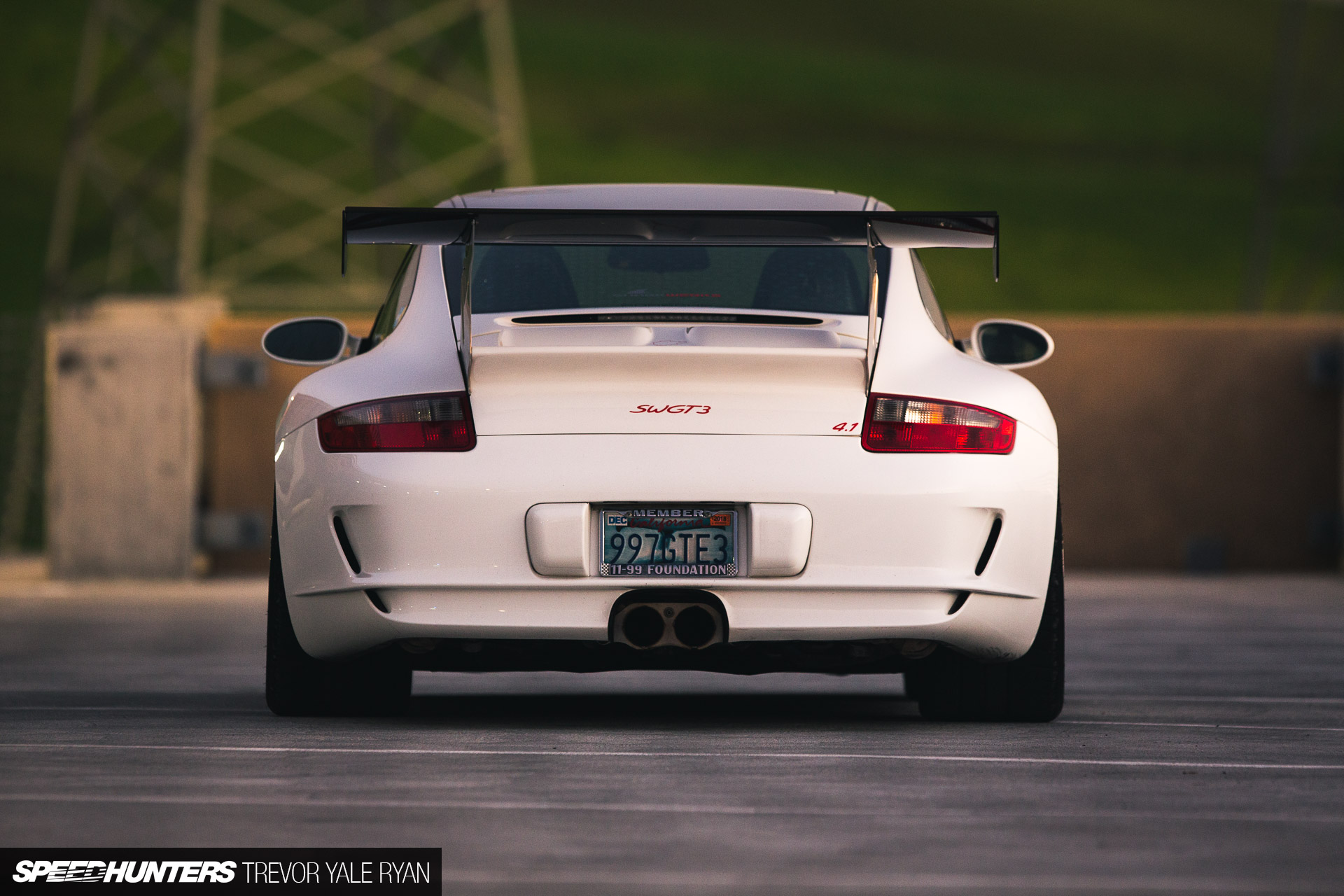

2018-SH-SharkWerks-GT3-Trevor-Ryan_038
ADVERTISEMENT

Comments

Add comment

E-mail is already registered on the site. Please use the Login form or enter another.

You entered an incorrect username or password

Sorry, you must be logged in to post a comment.

25 comments

by Oldest
by Best by Newest by Oldest
1

This guy owned 3 Porsches before he was allowed to drink? And I can't even land a simple job at this age. Crazy guy. You should also have gotten a sound clip of the car too.

2
Anuradha Kawdaullage

Simply awesome

3
Jay Soh Tsu Chung

What a clean exterior!

4

SharkWerks is the antithesis of Rauh Welt, and that is a good thing

5

Magnus, paints cars horrendous colour schemes and re trims interiors in plaid. I have zero idea what the fuss about him is.

6

Who said anything about Magnus? What are you talking about? Also, have your eyes tested please.

7

It would appear I replied to the wrong post, Jordan a couple posts down brought him up.
Yeah, let's put blue bumpers and a red engine cover on a white Porsche, that'll look great.......facepalm

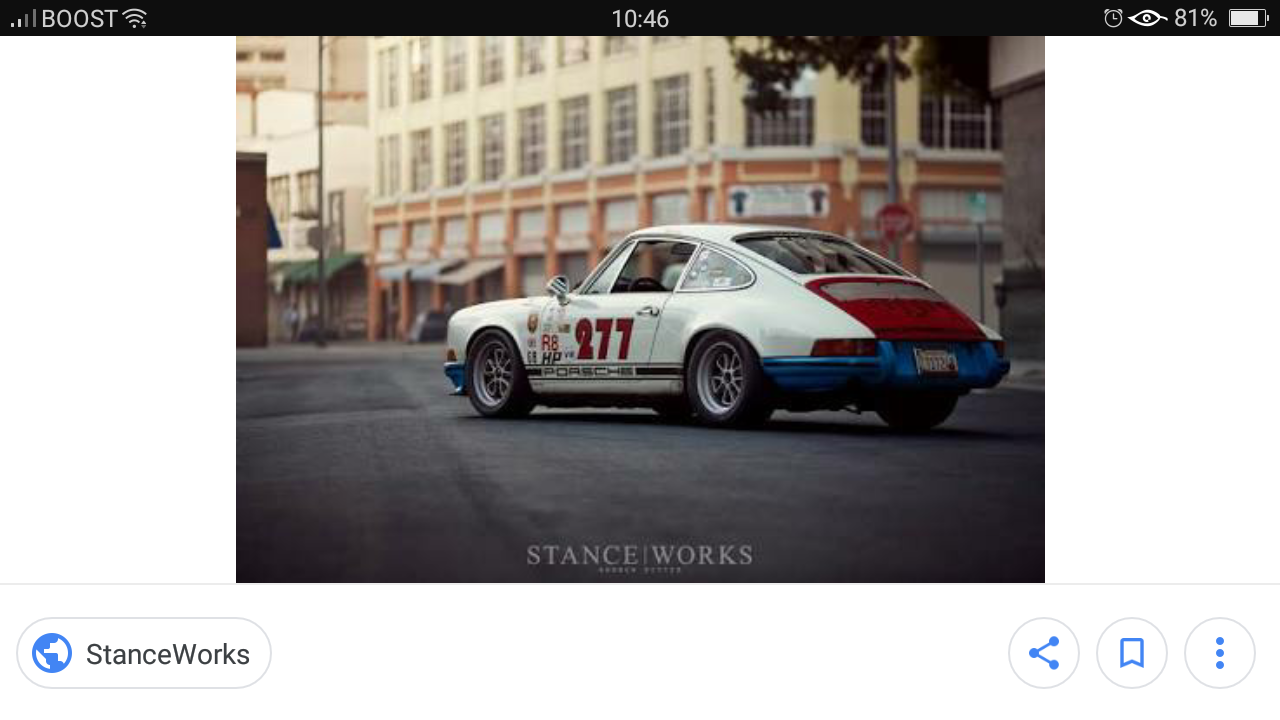

decom_a29170809477cdb7a24843efc8a908f6_5a90d27b50597.pngdecom_a29170809477cdb7a24843efc8a908f6_5a90d27b50597.png
