Not Your Average Hybrid: West Surrey Racing’s BTCC 330e

To most of us, the mention of British Touring Cars conjures up images of the Super Tourer era, what many regard as the touring car’s heyday.

Budgets in excess of 10 million pounds a year to run a team were not unheard of. The cars were incredibly expensive and constantly had new technology and setups being applied to cross the line first when the chequered flag dropped. However, after 10 years of ludicrous spending, it came to an abrupt end as manufacturers deemed the costs excessive.

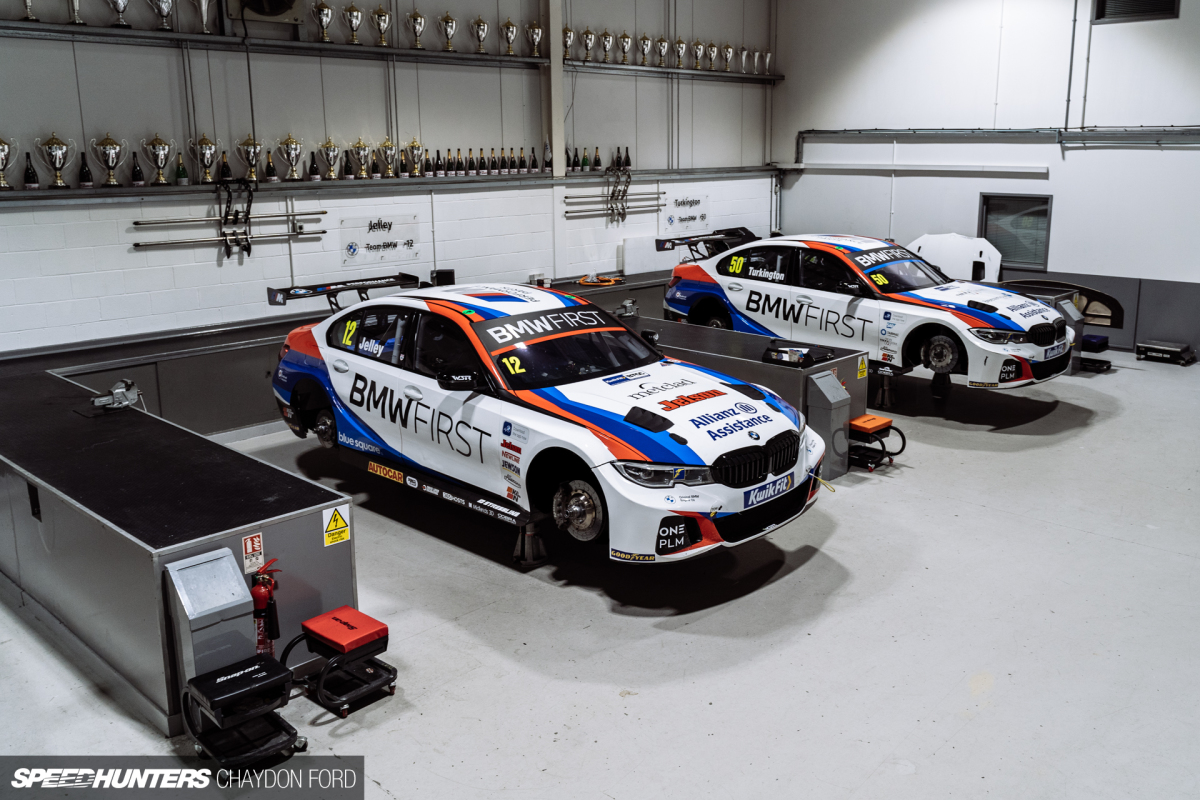

WSR 330e 038

Following this, the cars first adopted the BTC (British Touring Car) revised ruleset in an effort to cut costs, after which the series comprised of a mixture of BTC and Super 2000 regulation cars. This all changed in 2011 with the introduction of the NGTC (Next Generation Touring Car) regulations. Standardised components and tight budget controls meant more affordable, closer racing.

Fast forward to 2022, and the next big change has now arrived with the introduction of a hybrid powertrain assembly.

WSR 330e 043

Touring cars have always been a production car-based series, and with the shift to full and part-electric drivetrains to be seen as more environmentally-friendly, the motorsport equivalents have adopted the same approach. The ‘win on Sunday, sell on Monday’ mentality fits the British Touring Car Championship (BTCC) to a tee.

The BMW 330e that West Surrey Racing campaigns is no different. (Check out our behind-the-scenes tour of their facility here)

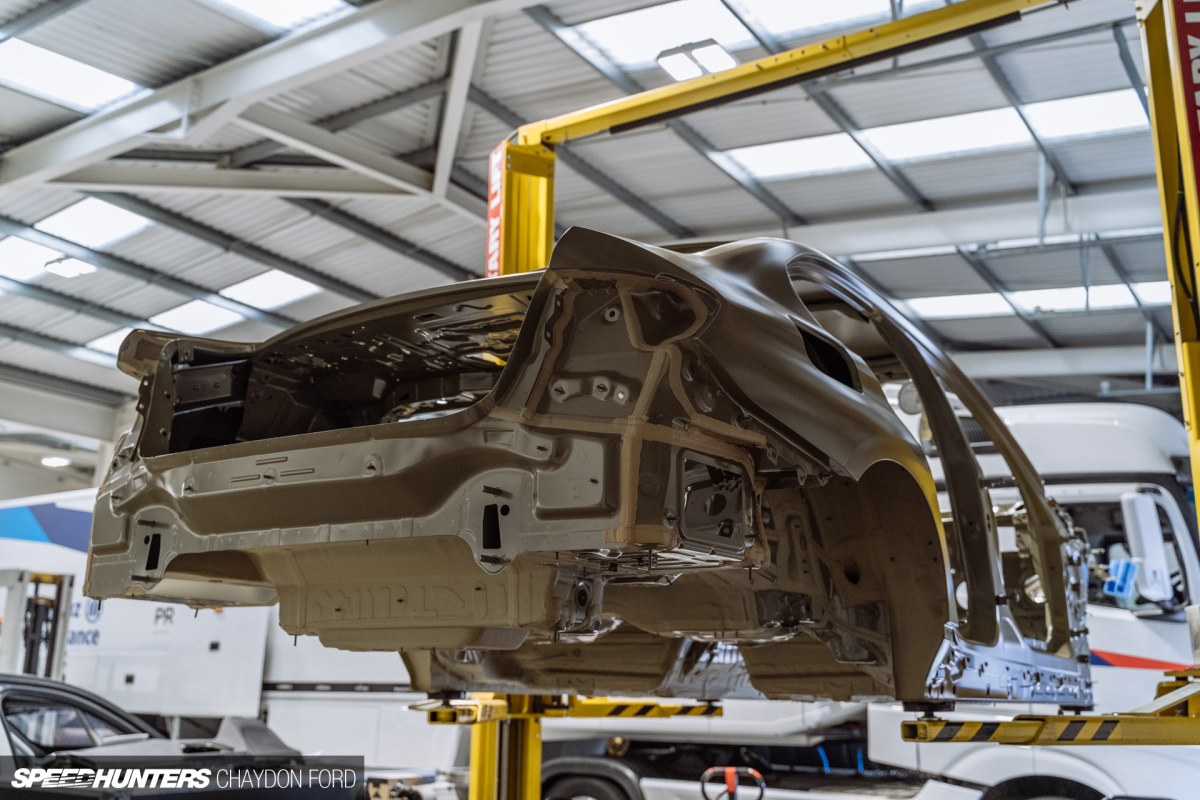

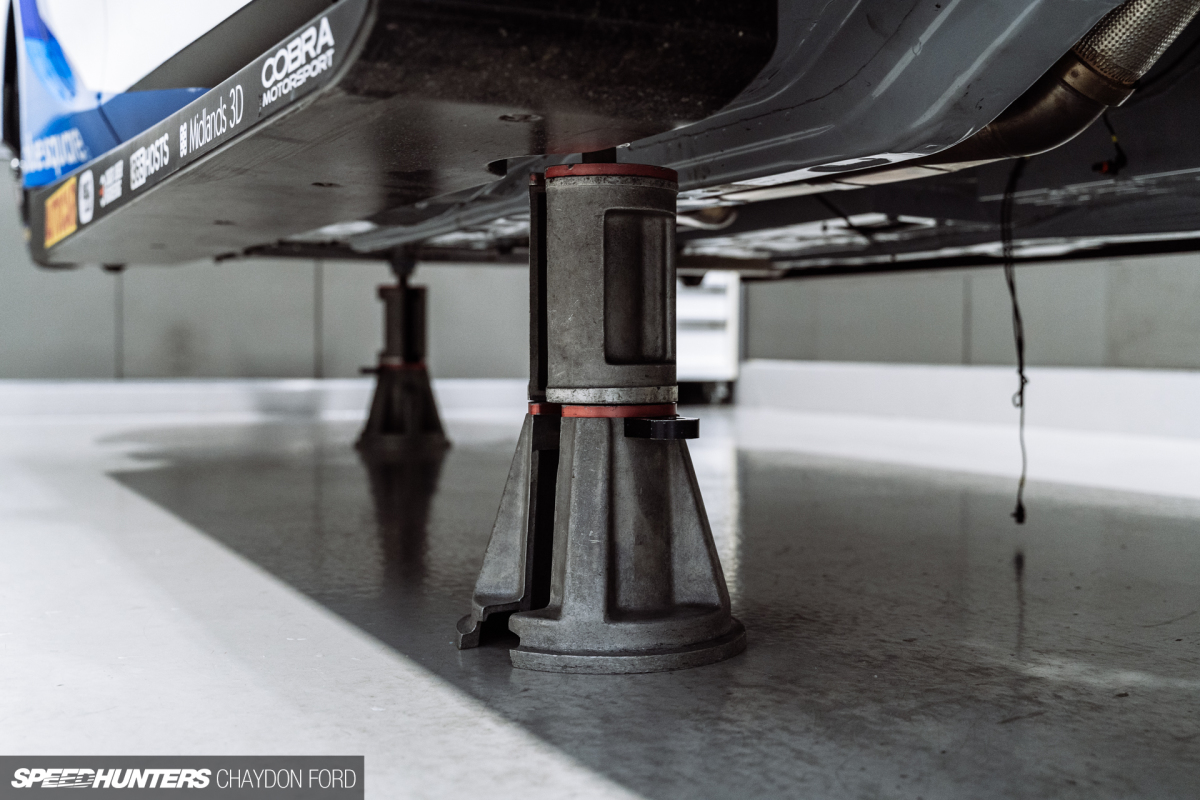

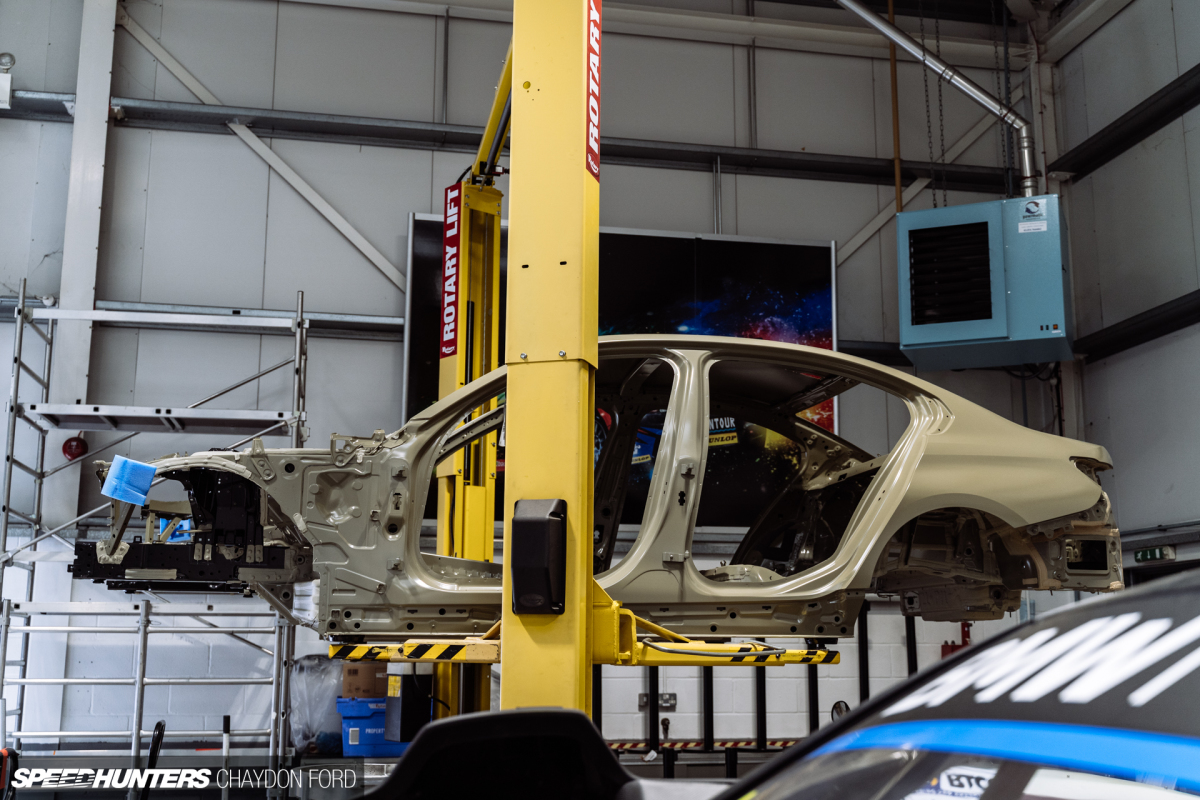

The team starts with a shell plucked from the production line before any major assembly has taken place, which is then sent away for chassis prep. A comprehensive WSR-designed roll cage and airjack supports are welded in, along with removing a large portion of the metalwork from the firewall forward and c-pillar back. Standardised RML-designed subframes then affix to specific roll cage locations front and rear.

WSR 330e 001

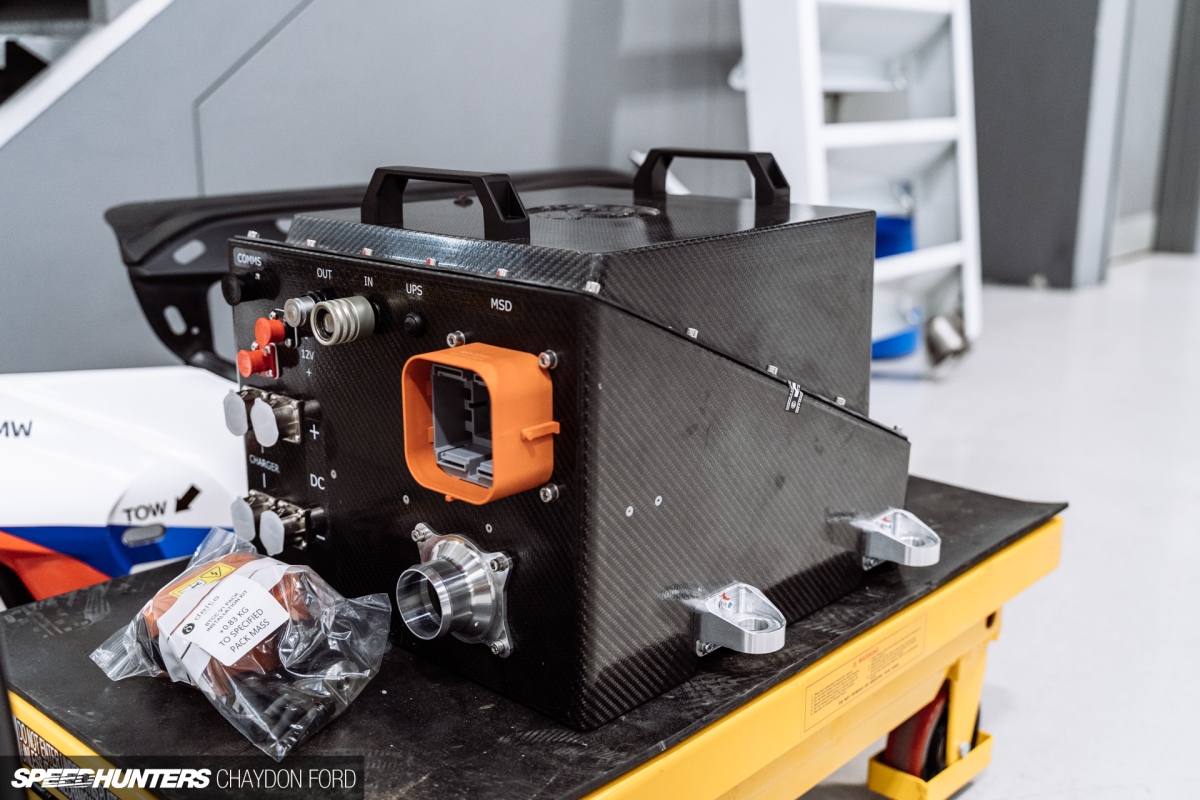

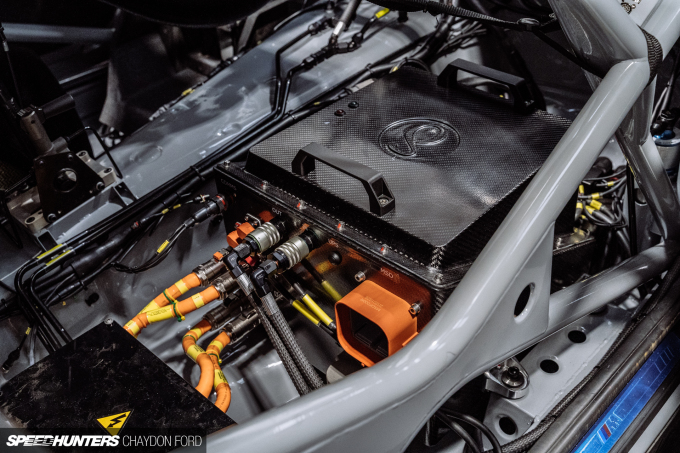

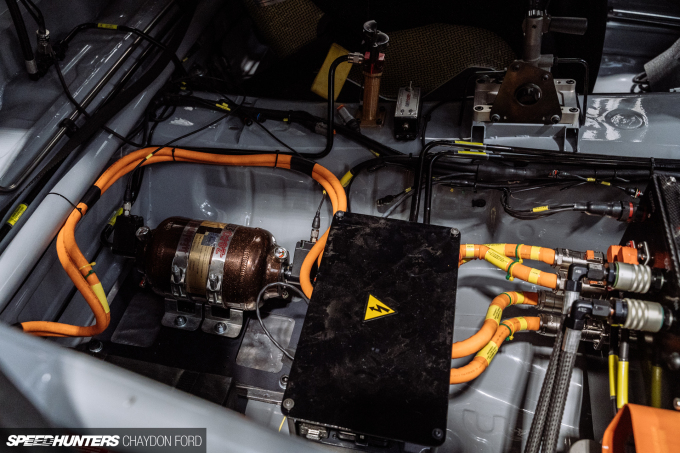

The Delta Cosworth hybrid battery unit is self-contained and resides in what was the passenger seat area of the car, linked to the electric motor generator unit incorporated into the (yes, you guessed it) regulated Xtrac gearbox. The unit provides around an 8% increase over the 379+hp provided by the 2.0L combustion engine, with the amount of hybrid boost available dependant on a number of factors but ultimately balanced to ensure close racing. This extra power won’t be enough to support an outright pass, but will allow gaps to close and put pressure on drivers to defend or support an attack. Success ballast is also a thing of the past. Race winners now simply have the number of laps where hybrid boost is available reduced, rather than having weight added to their car.

Teams have the option of leasing the TOCA-spec engine built by M-Sport, but WSR have elected to run the BMW B48 engine developed by NBE, again regulated by running a standardised turbocharger and intercooler. For the 2022 season, all cars are required to run on 20% biofuel.

WSR 330e 030
WSR 330e 033

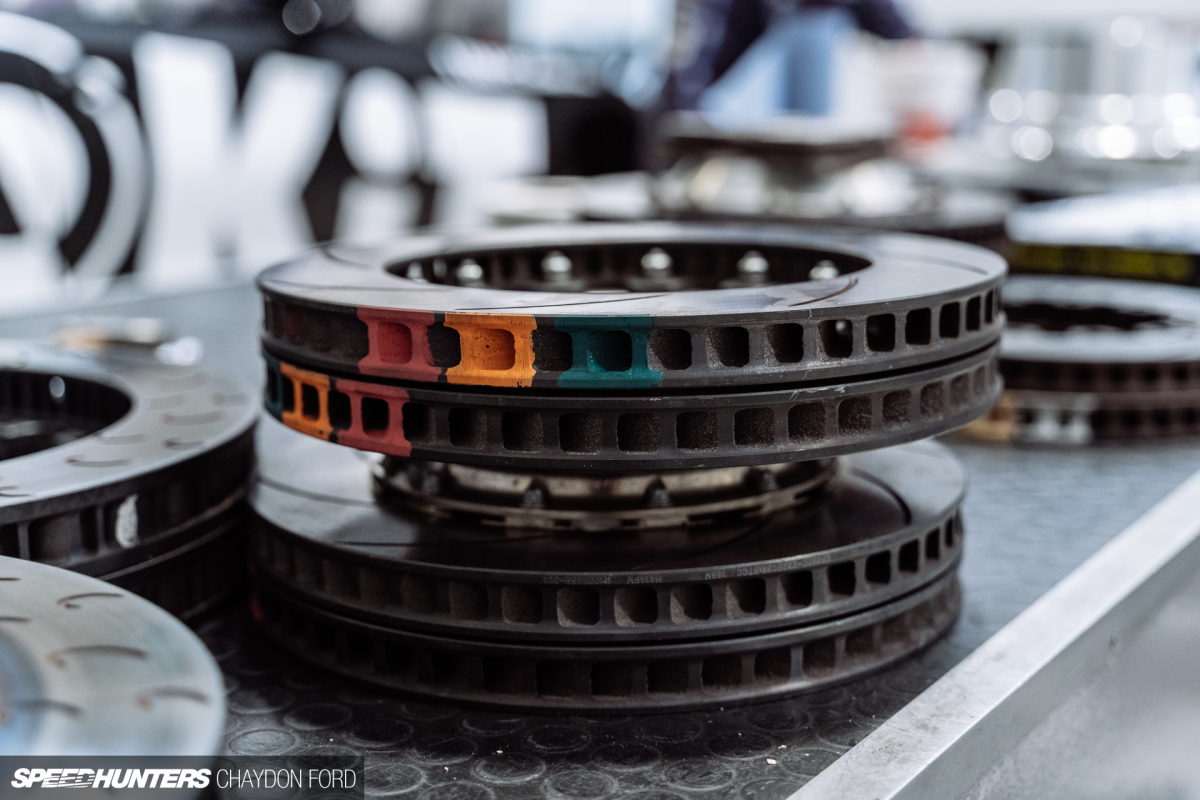

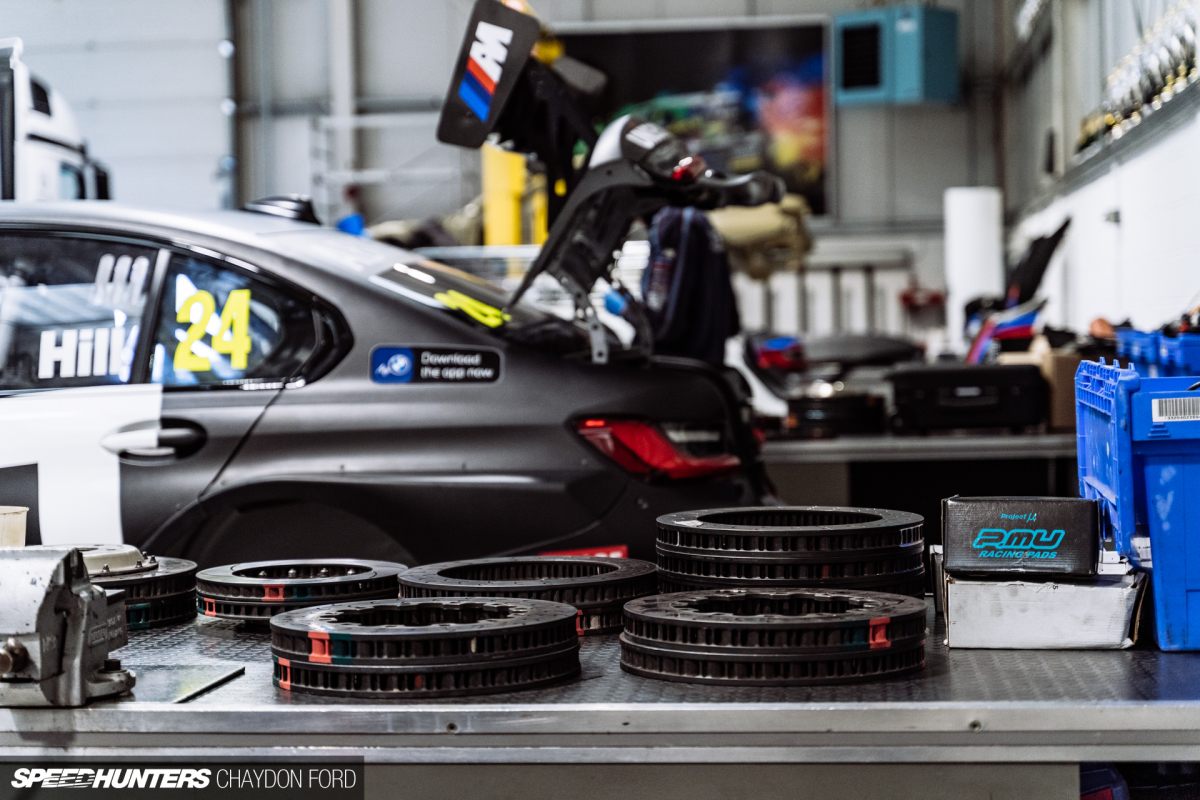

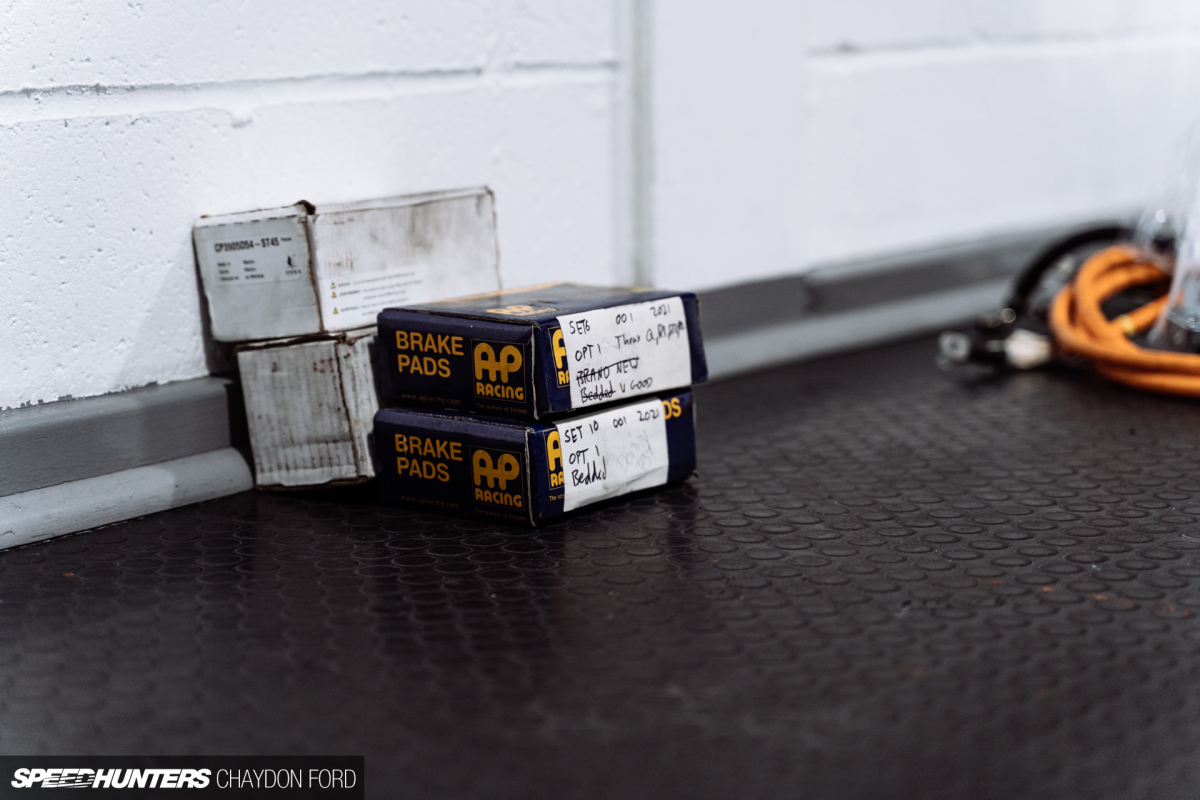

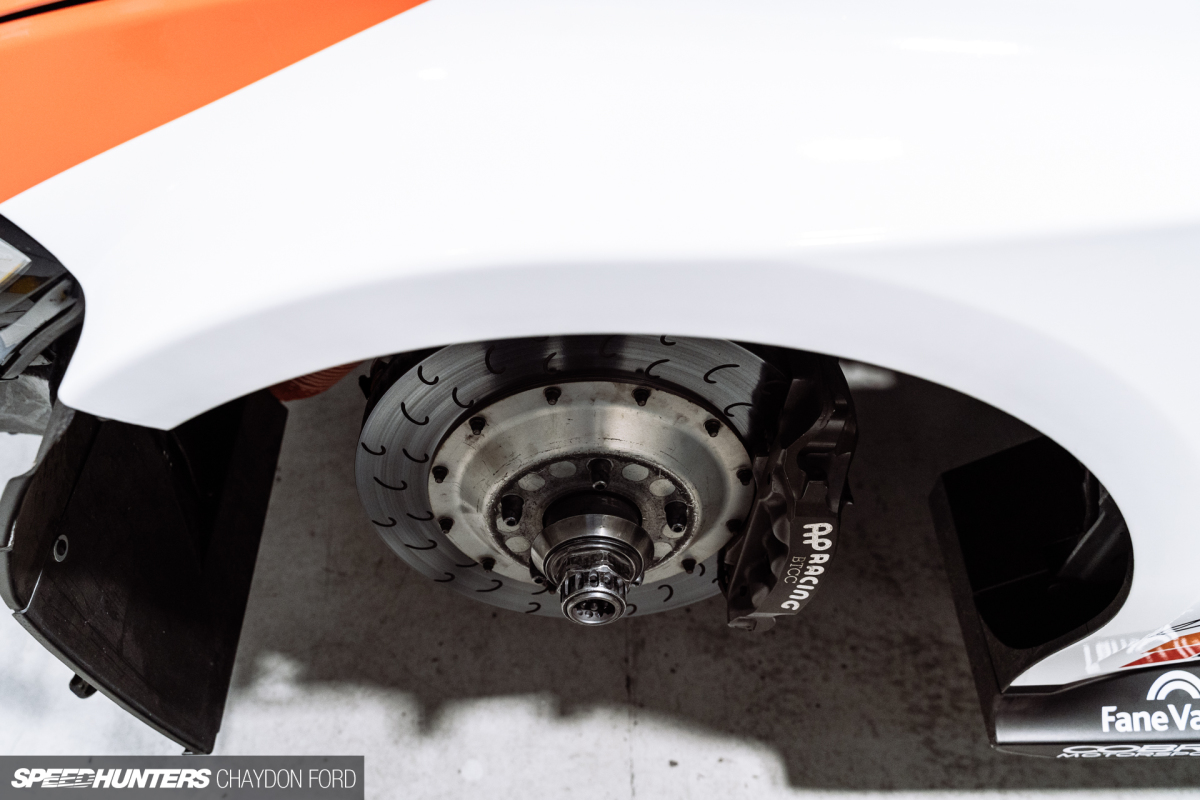

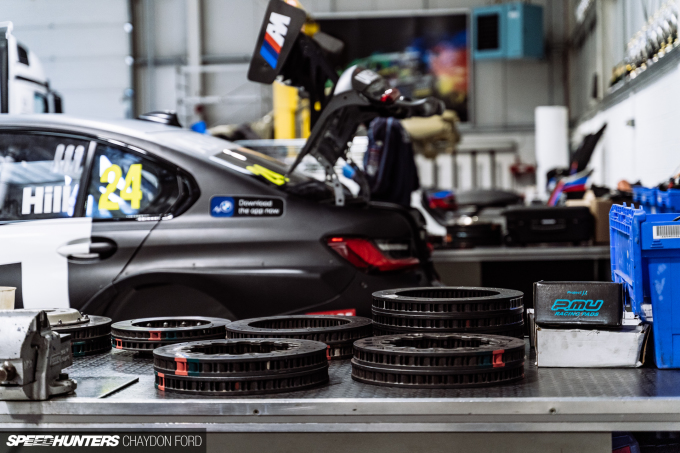

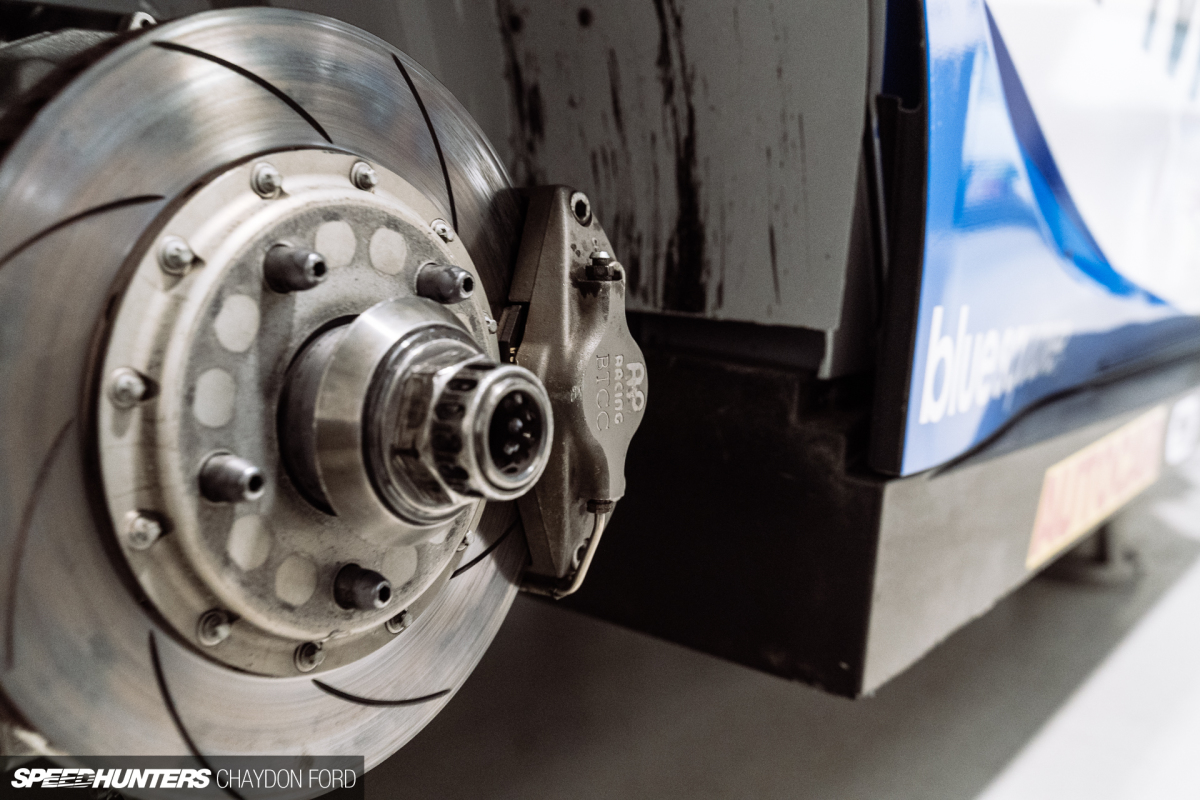

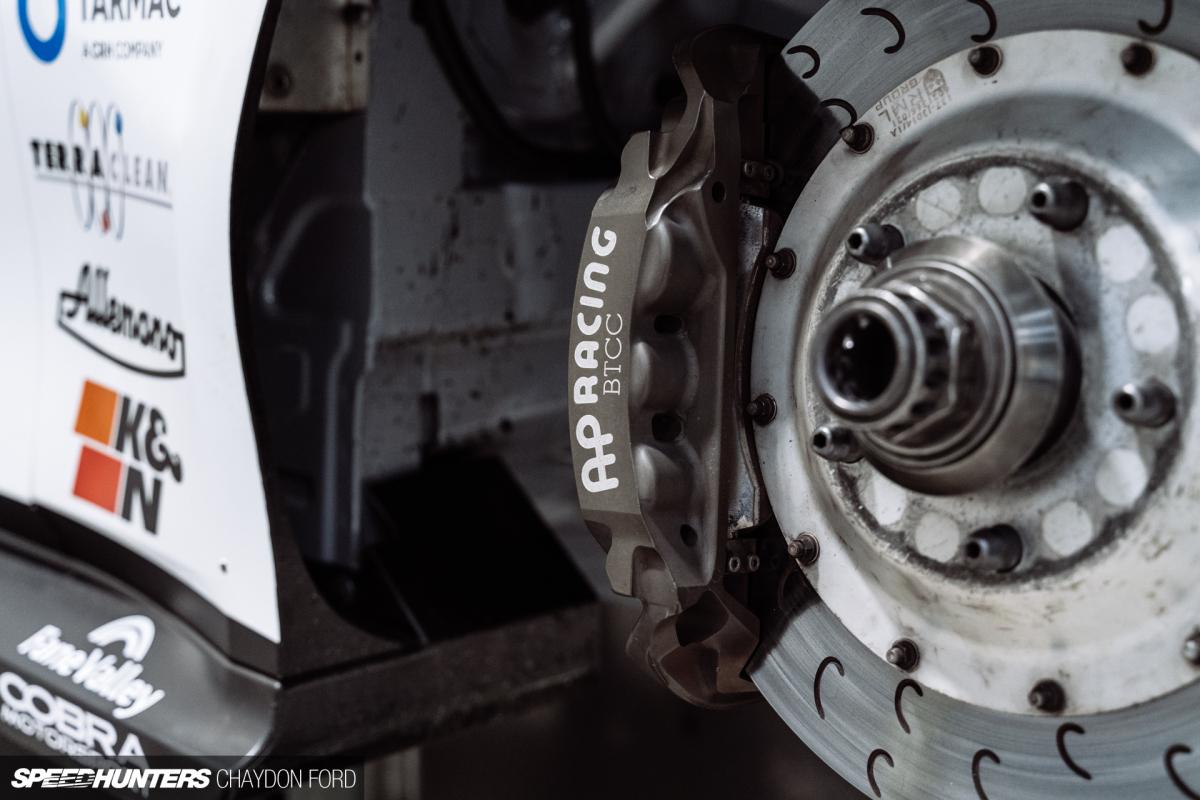

BTCC-spec AP Racing callipers and two-piece rotors provide stopping power at each corner. Note the coloured vanes, which show different temperature ranges the discs experience. Even the brake pads are regulated, with the teams having a choice of three compounds for the front and two for the rears.

While the cars are mandated to a minimum weight (1,355kg for rear-wheel drive, 1,325kg for front-wheel drive), the WSR team have gone to serious lengths to save weight wherever possible. This allows them to add weight back in, but at locations of their choosing to optimise balance. Numerous concessions to weight saving can be seen throughout the cars.

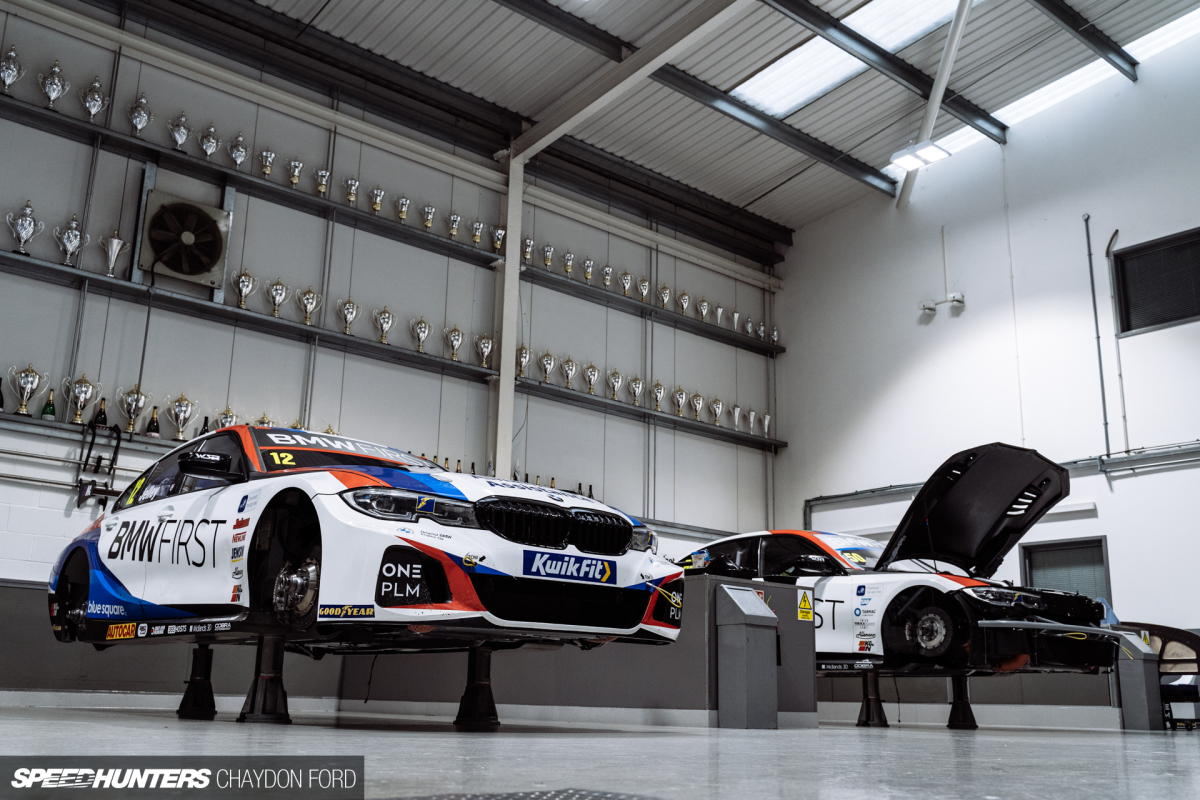

WSR 330e 035

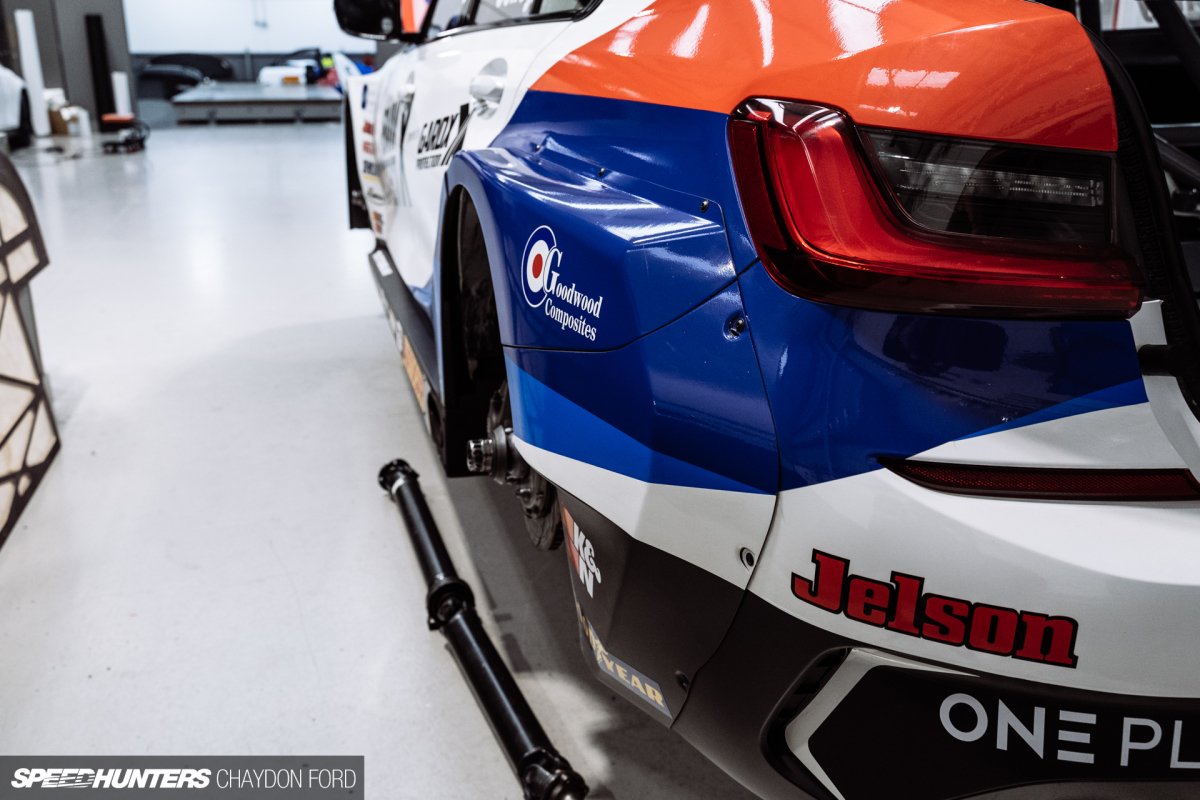

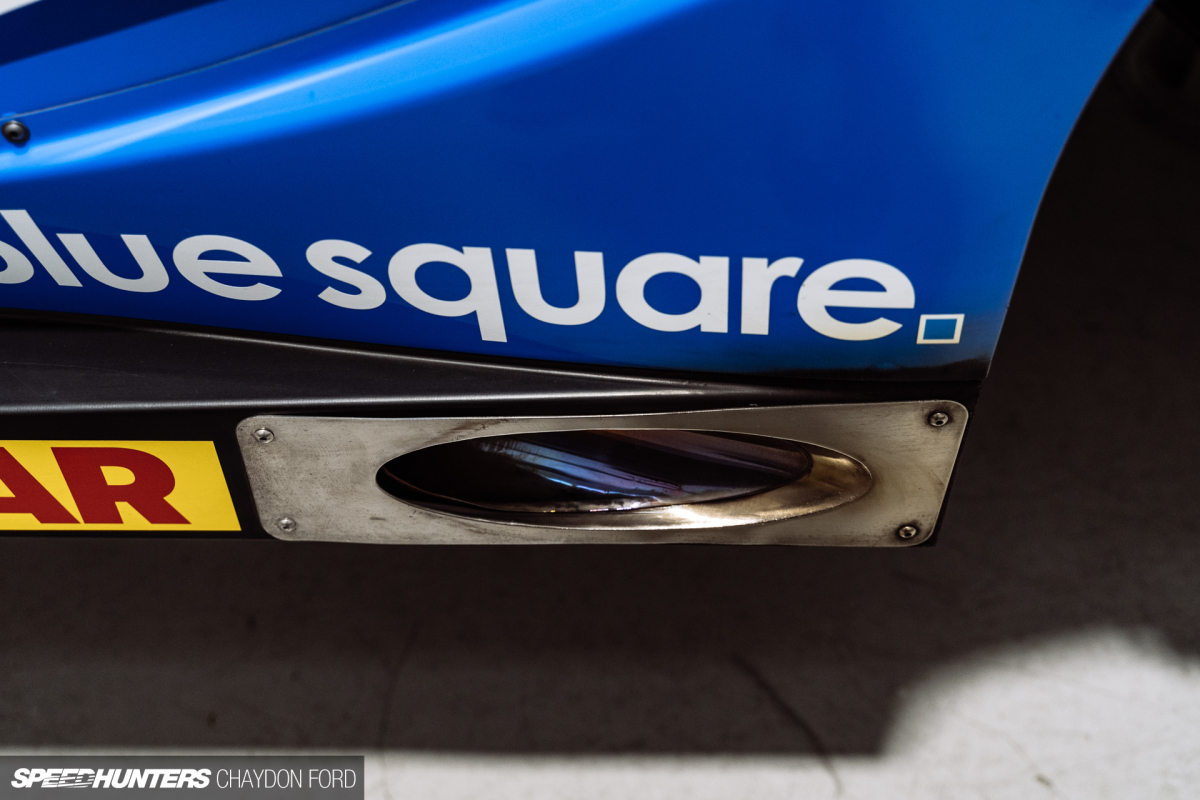

Compared to the standard road car, the BTCC car has undergone some drastic changes for racing purposes. Custom widened arches adorn each corner and contain the center-lock wheels shod with Goodyear racing slicks. This year only medium, hard and rain compound tyres are permitted, with quantities again tightly regulated. The exhaust now terminates in a side exit just ahead of the left rear wheel.

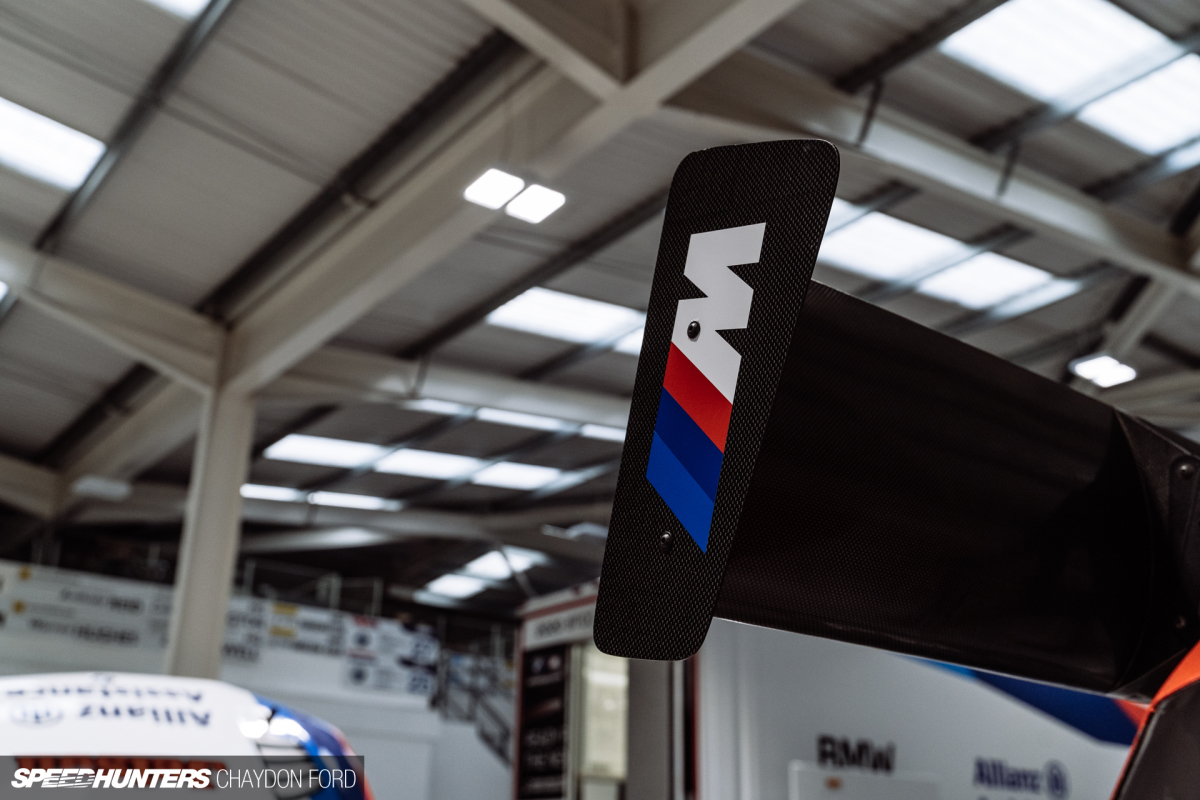

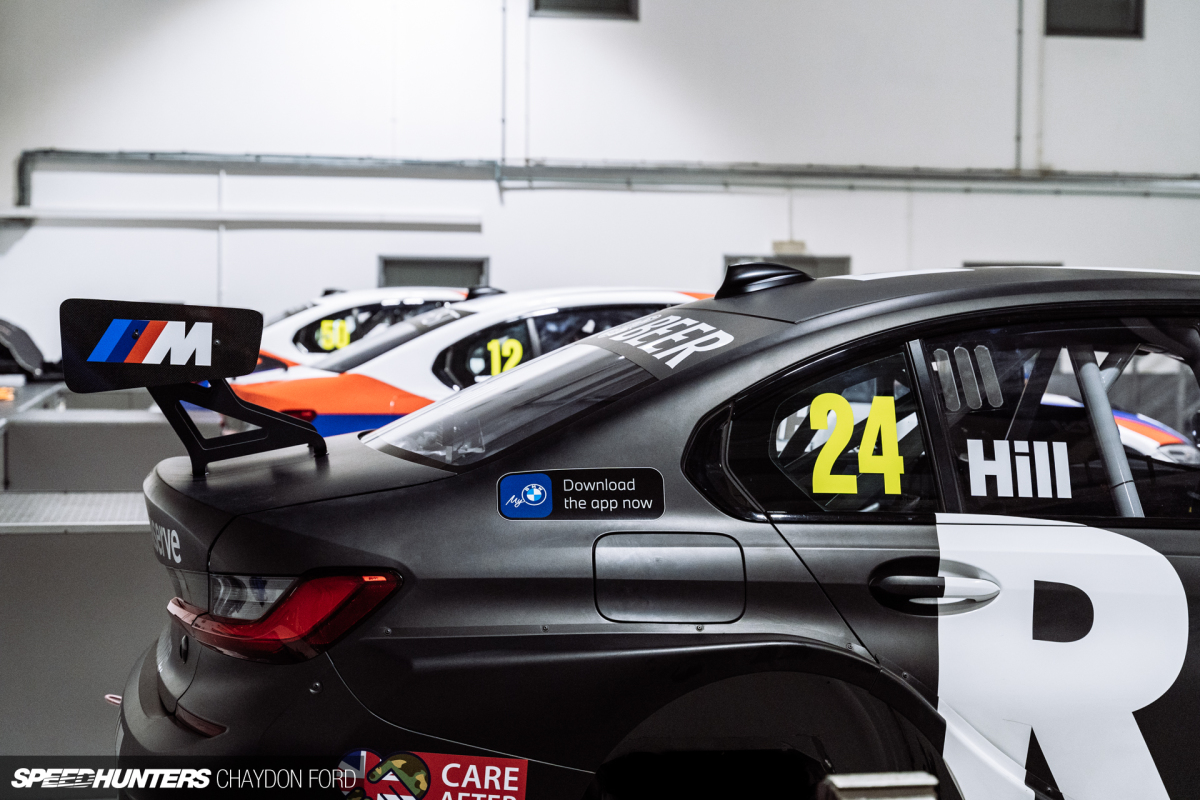

People often joke about using marine-plywood as a splitter, but it’s far more common in top-tier motorsport than you might realise. It’s durable, fairly lightweight, flexible and most importantly, far cheaper than a carbon equivalent. This forms part of the front aero package, which is balanced out by a regulation-sized TOCA rear wing atop the boot lid.

WSR 330e 019

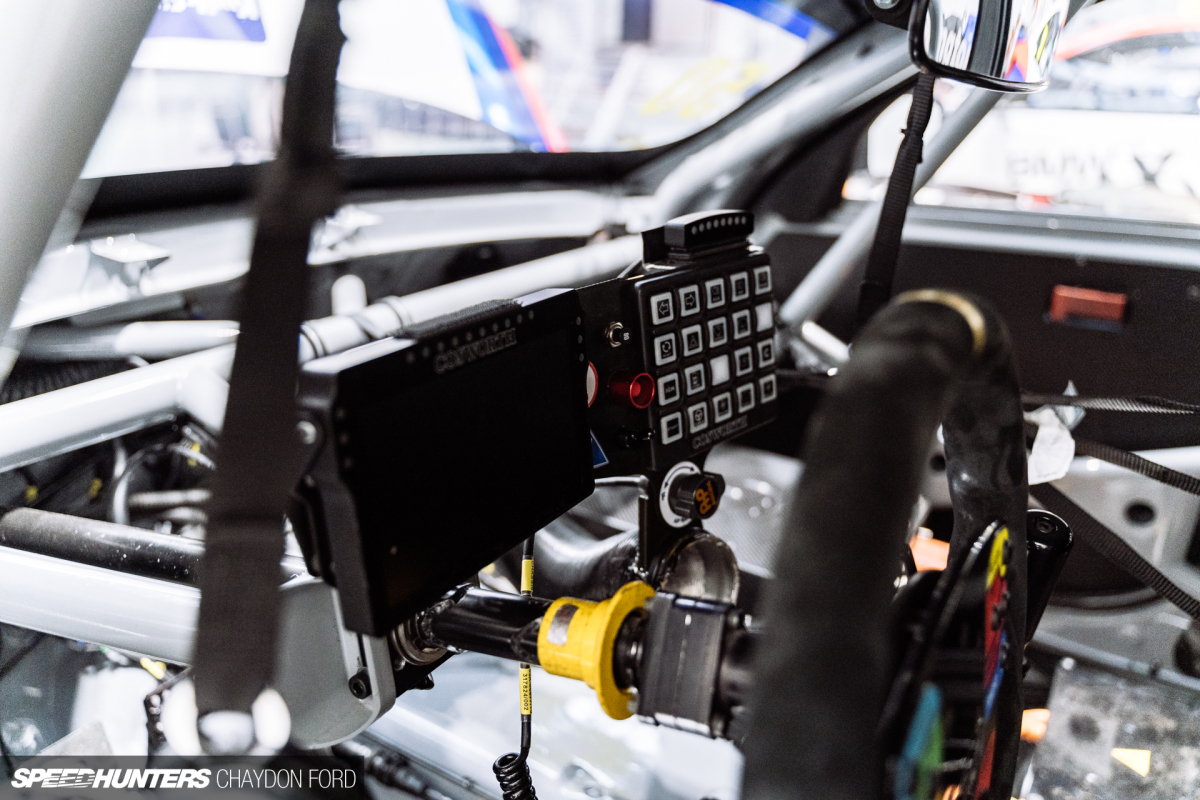

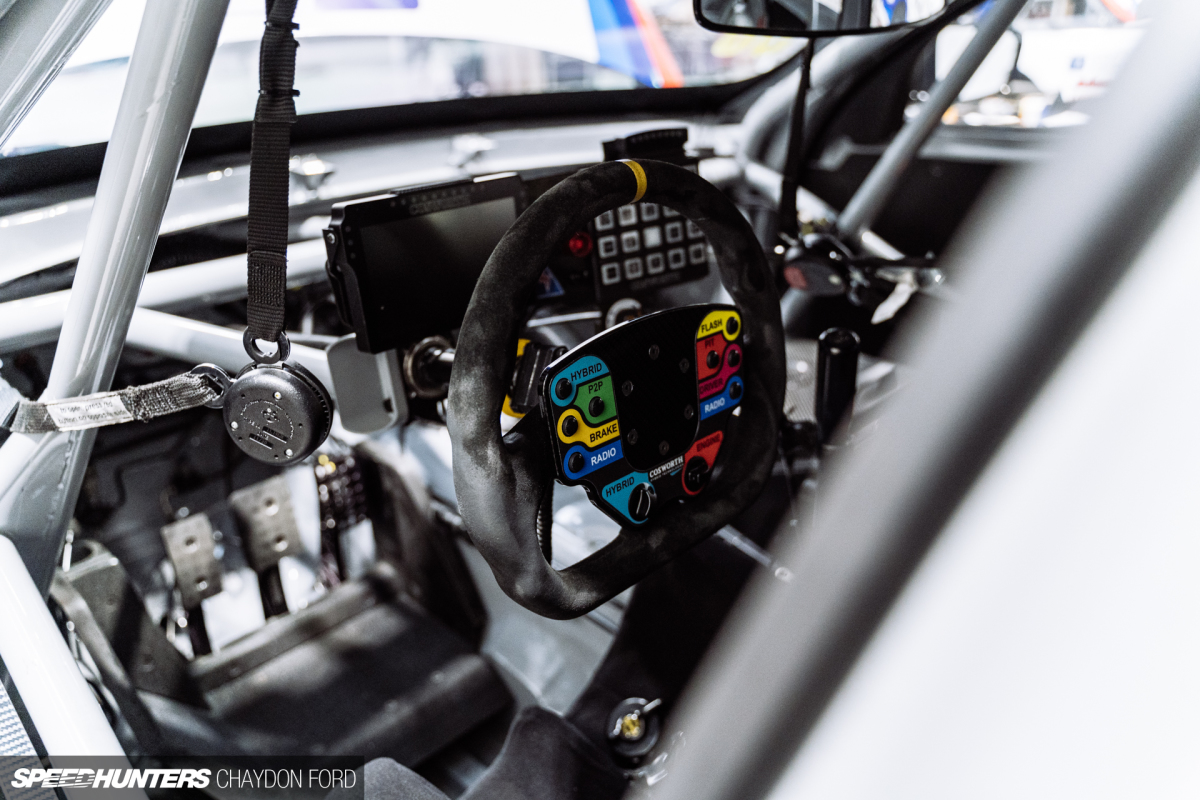

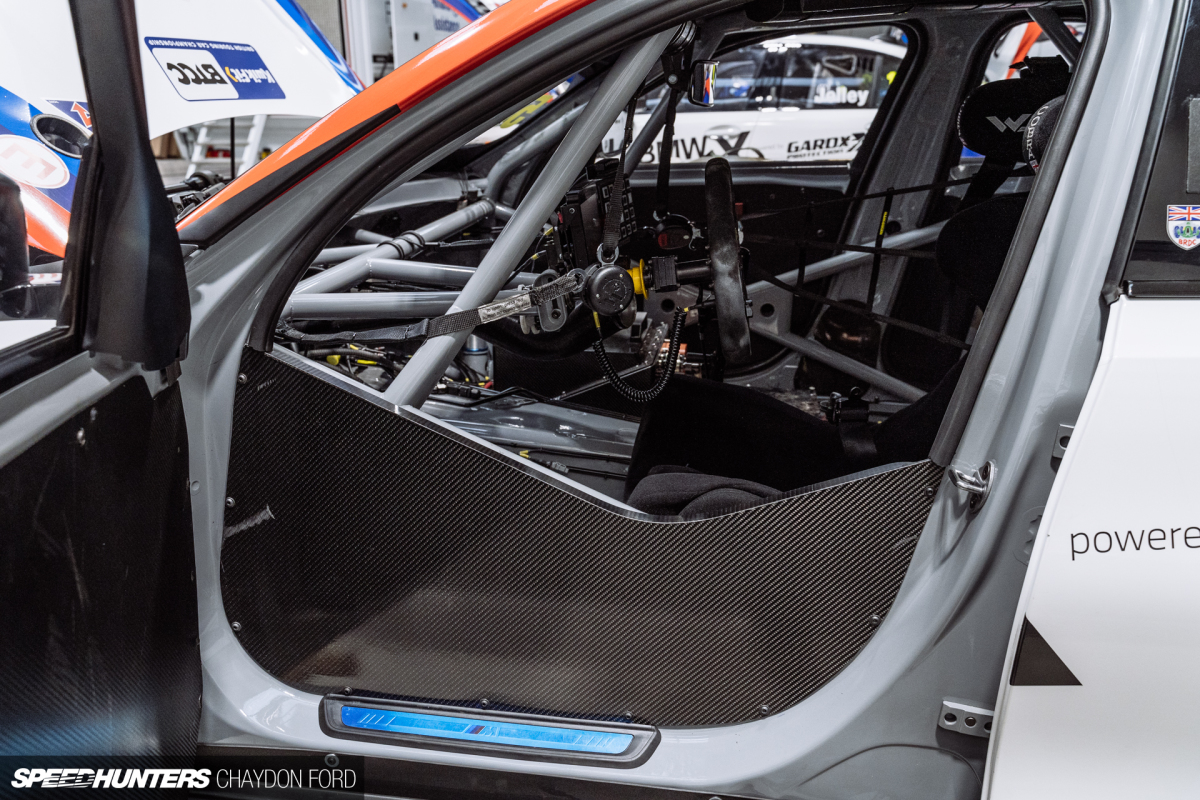

The interior is fairly sparse, with the aforementioned battery unit alongside the driver’s seat which sits on the left side of the car. A Cosworth LCD dash and switch panel are perched within easy reach of the driver when strapped into the seat, while the more commonly used controls reside on steering wheel buttons.

WSR 330e 007

While each of the components are carefully thought out and optimised in their own right, having the sum of all the parts together makes for an extremely impressive and well presented car. Nothing on the car exists without a purpose and WSR’s track record of success is something that they fully intend to continue this year, with the car being evidence of this.

WSR 330e 042

Understandably, there is some negativity to the adoption of hybrid powertrains in touring car racing and other forms of motorsport. This is likely due to the primary purpose of hybrid road cars – to aid fuel economy and reduce emissions. But there are advantages it can offer too. The on-demand power it provides can only make for closer, more exciting racing with more passing and leader changes.

If there’s one thing BTCC races can never be accused of it’s being boring, and this new era of racing will only cement that further.

Chaydon Ford
Instagram: chaycore

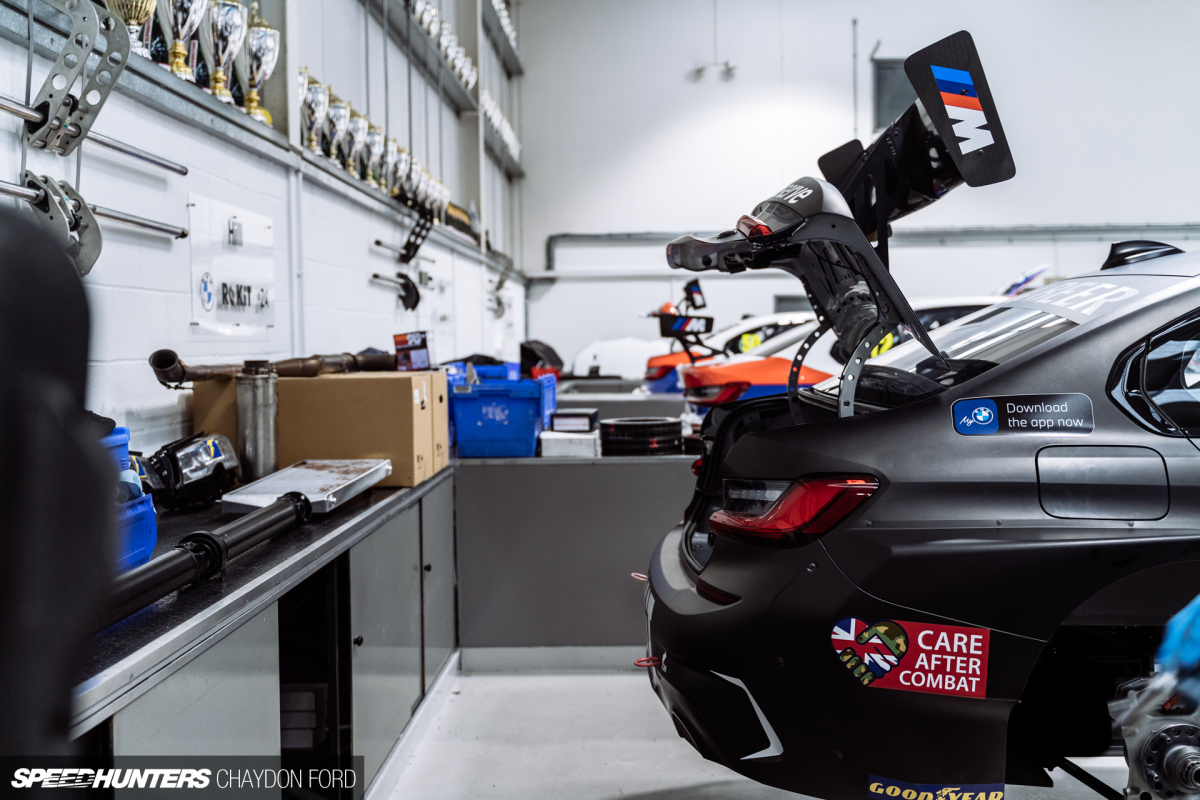

WSR 330e 005
WSR 330e 028
WSR 330e 036


Comments are closed.


by Oldest
by Best by Newest by Oldest

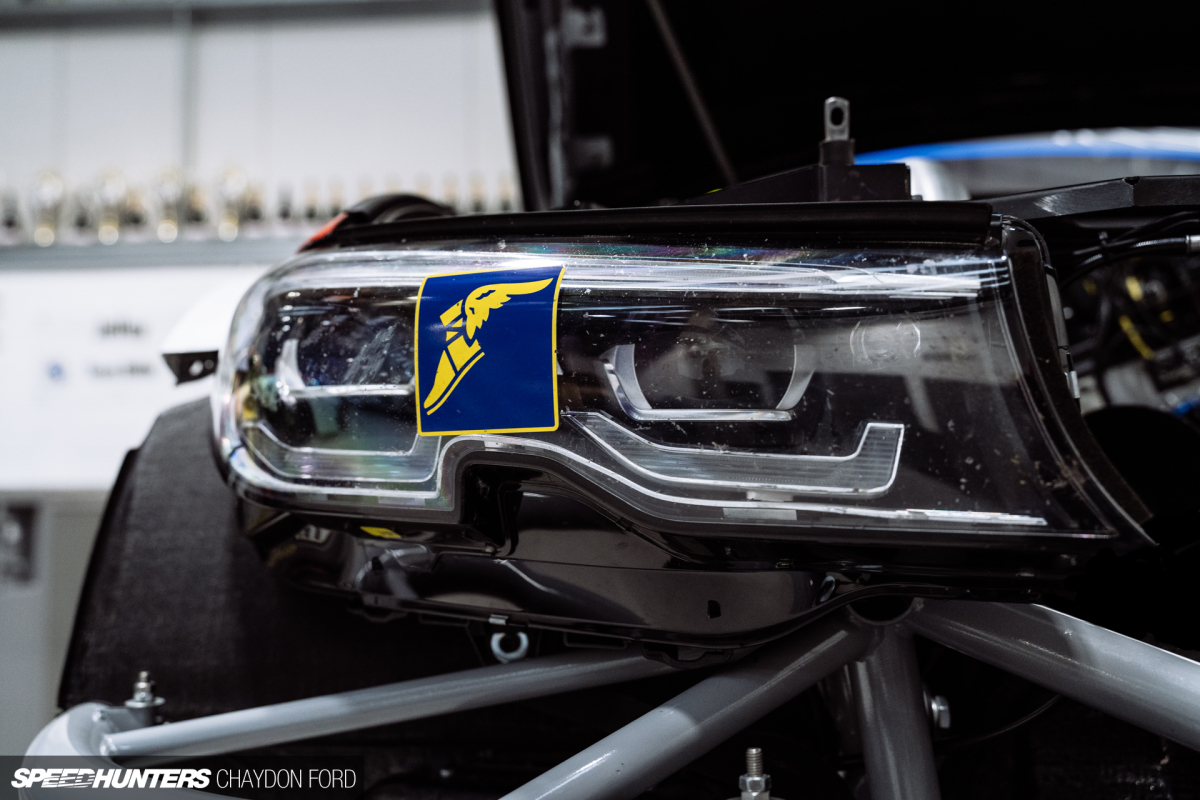

I'll ask the most performance oriented question out there: A headlight sticker! how much hp do they add?
Did they find a space in between the low and high beam that wont affect the lights so they slaped a sticker in an unusual place to catch the eye, there is any minor detail to hide,.....?


That's a series sponsor, all cars have that same sticker on the headlights. BTCC has been doing that for ages. Probably easier to find a space there than mandating it has to go somewhere on the bumper, plus in practice the stickers do stand out, which is good for the sponsor. And BTCC doesn't race in the dark, so it's not an issue.


... the primary purpose of hybrid road cars – to aid fuel economy and reduce emissions.

*Laughs in hybrid supercars *

Peanutbutter Arbuckle

people often forget that masterpieces like the 918 and Laferrari were hybrids.
Both works of art IMO


Really enjoyed this write up and the previous, Chaydon. You can get close to BTCC cars at the race meetings, nothing comparable to these images though. Really interesting. Re hybrid; the word ‘hybrid’ conjured up fear in me when TOCA announced they would partially electrify the drivetrain. I can confirm, after attending the meeting at Brands Hatch, it’s been implemented in a very discreet way and it only compliments the racing. Very well done


This was... Weird.

BTCC made sense when sedans could be considered sports cars, but this, and dinosaur bmw to boot, just feels forced. What's next? SUV racing? Sure buttttt...

Also gotta stop forcing these "apologies" for "Hybrid", "BEV"... Even this niche race car is a beast and will lap donuts around any ICE that's louder than is fast, it's common knowledge now and Rimac/Tesla sales aren't slowing down rather than even beating non-BEV BMW sales as a whole company. The days of kicking like whiny punts about "no gas needed" are done so relax, let us enjoy this nonsense race car for what it really is and just use that "apologies/disclaimer" word space to inform more about how it all works and what it does - otherwise feature yet another LS swap or creative rat rods with inline-16's packed in. Leave the apologies to "Lifted Brodozer dot com" and their 4 incel subscribers itching to shoot up some innocents because they can't deal with their small "membership".


Shots fired! Oh sorry they were just blanks, like whatever this thing identifies as tugs off when it can get its thing up :p


Too early for the fourth? Yeah haha, just to be clear this race car is no doubt much fun even to compete in, wish there was video to show it.

Peanutbutter Arbuckle

personally I don't think the complication required for a hybrid system isn't a good idea in a race car unless you have HEAPS of cash to dump into it (IE Formula 1, pro race teams like WSRacing, etc)

Really just choose one or the other. I'm shocked that these folks have had any success with it, shows they're professionals in the least.
Well done gentlemen, God bless.


Very nice article!


Interested didn't expect to see the 330e racing in BTCC but I think it's going to be a good one knowing how great of a performer the 3-series is


BMW would have been forced to run the 330e 'model' as the series limits cars to 2 litre, 4 cylinders. The 330e runs the B48 and hybrid, so its a perfect fit.
Any manufacturers that dont have an engine to suit the bill can purchase an off the shelf TOCA engine.
BTCC has always traditionally run success ballast to even the cars out, so they have done away with that and replaced it with the hybrid element, and limiting how many laps of usage you get depending on your last race result. It has seemed to work pretty well over the first two race weekends.

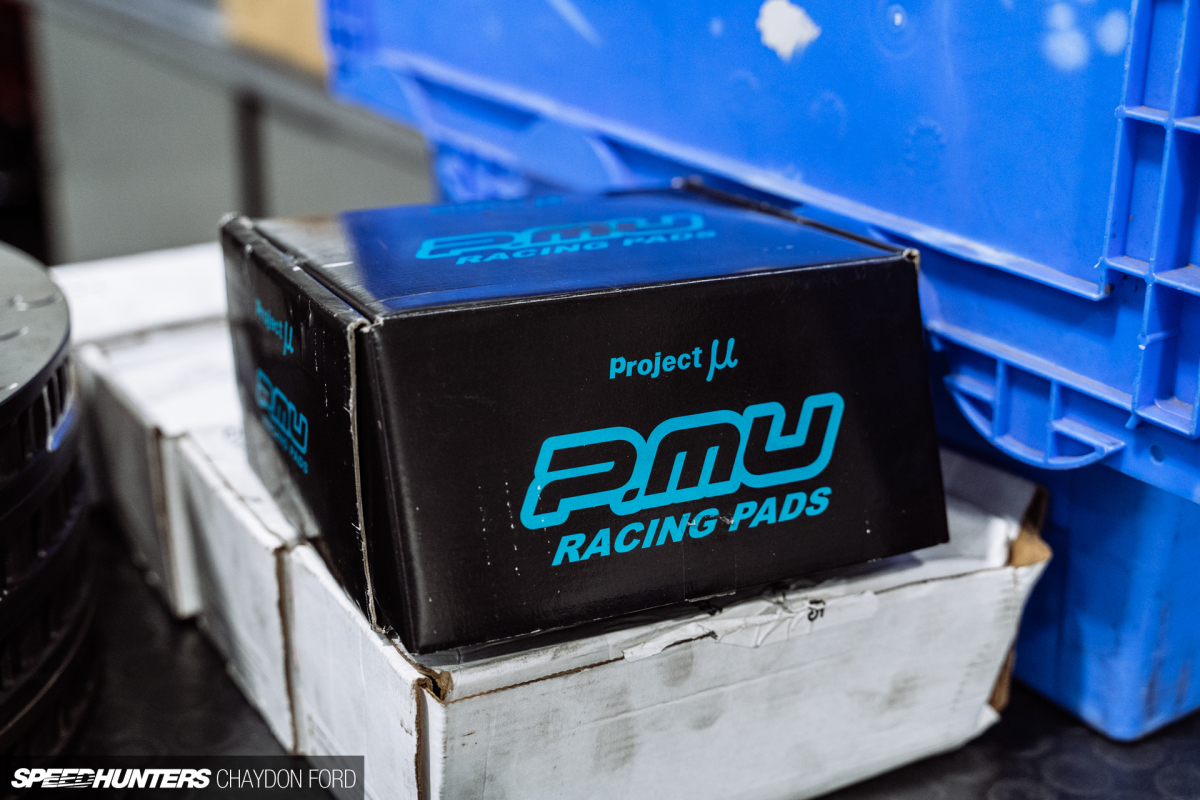

i'm surprised to see Project Mu racing brake pads in there. Don't typically see those outside of Japan
