A True Wild Card
An SR20DET Sedan

While most Datsun fanatics lust over the coupe version of the 510, Gilbert Susana of Team Wild Cards went the four-slammer route. And what he’s created is sure to be enjoyed by the Datto faithful everywhere.

The 510 sedan, to me, breaks the conventional wisdom that only a classic coupe can look good as a modified car. I mean, most sedans of this era were family cars designed to carry the kids around from point A to point B; they aren’t performance machines that push limits of traction and g-forces. But as Gilbert shows with his ’72, it might be time to start looking at four-door Japanese classics in a different light.

Louis_Yio_2017_Speedhunters_Wildcards_510_002

Gilbert’s owned this car since 2010, picking it up from the original owner in Las Vegas, Nevada. The paint, Honda’s Tangerine Orange Metallic is original from purchase as both he and the first owner have taken diligent care of it.

However, it’s not so original in the engine department…

Louis_Yio_2017_Speedhunters_Wildcards_510_010

First swapped with an SR20DET from an S13 Nissan Silvia, these days there’s a S14-generation SR fitted with a Honeywell Garrett GTX3071R in the engine bay. It was fully built up by Speed Alliance in San Diego and features Tomei forged pistons and a Cosworth MLS head gasket between the DP Racing ported and polished head with ARP studs. A pair of Tomei Poncams open the valves, while a Tomei oil pan keeps the oil controlled and near the pickup. For engine management, a MicroTech EFI LT-9c directs a set of Injector Dynamics ID1000 injectors mounted on an Ikeya Formula ITB manifold, while in the cooling department a Mishimoto intercooler chills the boost charge in front of a custom three-inch core Ron Davis radiator.

Louis_Yio_2017_Speedhunters_Wildcards_510_022

Techno Toy Tuning takes care of the front suspension with Tokico Illumina damper inserts within the coilover-modified 510 strut housings, mounted on a set of their camber plates. In the rear, a set of QA1 springs on custom-made adjustable collars with KYB AGX dampers. It works well as a corner-carver thanks to this setup despite being a front-heavy four-door, and the rear is only just cambered in for clearance.

But high speed cornering nothing without the ability to stop, so Gilbert fitted a set of Wilwood Ultralite 4-piston front and 2-piston rear calipers with custom sized and drilled Wilwood 2-piece rotors. The entire setup was originally sized to fit the 14-inch wheels it had, but those have since been replaced with a set of Work Wheels Equip 40 15-inch rims with lightly stretched Toyo Tire R888R tires sized 195/50R15 all around.

Louis_Yio_2017_Speedhunters_Wildcards_510_005
Louis_Yio_2017_Speedhunters_Wildcards_510_025

There hasn’t been much body work done to the sedan, but it isn’t totally factory stock, either. The front grille is a SSS item that Gilbert got from a friend in South Africa, and SSS taillights were added too. Lighting the way are LED headlights with high and low-beam function in the low-beam buckets. The high-beam buckets are replaced with velocity stack intakes with one going to the turbo intake and the other for further engine bay cooling. The hood is flanked by a pair of fender-mounted mirrors while being kept secure with a set of AeroCatch 120 series locking latches, and also up front is a carbon fiber duckbill lip.

Louis_Yio_2017_Speedhunters_Wildcards_510_031

The factory original interior features some custom touches including Recaro LS seats and a pair of Takata Racing harnesses installed on a Chasing Js copper-plated harness bar. A Nardi steering wheel completes the performance feel of the sedan.

A Kenwood head unit is housed in the original 510 dashboard, but a MicroTech EFI LTC dash display (mounted where the tachometer used to be), Innovate boost controller/AFR gauge, and Auto Meter fuel gauge all relay the vitals to Gilbert as he’s driving.

Louis_Yio_2017_Speedhunters_Wildcards_510_004

Classic four-door cars don’t usually get the love they deserve by the performance public, and I put that down to them not being able to shake the family carrier mentality like their wagon counterparts have. However, as coupe and wagons become harder to find, the sedans are starting to see a rise in popularity. Gilbert’s 510 sedan has gone a different route, but what’s been created is something every Datsun enthusiast can enjoy.

Words by Justin Banner
Instagram: jb27tt
Facebook: racerbanner
Twitter: RacerBanner

Rolling Photos by Larry Chen
Instagram: larry_chen_foto
larry@speedhunters.com

Static Photos by Louis Yio
louis@speedhunters.com
Instagram: lusciousy

Cutting Room Floor
Louis_Yio_2017_Speedhunters_Wildcards_510_003
Louis_Yio_2017_Speedhunters_Wildcards_510_008
Louis_Yio_2017_Speedhunters_Wildcards_510_009

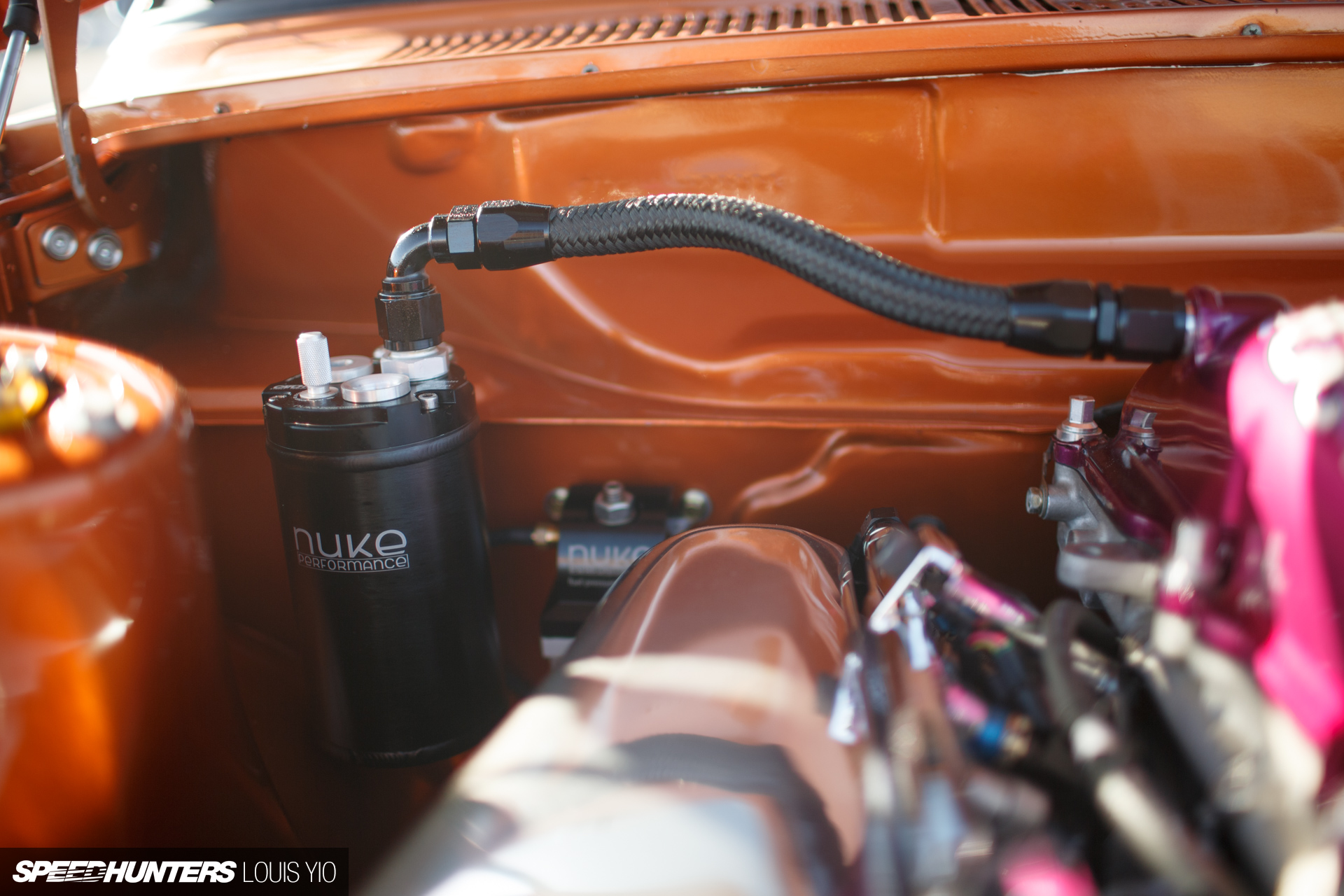

Louis_Yio_2017_Speedhunters_Wildcards_510_013
Louis_Yio_2017_Speedhunters_Wildcards_510_014
Louis_Yio_2017_Speedhunters_Wildcards_510_016
Louis_Yio_2017_Speedhunters_Wildcards_510_017
Louis_Yio_2017_Speedhunters_Wildcards_510_018
Louis_Yio_2017_Speedhunters_Wildcards_510_019
Louis_Yio_2017_Speedhunters_Wildcards_510_023
Louis_Yio_2017_Speedhunters_Wildcards_510_024

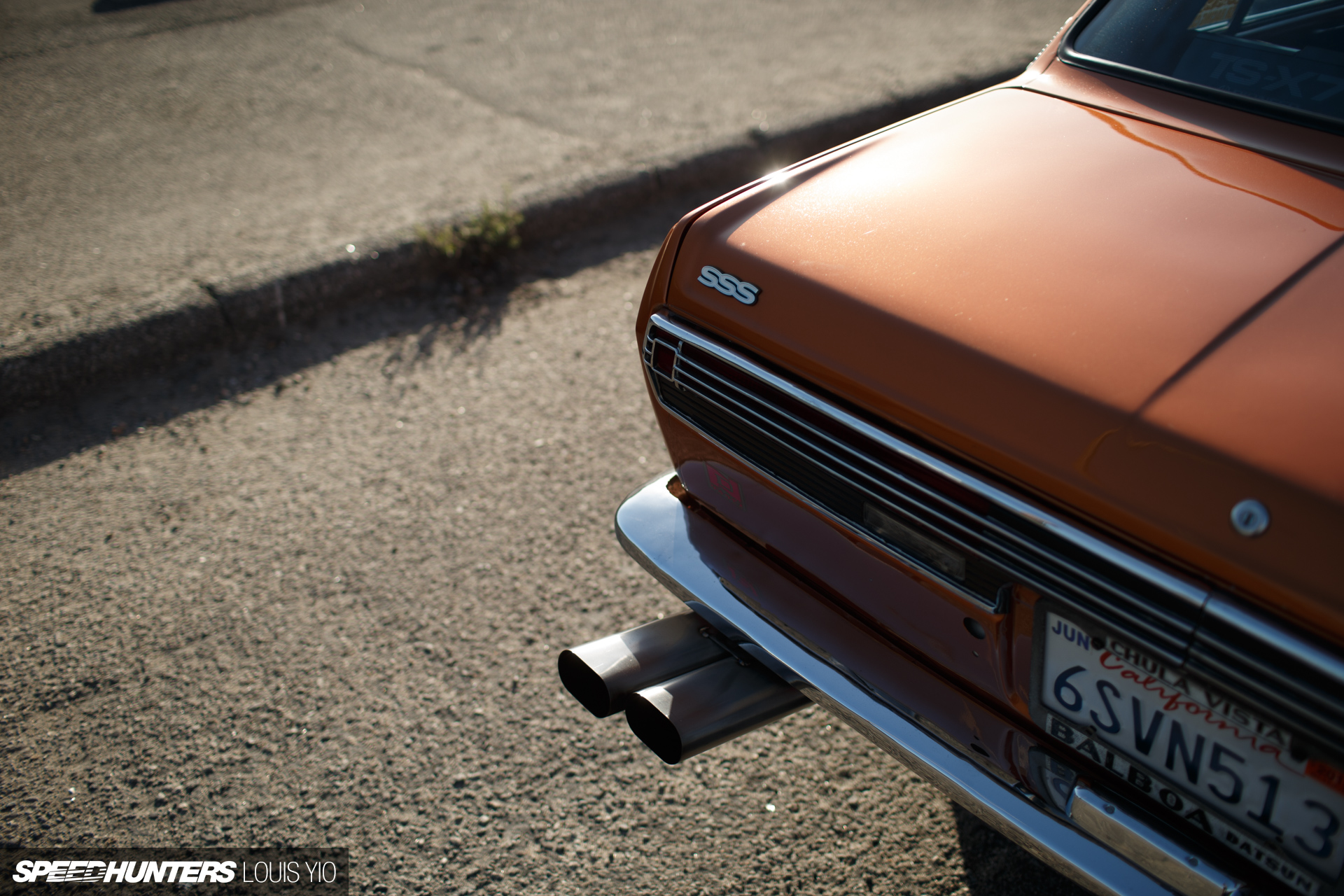

Louis_Yio_2017_Speedhunters_Wildcards_510_026
Louis_Yio_2017_Speedhunters_Wildcards_510_027
Louis_Yio_2017_Speedhunters_Wildcards_510_028
Louis_Yio_2017_Speedhunters_Wildcards_510_029
Louis_Yio_2017_Speedhunters_Wildcards_510_030
Louis_Yio_2017_Speedhunters_Wildcards_510_035
Louis_Yio_2017_Speedhunters_Wildcards_510_036
Louis_Yio_2017_Speedhunters_Wildcards_510_037
Louis_Yio_2017_Speedhunters_Wildcards_510_038
Louis_Yio_2017_Speedhunters_Wildcards_510_039
Louis_Yio_2017_Speedhunters_Wildcards_510_040
Louis_Yio_2017_Speedhunters_Wildcards_510_041
ADVERTISEMENT

Comments

Add comment

E-mail is already registered on the site. Please use the Login form or enter another.

You entered an incorrect username or password

Sorry, you must be logged in to post a comment.

18 comments

by Oldest
by Best by Newest by Oldest
1

I'd argue that classic 4dr sedans and wagons have a special place in the performance car world. The MADCAB article is just another excellent example.

2

I love the four-door version of the 510, and have always had a thing for modified versions of four-door cars.. There's just something so cool about them, that I can't quite put my finger on..

3

Rocking Okinawa plates. Much respect

4

Nice to see it not using air ride, though I still have to wonder how, with the height he has it set at, he doesn't have tire clearance issues.

5

This isn't that low for a 510. I'd wager this is probably around the mid range of where heavily modified dimes sit. Wagons and 4-doors have more clearance issues than the 2-door and coupe varieties -- though I suspect the owner has either shaved the inner wall of the rear door frame corner (sitting right above the rear wheel in the well) or just lives with a little rub now and then there.

6

Nothing wrong with lightly stretching your rubbers.

7

You know what this car needs? An auto lifting front lip ;)

8

McLovin!

9

I remember my mom had a station wagon version of the 510, back in the early 70s. My memory is filled with stitched interiors falling apart, burning oil smells, ill-fitting doors and a transmission that refused to go into reverse. It's amazing to me that there are still 510s roaming the streets, and people dedicated enough to keeping them operational. Great article!

10

I have a 510 wagon now. Can confirm, reverse locks itself out and the headliner is peeling off. Goes like stink on a twisty road and looks good doing it, though ;).

11

Why are all these guys chubby? Lol

12

Filled with love, duh

13

All the money he spent on that 510 he could have bought a Raptor

14

I don't know what an SR20 and a 30-gallon Ron Davis radiator weigh, but these aren't front-heavy cars. I'd bet that the 4-doors have slightly better weight balance than the 2-doors, too. Running camber like this on the back will make corner entry a real thrill, in a bad way; better to buy some wheels that fit. Folks with un-slotted rear x-members on lowered cars will understand.

15

You shed something like 50 pounds from the front of these cars when you go to an SR20, especially when you add in the aluminum radiator compared to the original brass units. The aluminum SR is significantly lighter than the cast iron 1.6 that they came with originally.

16

Respect!
A very high Quality-build!
With Nissan GT-R Frontgrill???
KGPC?

17

That's a "Supersonic" grill. They were factory options for the Bluebirds (510s) sold in Japan.

18

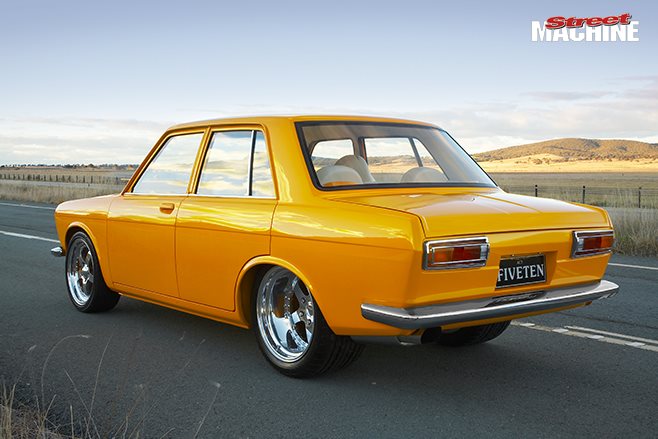

I've loved the 4dr variant since i saw "fiveten" back in the old fast fours and rotaries magazine.
personally think they look better than the coupe.
