The HKS Tsukuba Record Breaker In Action

It’s crazy to think about how far time attack racing has come over the last decade and a bit.

Living in Japan, I’ve been fortunate enough to watch it explode in popularity and grow – from my first few outings at Tsukuba when breaking the 1-minute barrier was a massive deal and where the fastest cars were running in the 57-second zone. Today we have two top-tier contenders: Under Suzuki with the current Tsukuba Circuit lap record of 50.366, and the car you see here – a no-budget-spared, latest-tech ZN6 Toyota 86 from HKS – the Tsukuba Record Breaker 03 (TRB-03).

Nobuteru ‘Nob’ Taniguchi actually achieved a 50.259 lap with the ’86 back in December, which actually makes it the fastest time attack car around Tsukuba, but that record time was achieved on slick rubber, as opposed to Suzuki’s time which was set on semis.

hks_premium_day_18_dino_dalle_carbonare_90

The ’86 was unveiled last year as the GTS800, the ‘800’ hinting at the power rating the team was aiming to extract from the highly tuned and stroked 2.5-litre 4U-GSE (FA20) engine. HKS set themselves this parameter, or restriction rather, to really push the limits of the aluminium four-cylinder boxer, rather than taking the easier road with an engine swap.

Andrew Brilliant of AMB Aero was called in to pen a full exterior and under-body aero package, and since then HKS has been hard at work developing and fine tuning the entire car in a effort to realise its Tsukuba record-breaking goal. In a way that has been achieved, but despite shaving just a fraction off Under Suzuki’s record, the ’86 ran 20km/h slower down the back straight than the S15, hinting at the benefits of the slick tires. But maybe the engine hasn’t been fully dialled in for the power level the aero was designed for…

hks_premium_day_18_dino_dalle_carbonare_91

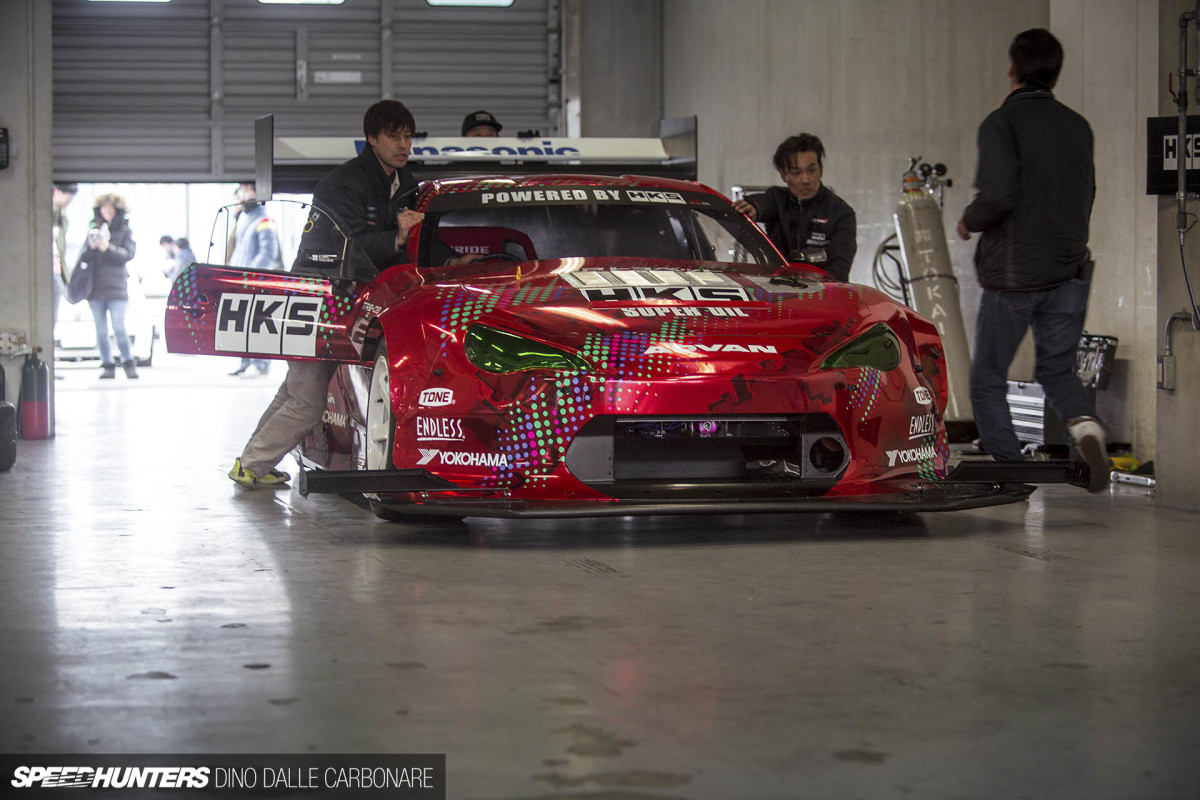

Since seeing the car at the Tokyo Auto Salon a few weeks back where it was shown for the first time with its new HKS-themed livery, some changes have been made to the front, which proved somewhat controversial.

The front spoiler and the much talked about ‘Infinity Wings’ that AMB developed were removed and replaced with what you see here. As soon as images of the re-worked front end surfaced online there was instant criticism, with many commentators saying that the wings were removed because they didn’t work. According to HKS, however, the change to the front end was made in order to cut down on drag for the car’s demo lap at Fuji Speedway, which is a much faster circuit than Tsukuba, and one where a car as fast as this one requires a whole different aero package and setup with significantly less downforce for the longer straights. I guess we’ll find out for sure when the TRB-03 hits Tsukuba next.

hks_premium_day_18_dino_dalle_carbonare_92

Once Taniguchi was done shredding Yokohamas in the HKS drift ’86, it was time to jump into the time attack machine and parade it around the track. Finally, after a year, everyone could see and hear it in action.

hks_premium_day_18_dino_dalle_carbonare_93

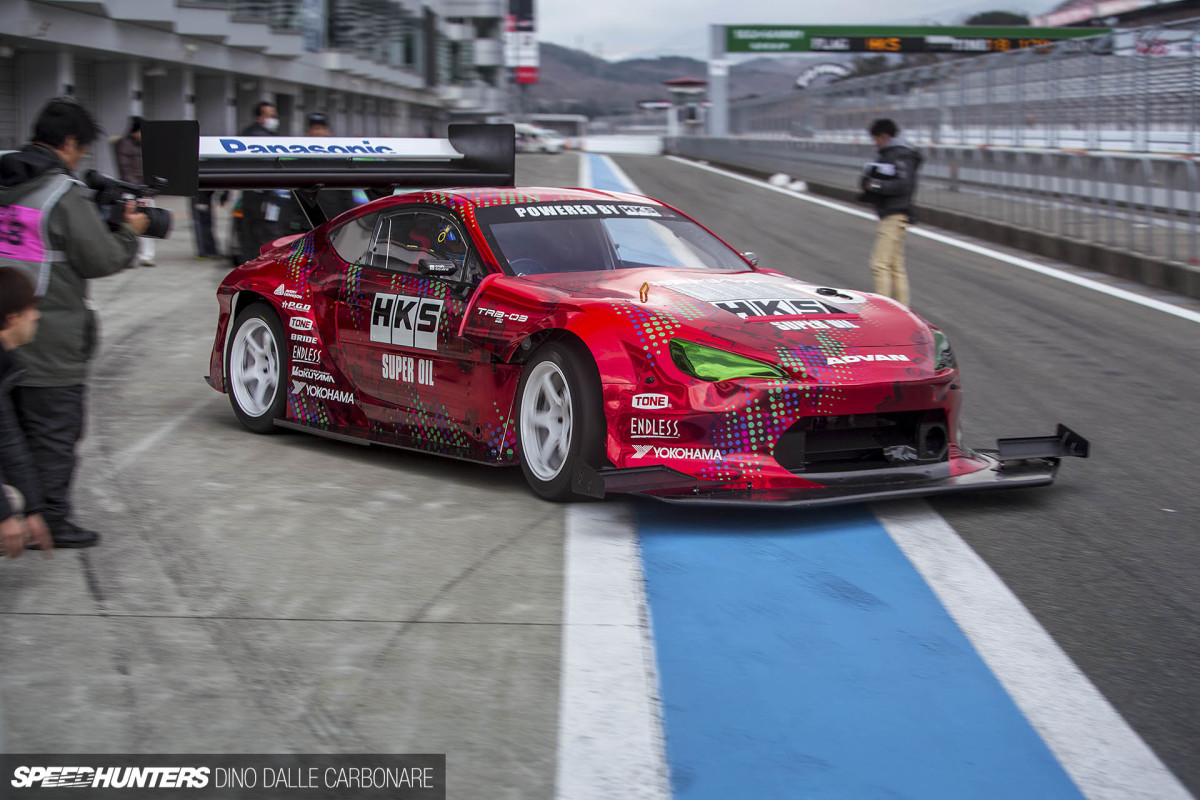

After a few minutes of idling to get the engine warmed up, Taniguchi accelerated out of the pits.

hks_premium_day_18_dino_dalle_carbonare_94

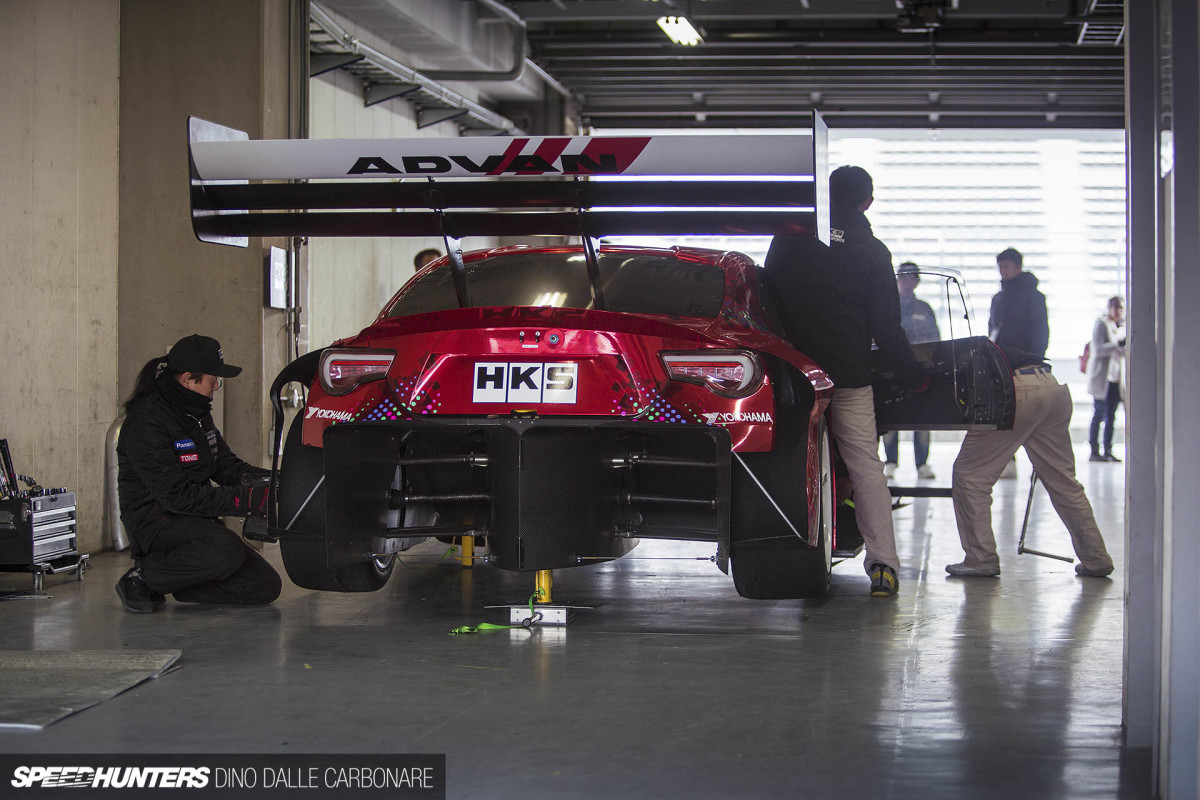

From the rear the car looks as purposeful as can be, everything being carefully designed and laid out in order to be as functional as possible. Just look at those tunnels and the massive wing.

hks_premium_day_18_dino_dalle_carbonare_95

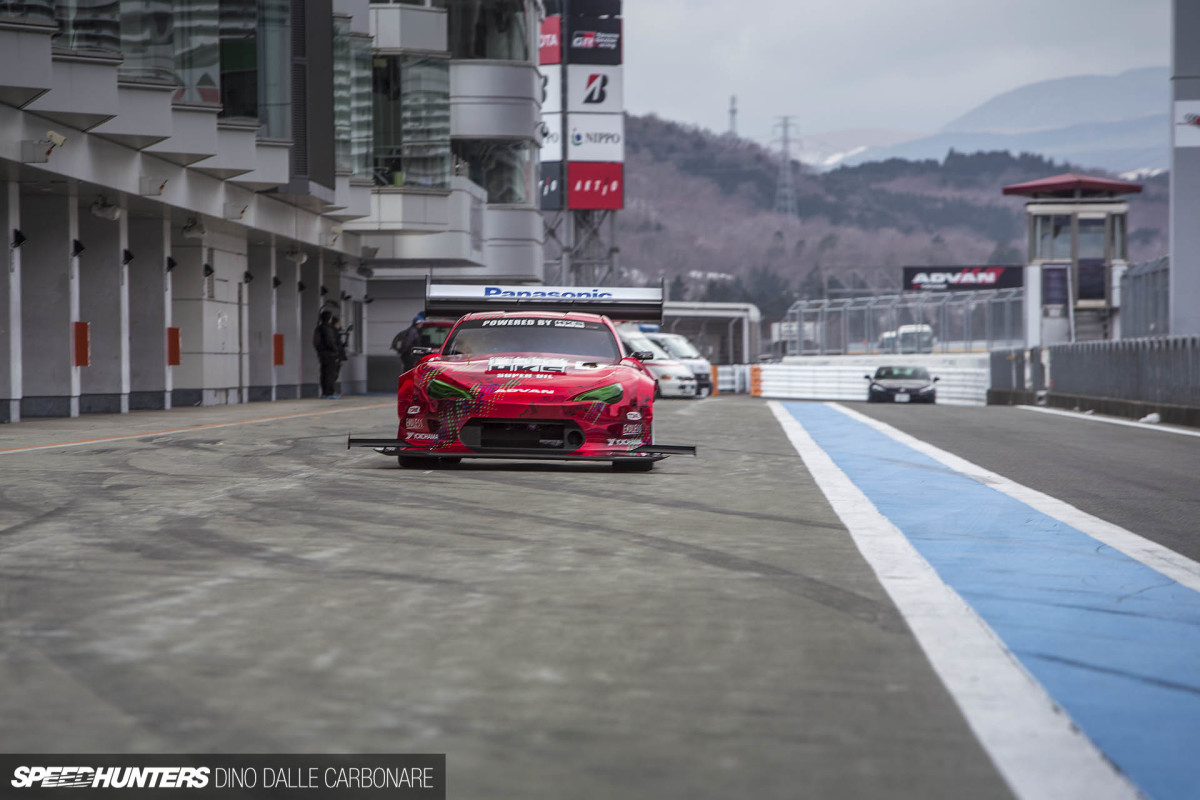

The car was only out for one fast lap, but seeing as there was no access to the pit wall I didn’t get a shot of it running down the straight. What I noticed, however, was the visible rake the car seemed to have at full speed; it was obvious that downforce had been reduced at the front with the new treatment, while the rear was probably still running a setting for Tsukuba.

hks_premium_day_18_dino_dalle_carbonare_97

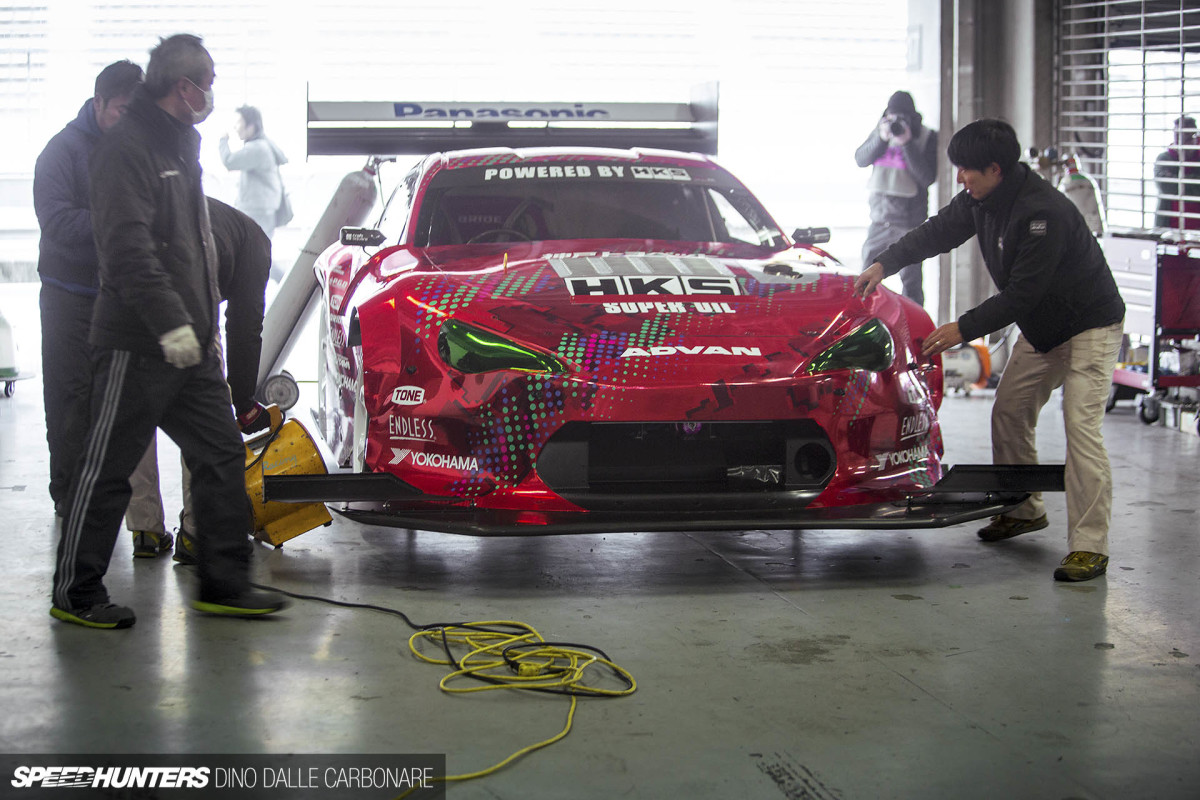

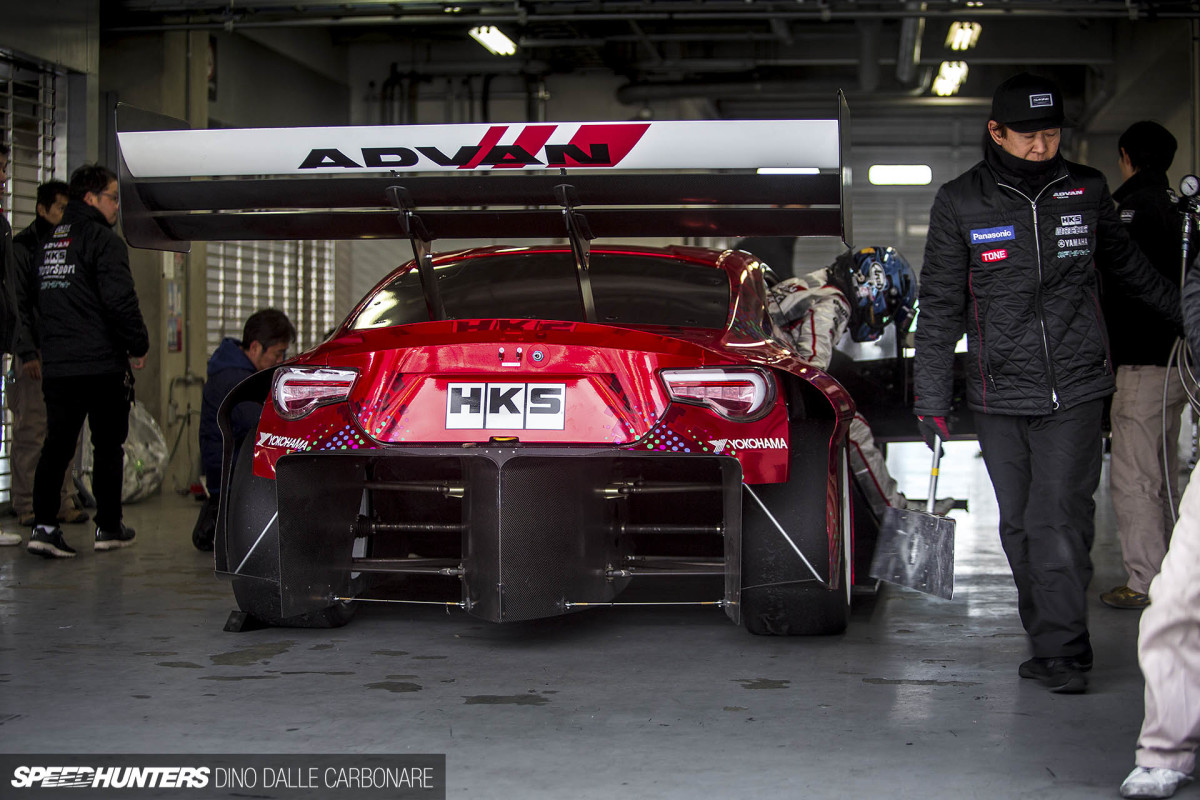

With the lap done and people satisfied in have finally seen the ’86 run in anger, the TRB-03 was taken back to the pit and checked over.

hks_premium_day_18_dino_dalle_carbonare_99

Another difference I noticed was the modifications made to the hood.

hks_premium_day_18_dino_dalle_carbonare_98

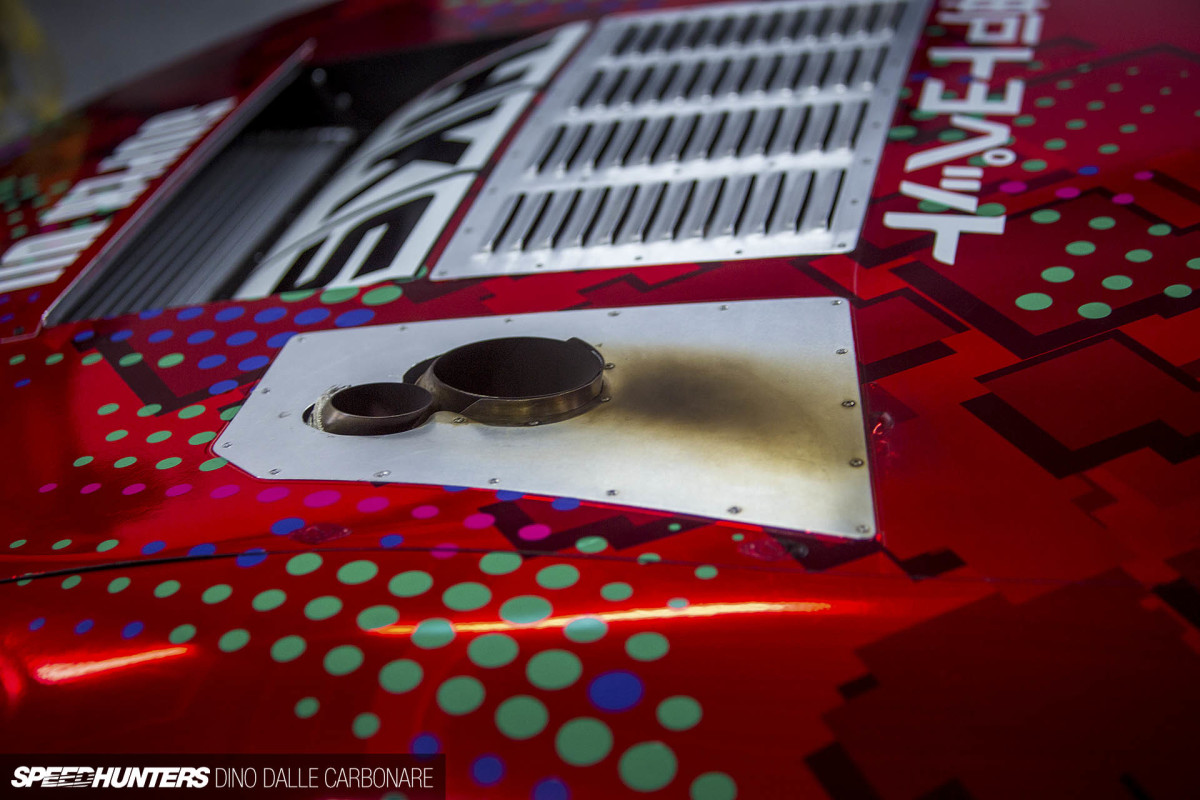

There’s now a second opening behind the venting for the intercooler, which is easily identifiable as it’s a louvered aluminium sheet riveted to the carbon. Next to it, a new outlet for the exhaust to pop out from.

hks_premium_day_18_dino_dalle_carbonare_100

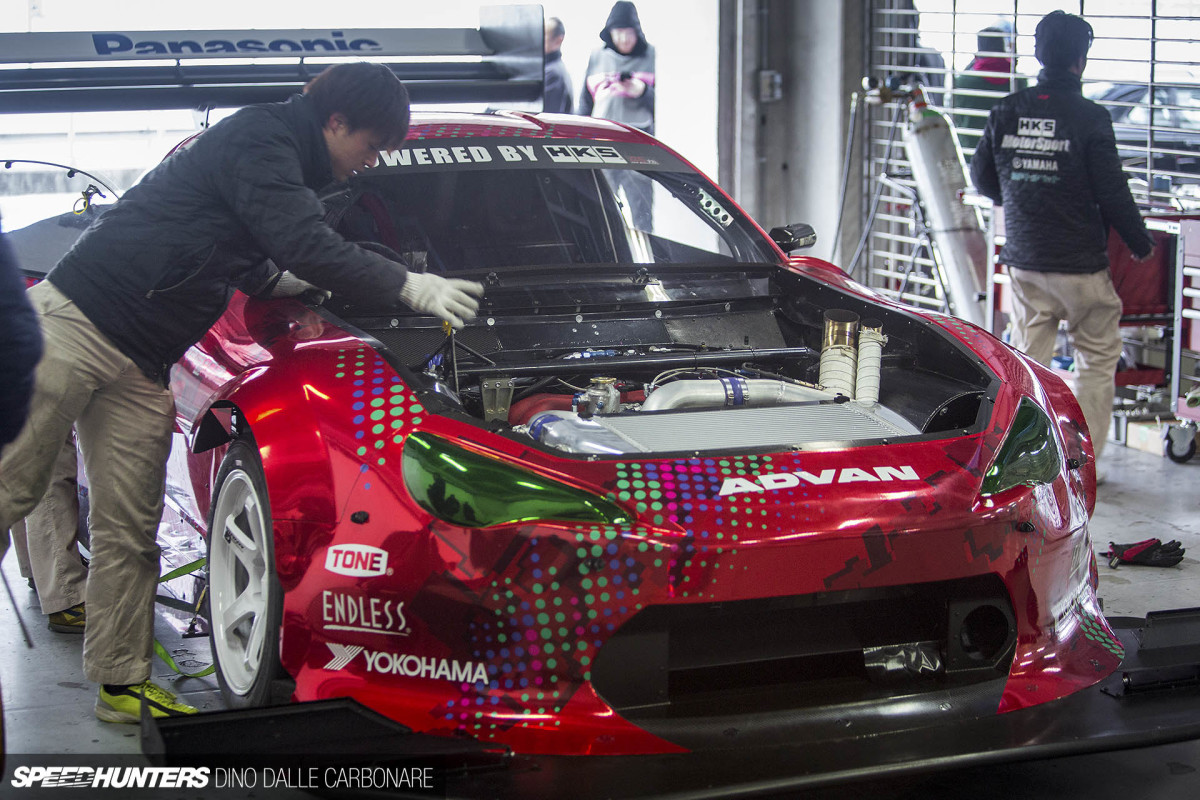

We weren’t allowed to get too close to the car in the pits, but from this image I can make an educated guess that the engine is no longer running a supercharger, but a turbocharger with an external wastegate. The intake plenum also looks like a different piece to what we saw last year, so there’s definitely been some changes made to get the 2.5-litre flat-four to hit that 800PS and 90kg/m (651lbs/ft) of torque goal.

The TRB-03 is scheduled to go out once more at Tsukuba in February, no doubt chasing down that 49-second lap. Can HKS do it? Will the Infinity Wings be back on it? We’ll just have to wait and see…

Dino Dalle Carbonare
Instagram: speedhunters_dino
