Turbo Spirit: The IMSA GTO Mustang

Lately there’s been a lot of talk about the new Ford Mustang being offered with a turbocharged four-cylinder engine, and with my own Project EcoBoost I’ve been able to experience this new kind of Mustang first-hand. But anyone with a passing knowledge of the Mustang knows this isn’t the first time America’s original pony car has been made available with turbo-boosted four-pot power from factory.

In the mid 1980s, Ford famously offered a version of the Mustang called the SVO, which featured a turbocharged 2.3-liter motor. Along with a host of other performance upgrades, the Mustang SVO had a unique personality when compared to its V8 counterparts.

Monterey-Spotlight-35 copy

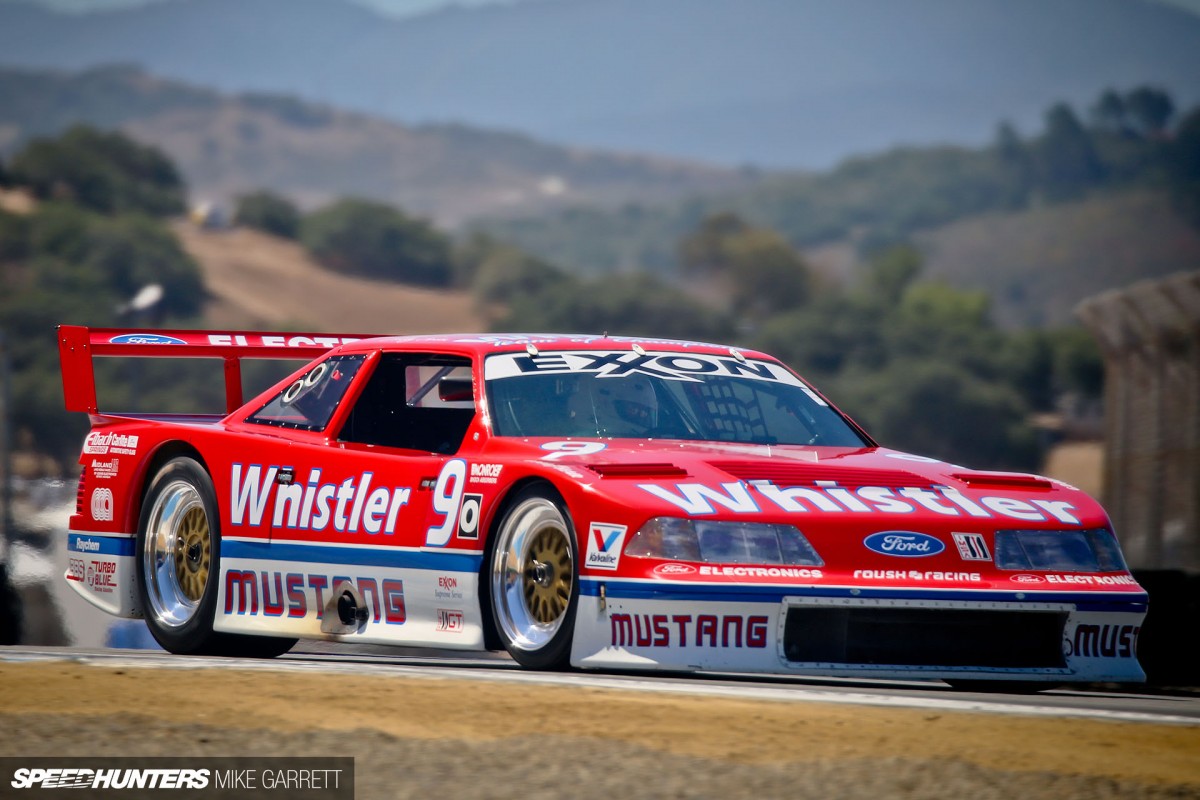

And the application of turbo four-cylinder engines in Mustangs would also expand to the race track. During our recent visit to the Rolex Motorsport Reunion at Laguna Seca I came across what’s certainly one of the most unusual Mustang race cars ever built: the 1991 Roush Racing IMSA GTO.

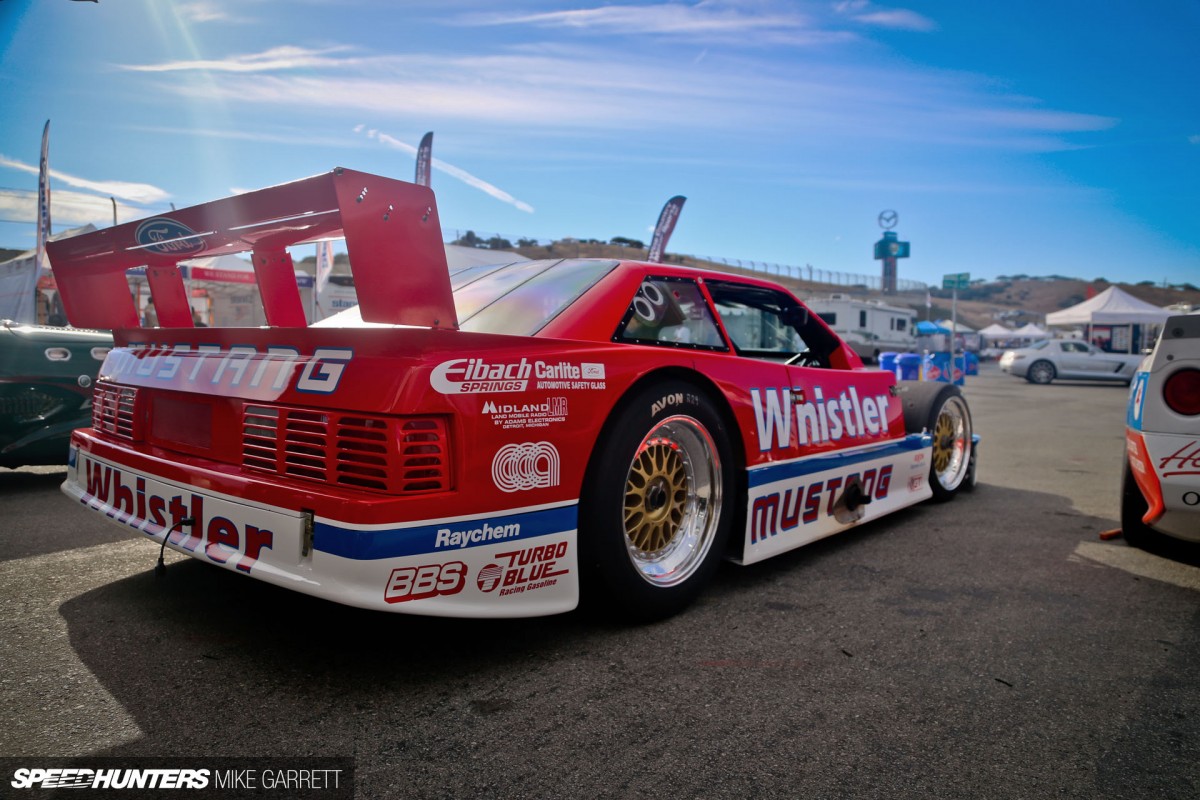

Monterey-Spotlight-22 copy

Like the cars it competed against in the GTO class, this Mustang doesn’t bear a ton of resemblance to the production version – but that doesn’t make it any less exciting. To me, this thing just exudes early-1990s race car attitude.

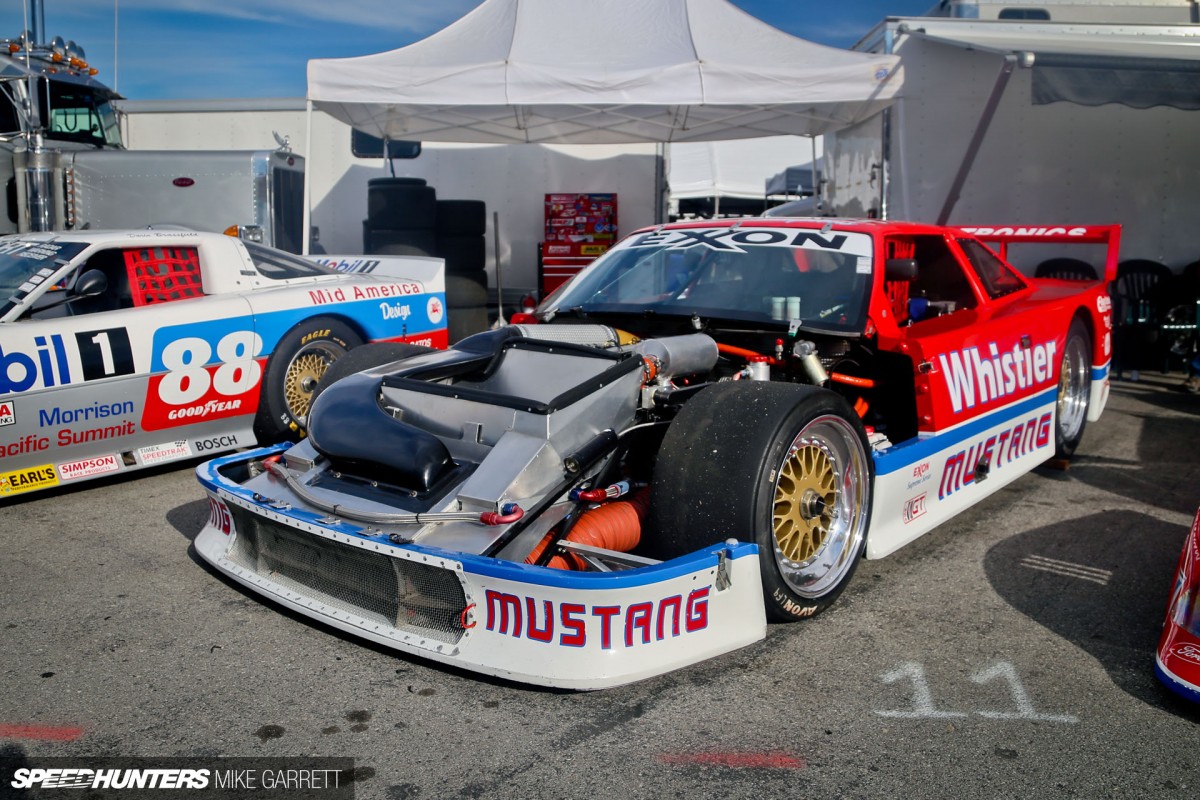

Monterey-Spotlight-18 copy

The bodywork is loosely based on the Fox Body Mustang of the era, but beneath the skin sits a CAD-designed tube-frame chassis built by Roush Racing with the help of Ford’s Special Vehicle Operations outfit.

Monterey-Spotlight-19 copy

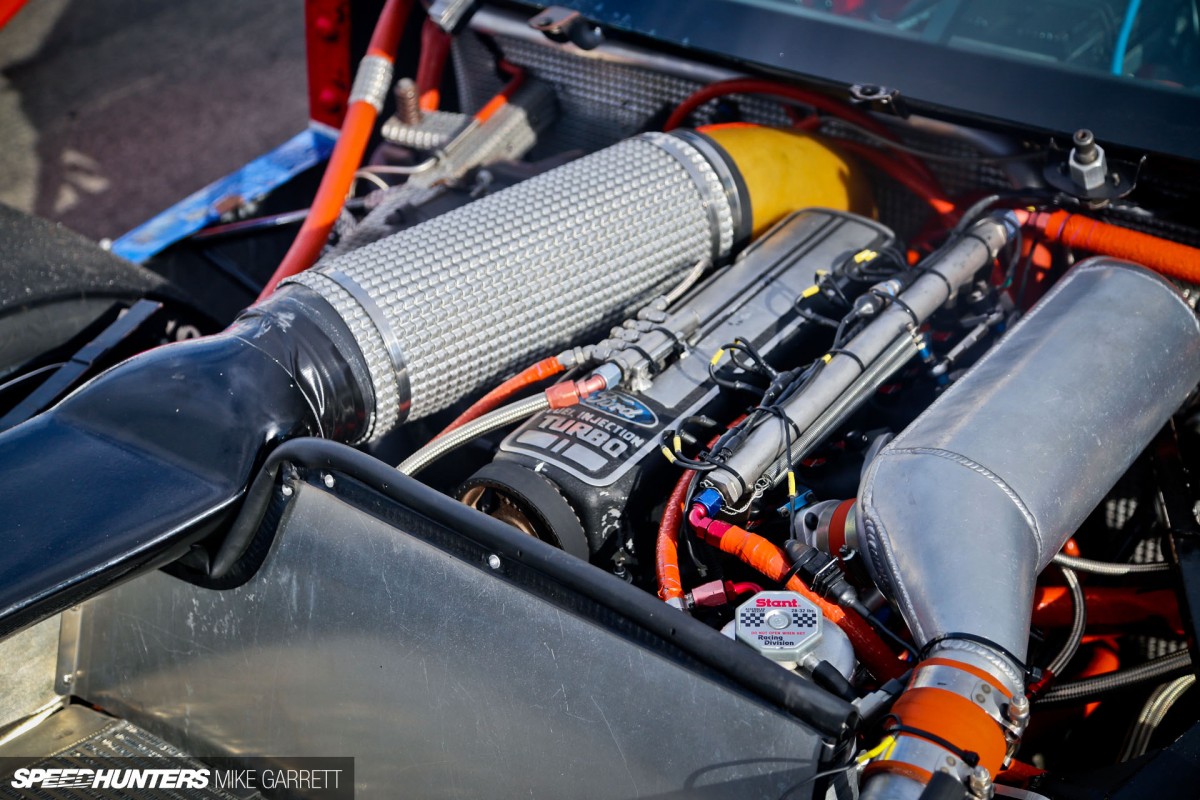

At first glance you’d expect the Mustang to be powered by a variant of Ford’s small block V8, but that’s not the case here. Powering the IMSA GTO Mustang is a 2.5-liter SOHC four-cylinder engine that shares its roots with the SVO Mustang and the Ford Pinto before it. This one’s got a dry sump, a Roush/Kinsler fuel injection system and a Garrett TO4 turbocharger, and it’s good for up to 950 horsepower and 750 pound feet of torque.

Monterey-Spotlight-20 copy

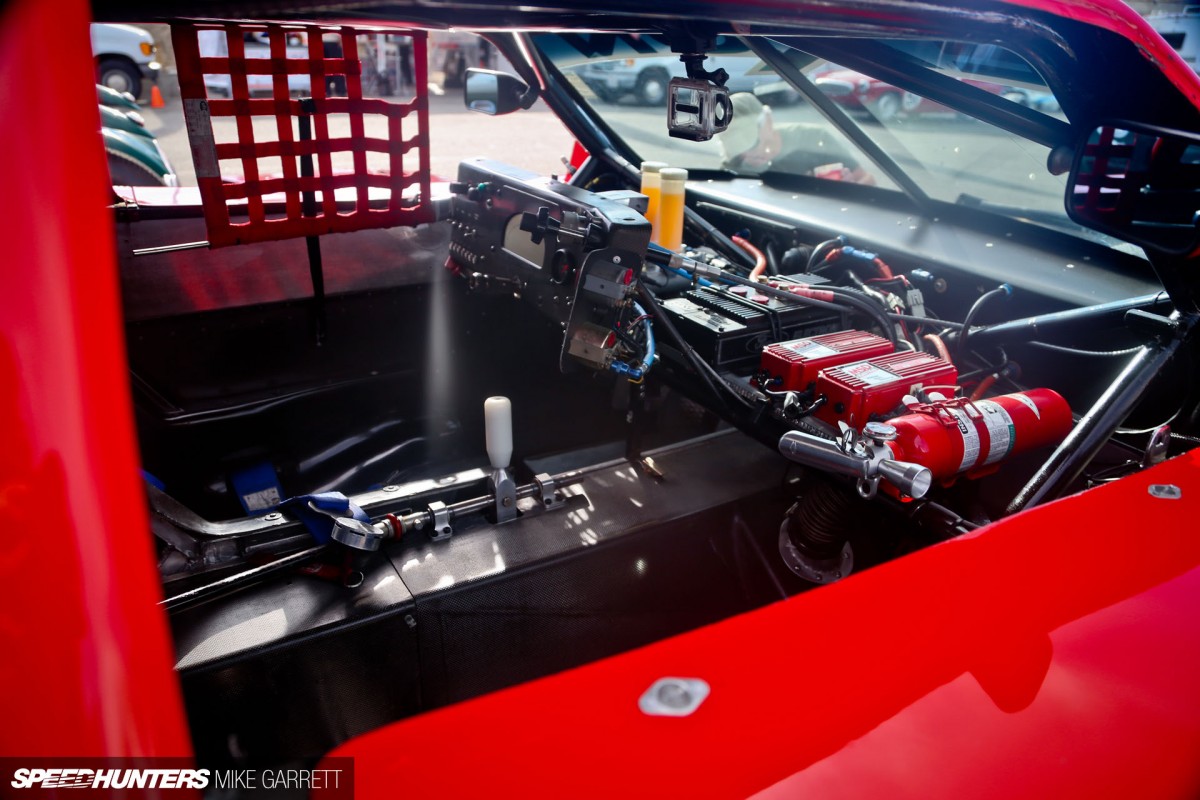

IMSA GTO cars sit somewhere in between traditional GT cars and full-on prototypes, and this becomes quite evident when you peek inside the Mustang’s cockpit. There in the center you can see the shift lever for the the Hewland VGC 5-speed transaxle.

Monterey-Spotlight-24 copy

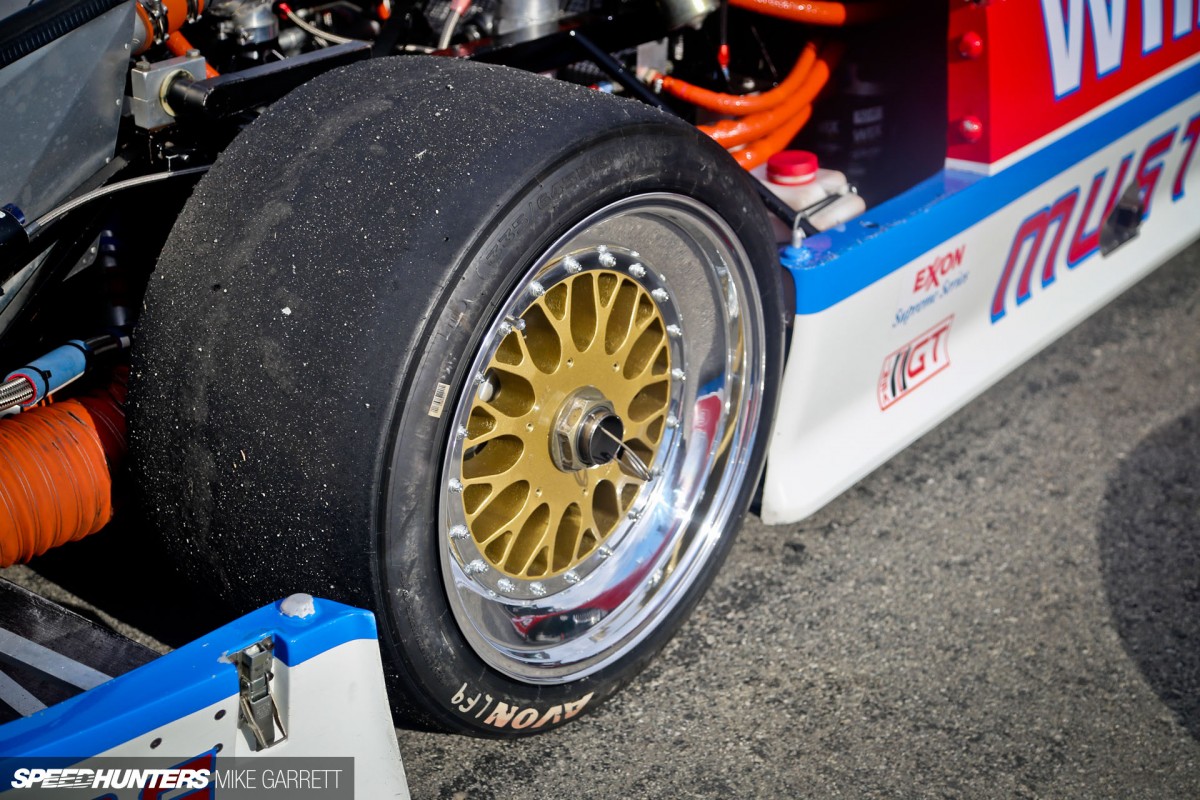

And let’s not forget the center-locking mesh race wheels with massive Avon slicks at each corner.

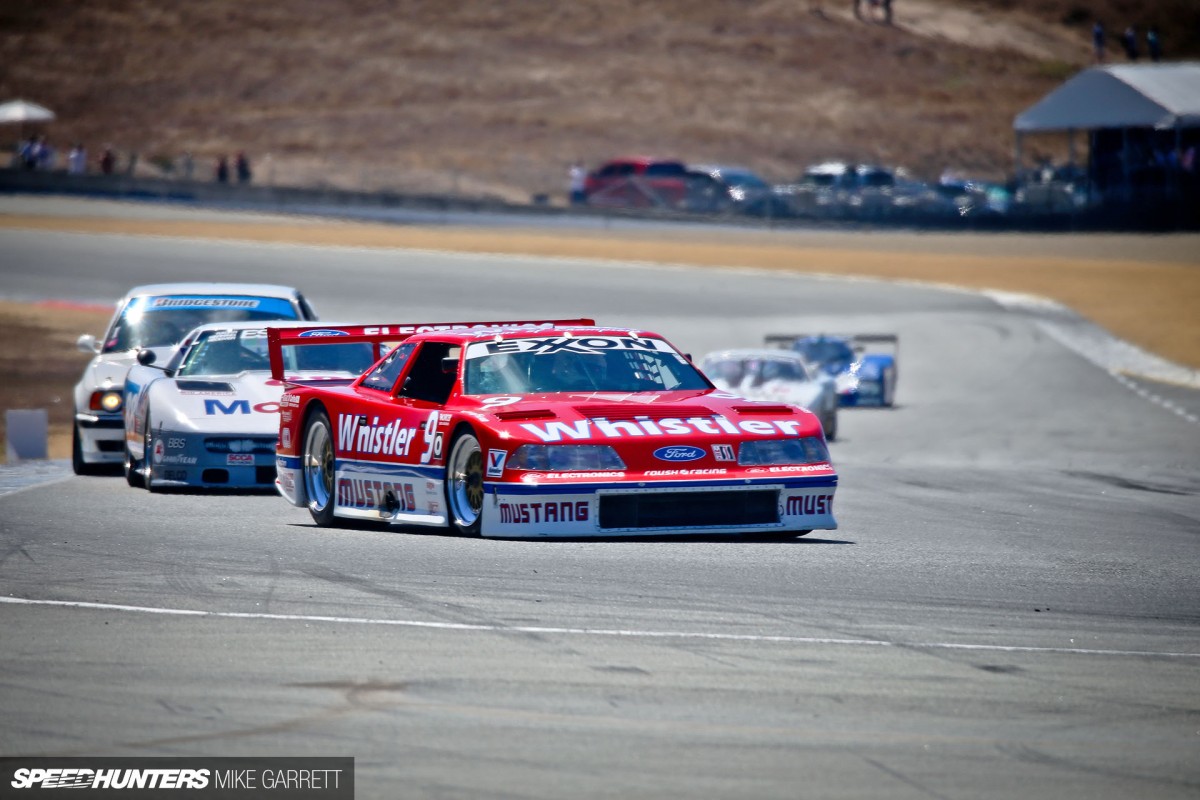

Monterey-Spotlight-33 copy

Piloting this machine in the IMSA GTO series was none other than NASCAR and off-road racing veteran Robby Gordon. In 1991 he drove the car to a second place in the Driver’s Championship.

In this video clip you can see Robby along with the rest of his IMSA GTO competitors in the ’91 season finale held on a makeshift course at the Del Mar Fairgrounds near San Diego. There’s some great racing here.

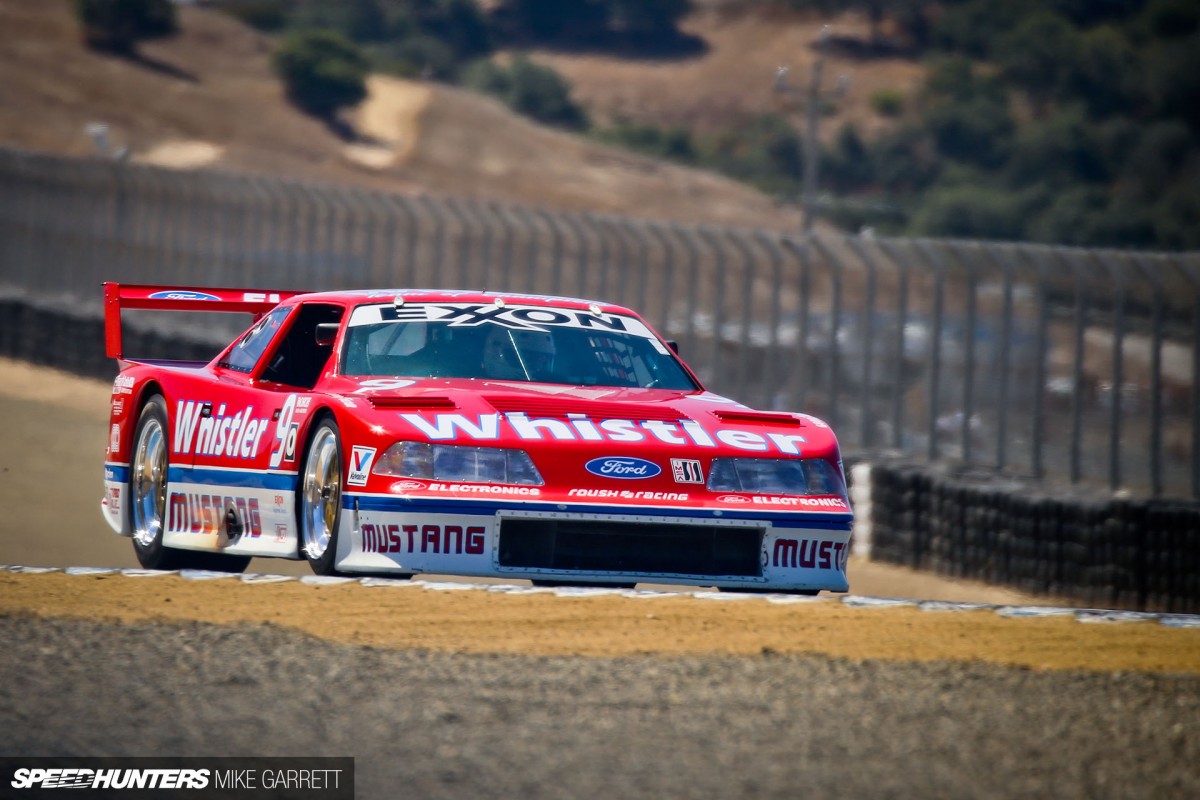

Monterey-Spotlight-36 copy

The early 1990s were an extremely interesting time for American sportscar racing, and vehicles like this Mustang are a big reason why.

Stay tuned for my next spotlight from Monterey in which we’ll take a look at another IMSA GTO competitor from 1991 campaigned by a little Japanese manufacturer from Hiroshima…
