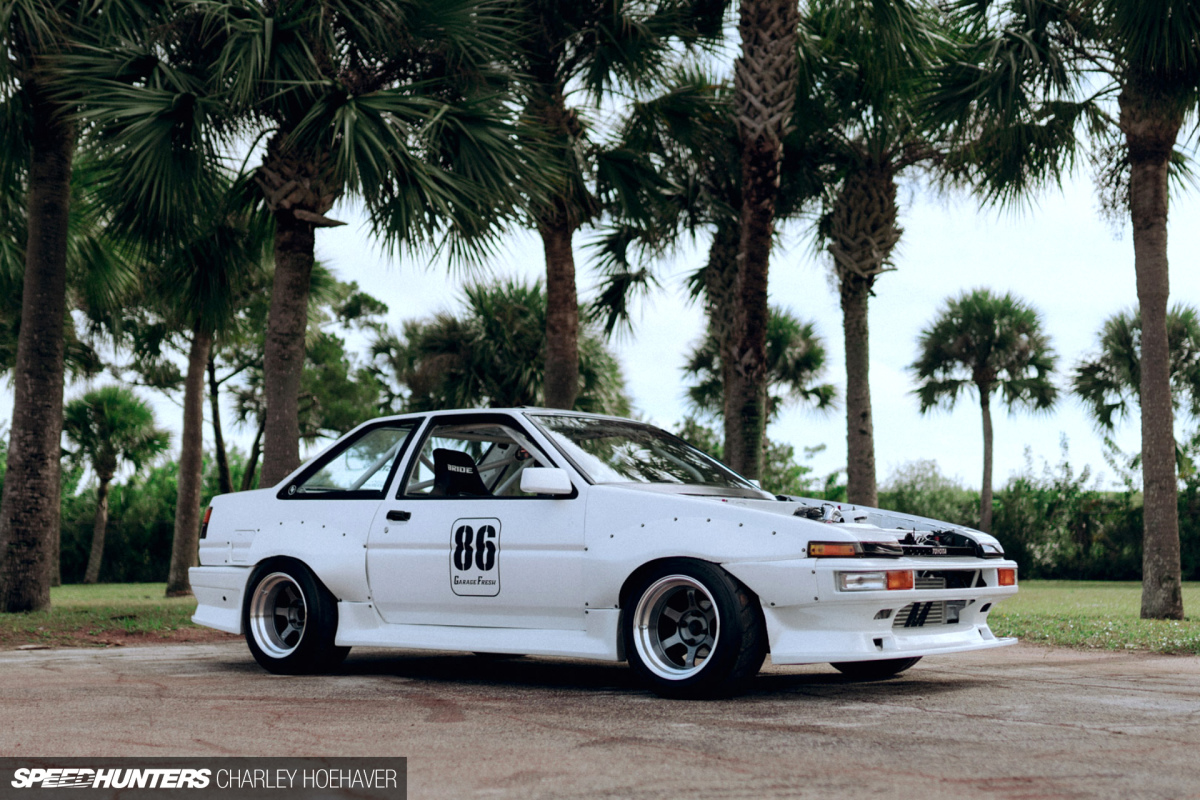

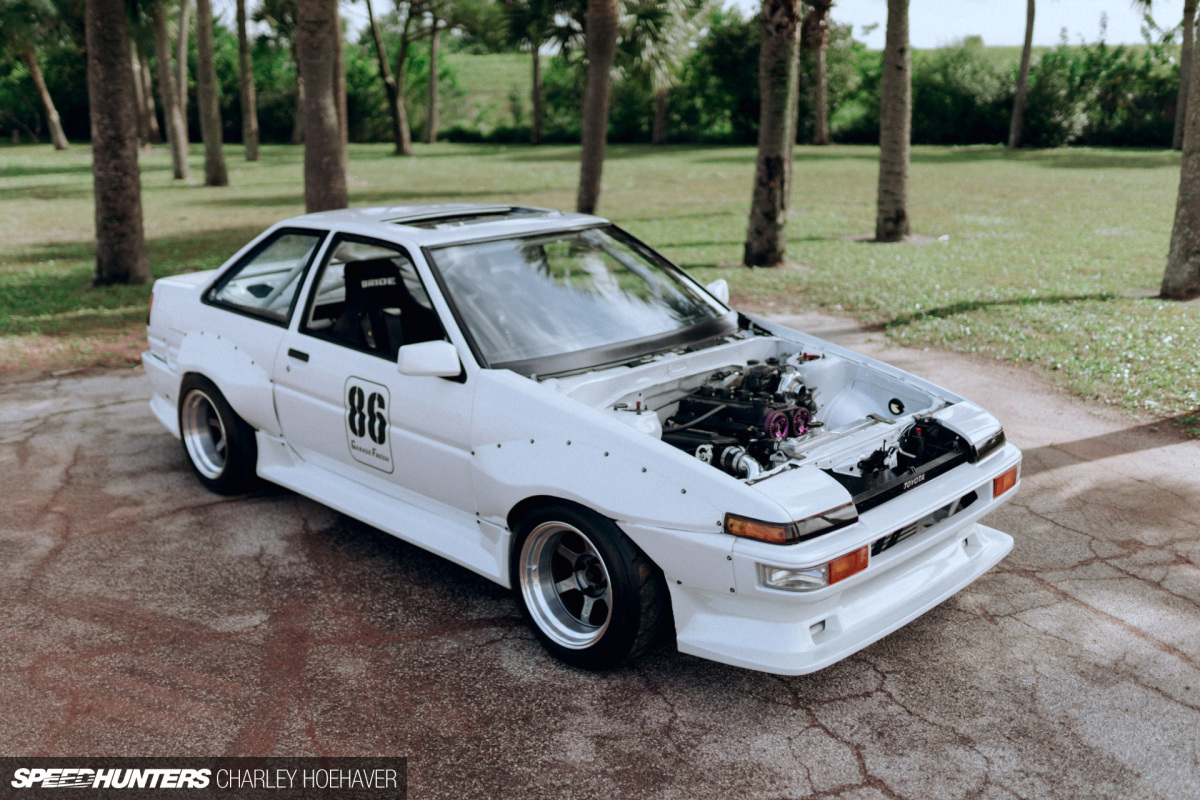

There I stood in front of yet another AE86, but this one was different.
Unlike the cars on either side of, its parking lot companions were 20-plus years newer with far larger wheels and more rounded bodywork. This disparity in appearance, style and size made an already attention-grabbing 86 even more of a standout.
Having been under David’s ownership for a decade, the Corolla GT-S couldn’t be further removed from its primer paint job, cheap-wheel-sporting past. Owning a car for that amount of time allows one to put in a serious amount of work, but it wasn’t until 2016 that David began building his Toyota toward its current state.
Even with the well established aftermarket this 30-year-old RWD platform enjoys, a custom touch is sometimes necessary.

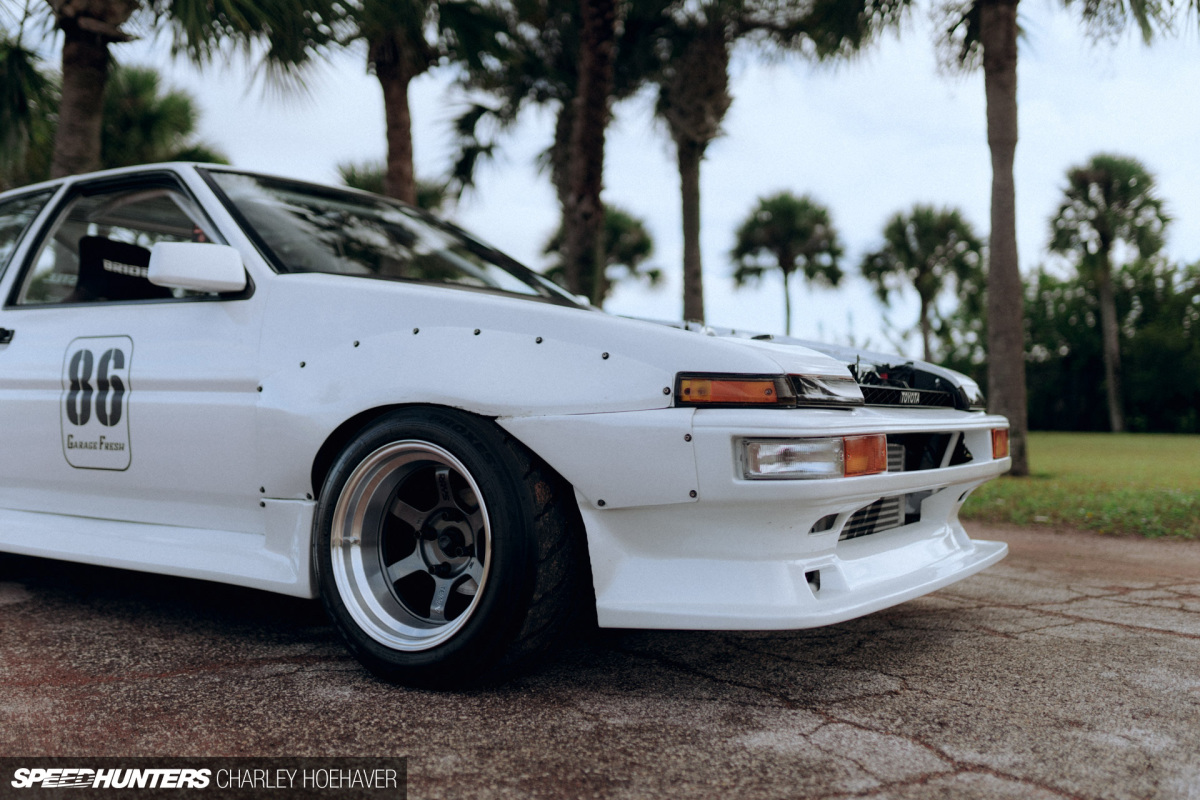

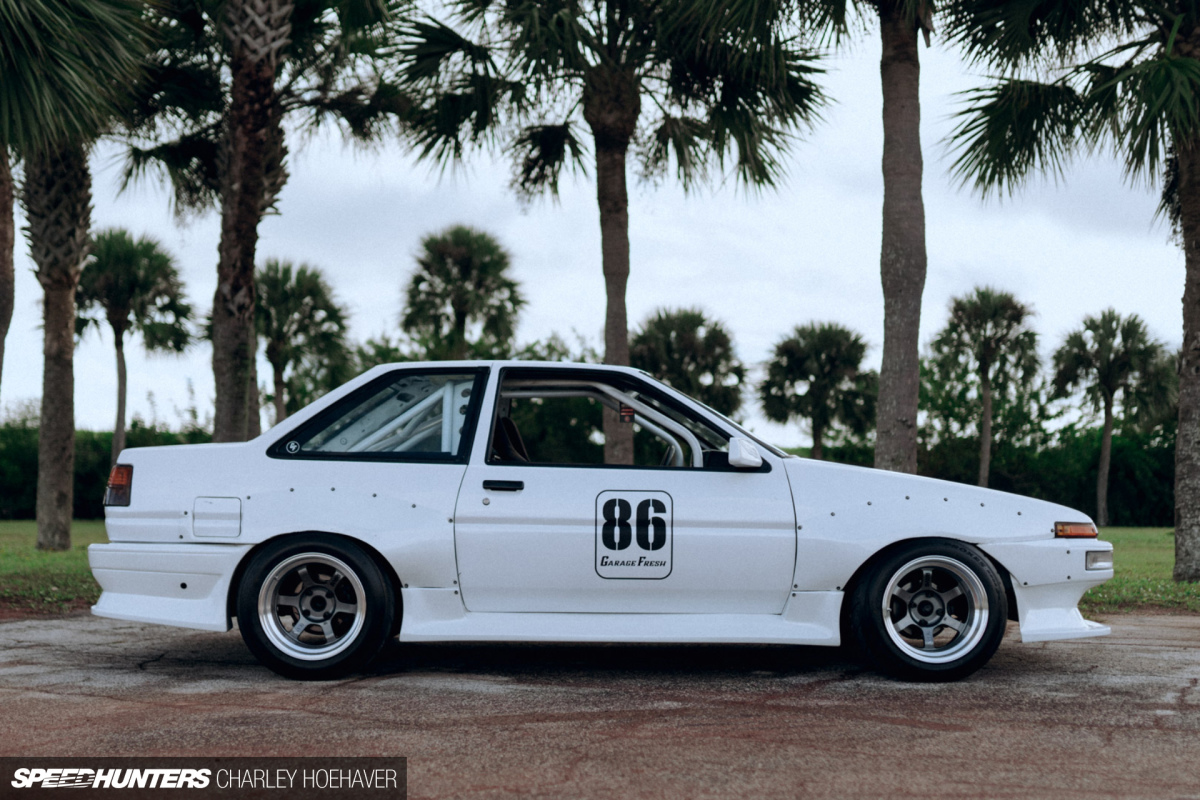

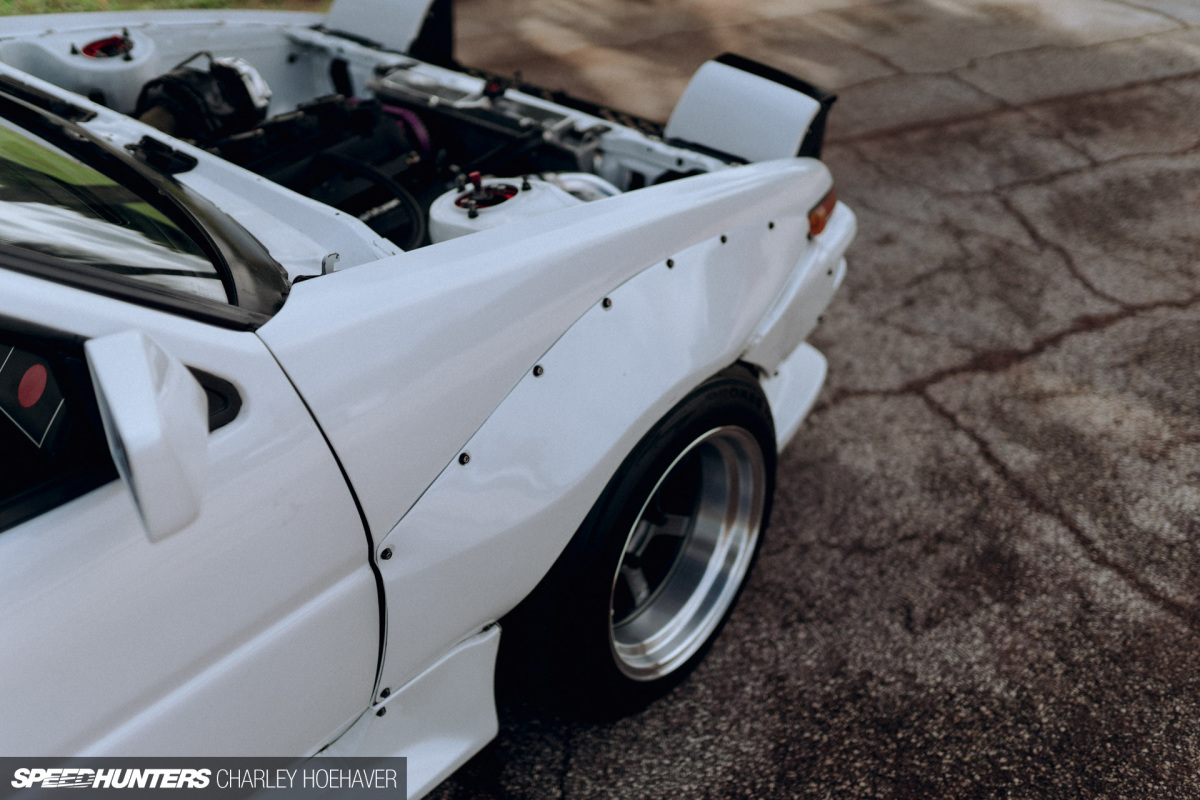

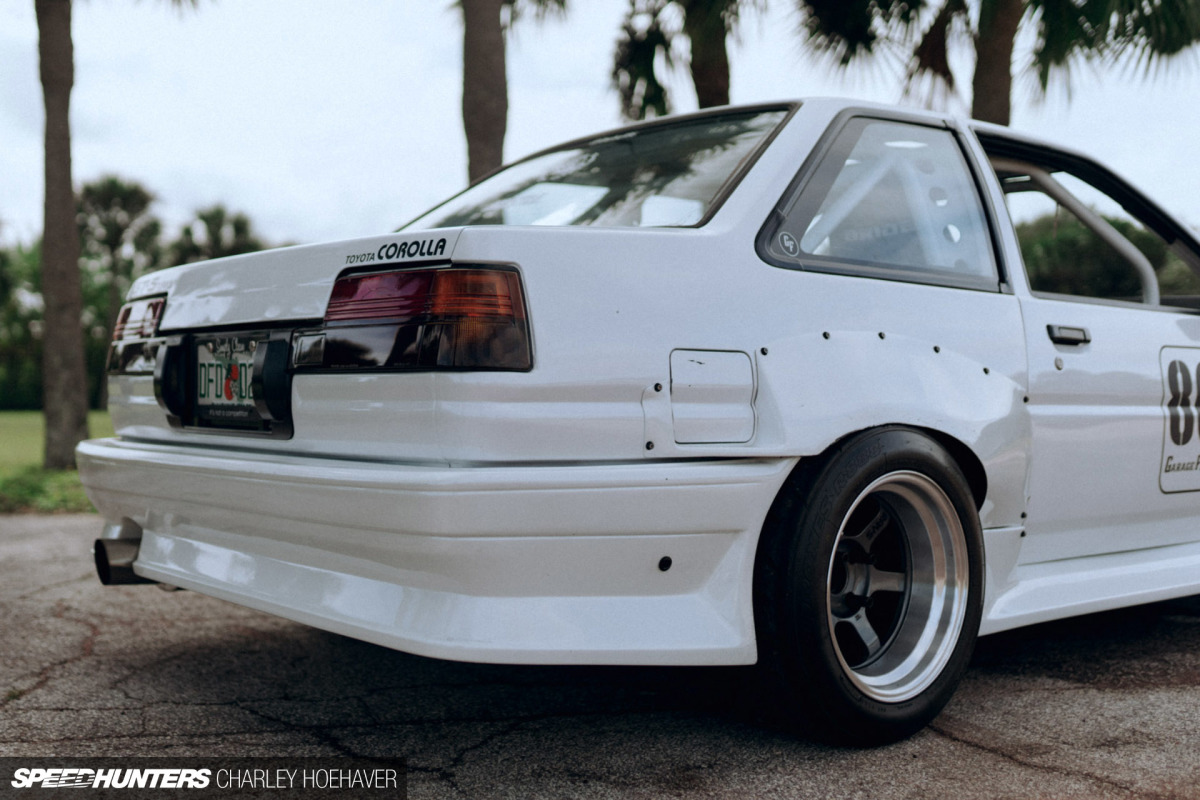

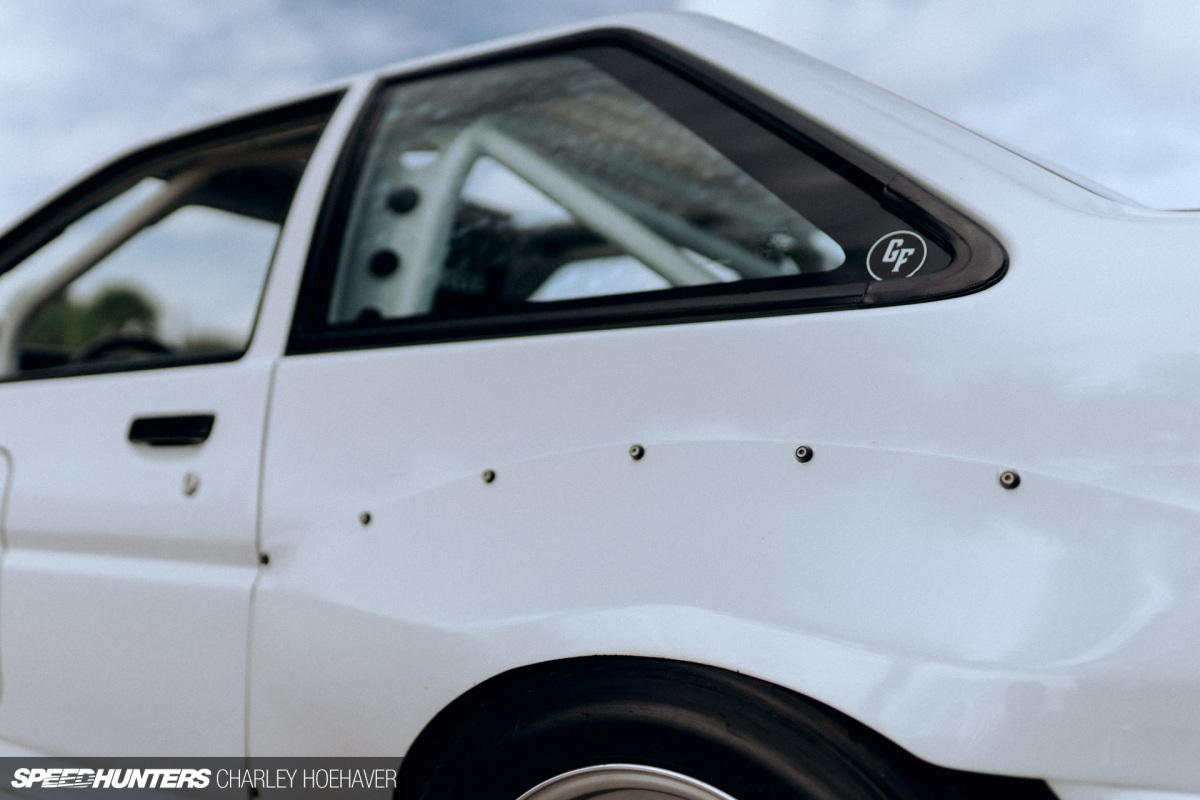

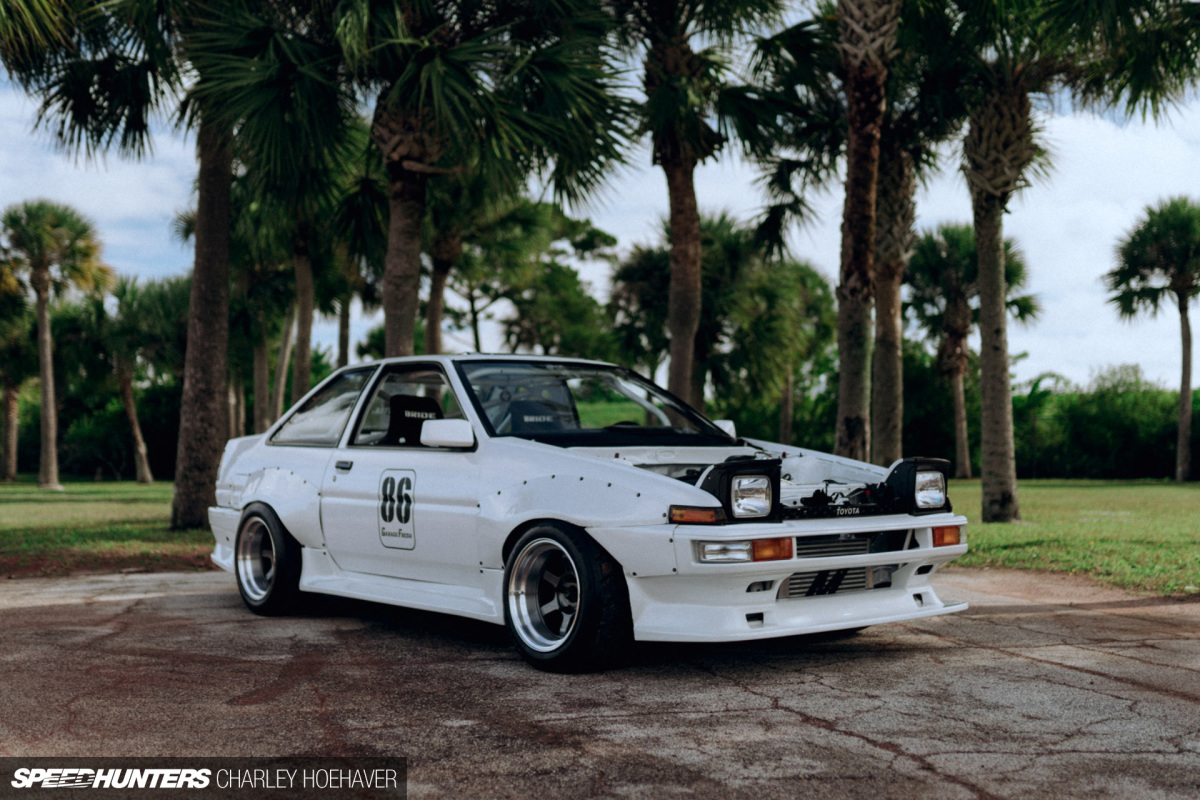

David’s inspiration for the build was the Japanese N2 race series that JDM AE86 Levins and Truenos competed in back when they were new. But instead of sourcing the bulging TRD flares that the series is known for, David worked with a shop to develop his own.

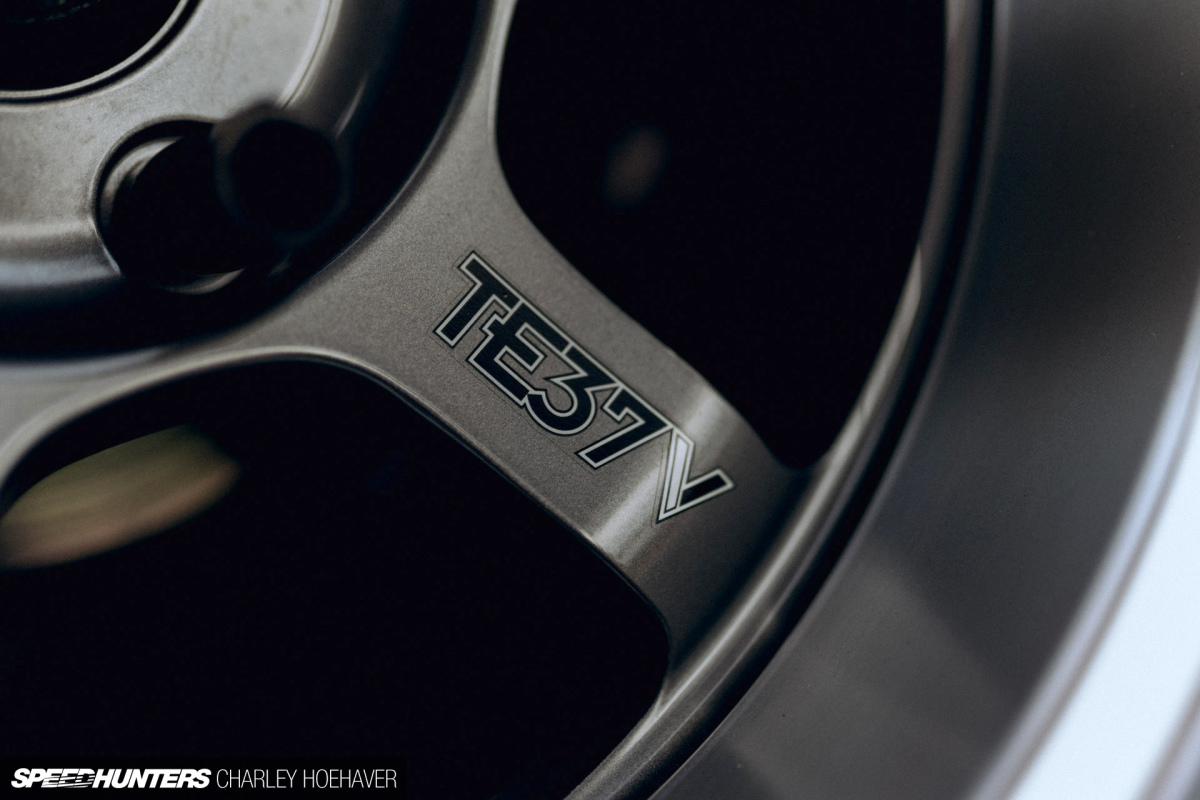

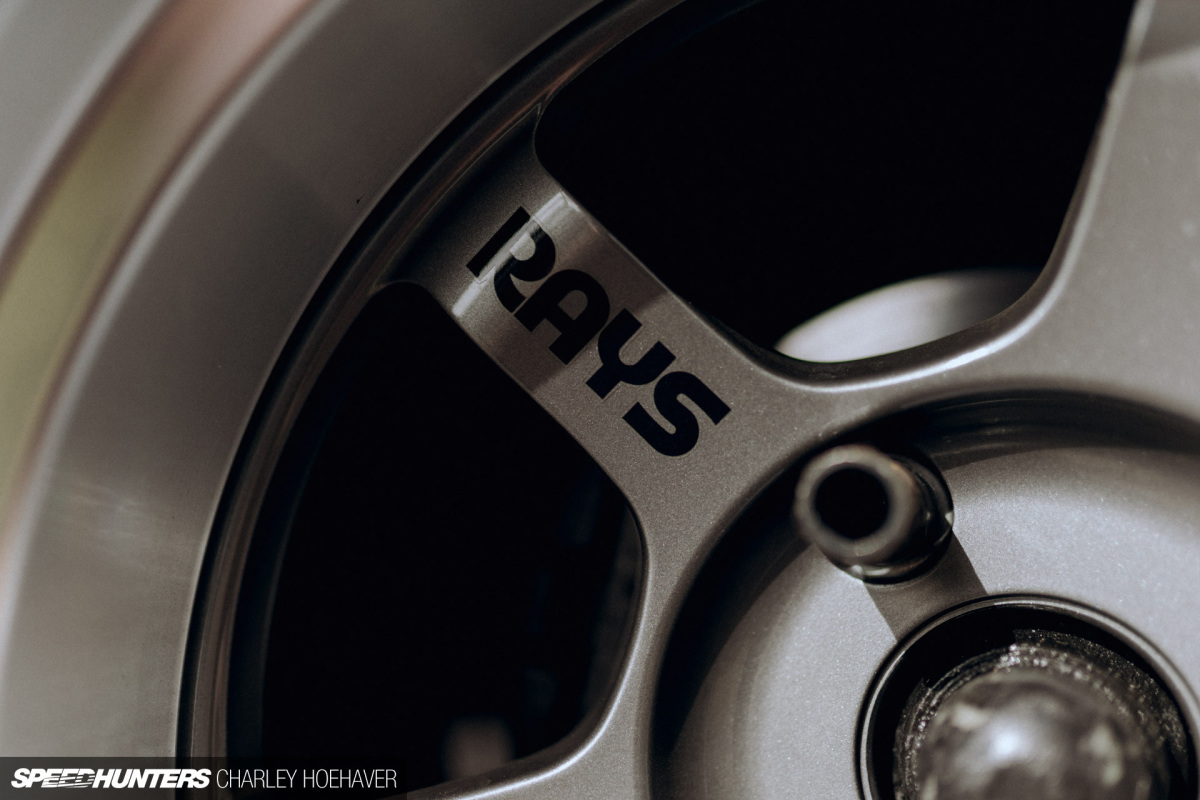

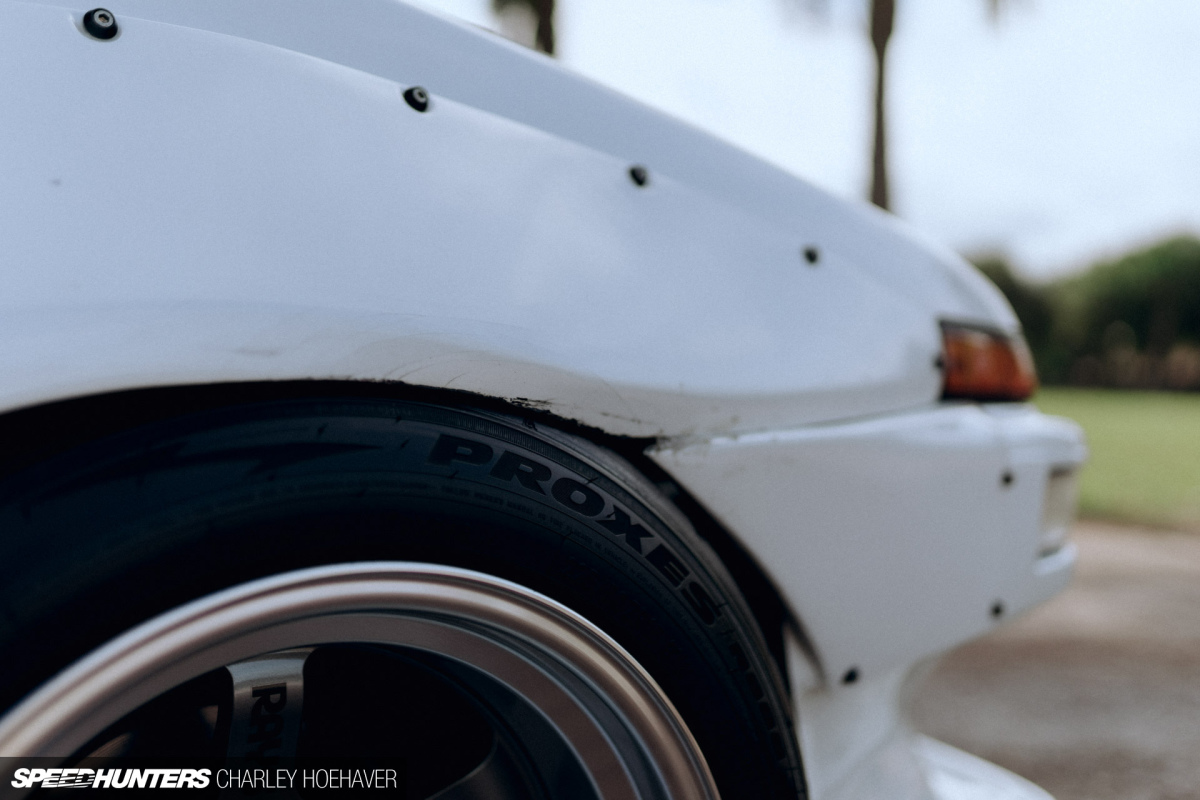

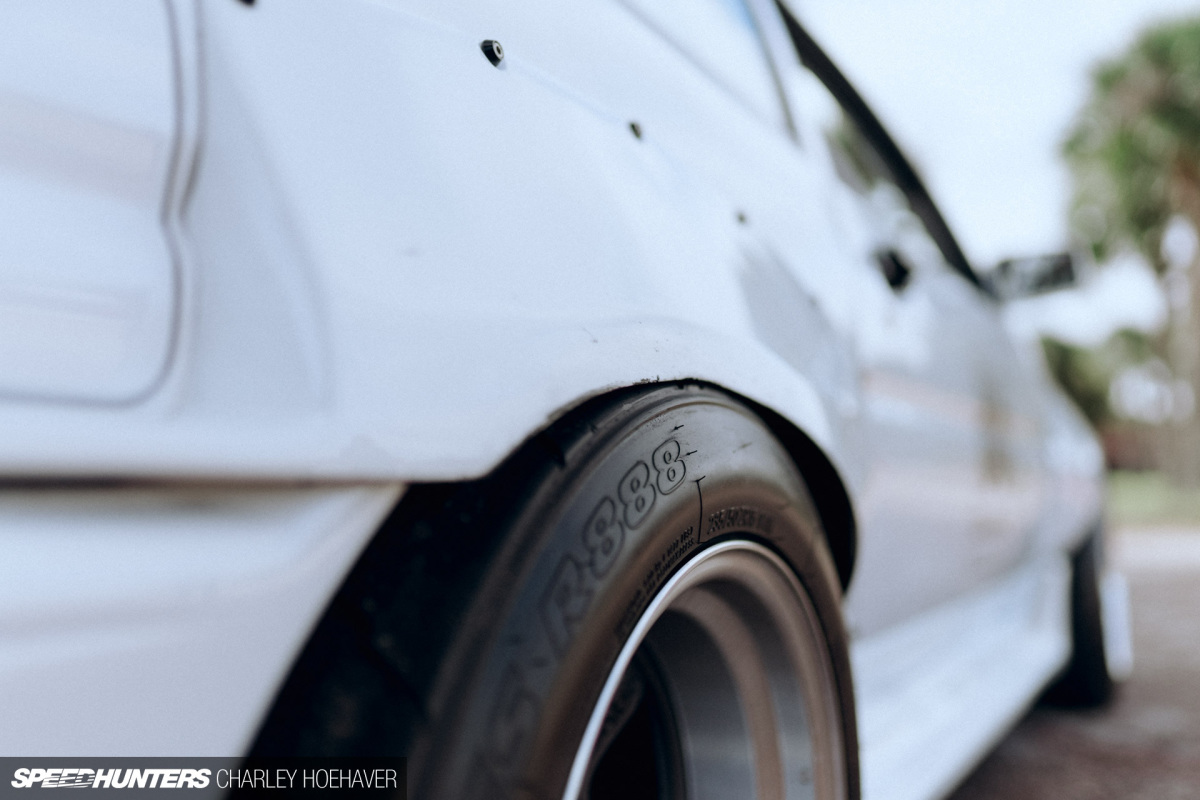

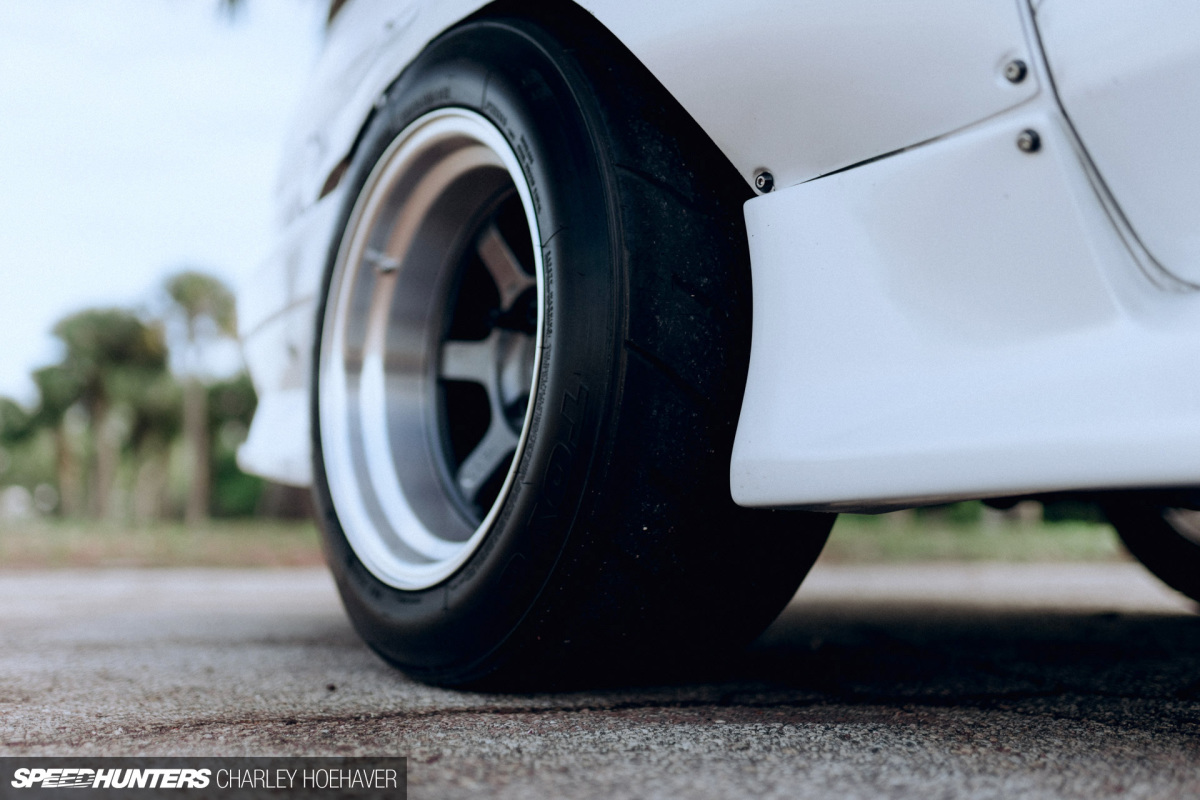

Like the TRD N2 kit, the flares on David’s car are wide enough to swallow up 235-section Toyo Proxes R888R semi-slicks wrapped around 15×10-inch RAYS Volk Racing TE37Vs.

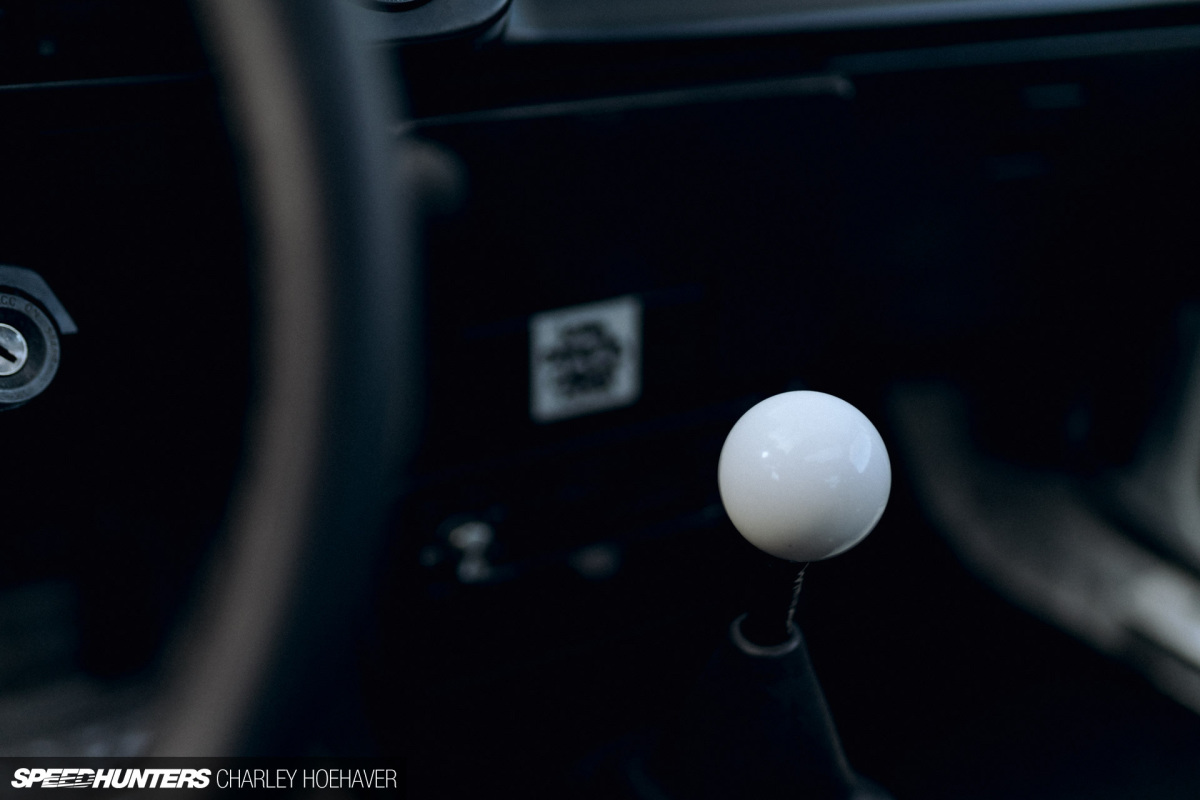

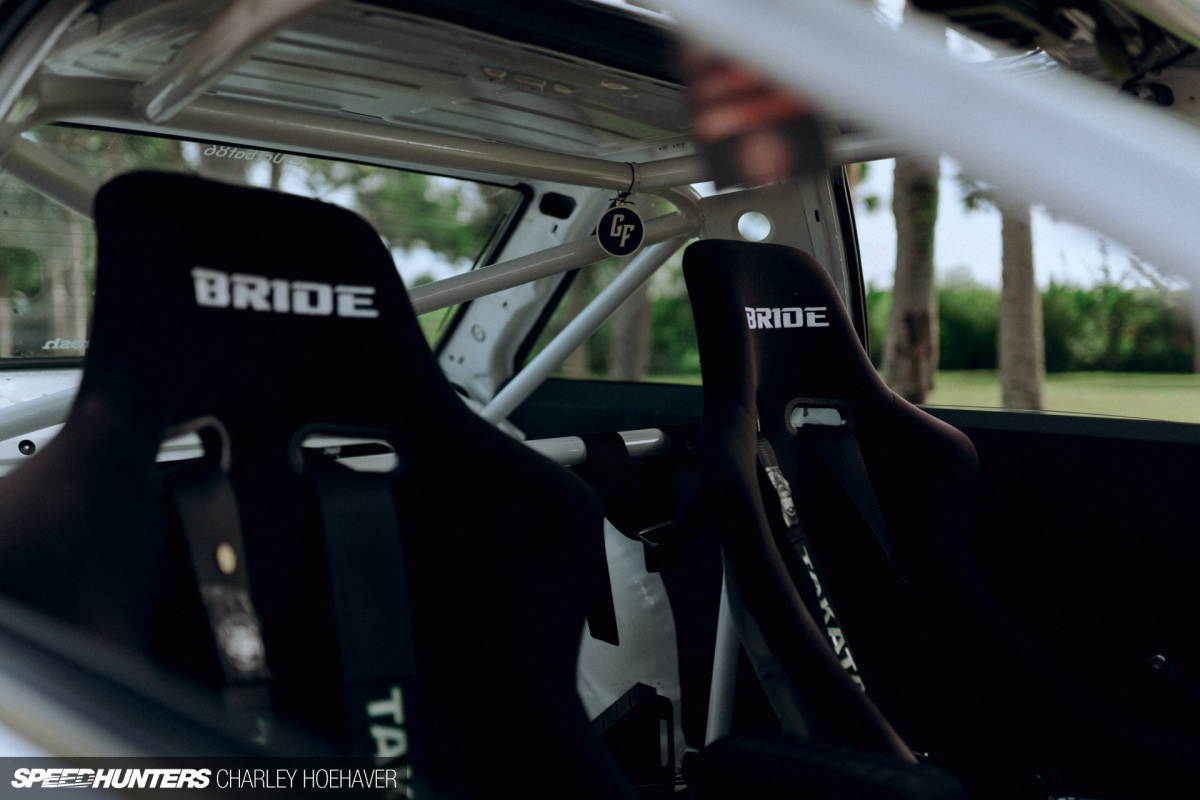

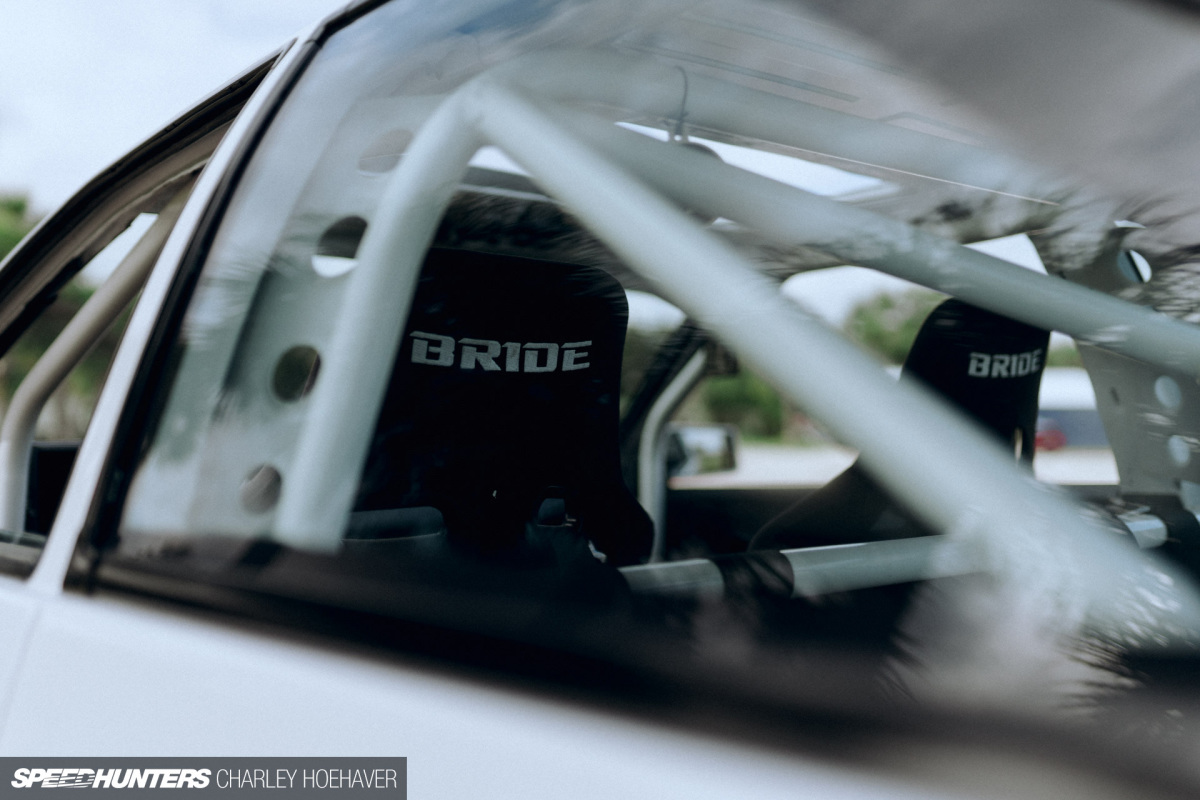

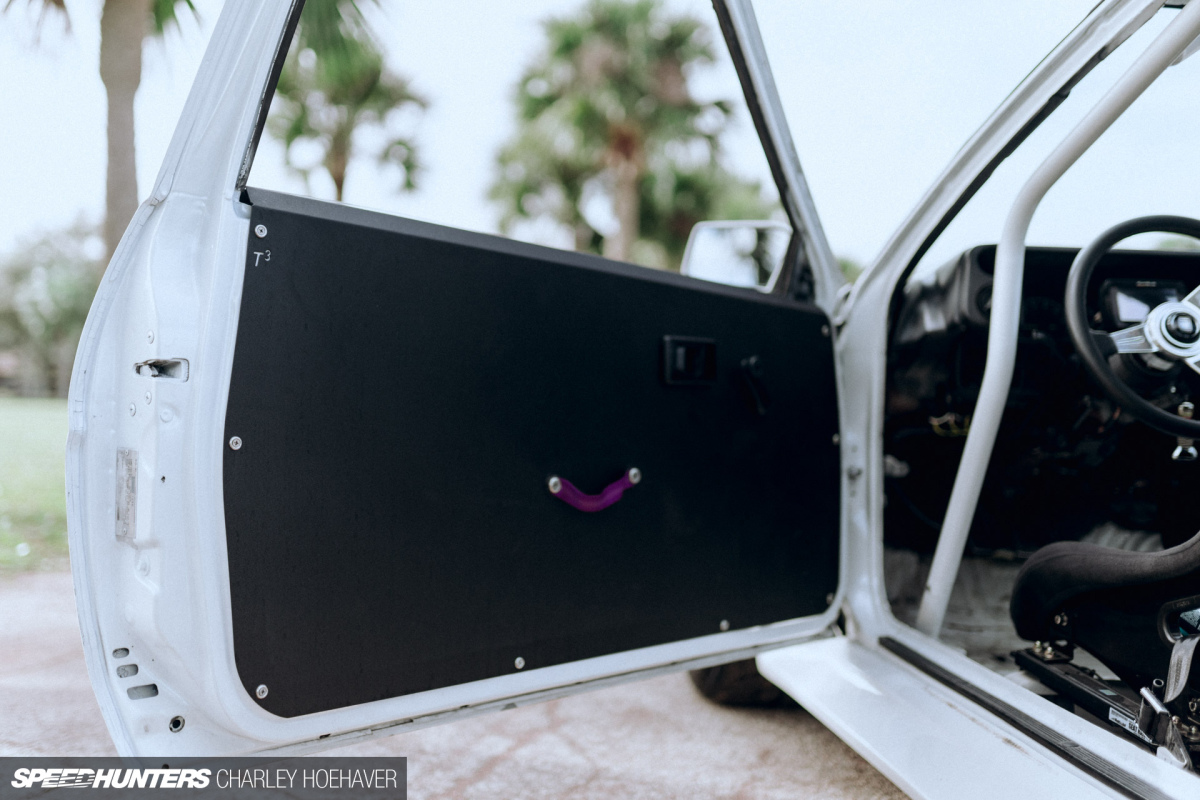

Continuing the theme inside, you’ll find a full welded roll cage, Bride seats with Takata Racing harness, and T3 lightweight door panels with pull strap handles. Anything deemed unnecessary was removed altogether.

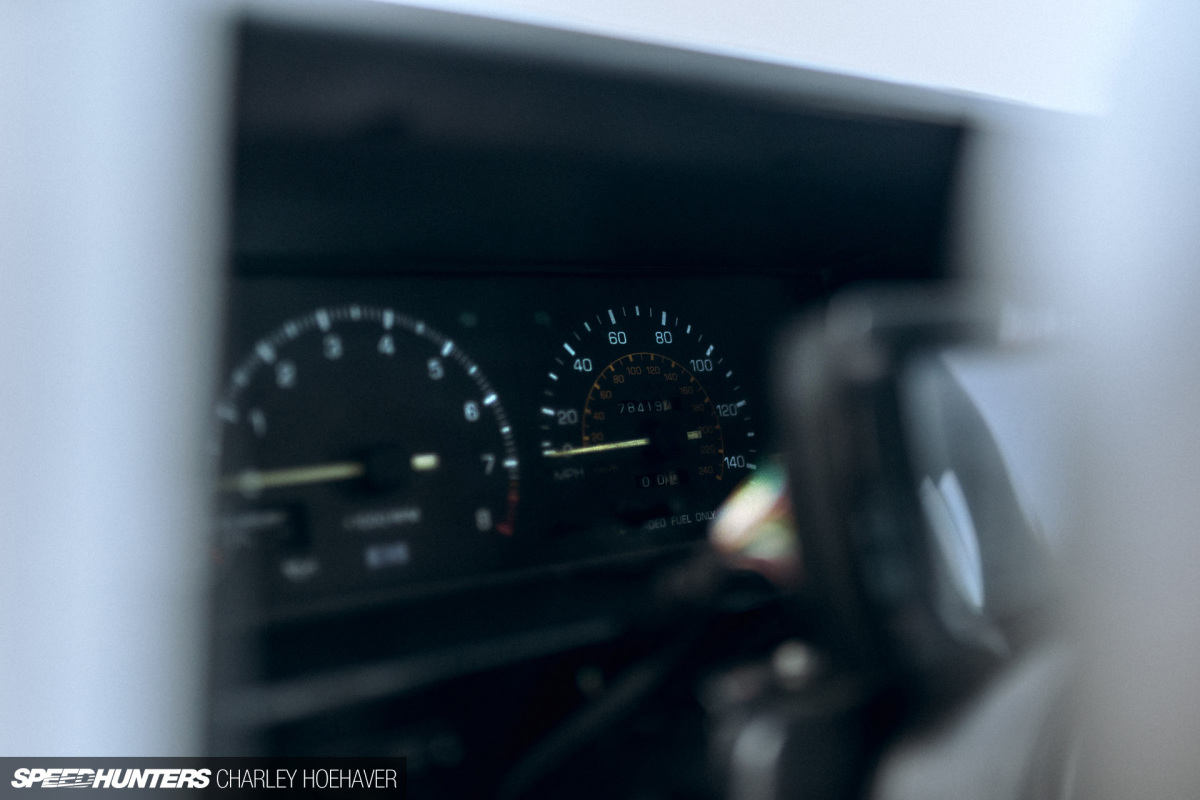

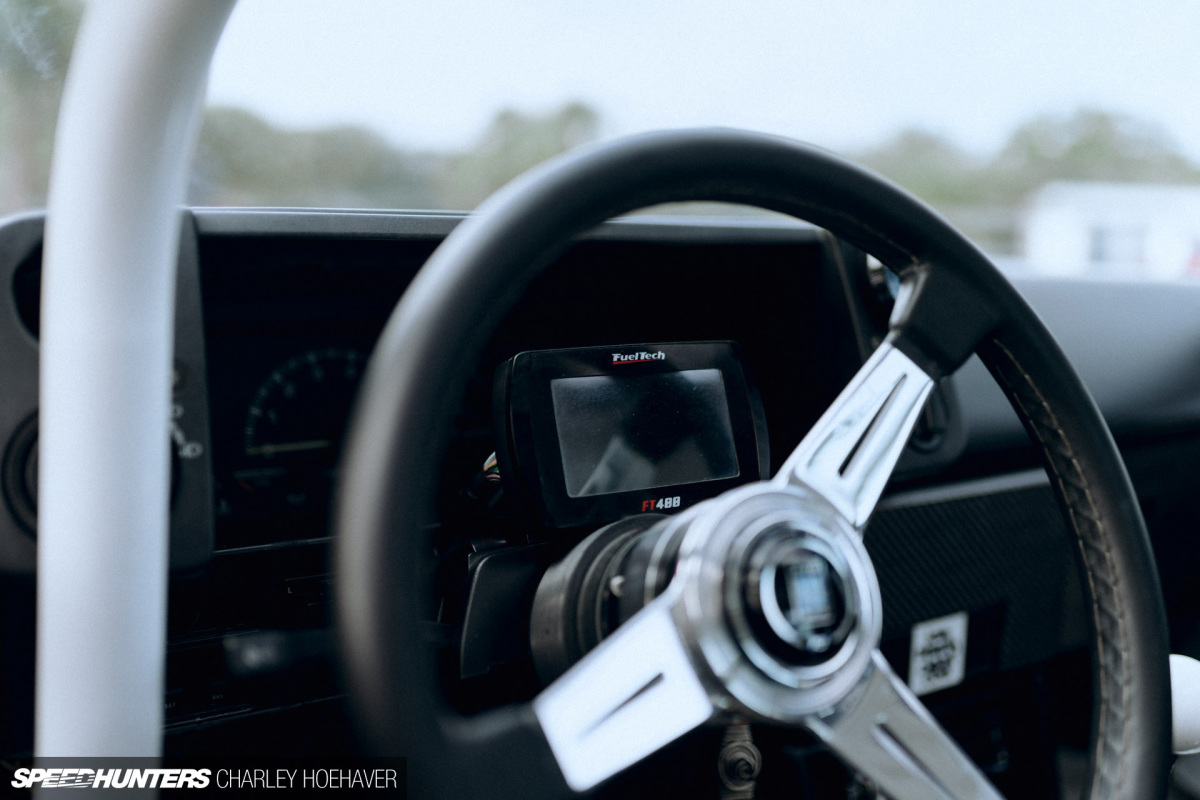

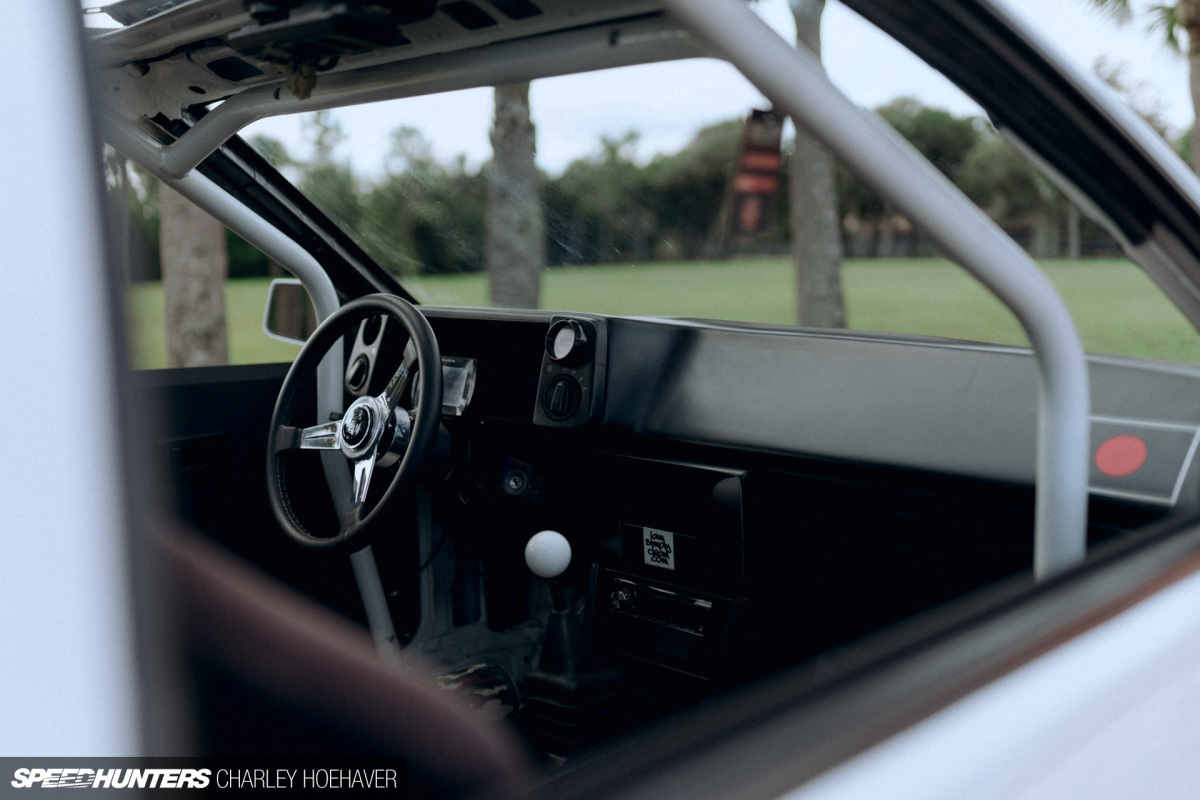

The dashboard was replaced with a custom-made fiberglass equivalent that retains the look of the stock piece. The cluster pod remains, but some of the less important details for a track-oriented car – such as the A/C vents and dash clocks – have been deleted altogether. Mounted on the steering column is the touchscreen display for the FuelTech FT400 engine management system, a nice alternative to slapping gauges all over the dash, just ever so slightly augmenting that stock appearance.
Some of the aspects I enjoy so much about David’s AE86 are the custom pieces, OEM look, and functionality that are woven together, creating a familiar look that’s still eye-catching it its own way.

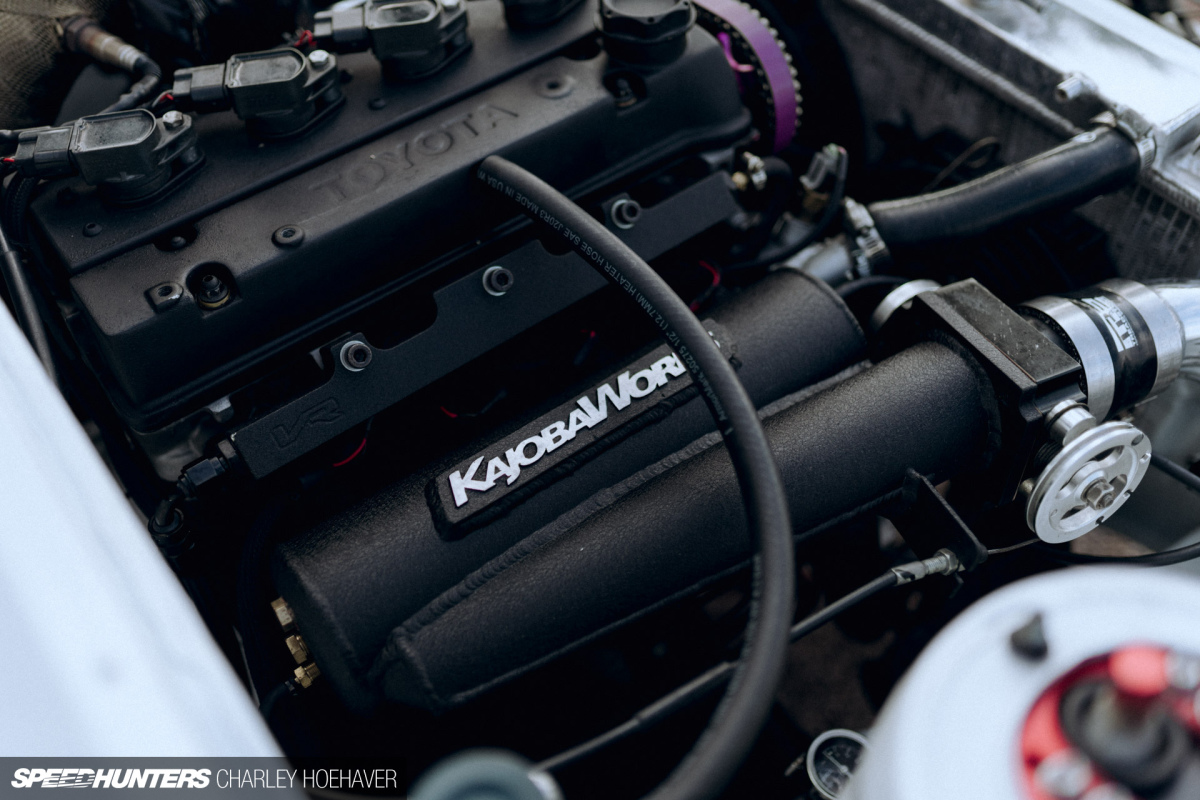

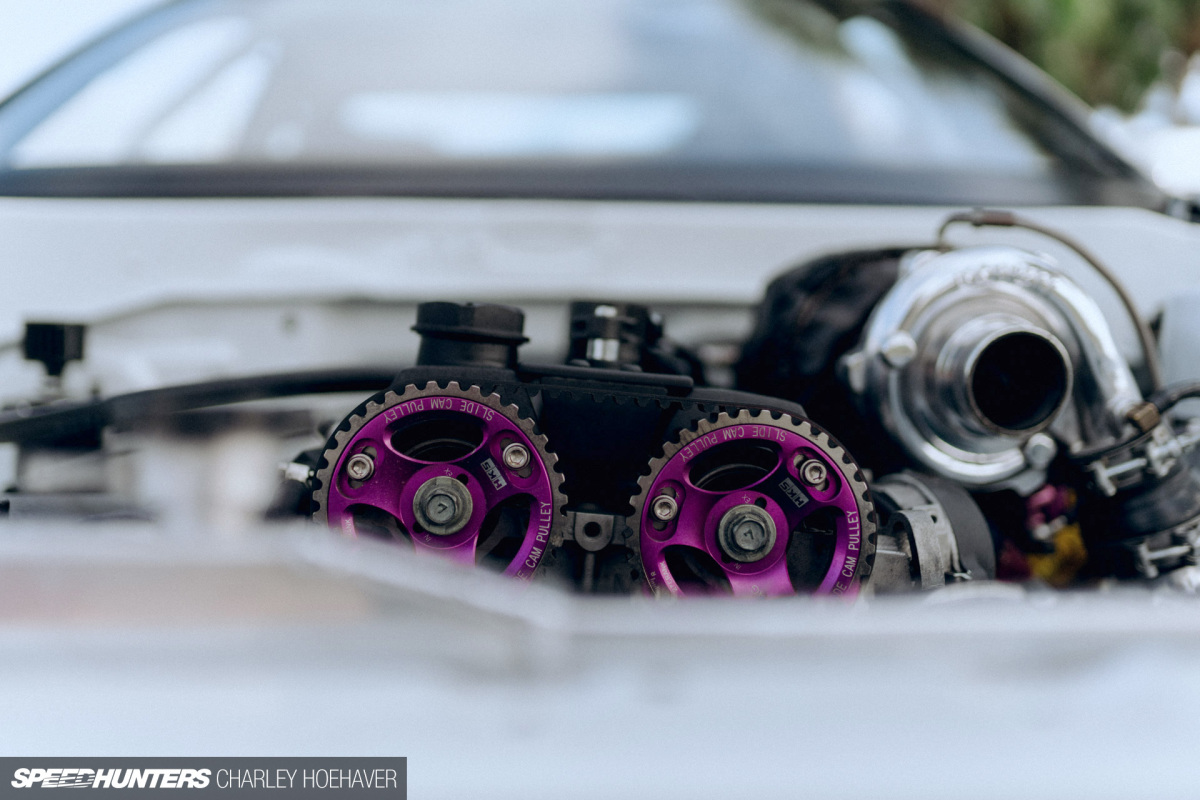

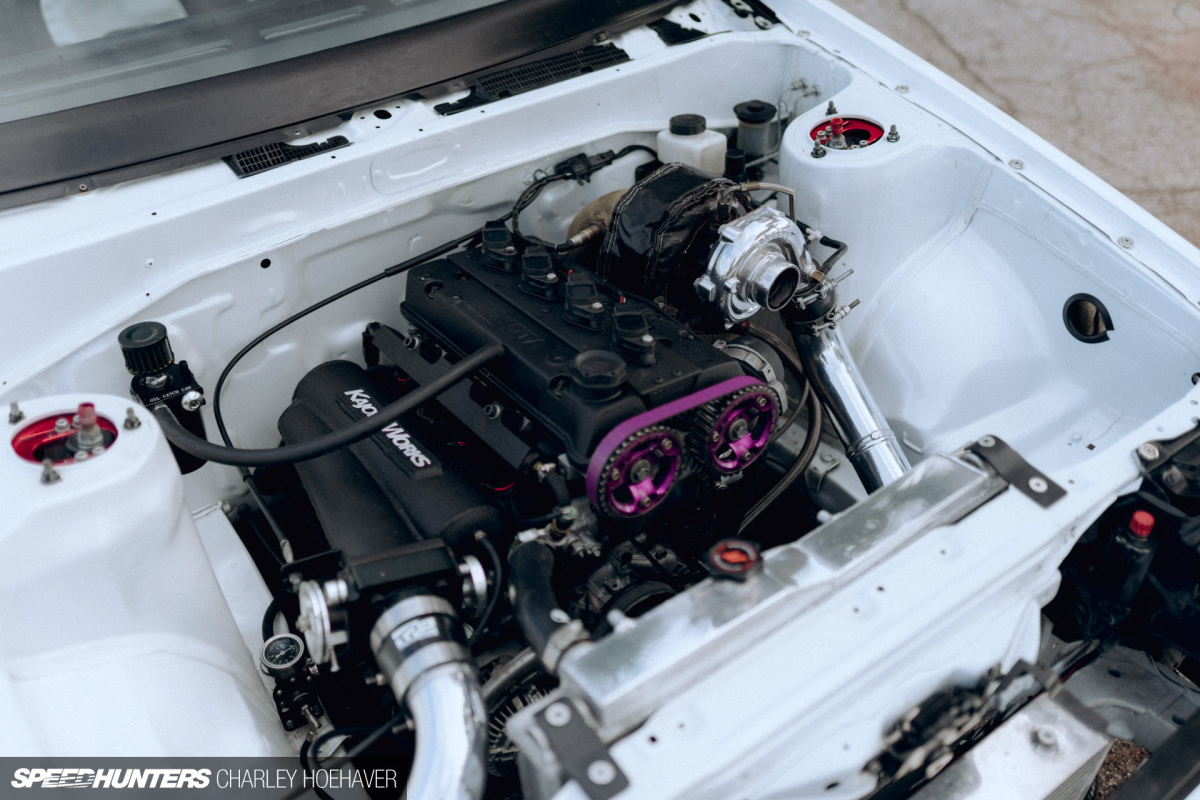

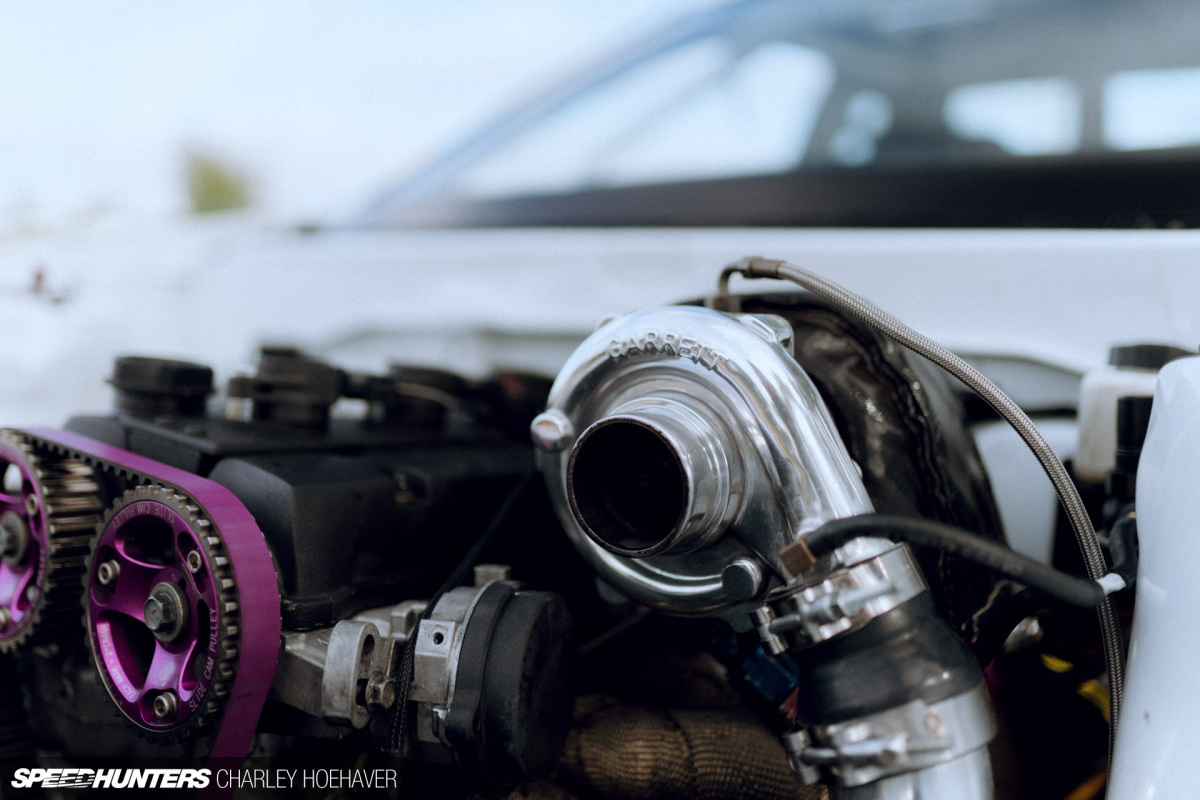

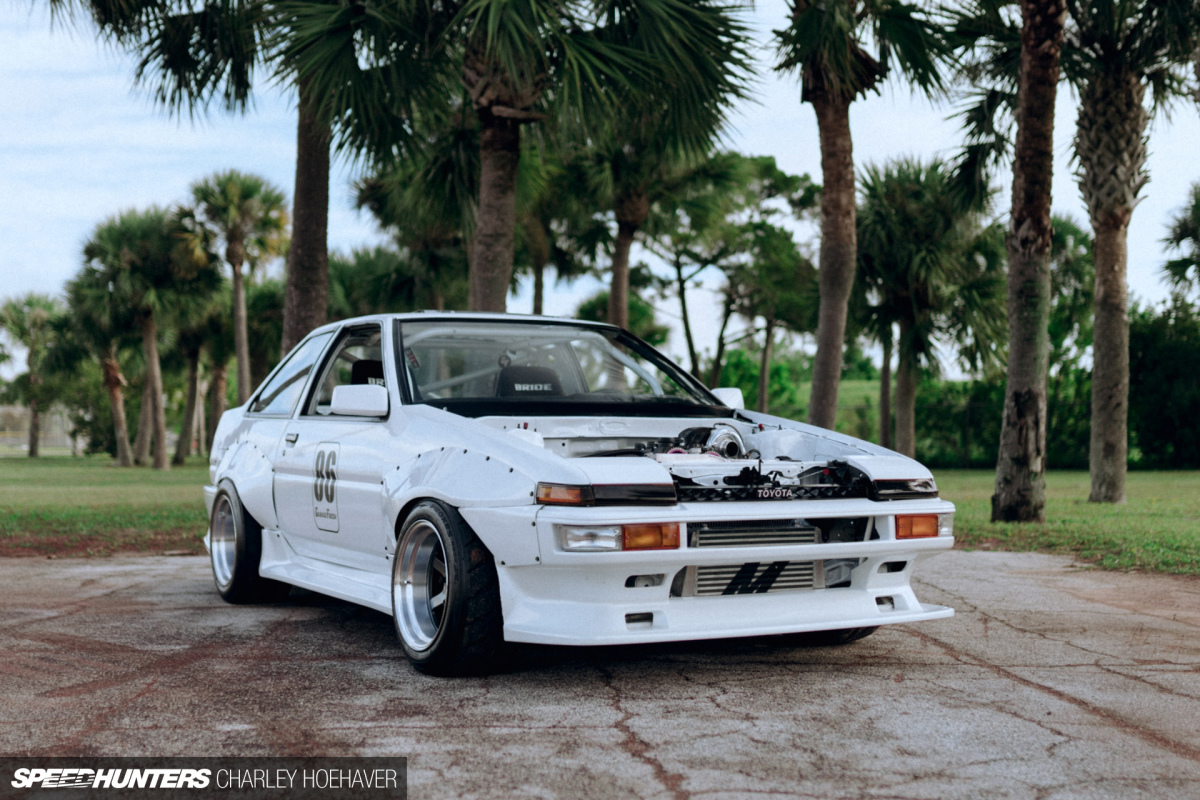

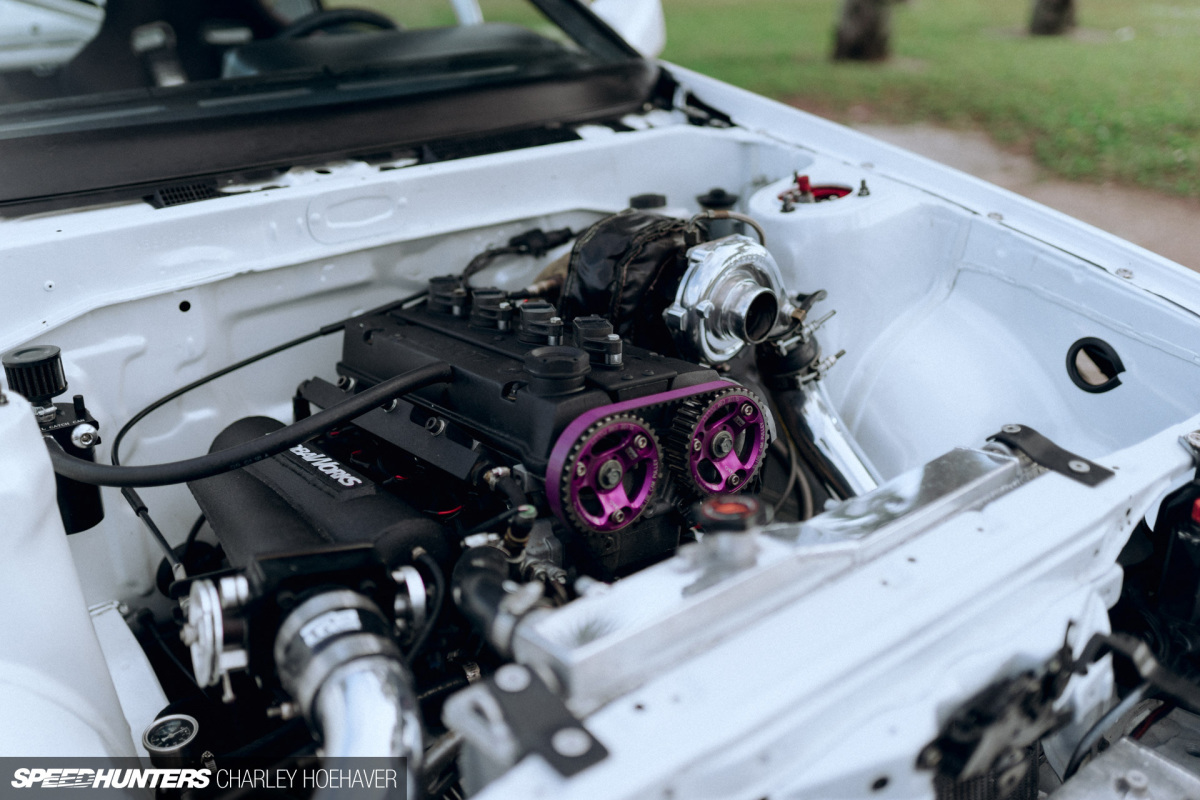

Up front there’s no Formula Atlantic N2-spec naturally aspirated 4A-GE, but a 4A-GZE that immediately draws your eye with its purple HKS adjustable cam gears and high-mount Garrett turbo. Not one to miss an inch, David supplemented his turbo setup with a 4A-GE ‘smallport’ head, Tomei 264-degree cams, Brian Crower rods and CP forged pistons.
A lightweight chassis and a properly sorted turbo 4A-G makes for a rather quick GT-S that’s more than capable of putting down power.
In the pursuit of building a capable car for the track, David hasn’t forgone the visuals. Anyone who has any sort of experience with tracking a car should understand that making your track car look ‘nice’ is a self-defeating mindset, but defying that is what makes this so refreshing.

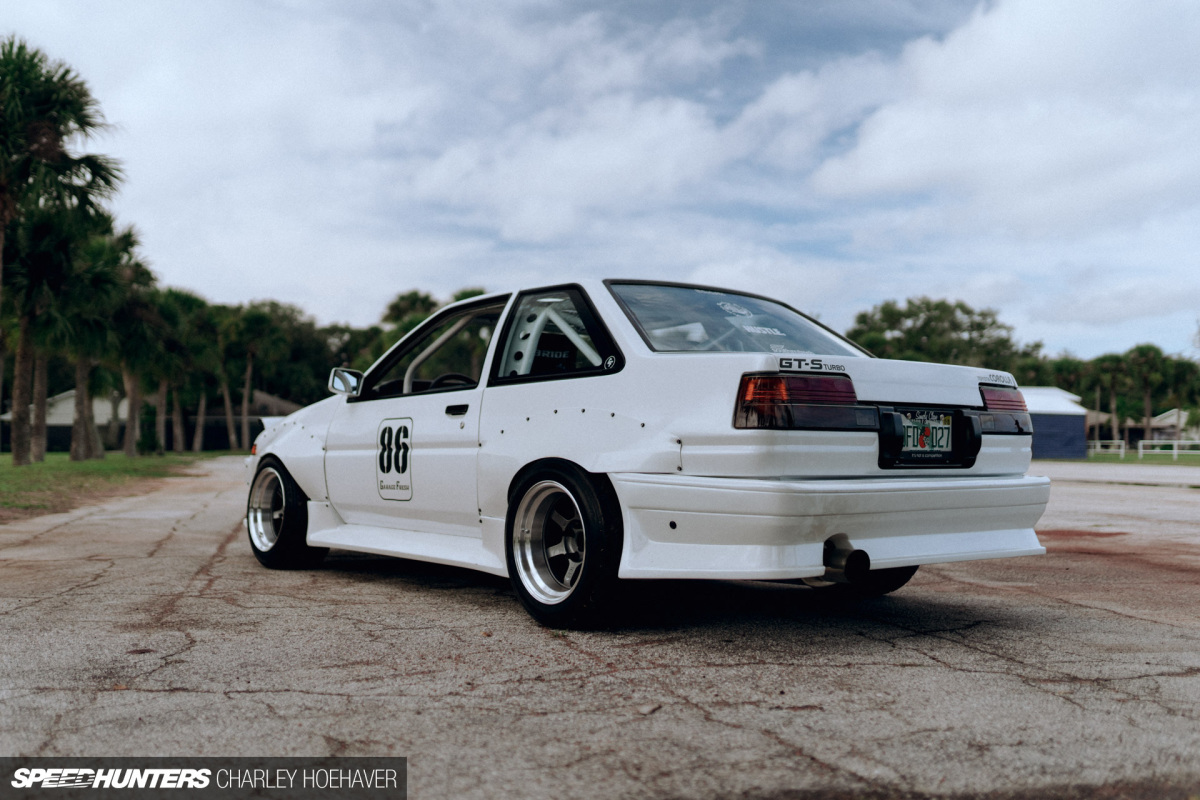

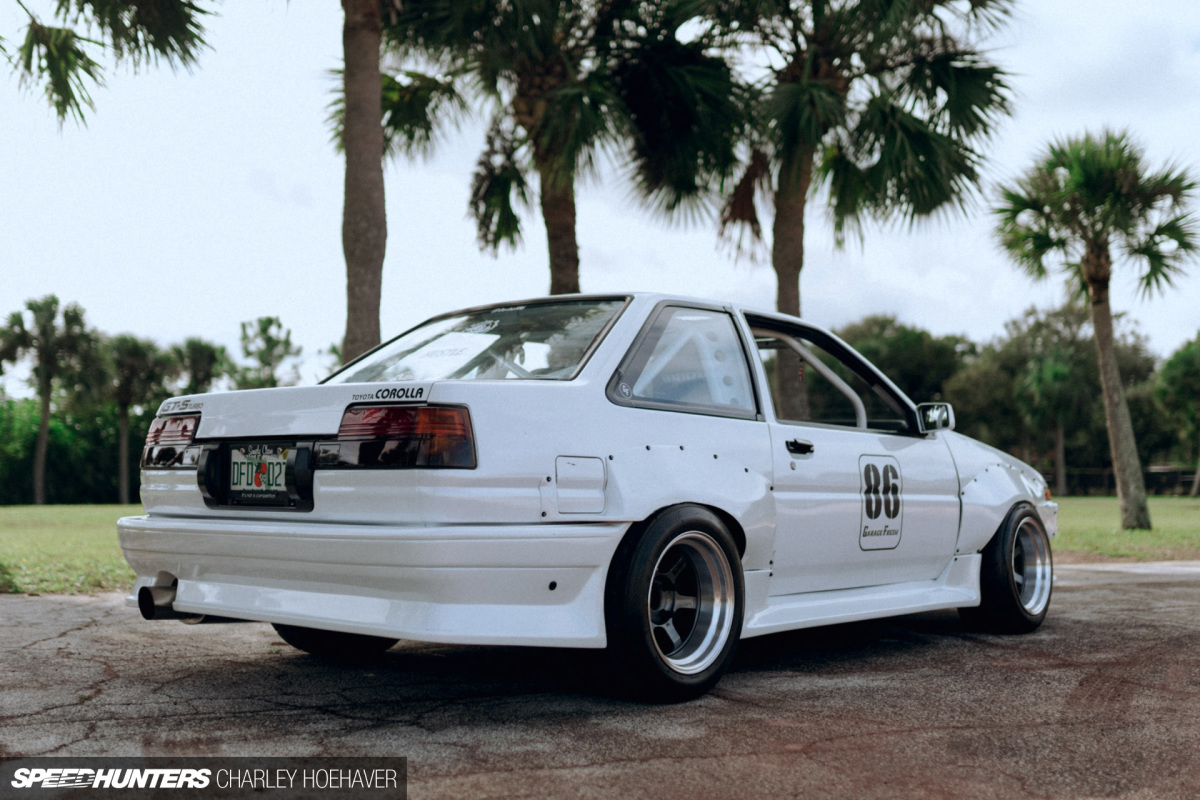

The special care David has put into developing his own parts, retaining factory glass, and finishing the entire car in Lexus Starfire white paint is the antithesis to the rock-chipped, purely functional look of the usual track car.
In time, as David delves further into his GT-S chasing that N2 nostalgia, I’m sure it will look even more the part of a well-used track car.
For now, as he works out the final kinks before treading onto the tarmac, I can appreciate the street-fighting N2 tribute, and I’m looking forward to seeing what’s around the next corner for David’s AE86.
Charley Hoehaver
Instagram: centru
How To join the IATS program: We have always welcomed readers to contact us with examples of their work and believe that the best Speedhunter is always the person closest to the culture itself, right there on the street or local parking lot. If you think you have what it takes and would like to share your work with us then you should apply to become part of the IAMTHESPEEDHUNTER program. Read how to get involved here.
OFFICIAL SPEEDHUNTERS SUPPLIERS
This is hands down one of the best AE86 builds I have ever seen
My God that white looks so good!
When I see an AE86....
HACHIROKU!!!!
Are AE86's cheaper in Japan than America?
A good RHD AE86 gts or gtv with no rust goes for premium looking at around 15k to 25k with import costs. Good luck getting it insured for that. I would have to check with Haggarty or some other classic car insurance to see what they would insure it for. I've seen full-on "race" converted AE85 in America for like 8-15k which is insane. You wreck it you might get 500-1500.00 dollars from insurance.
What an amazing car!
So beautiful......
That is one wacky looking roll cage.
Sick car, can't help but click when I see an AE86. But that cage is really wierd looking. The bars stick away so far from the roof and pillars. Very obtrusive
It is clearly not built to any technical standard. There is no main hoop diagonal bar. The halo tubes are right where your head wants to be which is extremely dangerous, and the bars are not tight to the chassis to maximize driver space. More hazard than help in case of a crash.
I did this in my AE as well and its the idea from racing that the car already has crumple zones in place making it predictable - the cage is just to protect you if the crash is bad enough to warrant it but he put welded plates to join the cage to the bpillars so I'm not sure what he is trying to accomplish
This ain't no track car, bud. It's an okay build, but let's just call it what it is.
Those over fenders look weird. To my eye they don't suit the lines of the car at all. And why does the front lip/splitter thing aim towards the sky? Bad moulding?
Collections of tube vaguely resembling a roll cage, purely for cosmetics, are getting OLD.
And "It's not a track car" is no excuse at all for poor work and uneducated design, it's more dangerous than not being there haha.
Hopefully when some folks dent their swede's in a simple 25mph fender bender, or turn the car over and realise they've basically fitted a giant mouse trap, or realise anyone who knows cages is laughing at them, people will do it right or not do it at all.
I get no pleasure at all sh*tting on peoples work or ideas, but collections of tube vaguely resembling a roll cage, purely for cosmetics, are getting OLD.
And "It's not a track car" is no excuse at all for poor work and uneducated design, it's more dangerous than not being there haha.
Hopefully when some folks dent their swede's in a simple 25mph fender bender, or turn the car over and realise they've basically fitted a giant mouse trap, or realise anyone who knows cages is laughing at them, people will do it right or not do it at all.
I like the combination of traits in this one. Ask any of my friends, or me, about the last time we tried to build a track car, and we'll tell you how we also "had to" drive it on the road too, and so there was this unobtainium spoiler or wheel set, a little bit of pearl in the paint, or just that...something that made the car almost impossible to duplicate. You'd think we wouldn't want to risk it all on the track, but of course we did-- because mixing it up with everyone else's unique creations, in our own, is what racing is all about.
First time see car omg look.
