Heck. I better get cracking, so.Man’s Not Hot
So, let’s pick things up from where we left off in January’s update. My plans for the winter involved tightening up a few areas on the car (which we achieved with the Tyrolsport rear hatch brace and rigid collar kits) along with coming up with some cooling solutions for the GTI’s first generation EA888 and its DSG transmission.
The MK6 GTI is a bit of an oddity in the GTI lineup. It’s essentially a (heavily) face-lifted MK5 which shares a lot of the same underpinnings, but with a slightly different 2.0-litre turbocharged engine (EA113 TFSI in the MK5 versus the MK6’s EA888 TSI).
I say it’s an oddity, because to me, it always felt like it was filling a gap between the MK5 & MK7. It started production in 2008, but with the MK7 arriving in showrooms in 2012, its lifespan was shorter than most other Golfs. Add to this that the MK6 GTI’s production run was during the peak of a global recession, which goes a long way towards explaining why they seem much rarer than their siblings either side.
While lots of parts from the MK5 will fit, there are still certain things with which you have relatively limited choice. Oil cooling is one of these things. Because of this, I spent a lot of time researching what my options were.
With some kits, you would need to run either modified TSI or 1.8T oil filters, which I just outright didn’t want to do. With limited space at the front of the car, and with an air conditioning condenser, intercooler and water radiator sandwiched together, I wanted to minimise the amount of space that the oil cooler would occupy in front of these.
My oil temperatures on track last year peaked at 130°C (266°F), so I was quite keen on reducing these by as much as I possibly could with the aforementioned limitations taken into consideration. What I believe worked best for me was to use two different kits to make one perfect solution.

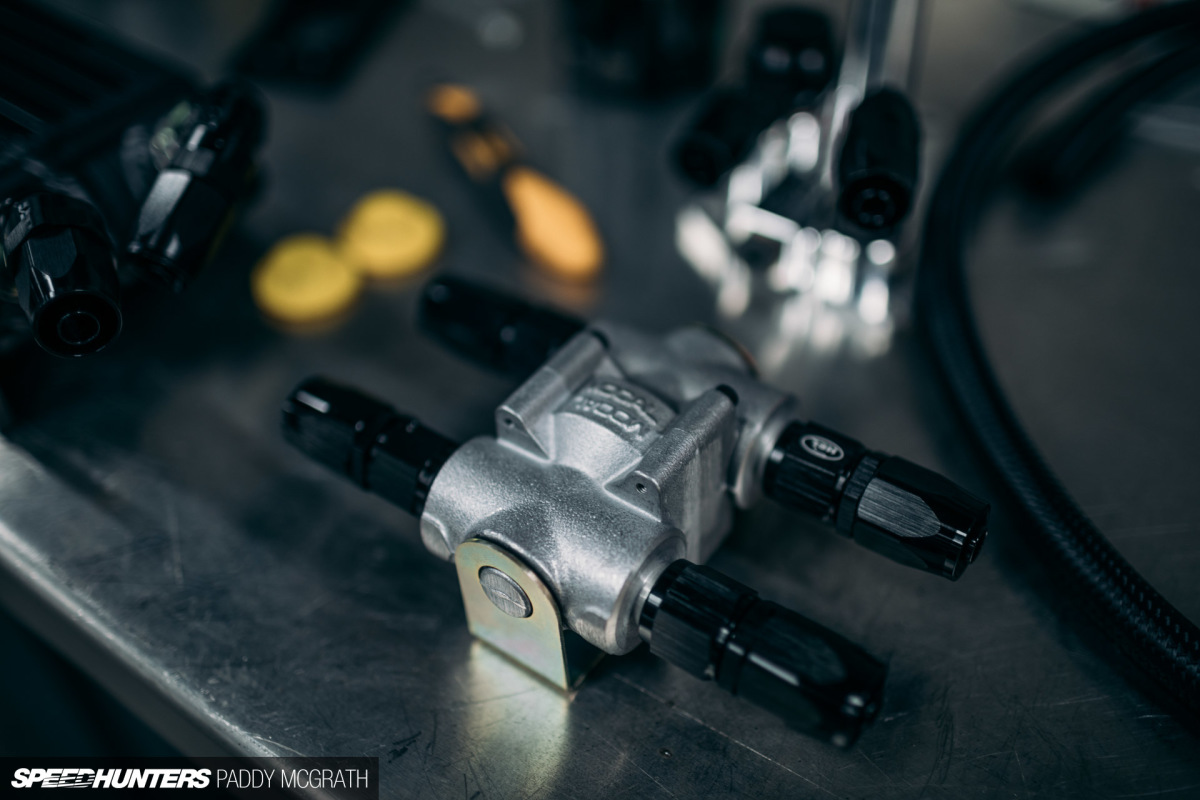

With that, I ordered a HEL Performance kit from eBay along with placing a separate order with CSF for one of their small universal dual-pass oil coolers.

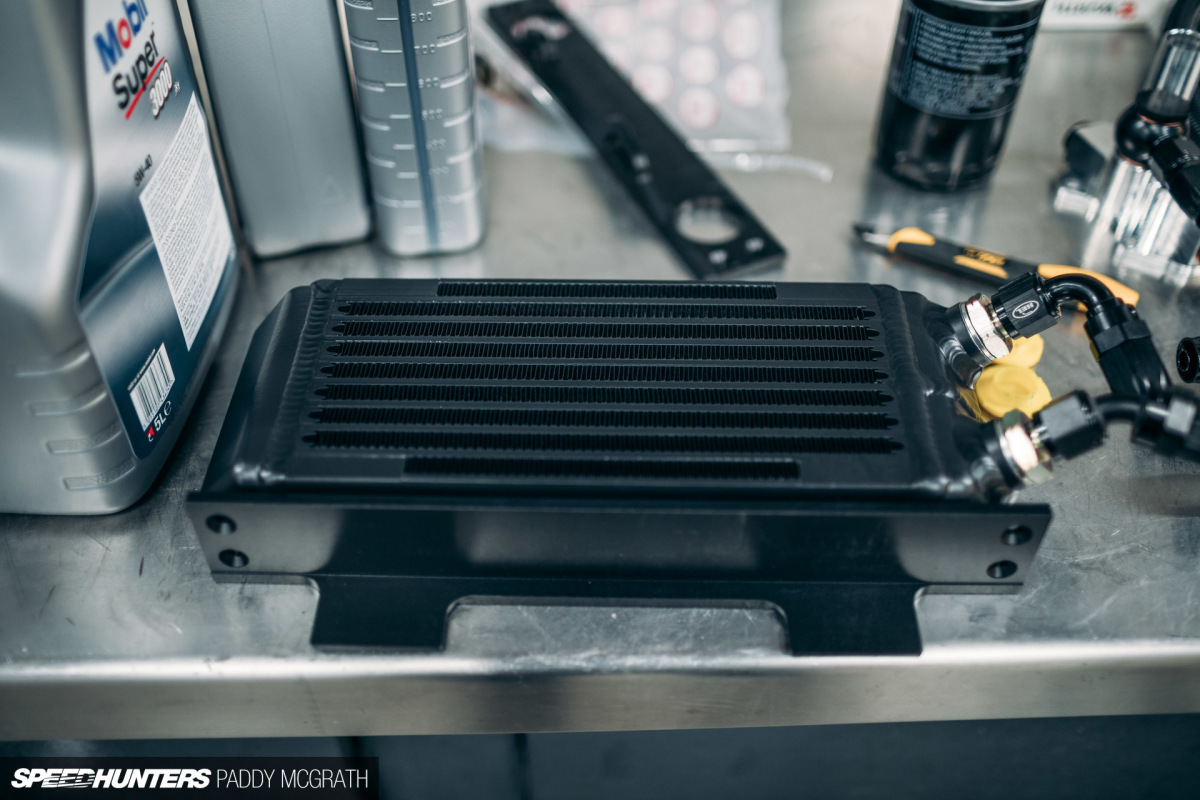

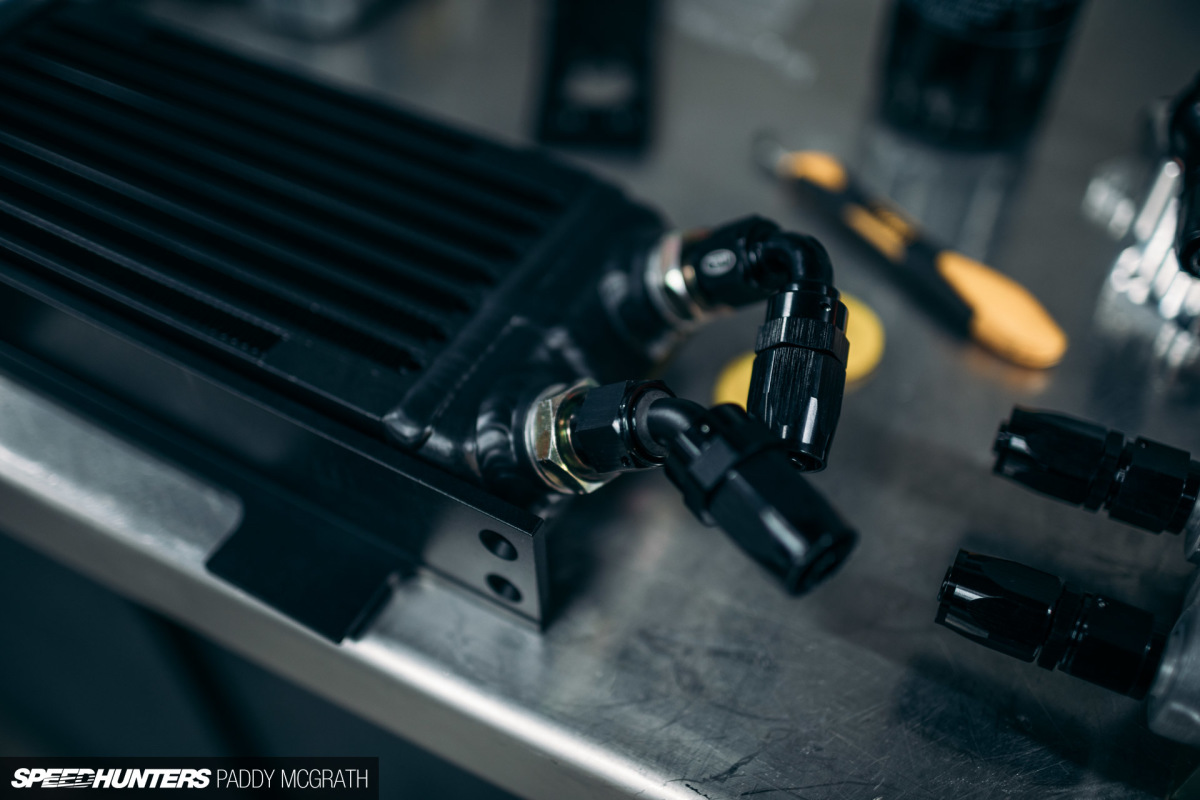

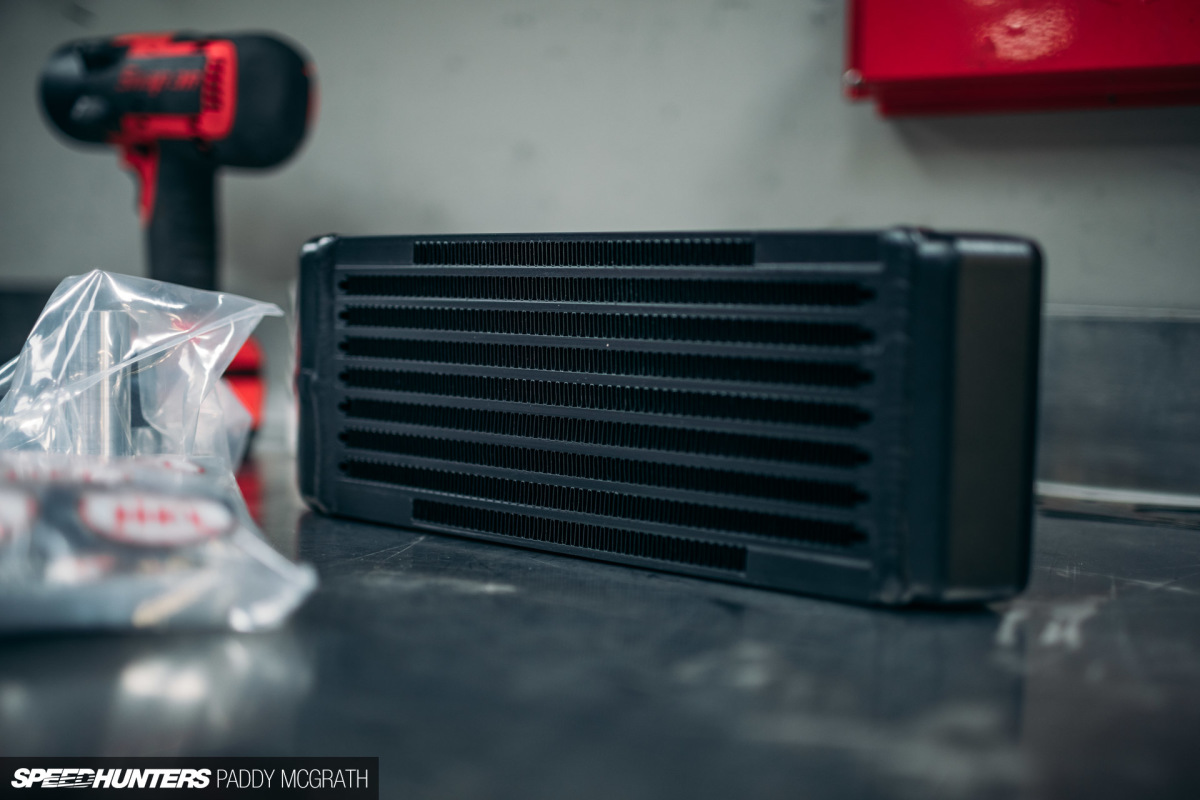

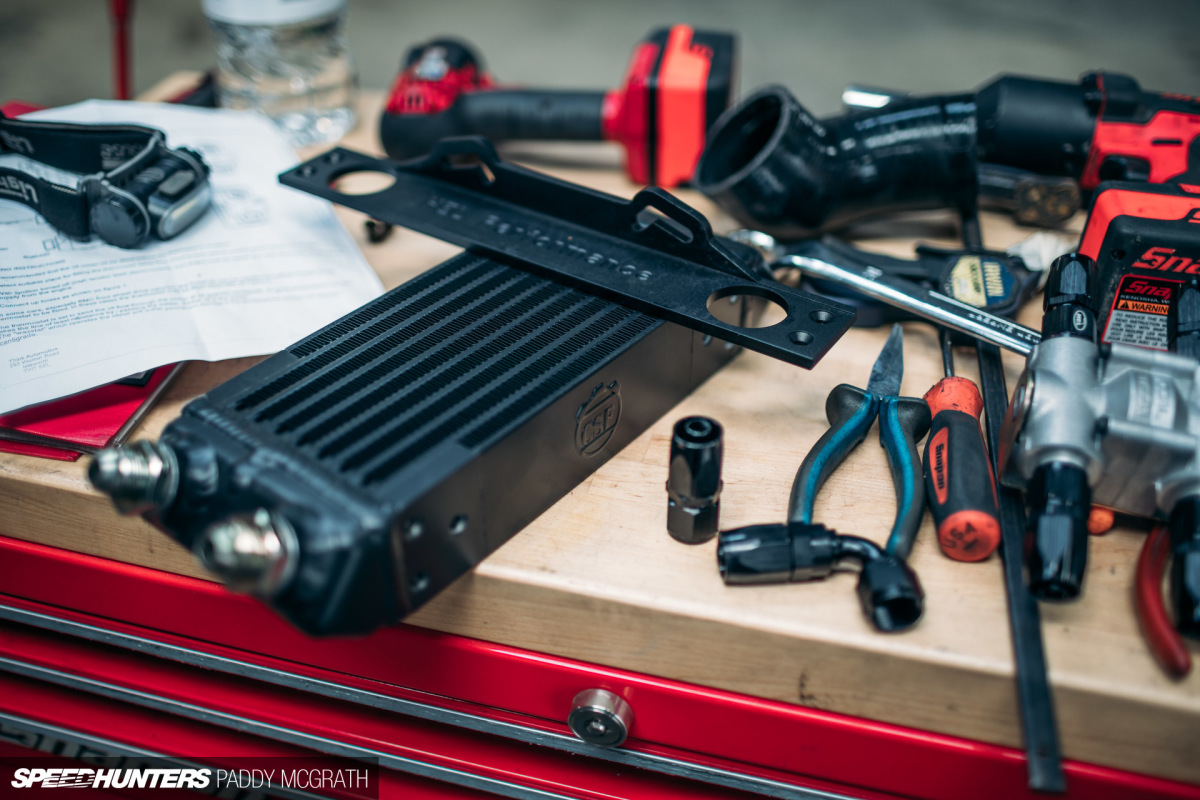

The kit came with a take-off plate, 90°C (194°F) thermostat, braided lines, fittings and a small single pass 13 row oil cooler. I’m sure that the cooler supplied with this kit would be fine for most ordinary applications, but my car isn’t exactly ordinary anymore, which is why I added CSF’s dual-pass cooler into the equation. By CSF’s estimates, the dual-pass cooler should result in a further 15-20% reduction in outlet temperatures when compared to a single-pass cooler.

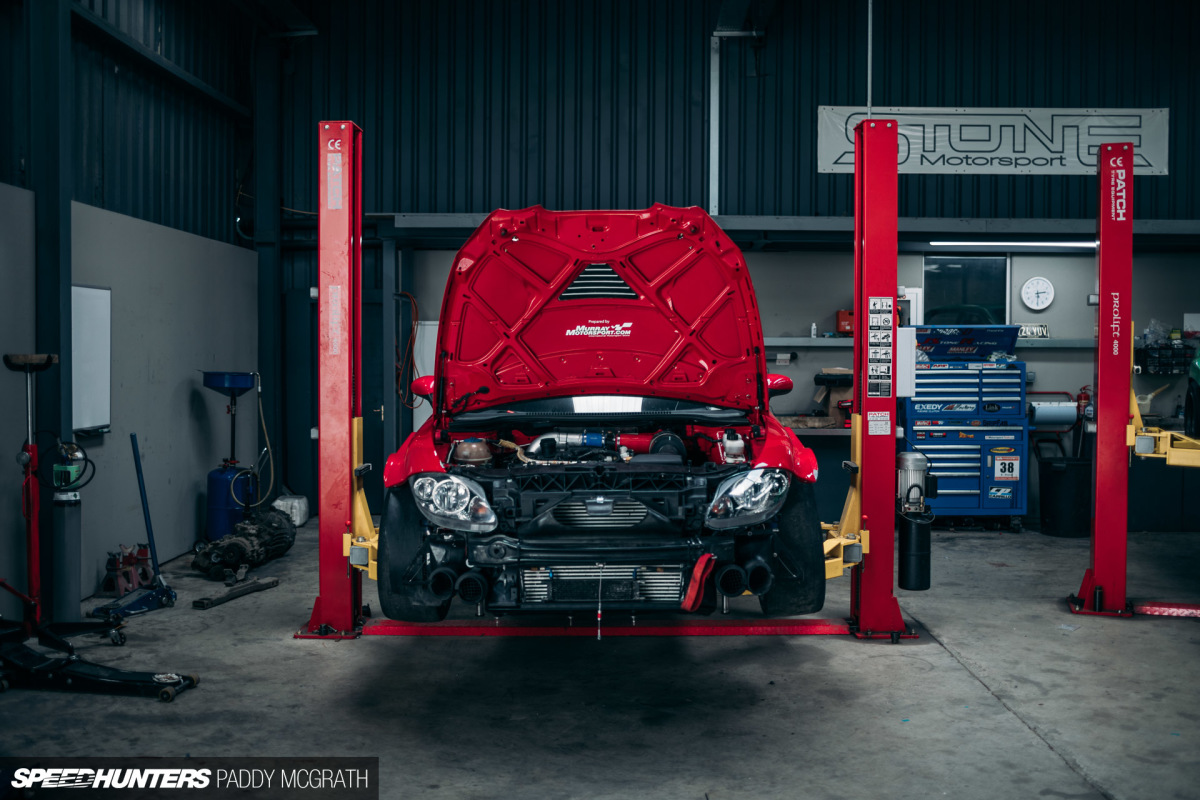

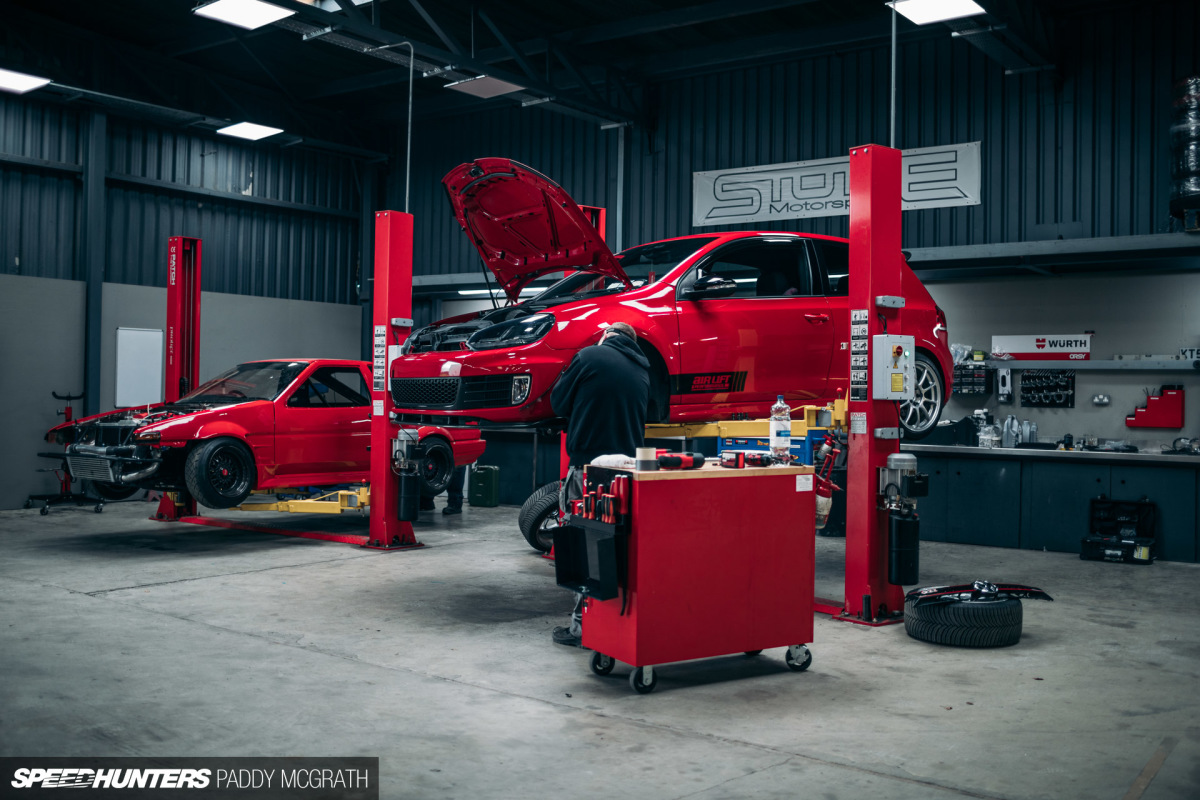

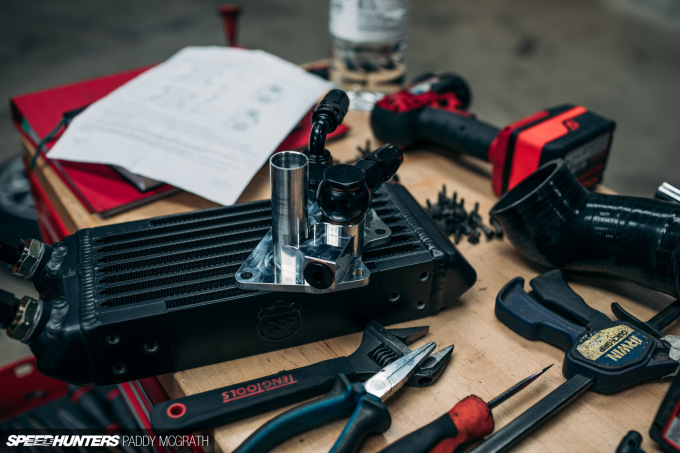

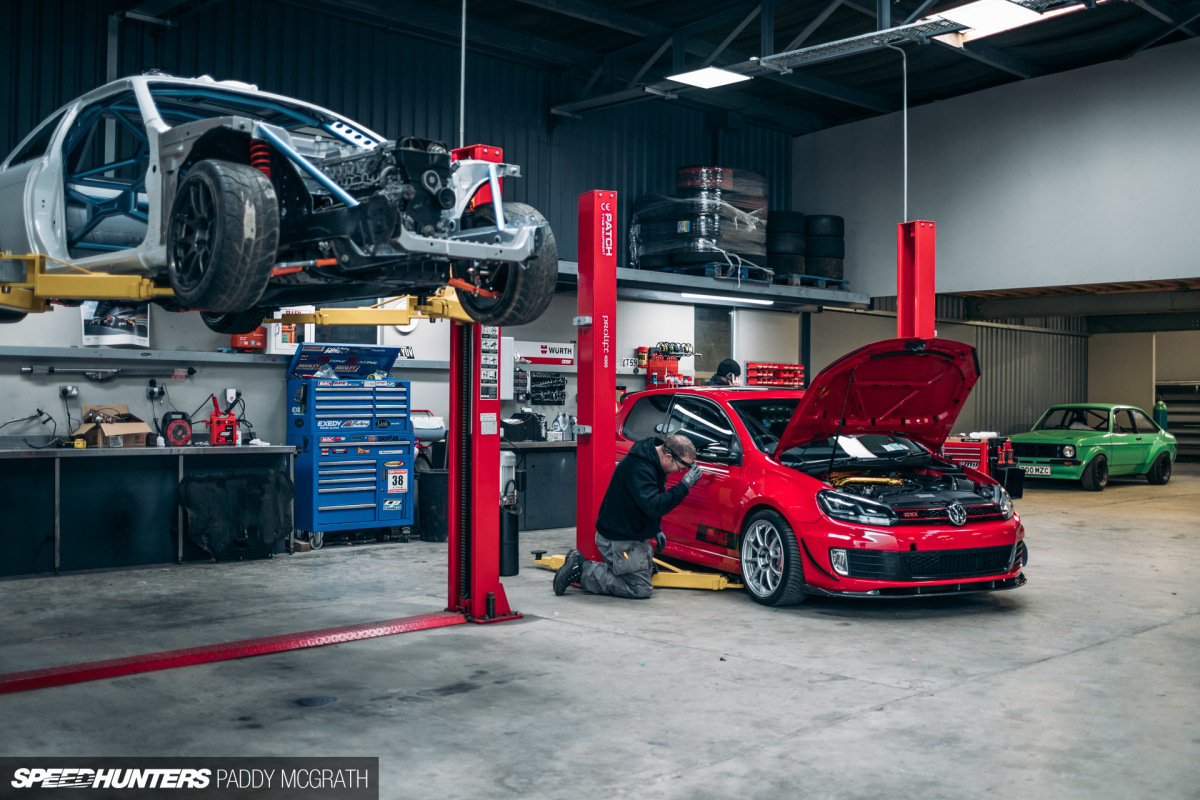

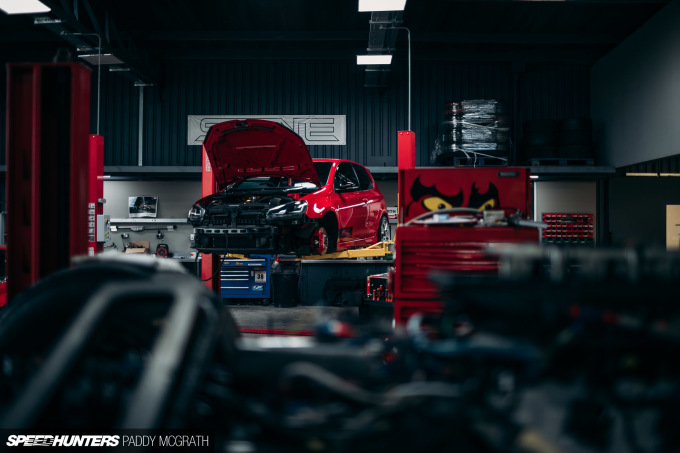

With everything on the bench, it was time for the strip down to begin…
As I wanted to continue to use OE and non-modified oil filters, I didn’t choose a traditional sandwich plate which would have attached to the oil filter housing. Instead, the take-off plate would replace the factory oil heat exchanger, which is located – inconveniently – beneath the intake manifold.

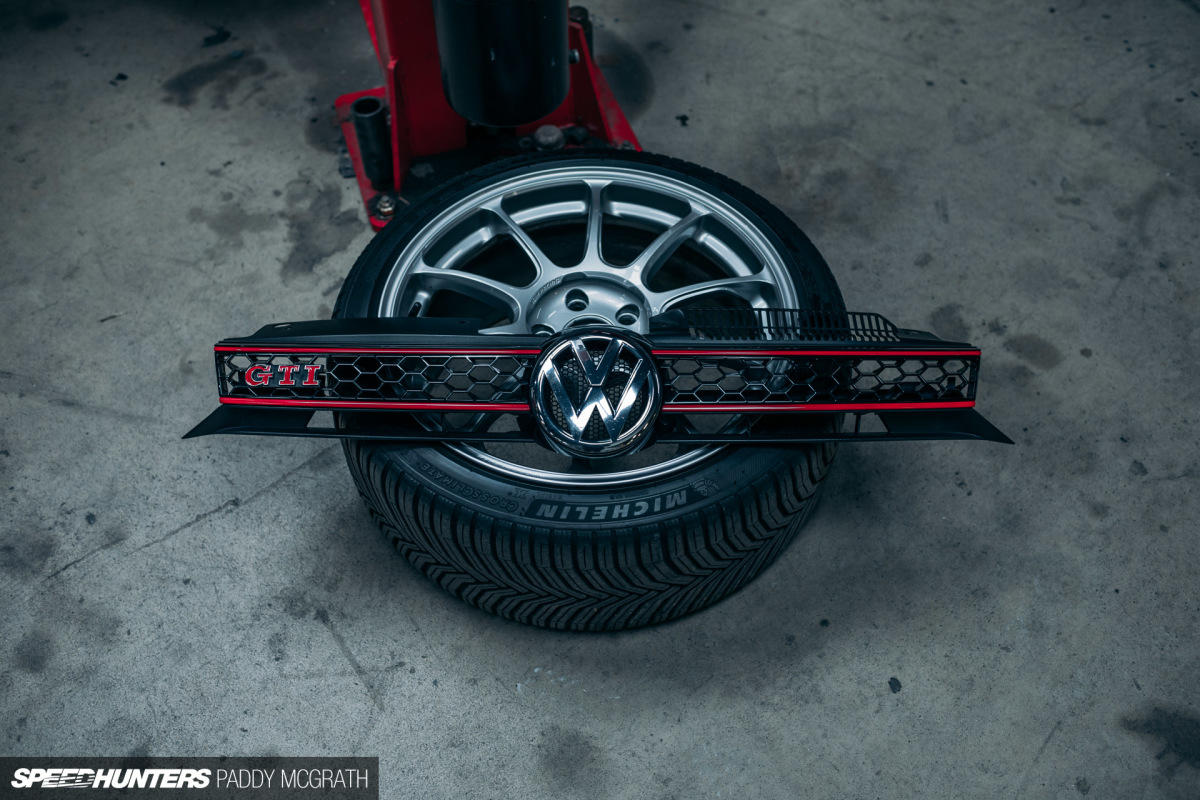

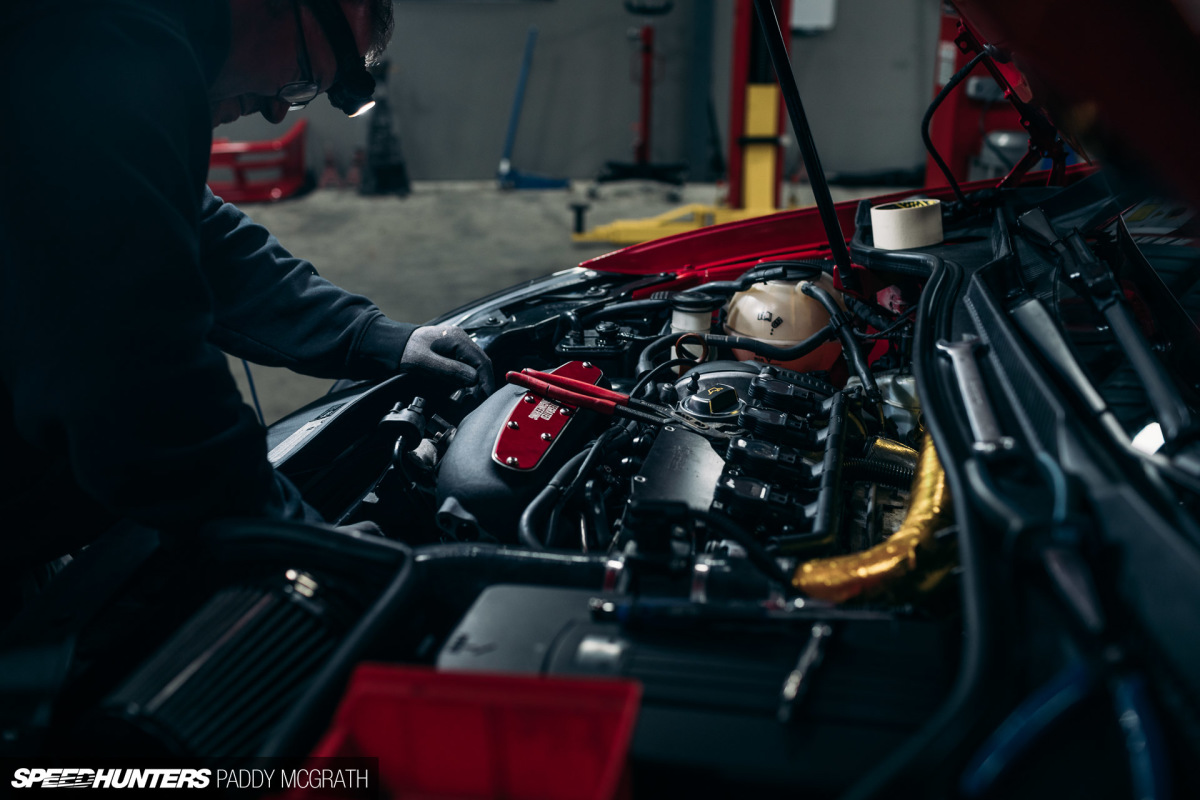

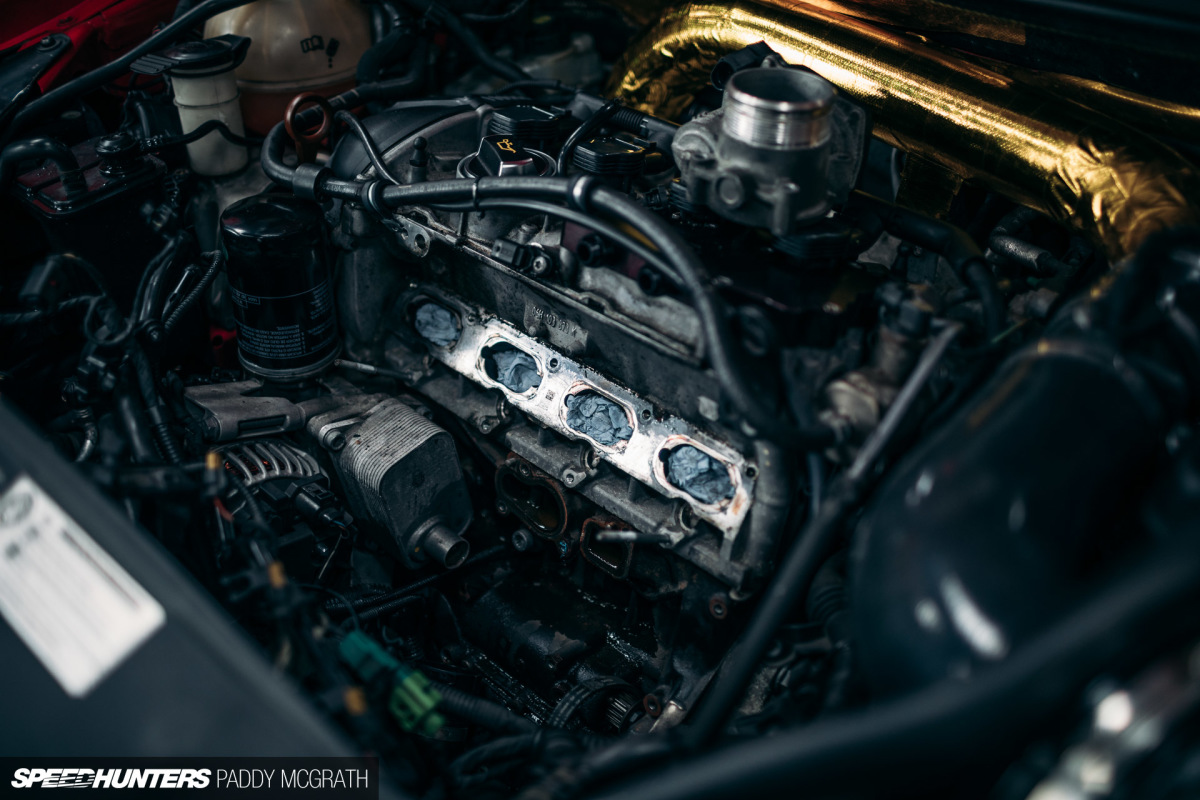

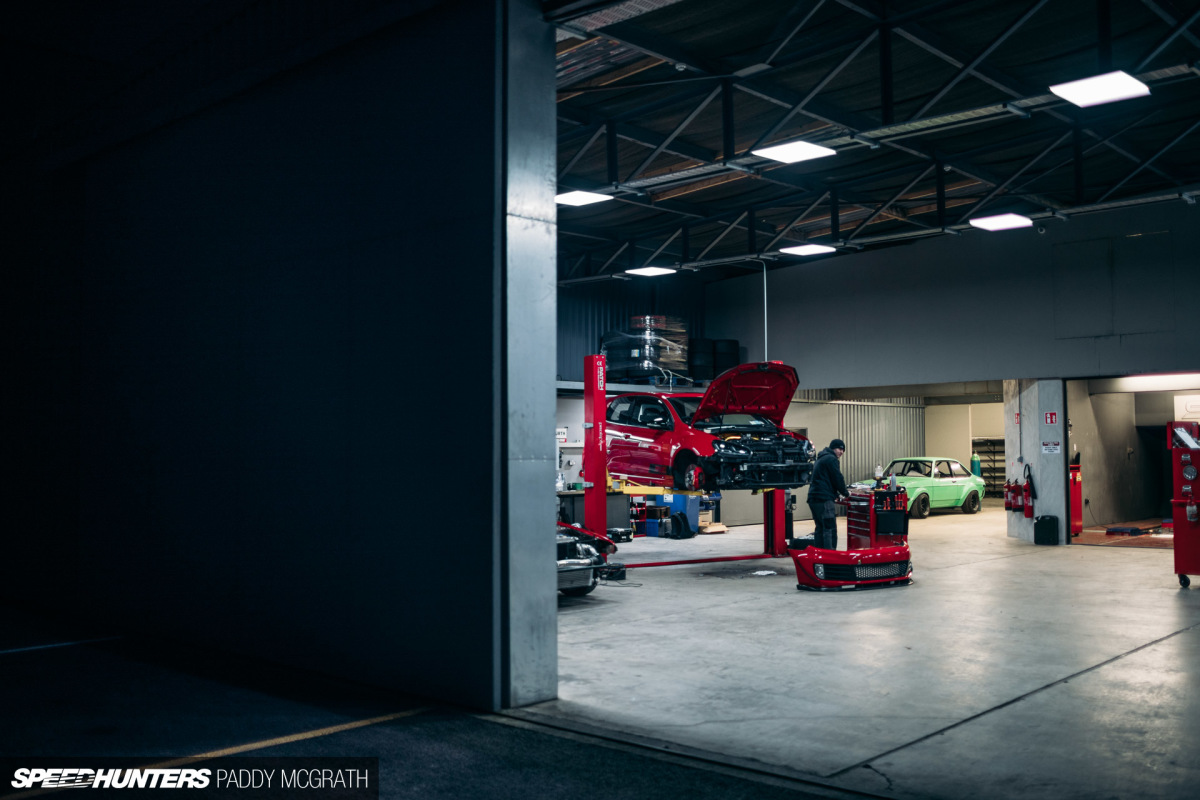

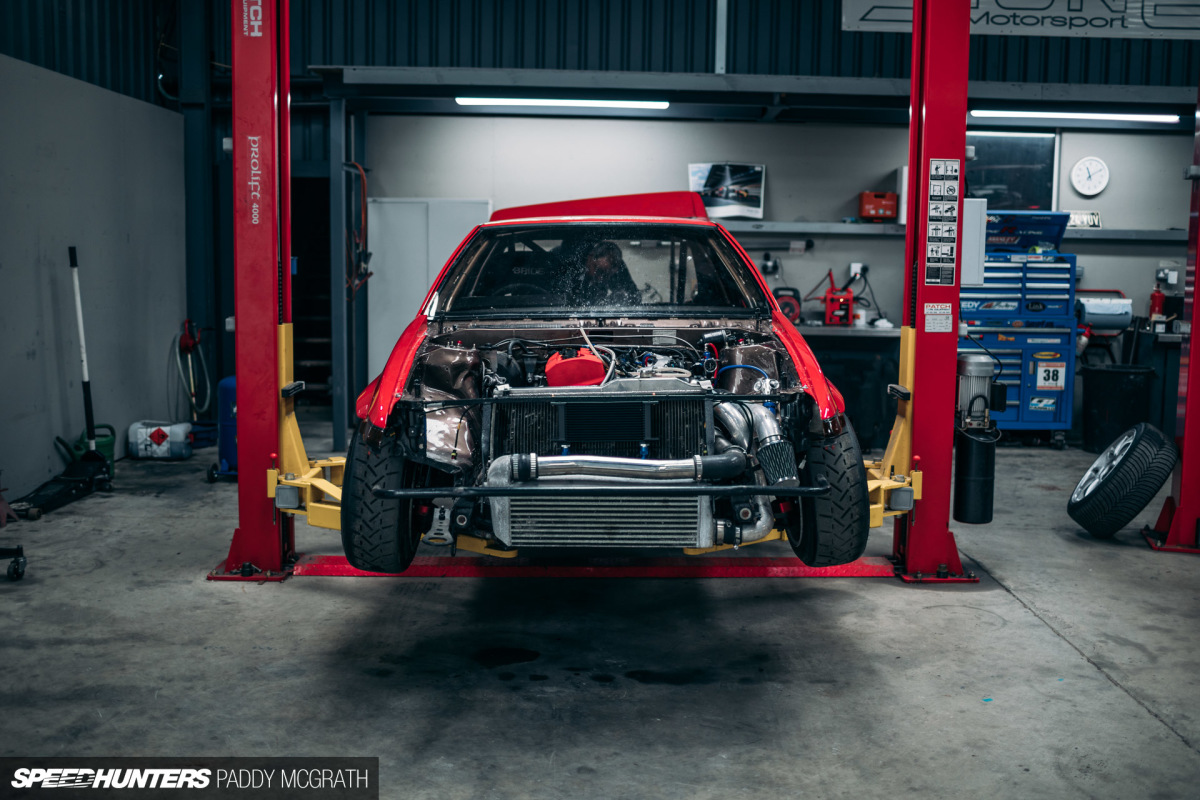

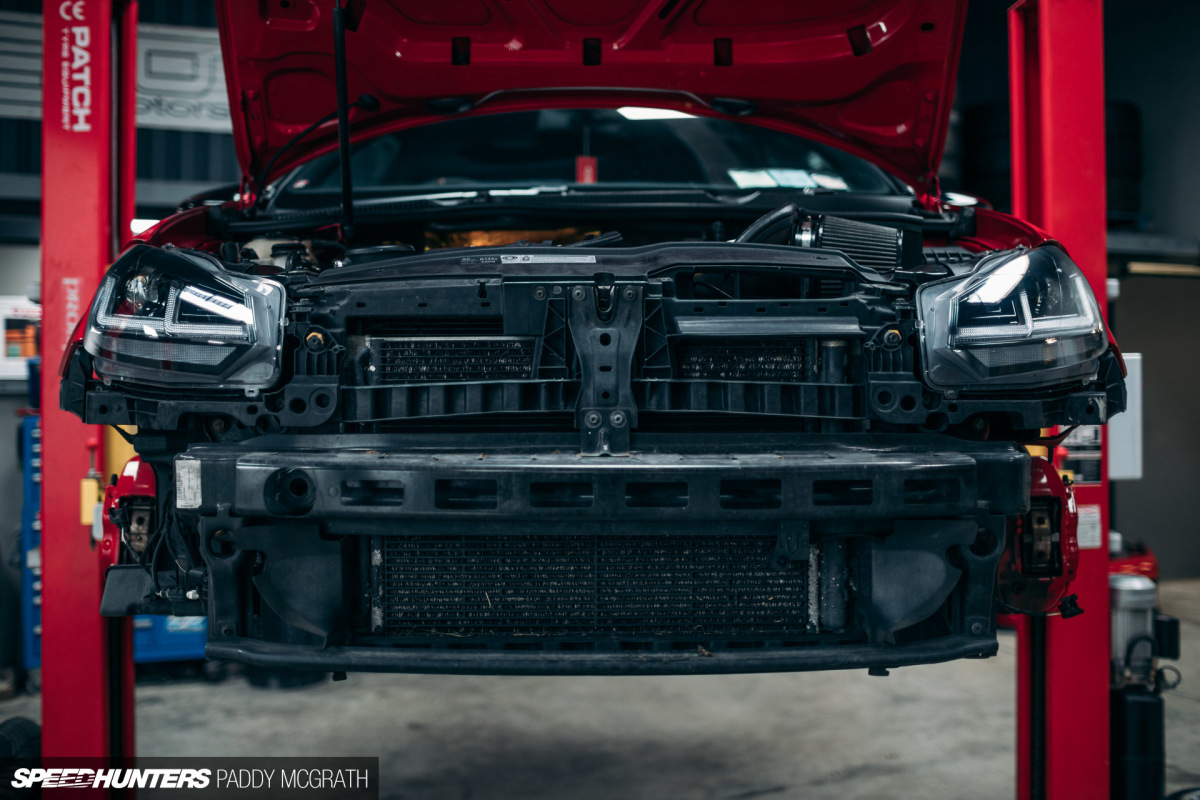

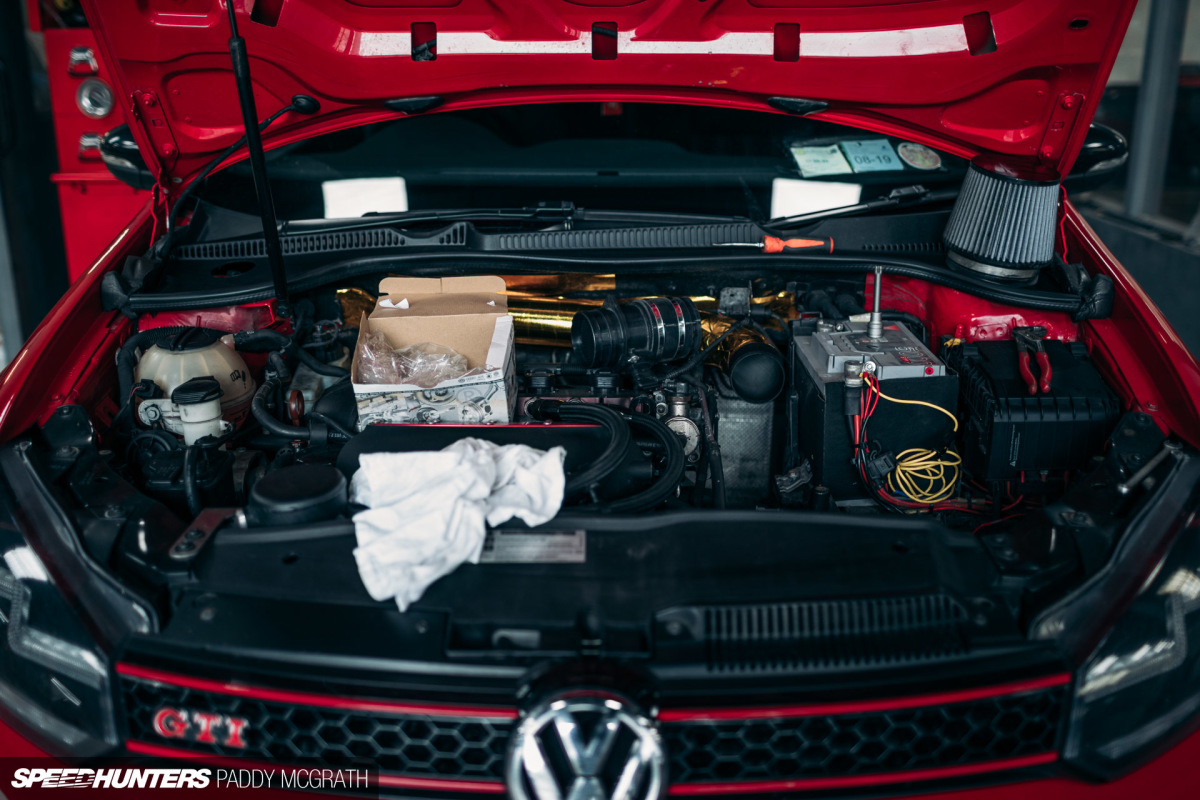

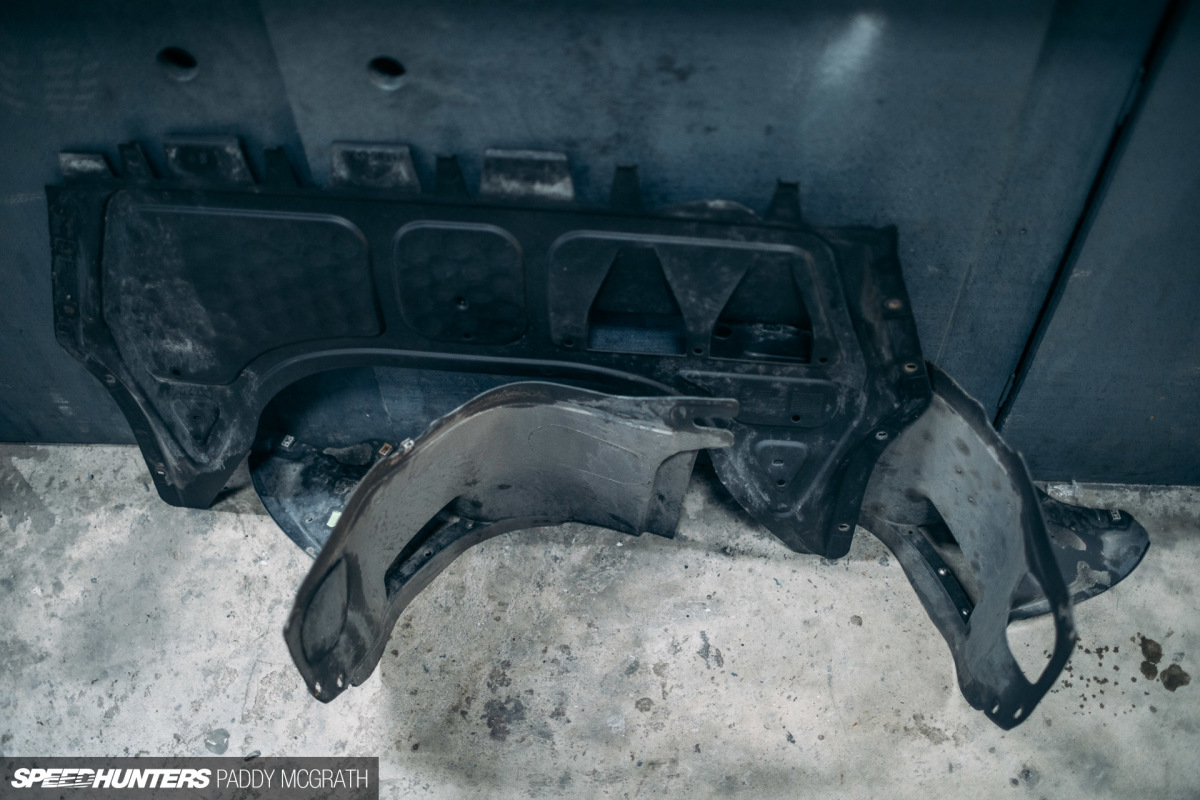

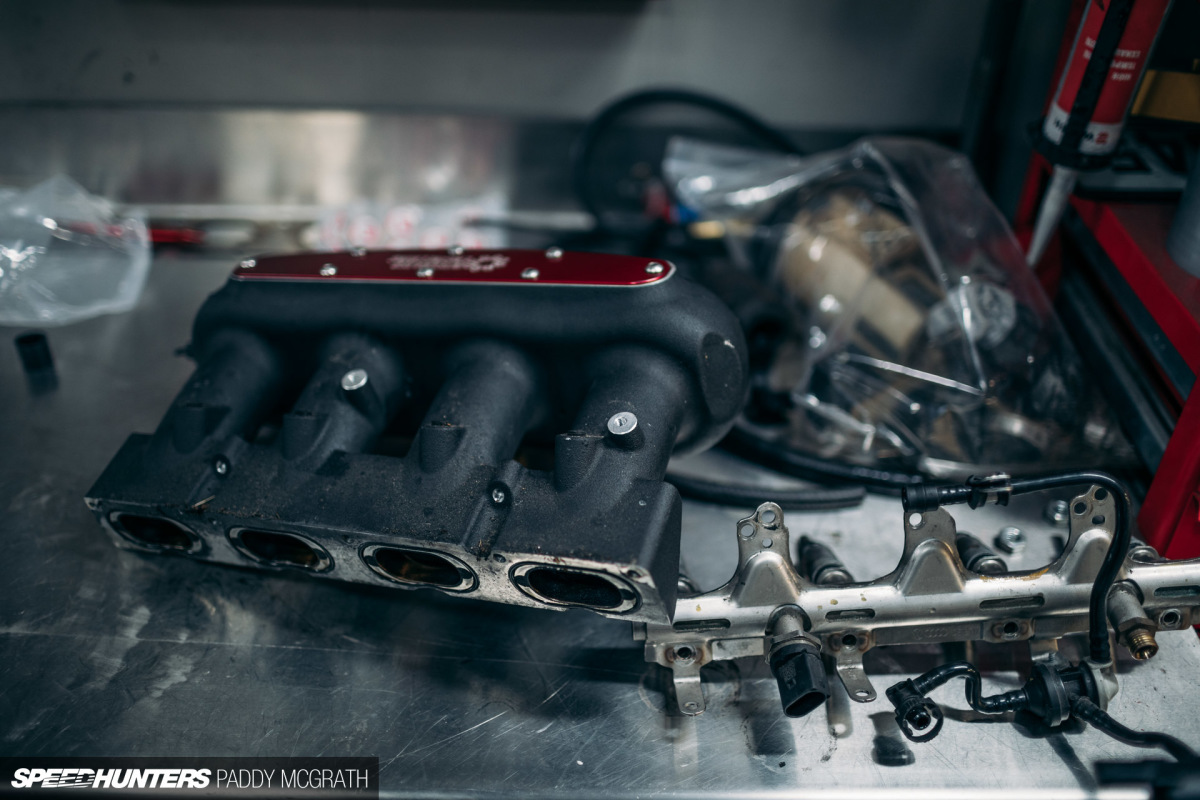

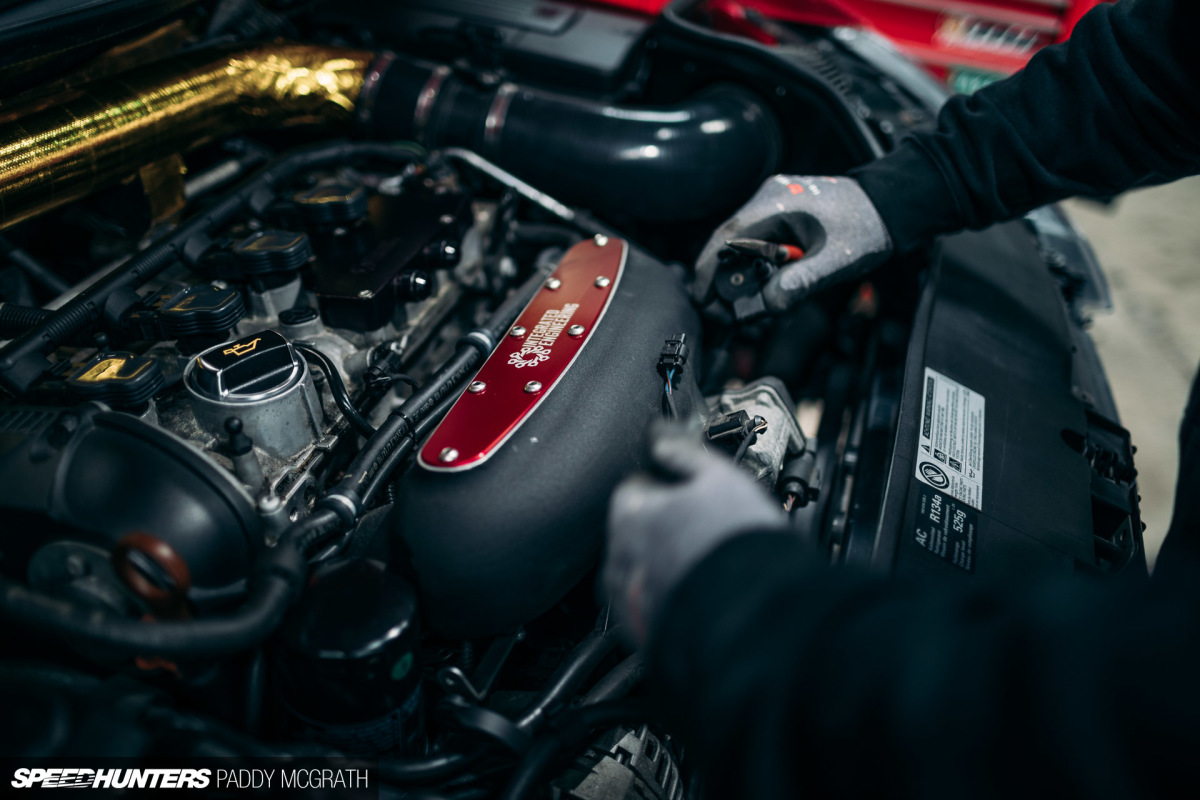

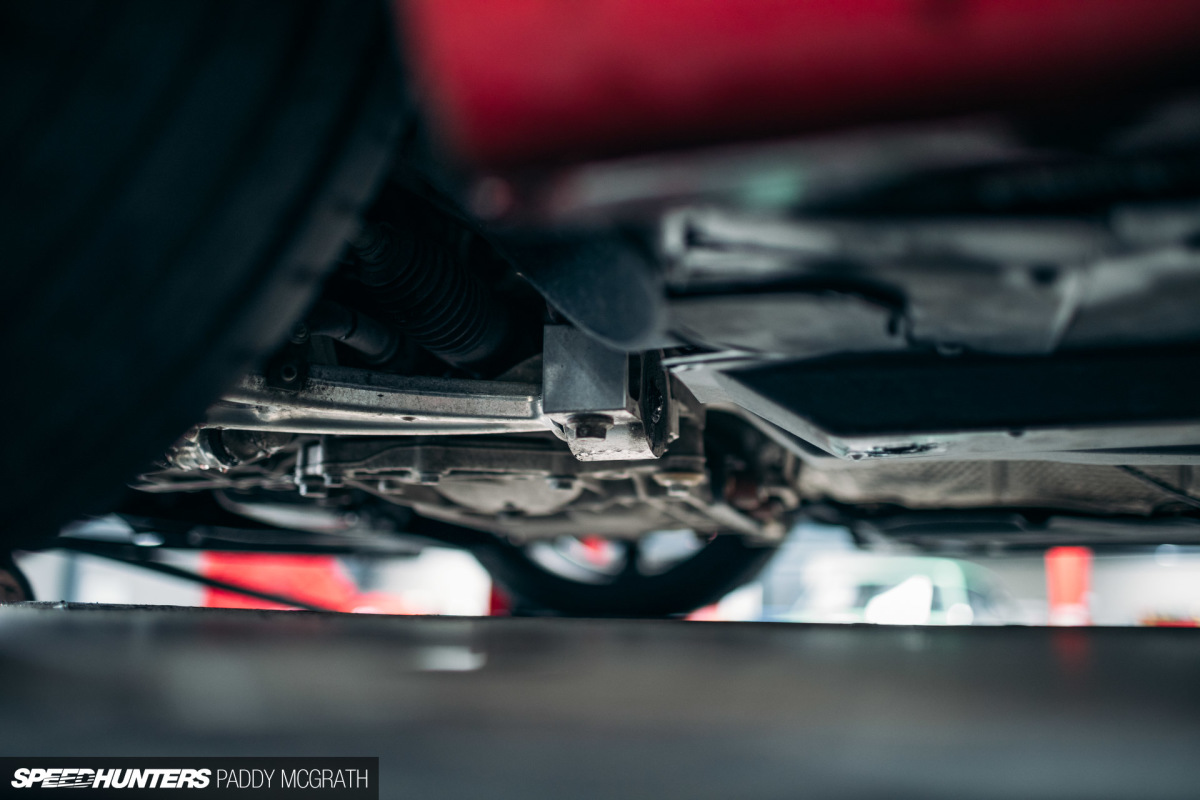

Thus, a fairly thorough strip down of the front of the engine and car requiring the intake manifold, catch-can, throttle body, fuel rail with injectors, water pump, bumper, under-tray and splashguards amongst others to be removed. It was during the removal of the under-tray that we discovered a hole in one of my intercooler’s boost pipes. Another thing for the list…

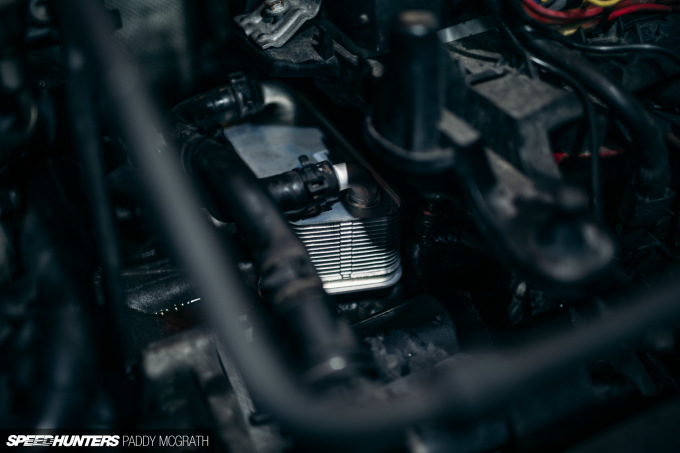

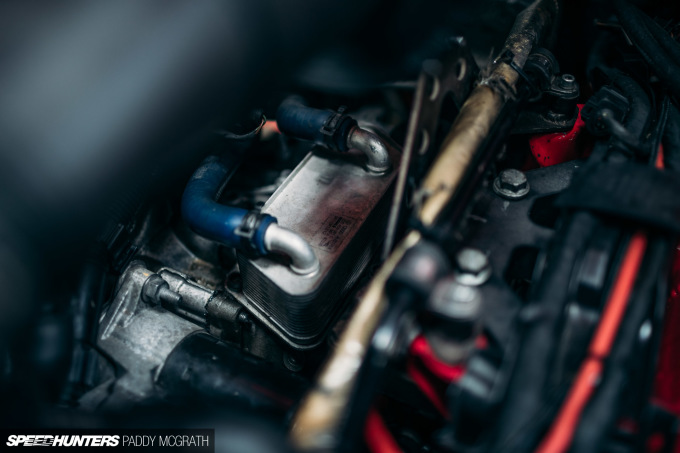

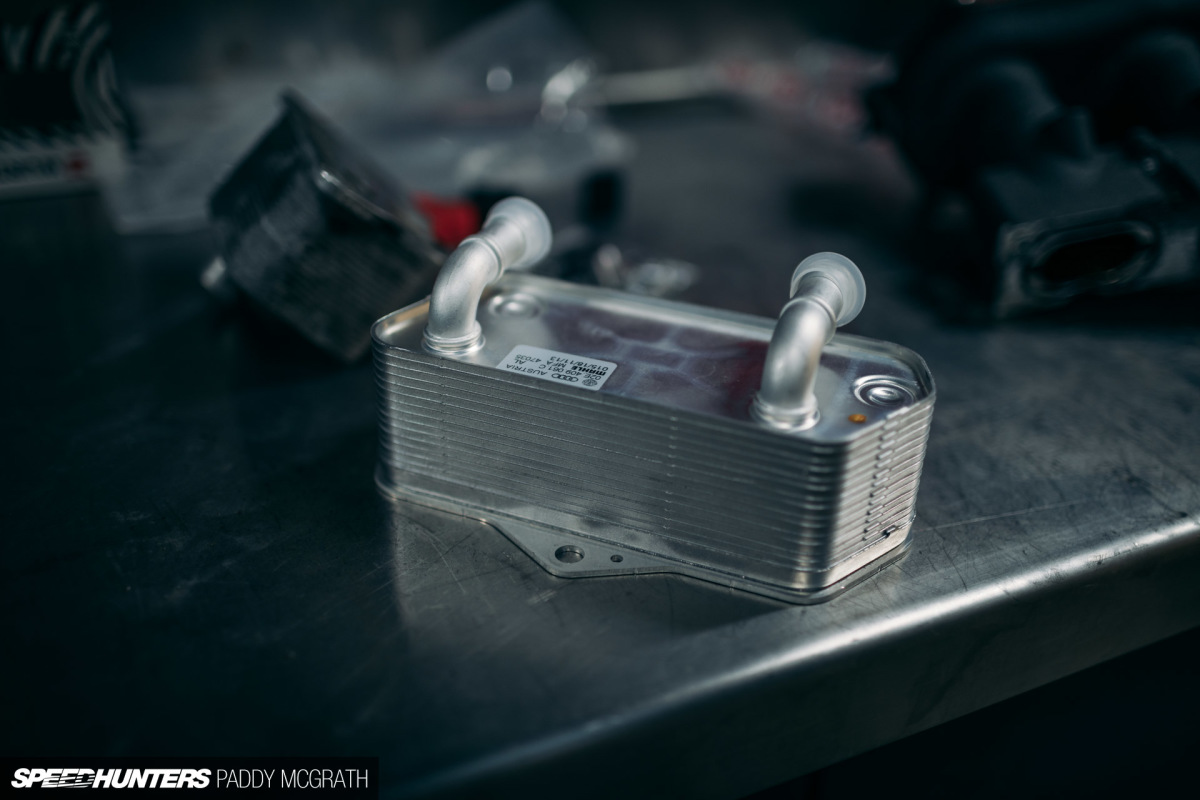

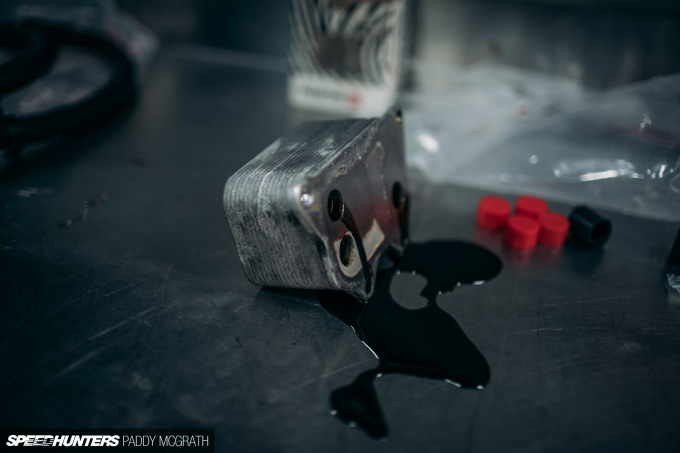

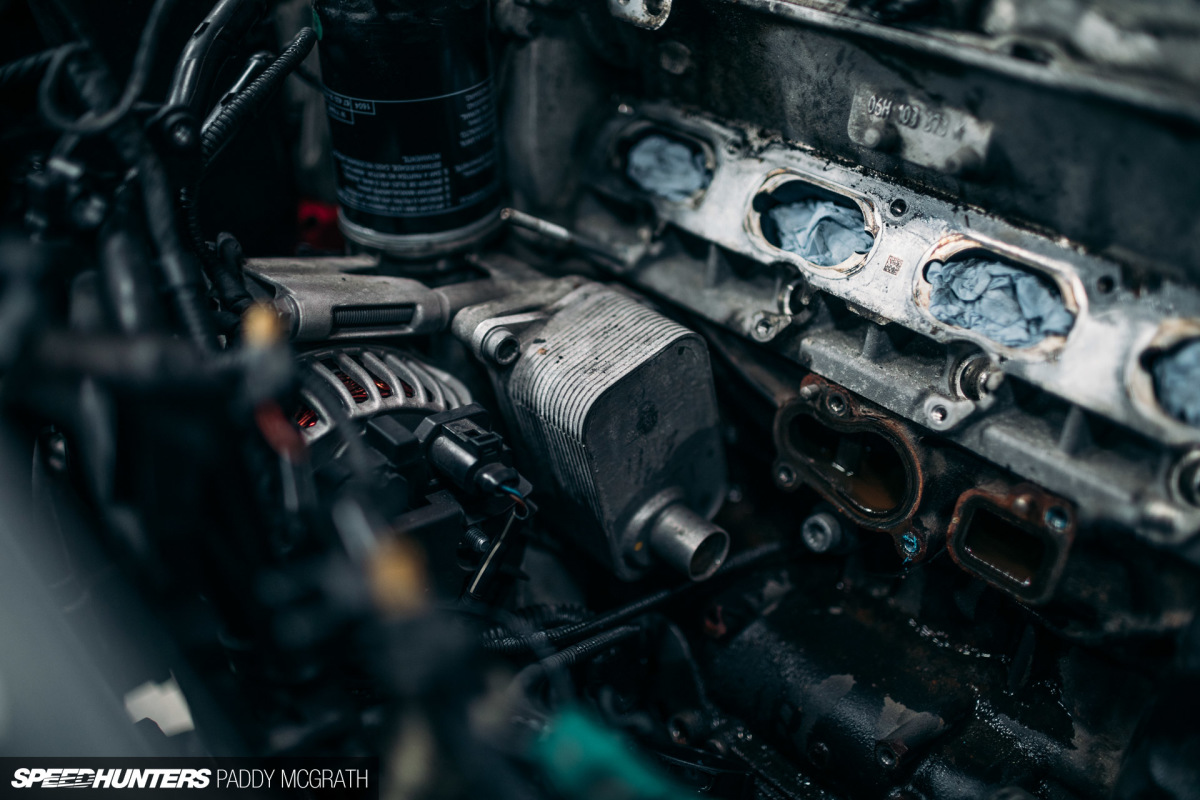

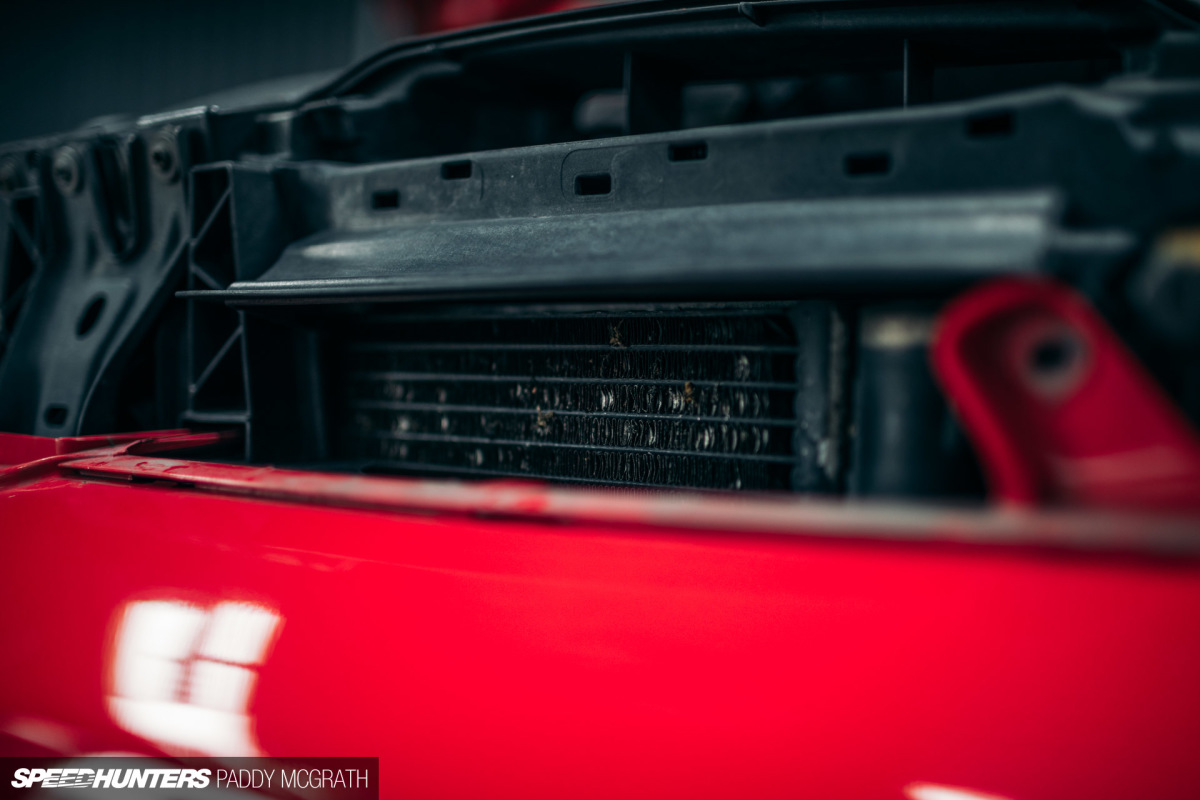

This is the rather inefficient factory oil ‘cooling’ solution. You often hear people stating that surely the manufacturer knows best when building a performance car, but this is a great example of the compromises that have to be made for a car to make it into production. It’s perfectly adequate for the majority of owners, but if you intend on tracking your car, it should be a mandatory upgrade.
As water will heat faster than oil, this factory heat exchanger allows coolant to flow through it in order to help oil temperatures increase from a cold start. When the oil does get hot, it depends on the normally lower coolant temperatures to try and cool the oil.

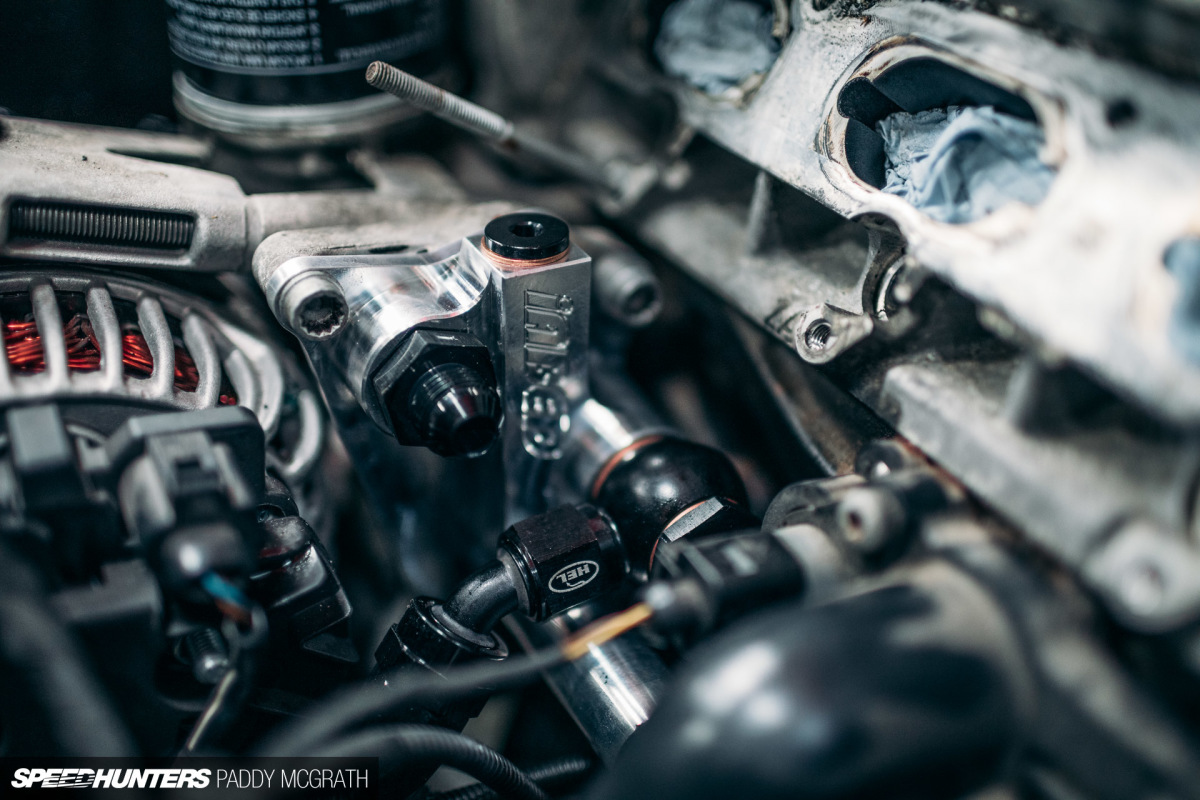

The new take-off plate still allows coolant to pass-through to assist in warming the oil, but also sends and receives the oil from the new (and soon to be front mounted) dual-pass oil cooler.
As a small aside, I was able to inspect the valves after having them cleaned nearly two years ago to check if the Integrated Engineering PCV bypass and catch-can setup were proving effective. The valves had only a light coating of dry carbon on them, and not the heavy, oily sludge that they had before. I guess that definitively answers the question if catch-cans work on these engines.

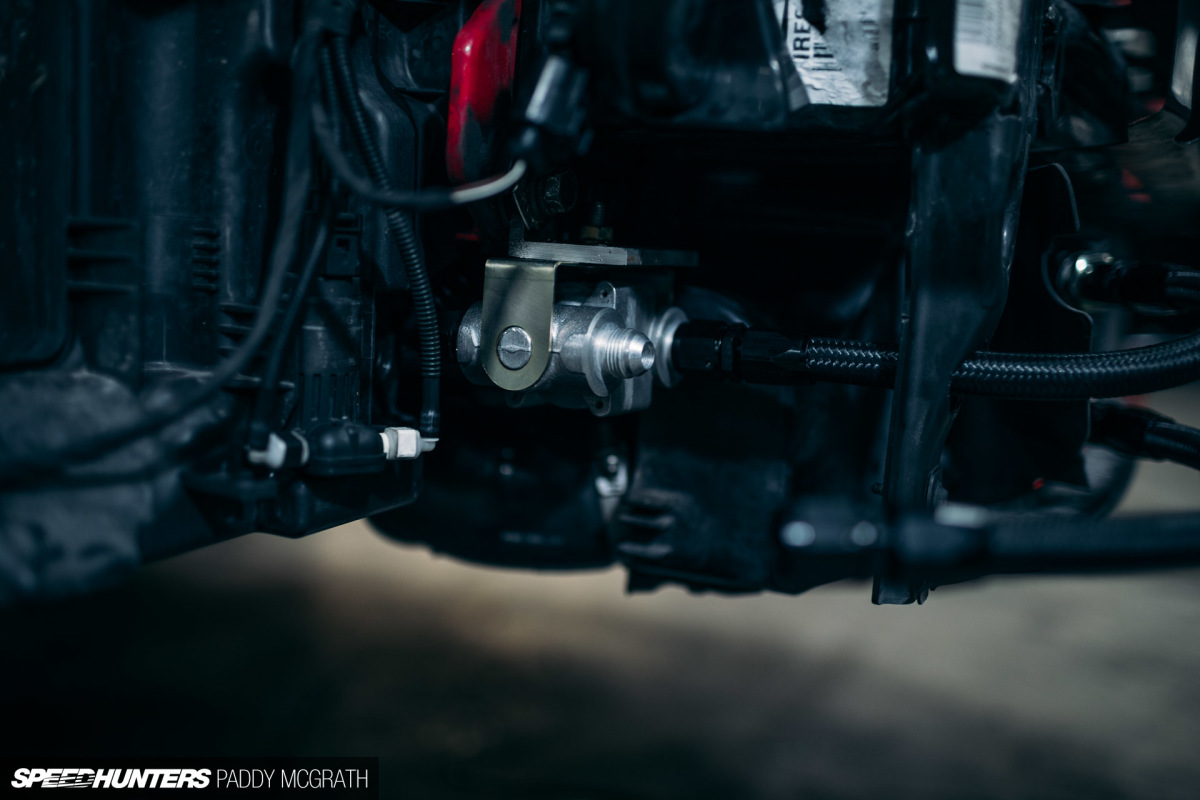

With the take-off plate installed, John started working on figuring out an optimal location for the thermostat. Packaging on these cars is quite tight, so you’re limited in where you can install these.

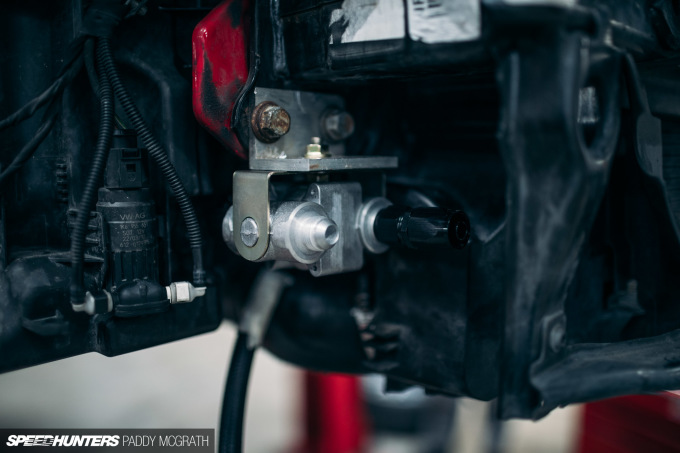

After fabricating a neat, small bracket, the thermostat was attached amongst the front crash structure on the face of the driver’s side chassis leg.

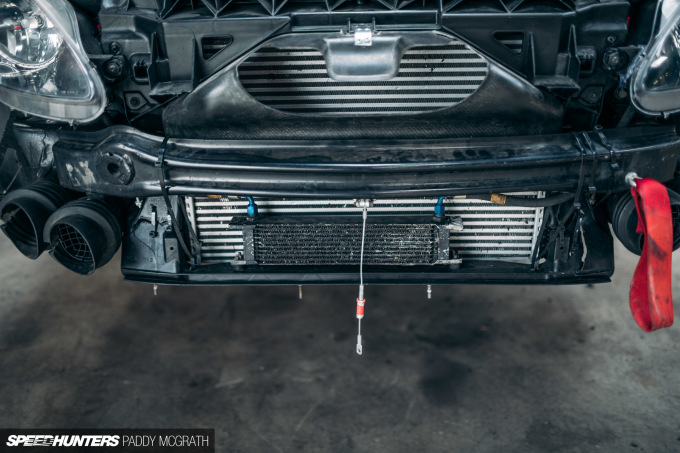

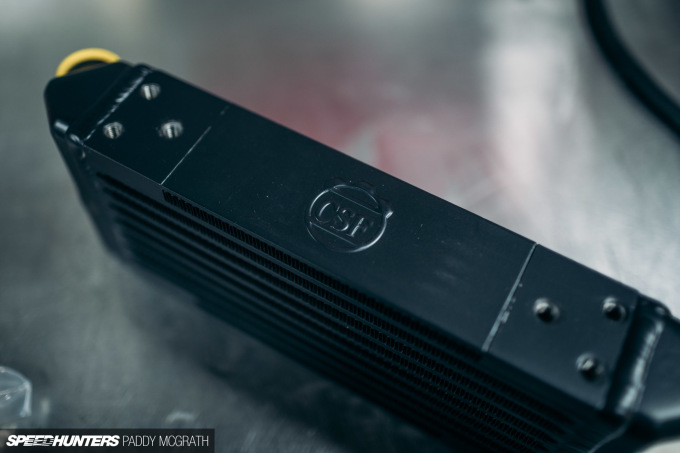

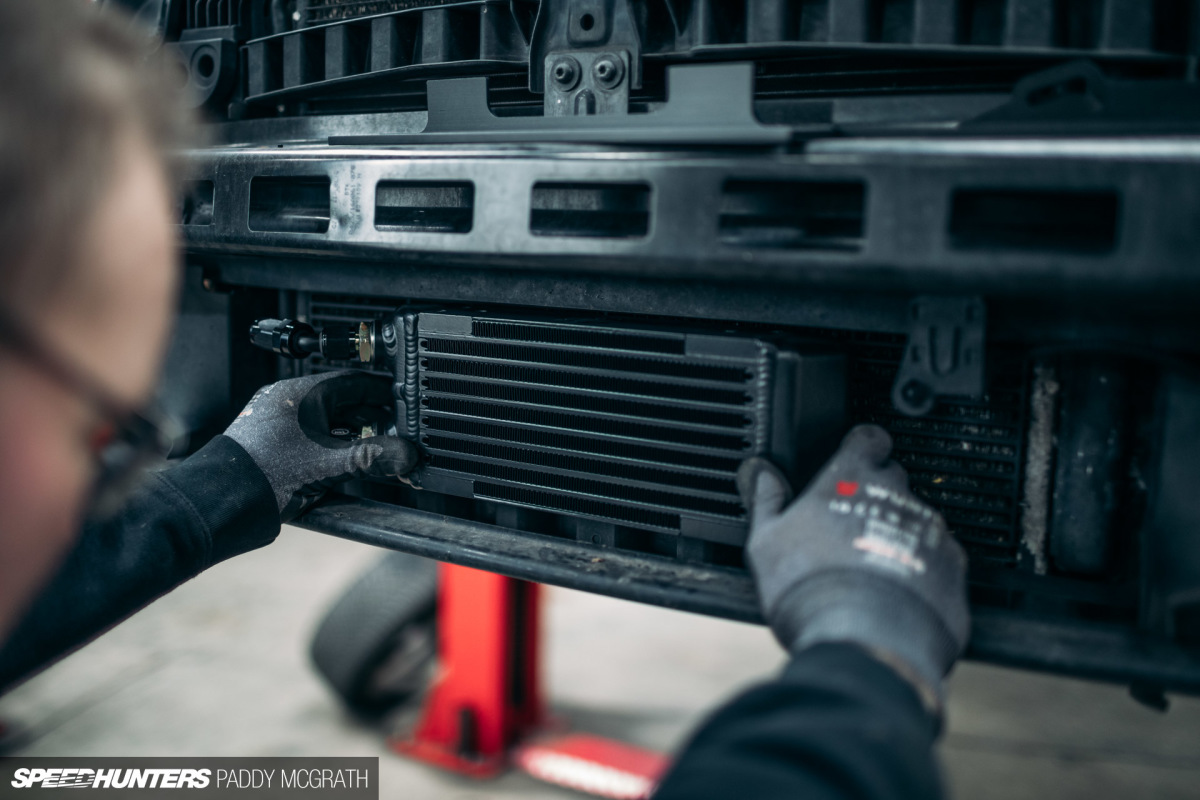

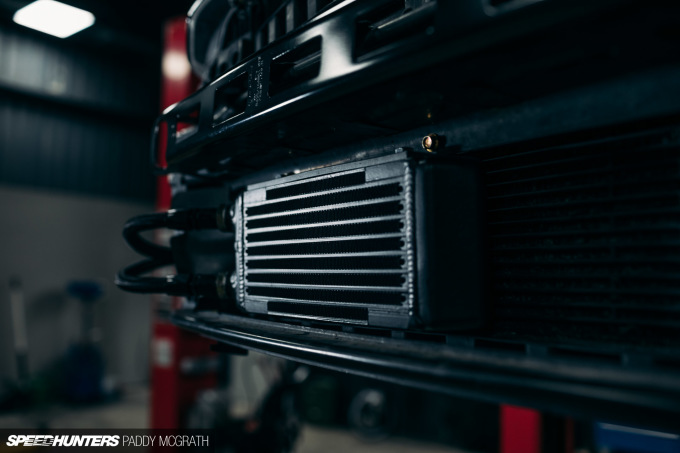

We (John) were able to make use of the brackets supplied with the other kit to mount the CSF oil cooler, albeit with a couple of small modifications.
A fairly central position was decided upon, in order to allow the braided lines running from the thermostat a chance to flatten out before connecting to the oil cooler, after they had rounded a relatively sharp bend at the front.
To ensure the lines were connected correctly, we needed to briefly turn over the engine to double check the direction of oil flow from the thermostat. As luck would have it, we (again, John) had it right first time.

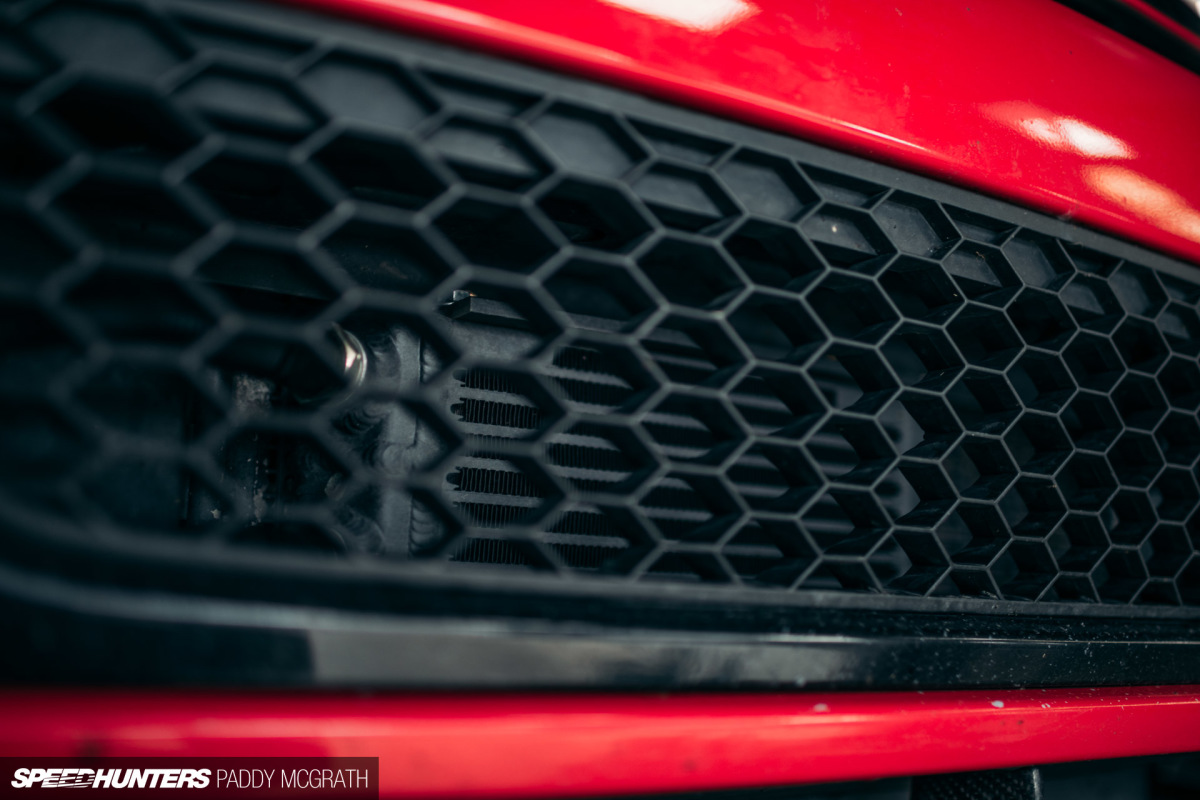

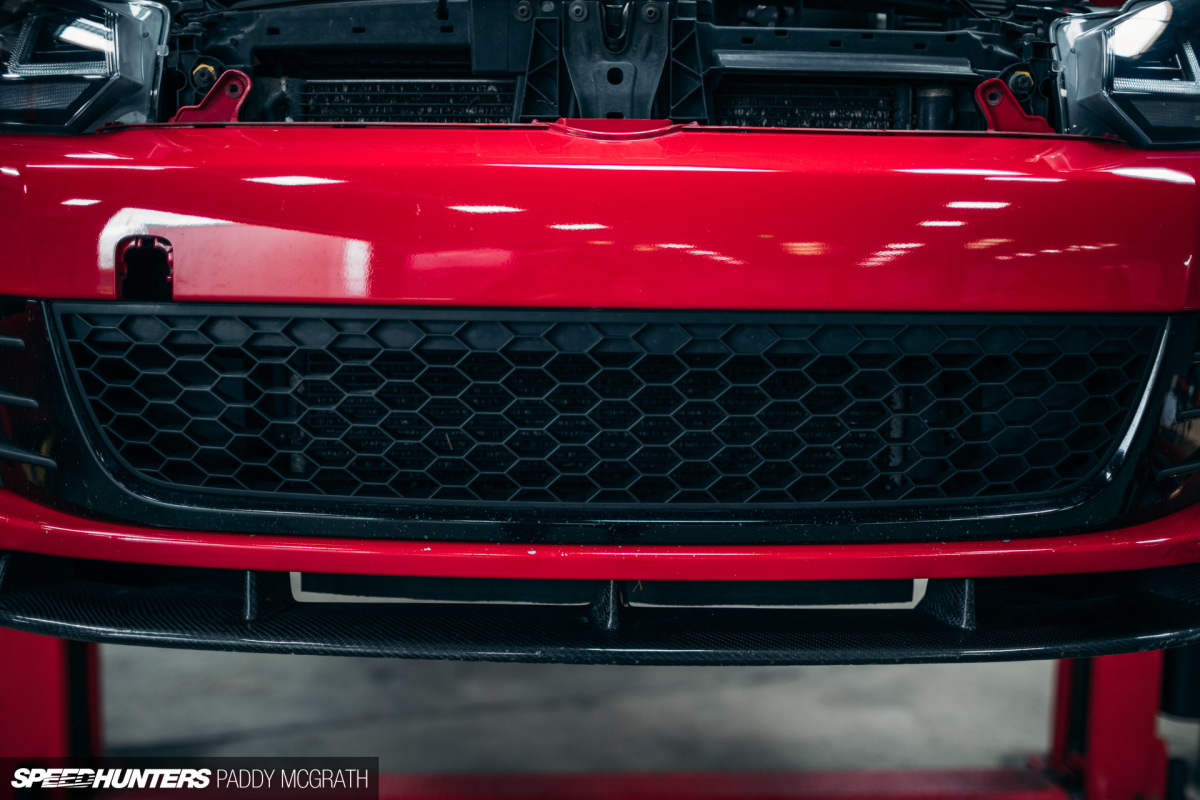

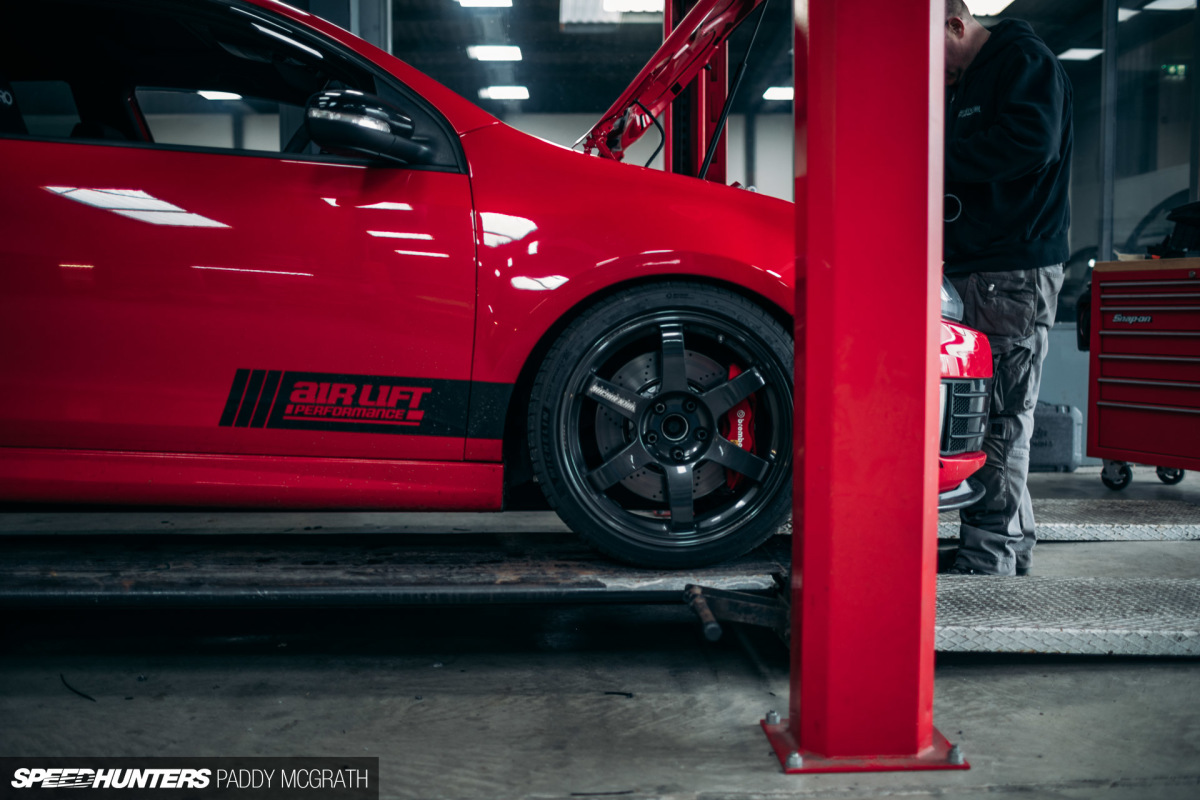

There were a couple of trial & error front bumper fittings to ensure that the oil lines weren’t fouling on the inside of the bumper (or anywhere else for that matter). Once perfect fitment was achieved, it was time to put everything back together.

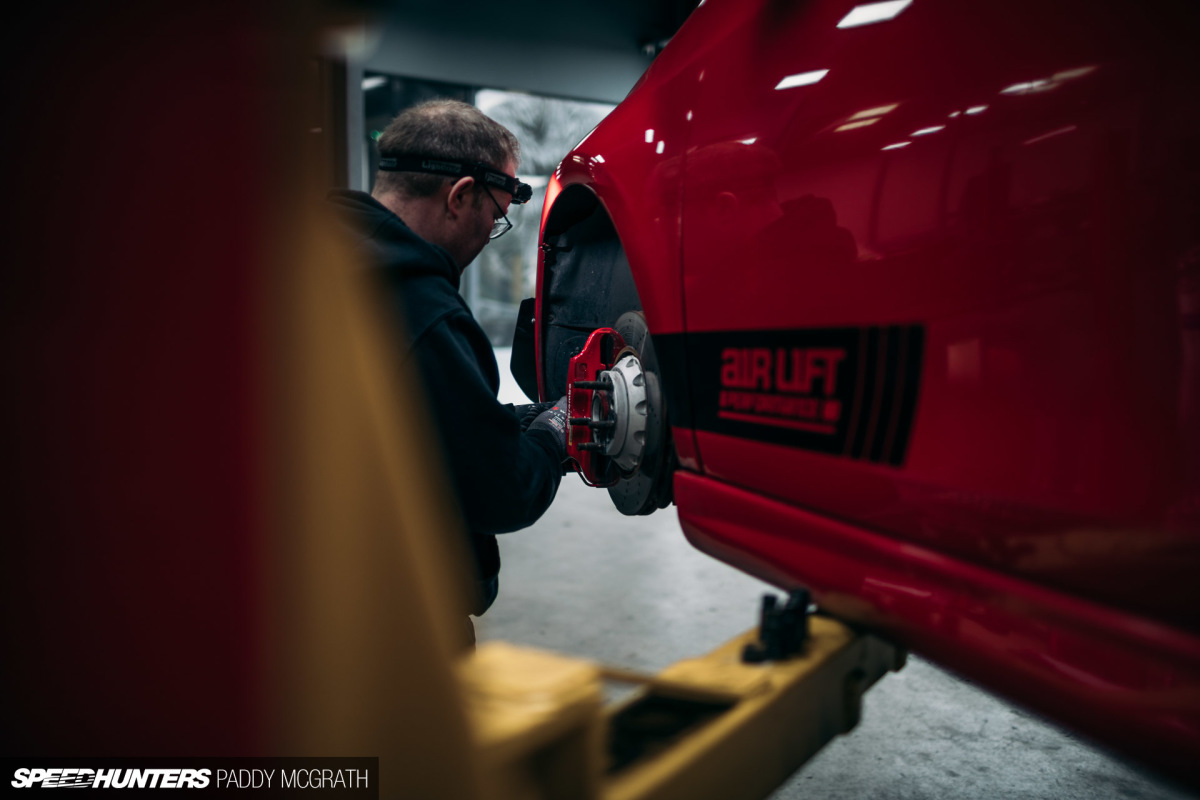

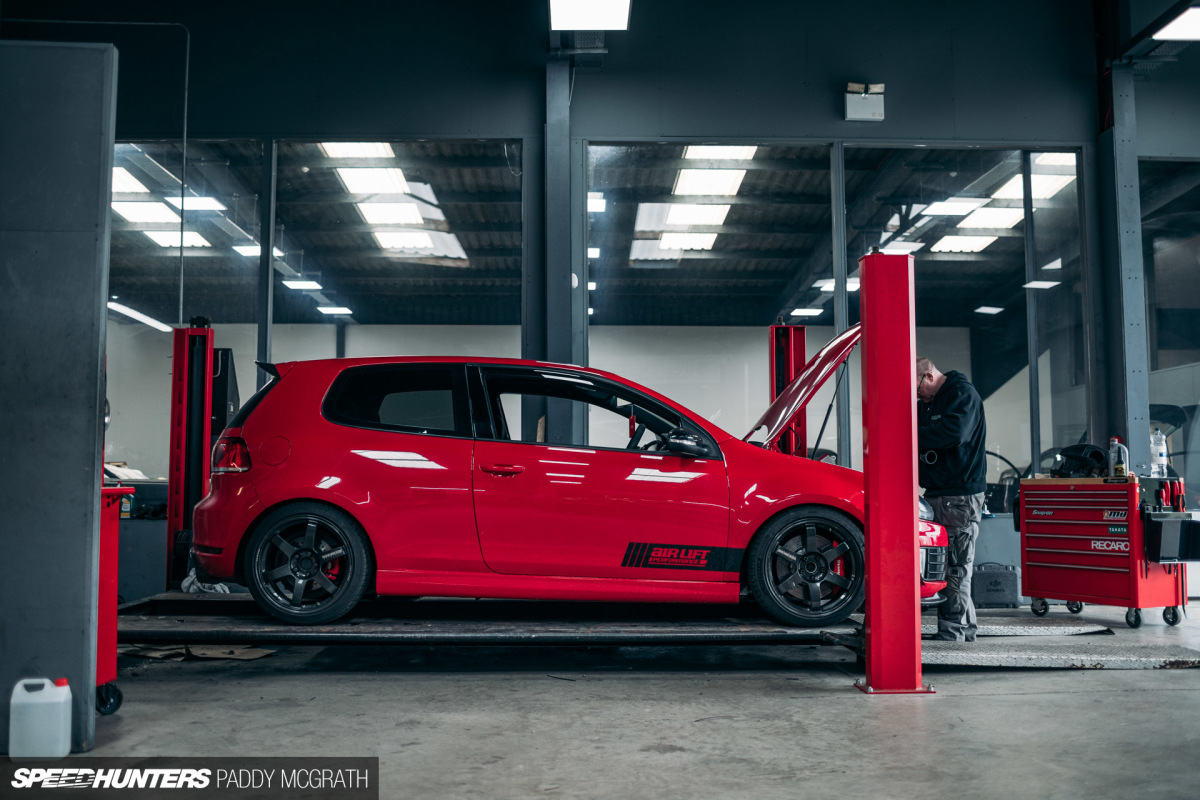

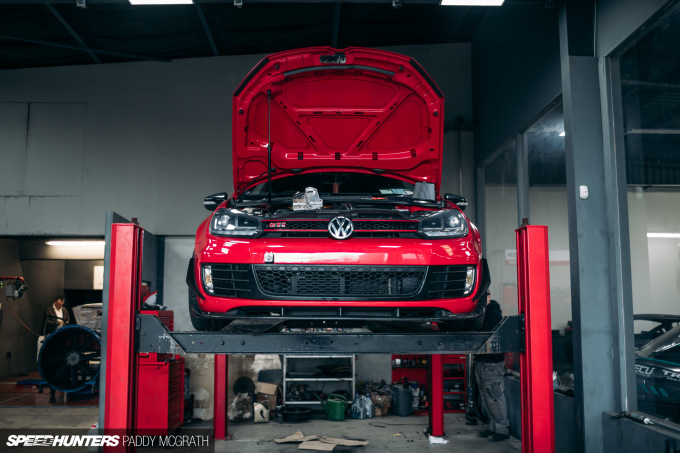

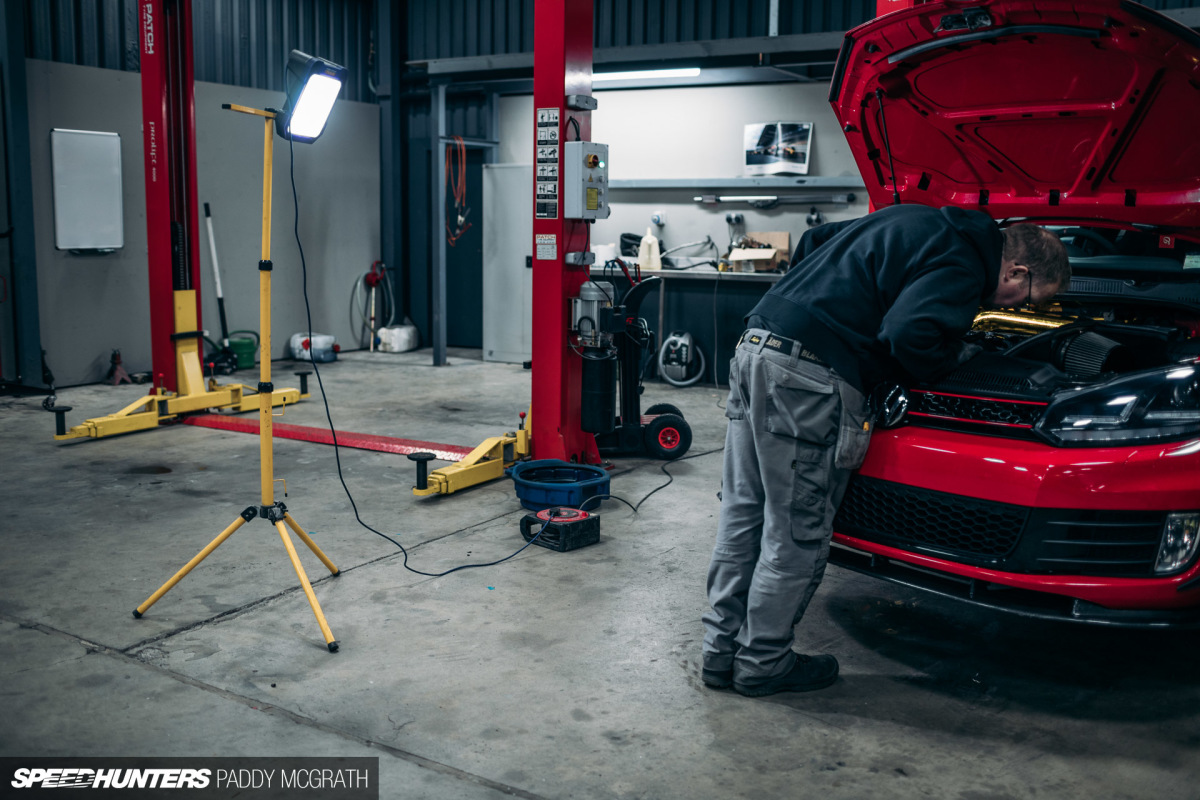

This was a pretty comprehensive installation, and certainly not something I would have ever attempted at home. With everything buttoned up, we started the car and let it idle up to temperature in order to check for leaks or any other issues that might raise their heads.

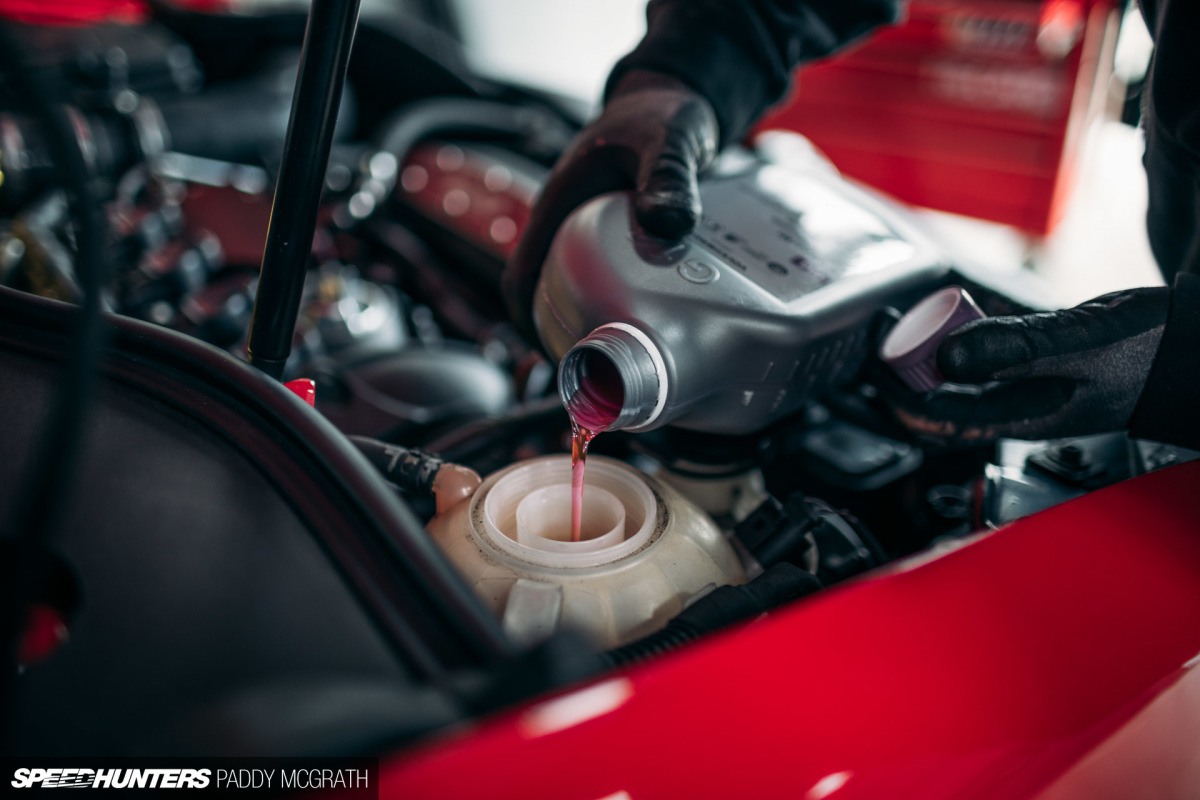

We obviously changed the oil filter and oil during the process, and as far as I remember, the car only required maybe an extra litre of oil. Even this extra litre on its own will play its role in helping to reduce oil temperatures.
It was a late finish, which provided the perfect conditions for a speedy journey home.
The difference in oil temperatures were immediate, with an instant reduction of over 15°C at motorway cruising speeds and a reduction of 20°C under other driving conditions. On a spirited drive, where I was previously seeing peaks of 115°C (239°F), I’m now consistently below 100°C (212°F).
These reductions on the street bode very well for on-track shenanigans, where I’m aiming for an oil temperature window of 115°C (239°F) to 120°C (248°F). This was just part one of this story, as it would be a few weeks before I would be able to get back down to Stone Motorsport for part two…Some Time Later
In fact, it was around three weeks before we commenced the final work on Project GTI. It was just enough time to order a new boost pipe and have it shipped to Ireland from the USA for maximum ‘sure, while you’re at it…’ convenience, along with swapping back onto my RAYS Volk Racing TE37 Saga summer setup.

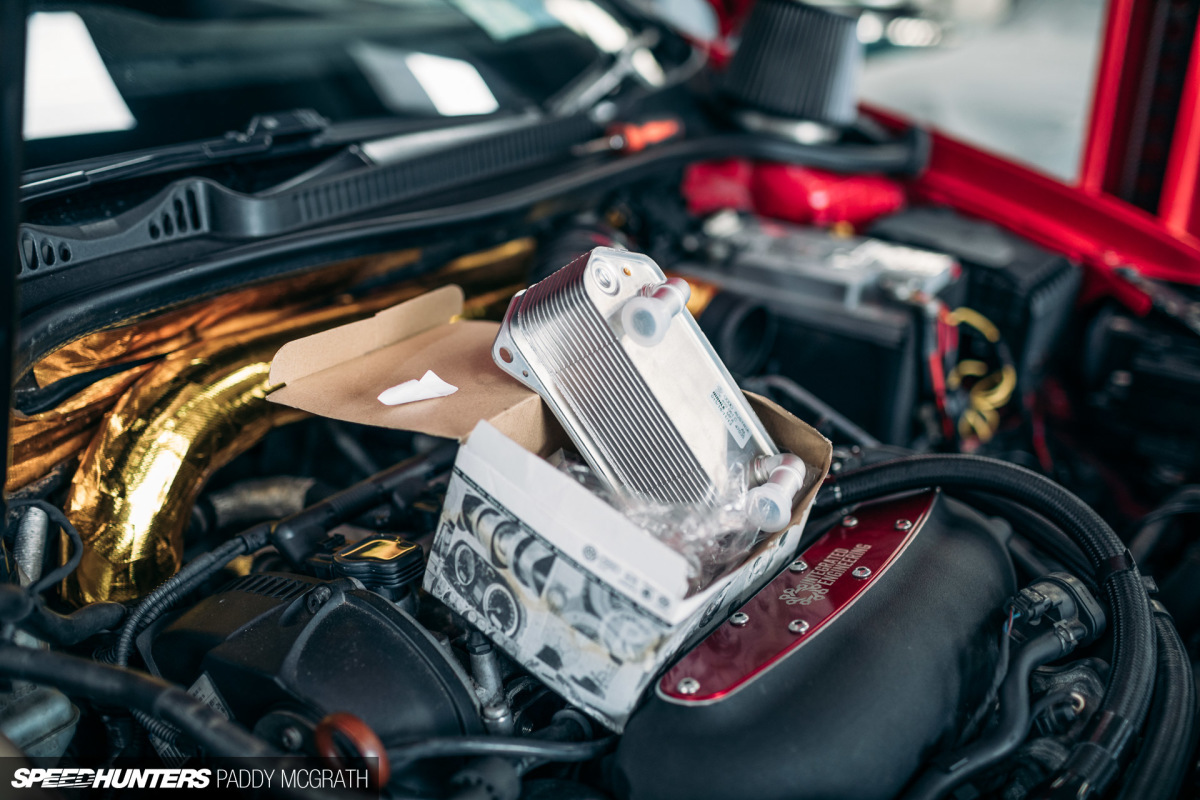

The primary purpose of this second visit was to upgrade the factory DSG cooler. As per last year, the ‘box went into limp mode after a relatively prolonged session on track resulting in reduced shifting speed in order to protect itself.

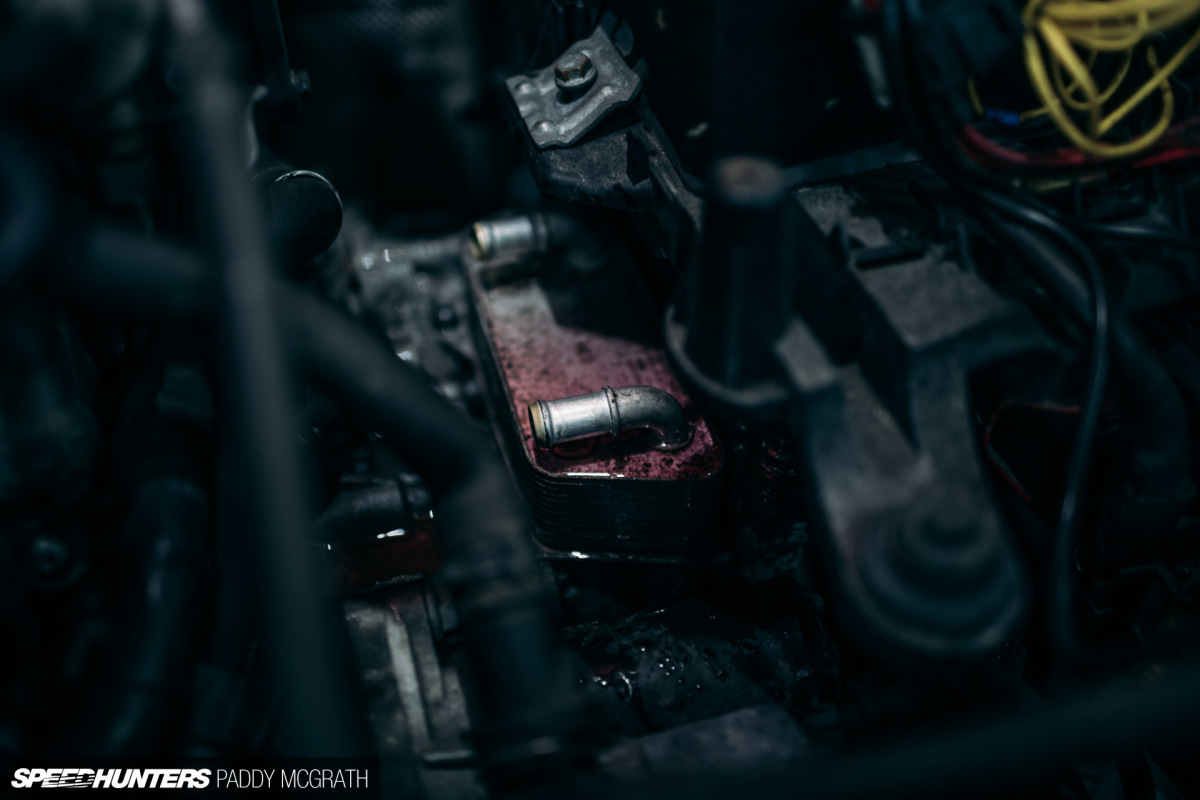

Similar to the factory oil heat exchanger, the factory DSG heat exchanger works in pretty much the same fashion where the engine coolant helps to get the gearbox oil up to temperature, before being depended on to keep temperatures in check.
This was a trickier upgrade to research, as it’s a much less common one to make. There were no aftermarket solutions that I could find for the MK6, so I took to researching the Volkswagen parts bin to see what my options were. I went deep down this particular rabbit hole.
I can’t recall precisely how I found this information, but in Russia, there are some hardcore Škoda Yeti enthusiasts who have had issues with overheating DSG transmissions while off-roading. As luck would have it, the Yeti uses the same (or least very similar) factory DSG heat exchanger as the MK6 GTI, and their solution to the problem was to use a larger one from the AWD Golf MK5 R32.
So, that’s what I ordered.

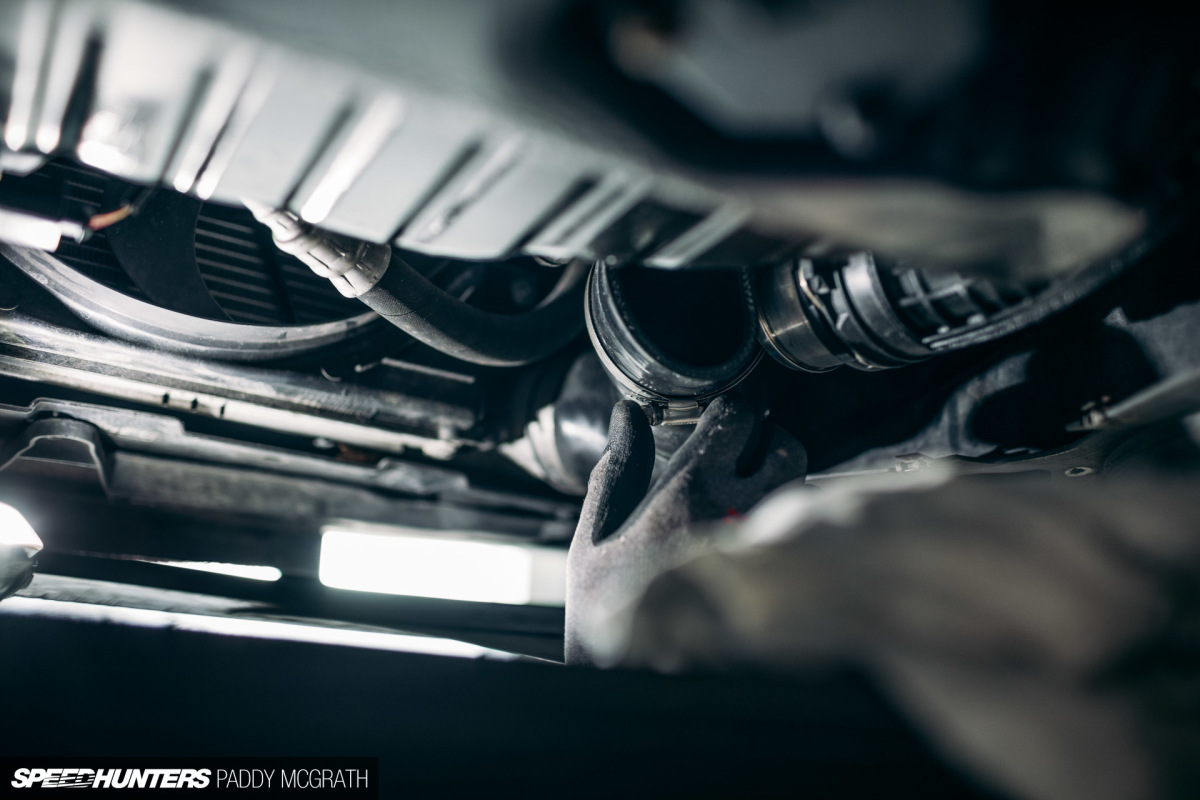

Thankfully, the DSG heat exchanger is infinitely more accessible than the original engine oil heat exchanger, being located behind the air intake and sort of beneath/beside the battery. You lose a little coolant during the installation, but that’s pretty much the worst of it. The larger heat exchanger is approximately 10mm taller than the previous one, allowing it to hold more coolant while also having a larger surface area inside to transfer heat from the oil to the coolant.
I think it’s an upgrade which should offer a small improvement, rather than a complete revolution.

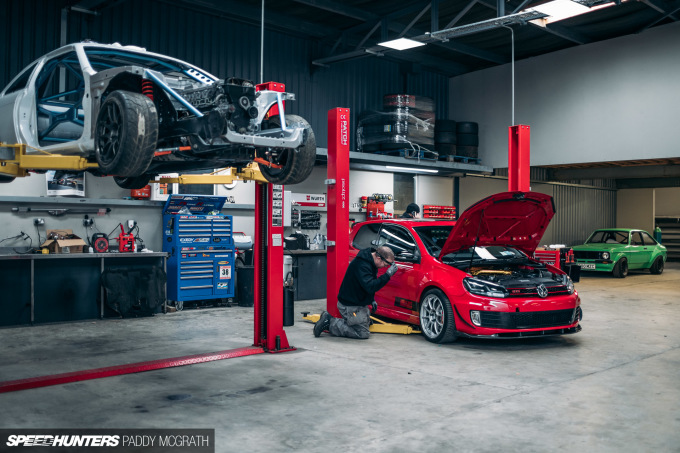

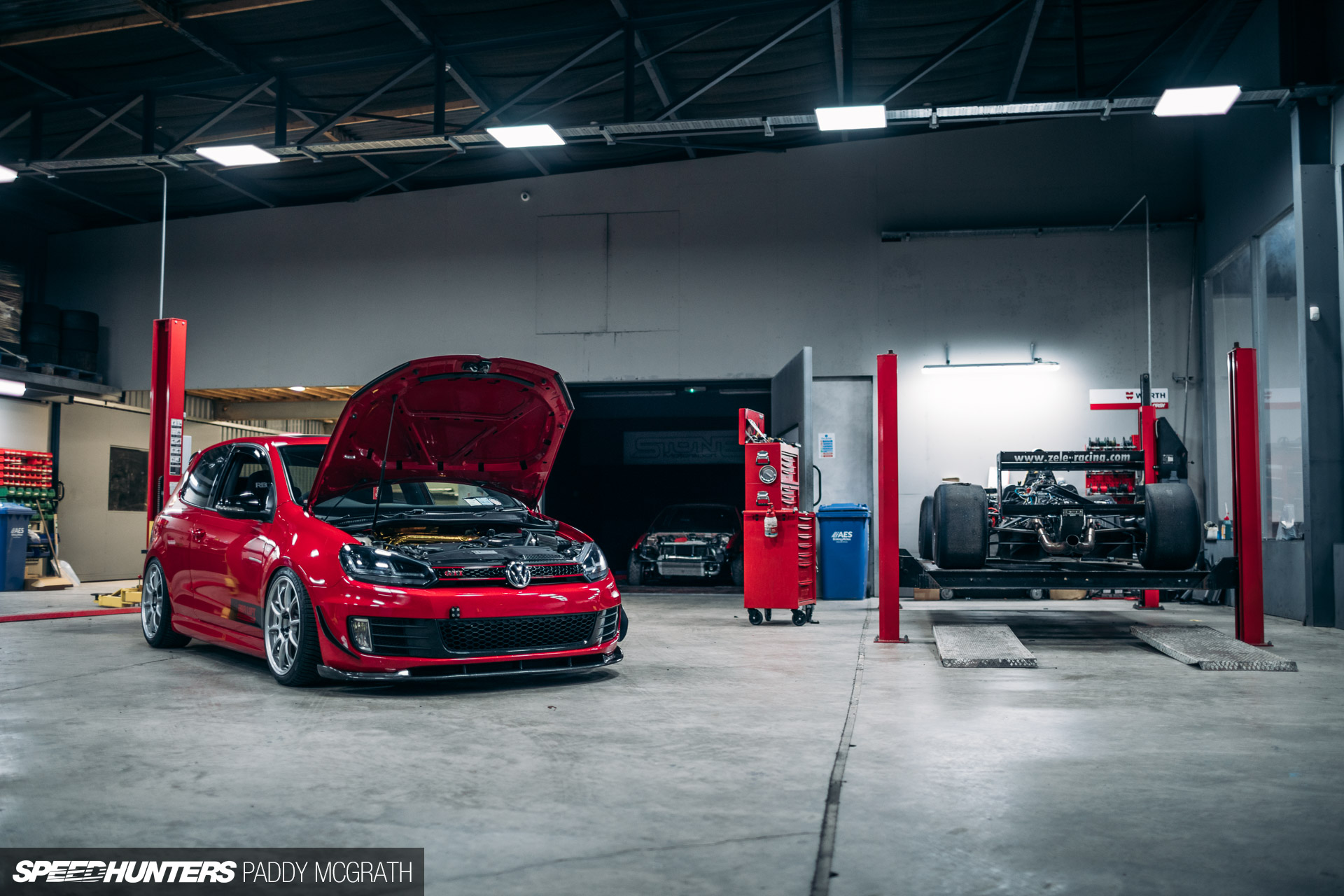

As luck would have it, just across the workshop, was a proper Seat León Supercopa racecar. These are 330hp 2.0TFSI FWD factory-spec racers that were run in a one make series in Europe for several years. They utilise a lot of factory production car components, including the DSG transmission.
For me, it was most interesting to note what Seat’s motorsport division deemed adequate to control transmission oil temperatures. According to the part number, it’s the very same DSG heat exchanger that we had just fitted to my GTI not 20 feet away. If it’s good enough for one of these, it’s almost certainly good enough for me.

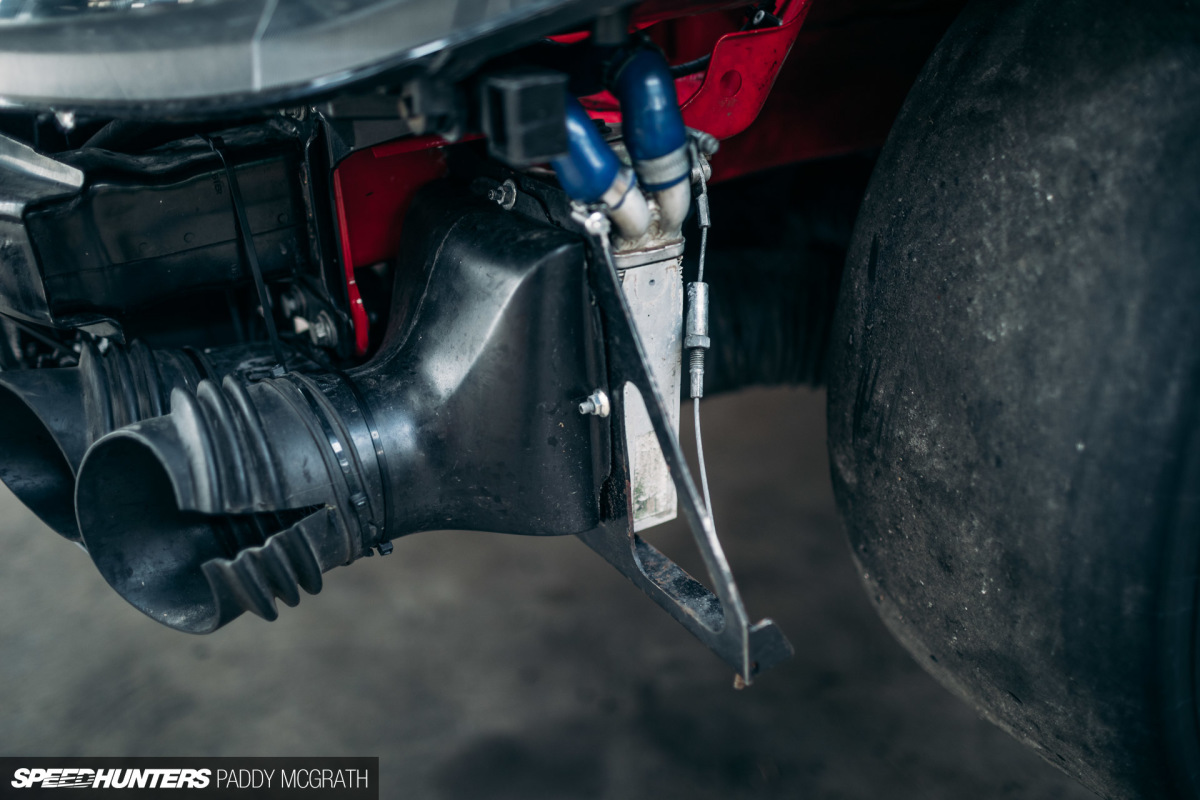

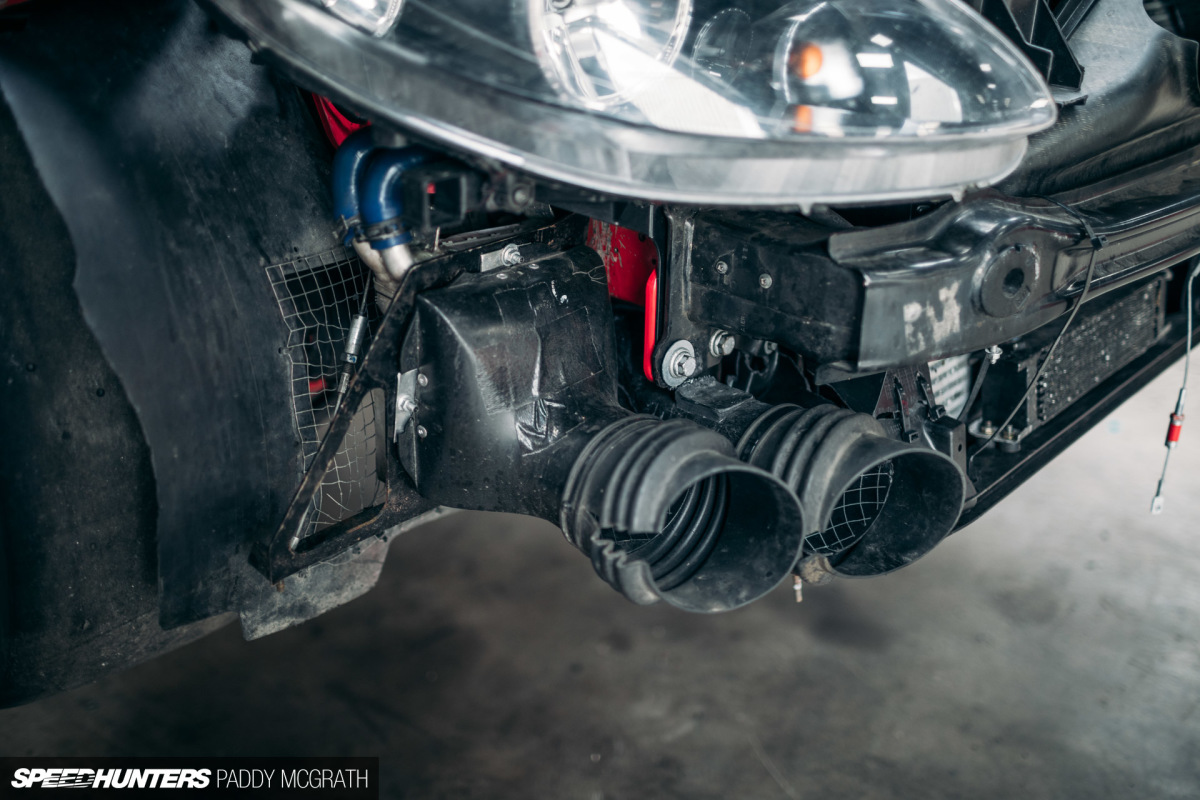

Also, take note of the triple-water radiator setup on these, with an extra radiator at either front corner with ducting and venting into the wheel arch. Interesting.

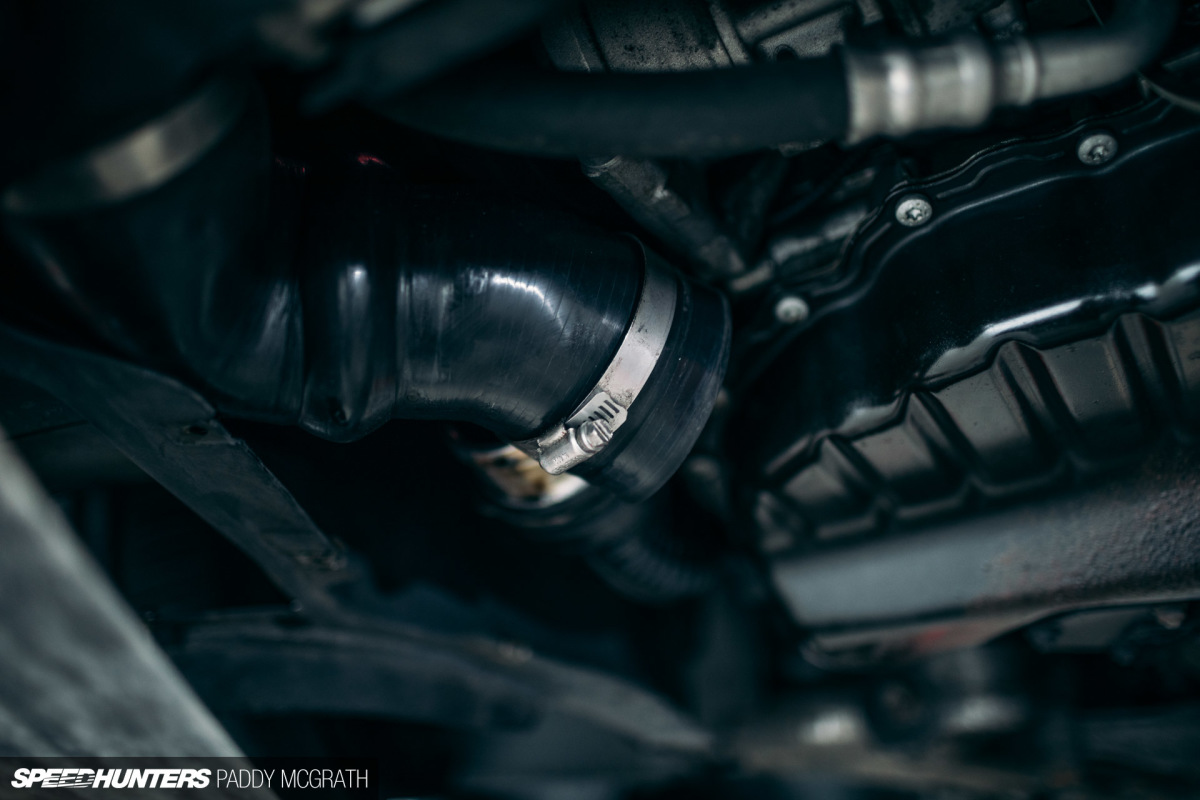

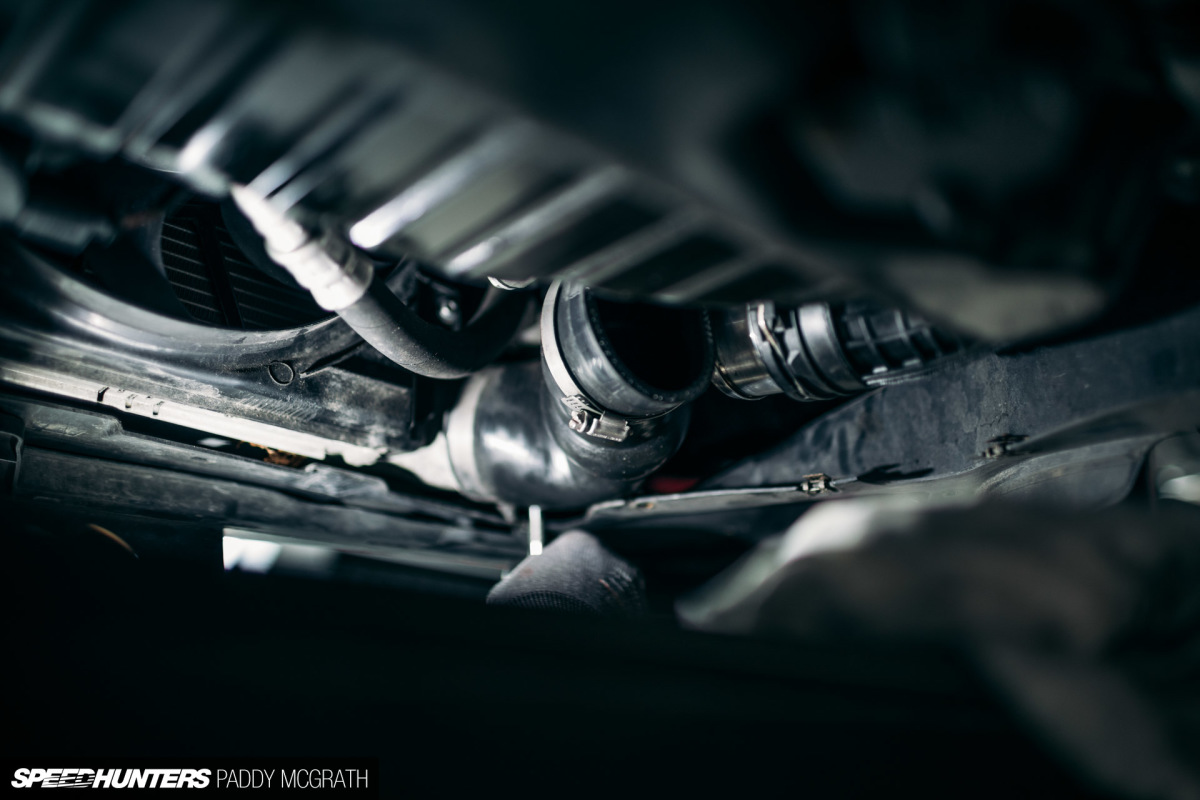

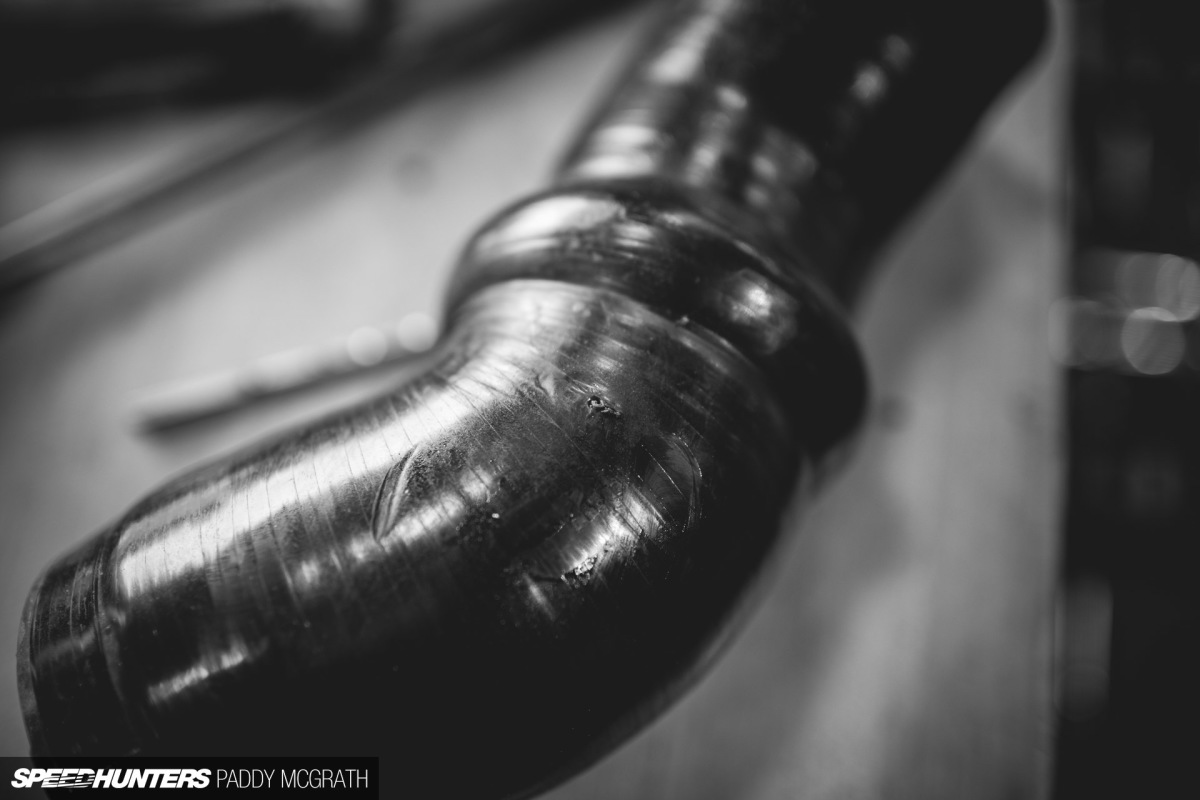

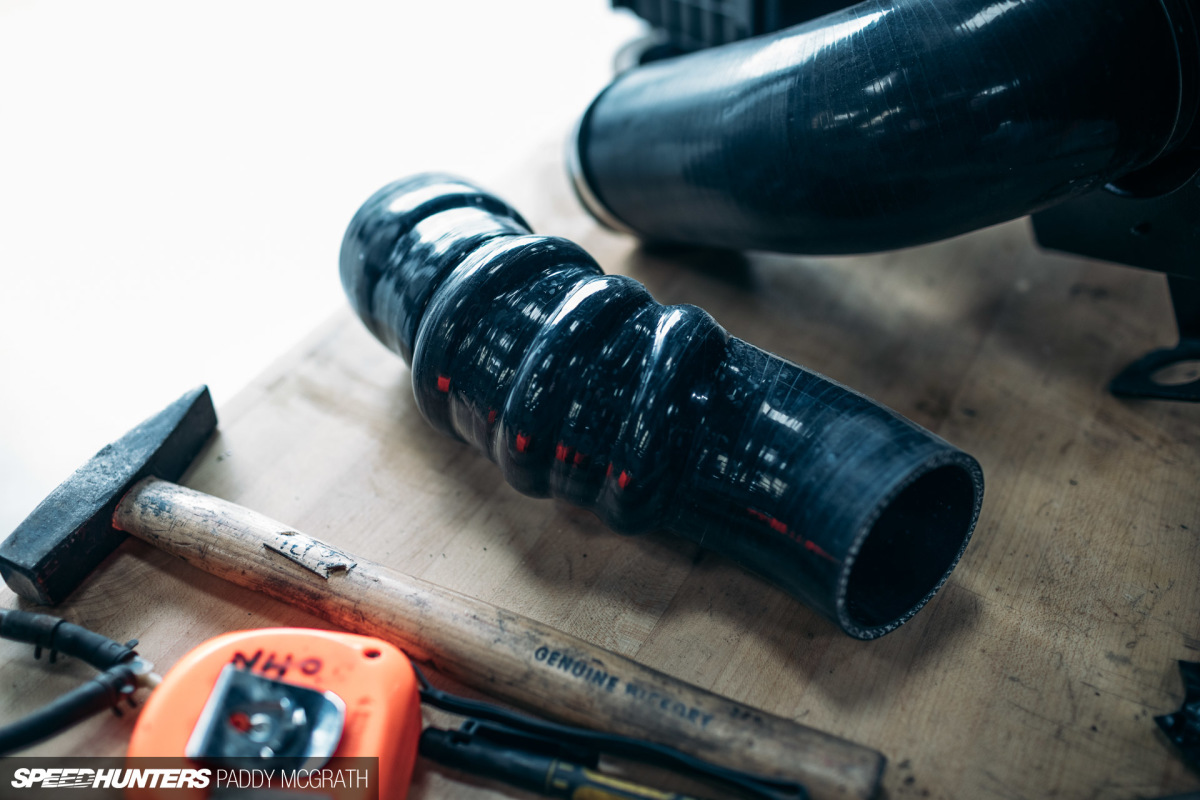

Finally, it was a straightforward case of swapping in the new boost pipe, which was thankfully easy to access. The punctured pipe is pictured in black and white above.
There was still one more thing to come…Talk To Joe

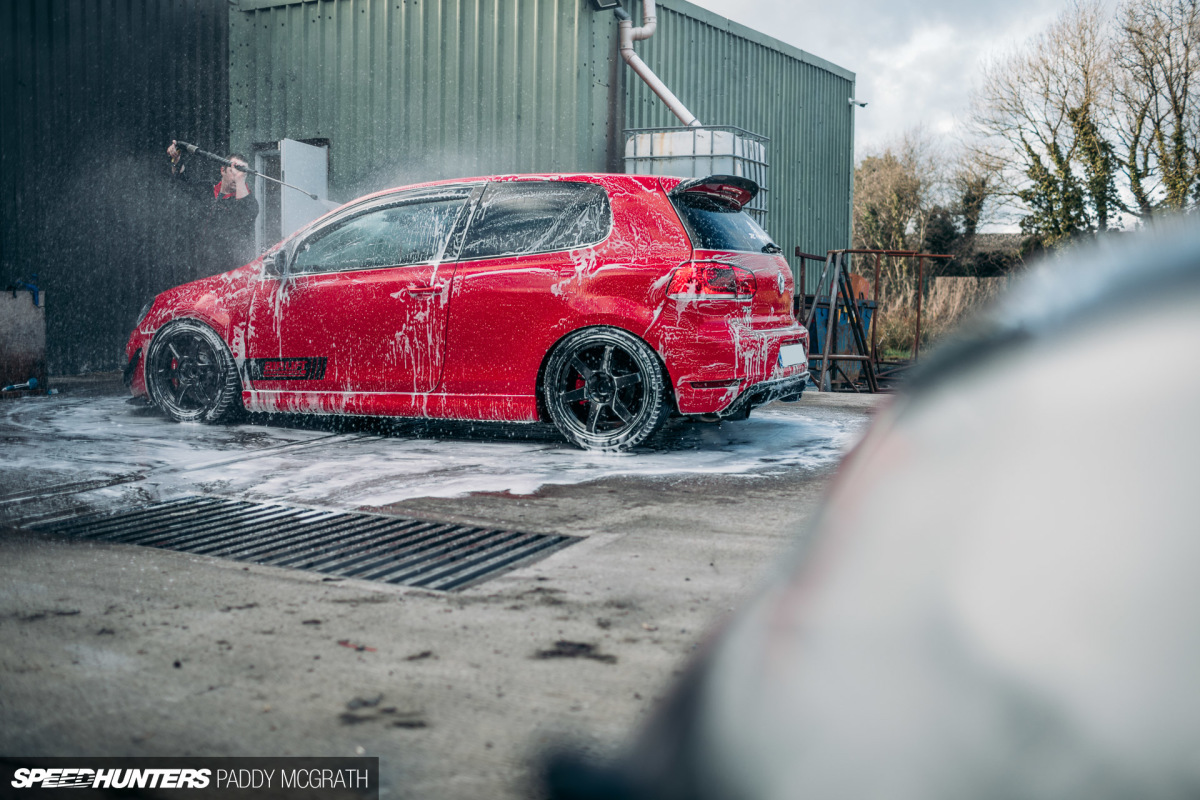

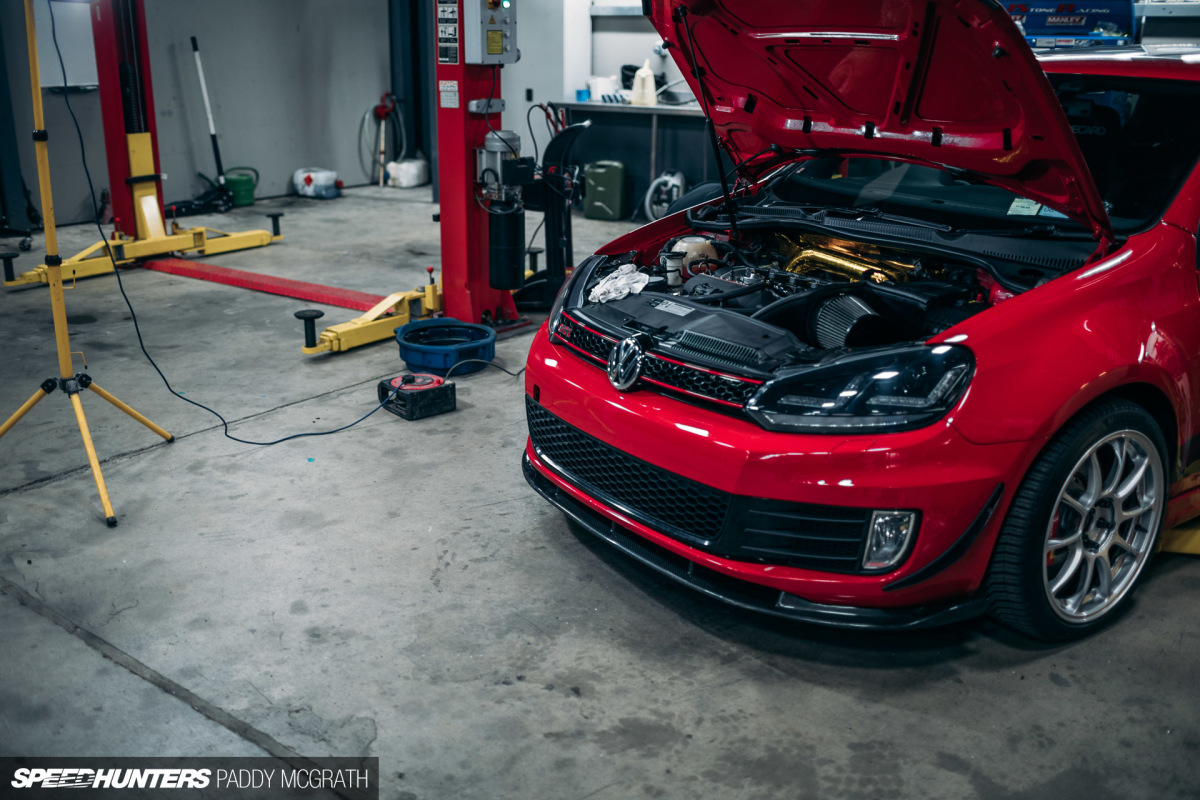

While not strictly necessary before a tuning session, I hugely appreciated Rob offering to give the GTI a proper wash before it headed into the dyno cell. It reminded me that it’s been almost three years since the car was last polished, so it’s perhaps a tad overdue a detailing session.
While I’ve always maintained that this isn’t a show car, it’s nice to look after it as much as possible.

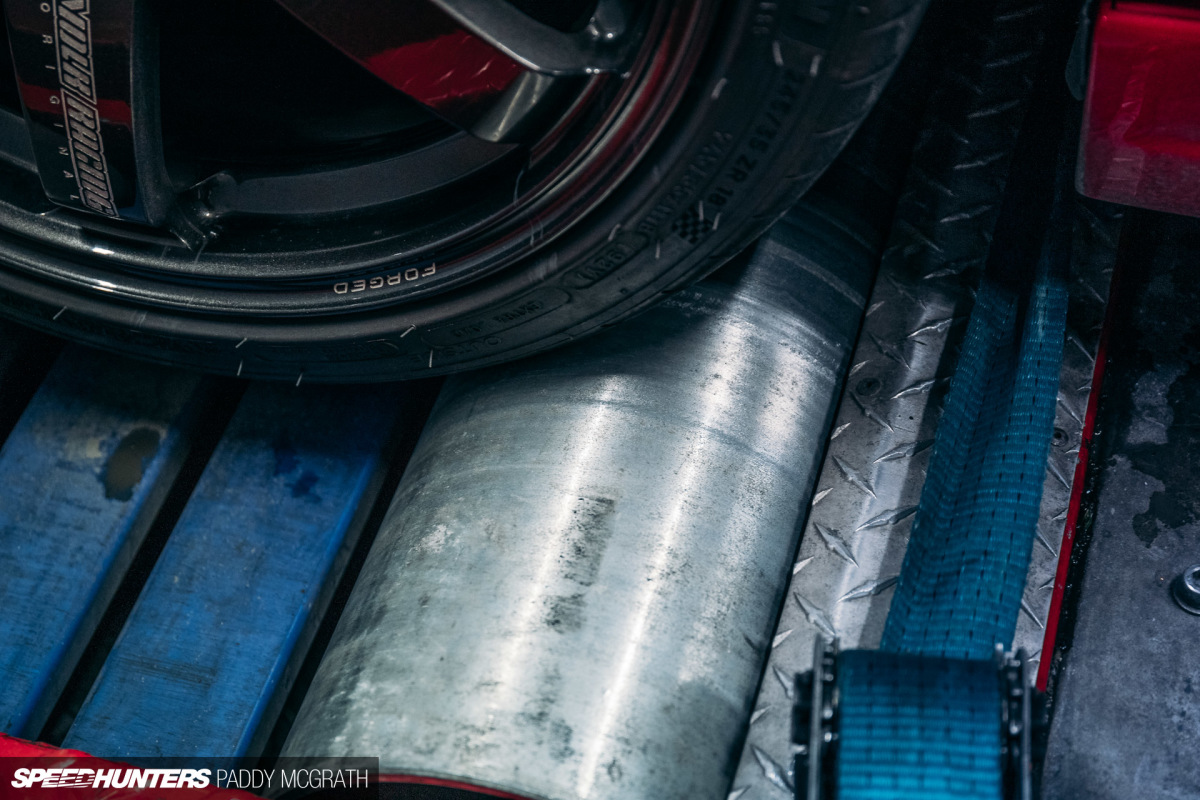

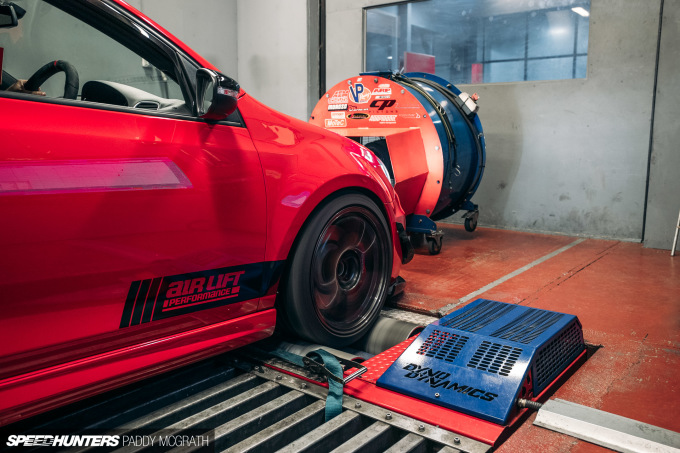

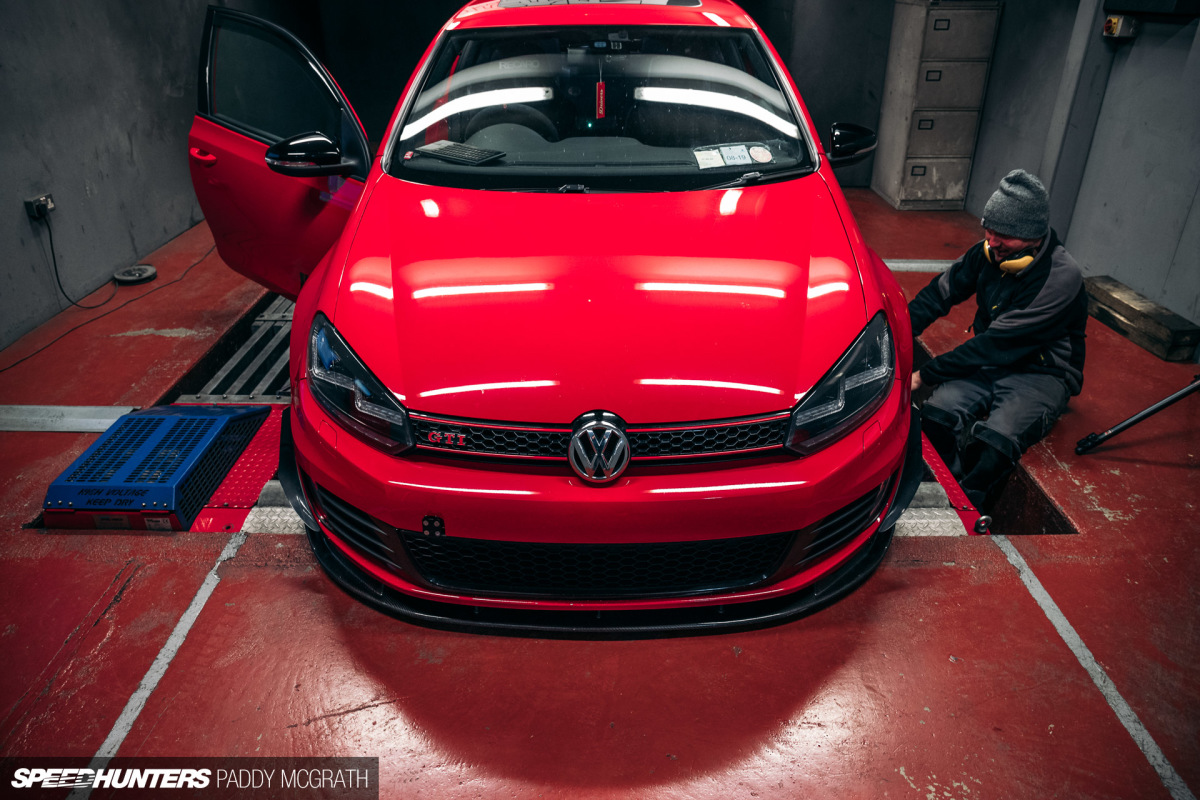

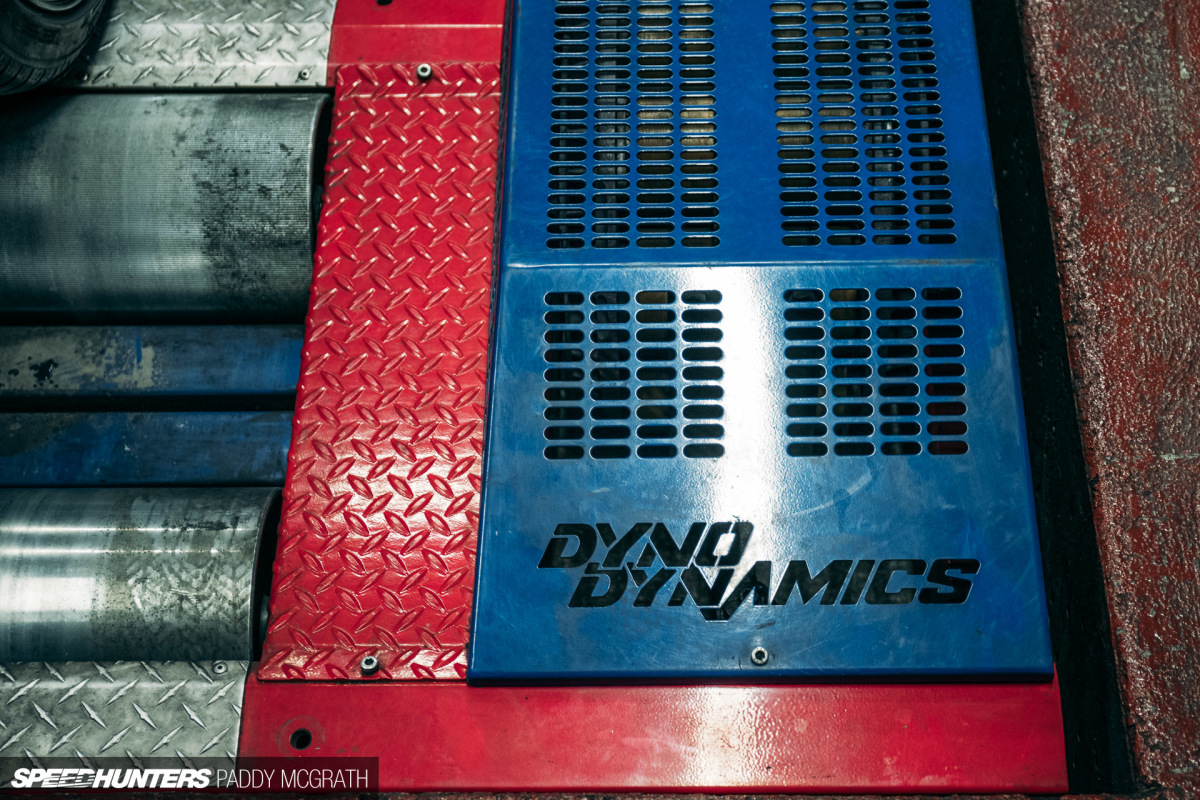

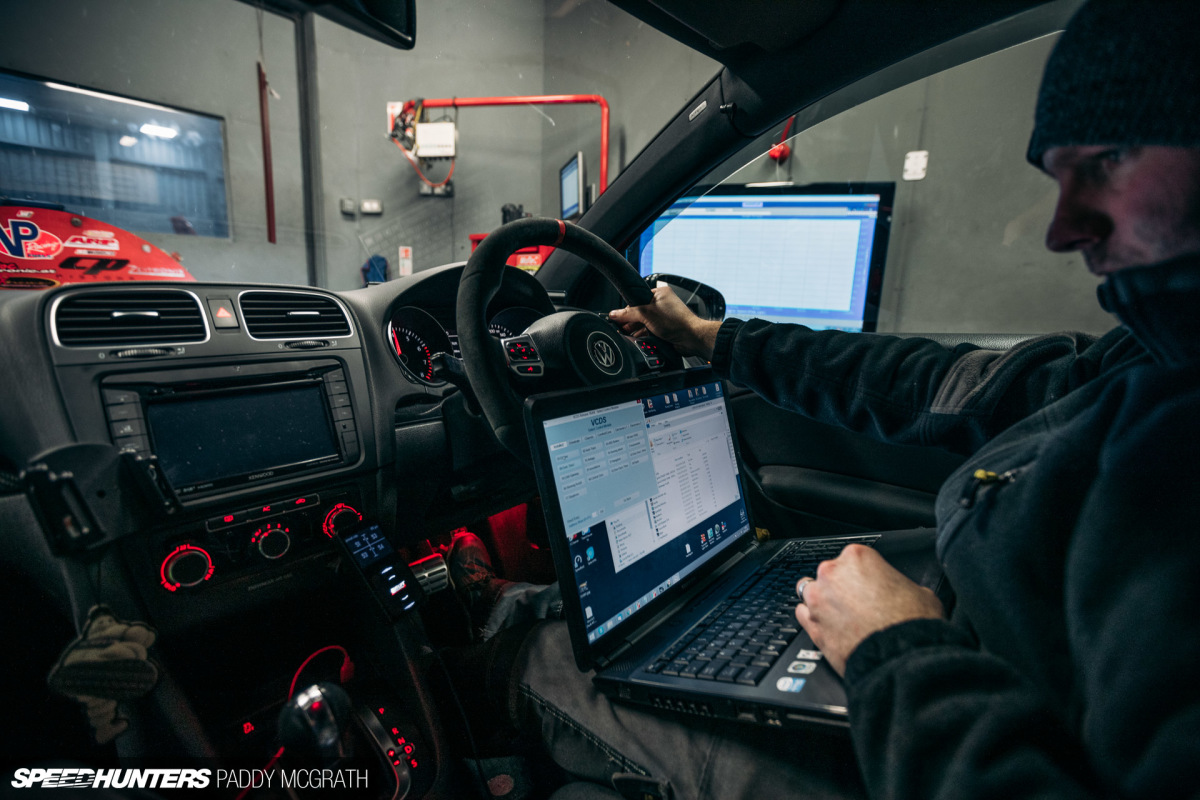

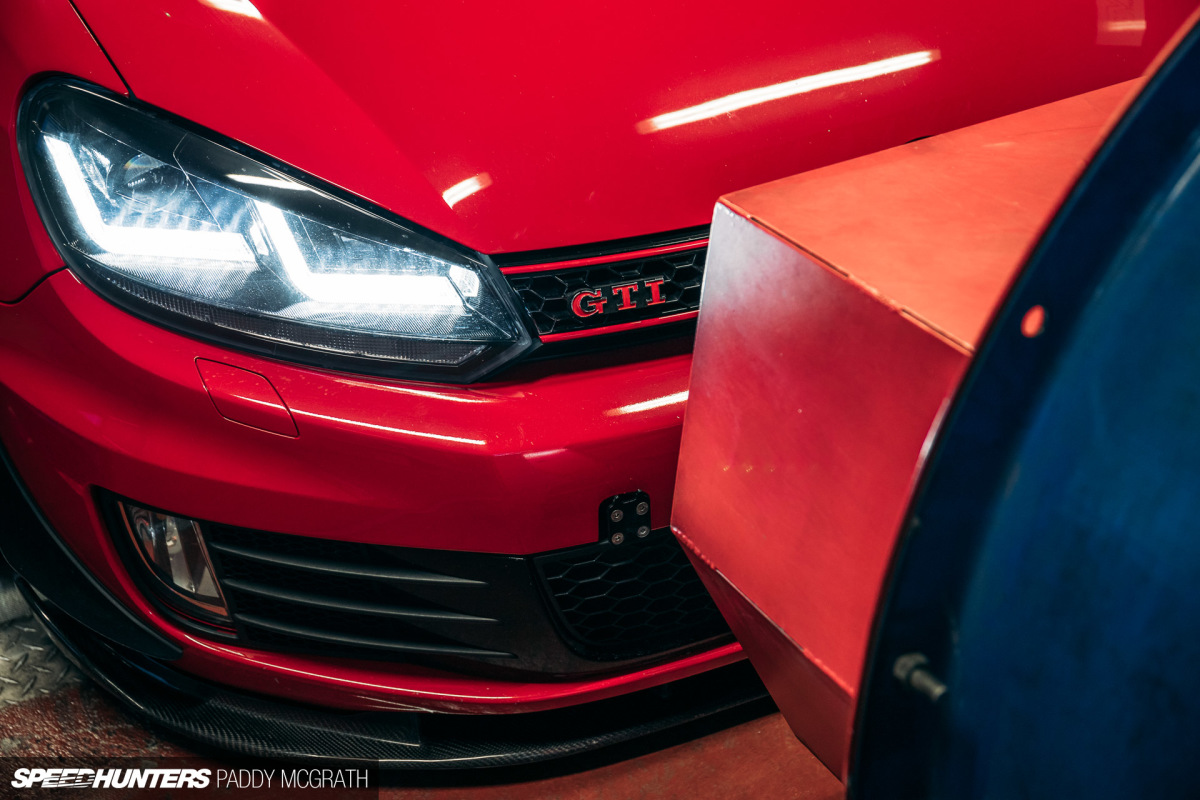

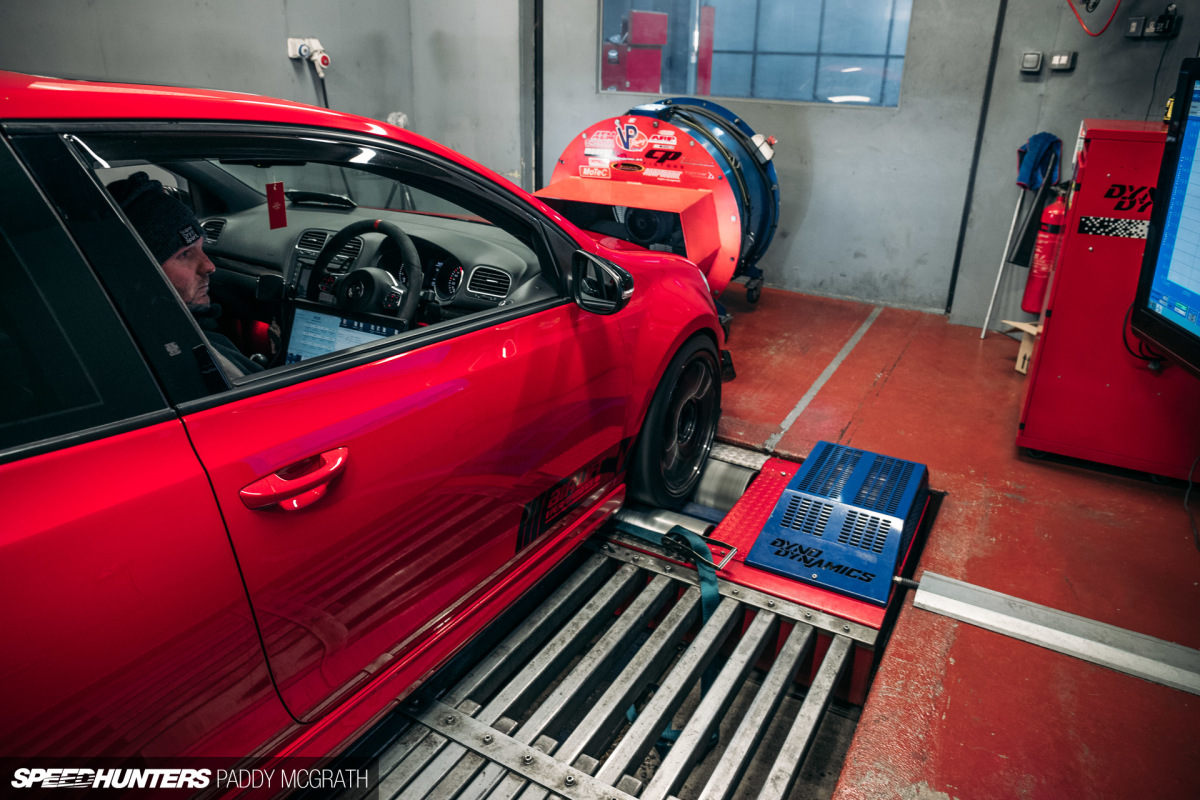

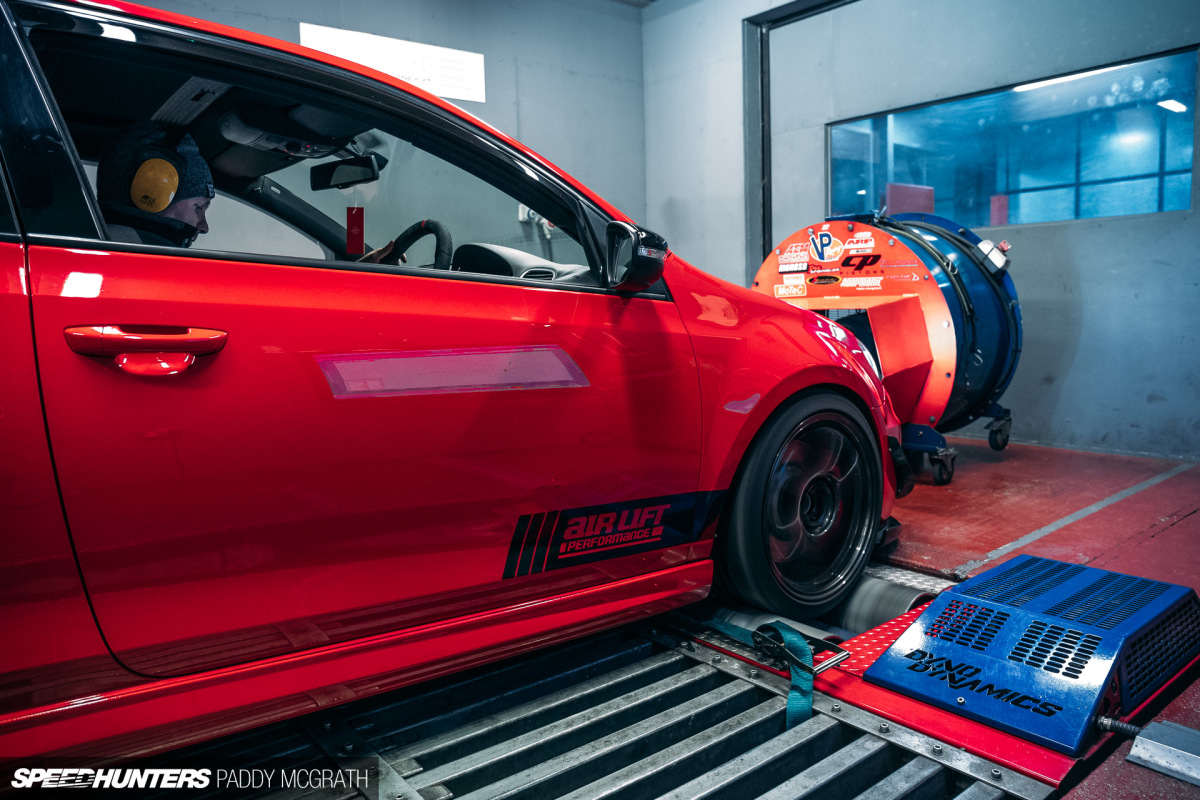

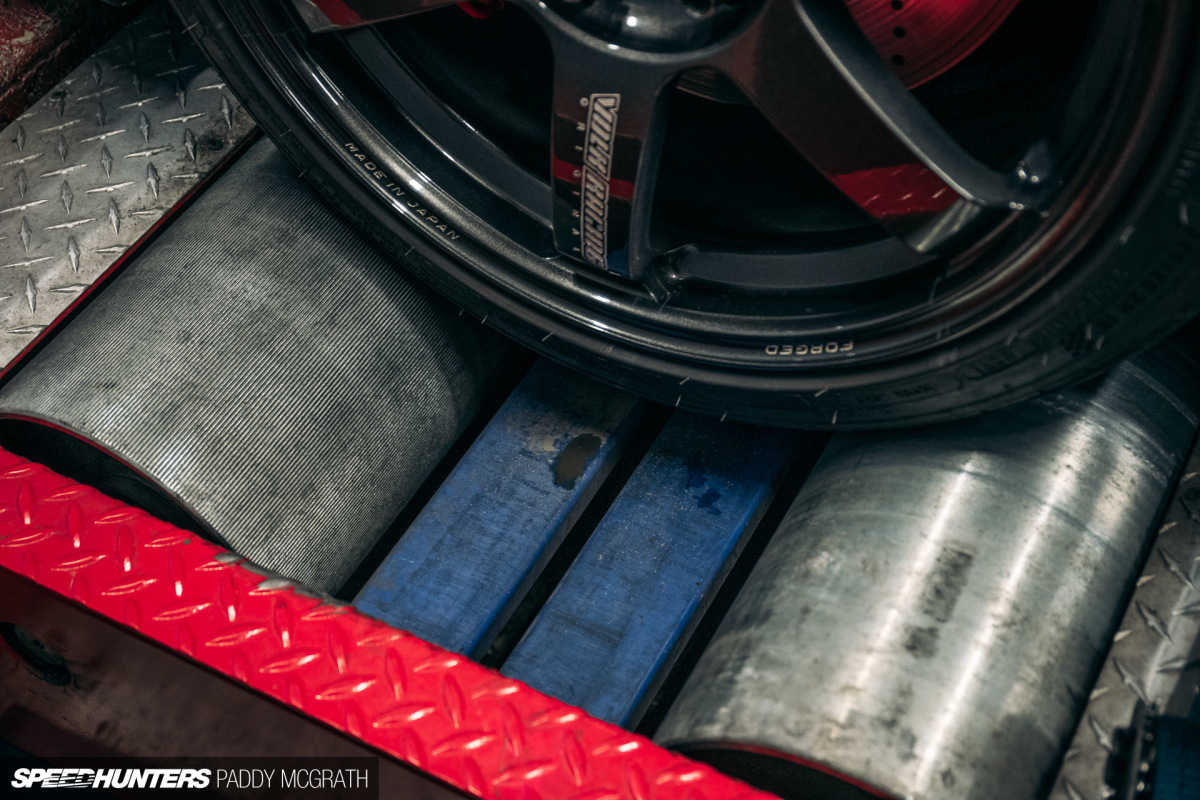

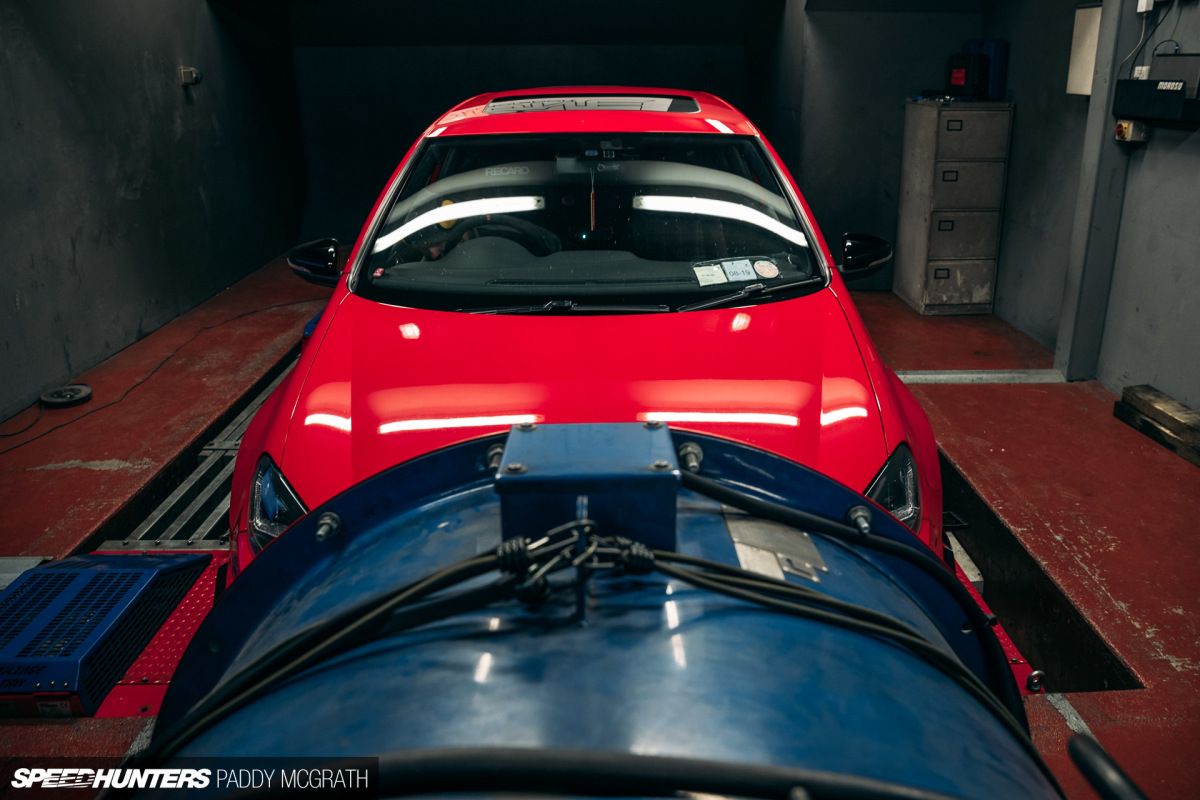

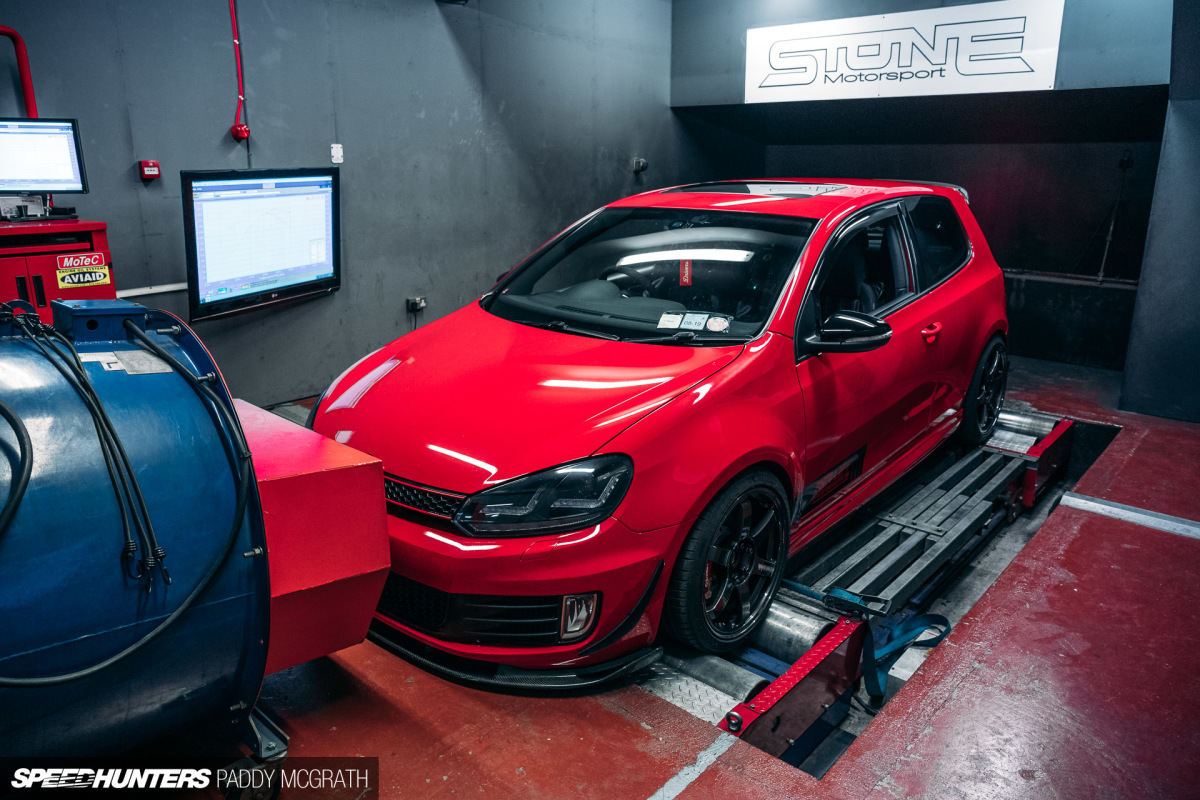

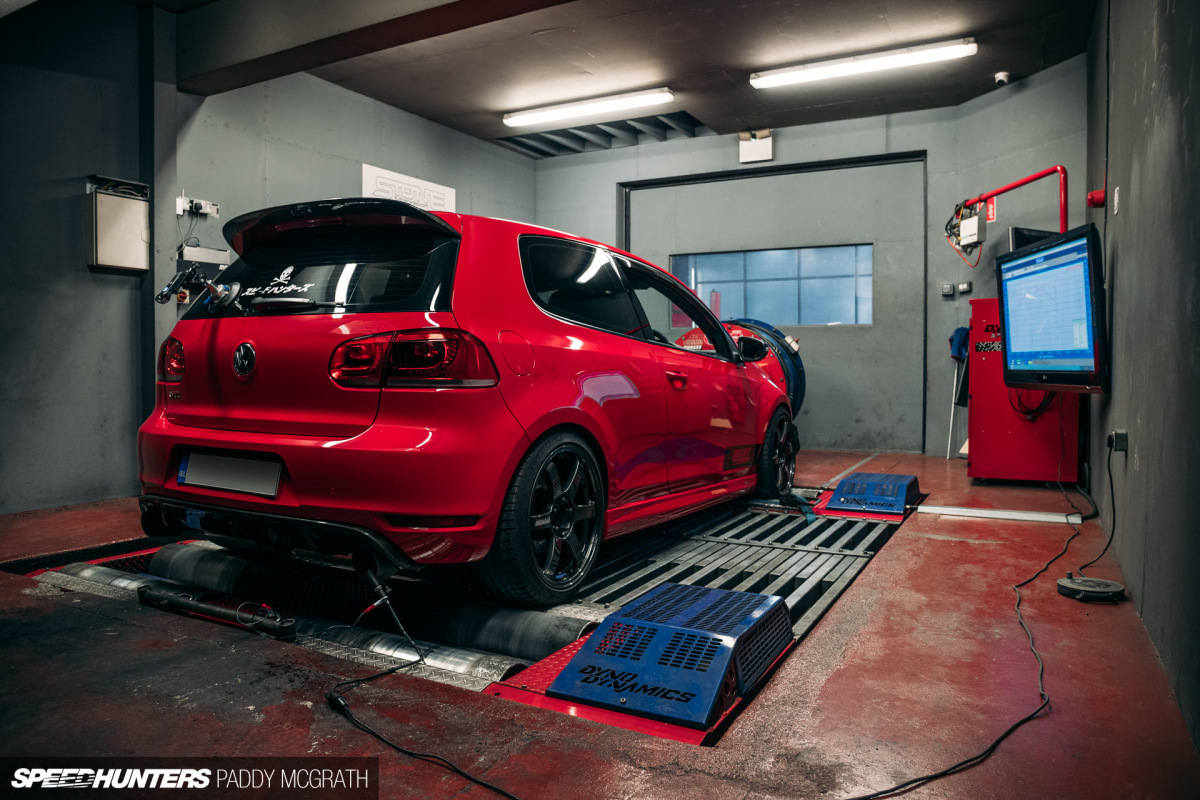

Anyways, with everything installed and the car mechanically perfect, it was strapped down onto the Dyno Dynamics rolling road. Joe Power of TDR Performance custom tuned the car for our piss poor Irish fuel in January 2018, resulting in a peak power figure of 308hp on a fairly conservative map.
I was supposed to call back after a couple of weeks to finish the tune, but the car was behaving so well and driving so nicely, that I kept putting it off for another day.
Time does tend to pass by much quicker these days, so after over a year of putting it on the long finger, I made the arrangements for Joe to book me in and give him some time with the car again.
I’ve got to know Joe quite well over the last 12 to 18 months, and he’s given me some fantastic advice for the car during this time. He currently works on LMP2 race cars in the European Le Mans Series, including the prestigious 24 Hours of Le Mans, so my humble GTI is in very safe hands.
Also, as he’s familiar with the car, myself and what it’s used for, he’s been able to tune it specifically for what I need. To be truthful, I think he knows what I need, better than I do.

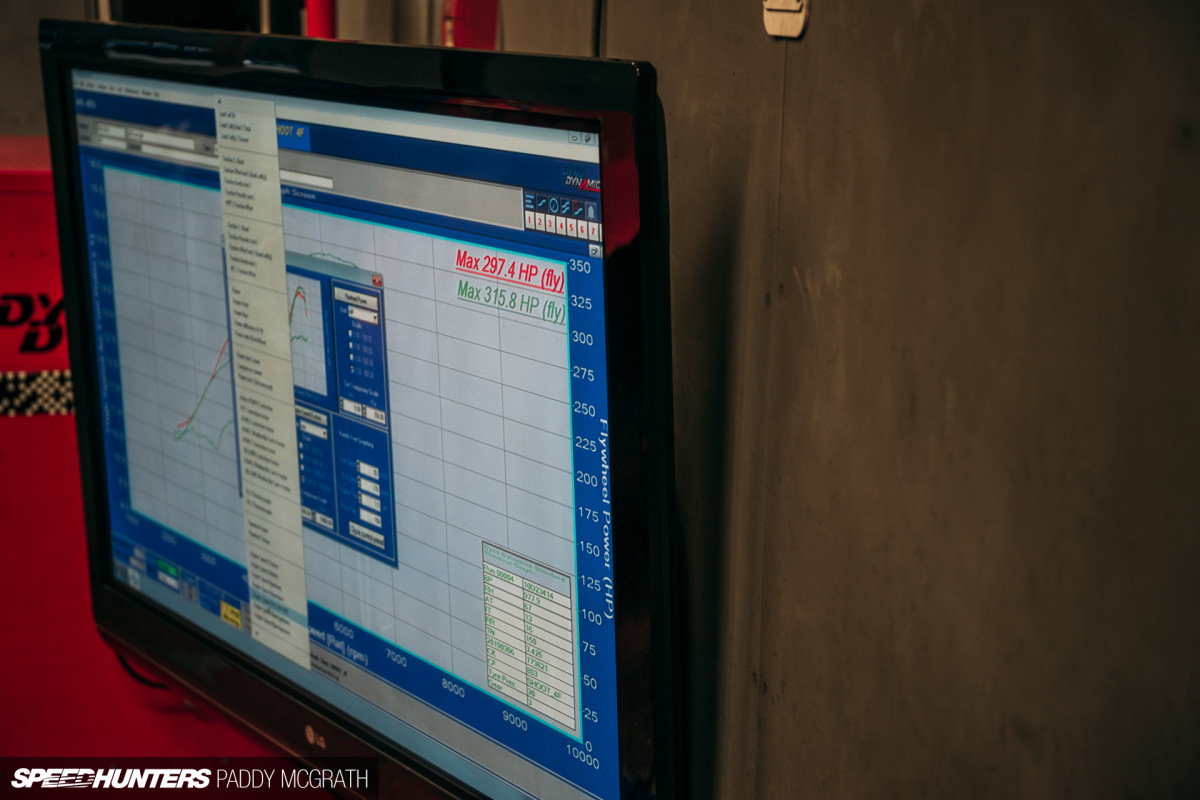

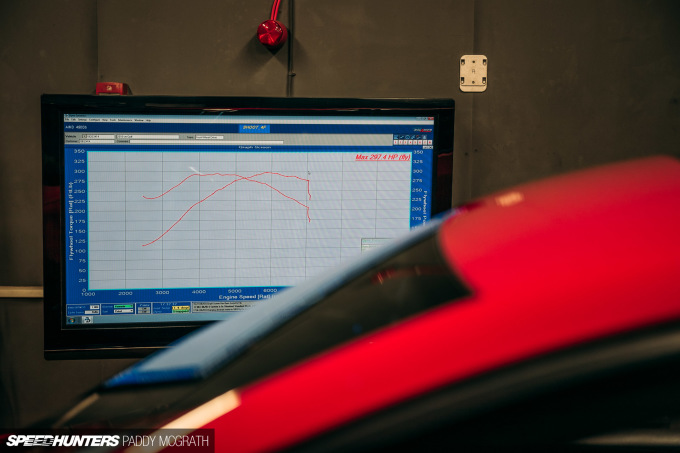

On its first run in over a year, with probably 15,000kms more on the clock and a few trackdays under its belt, it made 297.4hp with mint AFRs. I would deem this to be a more than acceptable deviation from the previous 308hp run over a year previous, when taking differentiating factors such as temperature, air pressure etc. into account.
Essentially, Project GTI was very healthy and, pretty quickly, that number started to increase as he made his refinements.
“I’m not going for big numbers” he advised me from my own driver’s seat, as if to temper my expectations. It’s in situations like this that I’m glad I have no input, mostly because I’m an idiot and would just set everything to 11 and hope for the best.
Thankfully, his goals for this session were far more rational than mine. Taking power/torque delivery, heat management and reliability into account, the final tune saw a peak power figure of 332hp and just over 400Nm of torque. This was at a peak of around 1.6 Bar (23psi) which is pretty much middle of the road for a K04. These turbochargers are typically boosted to between 1.4 Bar to 1.9 Bar (21psi to 28psi) on this platform depending on fuel, tune etc.

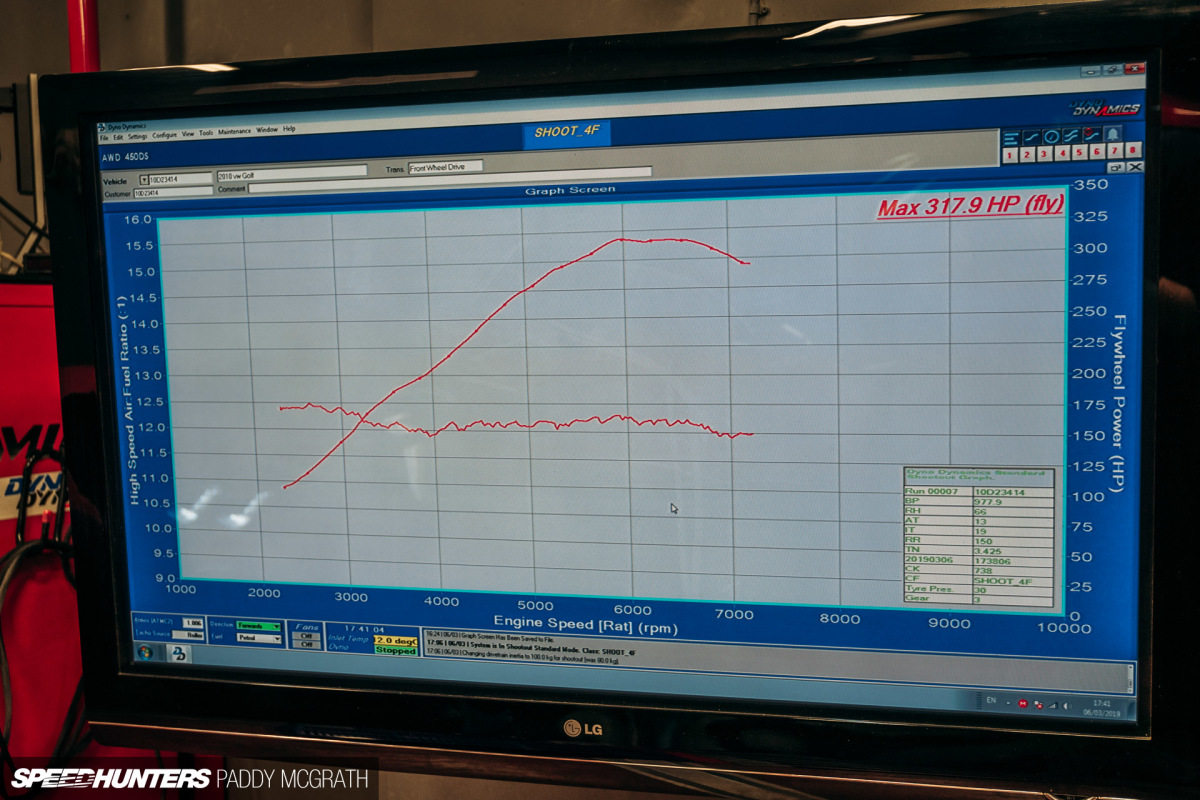

Most impressive, was the perfect AFR line on the dyno chart demonstrating that the car was comfortably supplying enough fuel into the cylinders without the risk of running lean.
Of course, part of me would love to know what the car is capable on proper fuel (as stated before, we only have the option of 95RON in Ireland, equivalent to 91 in the US), but I guess you just sometimes have to suck it up and play the hand you’re dealt.
As heat soak started to creep in, the power figures started to tail off but the AFRs and power curves stayed consistent.
This was one of the final (hot) runs, which demonstrates the really smooth power delivery along with the AFRs along the horizontal line. The linear power curve is particularly advantageous on a two wheel drive car, as there’s no sudden onset of boost which could result in a loss of traction.
This should be awesome on track.
It cannot be said that the car wasn’t pushed, anyways.The Finished Product
It has been the better part of four years at this stage, but I’m finally at a stage where I consider this project all but done. I’m sure there will be maintenance items to address and perhaps even a couple of preventative things that might come up with more time on track, but this is truly the car I pictured in my head when I first drove it off the forecourt all those years ago.
The premise from day one was to extract as much performance potential from the car as possible, while introducing as little compromise into the car’s abilities as a daily driver. I’m not sure there’s anything I would have done differently, as nearly every change and modification was done once, and done right. We all have different tolerances and tastes, and I’m sure you might do something different if it was yours, but ultimately, it’s mine, and it’s about as close to perfect as I can manage.
I drive it every day, I drive it hard, I drive it gently. It goes to IKEA, it brings my groceries home, and it takes me around Mondello Park with a huge smile on my face.
While it might be finished, I think the real story of Project GTI is only beginning. So many projects are completed and then almost immediately sold off. I couldn’t think of a worse thing to do with this, at least not before I get to drive it and do the things I’ve always dreamt of doing with this car.
So, Nürburgring anyone?Cutting Room Floor
