It’s The Little Things In Life…
Petite Personality

The classic Mini is undoubtedly one of the most amicable cars ever built.

We’re cruising the streets of Birmingham on a cold Saturday morning in Nick Shaw’s unforgiving turbocharged 1973 Mark 3. It makes a hell of a noise: the loud whine of the straight-cut gearbox, whistle and crackles from the turbo and exhaust and occasional frequent sounds of loss of traction reverberates off the surrounding walls and buildings.

Turbo Mini Speedhunters by Jordan Butters-53

Innocent bystanders – non-car people I tell you – spin around on their heels as we approach under a cacophony of mechanical sounds. They’re prepared to be offended, the scowls on their faces showing clear disdain for whatever it is that dares offend their eardrums on this peaceful morning in the city.

Turbo Mini Speedhunters by Jordan Butters-63

But then they see it’s a Mini, and in an instant a smile appears. The raucous is forgiven, and people reach for their smartphones to capture a moment as we whizz past.

Turbo Mini Speedhunters by Jordan Butters-44

We’re in Britain you see, and almost everyone has a soft spot for this great British classic.

Turbo Mini Speedhunters by Jordan Butters-14

What they probably don’t know, and the main reason why I love this little scud missile as much as I do, is that Nick built the car largely with his own hands in his garage at home. It’s not the most powerful example out there, nor the most extreme, and he doesn’t obsess about making sure that it’s an immaculate show winner either.

He hasn’t built it by following any predetermined recipe, for internet fame or any other ridiculous 21st-Century concept. In fact, Nick’s pretty puzzled as to why his Mini has gotten so much attention since he finished it earlier this year.

Turbo Mini Speedhunters by Jordan Butters-69

I know why. It’s just a good, honest build that strikes just the right balance – it’s extreme enough to be ridiculous, but not so ridiculous that it can’t be used on the road.

Turbo Mini Speedhunters by Jordan Butters-3

This is the second Mini that’s been in Nick’s possession. The first, also turbocharged, met a rusty demise (as is often the way) and was replaced with this car in 2006. Nick turbocharged this one, and ran it until it popped back in 2012. A year later the big rebuild began, which eventually became the car you see in front of you.

Turbo Mini Speedhunters by Jordan Butters-57

“At least I’ll have some cool memories to remember this one by the time it rusts away”, Nick comments, reflecting on all the attention it’s been getting.

Little Looker
Turbo Mini Speedhunters by Jordan Butters-1

There’s clear influences that have been drawn from other areas of car culture in this build. If you don’t know your Minis then, at a glance, you might not realise just how much has been done, but the car tastefully blurs the lines between several subcultures – JDM, traditional Mini, track-inspired, drift-inspired, retro and modern at the same time.

Take, for example, his fondness for JDM machinery (Nick’s daily is an Evo V), which has clearly influenced some of the exterior styling on the Mini. The front lip, which Nick says “is a terrible fit but it had to go on, I like it too much” was sourced and imported from Japan, and is complimented by a similarly JDM-style rear spoiler. You could almost imagine them looking quite at home on a Starlet or similar.

Turbo Mini Speedhunters by Jordan Butters-43

The plan was originally to utilise a full fibreglass round-headlamp front end – because lightness – however the fit was that unbearable that Nick scrapped the idea and stuck with the original British Leyland Clubman steel wings and front panel. This has, however, been modified so can be released quickly.

Turbo Mini Speedhunters by Jordan Butters-41

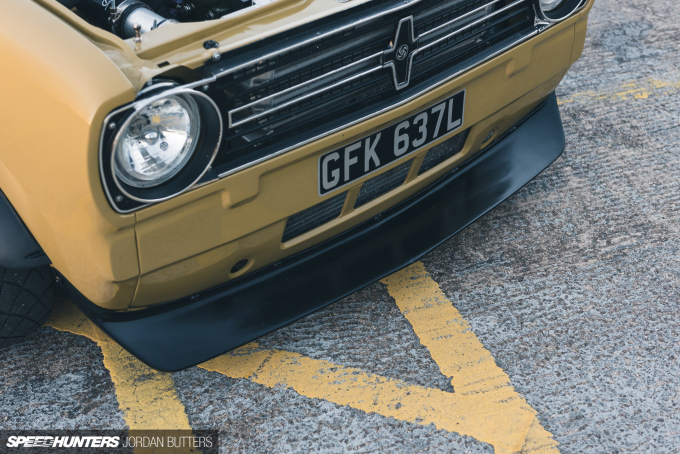

The front panel was then smoothed and shaved of the bumper mounting points, sidelights and indicators. Nick incorporated the latter two into custom headlights that he built himself.

Turbo Mini Speedhunters by Jordan Butters-26

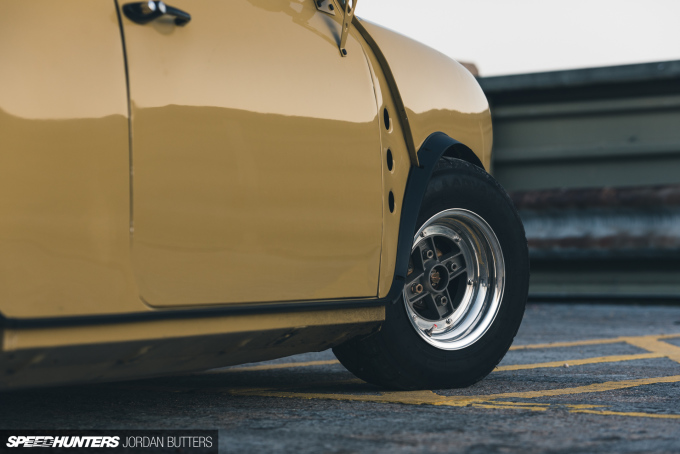

A set of original Mini plastic arches (fenders) cover the Mini’s 165/70R10 tyres. Said rubber is wrapped around a set of SSR FLII 10×6-inch wheels, also imported from Japan.

Turbo Mini Speedhunters by Jordan Butters-62

Lightness is the order of the day for the rest of the exterior, and every gram counts. Of course hinges and supports are unwanted metal, so a fibreglass bonnet is secured by four bonnet pins – it simply lifts off when access is required.

Turbo Mini Speedhunters by Jordan Butters-8

At the opposite end the boot lid is single-skinned, although alloy hinges have been used to keep the cavernous boot practical. Below, a fibreglass rear valance houses a custom centre-exit exhaust and the rear is finished off with a carbon fibre rear bumper bar.

Turbo Mini Speedhunters by Jordan Butters-46

Nick gutted the doors of all inner metal work, before adding aluminium outer skins, and polycarbonate windows all around remove almost all heavy glass from the little Mini.

Turbo Mini Speedhunters by Jordan Butters-37

A full rollcage from Owens Fabrication adds a bit of weight, but is now a necessary precaution. It’s tied into the chassis at almost every point imaginable so adds rigidity too. In case you didn’t notice, the roof is carbon fibre as well.

Littered around the car extra weight-saving additions (or should that be subtractions?) jump out at you – Nick’s in his happy place when he has a punch and flare die in his hands, so there’s speedholes a plenty to be found. The tiny wing mirrors, for what they’re worth, are mounted on meccano-esque Swiftune mirror mounts.

Turbo Mini Speedhunters by Jordan Butters-50

Nick’s choice of finishing hue is Harvest Gold, which sounds like a delicious cereal bar, but is actually an original Mini factory shade.

Tiny Temper
Turbo Mini Speedhunters by Jordan Butters-67

There’s a lot of custom work that’s taken place out of sight too, such as the flat boot floor and tubbed rear arches. The roll cage passes through and ties to the rear suspension mounts, which have been turreted to strengthen the rear coilover setup.

Turbo Mini Speedhunters by Jordan Butters-48

Up front, Nick modified the front subframe himself and converted the suspension to a Protech coilover setup – he fabricated custom bottom brackets to kick the bottom of the units out as much as possible, before remaking the tops of the inner wings to position the top mounts as high as possible for an improved operating angle. The rear beam was then modified for better operation and geometry too.

Turbo Mini Speedhunters by Jordan Butters-35

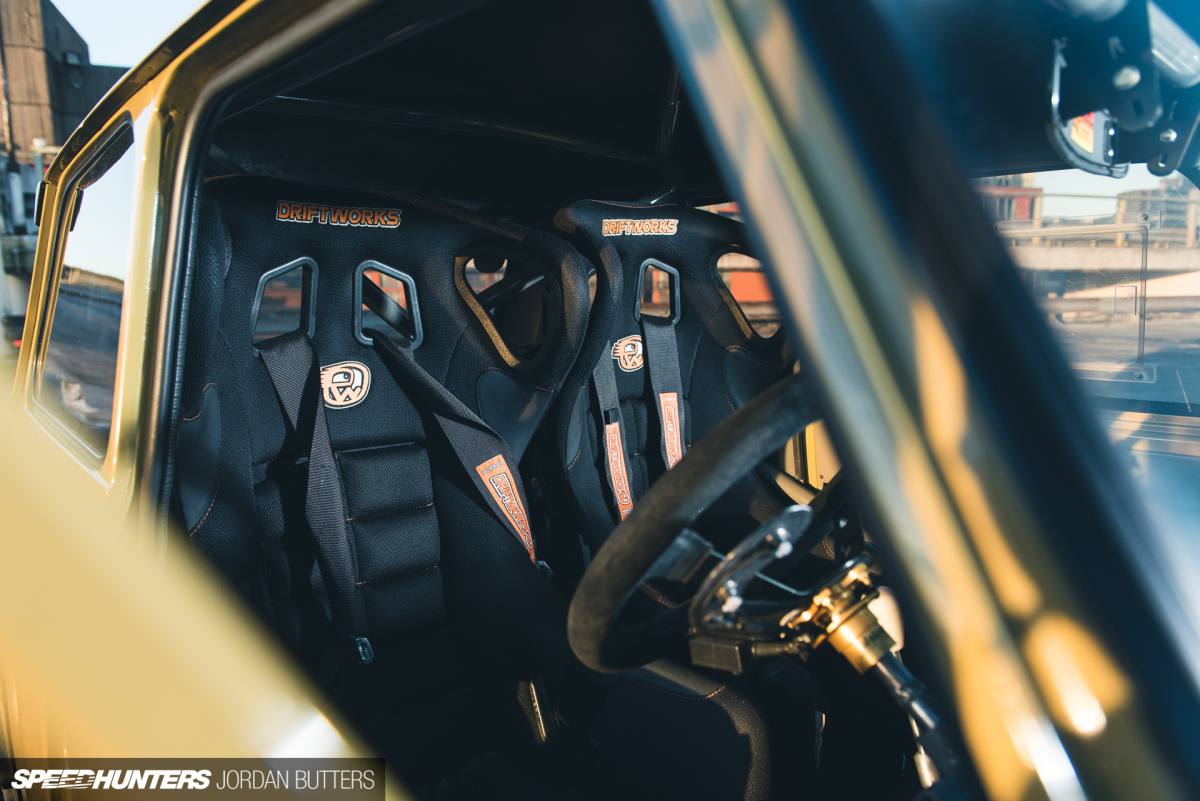

Inside, which is coated in a contrasting charcoal grey, a pair of Driftworks Cobra Evolution FIA seats occupy the vast majority of the interior – I’m not sure how Nick got those seats in there, but I doubt they’re coming out.

Turbo Mini Speedhunters by Jordan Butters-27

The gear linkage has been moved inside the cabin to provide more room for the exhaust underneath, while a custom-mounted centre binnacle houses Smiths tacho and boost gauges and a custom wideband AFR gauge. Inside the driver’s door panel Nick has access to all the necessary electronic controls. Custom wireless steering wheel controls sit where you’d expect to find the flappy paddles on newer cars too.

Turbo Mini Speedhunters by Jordan Butters-38

A Wilwood bias pedal box helps to bring the Mini to a stop. Cooper S calipers up front with grooved 7.5-inch discs and modified alloy rear drums make sure of it. Stomping on the furthest right pedal brings the smiles…

Turbo Mini Speedhunters by Jordan Butters-21

Nick’s no stranger to turbo Minis and, bar the machine work, has built each of his engines himself in a modest home garage. This is the second engine that this particular car has had – the last one, running around 200bhp for 40,000 miles, was given a fitting send off sans bleed valve at Santa Pod in 2012.

Turbo Mini Speedhunters by Jordan Butters-16

Thankfully, with a wealth of both his own experience, and a vast aftermarket Mini tuning industry at his fingertips, rebuilding for more power wasn’t an issue. SH Engineering (no association) supplied a race crank and machined the block, which Nick then assembled complete with forged 18cc Omega pistons and a custom camshaft. A Turbo-Mini flowbenched head was bolted down with ARP studs, complete with Rimflow valves, Piper springs and titanium top caps.

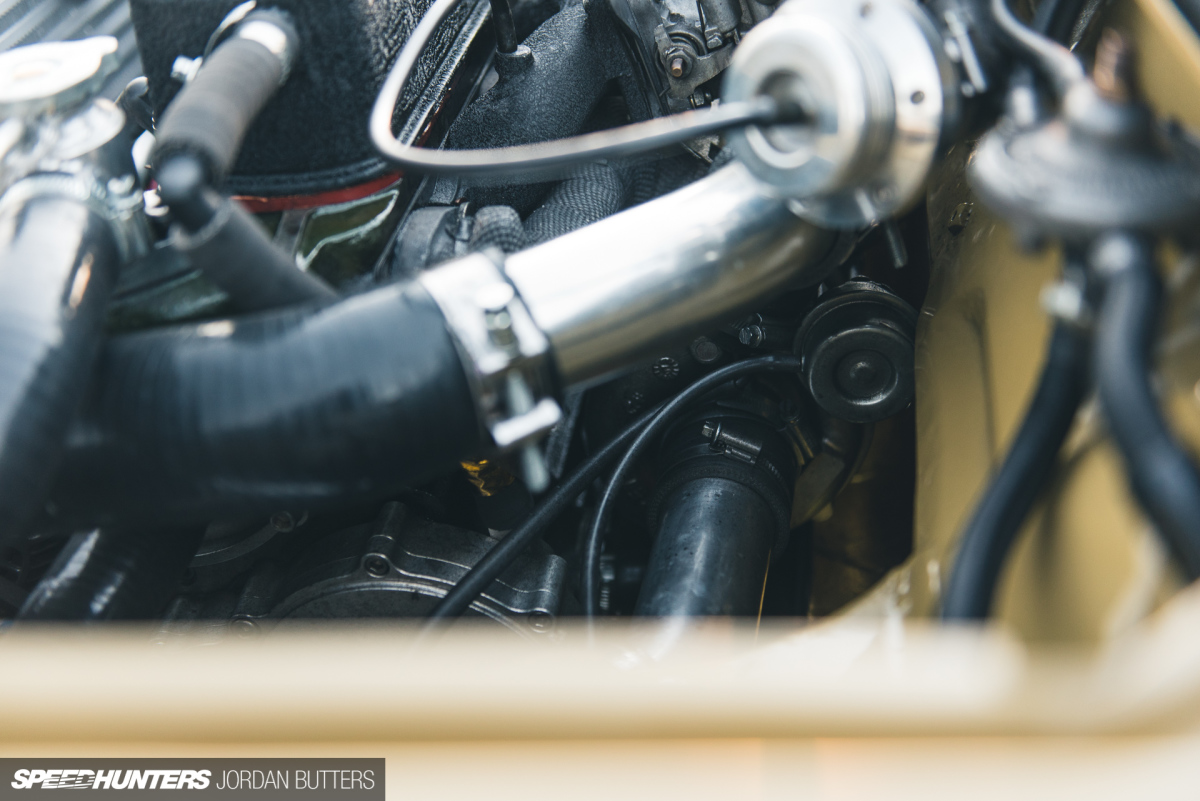

A modified Metro turbo manifold carries the exhaust gases through a 2.5-inch custom exhaust, crucially spinning a Garrett GT2056 turbo along the way. This sends 20psi (1.4bar) of lovely boost through a custom intercooler setup and into a Fusion Fabrication plenum.

Turbo Mini Speedhunters by Jordan Butters-68

Nick thinks it’s around 250bhp when all is said and done. His last dyno session in a friend’s garage recorded 236bhp up to 7,000rpm at which point he was knocking on the dyno’s speed limit. There’s an extra 1,300rpm that’s not been measured before the rev limit, so 250bhp sounds about on the money.

Add that number to the svelte 600kgs (1322lbs) kerb weight and you’re looking at around 417hp/ton – that’s more than some pretty imposing supercars.

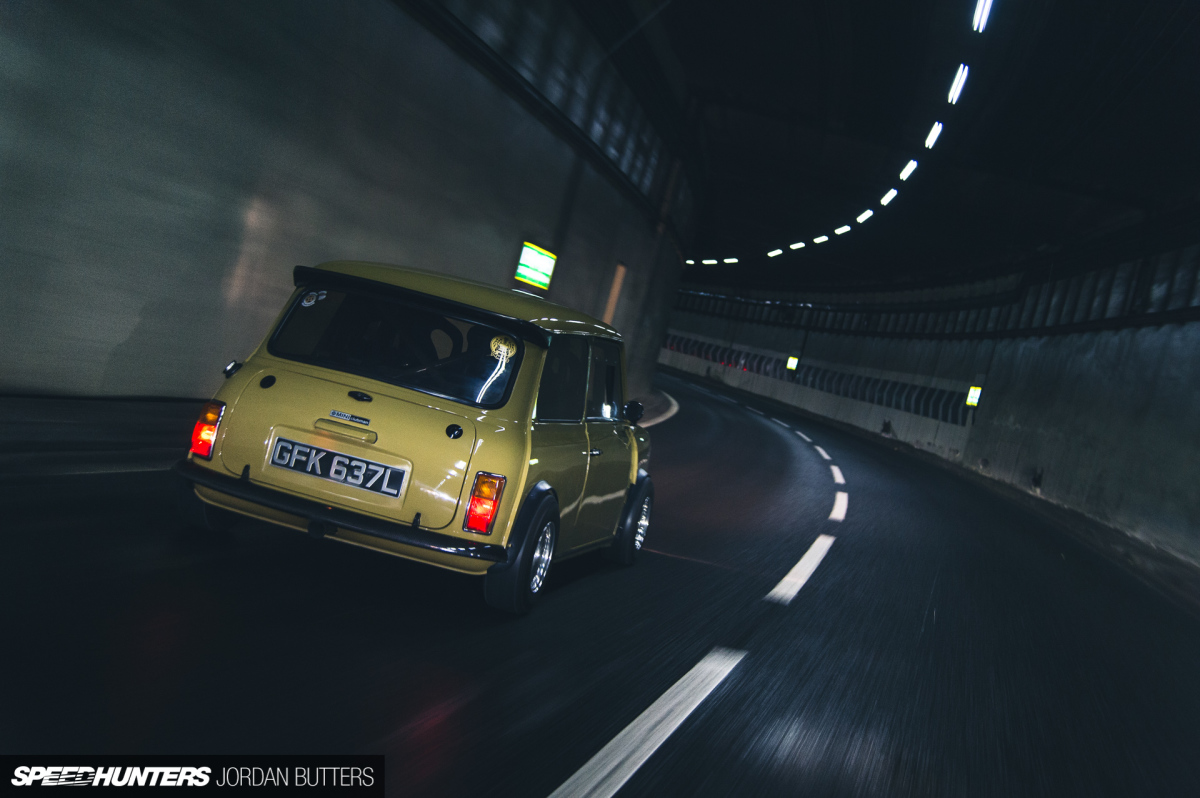

Turbo Mini Speedhunters by Jordan Butters-54

The straight-cut, close ratio box makes the most incredible noise when out on the road, but the biggest battle Nick faces is grip. An AP Rally clutch plate and Quaiffe ATB LSD helps to put the power down, but even with the sticky Advan A032R soft compound, the Mini has little trouble lighting them up in the first few gears.

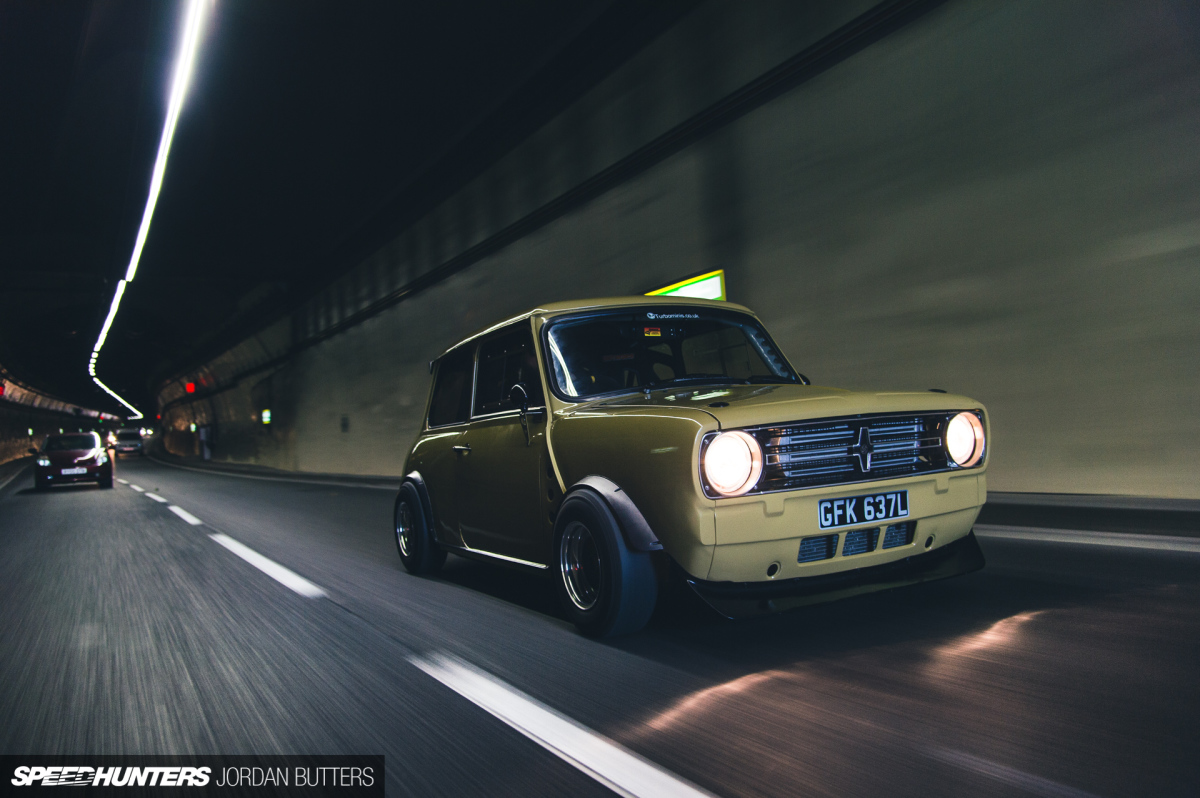

Turbo Mini Speedhunters by Jordan Butters-51

Nick’s keen to stick with a 10-inch wheel to suit the Mini’s aesthetics, but faces the struggle of being very limited on tyre options at this size – 165 is the widest road-legal tyre that he can run at this size. Jumping up a wheel size or two opens up his options, but I agree that it does look very cool on the 10s.

Turbo Mini Speedhunters by Jordan Butters-4

Nick says that the end goal for the build, if there is such a thing, is for the Mini to run a 12-second quarter mile. He suspects there’s a bit more power, a bit more weight reduction and – somehow – a bit more grip to be found before he gets there, but he’s enjoying the journey along the way.

Having experienced this thing for myself, I don’t blame him – I can assure you that it’s absolutely hilarious from inside. A very cool car indeed.

Jordan Butters
Instagram: jordanbutters
jordan@speedhunters.com

Nick Shaw’s 1973 Mini Clubman Mk3

Chassis:
Owens Fabrication custom multipoint T45 rollcage, tubbed & turreted rear arches, flat aluminium boot floor

Engine:
1293cc A+ block, forged 18cc Omega pistons, Specialist Components forged rods, SH Engineering race crank, custom camshaft, steel main strap, alloy adjustable timing gear, Retrosport timing case, water pump inlet plate, alternator bracket & dizzy blank, custom-mounted Nippon alternator, electric water pump, Swiftune oil pump, alloy fuel cell, custom fuel feed with original external filler retained, aluminium internal fuel hard lines, Turbo-mini.com fully worked and flowbenched offset valve 12G940, Rimflow valves, Piper springs, titanium top caps, 1.5:1 full roller rockers: custom spaced, Retrosport heater take off & stat, ARP 11 head studs, alloy rocker cover with breathers, modified Metro turbo exhaust manifold, GT2056 Turbo, turbo carb, Fusion Fabrications plenum, Megajolt ECU, home-made loom, alloy front mount radiator, alloy front mount intercooler, 2.5” turbo back custom exhaust, under wing oil breather catch can

Drivetrain:
Straight cut, close ratio gear set, Quaiffe ATB LSD, straight cut drop gears, centre oil pick up, Ultralight steel flywheel & backplate, Grey diaphragm, AP Rally plate, custom internal gear linkage

Steering/Suspension/Brakes:
Protech coilovers, custom front subframe, KAD alloy radius arms , Minispares alloy rear beam, rose-jointed tie bars, rose-jointed bottom arms, rose-jointed track rods, custom alloy brace bars, internal brake lines, Cooper S calipers, grooved 7.5-inch discs, modified alloy rear drums, Wilwood bias pedal box

Wheels/Tyres:
SSR FLII 10×6-inch wheels, Yokohama A032R softs

Exterior:
Full restoration, original mk3 shell, Harvest Gold exterior, Charcoal interior, polycarbonate bronze tint windows, JDM front splitter, rear spoiler, carbon roof, fibreglass bonnet, lightweight doors w/ aluminium skins, no inners, alloy hinges, single skin steel bootlid w/ alloy hinges, fibreglass rear valance with custom silencer exit, custom turbo bulkhead box, Carbon Weezel bulkhead blanking plate, Carbon Weezel rear bumper, removable steel front end, smoothed & shaved front panel, custom headlights incorporating indicators & sidelights, Swiftune mirror brackets

Interior: Custom mounted centre binnacle, Smiths PROLED tacho, Smiths boost gauge, custom wideband AFR gauge, electronic boost controller, custom wireless steering wheel controls, custom drivers door panel with wireless switchgear, Driftworks Cobra Evolution FIA bucket seats, Driftworks 4 point FIA harnesses, rear seat and bins removed

Cutting Room Floor

Turbo Mini Speedhunters by Jordan Butters-22
Turbo Mini Speedhunters by Jordan Butters-17
Turbo Mini Speedhunters by Jordan Butters-29
Turbo Mini Speedhunters by Jordan Butters-36
Turbo Mini Speedhunters by Jordan Butters-40
Turbo Mini Speedhunters by Jordan Butters-42
Turbo Mini Speedhunters by Jordan Butters-47

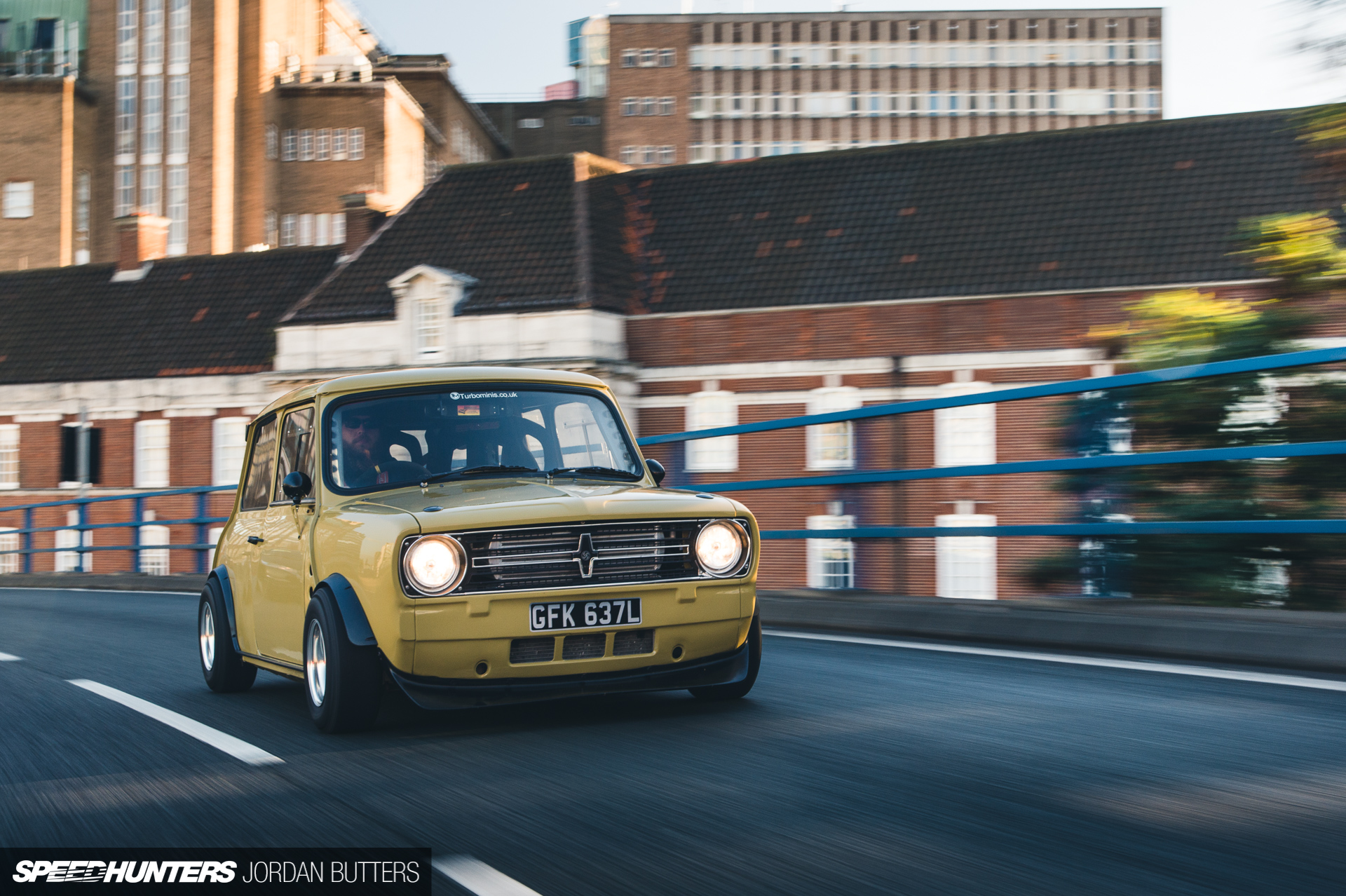

Turbo Mini Speedhunters by Jordan Butters-49

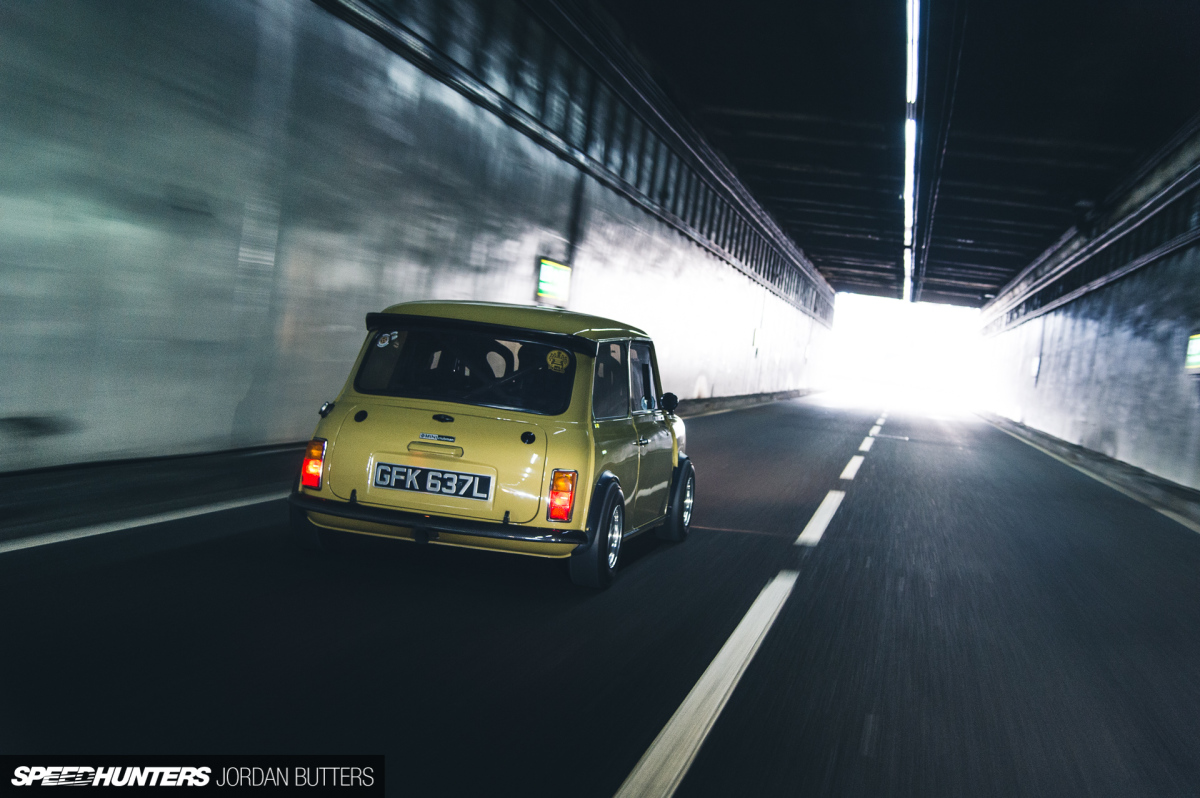

Turbo Mini Speedhunters by Jordan Butters-55
Turbo Mini Speedhunters by Jordan Butters-65
Turbo Mini Speedhunters by Jordan Butters-66
Turbo Mini Speedhunters by Jordan Butters-70

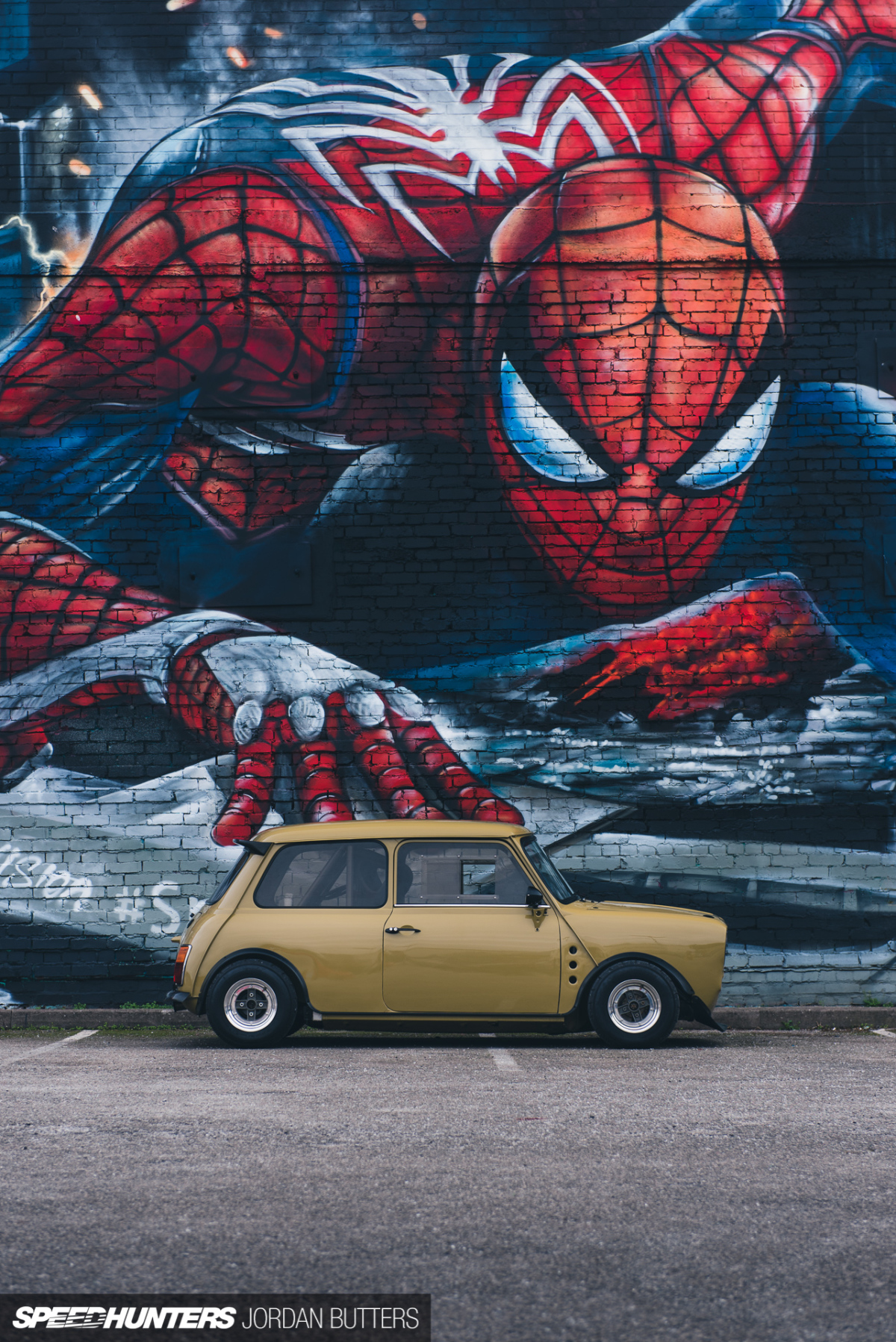

Turbo Mini Speedhunters by Jordan Butters-60
ADVERTISEMENT

Comments



Comments are closed.

50 comments

by Oldest
by Best by Newest by Oldest
1

i really thought I was on the wrong website, with that big spiderman ^__^

2

ow wait i'll go start the story now, see you.

3

Cars like this are why I keep coming to Speedhunters to read and write.

4

That first picture couldn't have been laid out more perfectly, like it literally looks like he popped off to grab it.

Also holy hell. 10 inch wheels? That's barely larger than my hand length from base to tip of middle finger. Almost go-kart wheel status. But then again this is really just an enclosed go kart, i mean with 400hp/ton sounds crazy as hell.

5

very cool car indeed, plus it looks like so much fun to own and drive and have a blast everyday.

6

Scrolled all the way down before reading to say that is the coolest cover shot on any story ever. Awesome work.

7

such an awesome little rocket! bet that thing is a blast to drive!

8

What kind of grip issues is he having? As in grip issues induced by wheelspin? Or just the regular torque steer? Torque steer van be overcome by altering front castor, and changing wheels to lees ofset (scrub radius is to big). Grip can be had by changing to Super softs, as they are made as well by yokohama. Changing to a longer first gear of you have to, or just limit boost in the gear thats experiencing the grip issues.

Raced these things for years....

9

Most likely wheelspin. The Yokohama’s are pretty much the best (road legal) tire you can get for 10’ wheels in that size, and even those are easy to light up. He’s also running a SCCR box so 1st is already longer than normal

10

They are the best, period. At least grip wise by a long shot. In the pouring rain it's a differnt matter though, as puddles are nightmare. There isn't any better tire in that size out there. But they are available in different compounds. Most you can buy are medium and soft compound, but there is a super soft compound. Won't last long (even the medium barely gets 10.000 Km), but does give the extra grip.

Longer then normal isn't anything thats special, because of all the different diffs used on the cars throughout there life. And I'm not talking about ordering parts in a catalogue: Caster cant be changed unless welding on the subframes and suspension. But when you have the gearbox disassembled (which is in the sump) you can change gears. My first gear could reach 92km/h in my race mini, although I must say thats also because of RPM (being about 9200 RPM at 92km/h, with a redline far higher). So when the parts bin has been used up the engineering just begins....

11

The only other option I can think is Hoosier slicks? But obviously they aren't road legal! No need to tell me about Mini's, I have a 110BHP NA one myself. Even I can struggle to put the power down in damp conditions, and I'm on 12's! I wish we had the AO32 in our size. I'm on A539's and I've done a fair few burnouts and they haven't worn that much...for now

I thought caster could be changed using adjustable tie bars? Even with a 3.4 diff, 1st is quite long. I can reach around 75-80kmh before needing to change. There was some news of Swiftune & Quaife developing a 5 speed sequential but it's gone all quiet. Probably due to the £6k price tag!

12

12" is way to heavy and not needed. But it is also the worst choice in availability of good tyres. 13" is even worse, but they do make better tires for those sizes. I raced a 165 NA "Smallbore", although I also drove it on the streets, since it was road legal, registered and insured. But haven't had any issue. Then again: I've engineered the issues out of it. Best tyres on 12": Falken FK-06G. Try them, especially in the rain. Should be a slight bit cheaper as well....

Why would you need a five speed? 4 are just fine? Only really used for low RPM highway speeds. I was talking about about a 3.65 from a pickup with 92km/h on the speedo. And even that is still streetable. I only used the tall first gear as a form of launch control.

Your probably confused with toe-in and out? Thats what you alter with tie bars. I'm talking about Caster angle (not the wheels under a shopping cart). You cant alter that unless you cut and weld, or buy a subframe with a different caster angle build into it (which as far as I know isn't available). for your info:

https://en.wikipedia.org/wiki/Caster_angle

13

For the record Kevski I am personal friends with Steve Nichols. You're out to lunch on several of your points, but that's neither here nor there.

My guess is Nichols' brain is worth a lot more than yours, but cheers. You're the man...

14

12 inches is way too heavy? Please.

Go to 15s with a solid 1 piece forged wheel like SSR. 10s are shit, 12s are shit and 13s are shit unless you're dealing with a formula car where they are 13x14 or 13x16.

Wider wheels are always faster. If this guy is having wheel spin issues with that power level its not magic. Buy the right stuff.

Author15

15s on a classic Mini? Have you ever SEEN a Mini? 15s would be hilarious, even if they would fit.

16

Try not to lose your shit guys...I know it can be difficult.

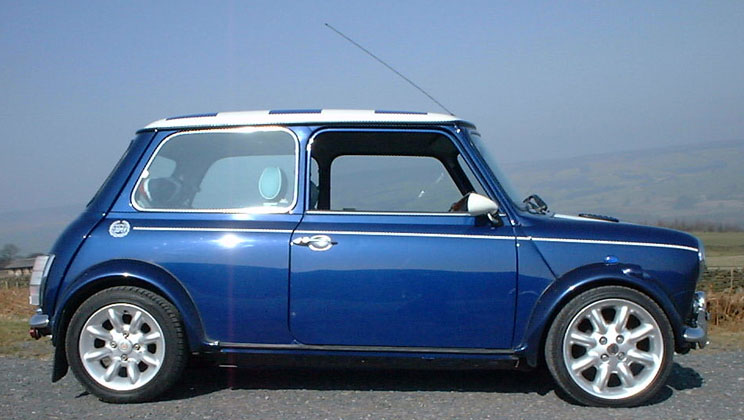

decom_b17a7300ddb385aa86578a7e5c2af875_5bf9bb7d95ec8.JPGdecom_b17a7300ddb385aa86578a7e5c2af875_5bf9bb7d95ec8.JPG
