A Wild Take On The NA6 Mazda Roadster

When it comes to the cars we share with you from events like last Saturday’s Attack meet at Tsukuba Circuit, there should always be an element of balance.

We can all dream about building the perfect time attack machine with a reinforced chassis, top-of-the-line suspension, big power and a custom aerodynamic package to get the most out of it all, but in reality I think this form of motorsport is more about experimentation than anything else.

attack_18_dino_dalle_carbonare_82

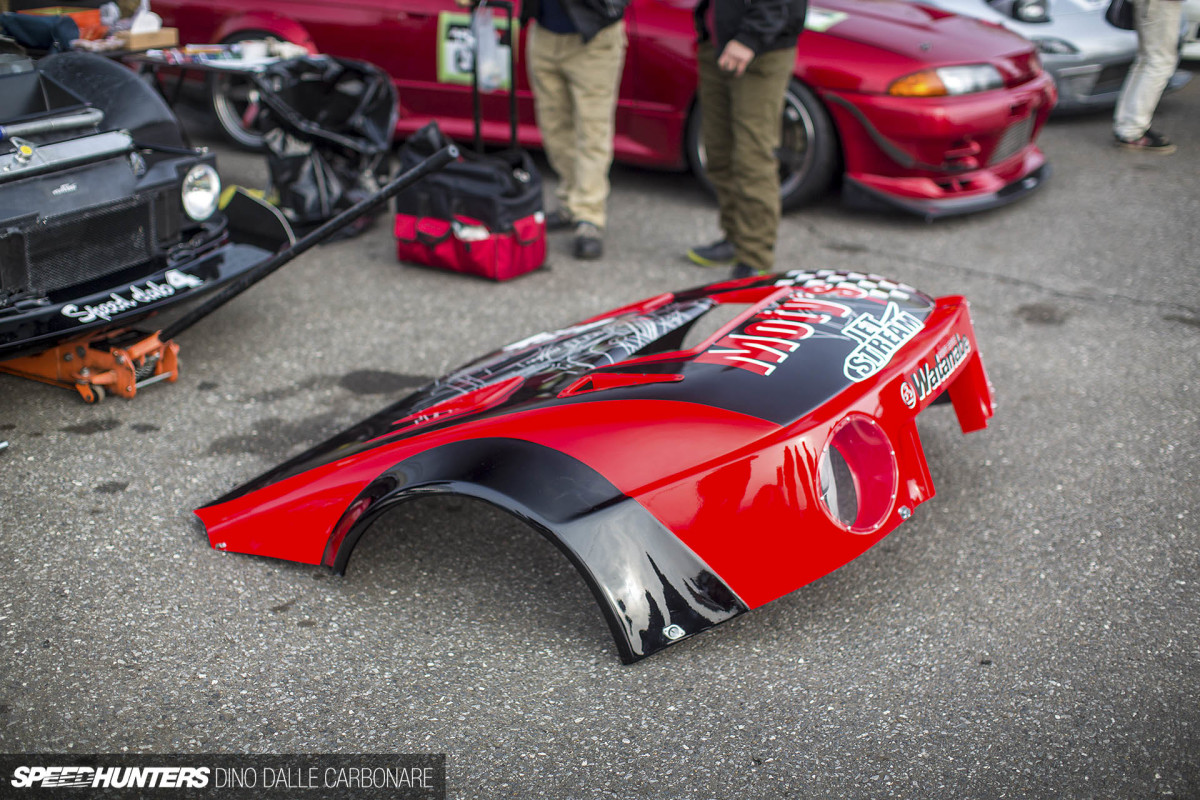

I’m always on the look out for time attack cars that seek ultimate speed through innovative and often unique solutions. Cars like this Roadster, listed on the Attack entry list as the “Moty’s RS Watanabe Speed Club Jupiter JET E-NA6CE”, which is one of the most ‘out there’ NAs that we’ve ever come across.

attack_18_dino_dalle_carbonare_84

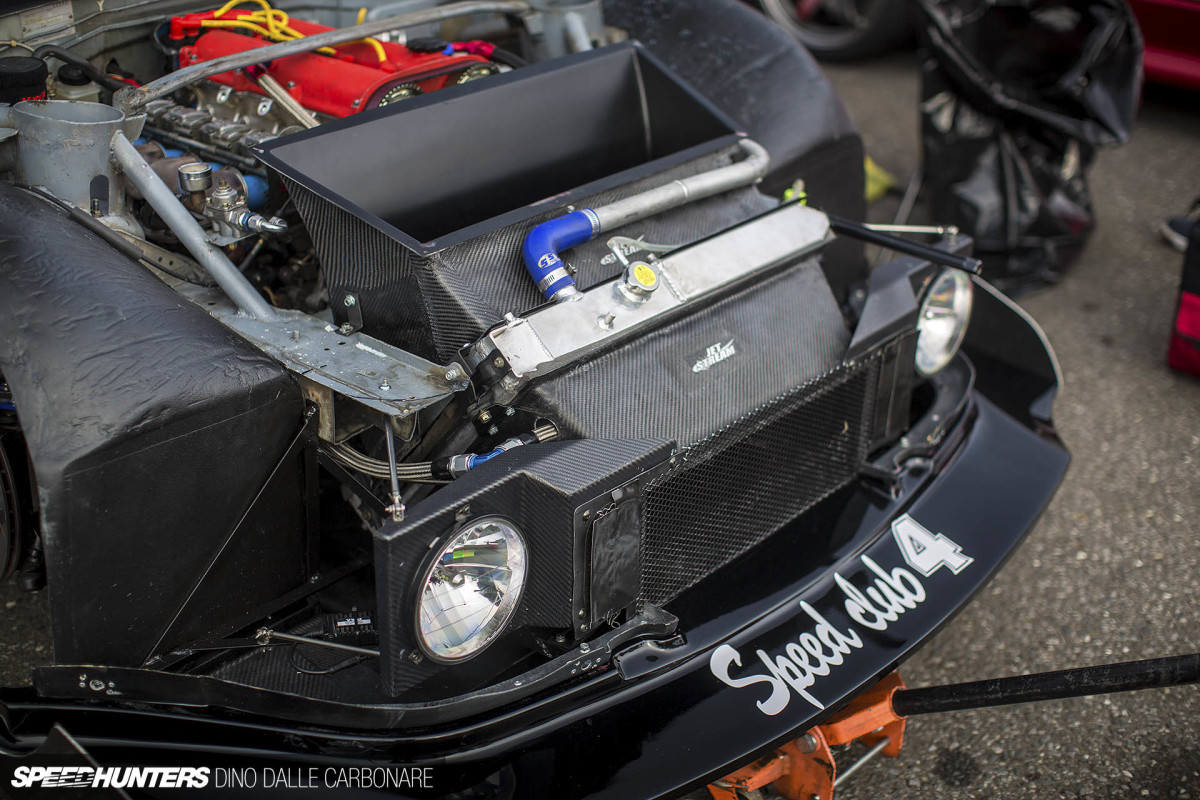

As part of the aero treatment the whole front section has been cut, sculpted and redesigned in order to accomodate an angled radiator, itself sandwiched in a carbon fiber air guide which channels air up through the front dam, through the core and then out of the hood vent. The front wheel arches have been cut and reshaped, and the front nose now houses a pair of projectors to replace the stock pop-up headlights. The one-off cowl, which incorporates the front bumper, fender and hood, then covers the entire section.

attack_18_dino_dalle_carbonare_86

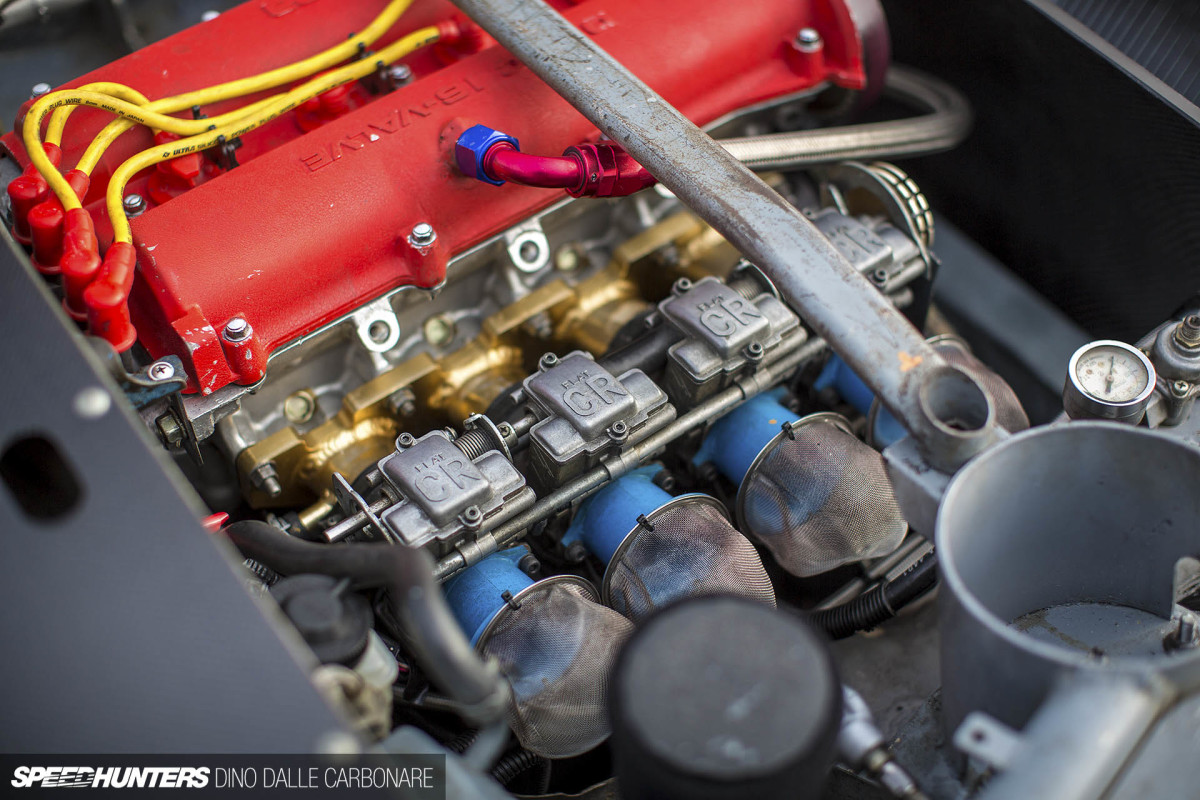

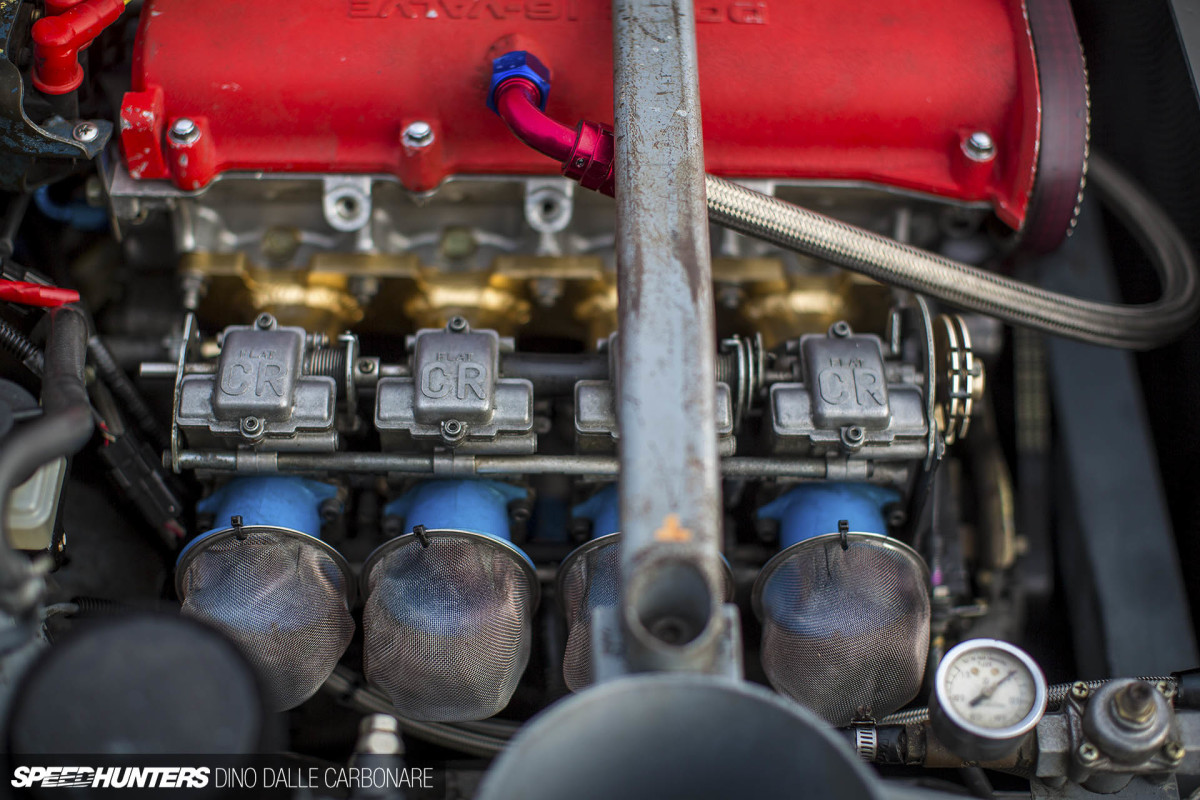

The engine has traded its stock fuel injection system for a set of Keihin Flat-CR motorcycle carburetors, helping take an already basic car and making it that little bit simpler. We’ve seen these flat-slide carbs on numerous Roadsters and AE86s in Japan, and they’re loved by many for their immediate response and performance at wide open throttle.

attack_18_dino_dalle_carbonare_90

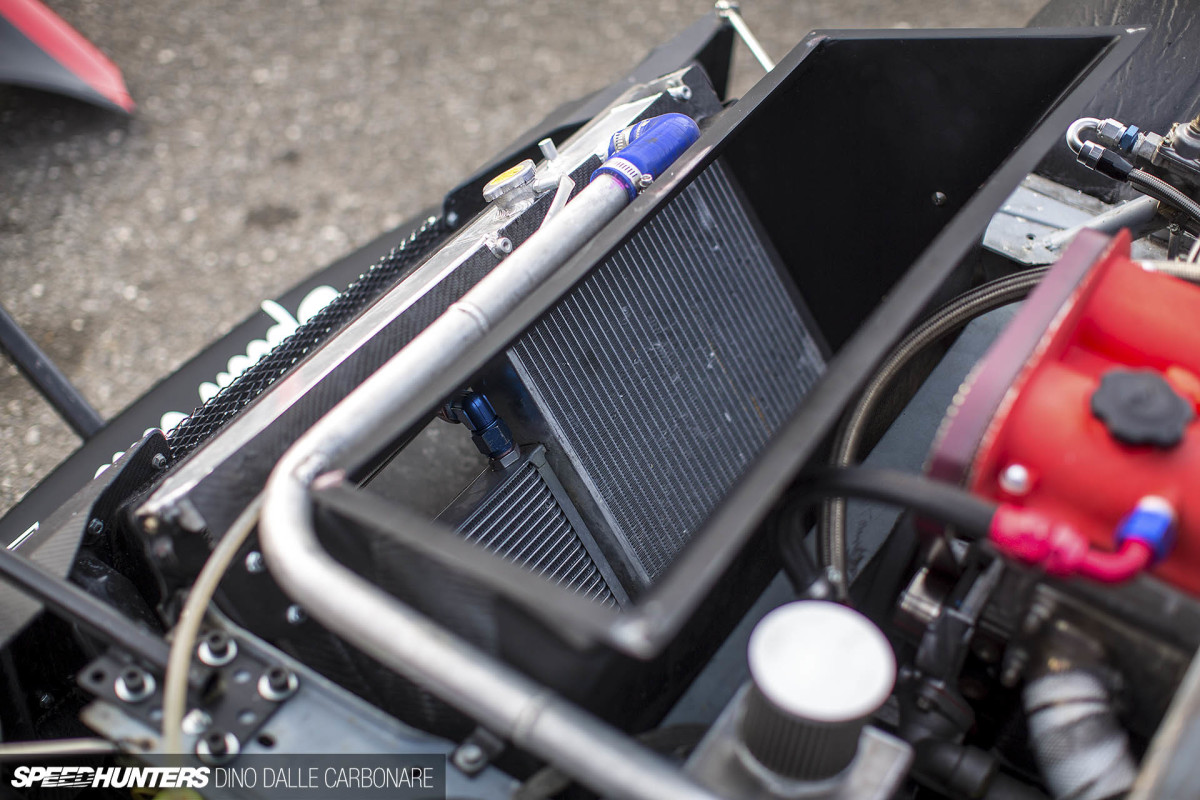

Hiding inside the air guide are a few more cooler cores; one for the engine oil, the other for the transmission.

attack_18_dino_dalle_carbonare_88

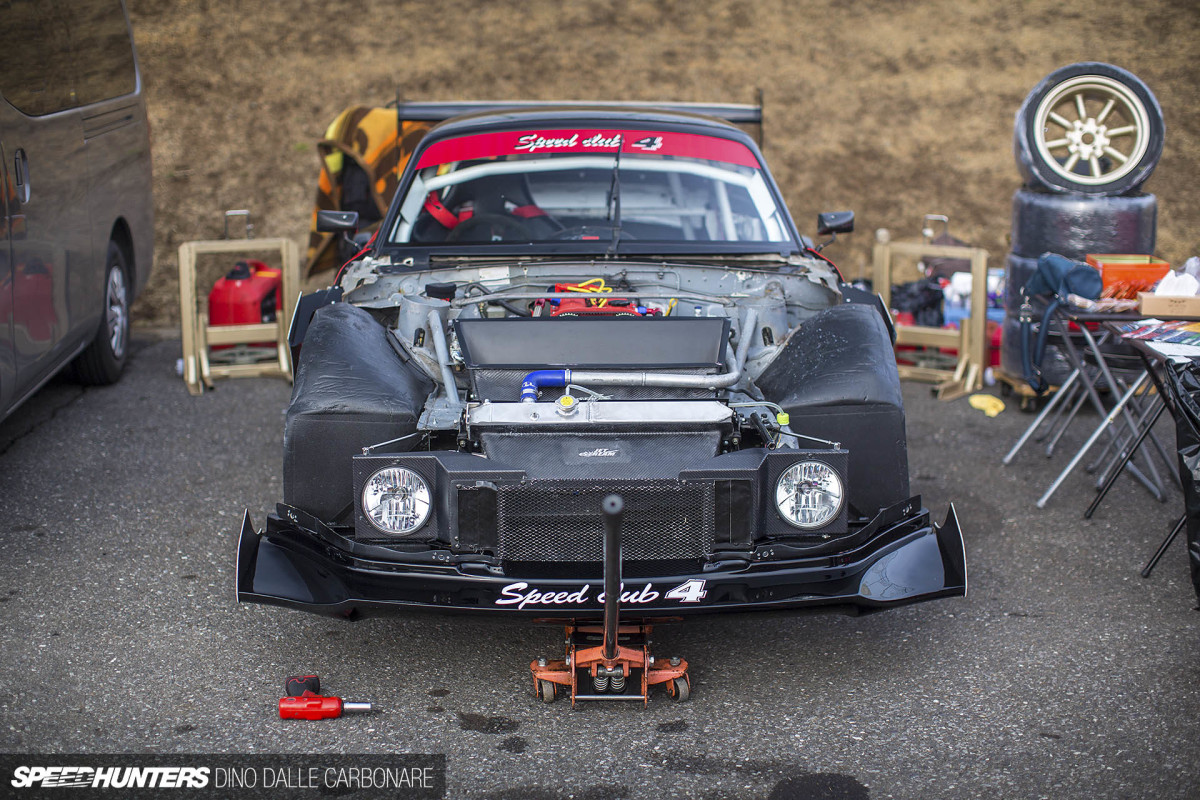

We’re no strangers to crazy and wild NA-based projects here on Speedhunters; we’ve seen all sorts at Japanese soukoukai events, but this Speed Club car is certainly up there.

attack_18_dino_dalle_carbonare_87

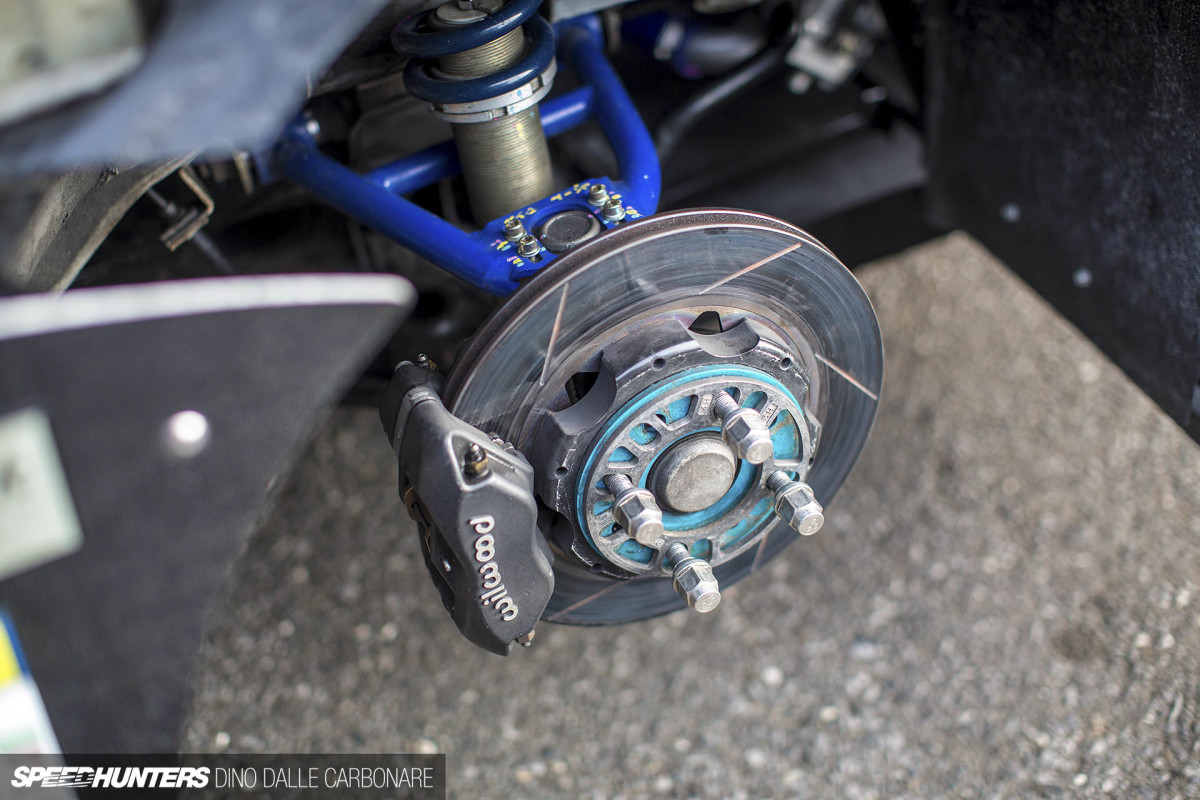

Braking and handling have been addressed with adjustable arms all round and compact Wilwood calipers up front.

attack_18_dino_dalle_carbonare_91

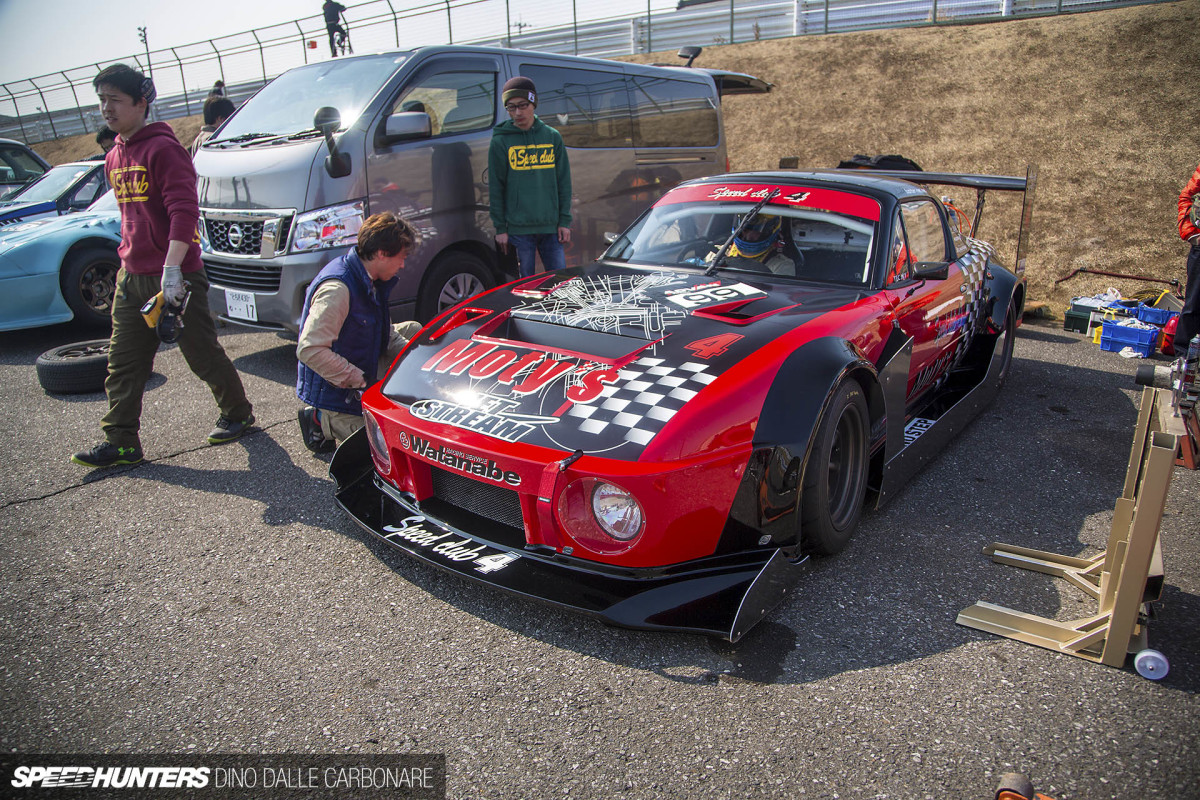

With the cowl in place the wide-body Roadster certainly looks the part.

attack_18_dino_dalle_carbonare_92

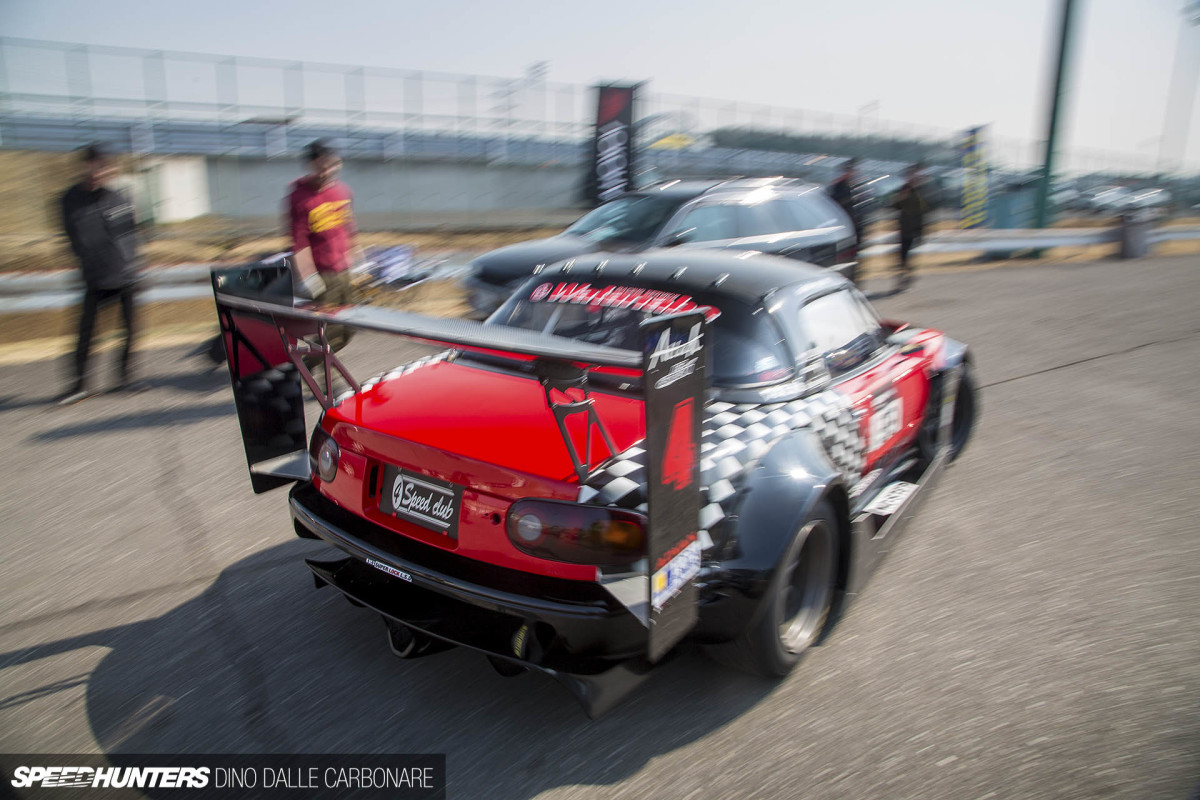

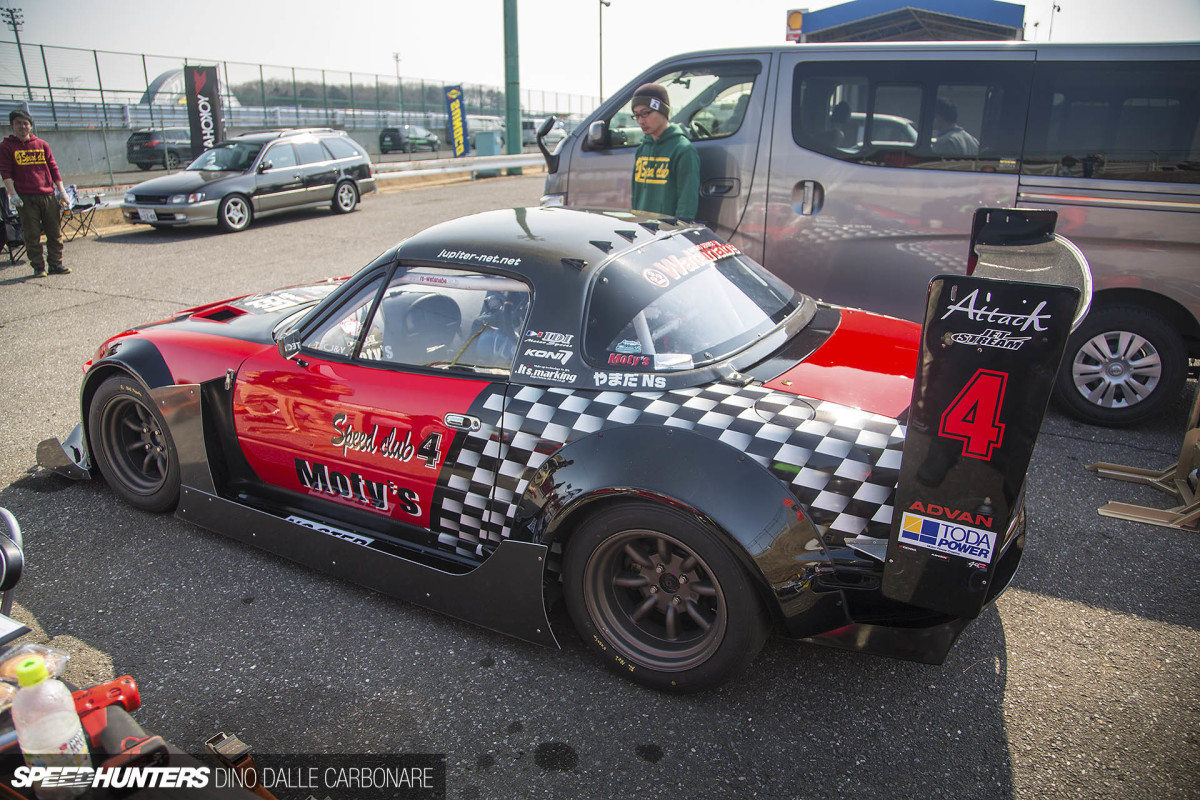

You can see how the carbon aero extends along the skirt profile from the front arch extractors all the way to the rear overfenders. I loved the RS Watanabe wheels mated to chunky side-walled tires; it’s the sort of stance these cars should always run in my opinion.

attack_18_dino_dalle_carbonare_93

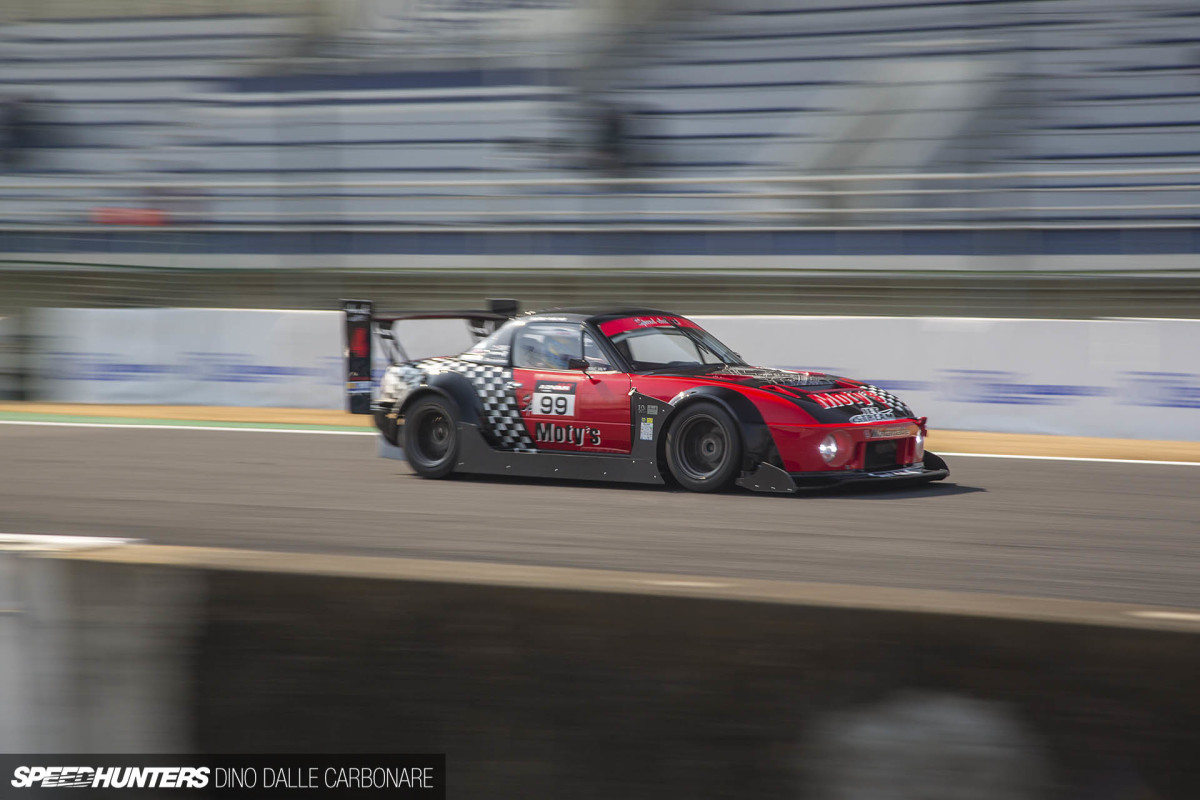

I managed to get a few shots with the little Mazda before the driver took it away for a few hot laps around Tsukuba.

attack_18_dino_dalle_carbonare_95

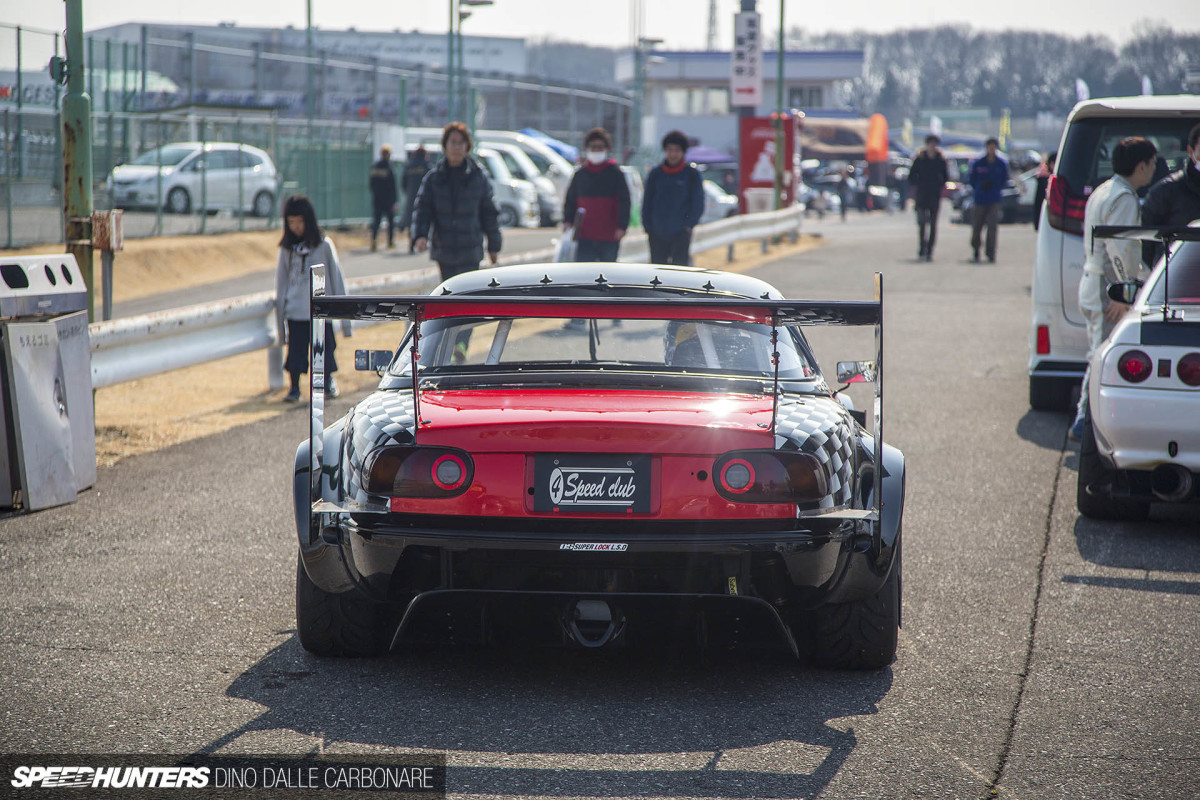

The car ran a best of 1:02.236, a damn respectable time if you consider there can’t be much more than 150hp on tap from the little four banger.

attack_18_dino_dalle_carbonare_94

It goes to show what you can achieve with a little bit of imagination and knowhow. Just remember, the most important thing of all is to have fun while doing it!
