Cool Runnings: Building The Ultimate Endurance BMW M4
Perfect Storm

Building a fast street car is a challenge. Building a fast race car is the next level. But to build a fast endurance race car, is a whole other thing.

Yost Autosport is a name that a lot of you will be familiar with. The Las Vegas-based outfit are renowned for building their own cutting-edge race cars, but without the multi-million dollar backing of a major manufacturer. On a relative shoestring budget, Jordan Yost and Mike Bonanni, have relied primarily on their own ingenuity and determination to build the the perfect endurance specification BMW M4, with the goal of winning the famous 25 Hours of Thunderhill.

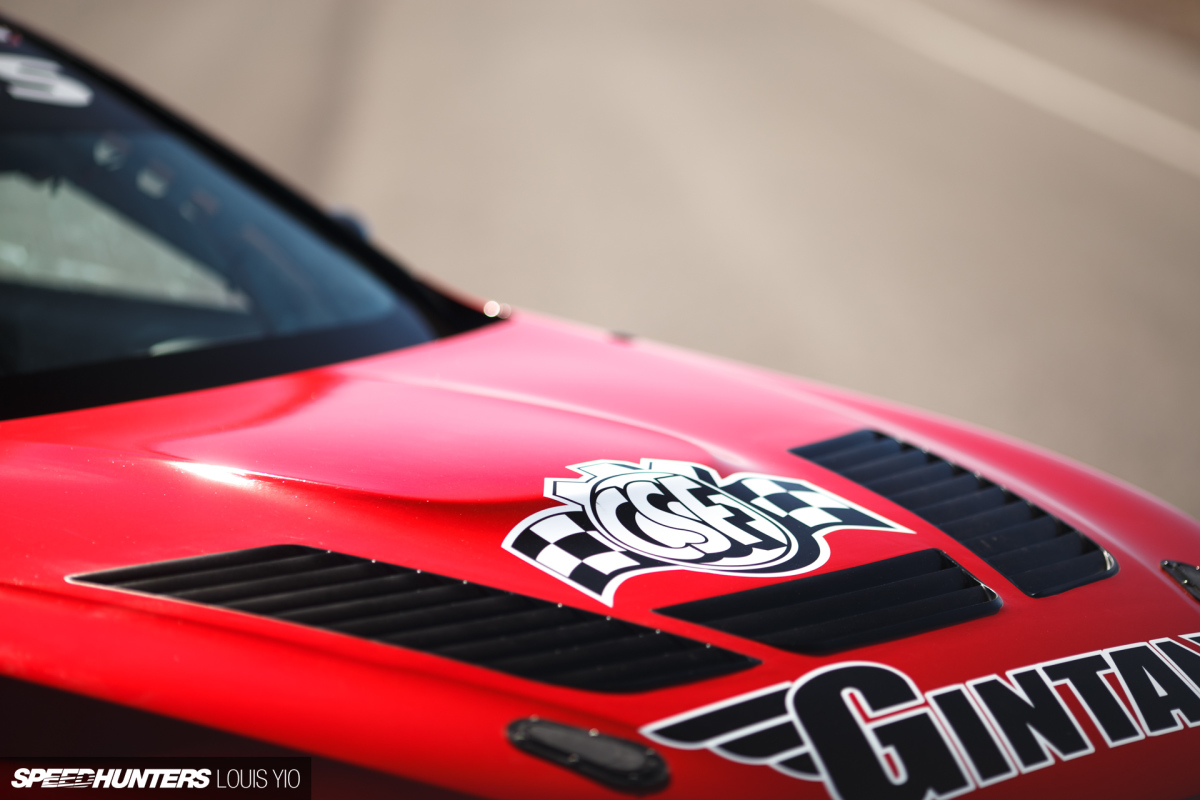

Louis_Yio_2017_Speedhunters_Yost_M4_39

The car itself is no stranger to Speedhunters. Dino managed to grab a visit with Yost Autosport last year before SEMA, when the car had just been finished. Well, for the first time anyways.

Louis_Yio_2017_Speedhunters_Yost_M4_57

For its 2016 iteration, Yost Autosport’s primary goal with their F8x M4 was to prove the reliability and the potential of the base platform of the M4 in the 25-hour race. For 19 hours of last year’s race, they were successful, with the car running consistently and problem free. It was only after car to car contact that problems began to arise, which ultimately put an end to their race.

Louis_Yio_2017_Speedhunters_Yost_M4_18

Not to be disheartened, Yost Autosport almost immediately set about tearing the M4 down to the shell and started again. I briefly spoke to Mike Bonanni about the motivation behind their M4 and he told me that “winning the 25 Hour takes the perfect storm of machinery, drivers, preparation, and luck. We can do our best with all but the luck part.”

Louis_Yio_2017_Speedhunters_Yost_M4_05

He continued, “For 2017 we tore the car completely down to the bare chassis with the intent to rebuild it in a way to maximise its potential. Our big goals were to shed weight, implement aerodynamics, and stuff larger rubber under the new wide-body kit.” I guess that’s as good a place as any to start.

Add Lightness, Stay Cool

For all intents and purposes, the 2016 car was a standard-bodied BMW M4 with a wing and the requisite safety equipment. Things have obviously escalated since.

With the 2016 car tore down, Yost Autosport media blasted the chassis, made weight reduction improvements where possible/allowed, powder-coated the bare car and started to rebuild it once again from the ground up.

Louis_Yio_2017_Speedhunters_Yost_M4_41

The addition of a wide-body by PSM Dynamic gives an obvious increase in girth. It’s not just an aesthetic addition though, as the kit allows a much wider tyre to fit inside the enlarged wheel arches.

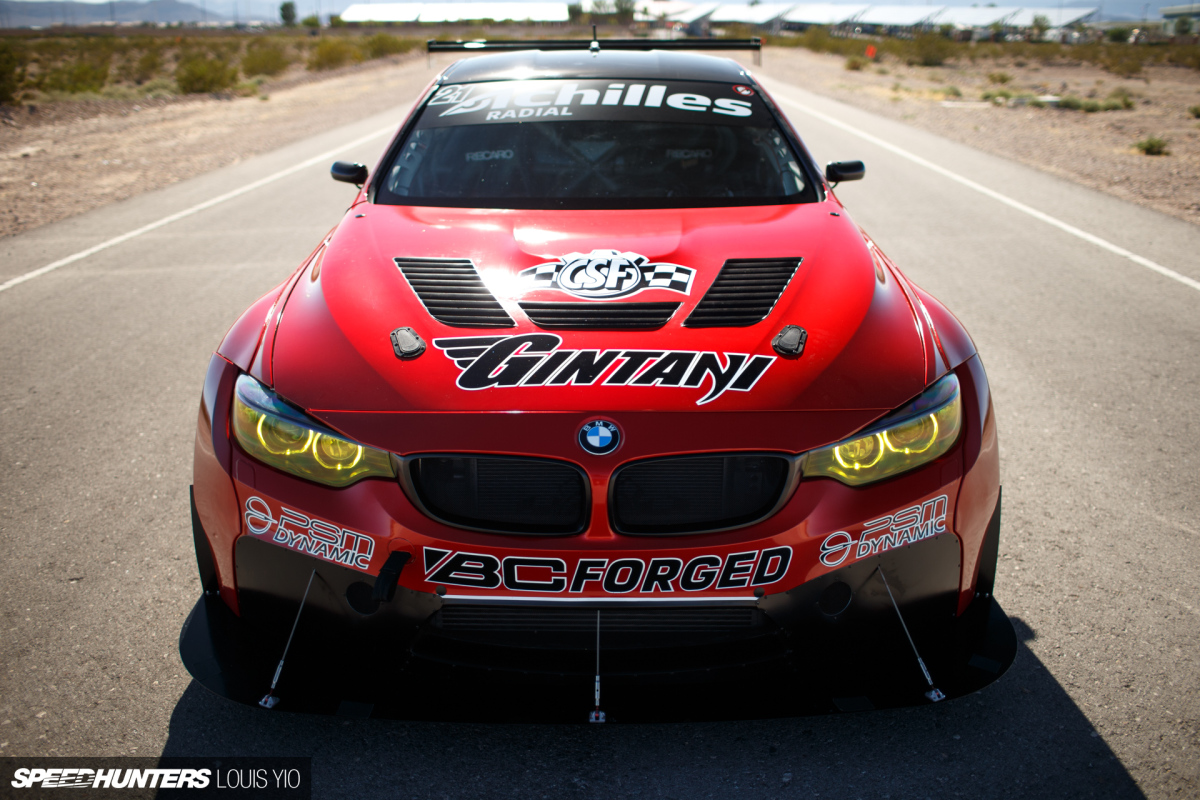

Louis_Yio_2017_Speedhunters_Yost_M4_29
Louis_Yio_2017_Speedhunters_Yost_M4_02

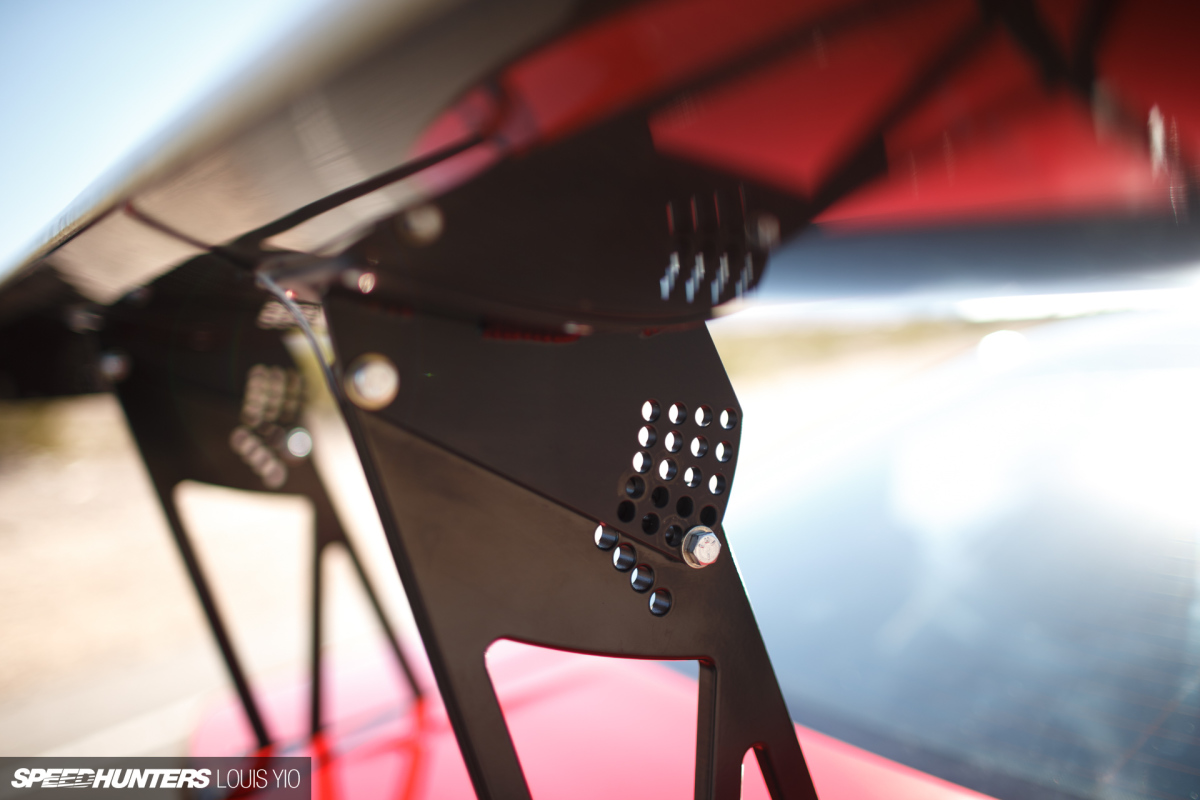

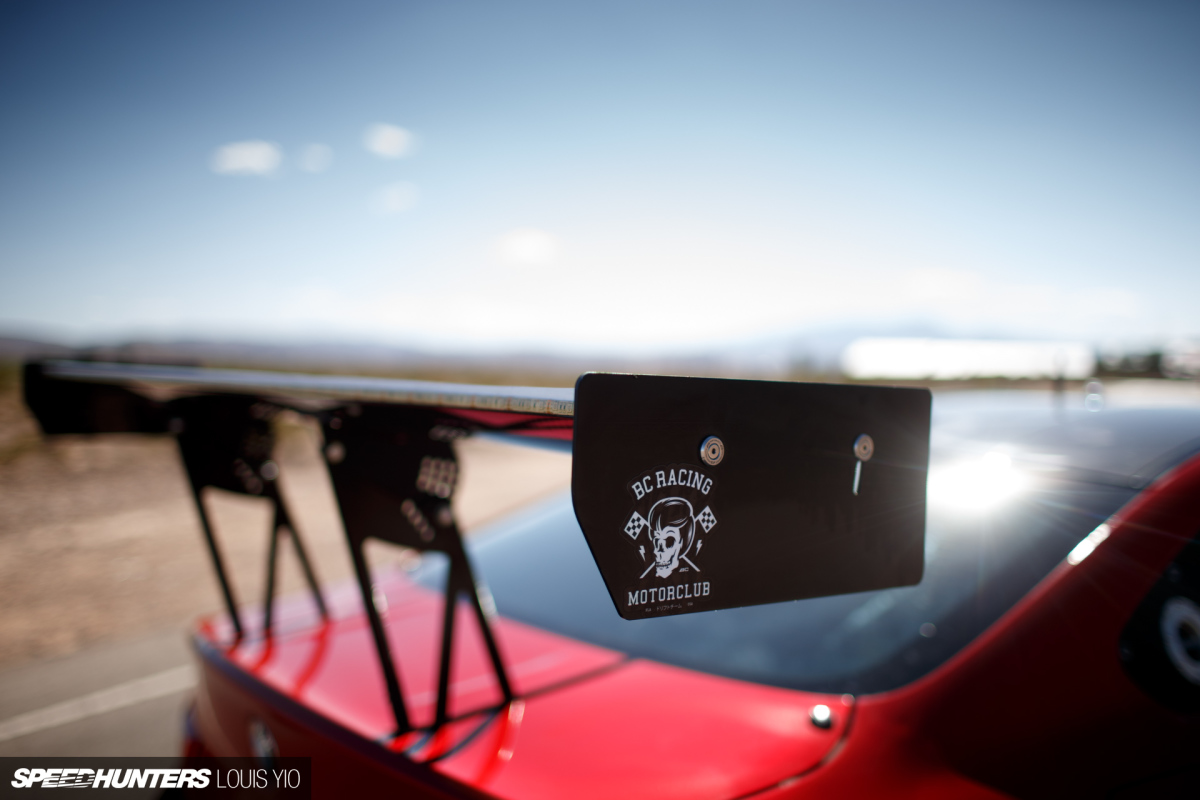

A considerable amount of aerodynamic work has been carefully applied, too. While the same adjustable chassis-mounted rear wing remains from the 2016 car, Yost Autosport outsourced the revamped aero package to MFR Engineering who designed and built a complete flat bottom kit with side skirt extensions, rear diffuser and front splitter.

Air flow under the car is equally important as air flow over the car, but is often neglected or just completely ignored.

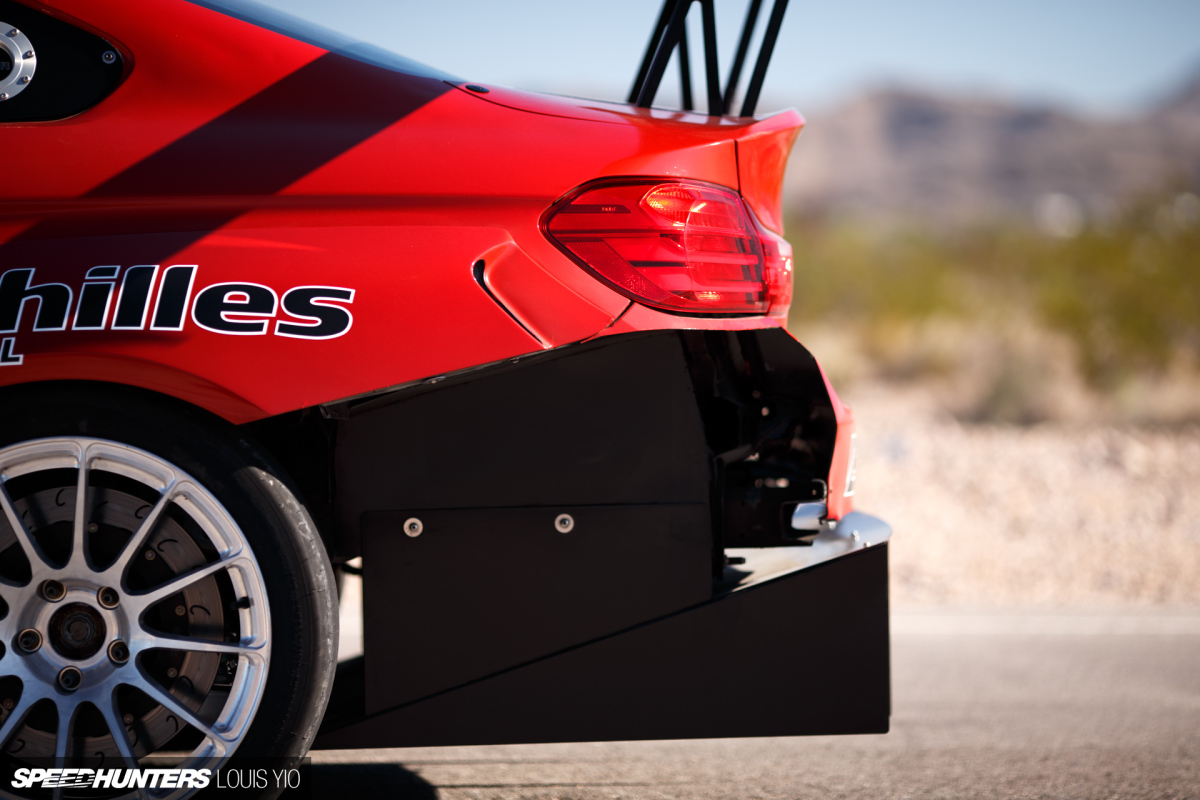

Louis_Yio_2017_Speedhunters_Yost_M4_17

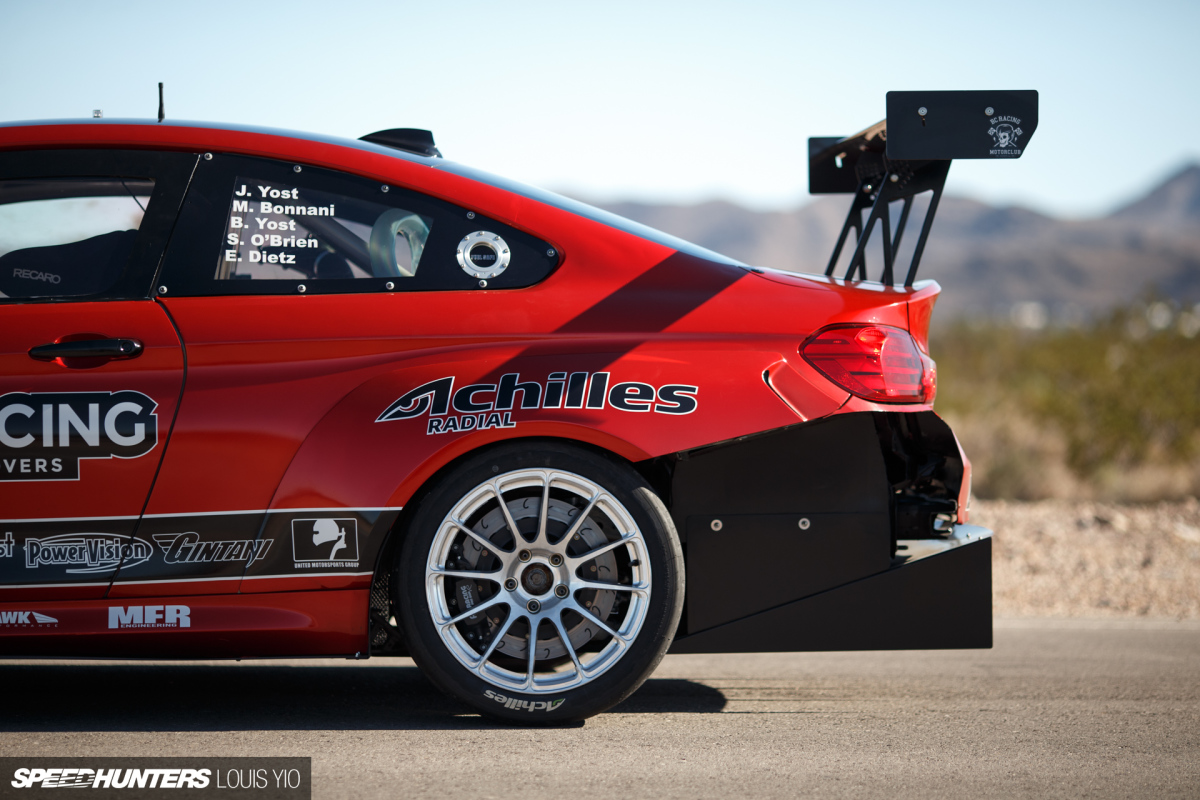

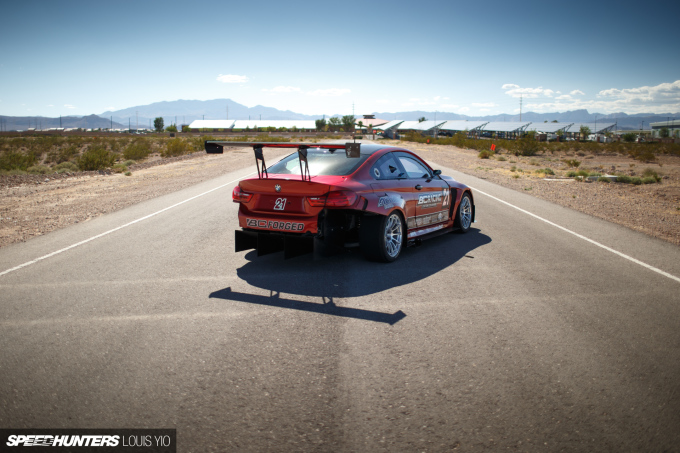

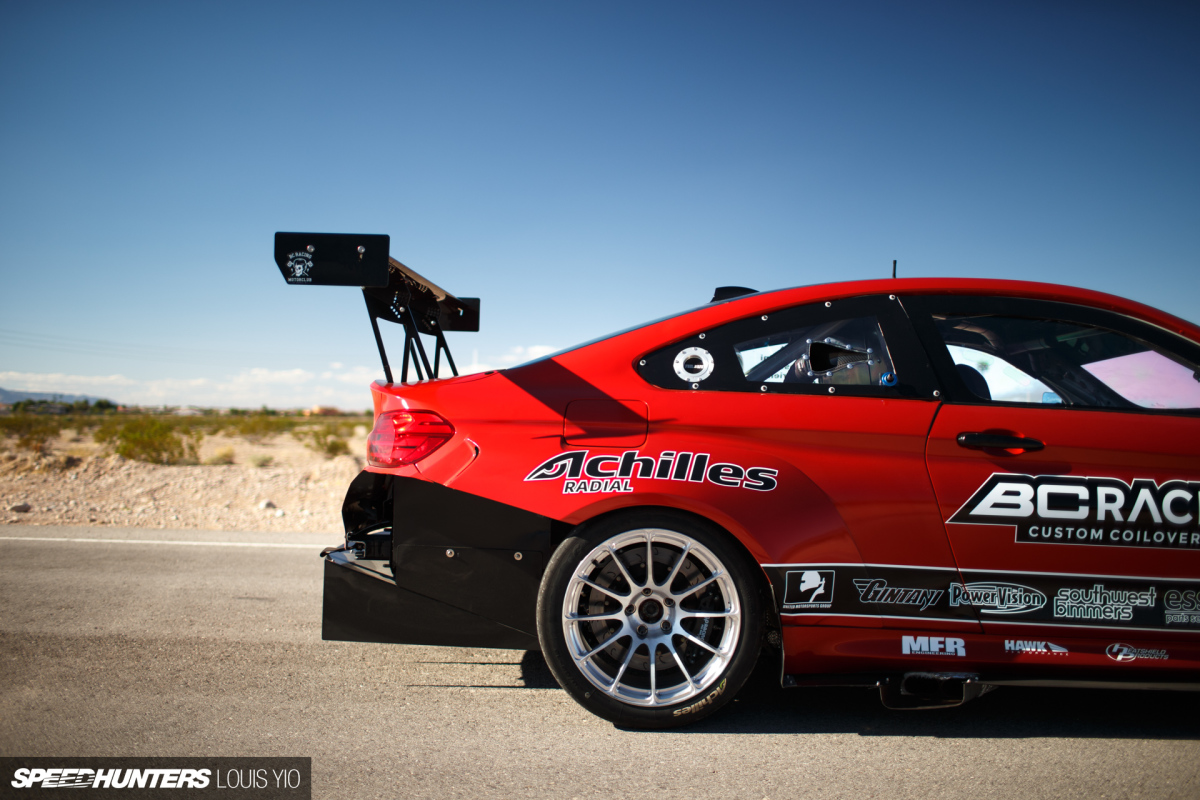

What might have caught your eye in the opening image is the removal of large portions of bodywork behind the rear wheels, in an attempt to evacuate turbulent air that would otherwise have been caught.

Louis_Yio_2017_Speedhunters_Yost_M4_16

It also gives a perfect view of the Achilles GS 328 slicks from the rear, and shows you how much rubber is being put to the ground. I wouldn’t fancy driving behind it, mind.

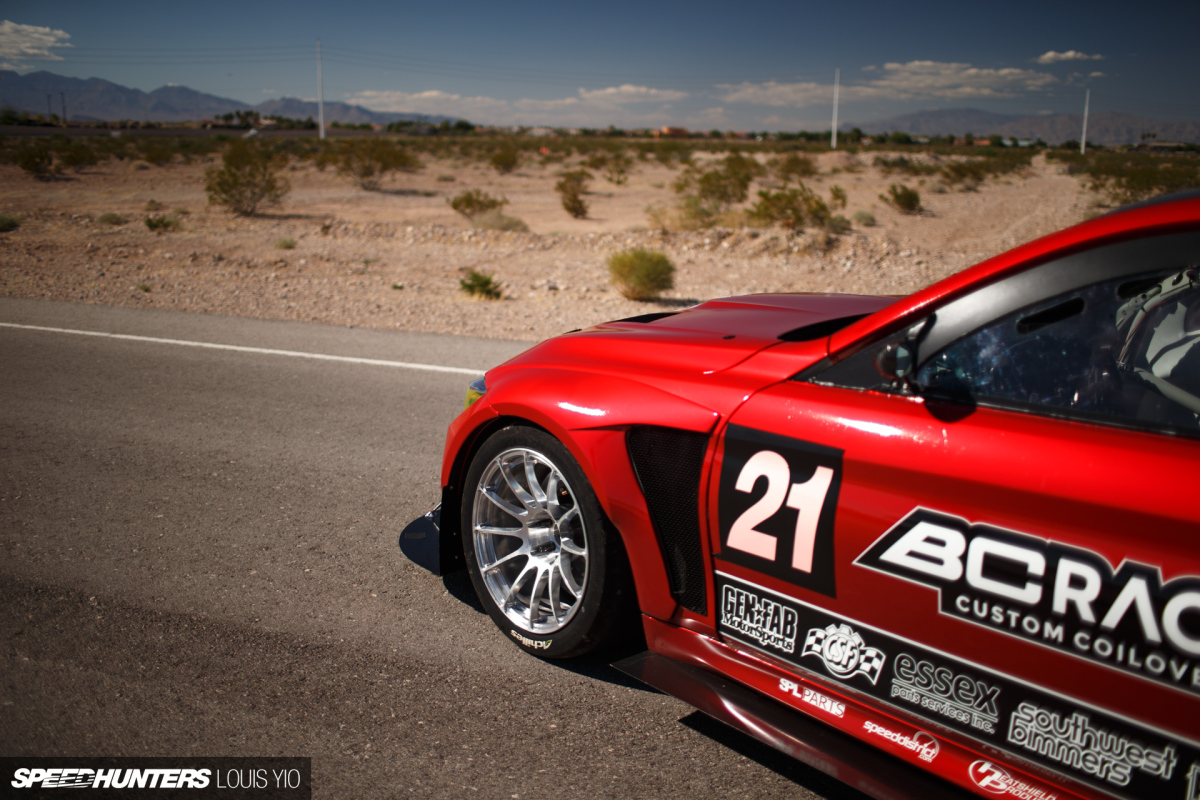

Louis_Yio_2017_Speedhunters_Yost_M4_13

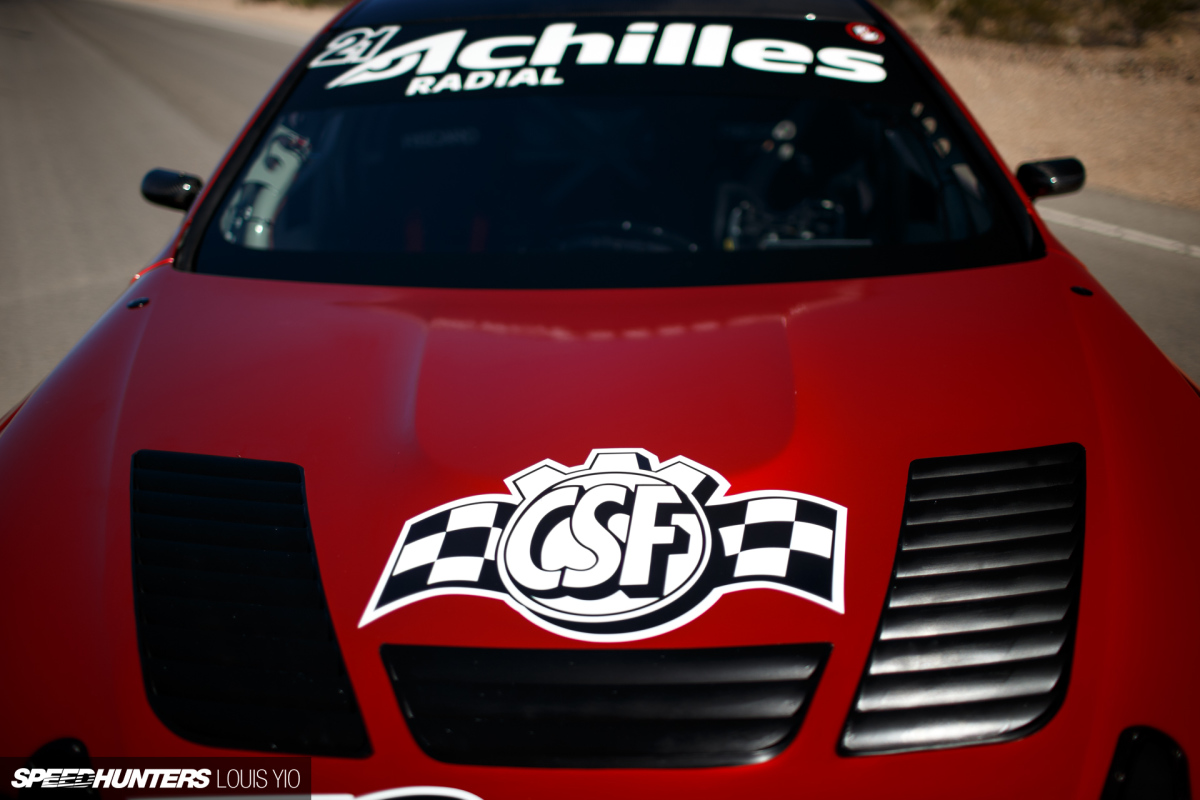

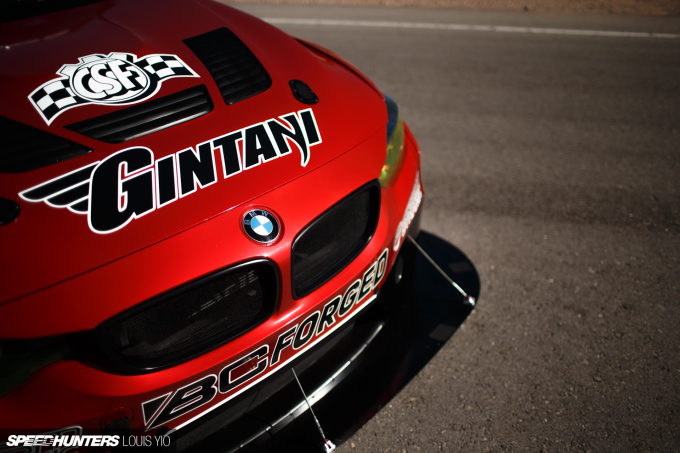

The front fenders are custom vented items, while further weight saving has been achieved by the use of dry carbon doors with Lexan windows. The bonnet, too, is custom dry carbon fibre.

Louis_Yio_2017_Speedhunters_Yost_M4_58

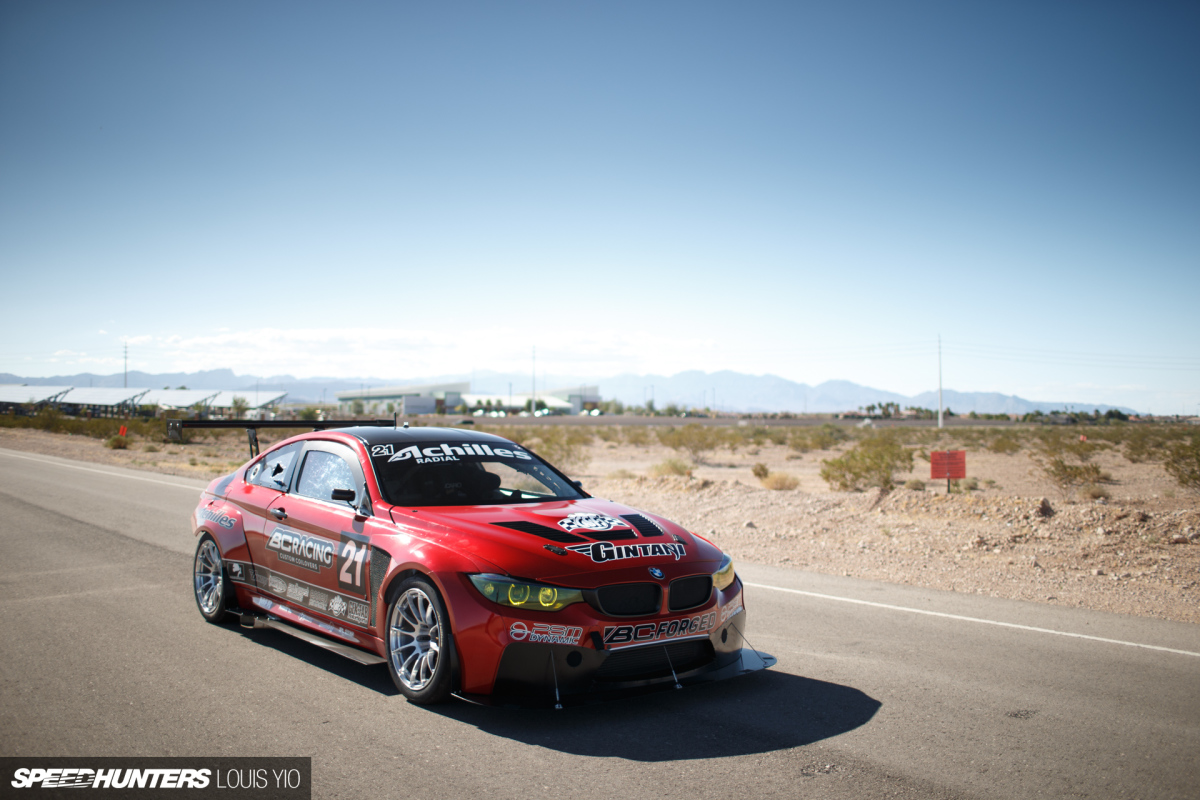

Mike told me that “the only things we didn’t mess with were the aftermarket parts we had already proven – our suspension, engine package, transmission, cooling kit and brakes.” As such, this was an intelligent overhaul. Nothing was changed unless Yost Autosport felt it needed to be.

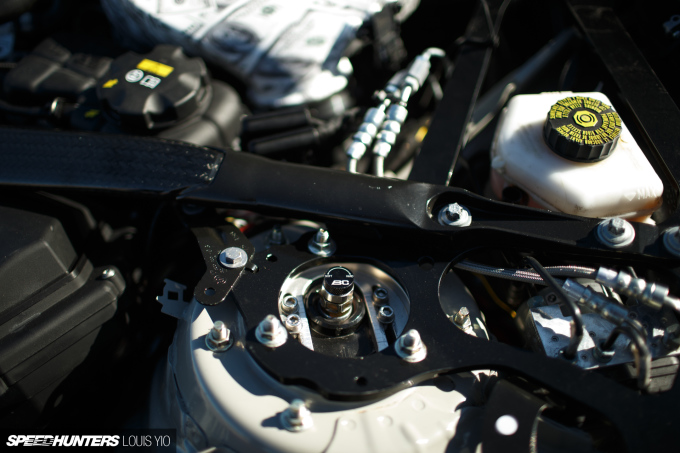

Their suspension setup remains the same, with BC Racing Custom DR Series coil-overs suspending the car with the same company’s adjustable front sway bar end links also in the mix. The rest of the suspension componentry that has been changed from OEM is almost exclusively by SPL Parts.

Louis_Yio_2017_Speedhunters_Yost_M4_10

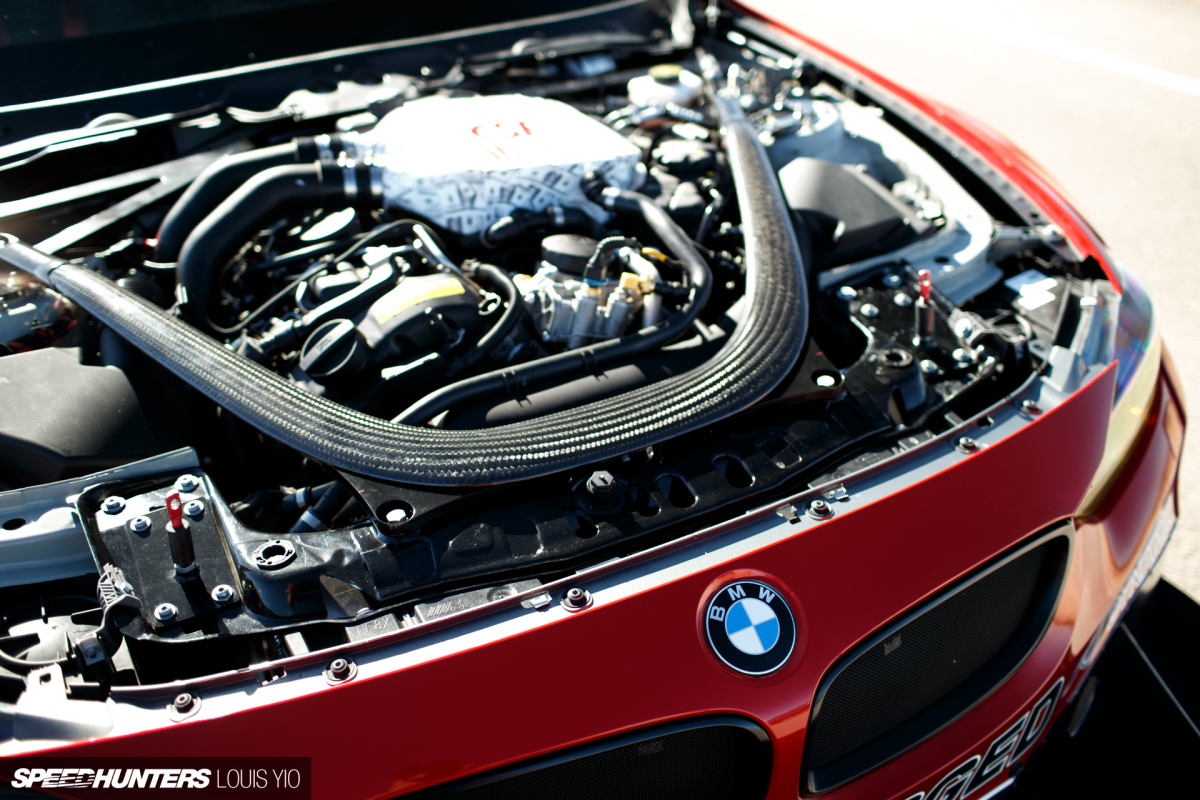

Similarly, the power plant remains the same as before. The factory 3.0-litre twin turbo S55 motor still runs stock internals and stock turbochargers (wrapped in Heatshields Products turbo blankets), just with upgrades to the cooling and fuelling of the engine.

Louis_Yio_2017_Speedhunters_Yost_M4_07

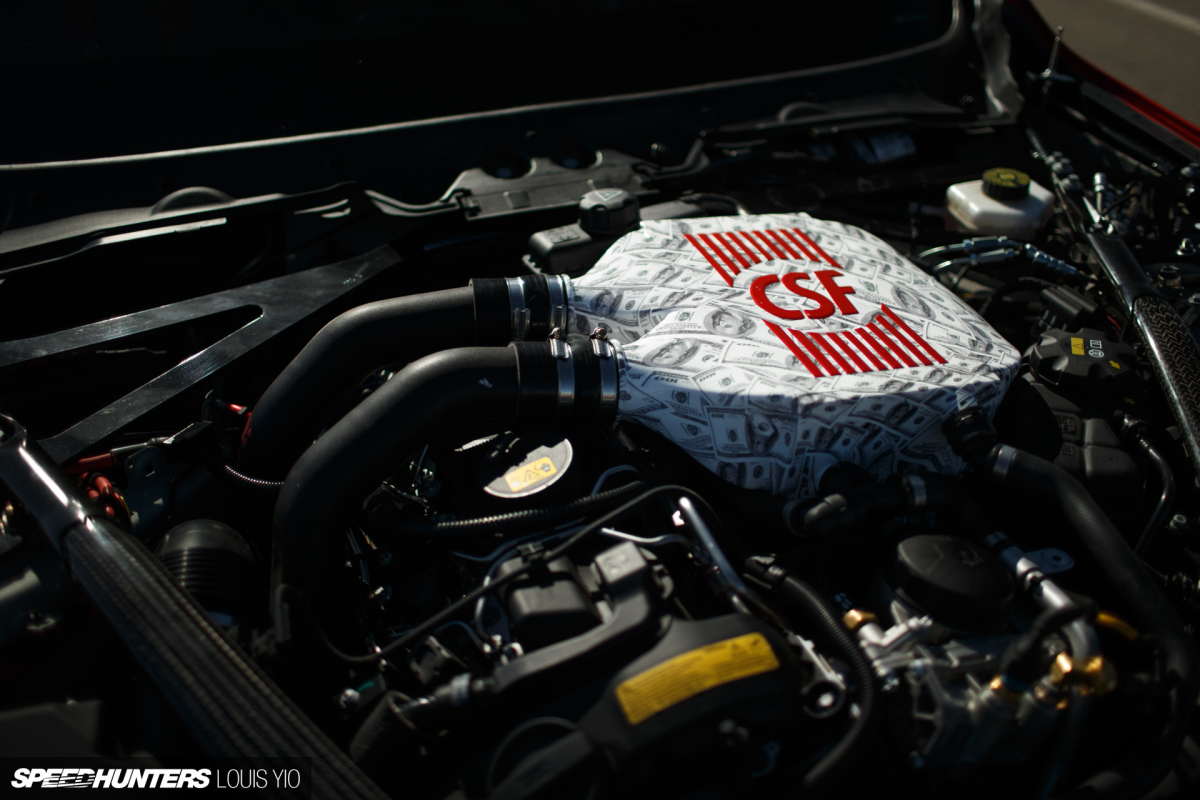

CSF Racing take the lead here, having supplied their top-mount, dual-pass charge cooler (now hydro-dipped in dollar, dollar bills), their front-mount heat exchanger and an adapted E92 M3 oil cooler which has been custom mounted.

Louis_Yio_2017_Speedhunters_Yost_M4_09

With a Gintani custom tune for 100-octane fuel, the M4 makes 600hp at the wheels, along with 612lb-ft of torque. Outright power isn’t the goal, and while 600hp would be considered mild for what the S55 can achieve, the engine’s longevity and reliability are paramount over the course of a 25-hour race. Cooling is infinitely more important and beneficial than another 100hp would be in an endurance race car.

Louis_Yio_2017_Speedhunters_Yost_M4_35

Again, in a similar vein, the same reason applies as to why the stock 7-speed dual-clutch transmission has been retained. It’s often very difficult to beat OEM reliability, purely because of the research and development that BMW can afford to put into their product.

The one weakness of the BMW dual-clutch transmission in the F8x is its tendency to overheat and go into limp mode, especially where lots of fast and hard shifts are taking place over a short period of time. To resolve this issue, Yost Autosport again turned to CSF Racing for their F8x DCT dual-pass cooler.

“One of the biggest projects on the rebuild was the re-engineering and gutting of the factory wiring harness and intricate computer system. Southwest Bimmers in Las Vegas spent countless hours removing unnecessary electronics and re-establishing communication with the vital parts of the car in a way that they all still function like they did from the factory. What sounds like a fairly simple task is unbelievably complicated with a car like the M4,” said Mike.

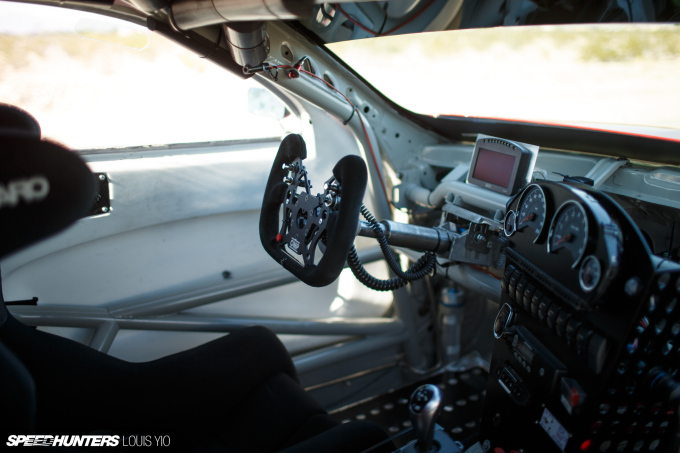

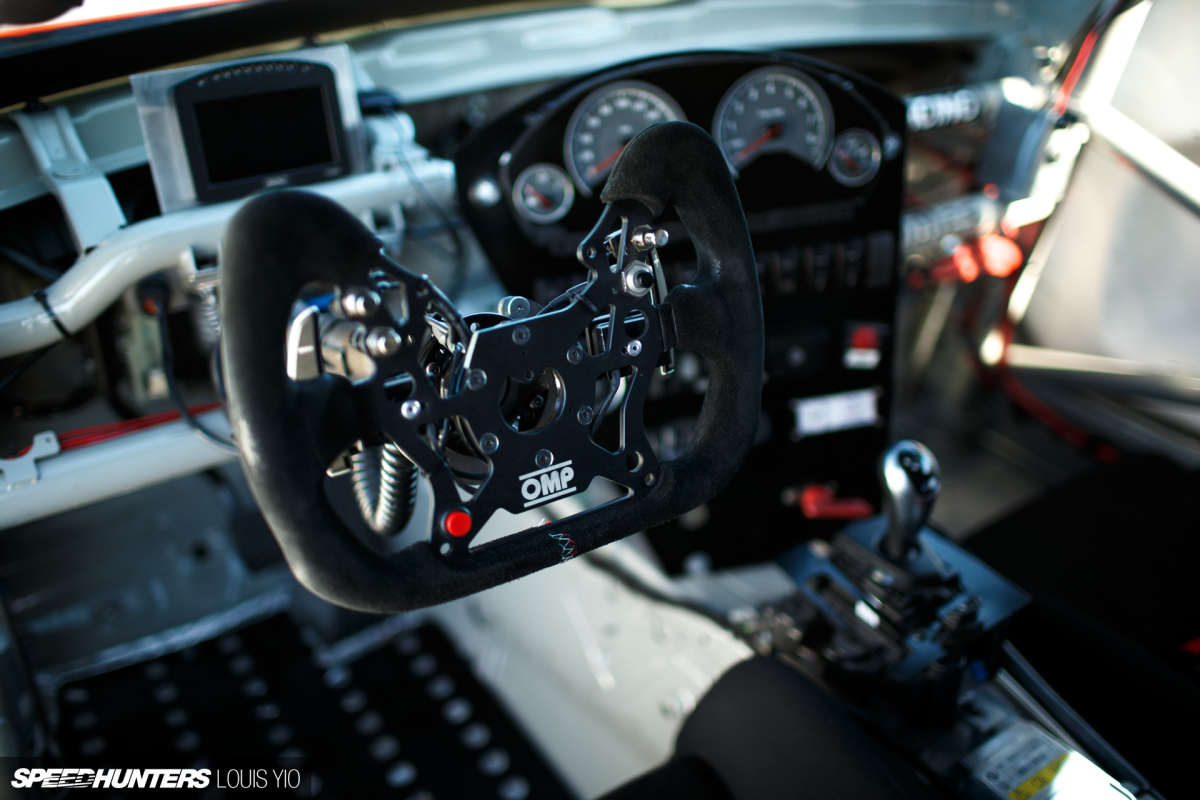

The factory gauge cluster has been custom mounted in the centre of the car, while a MoTeC C125 digital dash takes pride of place behind the customised OMP steering wheel.

“Lastly, a redesign of the cockpit area for simplicity, function, and comfort for the drivers rounds out the major areas of improvement for the rebuild. Of course a list of a million small changes were also performed,” he concluded.

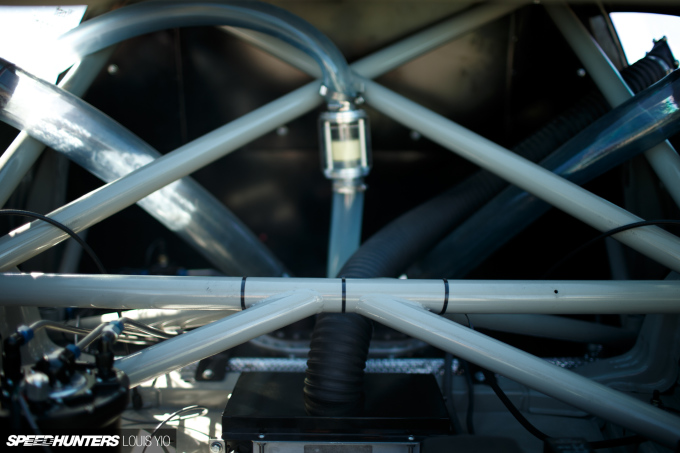

Behind the front seats, resides some of the fuel system componentry. The fuel filler neck which stretches from the rear quarter window, leads to a custom FIA-specification 38-gallon saddle tank fuel cell. A Radium Engineering swirl pot and venturi system are also in play.

Louis_Yio_2017_Speedhunters_Yost_M4_46

The aforementioned wide-body allows a comfortable fit of the BC Forged RS43 wheels which measure 18×11-inches all around, with a 30/65-18 Achilles slick tyre equipped. The silver wheels cover an AP Racing Radi-CAL Pro 5000R brake kit equipped with Hawk Performance DTC-70 brake pads.

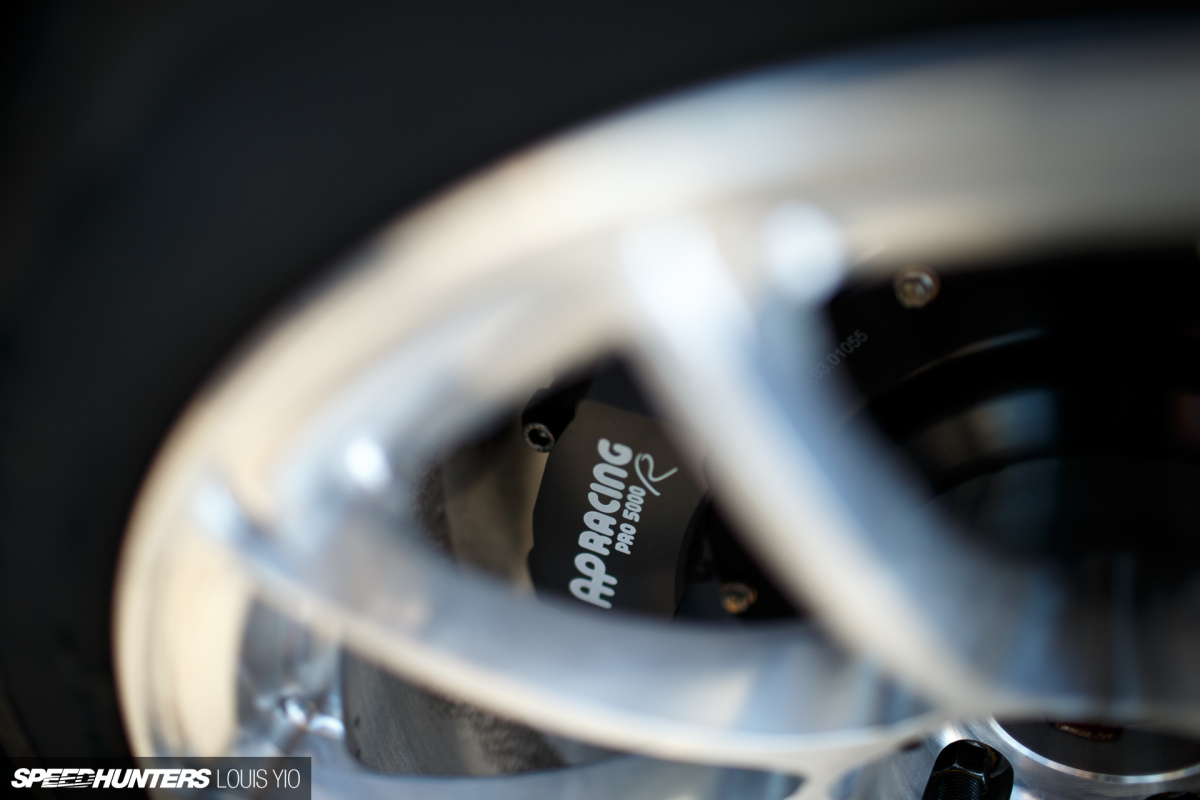

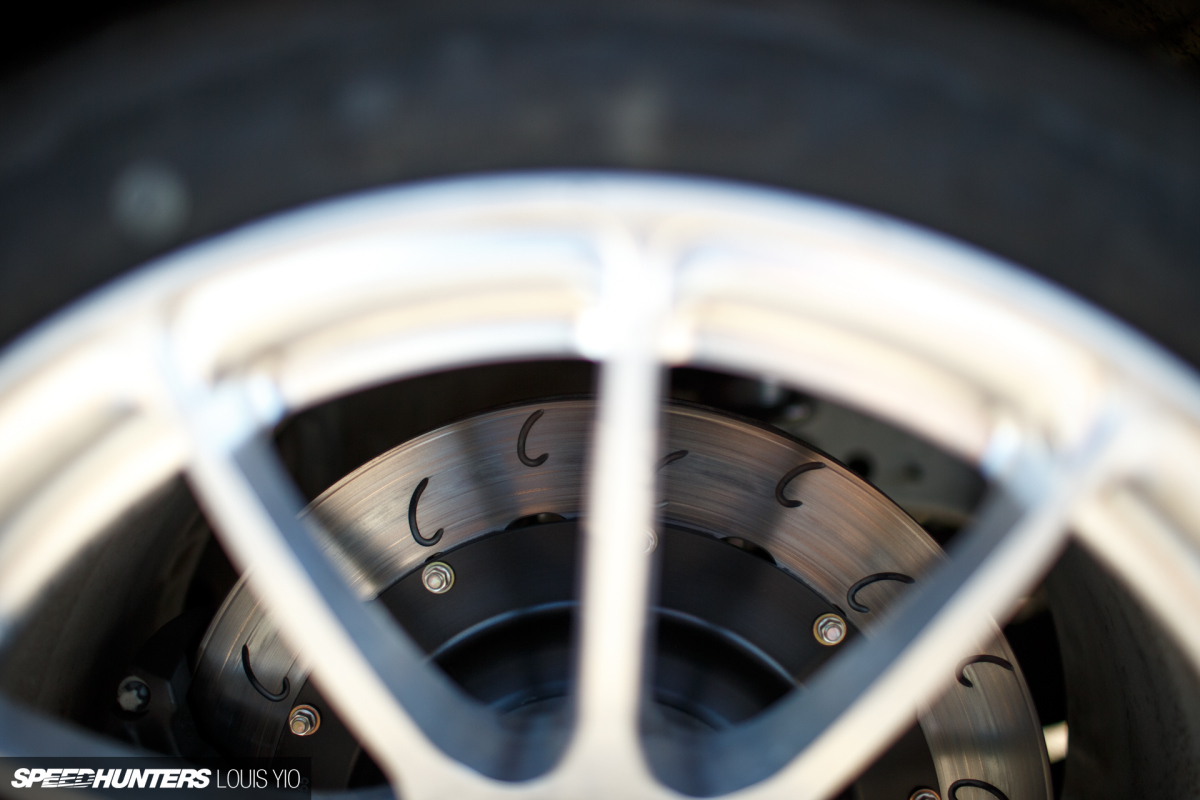

The Radi-CAL range of AP Racing brakes features an asymmetrical caliper design with optimised air flow to evacuate heat and prevent fade, crucial over endurance length races.

Louis_Yio_2017_Speedhunters_Yost_M4_37

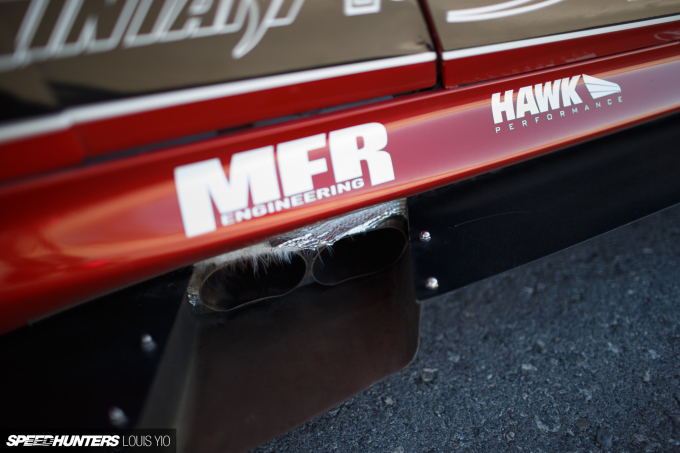

Another considerable modification from the 2016 car, is the addition of a custom oval side-exit exhaust.

Louis_Yio_2017_Speedhunters_Yost_M4_04

With the car now weighing 1,542kg (3,400lb), along with the aerodynamic improvements and increase in its foot print, Yost Autosport will be setting their sights high for the next 25 Hours of Thunderhill.

“We are still fine tuning the performance of the car after the rebuild, but overall the rebuild has been a huge success and we are anxious and excited to go back to the 25 Hour in December with this version of the M4,” said Mike.

Louis_Yio_2017_Speedhunters_Yost_M4_03
Louis_Yio_2017_Speedhunters_Yost_M4_14

“We are proud of the fact that from day one we have stuck to our guns of doing everything as properly as we’re capable of. There were many times where ‘the easy way’ seemed much more attractive an option than the proper way, but we never gave into temptation and impatience.

“Much of this build was spent venturing into unknown territory and we have put together an incredible team of partners and people who have bravely taken on the task of spending their time and money developing highly complicated parts that put up with the abuse of one of the world’s longest endurance races.

“It would be much easier for these companies to build parts that are geared toward street use and look good on paper but everyone on this car has the same attitude and drive to create the best products, not the best selling products. So if there’s one thing we want the world to know about it’s that every company that has their name on the side of this car is building parts that go far beyond the industry standards. Everyone involved with this project are truly passionate and determined to be the best.”

Paddy McGrath
Instagram: pmcgphotos
Twitter: pmcgphotos
paddy@speedhunters.com

Cutting Room Floor
Louis_Yio_2017_Speedhunters_Yost_M4_06
Louis_Yio_2017_Speedhunters_Yost_M4_08
Louis_Yio_2017_Speedhunters_Yost_M4_11
Louis_Yio_2017_Speedhunters_Yost_M4_12
Louis_Yio_2017_Speedhunters_Yost_M4_15
Louis_Yio_2017_Speedhunters_Yost_M4_19
Louis_Yio_2017_Speedhunters_Yost_M4_20
Louis_Yio_2017_Speedhunters_Yost_M4_22
Louis_Yio_2017_Speedhunters_Yost_M4_27
Louis_Yio_2017_Speedhunters_Yost_M4_28

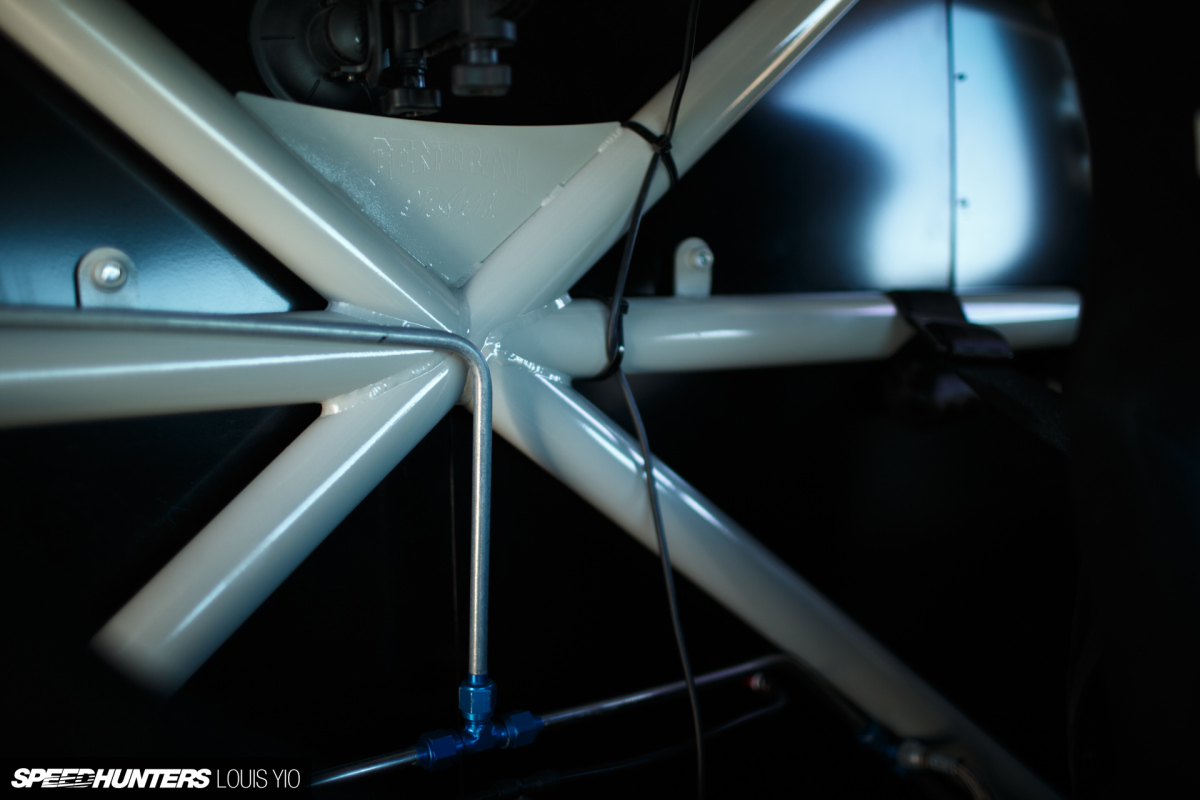

Louis_Yio_2017_Speedhunters_Yost_M4_34
Louis_Yio_2017_Speedhunters_Yost_M4_36
Louis_Yio_2017_Speedhunters_Yost_M4_38
Louis_Yio_2017_Speedhunters_Yost_M4_40
Louis_Yio_2017_Speedhunters_Yost_M4_42

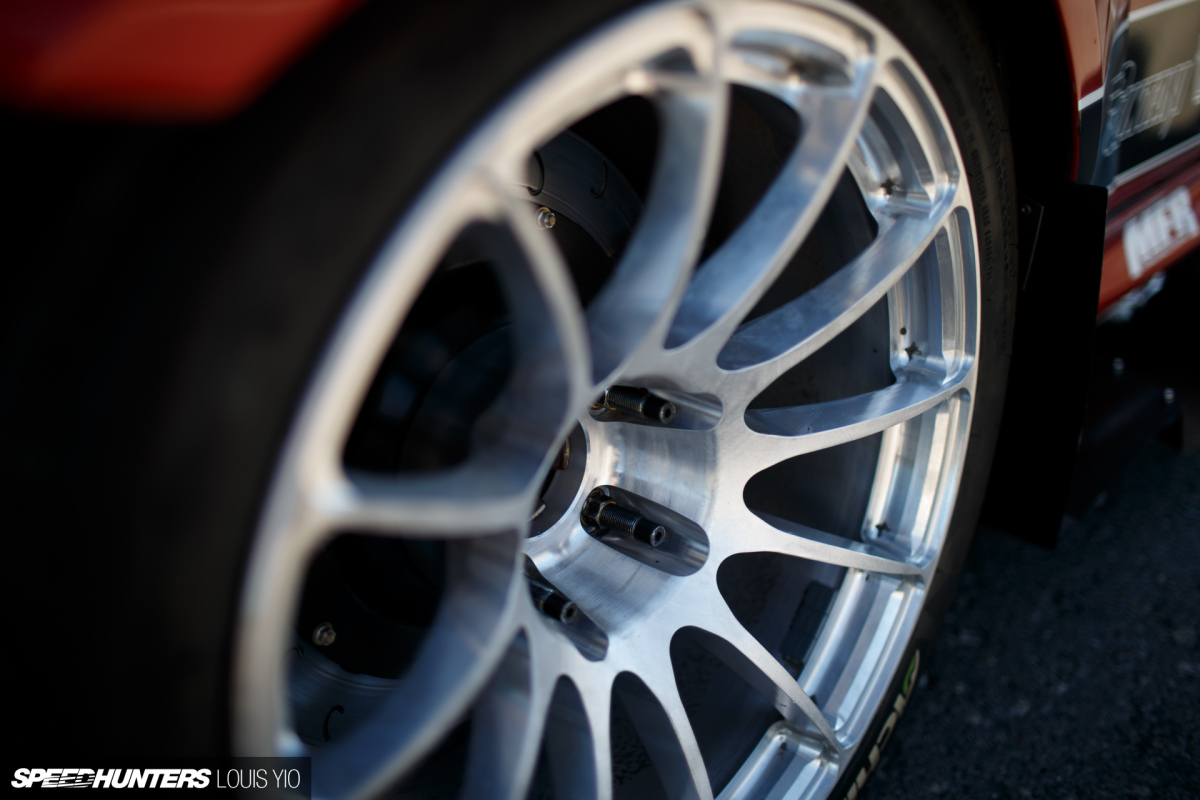

Louis_Yio_2017_Speedhunters_Yost_M4_43
Louis_Yio_2017_Speedhunters_Yost_M4_44
Louis_Yio_2017_Speedhunters_Yost_M4_48

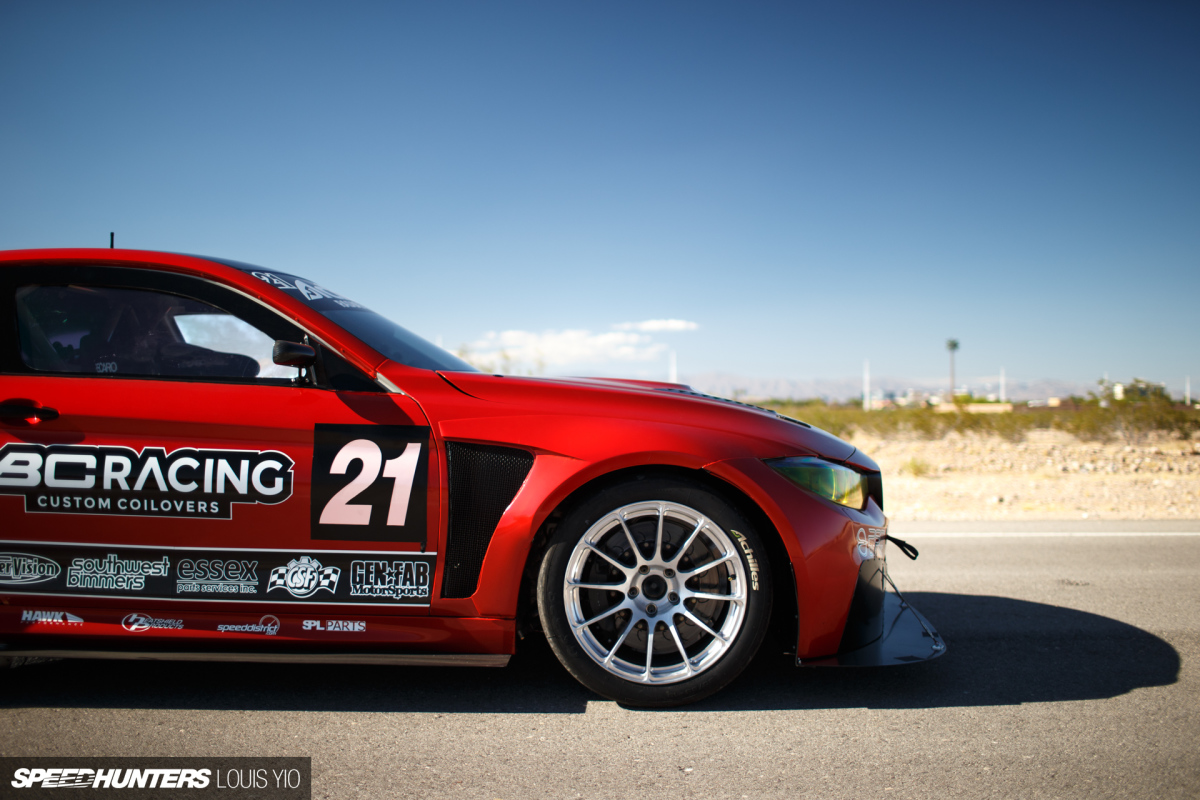

Louis_Yio_2017_Speedhunters_Yost_M4_49
Louis_Yio_2017_Speedhunters_Yost_M4_52
Louis_Yio_2017_Speedhunters_Yost_M4_53

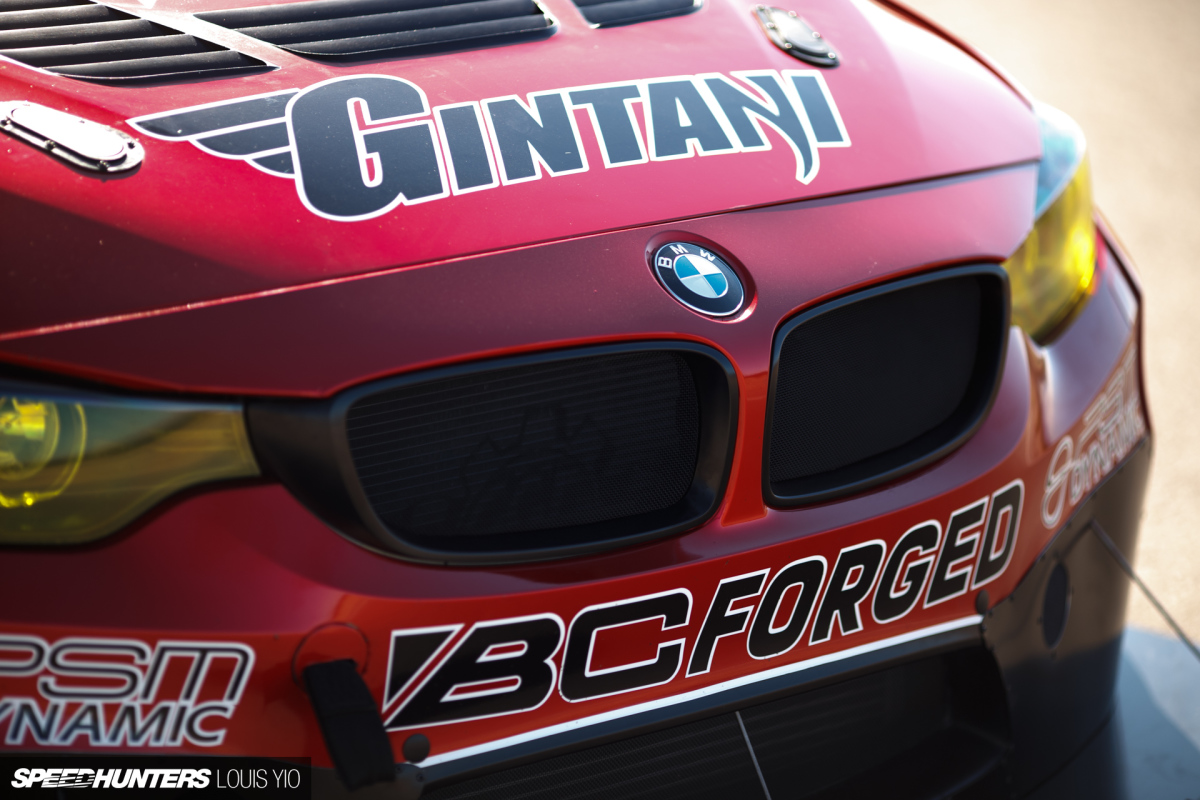

Louis_Yio_2017_Speedhunters_Yost_M4_55
Louis_Yio_2017_Speedhunters_Yost_M4_50
ADVERTISEMENT

Comments

Add comment

E-mail is already registered on the site. Please use the Login form or enter another.

You entered an incorrect username or password

Sorry, you must be logged in to post a comment.

20 comments

by Oldest
by Best by Newest by Oldest
1

dat ass tho

2

3400 seems heavy but I don't know these cars that well. However I do see some redundant tubing in the cage.

3

That 3400 lbs carrying 40 gallons of fuel. The cage was over built in some areas for safety and to build back in rigidity into the chassis to support the fuel cell and true coilovers in the rear.

Author4

It's roughly 70kgs (~155lbs) lighter than a standard M4, which is pretty good going consider the cage, safety devices, aero additions, wide-body, wider wheels and uprated coolers etc.

5

Hi,
Nice car but why you dont use the hood from the gts?
Regards peter

6

This hood allows for more extraction of hot air out of the engine bay. Plus there are a lot of GTS hoods out there.

Author7

Weight? I don't think the GTS bonnet is carbon, although it is vented. I'm open to correction.

8

Are the vents integrated into the hood? Or are they bonded in as a secondary op?

Paddy/Lois, if you get any opportunities I'd love to see some features on composites manufacturing for cars like this. Strange as it may seem I'm more interested in the small company hand-graft stuff that still produces top quality parts, rather than a big player with a 5-axis mill and 2m autoclave!

9

I'll be curious to see what the tech guys will say when they check out those rear fenders cut out.....impressive.

10

Why would they want to retain any factory electronic components?
Is it running a motec or standard ECU?
Would have thought custom making required wiring and cables/connectors would be more reliable and easier to troubleshoot?

11

There were a lot of reasons for retaining the stock wiring and ECU. Making a brand new harness and running a stand alone ecu system seems like the right thing to do on paper but there would have been a lot more complications and time delays trying to get everything to work properly, especially the transmission.

12
Federico Barutto

I think that’s for the dual-clutch gearbox, since its controls are deeply integrated in the CAN network of the car. I also think that a 100% custom ECU without any stock car electronics would be better, but that’s not possible on this car. If it was a manual one maybe...
Bear in mind that everything I wrote is IMHO

13

good point. BMW gon' BMW.
or should i say "modern car manufacturers gon' make life difficult"

14

Sweet setup, interested in understanding why they went for the F8X chassis over other cars, like the M2 and such.

15

Our original plan was to build an M2 but at the time of our purchase, the M2 was just released and our dealership lost our allocation. The M2 is a much less complicated platform to work with but the M4 is truly the better car in the long run.

16

Strange that the rear diffuser doesn't take advantage of all the space they chopped out of the rear or are there regulations on that?

17

This is not the final design for the rear diffuser. We have been testing a few designs to maximize performance.

18

I'll be interested to see what you guys come up with!

19

Nice article, one little suggestion in something that many automotive journalists write. You can't add lightness, only remove weight. I understand though that in this occasion was probably just a figure of speech.

20

It's a Colin Chapman quote.
