For some, it will probably come as no surprise that the next step for Project GTI is to run the car on air suspension. In fact, this has been the idea since I bought the car. I did allude to it during a previous project car update, but it’s taken until now to finally realise this plan.
I like to do things a little bit differently, but if you think that this update means that Project GTI is going to become a rim-poking stance car, you would be very much mistaken. Not that there’s anything wrong with that, it’s just not what this car has been or will ever be about.

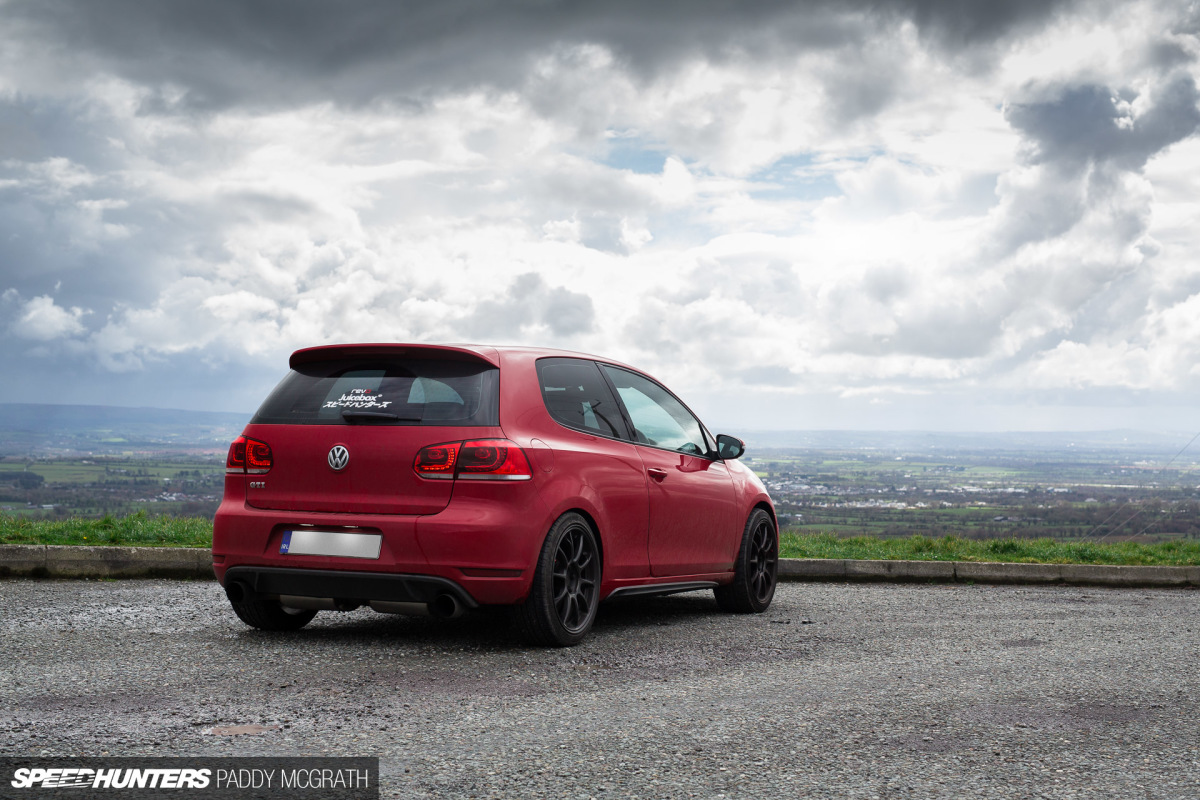

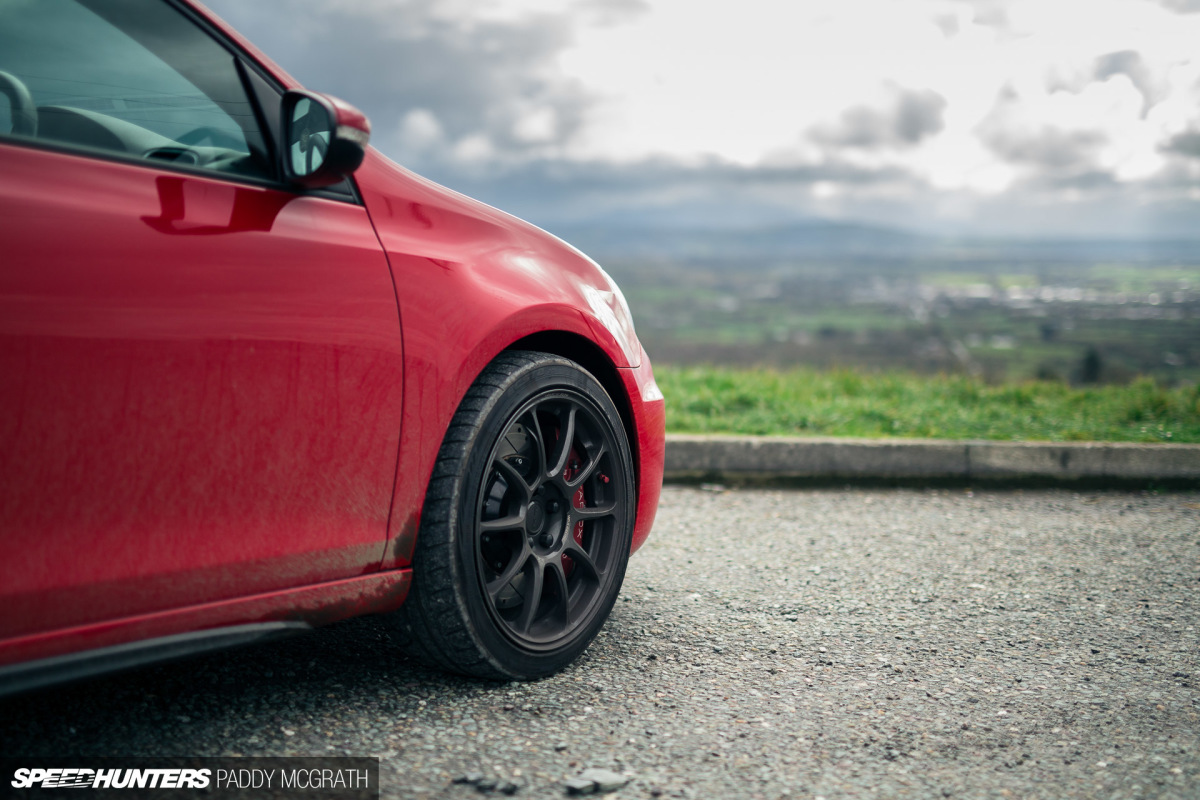

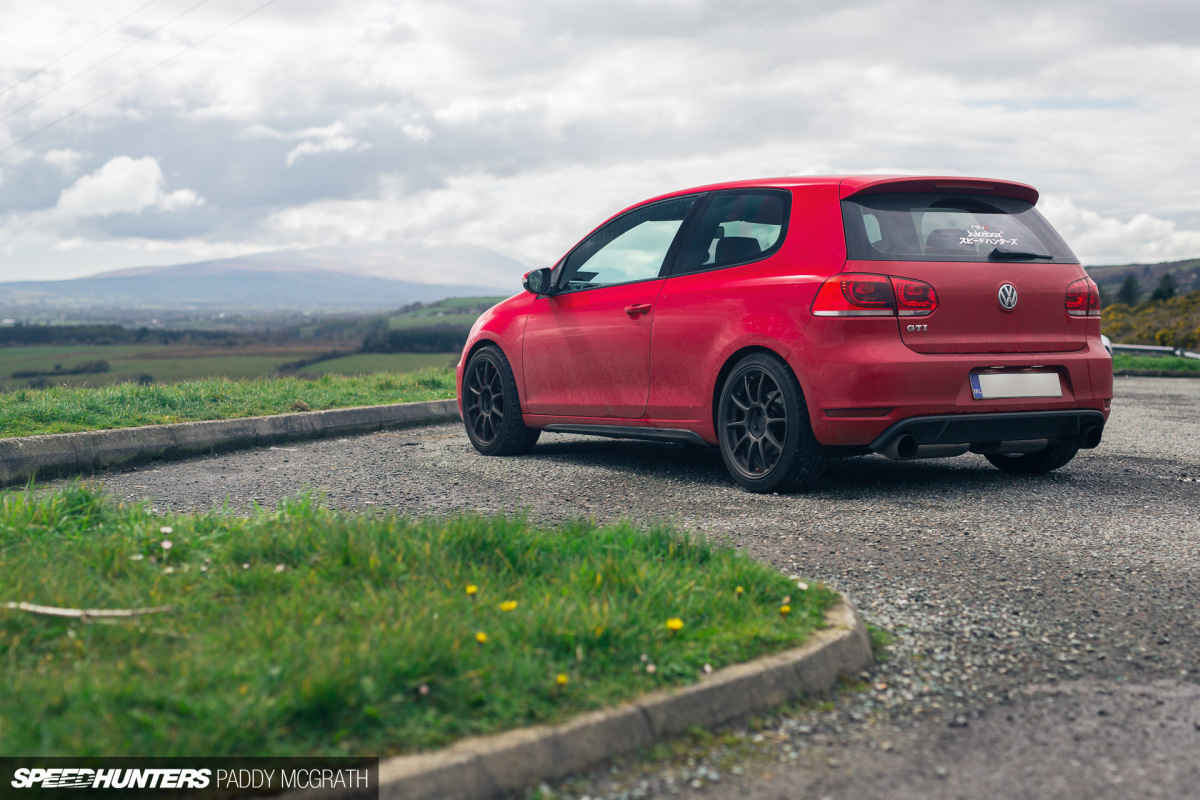

I like driving my car, and I do so quite a lot. I’ve come to absolutely adore the duality of my GTI and how easy it has been to live with. Recently, I racked up around 2,000kms in the space of a week and the car didn’t so much as even break sweat at any point.
For me, it’s what makes the GTI special. There are faster cars, there are more refined cars, but you won’t find a car that’s as capable of both things as the GTI. It’s the benchmark. In between the recent long distance driving, I was able to peel off on a backroad and scare myself on more than one occasion, before returning back to the main road and cruising along in comfort and peace.
This all-round ability is something I cherish, and those of you who frequent these updates will know that it’s something that I’m not willing to sacrifice.
Every upgrade made so far has improved the car without inflicting any major drawbacks. I don’t want to get to a point where I can’t bring the car somewhere because it’s too aggressive. I want it to fit in when I’m at a business meeting as much as it does if I drop into Mondello for a track day or an event. It’s difficult to maintain and develop a project along these lines, with these goals in mind, but it can be done. It just requires thought, logic and consideration. It’s with this that I can’t even think of any other option than running the car on air going forward.
Logical
I’m not writing this update to convince myself that I’m going down the right path – I’m already pretty convinced of that. Instead, I want to talk you through my own logic and the reasons why I’ve chose Air Lift Performance.
Having such easy access to the sales staff and also feedback from the engineers at Air Lift was a huge benefit for starters. I wanted a custom tank setup, and the ability to have any question answered pretty much immediately was a huge incentive for someone with relatively little experience of air. Add to that the recent introduction of Air Lift’s new 3H system and I was sold. Obviously, anyone who is considering going on air is doing so for a reason; the reason usually being that you need the versatility of being able to increase or decrease ride height quickly and easily. This is very much true of my situation.
My last car, which I still miss, ran on KW Variant 1s. As you can see, I liked to run it quite low on the street. In fact, I love to run my cars low full stop. By the time I sold it though, I was at my wits end as I constantly had to worry about where I was driving and if there were any speed bumps or poor road surfaces. Multi-storey car parks were an absolute nightmare and scraping was a daily occurrence and not something I was proud of or enjoyed. This was no fault of KW, the V1s were superb, it was just the situation and environment I live in that made it a nightmare to own and drive a static low car. So that’s one huge part of my decision. The other part comes from my inner car nerd in that I just want to experience what it’s like to live with a car on air so I can form a proper opinion based on experiences and facts, rather than the word of others.
I’m going about this installation and setup in a very specific way and knowing precisely what I want to get from it. I want to develop Project GTI as an on-air track day car, so performance will be at the fore of what I want, as opposed to achieving maximum low.
Key to any air setup is the install. I’m not going for a big boot build with hard lines, LEDs or an ironic beer keg air tank. In fact, I want the install to be completely hidden from view but to still achieve maximum efficiency and redundancy. To start with, I’m going to run two VIAIR 444C compressors which are rated at a maximum of 200PSI each. Previously, Air Lift Performance’s V2 management was designed to accommodate a maximum working pressure of 175PSI, while 3H and 3P can a deal with a maximum working pressure of 200PSI. This opens up a much improved hardware offering.

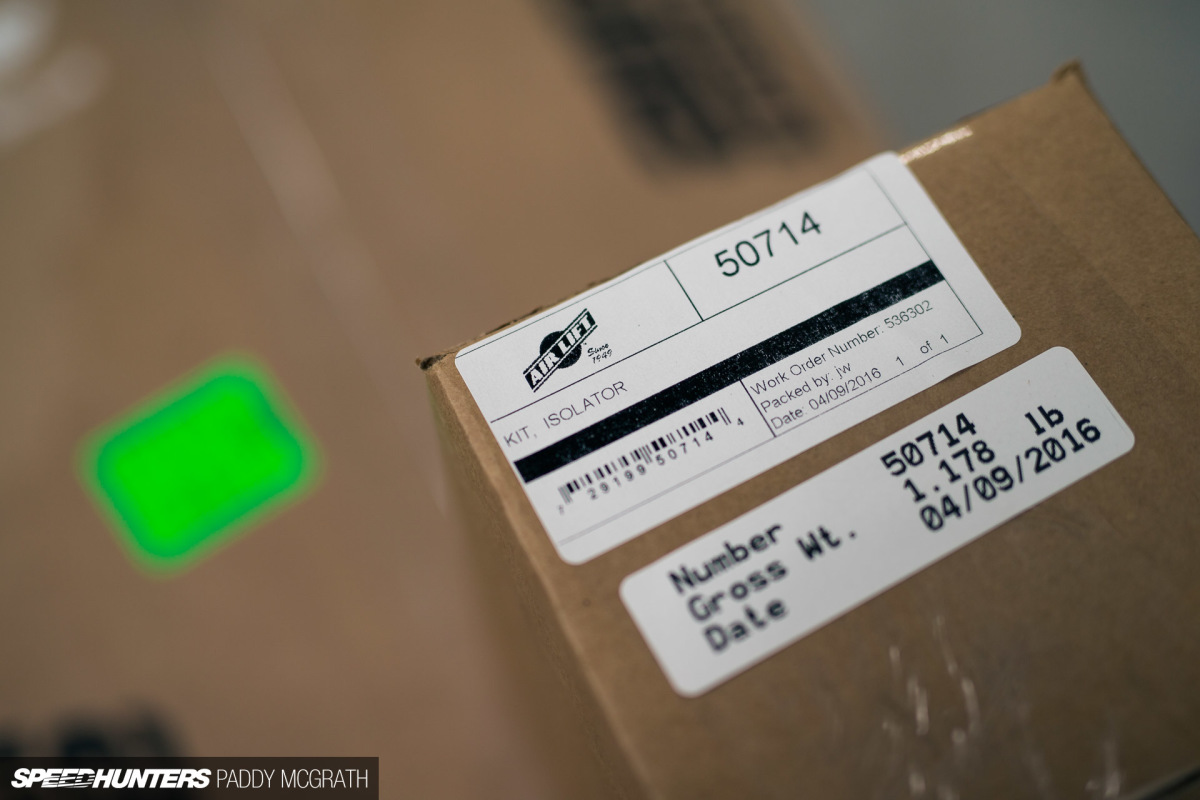

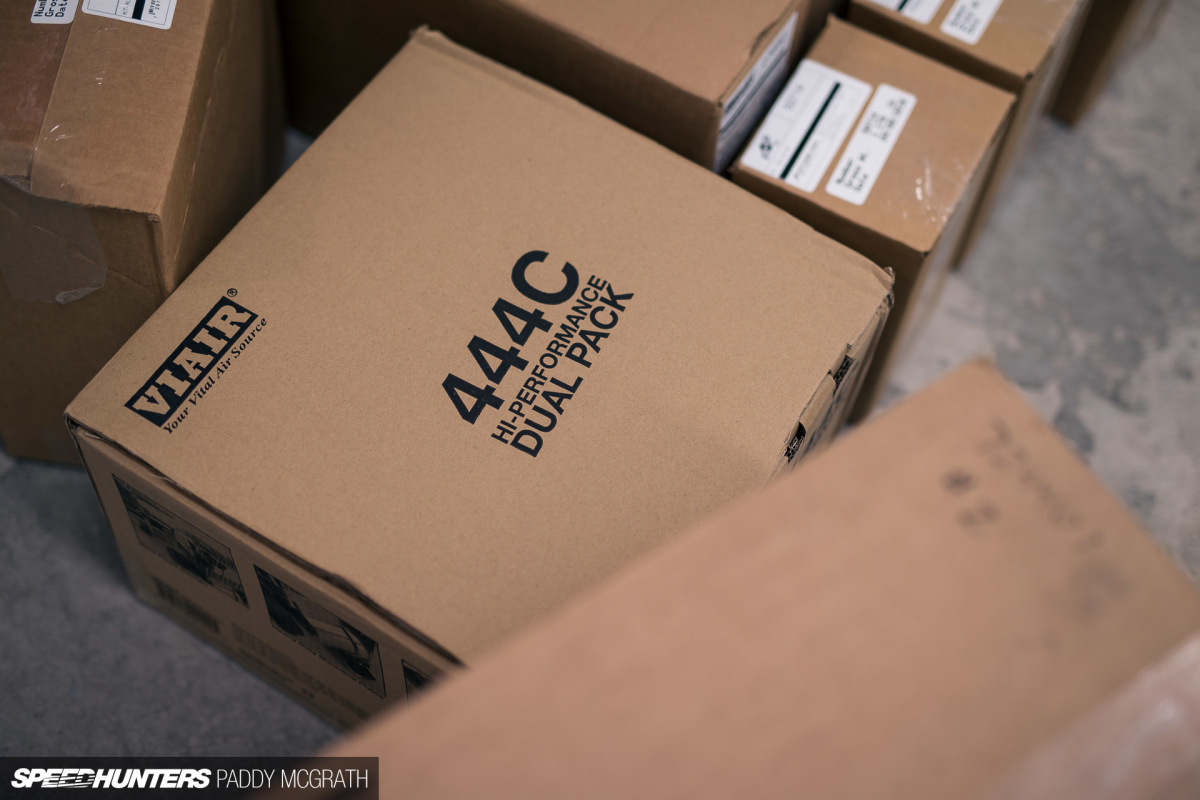

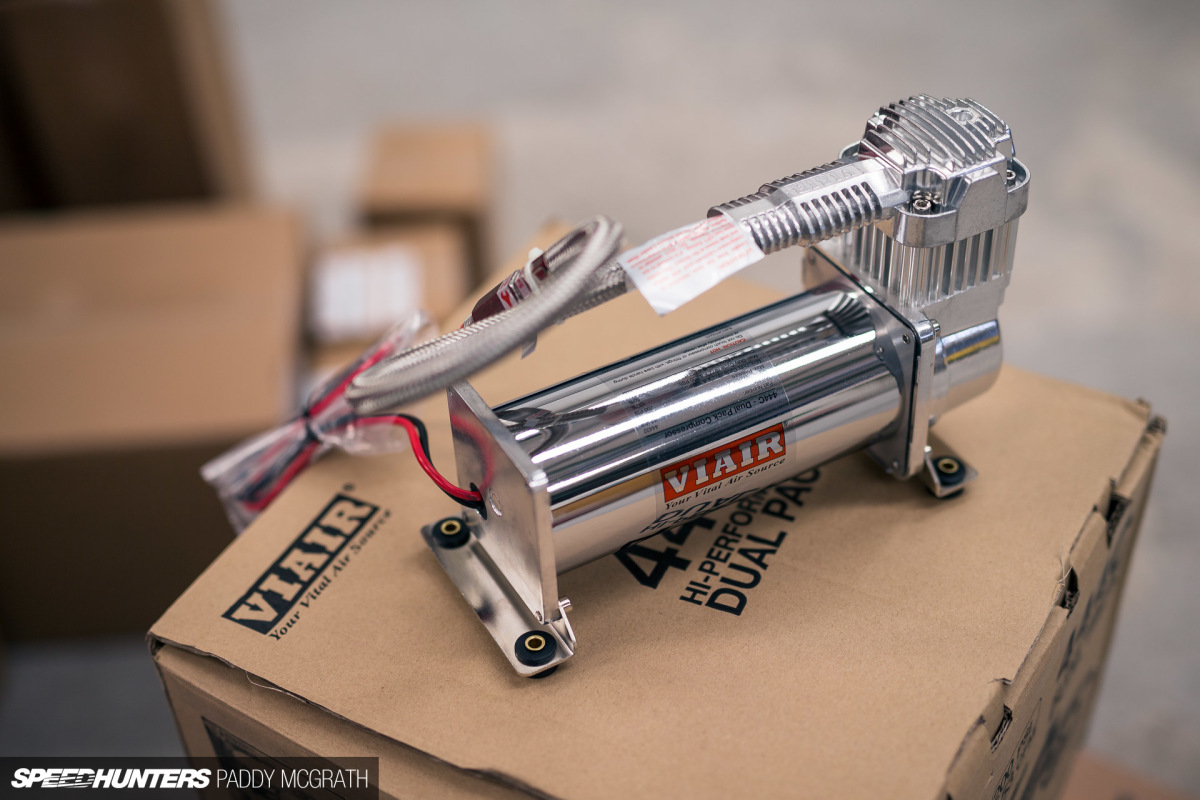

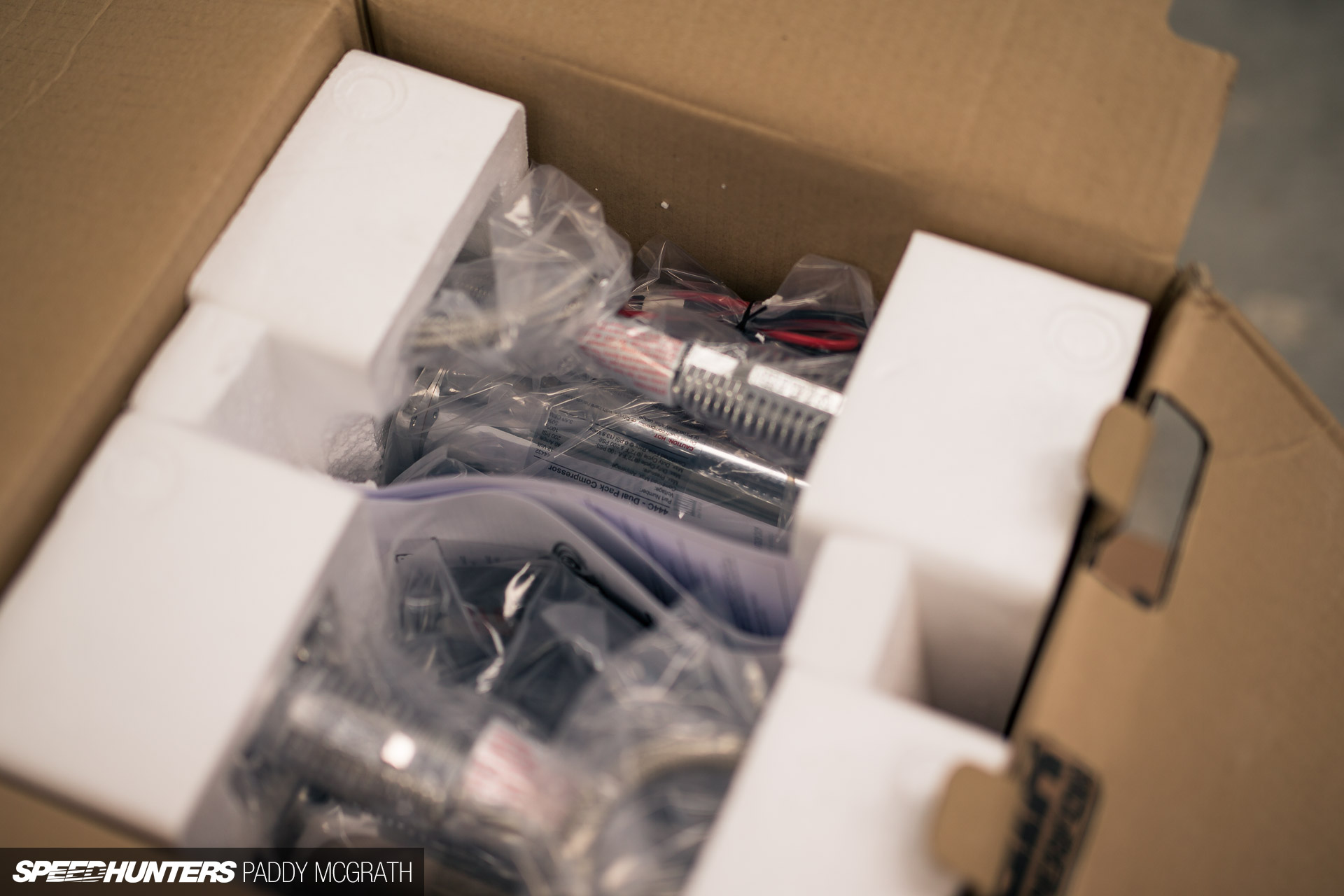

Both compressors are going to be isolated from the car’s body, so as to keep noise and vibration to a minimum. Essentially, they’ll float within the rear spare tyre well.

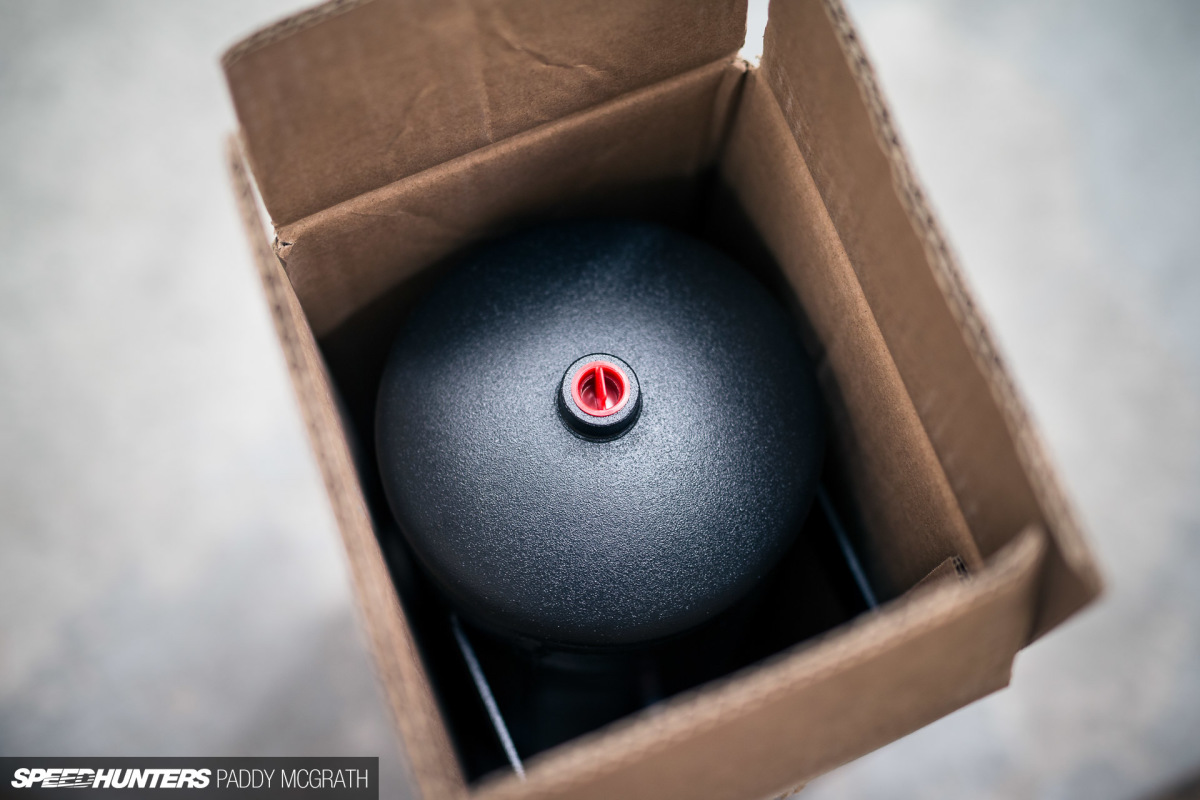

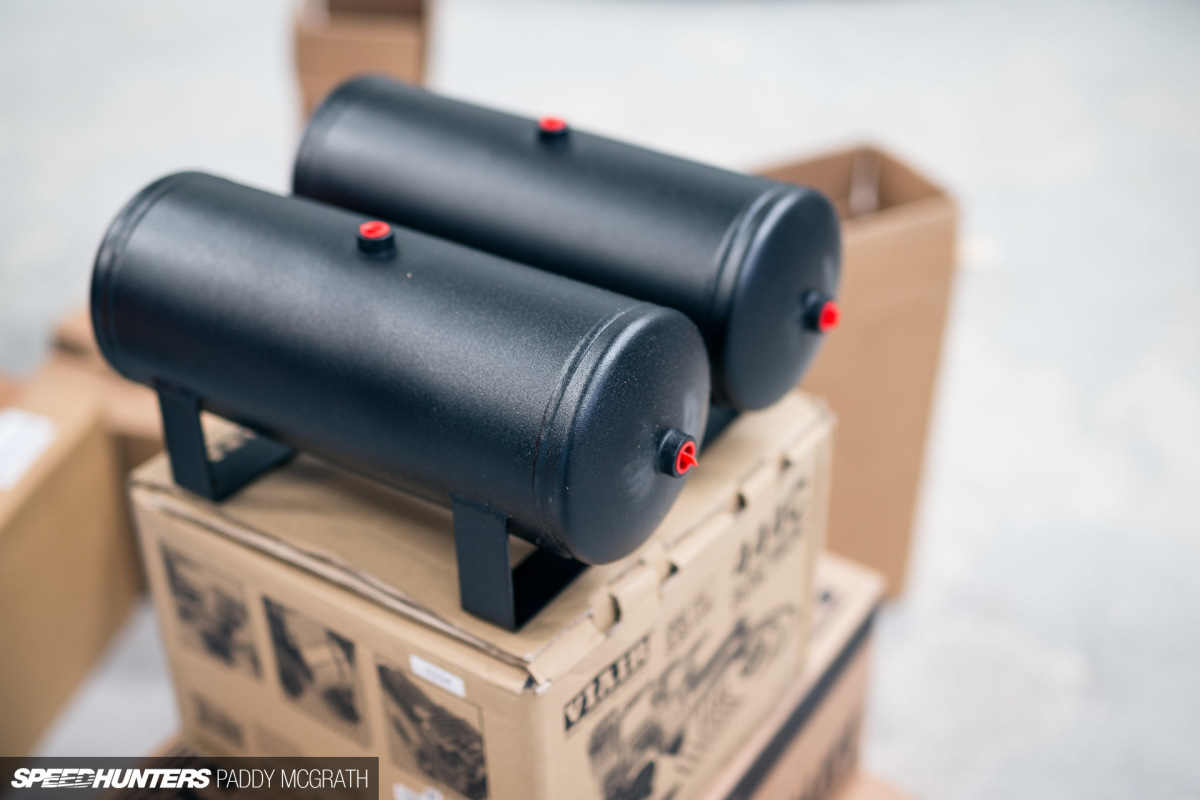

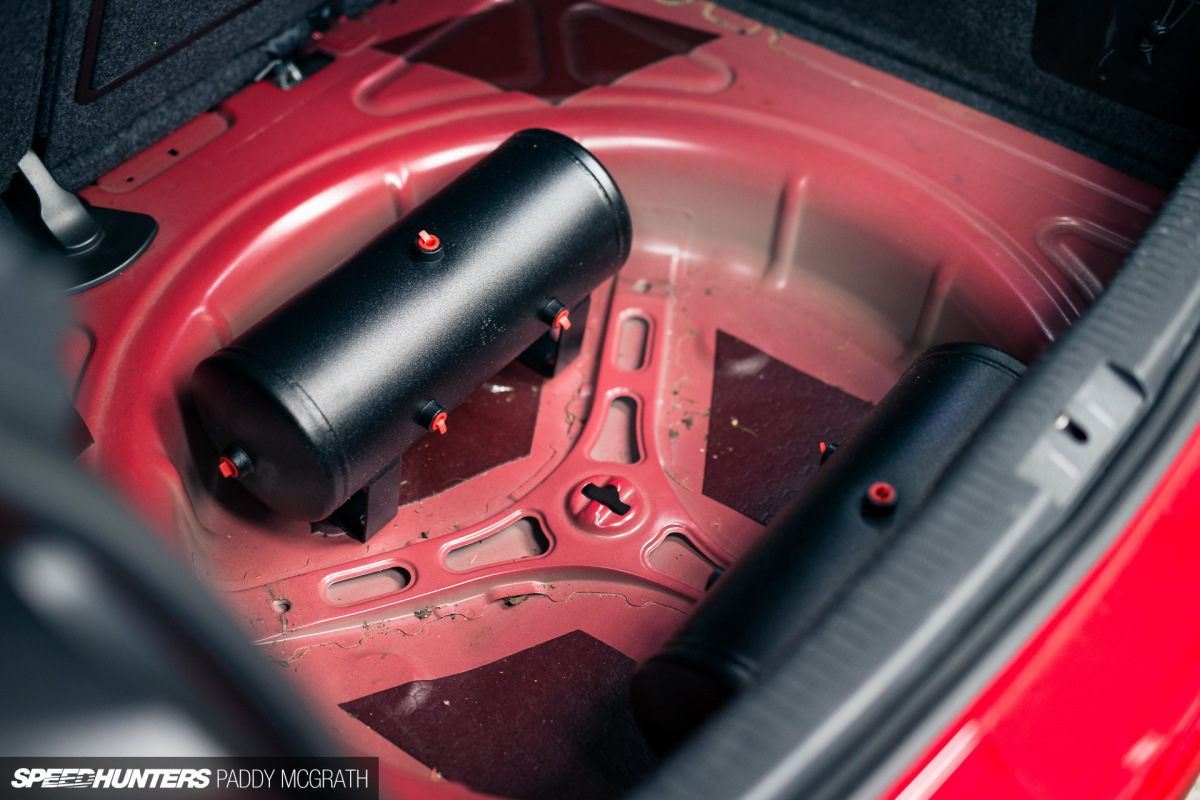

The air needs to be stored, so I’ve chosen the smallest tanks that I can get my hands on. Each of these is capable of storing 2 gallons, giving me a combined total of 4 gallons in air capacity. The thinking behind this is that two small tanks will be easier to mount and hide than one large tank. Plus, their relatively small weight can be distributed in the best possible way.
This is how much room we will have to play with with the spare removed. The tanks sit around an inch higher than the current boot floor, but I’ve already sourced an OE solution to raise the boot floor slightly without having to build a frame to raise it. When it comes time to install, I’ll show you that solution. I haven’t got the weighing scales out just yet, but I’m pretty confident that the completed install will weigh either the same or less as the spare with the jack and tools inside of it did. It’s my hope that once everything is installed, we won’t add any weight to the car and will even lose a little bit of unsprung mass.

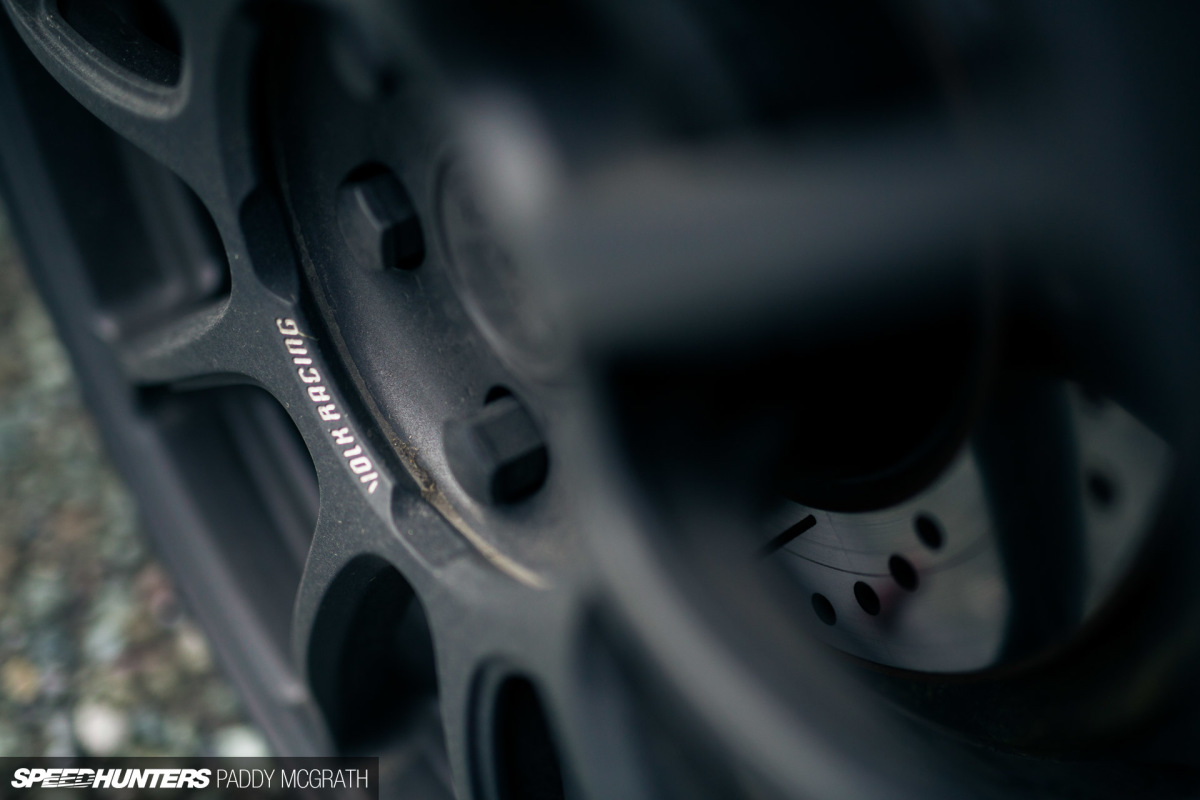

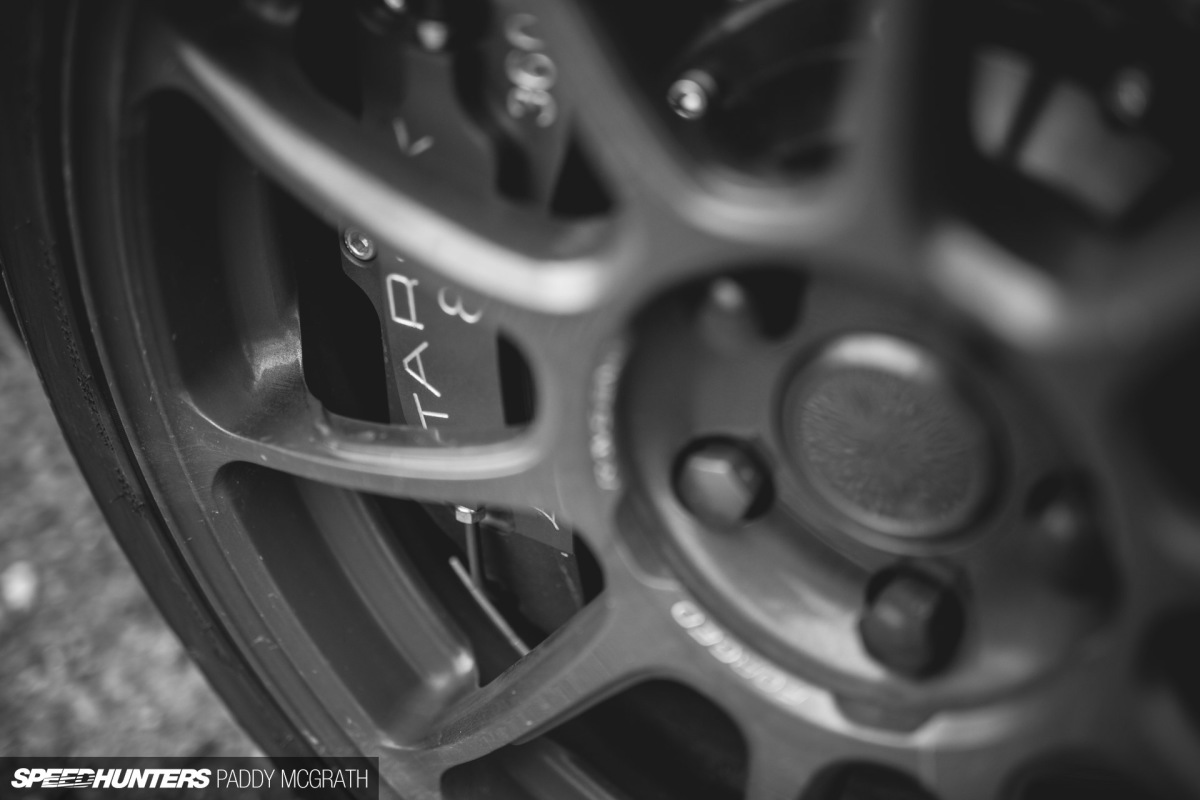

As an aside, since I installed the Tarox brakes, the spare wheel is useless anyways as it won’t fit over them. Instead, I’m going to revert to a 12V compressor and a couple of cans of TyreWeld in case of a puncture, something I’m comfortable with as the E90 had no spare from the factory anyways.

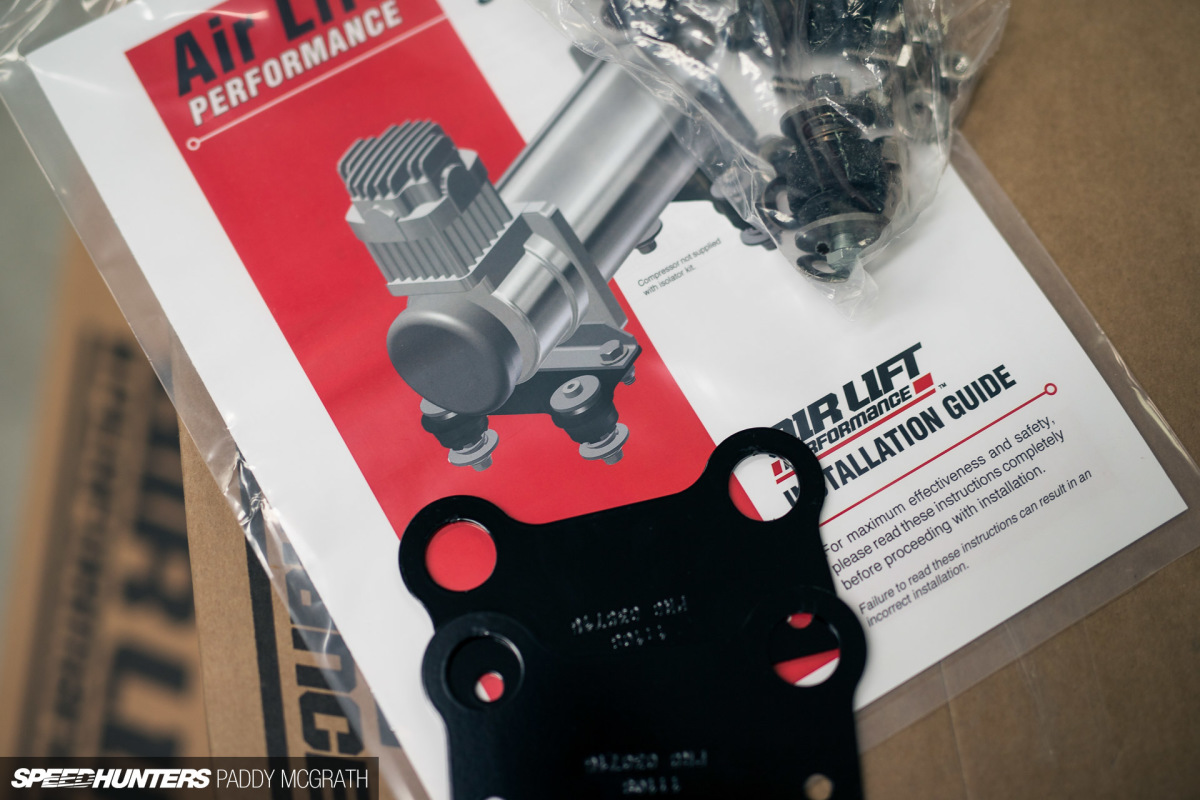

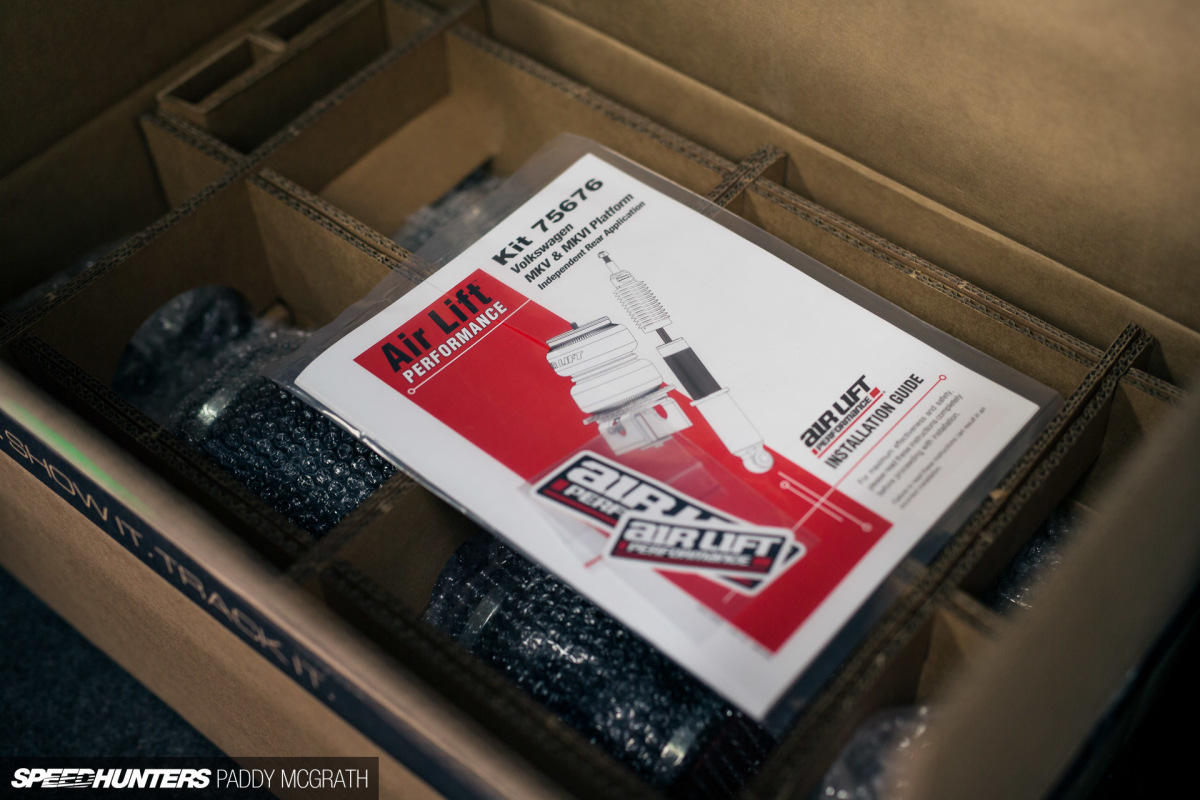

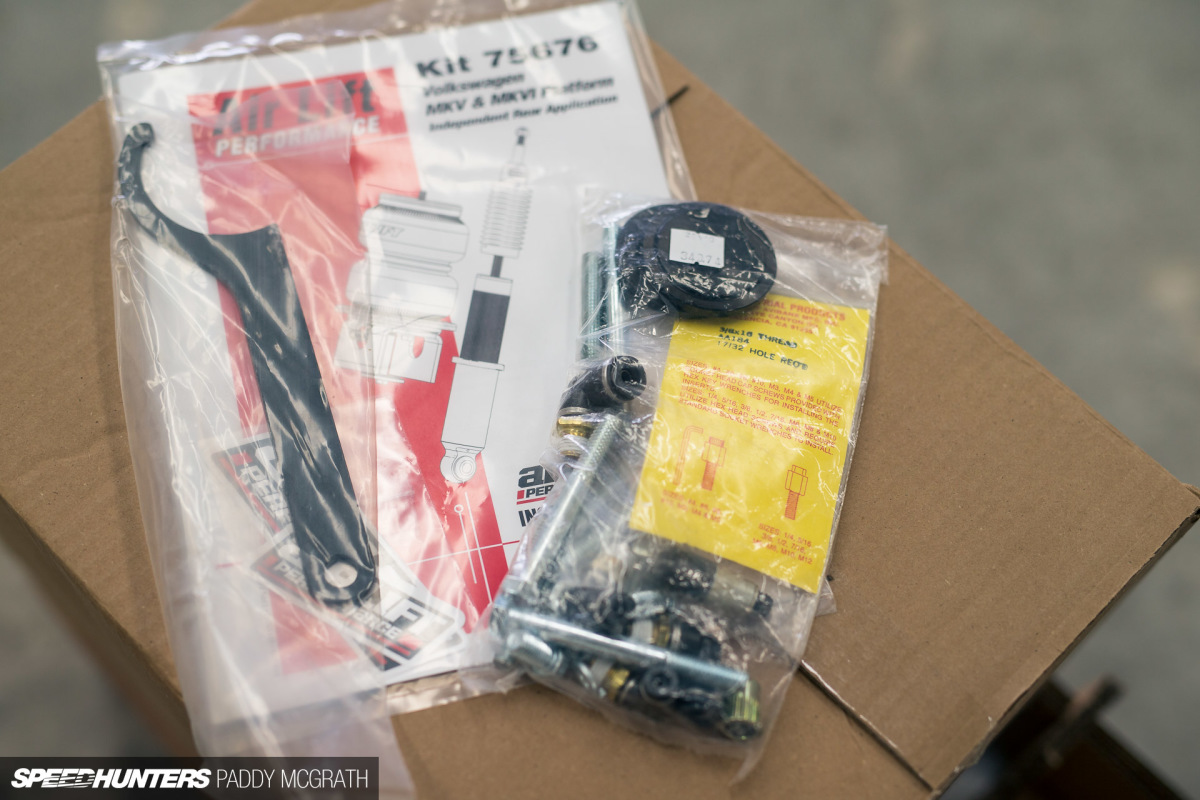

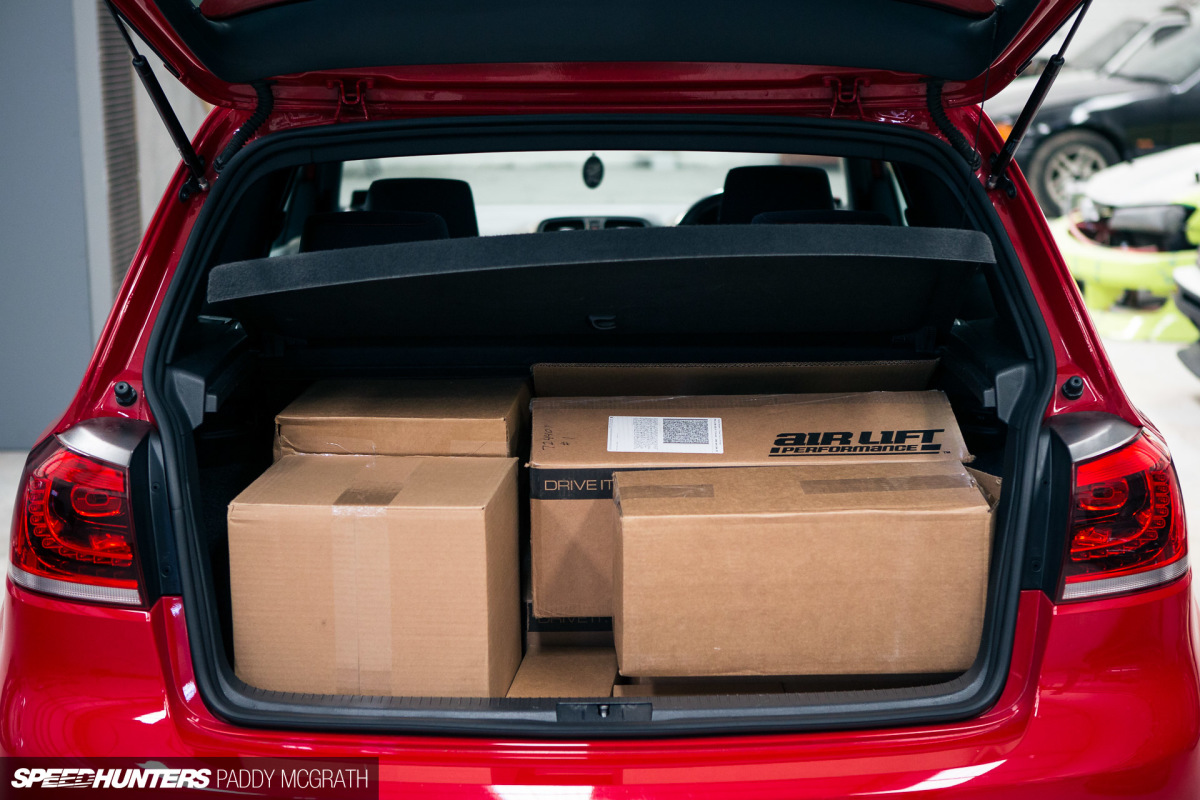

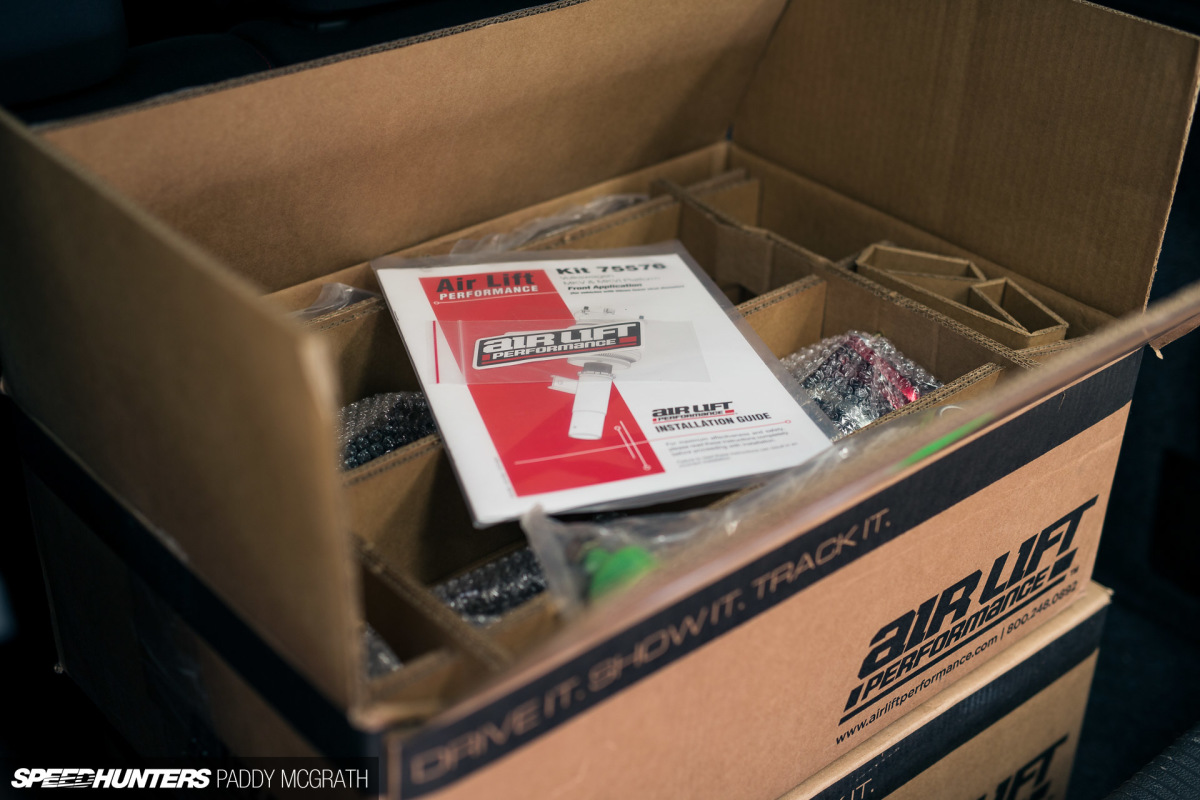

Air Lift Performance have supplied absolutely everything we need to get this into the car without needing a trip to a hardware store or to order anything online. This extra harness ensures that the second compressor is a simple plug-and-play addition.

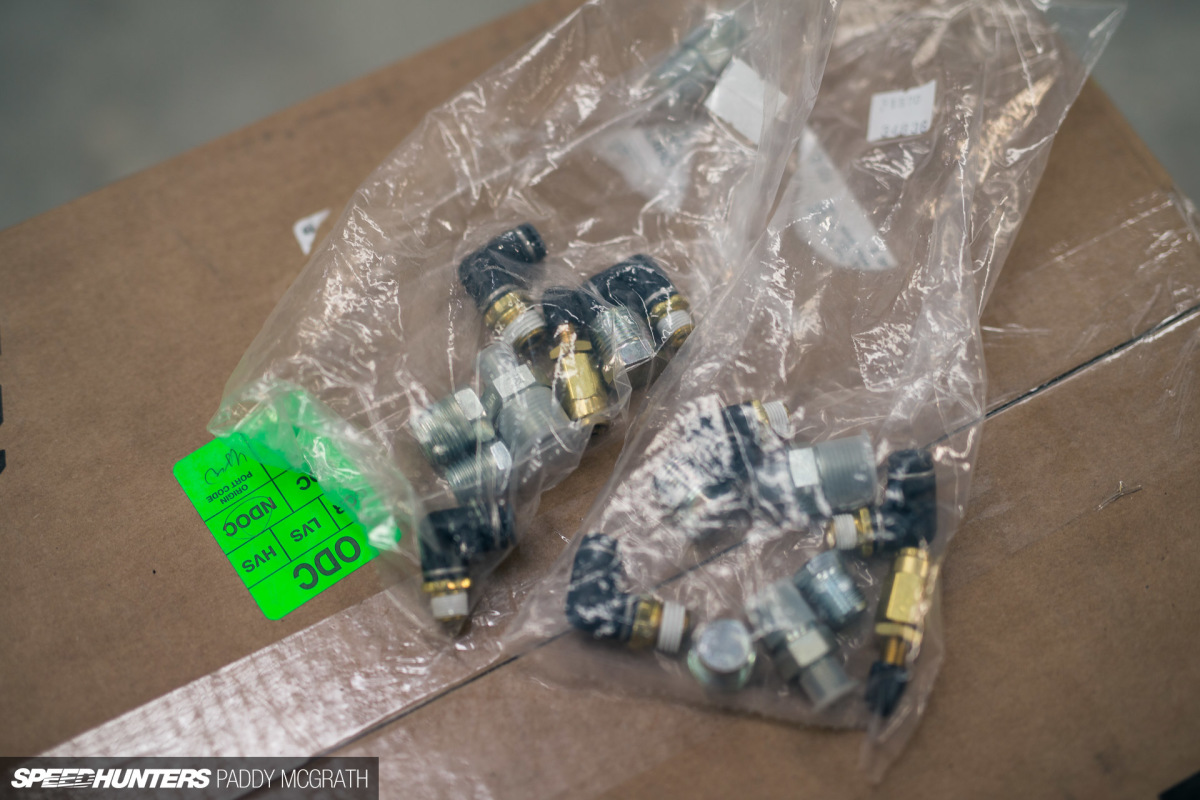

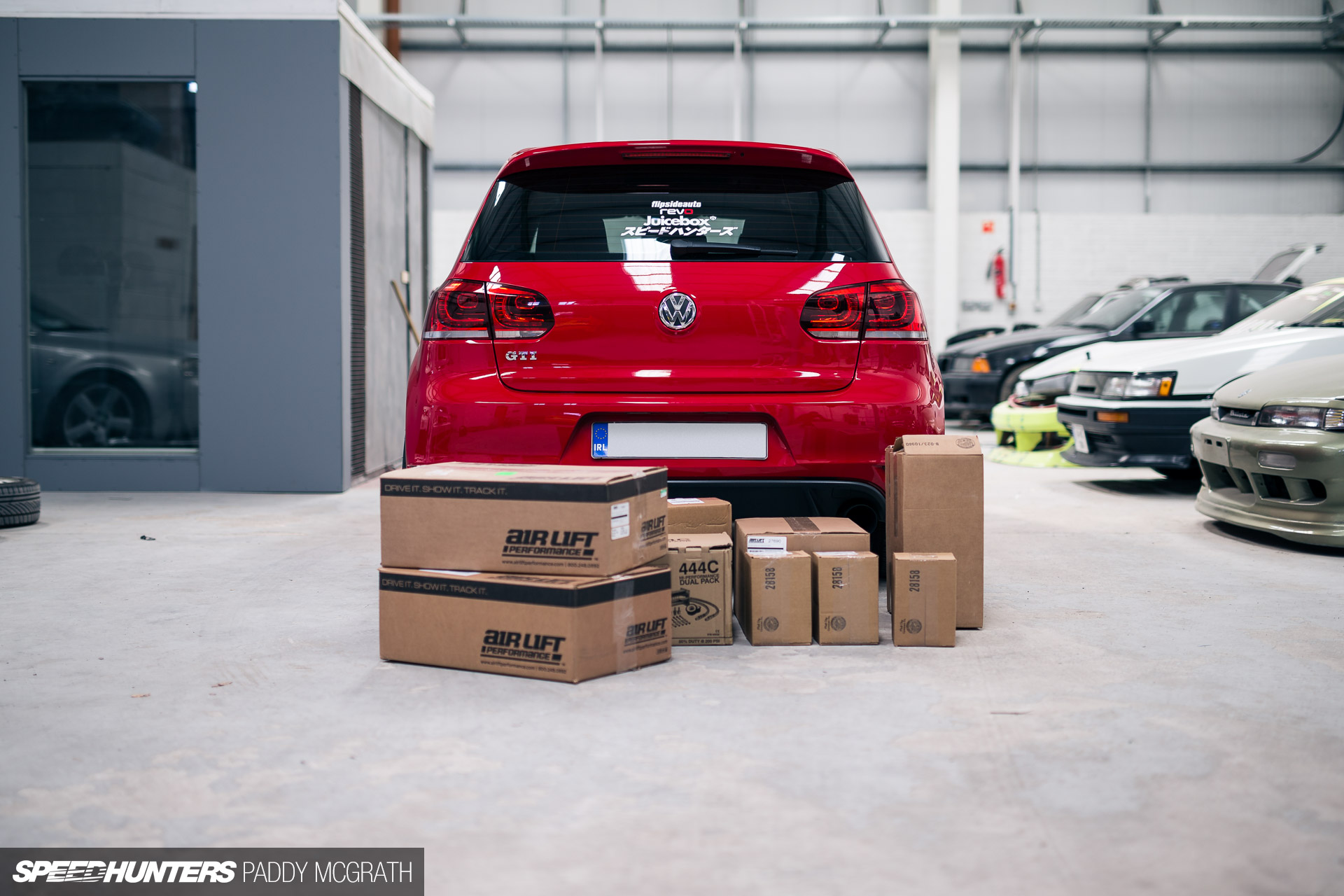

When I say everything, I mean absolutely everything. I was scared to open these bags in case something went missing, then it would most certainly be my fault. Also, notice how the connections are already taped to ensure a perfect seal and fit. I love that someone thought to do that before shipping them out; it’s a wonderful little touch.
The Brains Of The Operation
All air setups will of course run compressors and tanks, but it’s in the management where the real difference is made. Air Lift announced its new 3H setup late last year and the system has proven to be a huge step forward for the entire industry. The ‘H’ in 3H stands for height and I’ll show you how this is relevant in just a moment.

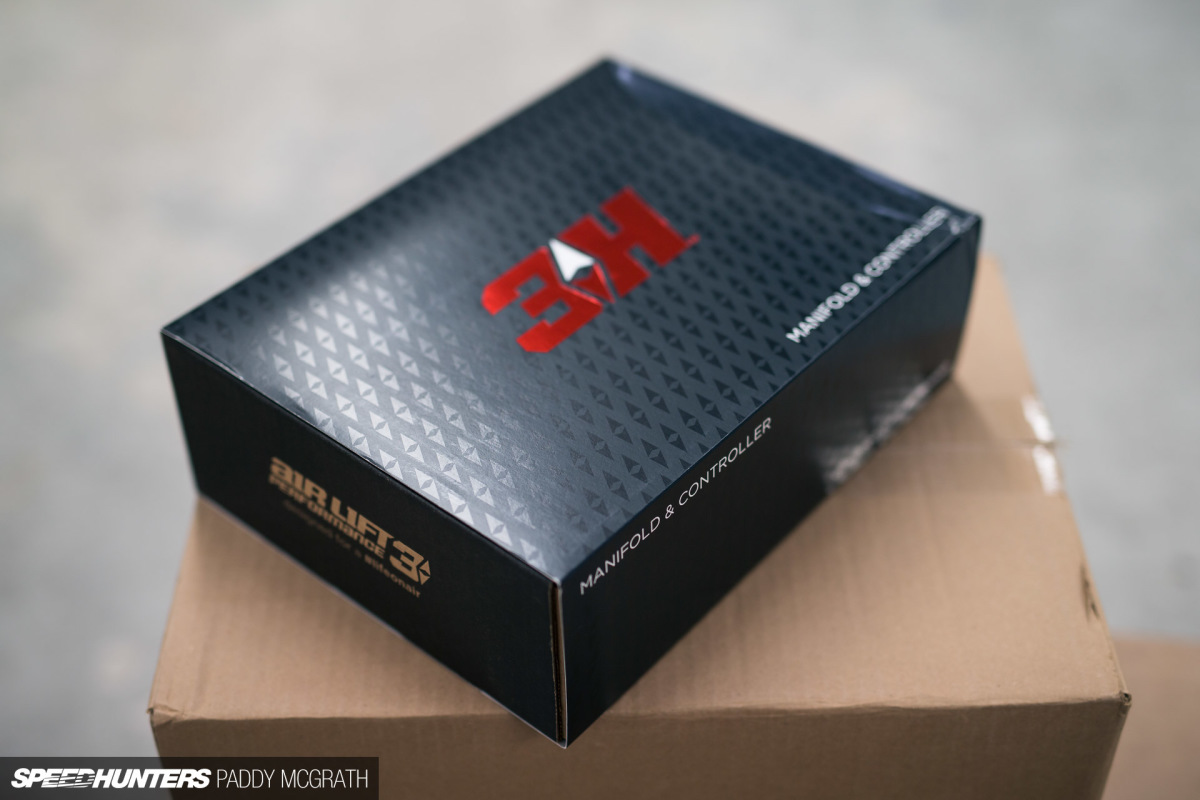

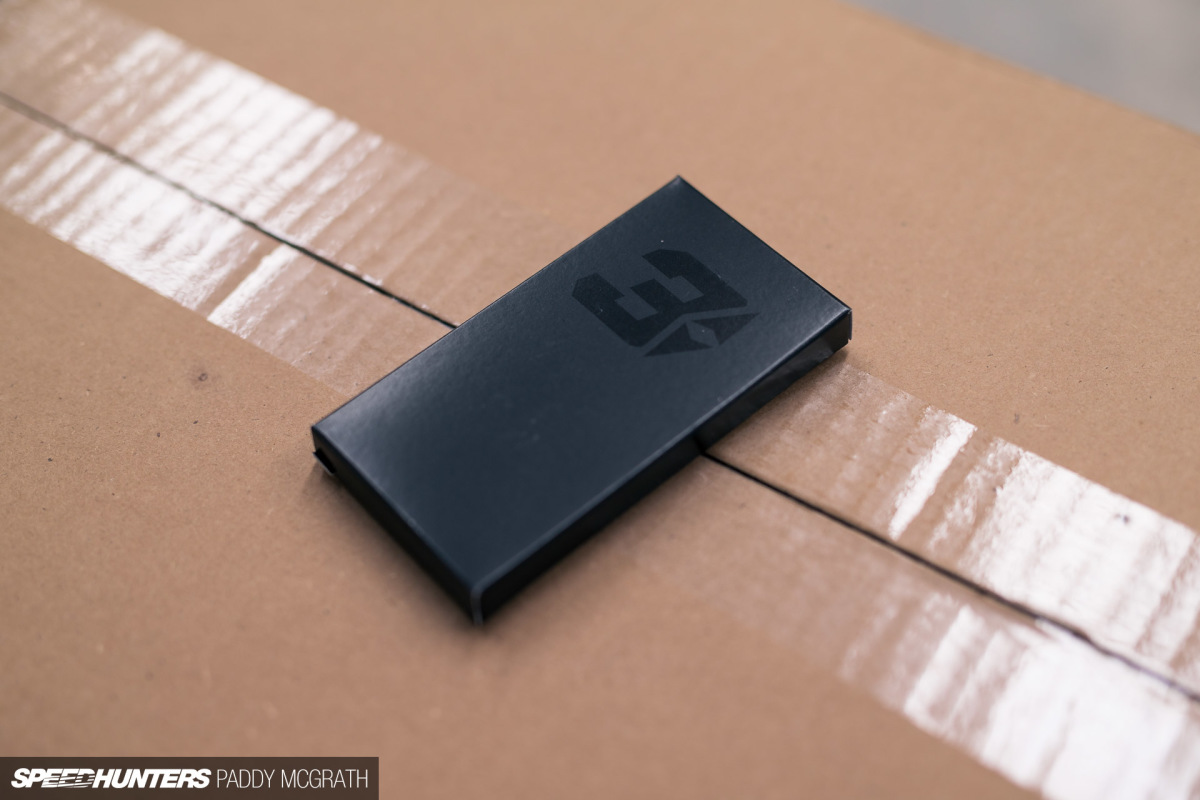

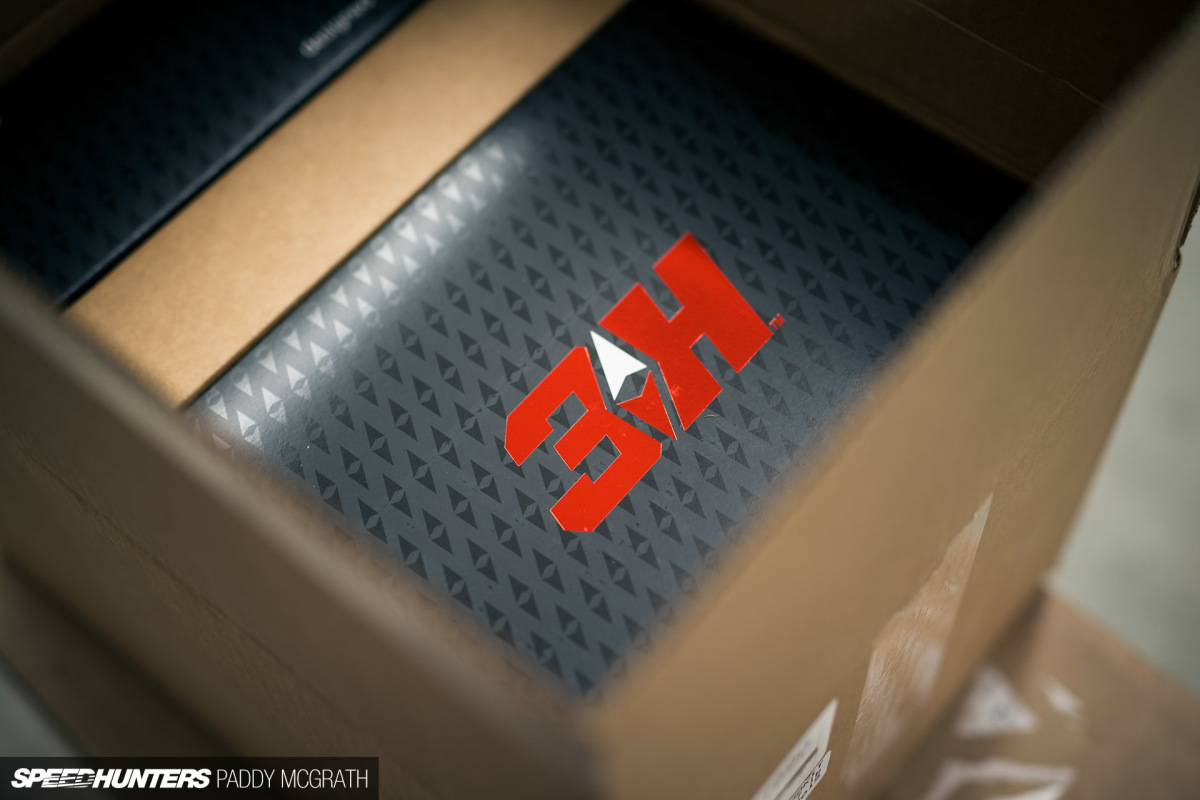

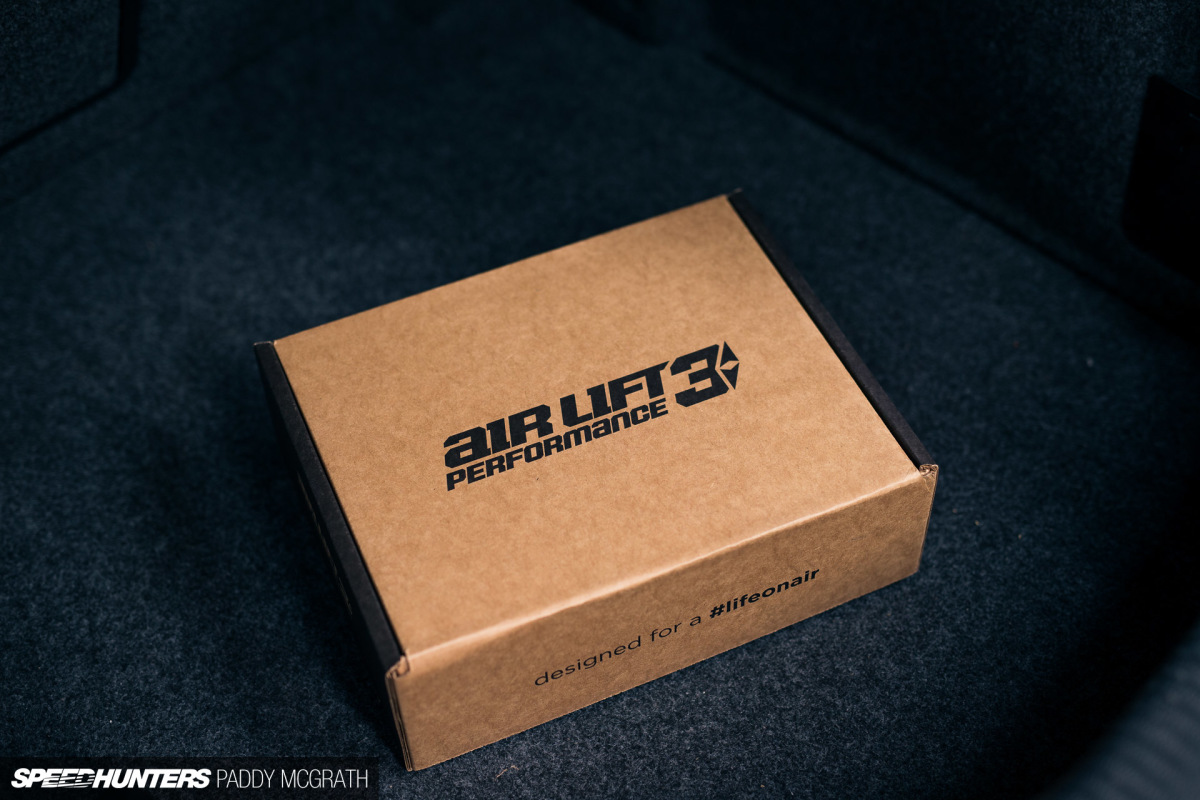

The last time I unboxed something quite this nice was when I got my iPhone a couple of years back. It just feels good.

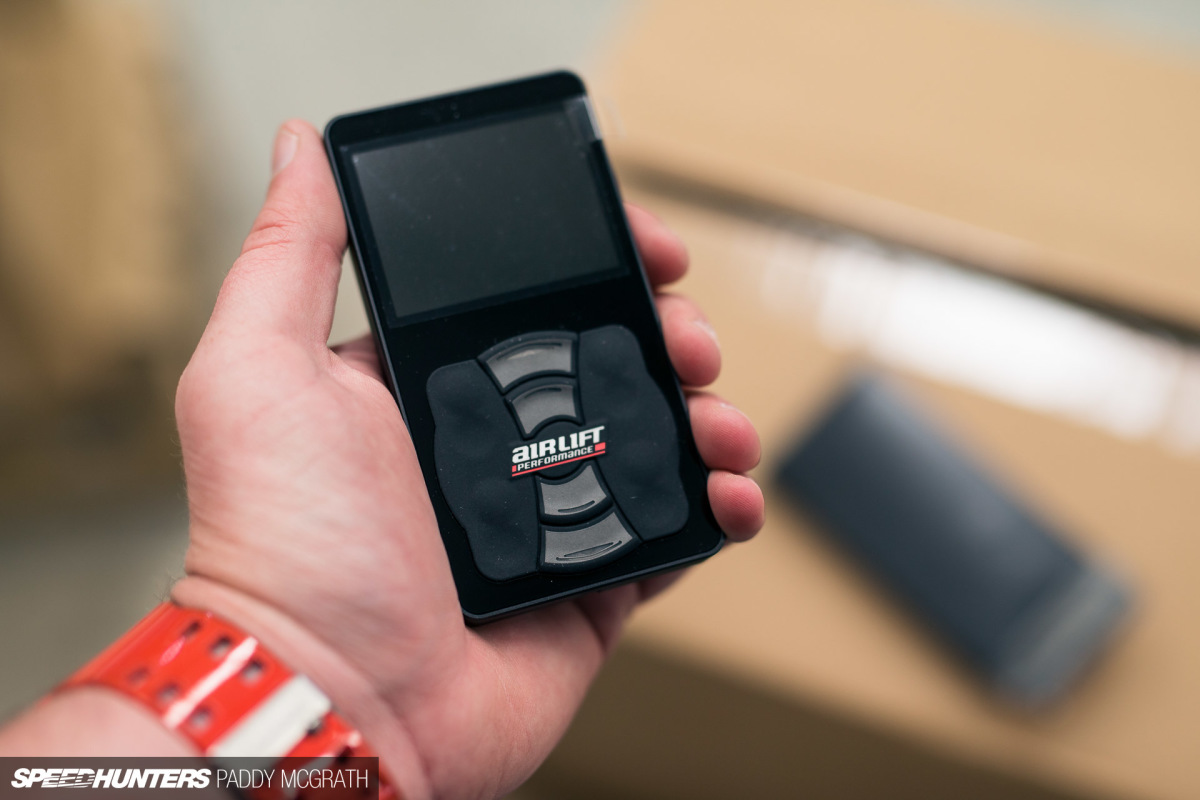

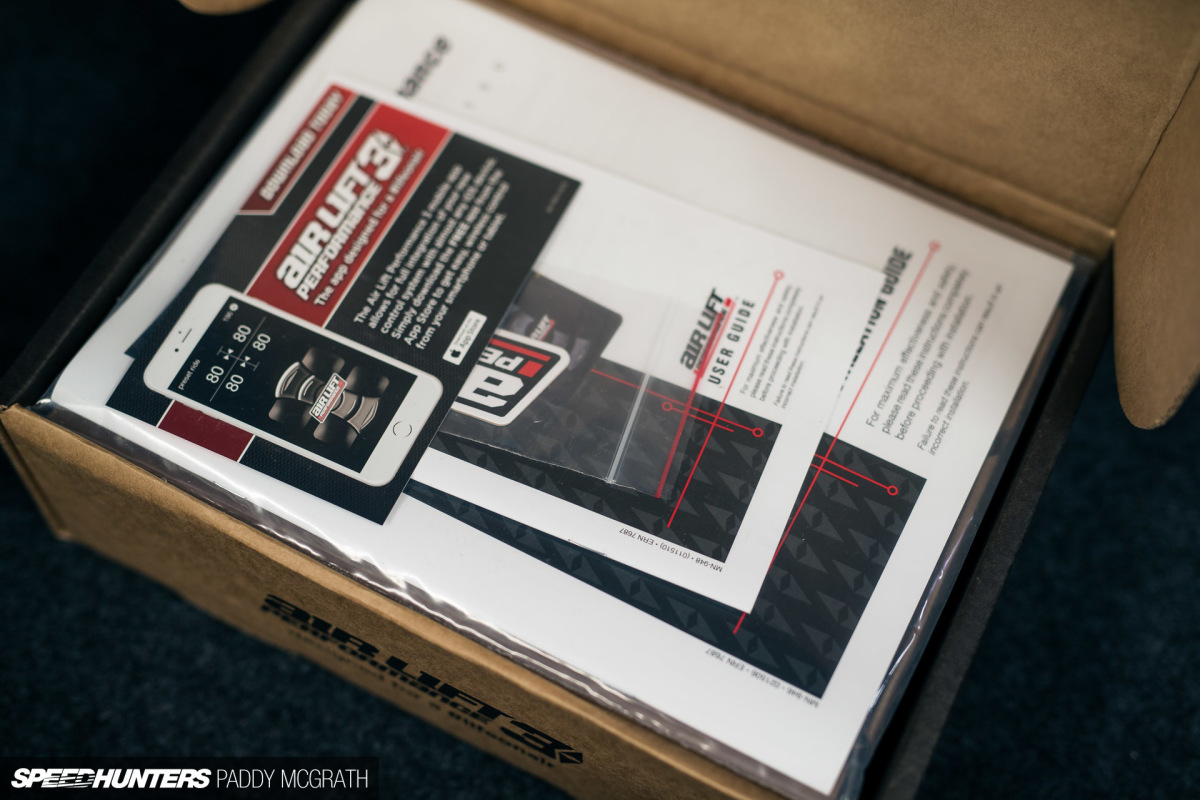

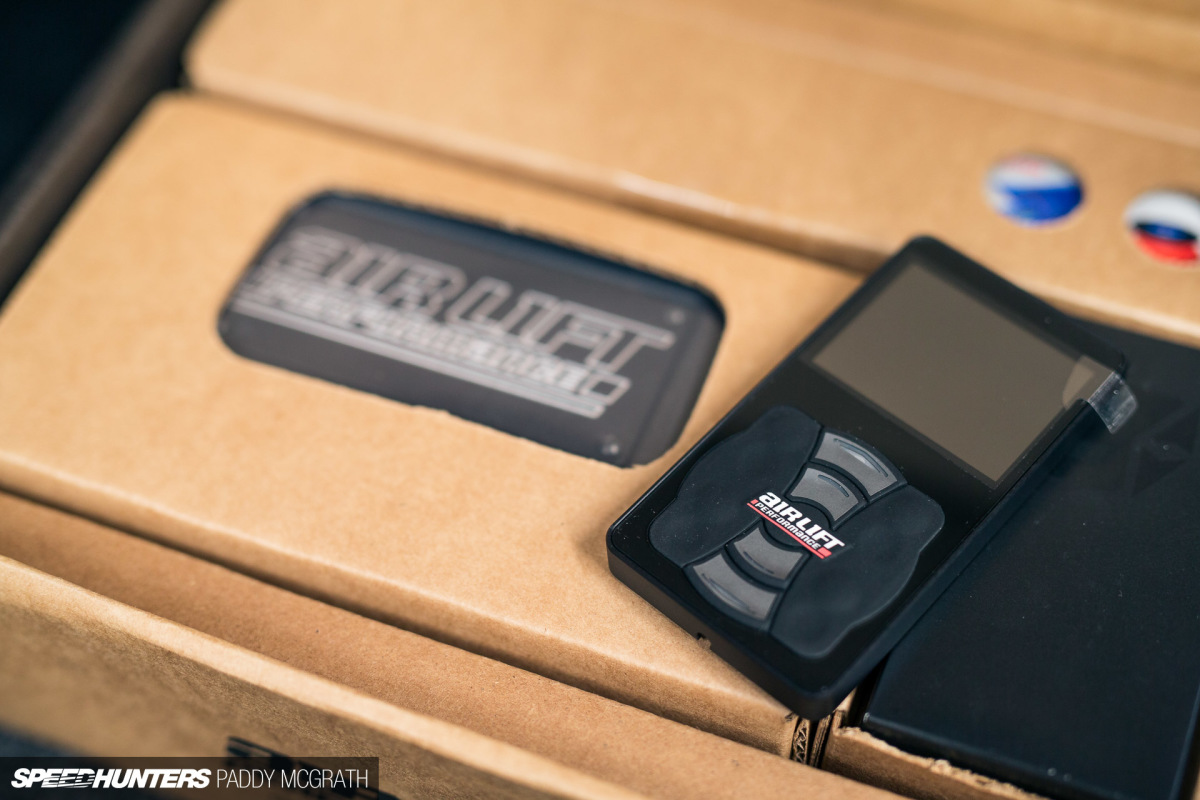

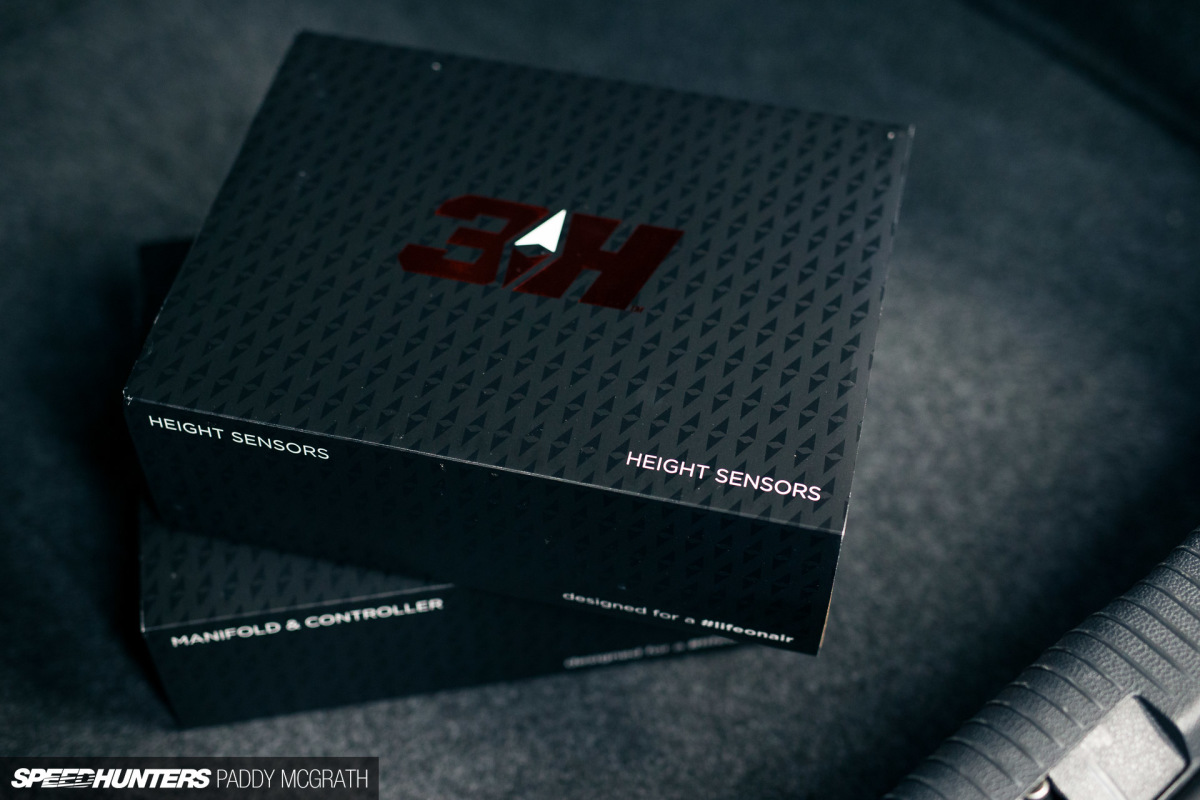

Inside I found the new ALP controller, manifold and harness. The controller feels especially impressive. I thought it would be constructed of plastic, but instead it’s machined out of billet aluminium and anodised black. I’m trying to avoid using another Apple comparison, but it does feel quite similar in the hand as last of the iPod Classics. The buttons can be re-orientated too depending on how you want to install the controller.

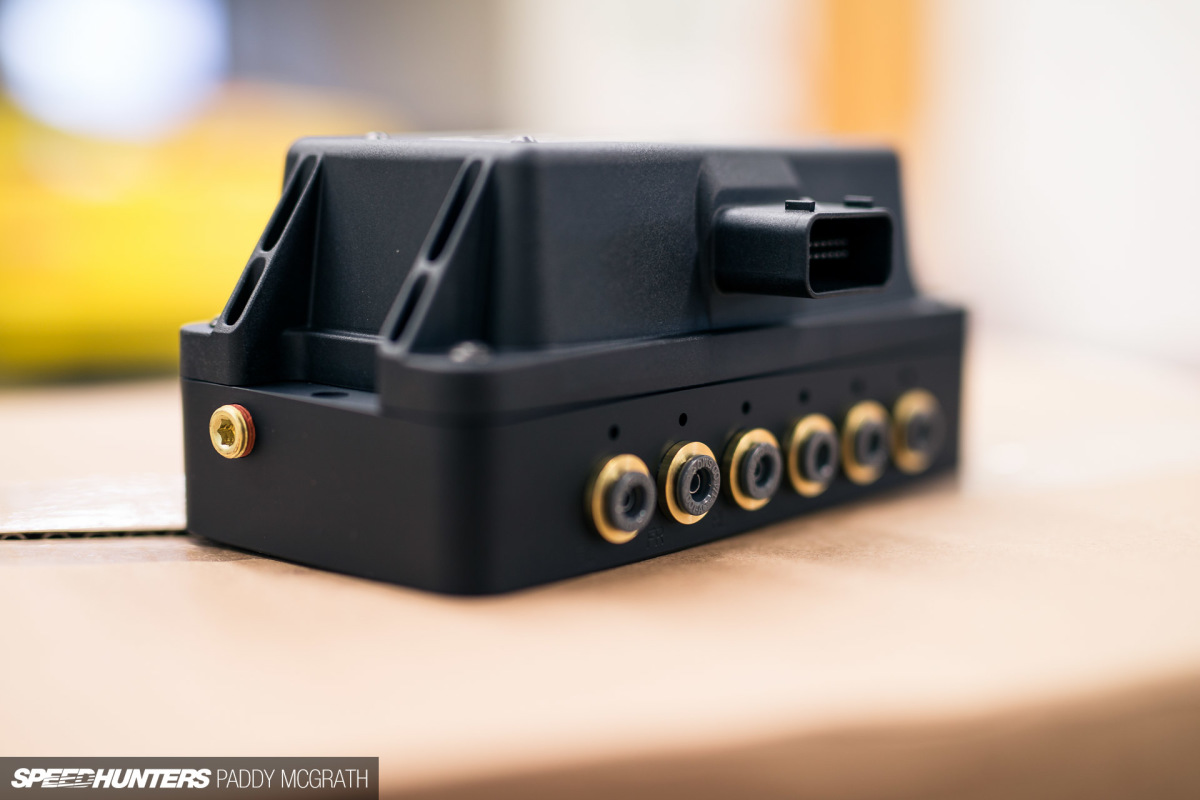

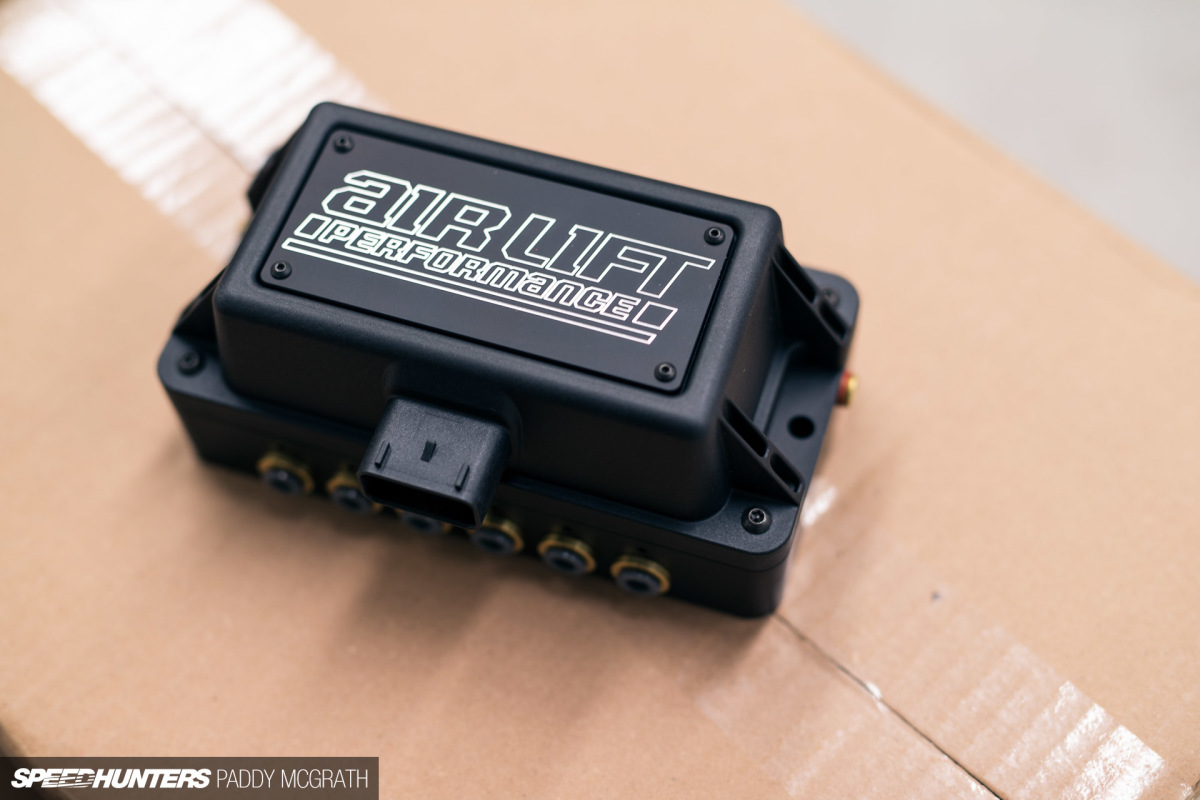

The real heart of the setup is the new fully integrated manifold. This relatively small box of tricks features the ECU, pressure manifold and Bluetooth module in one unit. It’s pretty crazy how much technology has been packed into something so small.
Like the controller, it feels solid. There’s a little bit of reassuring weight to it too, although this time I don’t have any Apple-esque comparisons to throw at you.

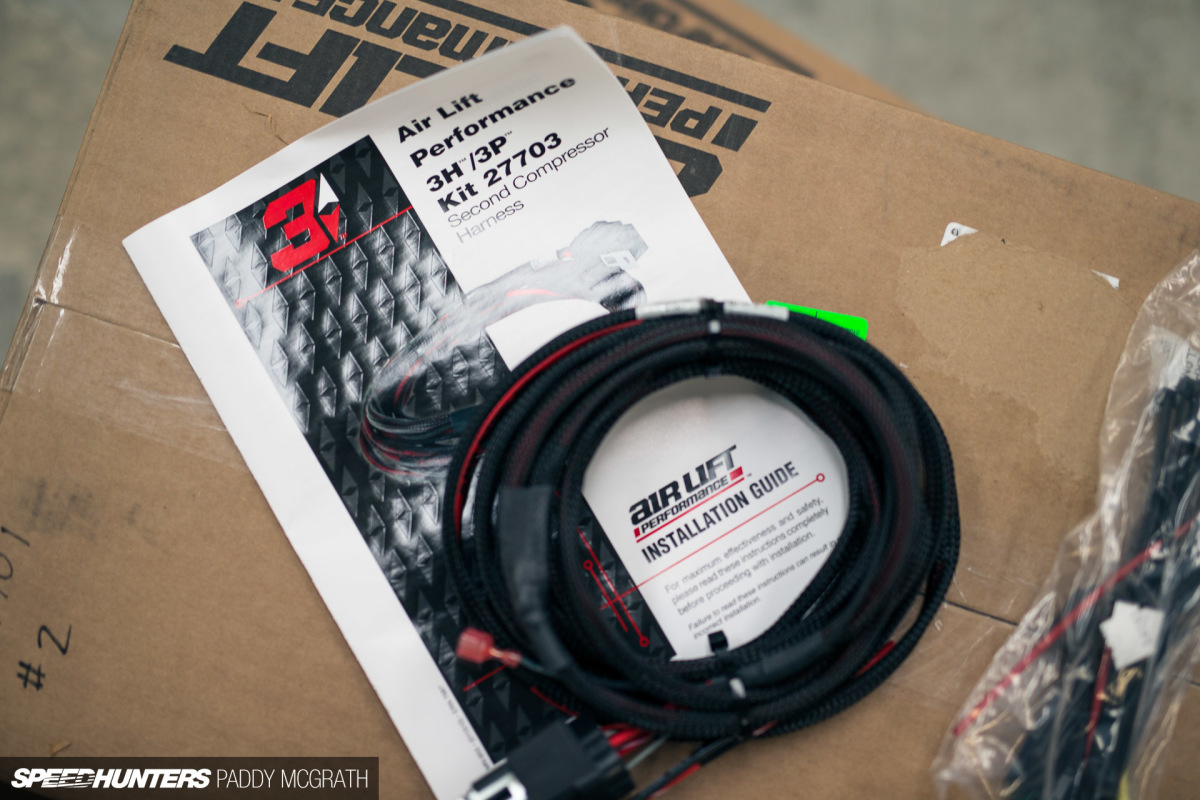

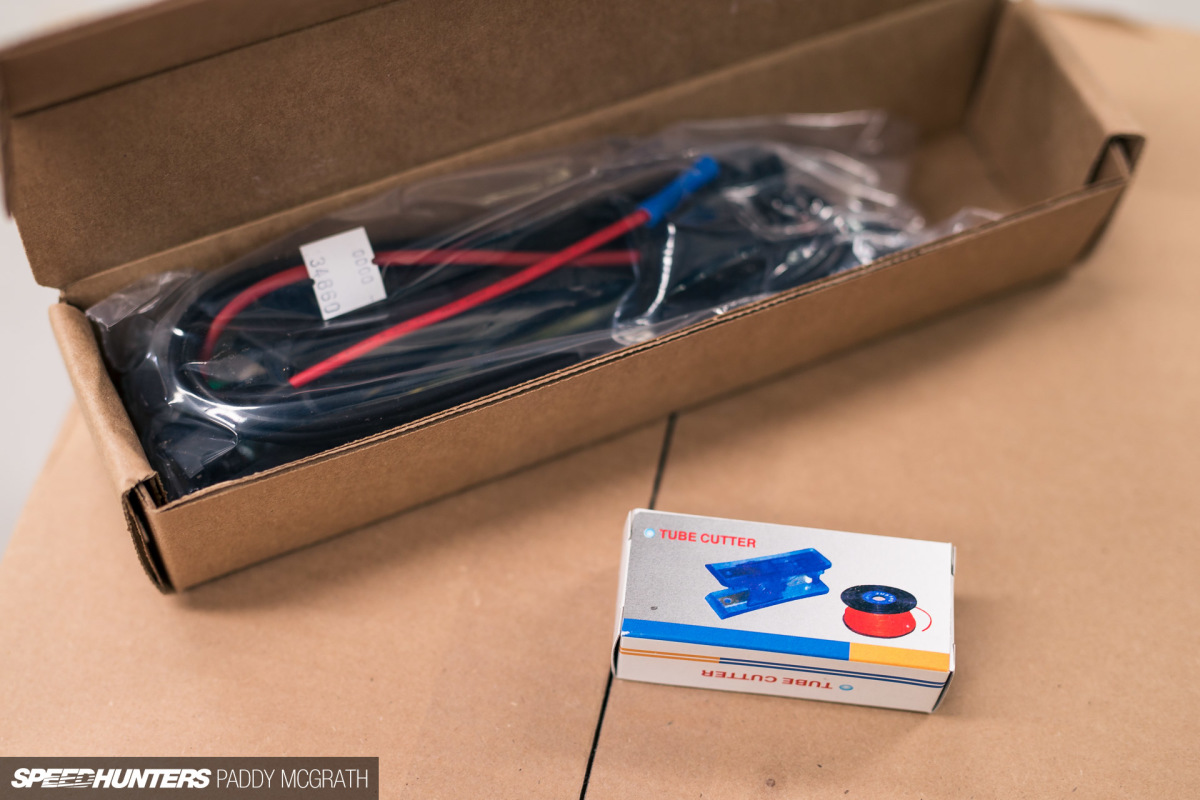

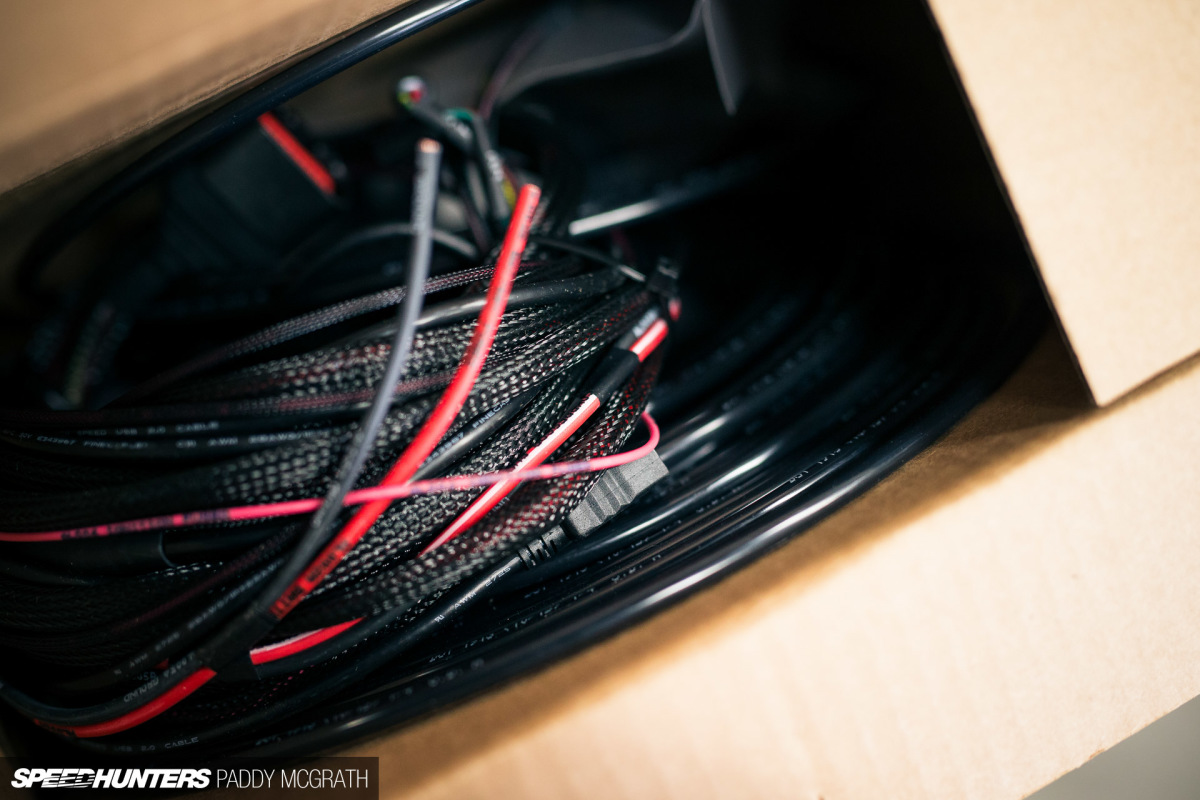

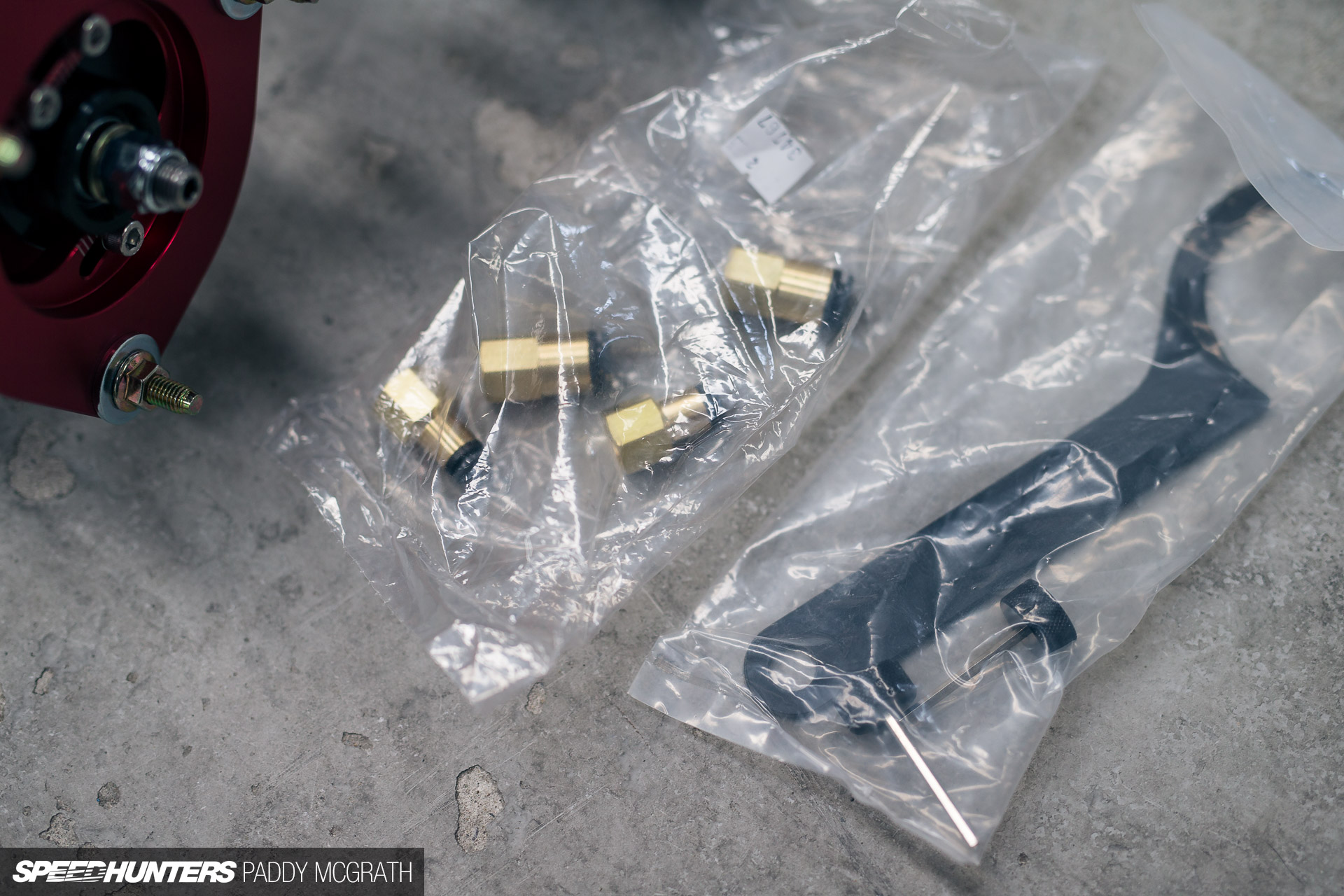

Again, everything is included for a plug-and-play installation, so there’s no need to rewire anything. Air Lift also included a proper air-line cutting tool, something that will prevent leaks when used correctly (using something like a snips will only crush and deform the air line, creating a sub-standard connection and seal, and quite likely a leak too).

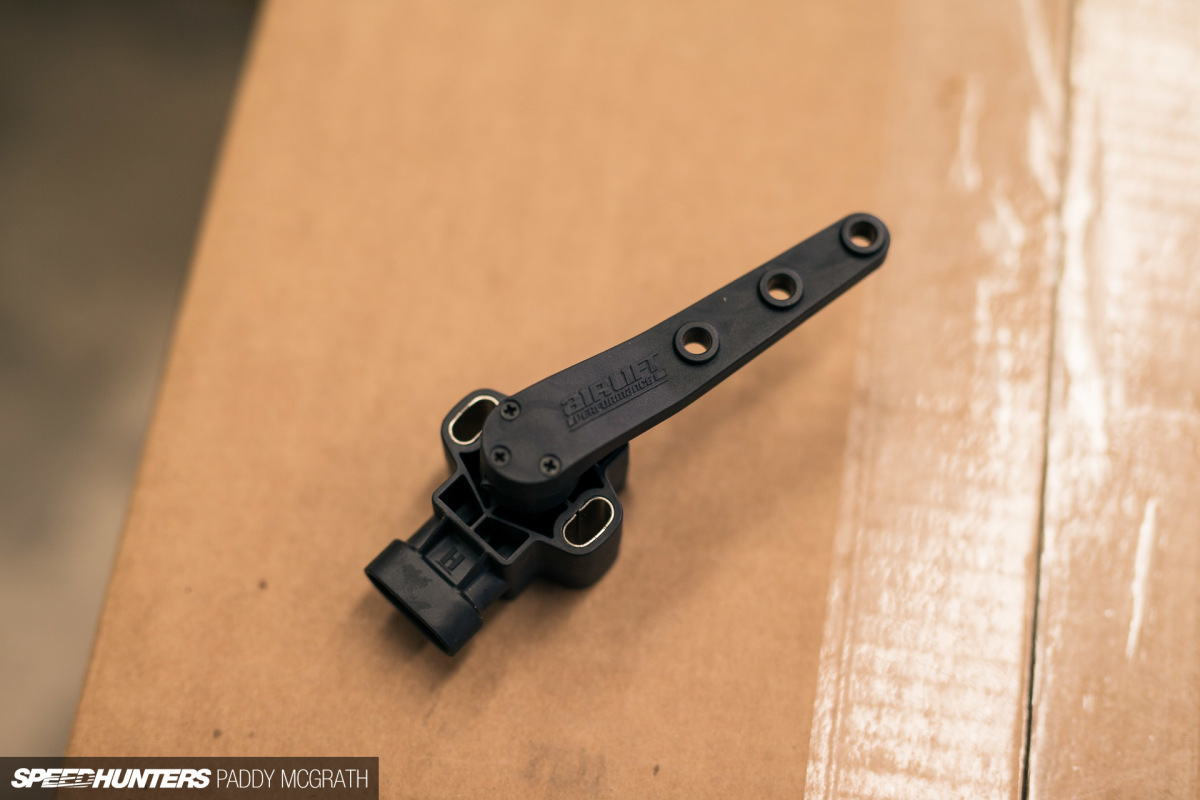

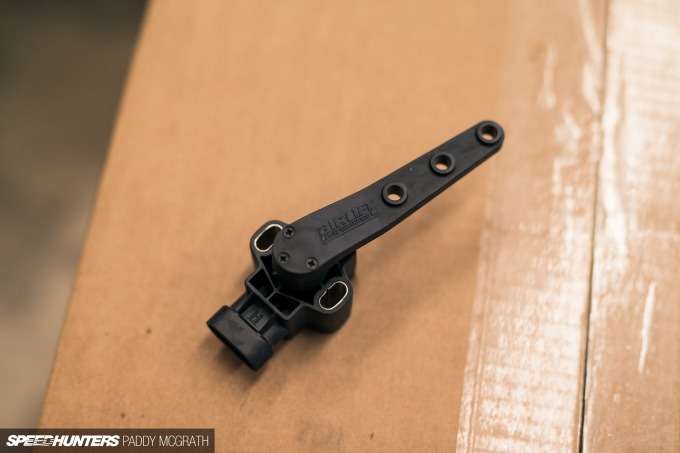

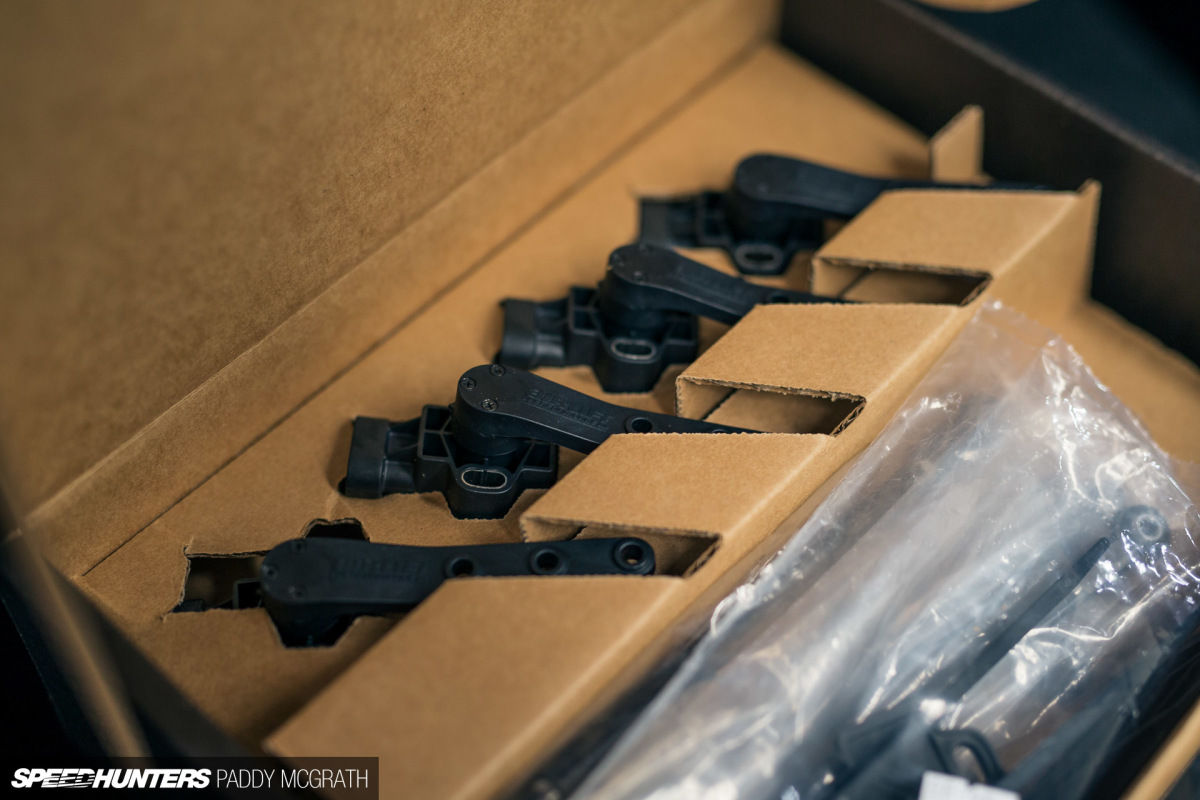

What really helps add to the performance side of this setup are the height sensors (the ‘H’ in 3H). The height sensors work in combination with the air spring pressures to ensure that the vehicle is sitting evenly, to prevent cross loading and to ensure axle equalisation. It also means that you can load up the car with luggage (or camera gear in my case), start the car and it’ll rise to its usual unladen ride height. The same applies for passengers entering or exiting the vehicle. You don’t need to worry about trying figure out how much air you need to add to each bag to keep the car level; the height sensors will communicate everything to the new integrated manifold and it’ll adjust the car accordingly. Further to this, there’s also a built-in accelerometer in the manifold which further plays into how the system adjusts to motion.
Again, everything is included to install the management and sensors. From controller wiring, sensor plugs, air line etc. I’ll be honest though – this box terrifies me as I have a complete allergy to auto electrical parts. It’s all witchcraft.

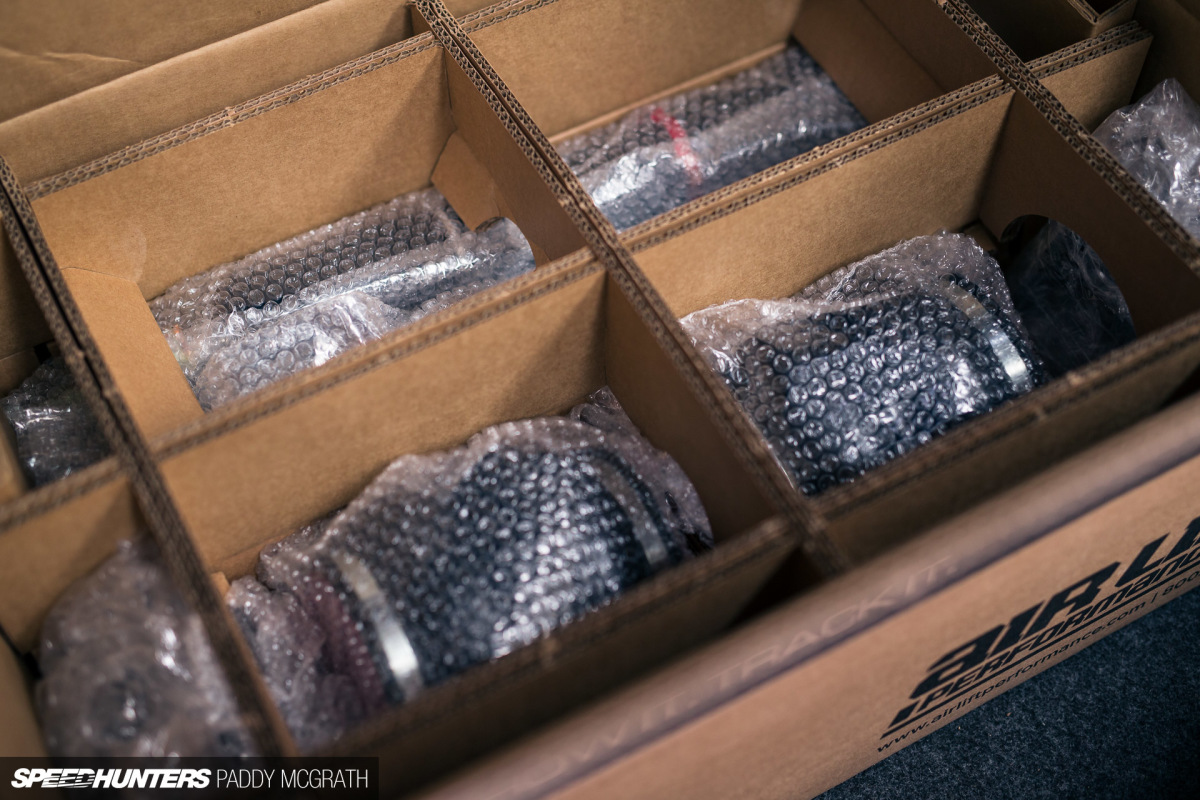

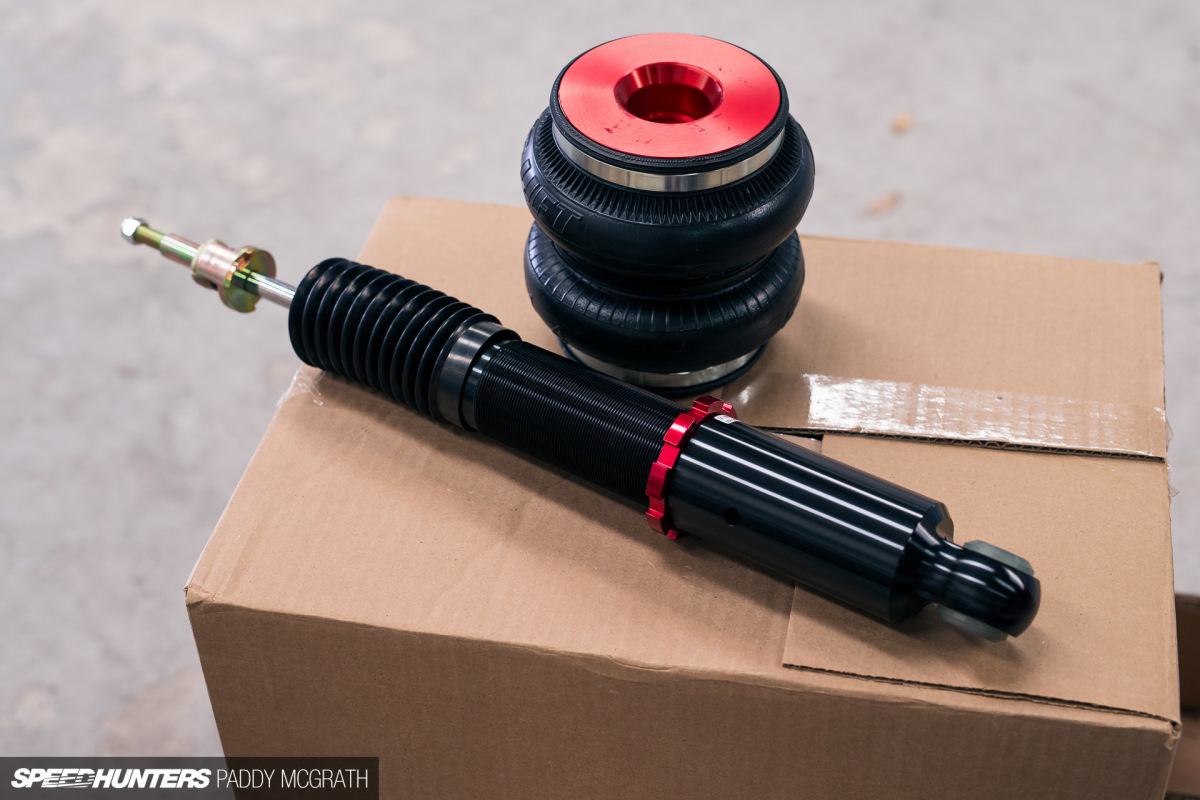

Of course, this entire setup would be useless without the actual suspension parts.
It’s probably this part that everyone will be familiar with and may not be aware just how simple it is. So, where you would typically find a steel spring, instead, you have a double bellow air bag. That’s pretty much the main difference between a comparable traditional aftermarket suspension setup and a modern air suspension setup – an air bag instead of a steel spring. There’s no voodoo or magic, it really is that simple and is why modern air setups can now compete against coilover setups both on the street and on track. Any variation in performance will be down to the quality of the damper used. The Mk6 GTI uses a separate damper and spring setup in the rear, so that’s what you get with the Air Lift Performance setup – a new spring and damper.

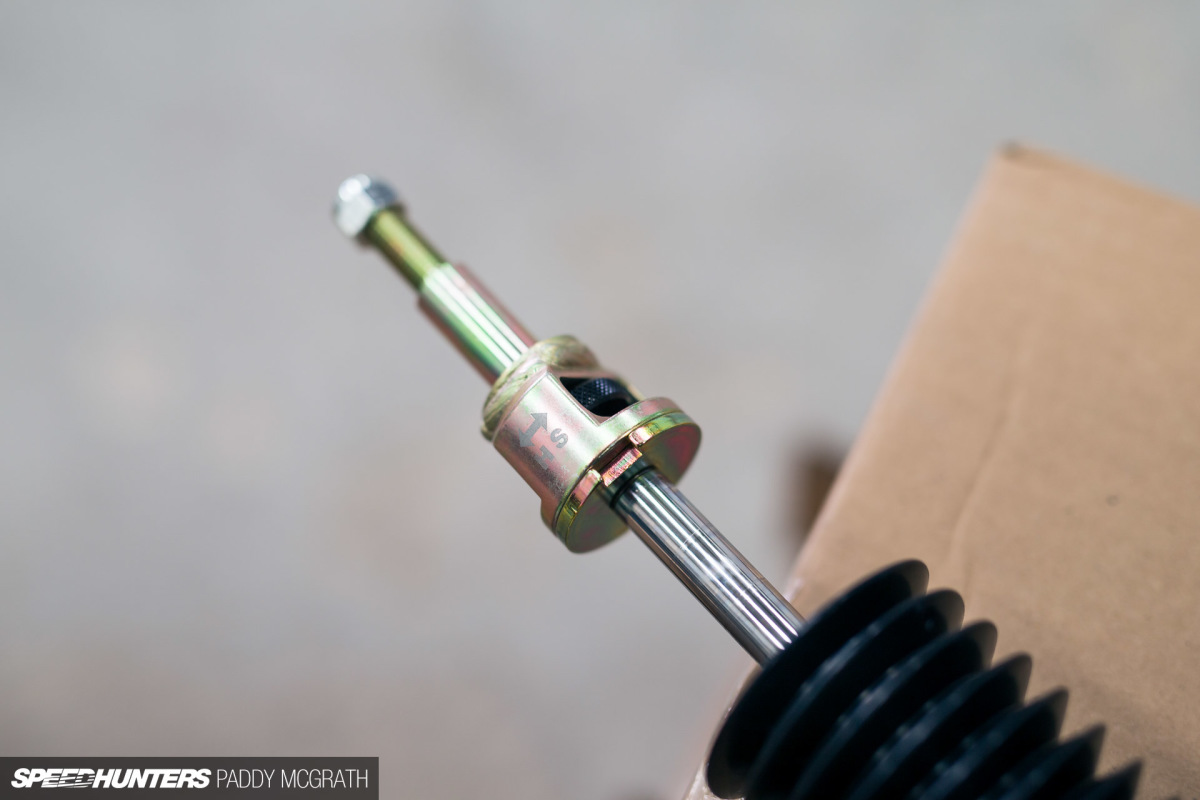

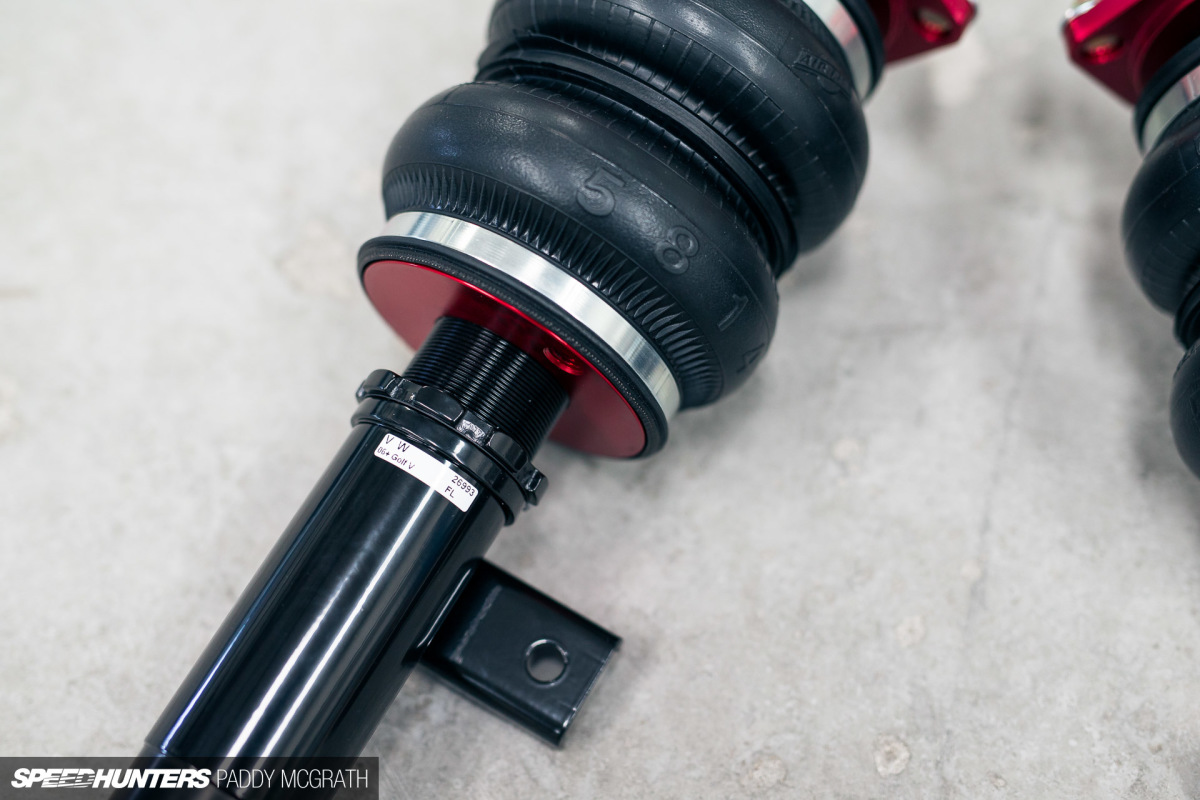

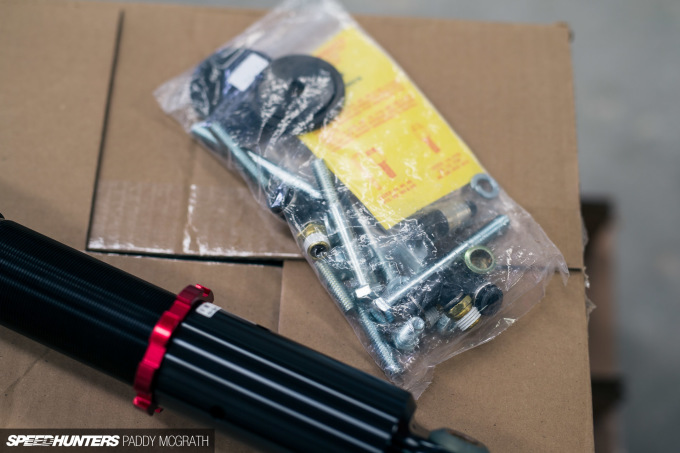

The damper features a threaded body so you can fine tune your ride height in order to allow you to run the perfect spring pressures to suit your needs. They also feature 30-way adjustable damping.

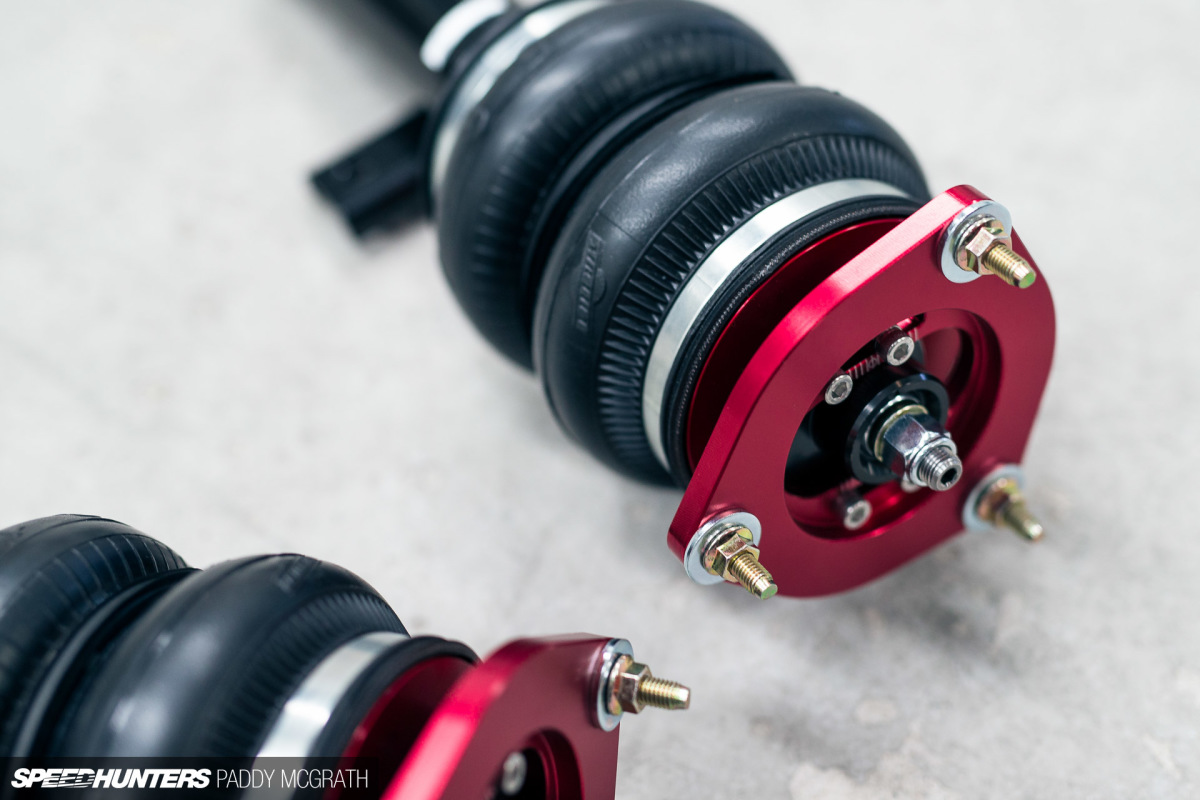

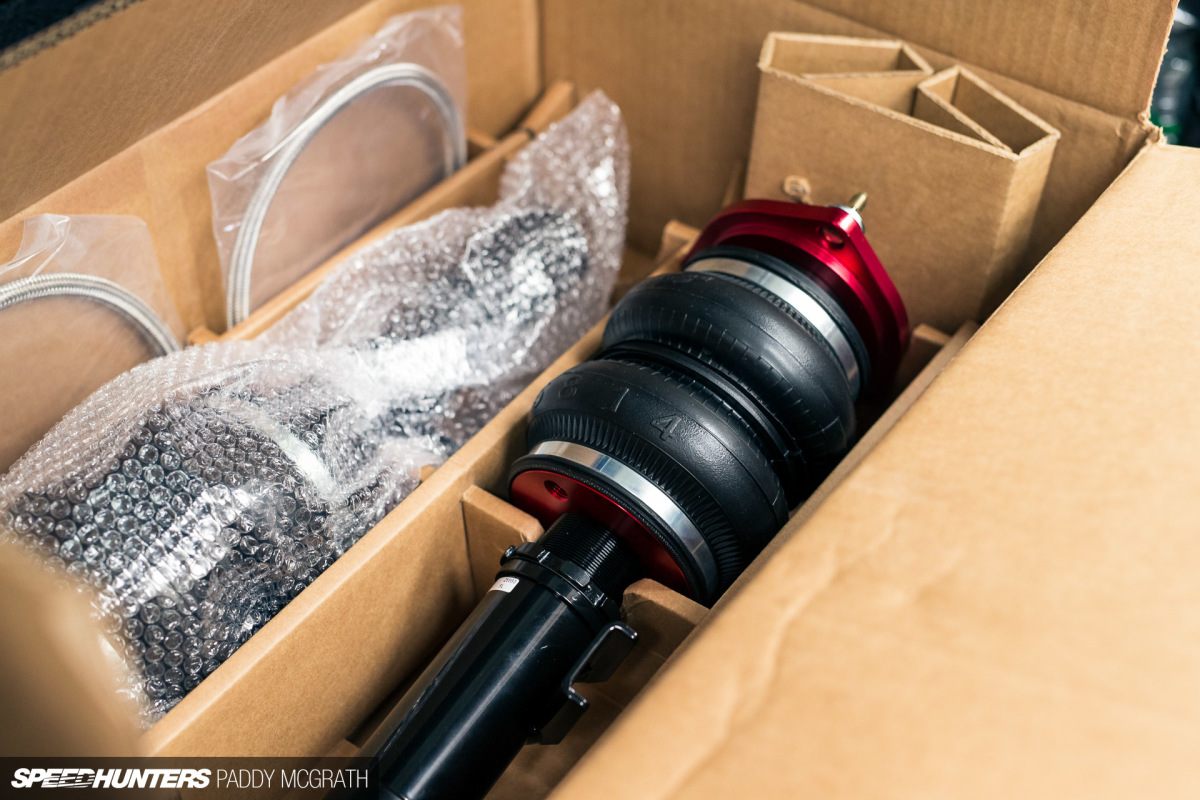

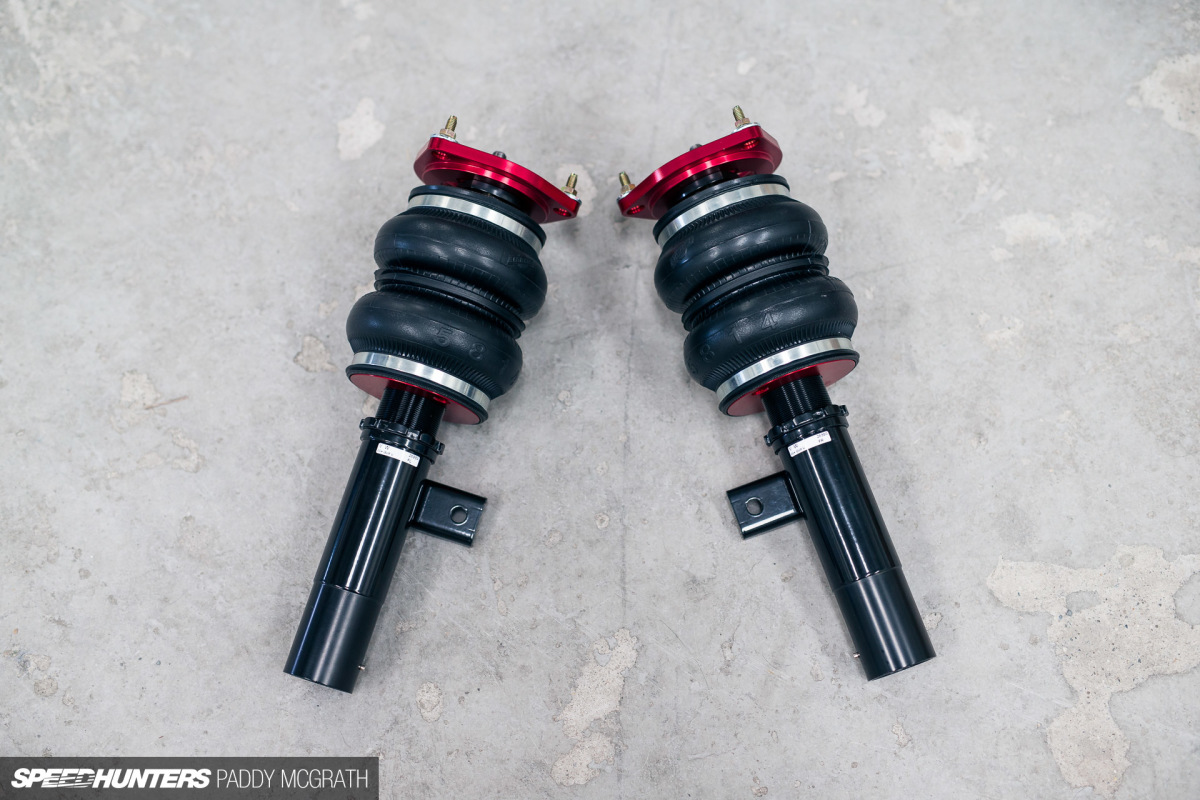

Similarly, the fronts feature a double bellow bag over damper setup with 30-way adjustable damping and a threaded body for, once again, fine tuning your ride height.
The big difference here is that they have camber adjustable top mounts included too. It’s a shame that these will be hidden from view in the Mk6’s engine bay, because they’re quite nice to look at. Air Lift Performance has also included new drop links to cope with the massive range in ride height adjustment.
I know that for some, there’s nothing that I can say or do to make you think this is going to work on a performance level. I would ask that at the very least, you reserve judgement until everything’s installed and I get a track day or two under my belt. This is new ground for me and I’m genuinely excited to get the car dialled in as quickly as possible and to see just how much performance potential there is. Being honest, I fully expect that I might never be able to extract the full potential from the car on track anyways (something I think that applies to far more drivers than some would like to admit), but that’s an argument for another day.
The potential of performance air has fascinated me for quite some time. Whilst air is typically associated with show cars, I’ve seen enough to know that performance air isn’t a contradictory term. You just have to look at someone like Cody Miles who won his class in Time Attack driving an Air Lift Performance supported Impreza to know that it does work; it’s really not even up for debate any more. If anything, the debate has now moved onto just how fast can a car on air be. I guess I’m about to find out…
Paddy McGrath
Instagram: pmcgphotos
Twitter: pmcgphotos
paddy@speedhunters.com
OFFICIAL SPEEDHUNTERS SUPPLIERS
I like the idea of using air suspension for other reasons that just sitting a car so low it becomes unusable. Interested to see how you feel it performs on the track. I do think there is great potential for air on performance / track orientated cars, it just takes someone brave enough to give it a try. I think for your application it will work nicely, bridging that gap between hard core performance coilovers that run low all the time and just having that little option to raise the ride height to clear a speed bump on the drive back home.
Good luck with the install and I'm looking forward to the next update.
Quick one.... what model wheels are yours? Currently thinking of changing the oe BBS Pescara's on my Edition 30 and I really like the look of yours.
I've always wondered about the trackability of air, if you lower it slightly obviously the bags aren't filled to the same pressures as they are at full height so are softer, does this mean you have to run at "full height" to get decent cornering characteristics? Which would in turn mean higher centre of gravity Etc etc.
Instant ride-height adjustment>spare tire
Just lower the bag base plates like coil overs and only go low for shows?
JakWhite You're right in the theory, when run super low the bags are at lower pressures and the effective spring rate is softer. However a well-setup air suspension usually runs air pressures at your normal (or track) ride height which give an effective spring rate similar to what you would run on a traditional spring or coilover.
The second part of the adjustment is being able to set the height of the air bag perch, just like you would with a coilover spring. So if you decide you need a particular air pressure/effective spring rate for your performance suspension setup, you can change the ride height of the car with the air spring perch without affecting the air pressure.
Lastly, the double-bellow bag design is the preferred option (compared to sleeve-type bags) because of the large air volume inside. Thus as the bag compresses/expands the air pressure inside (and again, the effective spring rate) doesn't change too drastically through the suspension movement. By the same principle, changing air pressures a little bit to fine-tune ride height doesn't drastically change the spring rate either. Obviously when running very very low, or at very high pressures, this goes out the window, but in the middle of the suspension travel (where you want to be for high-performance driving) these effects are negated a fair amount.
Ah Paddy, I do think if we ever met we'd get along. Similar to yourself I chose air years ago after riding around static led to quite a bit of money invested in flex pipes and headaches dealing with entrances and speed bumps. My wheel and tire set up is a bit more form focused than yourself but otherwise we got air for similar reasons.
My whole set up also resides in the spare well under oem panels, remove them and it's a little showy but no hardline set up. Camera gear, bike, kids stuff take priority on a daily.
My ALP set up has been through a lot, three winters, 1 written off car and taken it all with no fuss so I you'll have no issues I'd imagine.
As for people wondering the trackability of air, the 300c below has been tracking on air locally for at least two seasons and if it can work on a barge like that I imagine it should do a GTI well too.
Steve Hayward JakWhite ^Exactly
Well written Paddy.
I've been interested in air suspension for awhile, seems like the best way to go. I've seen all the claims about performance, but I'm still curious about it. Excited to see how it turns out. Could you perhaps take some under car video during track testing?
I'm also curious how essential are the ride height sensors? It seems like many companies offer different packages. I've always wondered if just the pressure control would be good enough. I have 2 vehicles, so my car doesn't get daily driven. The most weight I add to the car is a camera bag and a lawn chair. Also, the rear seats are some unusable that I very very rarely have more than 1 passenger.
my e46 on air
How many times are ya gonna be able to go up and down before it needs to build up air again? My friend has bags on his Jetta and that's one thing that annoys me, it's after every other go he has to refill.
Look forward to seeing the setup in person at some point soon
Jay_TrackAddict They're Volk Racing ZE40s 18x8.5 ET44
Steve Hayward JakWhite Great explanation, Steve.
90nissanS13@my350z True that.
DaveT That's great to hear, hopefully our paths cross as some stage!
SN95 Lover I guess it's one of those things where the height sensors are going to be better than no height sensors, but there have been plenty of cars running on V2 management without them and have had great success. I think Cody Miles' TA Impreza is on V2 (I think!) so he may not be running them. It seems to be working out pretty good for him!
SeanLeipoldt Sweet, how're you finding it?
Tomo Pattison Good question, I haven't worked out the fill times just yet as I was more concerned with the tanks' physical size rather than their capacity. I'm hoping that with the isolators on the compressors, it won't be much of a nuisance regardless.
Tomo Pattison For an exact fill time it will depend on how low you ran the tank. With 4 gallons of air on a ~3500lb car with double bellows on all four corners, you should be able to go from aired out to ride at least two times back to back. You will still have plenty of air in the system after that, but you may not have enough pressure to come to full height. That said, running dual 444C compressors will create very quick fill times to max tank pressure. You should be in the range of sub 1min fill times from 100psi to 150psi, or sub 2min fill times from 100psi to 200psi.
Note that running a higher tank pressure increases how many times you can make large adjustments. For example, running the tanks at 200psi may yield a third aired out to ride adjustment back to back. For me personally on my bagged IS300 drift car, I run the lowest max tank pressure of 150psi. Since my car is mostly track use only, I am only running a single 380C compressor with a 2.5gal tank. I am able to go aired out to ride once, then by simply waiting about 30 seconds I am able to do it again. It was unnecessary for my application to have a large volume of air as I do not make many adjustments throughout a track day, just when I want to show it off to a group of people.
To conclude, the larger volume of air you have stored or the higher the pressure, the more large "on-the-fly" adjustments can be made. If you don't pull up to every stop light and "hit the switches" you will not need a large volume of air.
I hope you enjoy the kit Paddy! Looking forward to your on track results
PS. Cars also handle great on air when sideways
SeanLeipoldt How are you liking it? I'm more worried about DD duties, occasional road trips and the odd AX in my E46. I have an S2000 I use for track and AX fun time. I'm getting really tired of my cheap Taiwanese coils on the daily.
DavidCargle SeanLeipoldt For daily drive-ability, our kits feature 30-way adjustable damping, giving you the option to make it ride like a Cadillac, a race car or something in between depending on your liking. The bags themselves add a nice DD capability by absorbing small bumps and dips in the road, while still offering stiffness under high G turns. Since bags are essentially constructed like the sidewall of a tire, they will slightly expand on high speed impacts which takes a ton of harshness out of the ride. Upon cornering, the bag will compress and the pressure will increase thus raising the spring rate of the loaded corners, keeping body roll to a minimum. You really need to ride in a bagged car to truly appreciate the added on road comfort and performance benefits that bags offer.
Great looking build.
I was thinking though, you mentioned using a 12V compressor for inflating tires instead of carrying a spare.
You have two compressors and two air tanks on board already, why not adapt those up to inflate your tires if required?
that rx8 in the back though
Frieswiththat http://www.speedhunters.com/2015/10/spoiler-alert-an-rx8-at-a-crossroads/
How complicated is it to install? Normal suspensions are pretty easy to install, but in this case it looks like handwork it's gonna be expensive, and it's not something you can do in your garage, I suppose.
Anyway I think you took the right decision, after all you're not going to race every day, and the level of comfort achieved with air has nothing to do compared to some stiff suspension setup, especially on bumpy roads. Looking forward the see the result.
EvolveWRC The install is not nearly as difficult as one would think. Our kits are designed to be installed in a driveway with basic hand tools. Most kits require zero modifications to the vehicle, while some you will have to drill and install a single nutsert to attach the rear bags.
We like to say that if you can install coilovers and a stereo system, you can install one of our kits. The most time consuming bit is routing the air lines. Taking your time with that will ensure worry free operation.
Some may argue that the trunk setup takes the most time. That is all personal preference as you can do a simple board with all of your components attached to it, or go all out and build a full custom trunk with hardwood floors and polished hard lines. For most people who have never installed air suspension, a kit can be completed in a weekend.
I wonder how the OEM suspension on an RS6 is built? Anybody got pics to show?
Steve Hayward In other words, starting with a bag pressure that puts you in the best place on the progressive spring rate curve makes the progressive spring rate the least noticeable. If you change the pressure more than a small amount, or change the displacement more than a small amount, you rapidly move to a different area of that spring rate curve. Making the bag volume larger has the effect of making the curve more gentle.
It's really just making the best of a not-so-great situation, which is understandable but not without obvious compromises. Progressive rate springs are not without their drawbacks...
I am interested to see the updates on this, I just ordered my air suspension yesterday. After spending a month going back and forth between airlift and accuair I finally ended up going with the elevel kit. So I it will be cool to see your experience with the other option. Here's to hoping we both made good calls!
I love how every one of your modifications is well thought out. If I had a GTI, I think that I would go for the same functionality as you and your choice of mods is perfect.
I mean its cool what your doing and all, and I know that there are many people reading this who can afford to do this, but for me its a stretch to even fit a decent set of secondhand coilovers, and Im guessing you got seriously hooked up as well, just kind of a bummer that many speedhunters build stories are a bit unrealistic for the majority as many of the products are free or seriously discounted which never happens in the real world....
FuelEconomyKilledTheCarsWeLove! What would you have them do for project cars then? Cut springs, a fart cannon and a head unit?
As far as "real world" mods go the majority of SH staff projects are completely attainable for the average joe IMO.
Maybe you need to look at yourself, and the choices you have made, rather than try and rip on SH for doing completely realistic mods.
FuelEconomyKilledTheCarsWeLove! Not really, Project Ecoboost was sacrificed for hopes of getting a move on with Project Yankee. I don't know how much the sponsors are helping, but even in the real world you can receive a good price from your friends or local shops, even manufacturers helps you out during some occasions.
Great...VW...airbags...yawn.
I was hoping for something different with this build, guess I was wrong.
kphillips9936 If YOU could do something better, please do show
FuelEconomyKilledTheCarsWeLove! go watch mighty car mods on youtube then they are normal guys who do DIY projects and mods starting from $0
Nice update Paddy, looking forward to the review once installed.

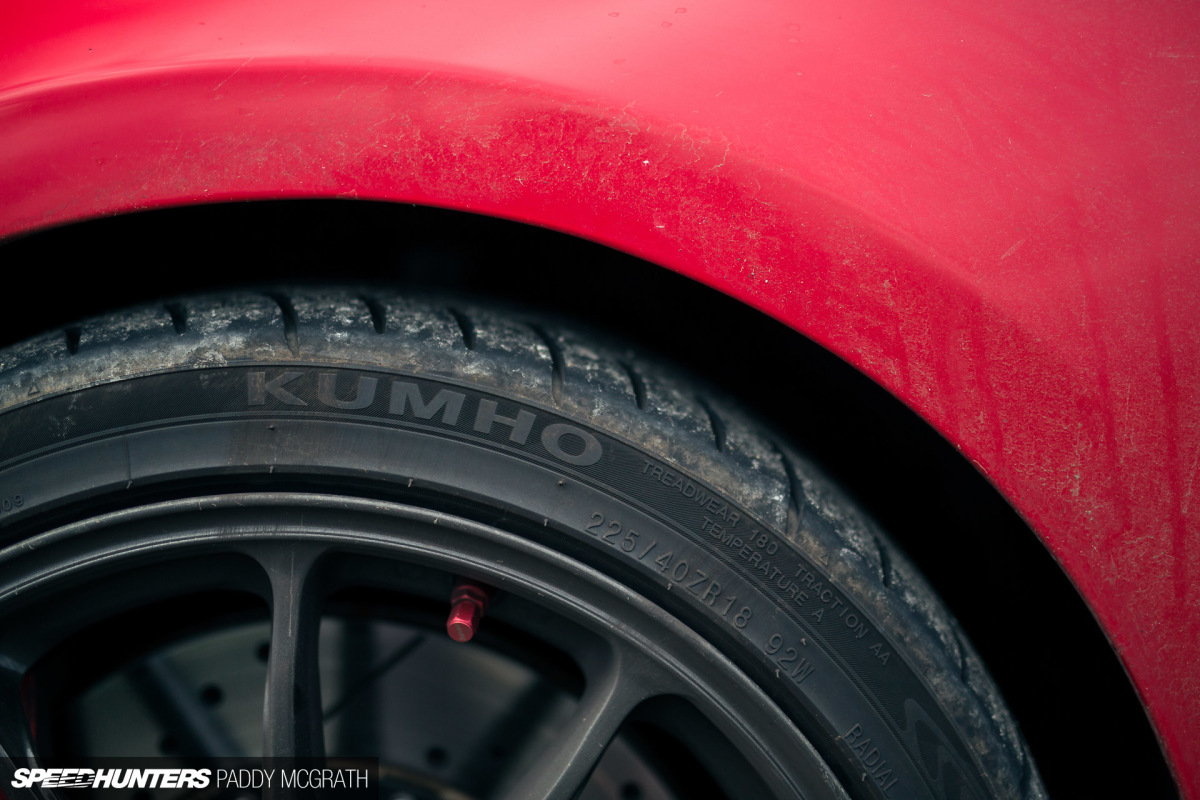

Any feedback on how the KU36 tyres are going?
