Long Wheelbase Jag + LS3 + Stick Shift = Perfection
Wild Cat

We recently had the chance to spend some time with one of the coolest Jaguars in the world, and in addition to having Mr. Larry Chen point his lenses at the V8-powered, manually-shifted XJ8 L, we also talked to its owner and builder to get a better idea of how this project originated and what makes it so special.

So without further ado, here’s Karl T. Muth to tell us more about his stunning Jag…

Larry_Chen_2016_LS3_Jaguar_29

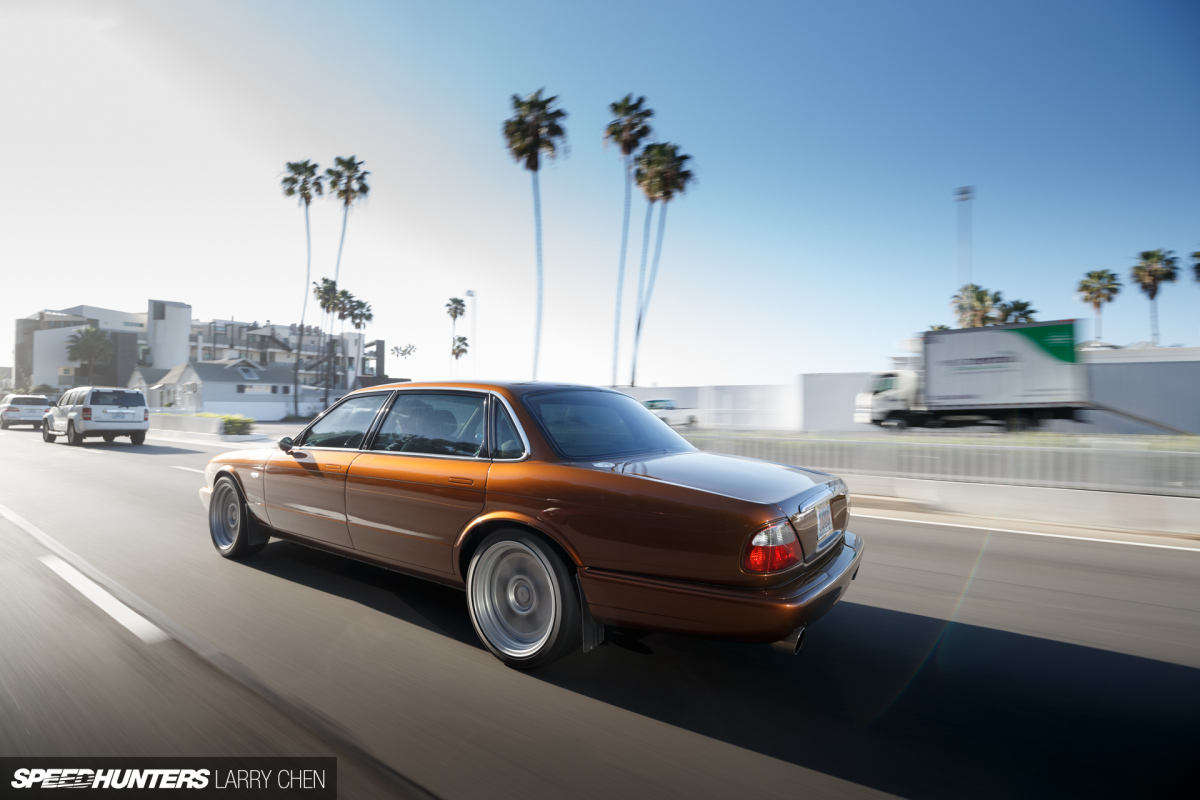

I’ve always liked this shape and generation of Jaguar XJ and I really think the newer cars have lost the nostalgia and Britishness that made these cars great. I wanted the last generation of steel car for the project, which is this generation (X308).

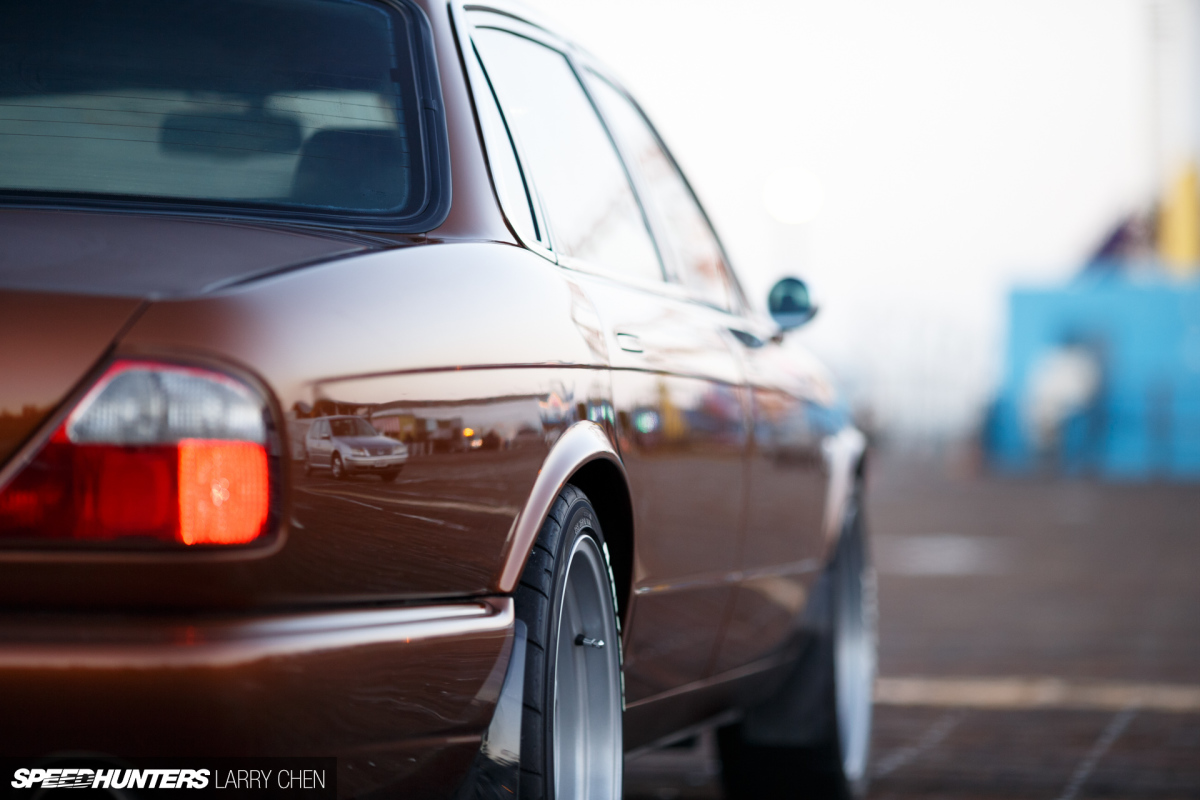

Larry_Chen_2016_LS3_Jaguar_34

I found a car that was almost exactly what I wanted as a starting point for the project, except it had a sunroof (the car has since been swapped to a non-sunroof roof). I paid $1,201 for the XJ on eBay and picked it up from an elderly man who was the first owner and very apologetic that the fore-aft power adjust on the driver’s seat did not work.

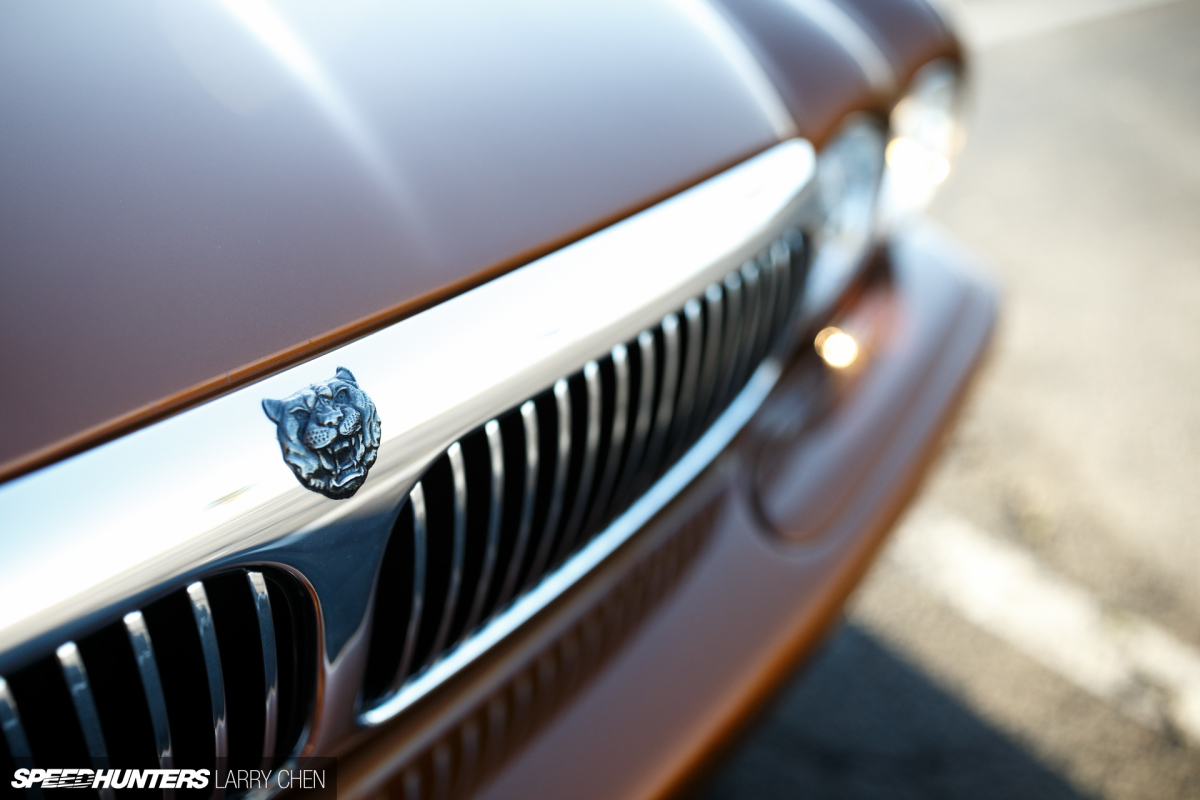

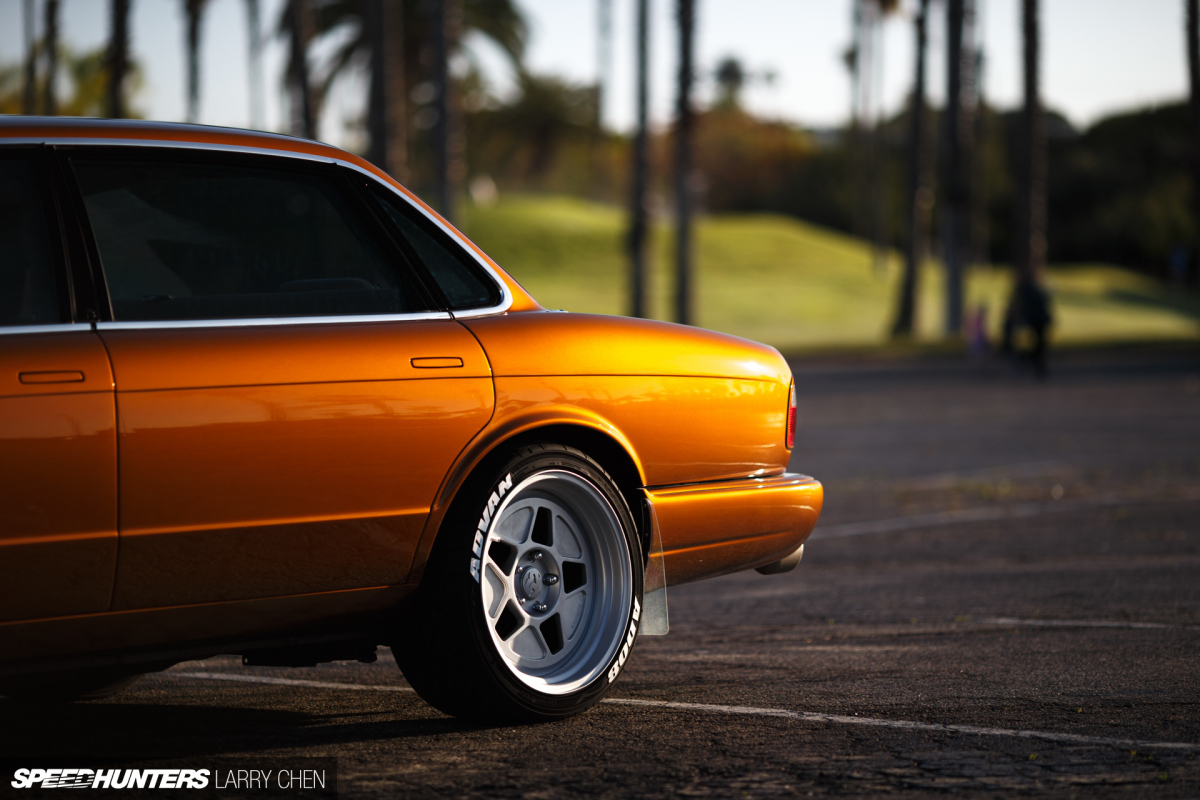

Larry_Chen_2016_LS3_Jaguar_24

The car had 72,000 miles and poor compression on cylinder #3; it was ripe for an engine rebuild, so I didn’t feel bad about my plan to get rid of the Jaguar’s 4-liter stock engine.

LS Power
Larry_Chen_2016_LS3_Jaguar_27

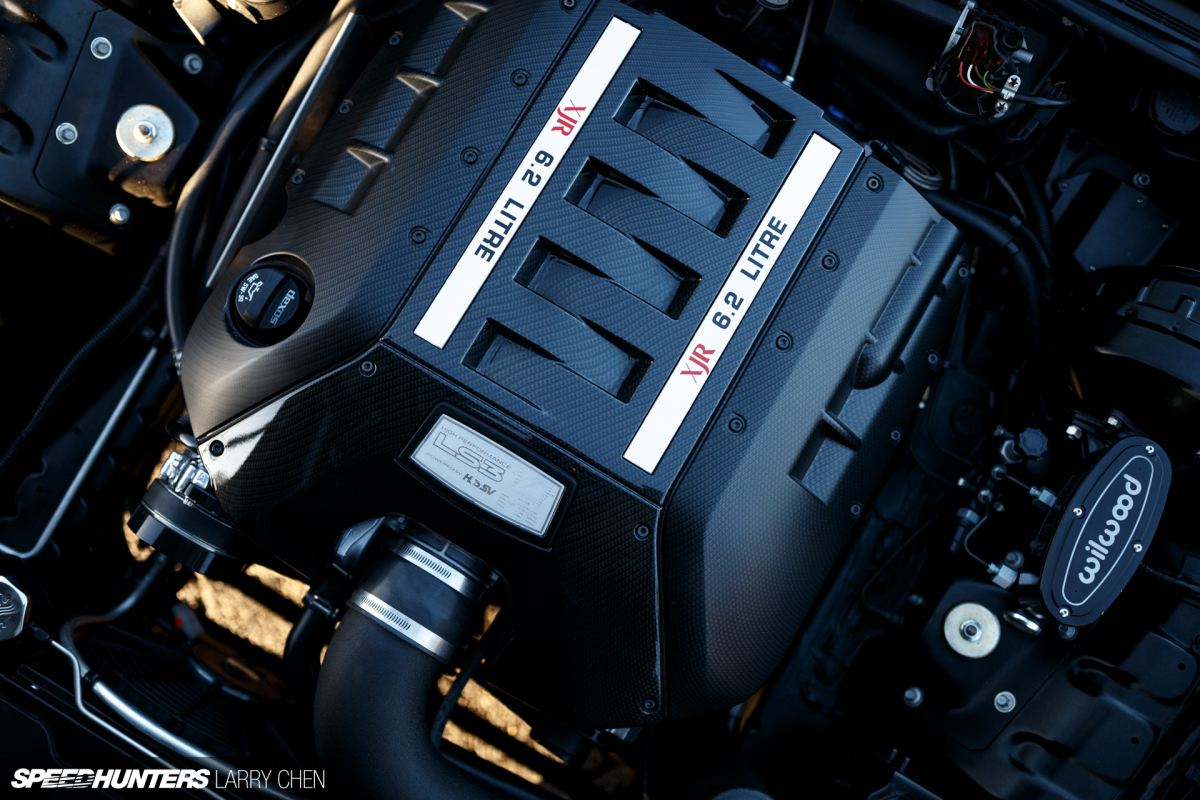

I bought the car intending to do a swap and I was originally going to use a GM Performance LS3 376/525 crate motor, offering a reliable 525 horsepower out of the box.

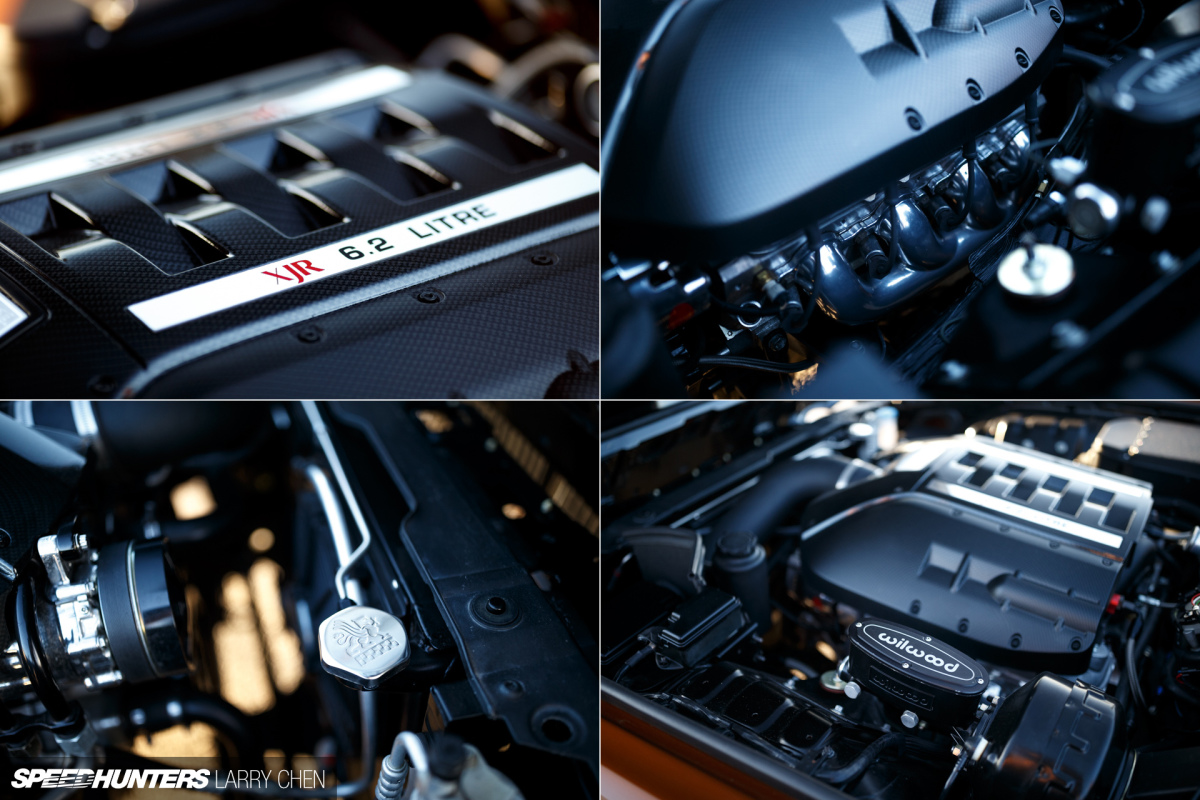

Larry_Chen_2016_LS3_Jaguar_28

I ended up modifying this engine with various Lingenfelter parts. Everything above (and including) the head gasket is ZR1, meaning the heads are LS9 items re-machined (three-angle valve job) for normally-aspirated performance (the LS9 is supercharged).

Larry_Chen_2016_LS3_Jaguar_26

The engine also runs Lingenfelter’s GT 1-1 camshaft, titanium intake valves, sodium-filled exhaust valves, and lots of other upgraded hardware, reaching 575 horsepower on the bench normally-aspirated.

Larry_Chen_2016_LS3_Jaguar_08

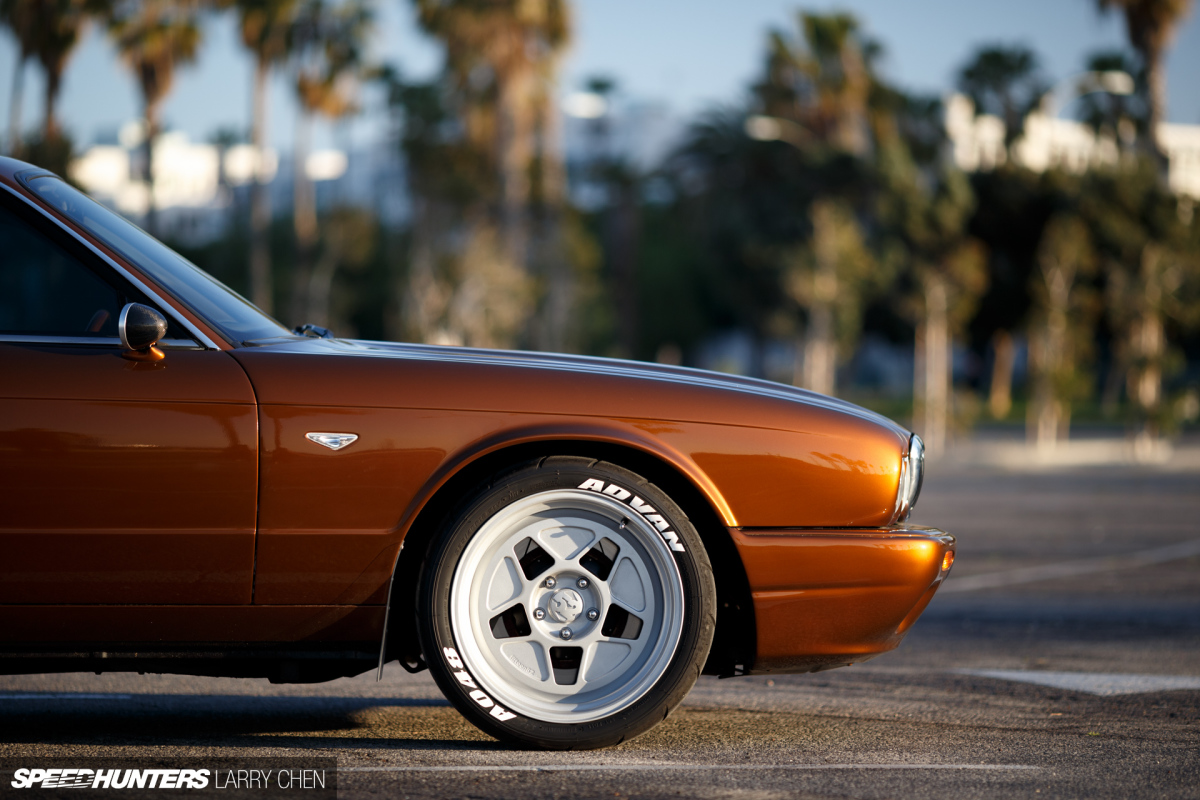

In the process of the swap, the car became significantly lighter (the Jaguar motor and ZF transmission were heavier than the LS3 and Tremec 6-speed), and the weight distribution also improved.

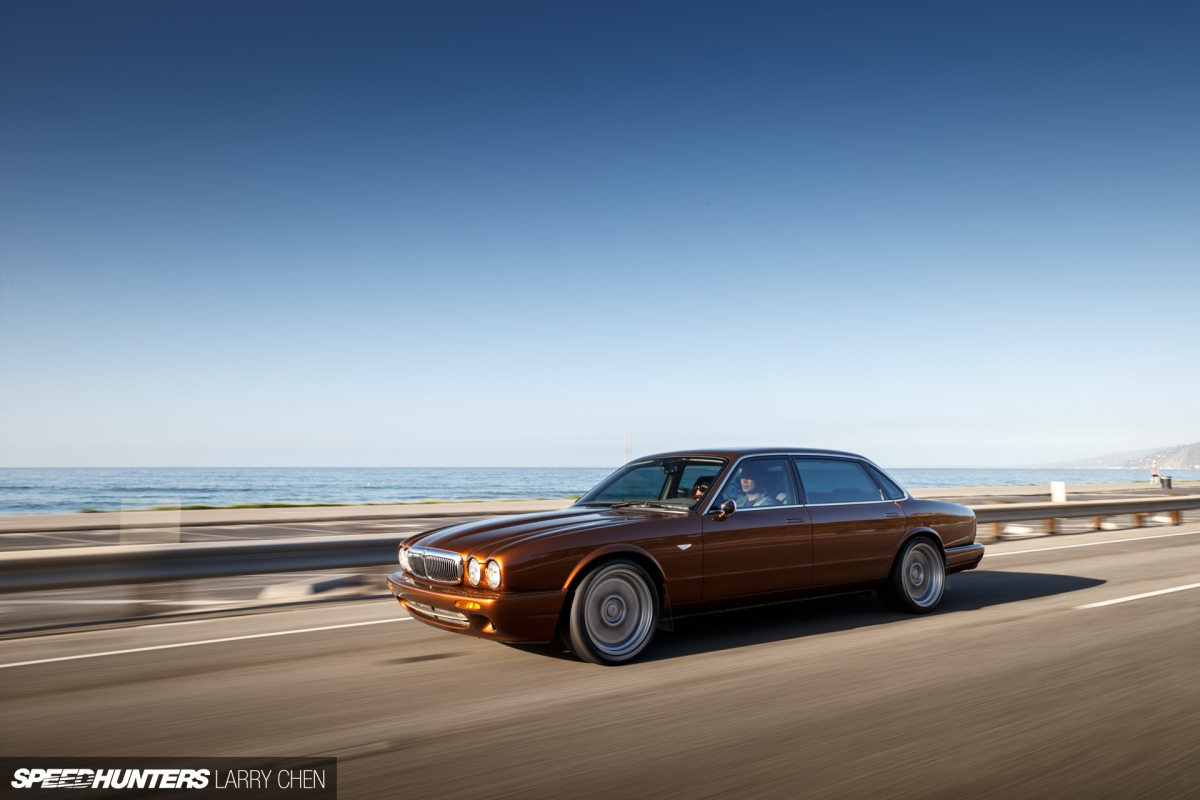

Larry_Chen_2016_LS3_Jaguar_04

The LS sits nearly three inches back from where the Jaguar engine sat (block center to block center) and substantially lower.

Larry_Chen_2016_LS3_Jaguar_06

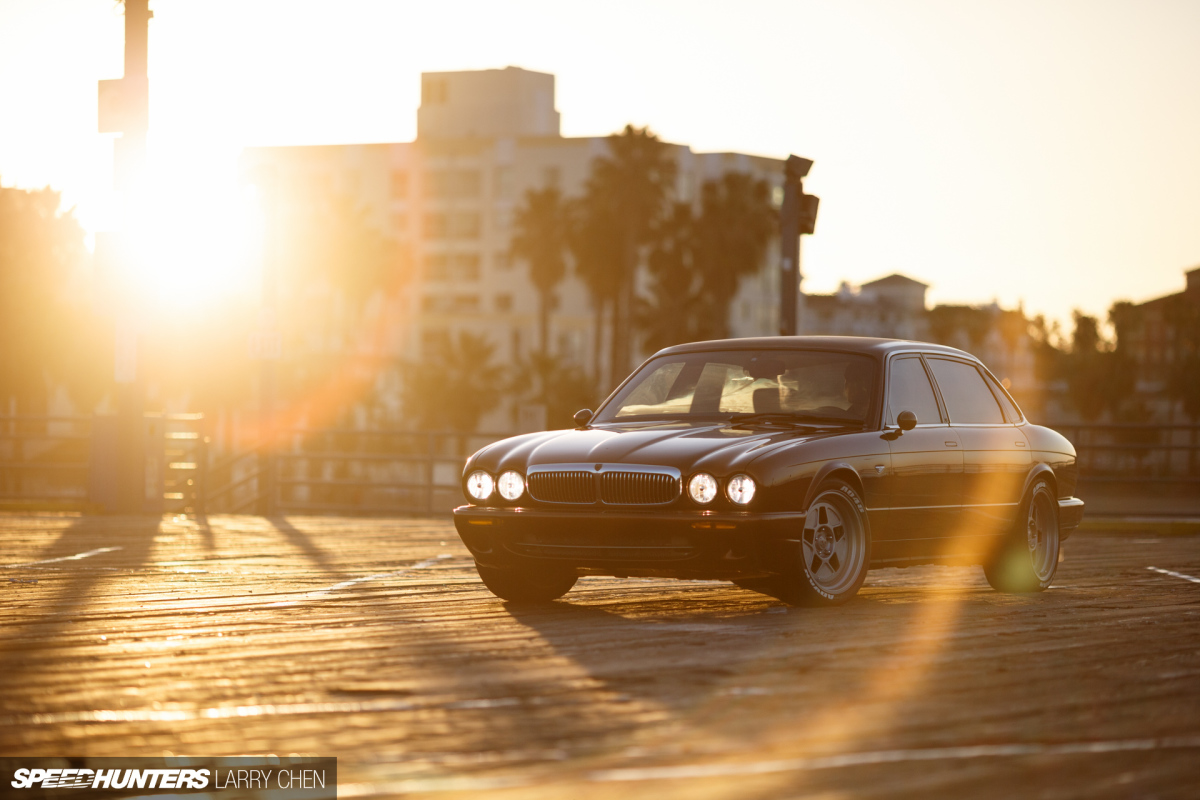

Also, pushrod engines carry their weight far lower in the block (versus overhead cam designs), so the weight in the engine bay is located more advantageously. In a big sedan like this, every bit of weight savings and weight redistribution helps.

Larry_Chen_2016_LS3_Jaguar_22

The engine is mated to a T-56 Magnum transmission with the shorter ‘road race’ gearing and an exposed shift gate.

Leather & Walnut
Larry_Chen_2016_LS3_Jaguar_20

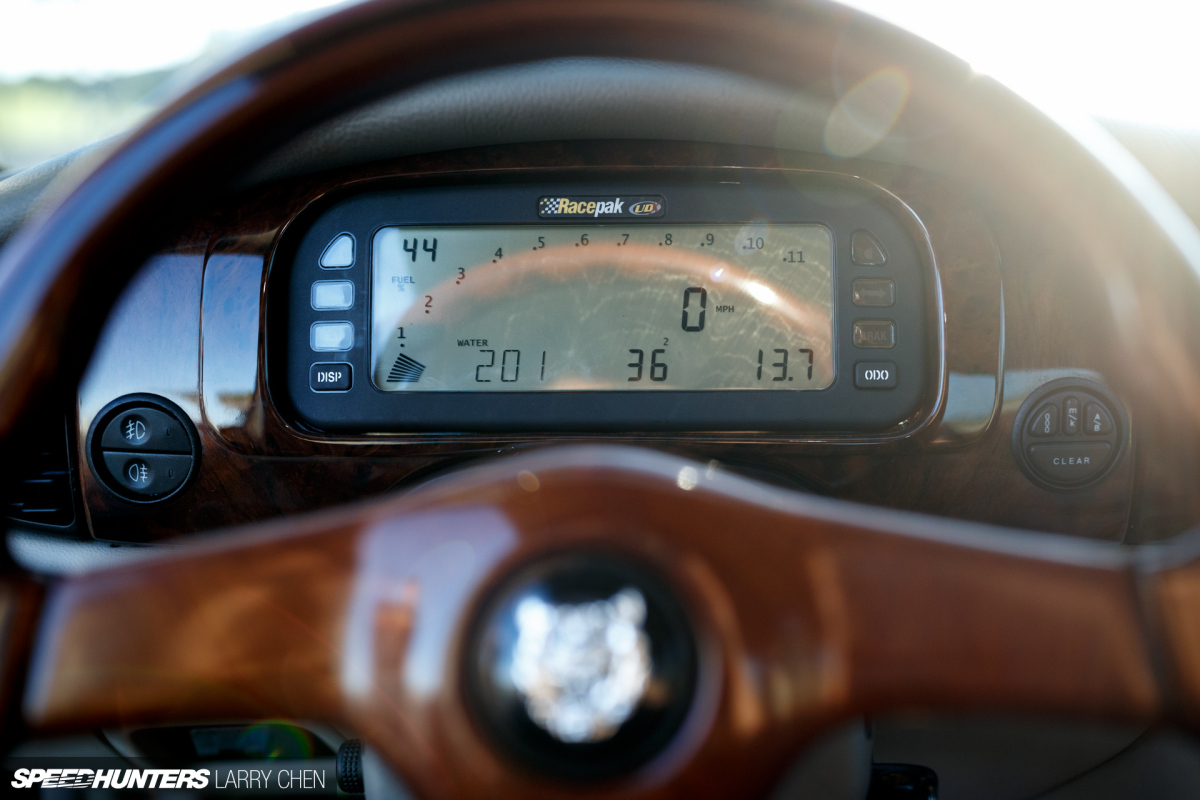

The engine’s vital signs are monitored through a Racepak digital unit set into the walnut dash.

Larry_Chen_2016_LS3_Jaguar_18

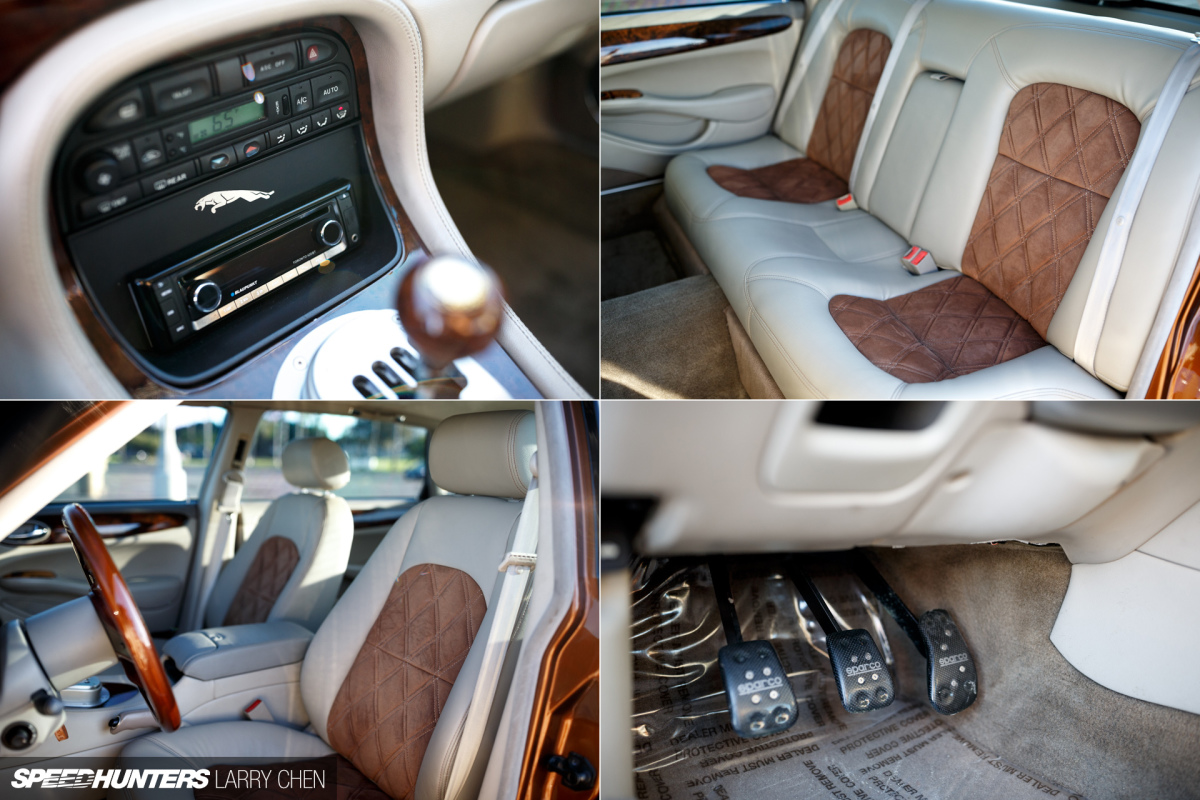

I also replaced the front seats with Audi items and the entire interior was re-trimmed by Alea Leather, with diamond-quilted Alcantara centers.

Larry_Chen_2016_LS3_Jaguar_38

However, the parts I love most about the car are the little touches.

Larry_Chen_2016_LS3_Jaguar_16

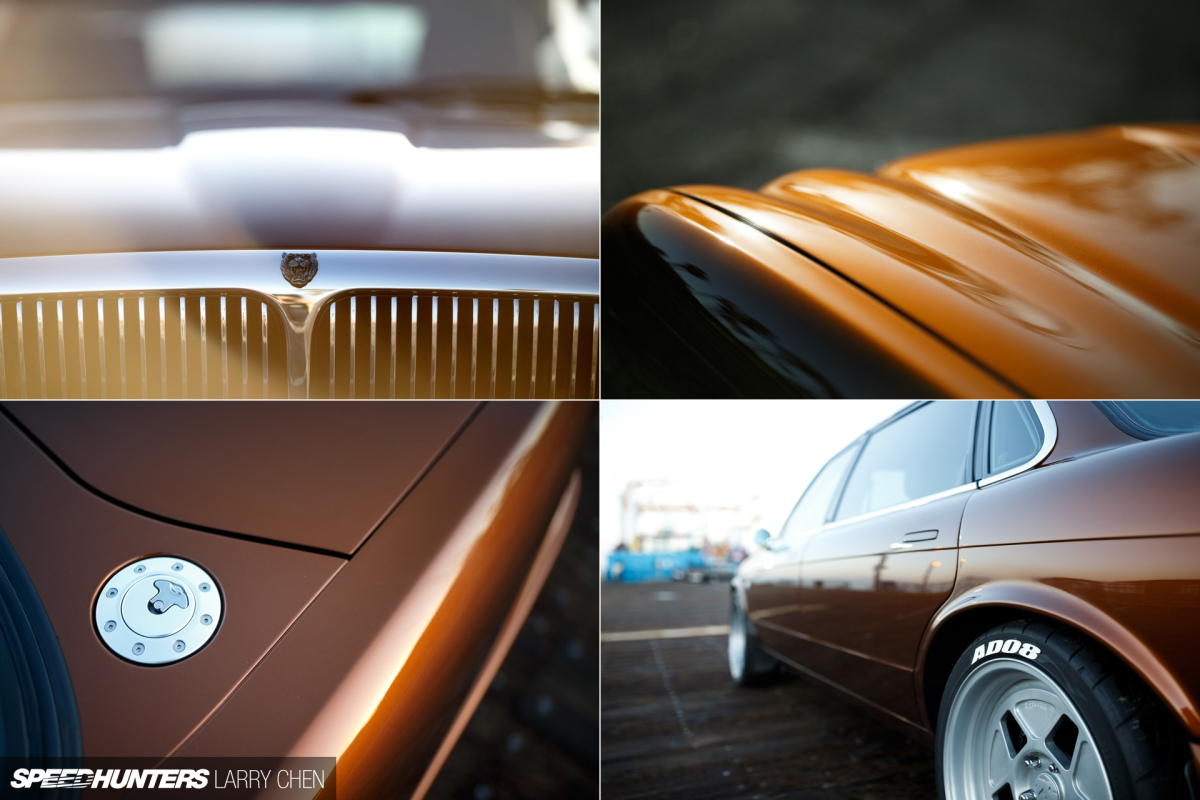

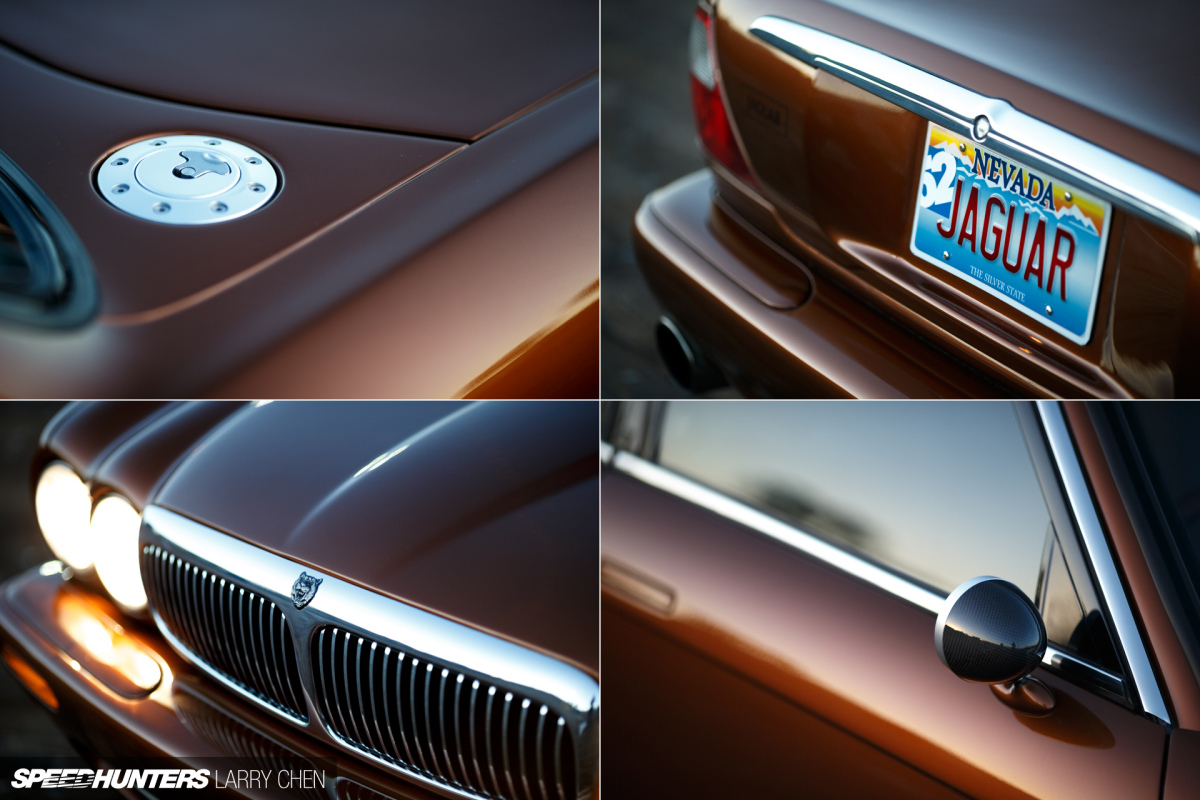

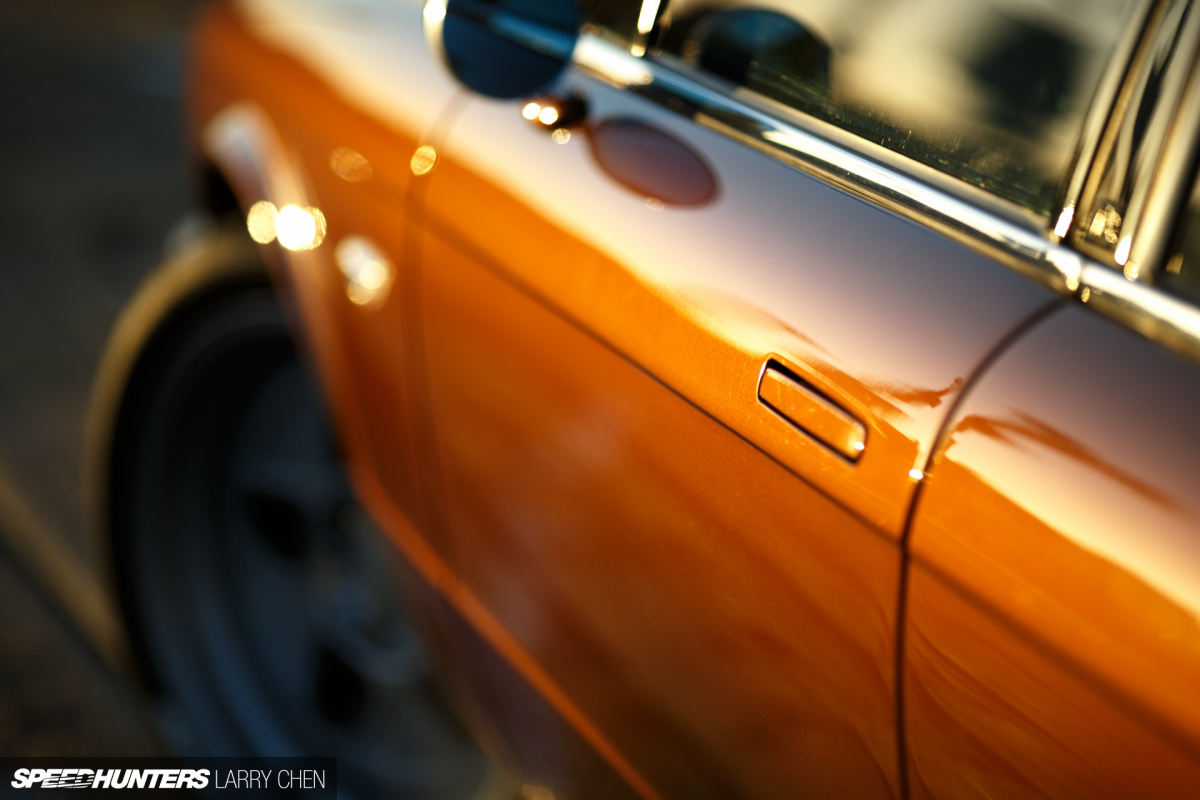

The carbon fiber bullet mirrors from a Japanese-market Mazda MX-5 race car; the Aston Martin-style flush door handles; the motorcycle-style fuel filler cap and so forth.

Larry_Chen_2016_LS3_Jaguar_17

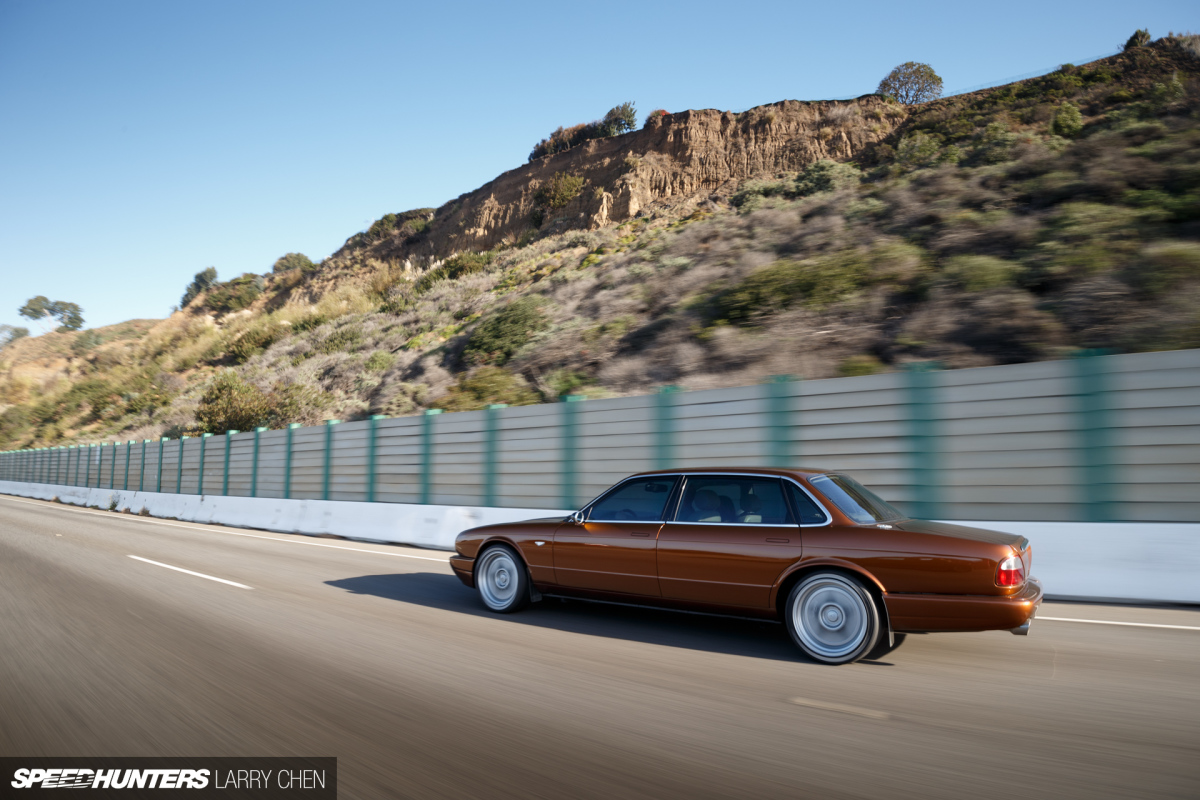

The main use of the car is picking up clients at the airport, taking colleagues to meetings, and so on. It’s the first thing in my garage with four doors in a while.

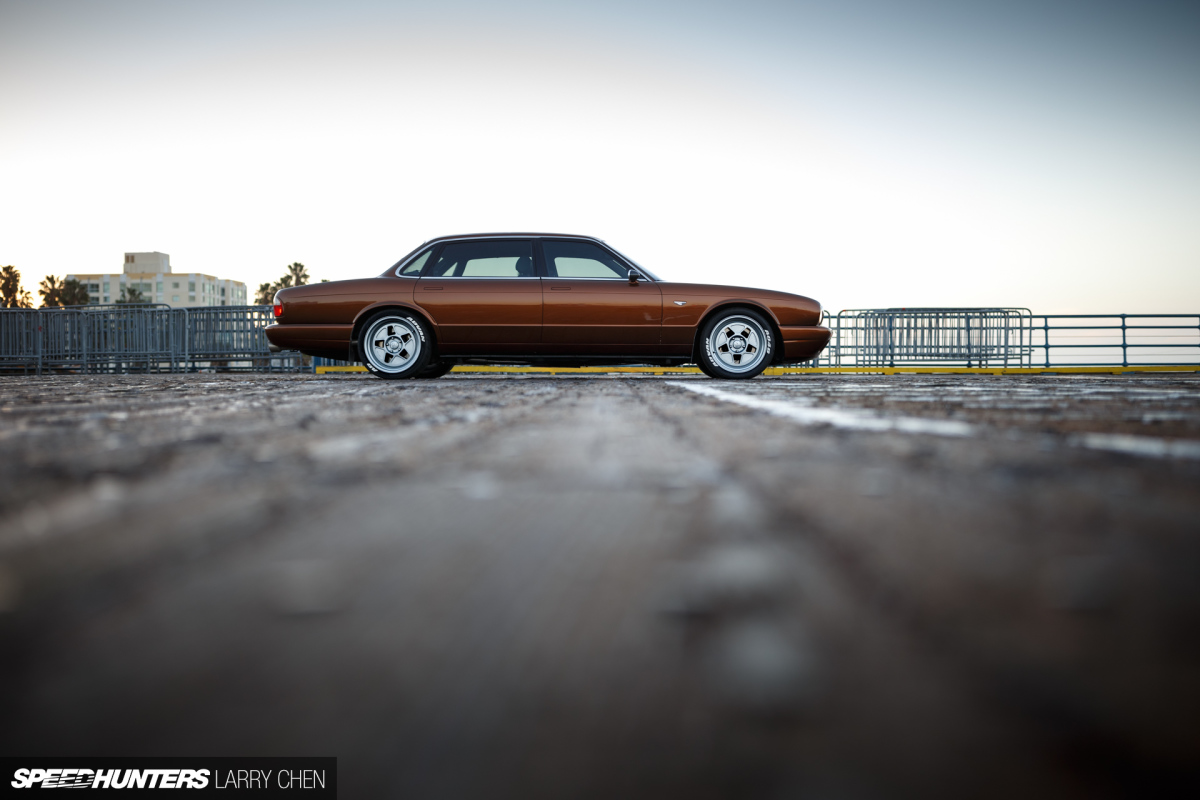

Larry_Chen_2016_LS3_Jaguar_03

Everyone who rides in it enjoys it immensely; even people who are not car enthusiasts know it’s something special.

For more on Karl’s build, and to get a glimpse of the car in action make sure check out this Smoking Tire video where Matt Farah and Karl take the beast for a spin through the canyons. It’s worth the watch for the sound alone.

Karl T. Muth

Photos by Larry Chen
Instagram: larry_chen_foto
larry@speedhunters.com

Cutting Room Floor

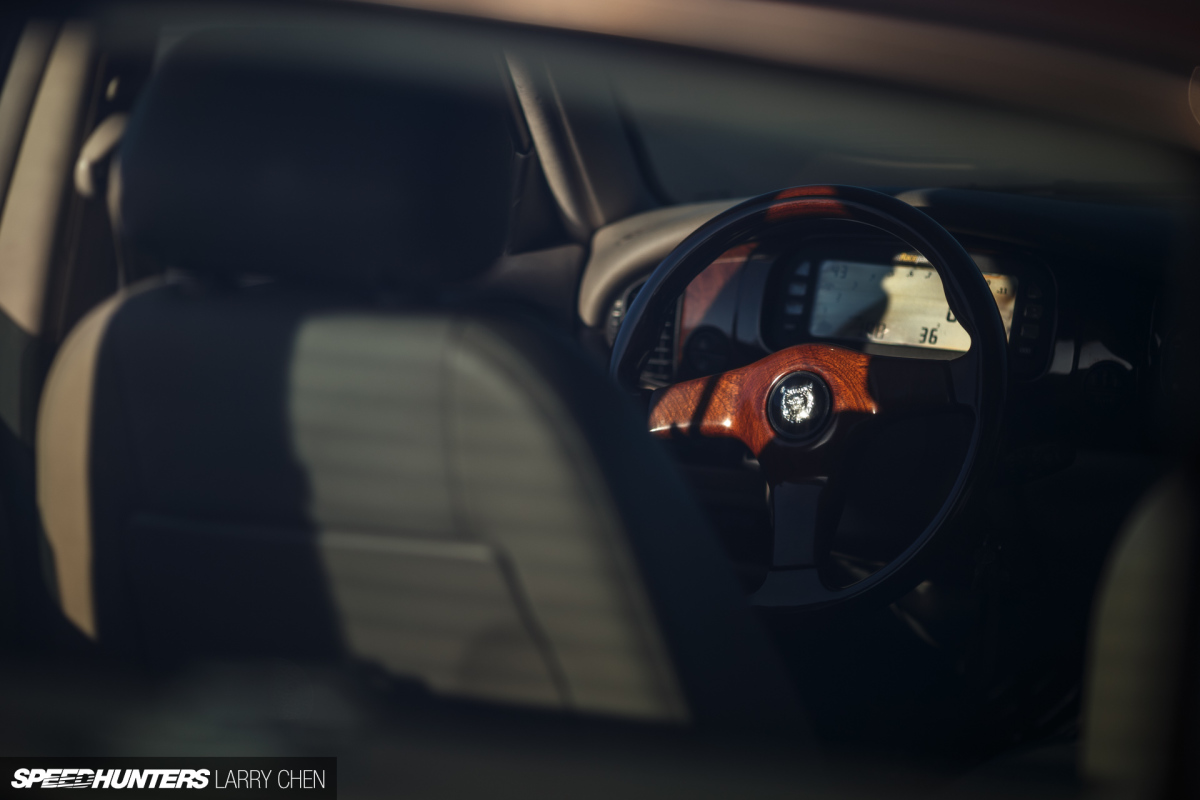

Larry_Chen_2016_LS3_Jaguar_15
Larry_Chen_2016_LS3_Jaguar_36
Larry_Chen_2016_LS3_Jaguar_33

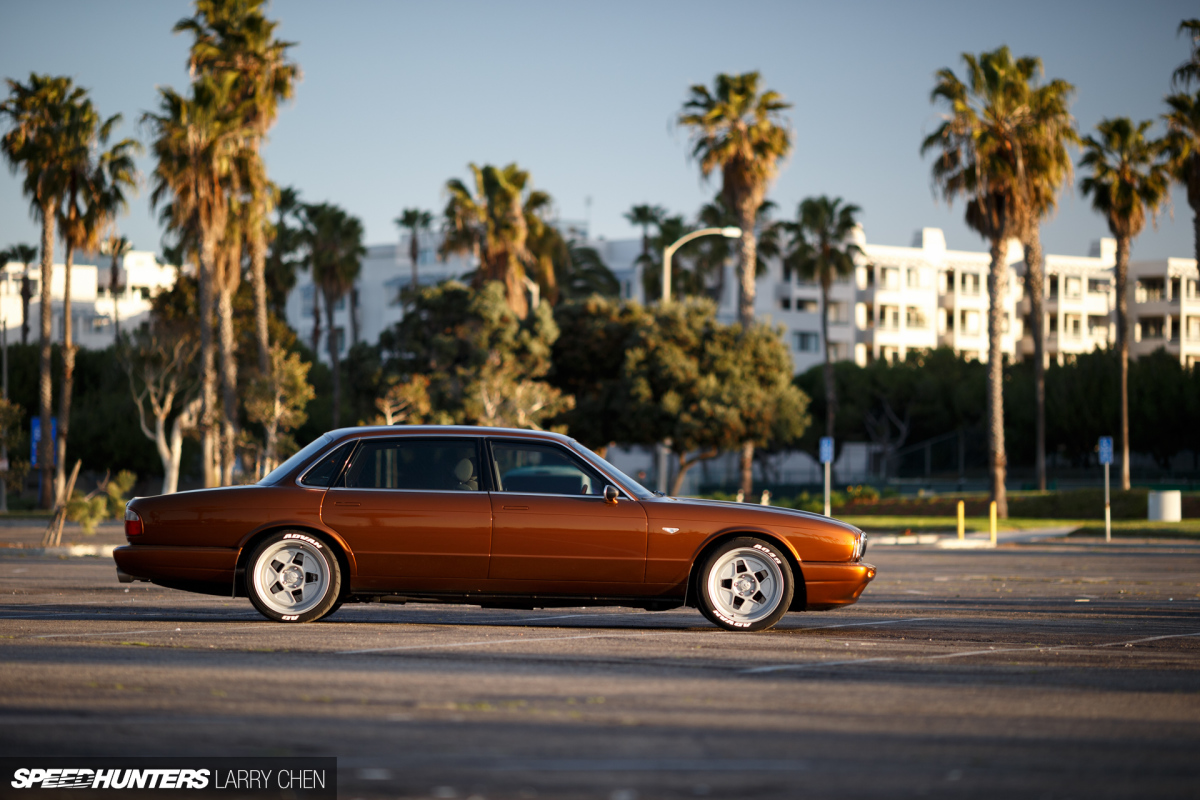

Larry_Chen_2016_LS3_Jaguar_31
Larry_Chen_2016_LS3_Jaguar_28
Larry_Chen_2016_LS3_Jaguar_37
Larry_Chen_2016_LS3_Jaguar_07
Larry_Chen_2016_LS3_Jaguar_09
Larry_Chen_2016_LS3_Jaguar_12
Larry_Chen_2016_LS3_Jaguar_11
Larry_Chen_2016_LS3_Jaguar_13

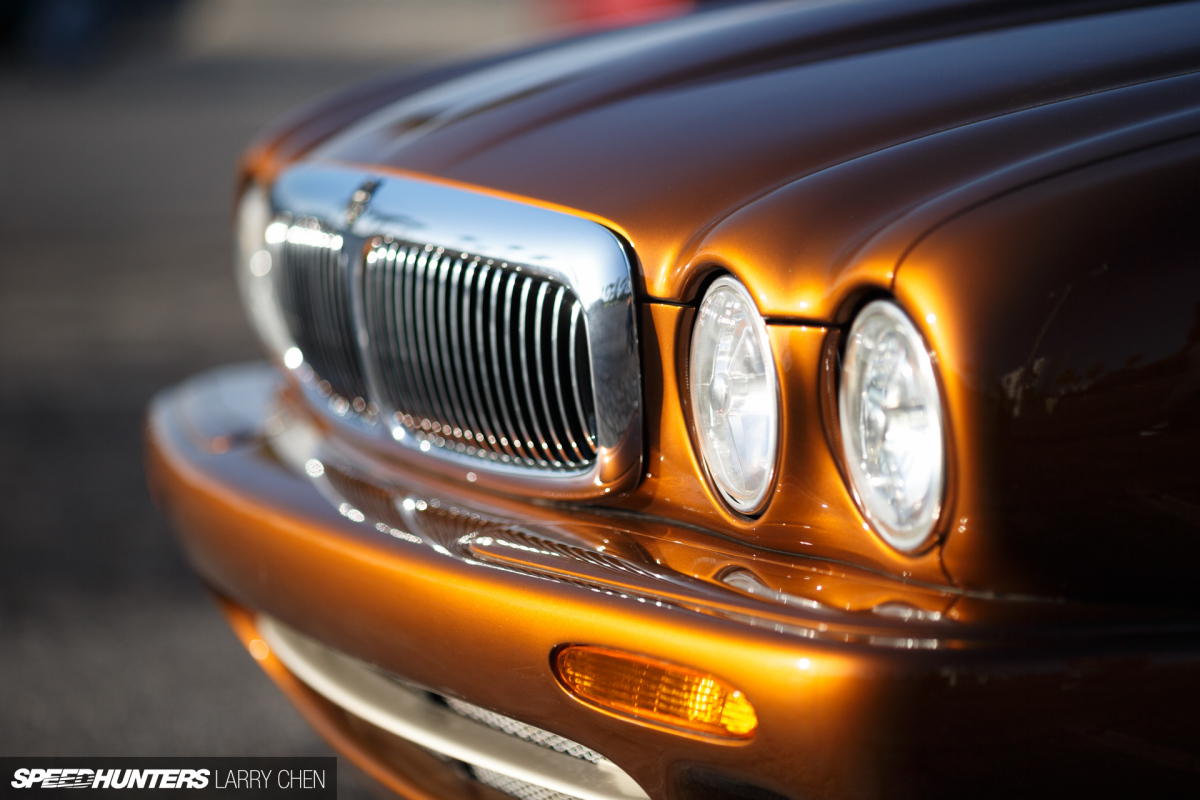

Larry_Chen_2016_LS3_Jaguar_14

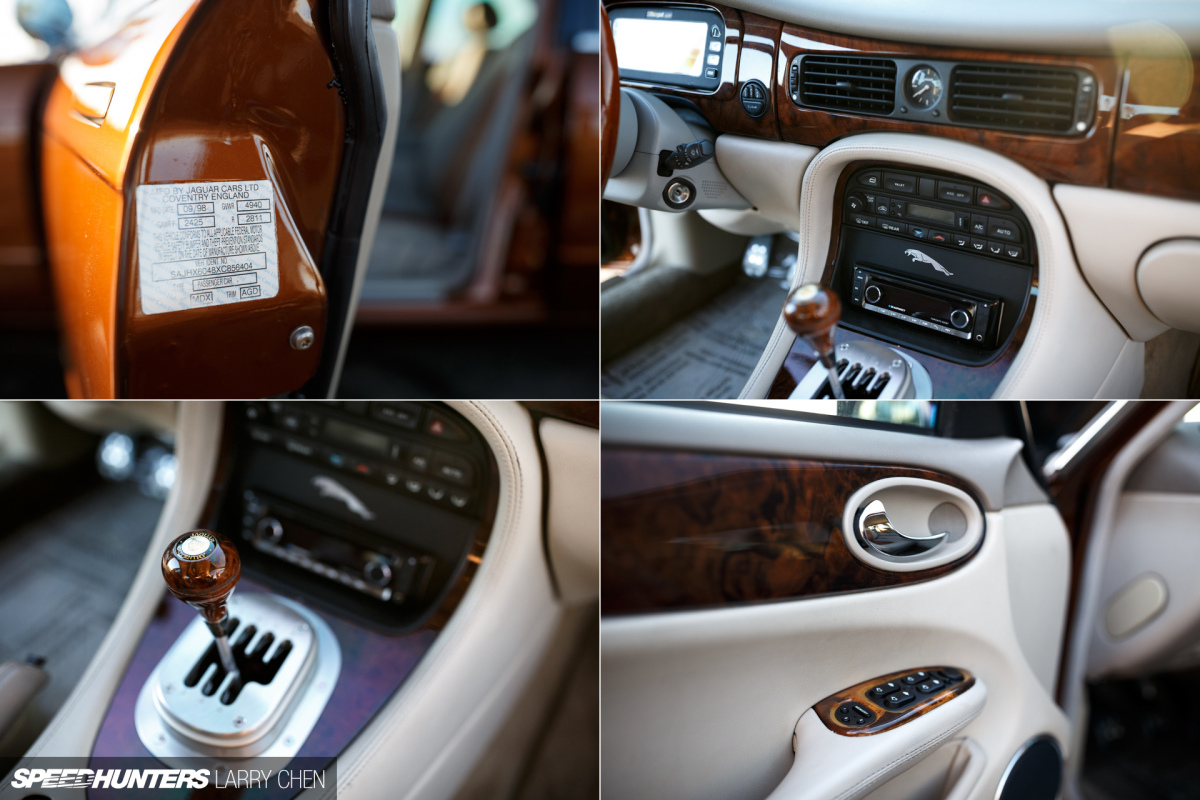

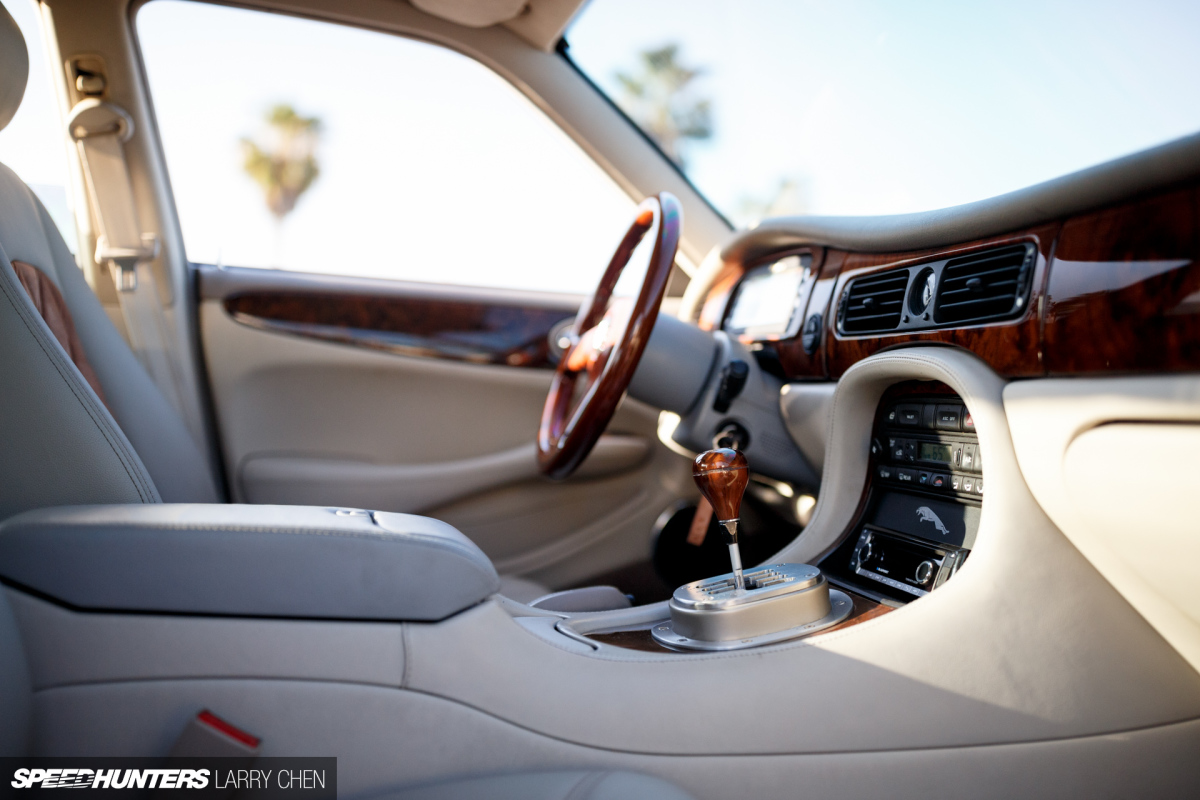

Larry_Chen_2016_LS3_Jaguar_21
