Meet Serbie, The Angry Squareback

The vintage VW scene is so large and full of variety these days, that there’s a niche for absolutely everything – from top secret sleepers to ground-scraping show-stoppers and everything in between. Sometimes a feeling of déjà vu is inevitable when so much has been built, driven and photographed already.

Type3 Serbie-

As I strolled through the halls of the Jogja Volkswagen Festival in Java, Indonesia, last month, I had that familiar feeling. Of course, there’s nothing wrong with cars that execute an existing formula well, but it’s that search for something fresh and different that makes being a Speedhunter so satisfying.

Type3 Serbie-2-3

I’d been asked to select a ‘Speedhunters Choice Award’ recipient from the 300-plus Volkswagens in attendance, so my eyes were peeled for something suitably unique, well-built and fast. I’d say that it was a tough decision, but to be honest with you, within moments of seeing Serbie, this Type 3 Squareback, my mind was made up.

Type 3 serbie-2-2

So while JVWF 2015 began to be disassembled around us, I took a few minutes to get to know this custom creation a little better.

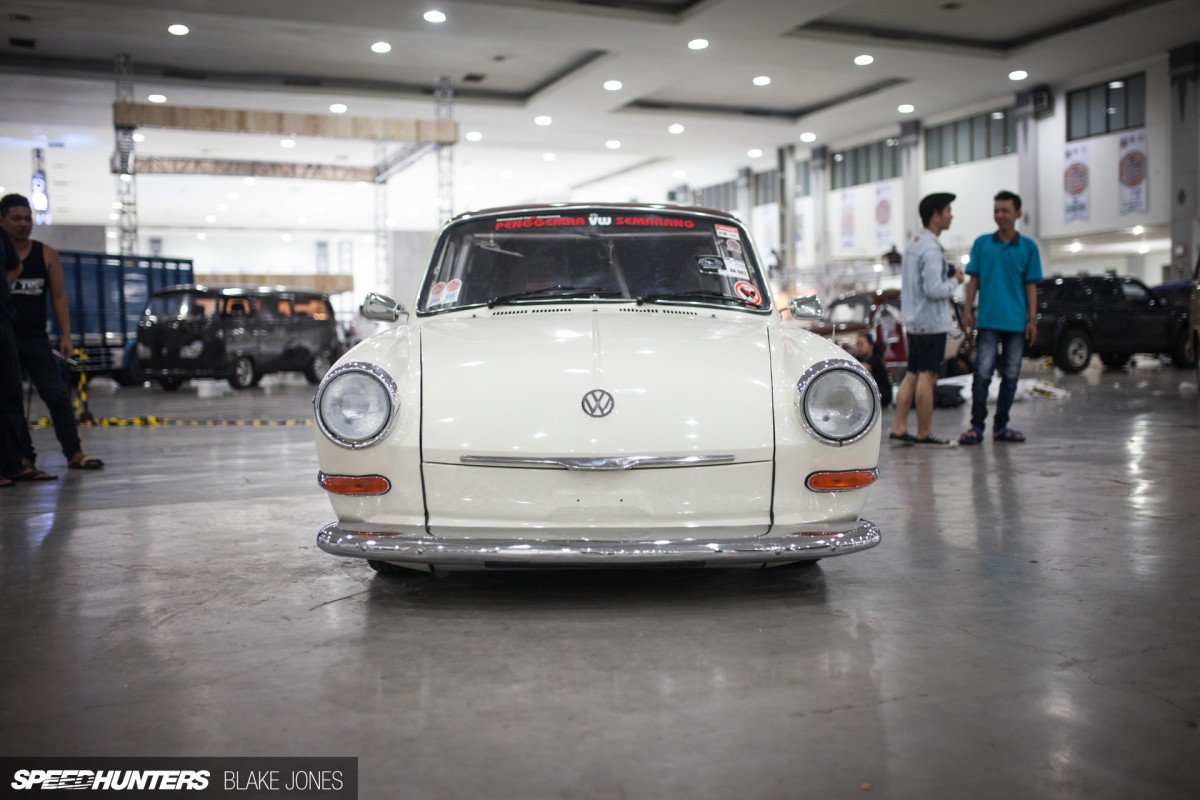

Type3 Serbie-5276

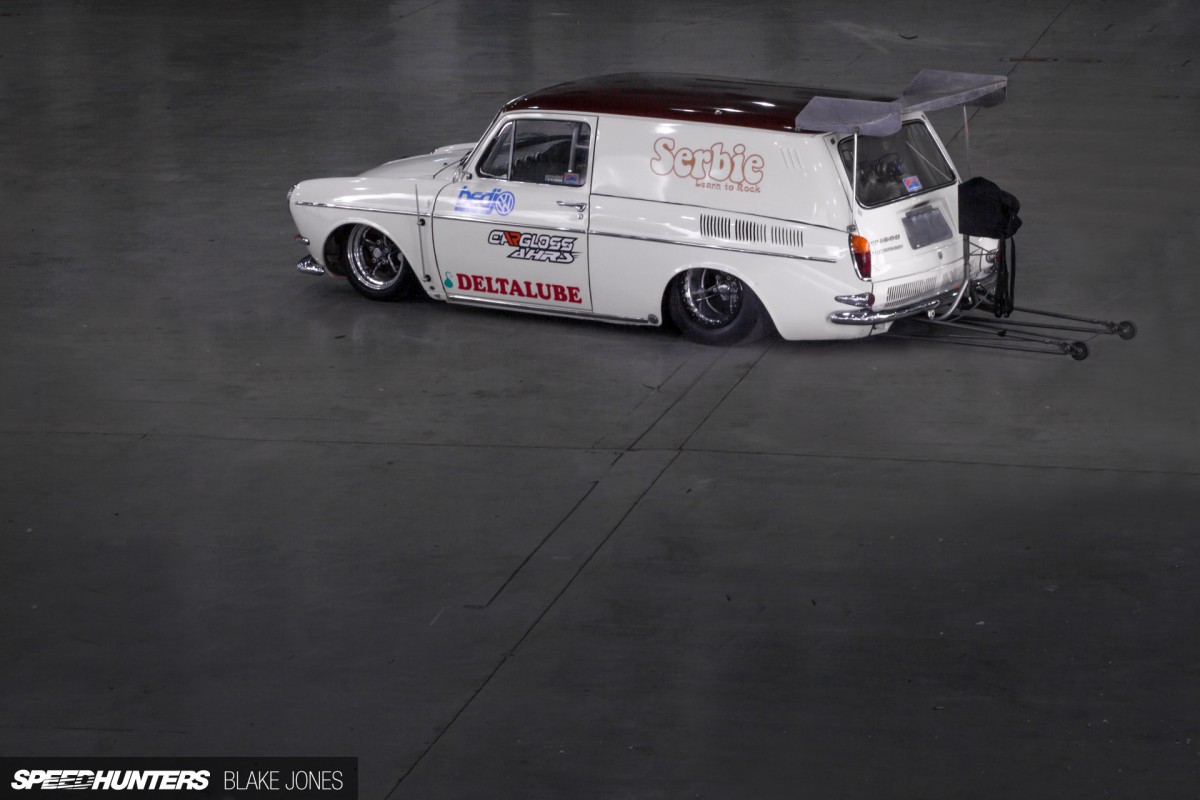

For those unfamiliar with this era of Volkswagens, the Type 3 joined the trio of Beetle, Kombi and Karmann Ghia in 1961, retaining the air-cooled rear engine but packaged into three new compact body styles. Serbie started life as a 1963 wagon (aka Squareback) that lived a quiet and unassuming life in central Java until Muzamil of Bedjo VW Clinic found it alone, but in surprisingly good condition, in a backyard.

Type 3 serbie-5220

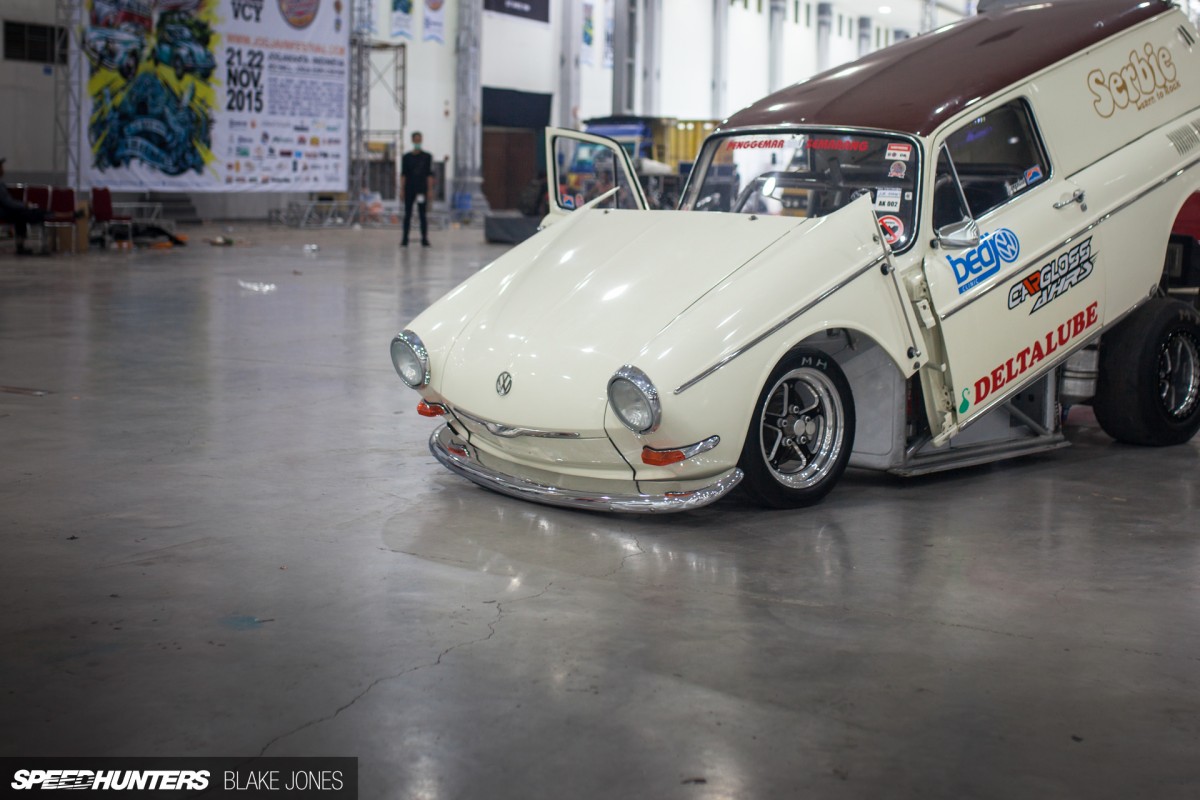

To call the transformation ‘comprehensive’ is an understatement. Muzamil and his dedicated team have built a Type 3 that’s likely to become one of the fastest VWs in the country, but it stood out to me primarily for the unique approach to the build and the quality execution.

Type 3 serbie-5221

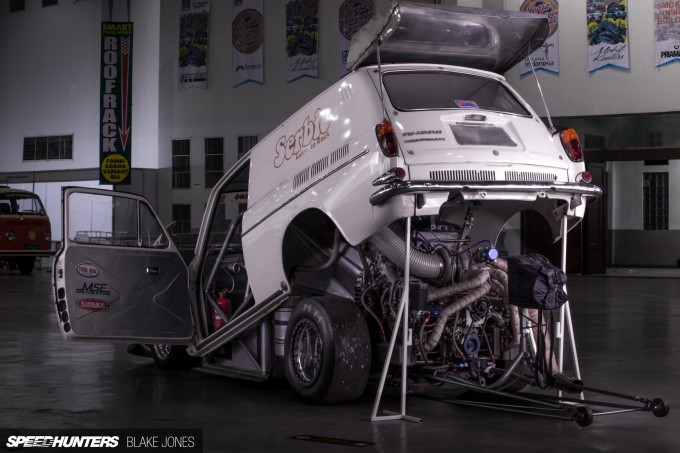

Serbie‘s defining feature is the hinged body that tilts up at the firewall to provide access to the powerplant tucked into the Squareback’s former storage space. It might have been more sensible to build a lightweight fiberglass body, but as this is a car more built for enjoyment than outright speed, Muzamil opted to retain the factory metal body. There’s something about a race car with original panels that just makes it that much more relatable and ultimately cooler.

Type 3 serbie-2-3

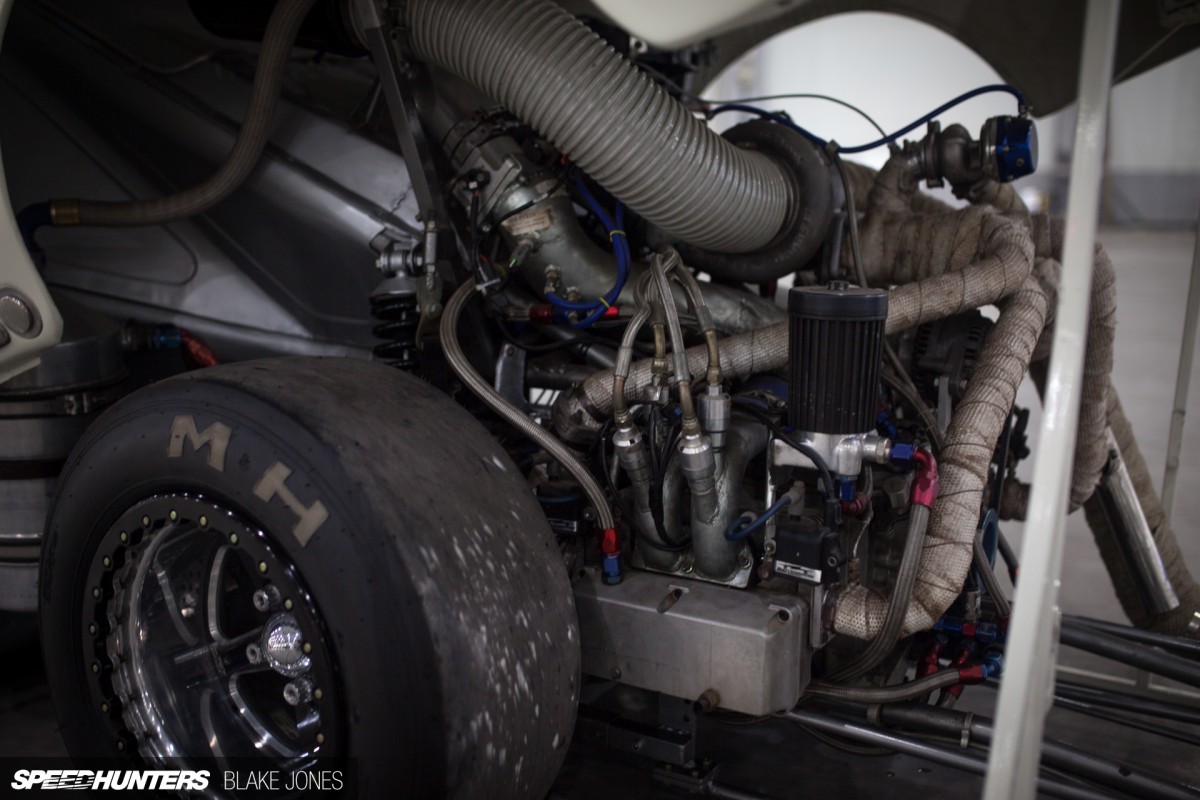

Moving around to Serbie’s business end, it’s instantly clear that this little Type 3 really does mean business! Beneath the jungle of ducting, tubing and braided lines sits a 1600cc Beetle engine that has been stretched to 2500cc with a Pauter case.

Type 3 serbie-5263

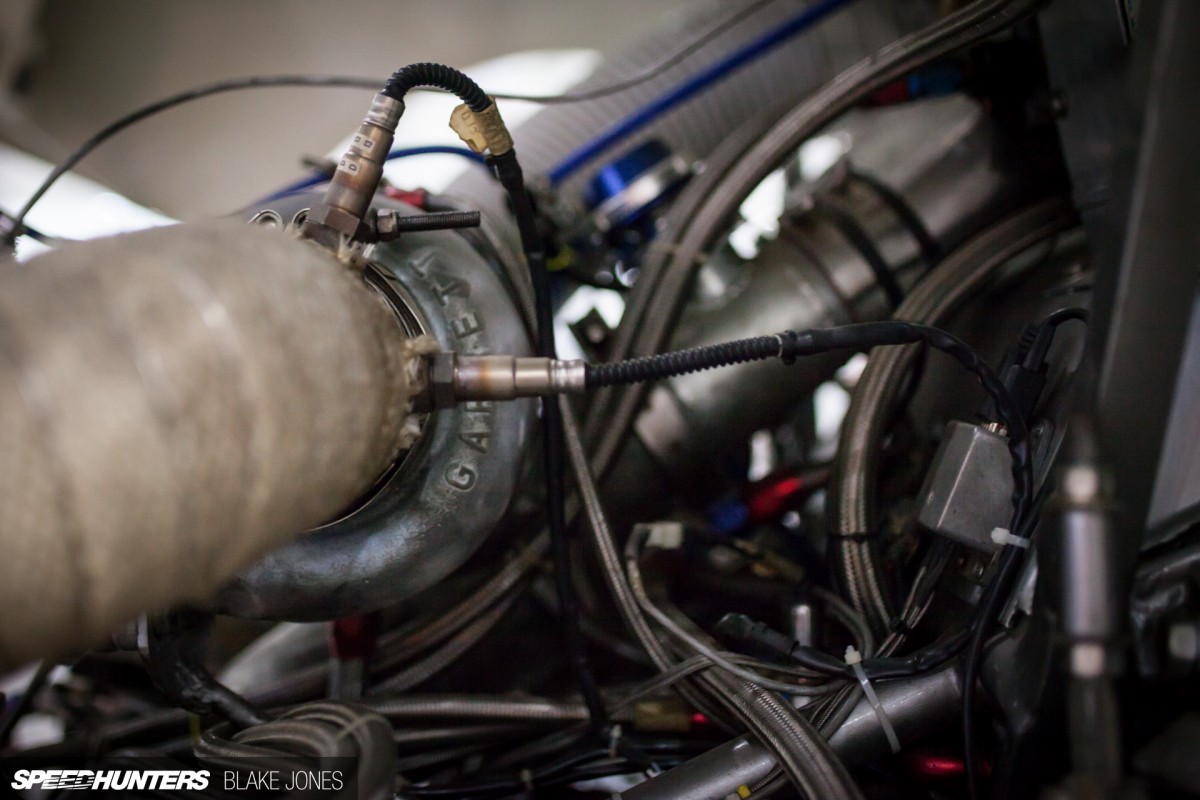

Boosting duties belong to a sizeable Garrett GT42R that I’m told is good for 1000hp, although at the time of shooting the confirmed figure was closer to the 700hp mark.

Type 3 serbie-5237

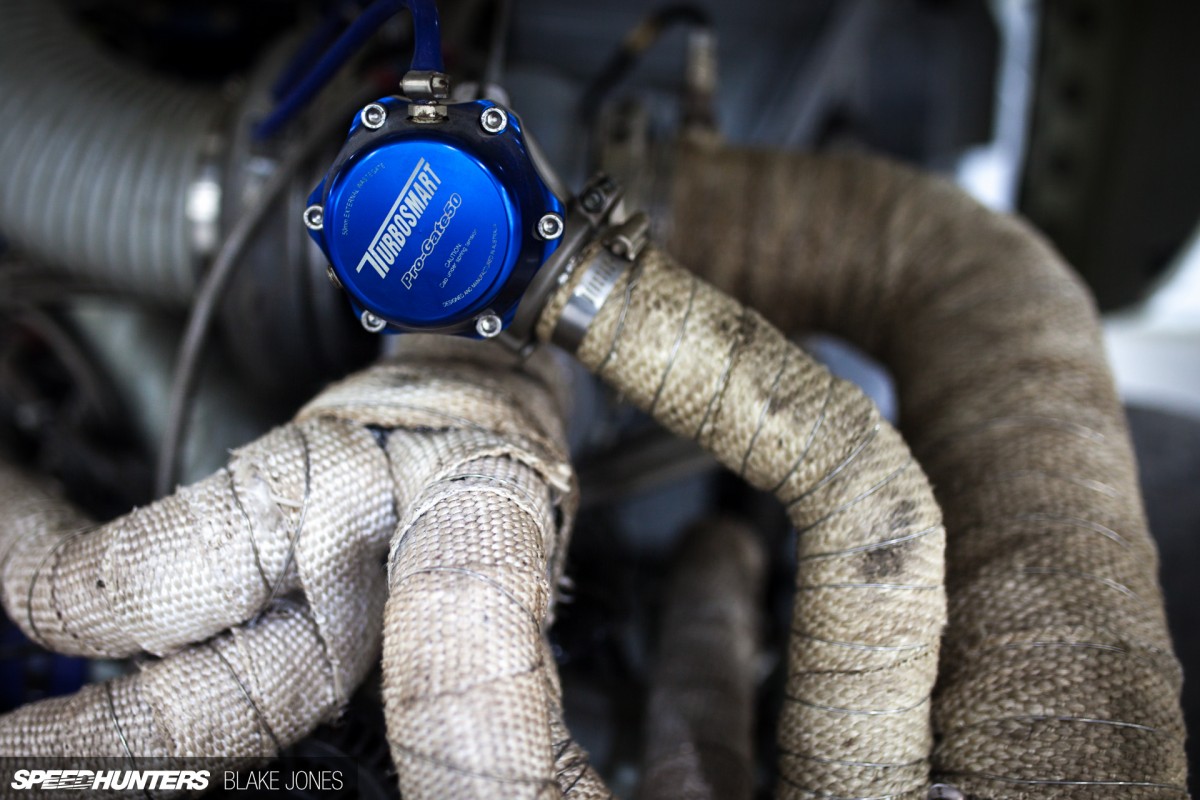

It seems I can’t go anywhere at the moment without seeing a blue anodised Turbosmart product attached to some crazy high-horsepower build. Here, a Pro-Gate50 external wastegate was proudly perched on top of the turbo manifold, keeping boost levels in check.

Type 3 serbie-5248

Hugging the engine tightly are the M&H drag radials, which at 10 inches wide are surprisingly narrow for a purpose-built drag car. The reason is simply packaging – the desire to keep a factory body has limited the space between engine and factory fender line.

Type3 Serbie-2-2

Also worth a closer look is Muzamil’s cockpit. Here you can see how the factory body lifts away from the chassis and NHRA-spec rollcage. All the usual suspects for a competition drag car are present, including a Painless Wiring switch panel, quick-release wheel and a bevy of old school Auto Meter gauges. In the passenger area, the team has installed an ice water tank to circulate coolant through the intercooler.

Type 3 serbie-5255

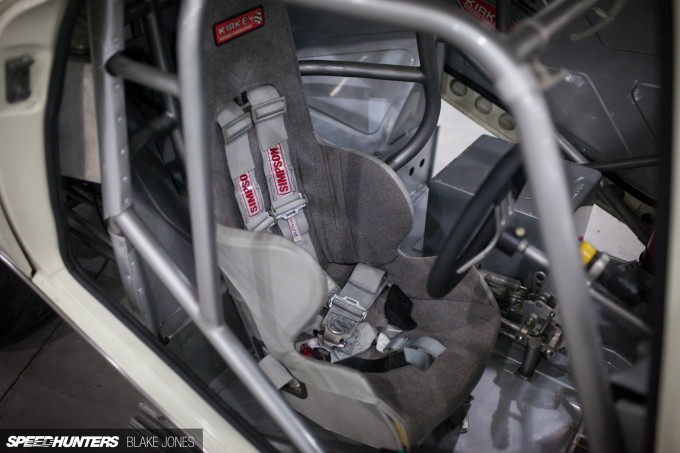

The Kirkey racing seat is both handsome and functional, holding Muzamil in place within the driver protection cage going well beyond current Indonesian drag racing regulations, but ensuring peace of mind on the quarter mile.

Type3 Serbie-5274

The front axle was shortened 3 inches on each side, also to enable the billet wheels to sit within the confines of the factory bodywork. No complaints about poor fitment here!

Type3 Serbie-2-4

Serbie is yet another example of how hot Indonesia is for custom builds at the moment, and even more impressive that such a comprehensive creation can be built in-house by a small team of technicians.

I really can’t wait to see footage of this thing tearing up tarmac at a Jakarta drag strip in 2016!

Blake Jones
Instagram: blaketjones
