Mongrel Attack:</br> A War Ready Boosted Golf
What’s Next?

Evolution is a funny thing. I’m referring to the process that means we’re all constantly evolving and modifying ourselves and our environments to better suit us. The unswerving need for everything to be better is what makes us human. It’s what made us walk upright and work out how to harness electricity. But when that spirit is satisfied, comfortable even, it can mutate and run a little wild with some pretty spectacular and unpredictable results at that. Like a 4WD Mk3 Golf with over 550hp at the wheels, Advan wheels and roof-mounted air intakes… And yes, I did just use the discovery of electricity in relation to a modified ’92 Volkswagen.

Golf VR6 Turbo Gatebill Mantorp-3

The way we discover feature cars has evolved over the years, and there are now so many different methods – at shows, on social media, people email us, or we simply stumble across them in the street (yes, really!). On very rare occasions it happens like it did when we found Stefan Behrendtz’s Golf. As you will probably know by now, we love Gatebil events for the sheer variety and the ‘whathehellisthat?’ creations we come across.

Golf VR6 Turbo Gatebill Mantorp-10

In amongst the pits and wild builds it would have been easy to miss this Mk3 Golf. But after a couple of days at Mantorp Park in Sweden earlier in the year, Larry, Rod and myself had all asked each other too many times if we’d seen that Golf. On track it was fast, really fast, and all the signs were there – from the impressive amount of traction, to what appeared to be rear-mounted radiators.

Golf VR6 Turbo Gatebill Mantorp-8

Then there were the purposeful arches and 17-inch Advan RG wheels. The eclectic feel of the VW meant there was more below the surface that we needed to find out about too. These mutant builds put together by creators with little care for the ‘right’ wheels on the ‘right’ car, are the ones I love the most. They’re indulgent and built for reasons of pure purpose.

VR6 Turbo Golf Mk3 Gatebil-3

You’ve got to be pretty committed to the cause too, because although VW did build an AWD Mk3 Golf (called a Syncro), it was never designed or intended for this sort of abuse. So already you might be thinking, why start here?

Golf VR6 Turbo Gatebill Mantorp-14

Personally, I can see a load of reasons. For a start the Golf platform is massively popular, which means everyone has a memory or an attachment of some sort. Plus there are loads of them out there, so picking up a base isn’t going to be a problem. Who knows? Not Stefan, because he bought it looking a lot like this in late 2013. In fact, Mantorp Park was its first proper outing after he’d gone through it and made his own modifications.

Golf VR6 Turbo Gatebill Mantorp-34

What led Stefan to owning this Golf sounds funny when he explains it. He says that after building a pretty kick-ass, five-cylinder turbo Volvo 740 – complete with a whole bunch of race parts fitted – he decided to stop playing with cars in the summer of 2013 and sell up. That’s not the funny bit, obviously, no, the amusing thing is having ‘given it all up’ he then bought a BMW E46 M3. Giving it up… Really? That’s never going to last!

Golf VR6 Turbo Gatebill Mantorp-7

But he didn’t get on with the BMW so he sold that after only four weeks. So we’ve gone boosted, heavily modified RWD four-door saloon, legendary naturally aspirated sports coupe, and then in December 2013 he spotted this Golf for sale. All-wheel drive, turbo hot hatch – it’s like he was completing the set. Stefan remembered that it was all he could talk about when anybody would listen. A viewing was arranged – he had to make it his.

Pocket Explosives
Golf VR6 Turbo Gatebill Mantorp-22

I can’t imagine what it must have been like to take a test drive in a Sweden, in December, in a Golf with a dyno-proven 568whp. Sure, it’s 4WD, but in my book that just means all four wheels are going to be spinning when you leave the road/track instead of two. Stefan was completely convinced and knew after a 10-minute passenger ride he was sold on it.

Golf VR6 Turbo Gatebill Mantorp-6

So what had he bought? A combination of bastardised and specialised hardware brought together to create a complete weapon of a Golf. There was some work to be done under the skin, with a new fuel system, cooling system, ECU and other changes made.

Golf VR6 Turbo Gatebill Mantorp-25

VW’s VR6 six-cylinder engine has kind of been eclipsed in recent years by the smaller, four-cylinder turbo lumps from within the Volkswagen Audi Group. But the 2.8L and later 2.9L engines love the boost.

Golf VR6 Turbo Gatebill Mantorp-23

Another change Stefan made was to upgrade to the Precision Turbo 6266, which is mounted at the back of the engine bay simply because there wouldn’t have been enough space to have it any lower. The intercooler sits at the front, but even with the rest of the cooling system in the rear and the bulkhead having being persuaded to give a little more room, it’s still a tight squeeze.

Golf VR6 Turbo Gatebill Mantorp-37

As I mentioned, one of things that had caught our eye was the mesh lower half of the tailgate. Here the license plate recess and surrounding metal having been completely removed to allow air flow to escape the two radiators.

Golf VR6 Turbo Gatebill Mantorp-29

The air comes in through these rooftop vents, which are cunningly hidden away under the roof line profile, yet still provide enough air to keep everything cool.

Golf VR6 Turbo Gatebill Mantorp-26

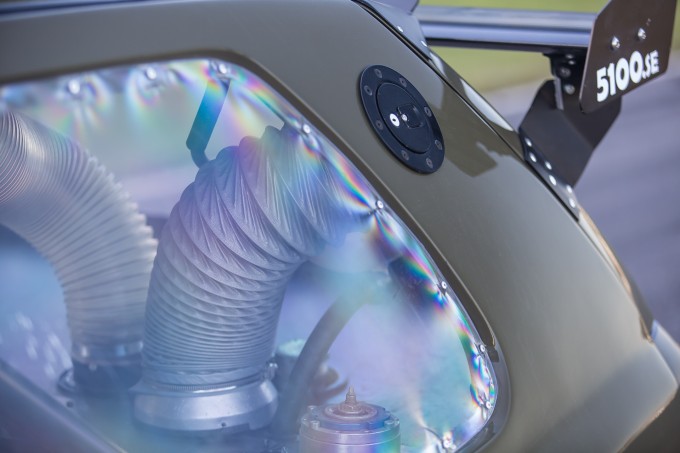

It then travels down into a sealed box through these large diameter flexi tubes. Rearward vision is largely unnecessary in something as powerful as the Golf, so who needs an interior mirror anyway? The grey tube to the left is for the fuel filler, as the tank is also buried in there. The box serves two purposes – one is to contain all that fresh air and make sure it gets to the right place, and the second is for safety in case of the radiator bursting.

Golf VR6 Turbo Gatebill Mantorp-20

There are more air intakes on either side of the body, again recessed with no intake scoops to spoil the slippery lines of the Golf. At first I wondered how effective they’d be – my limited knowledge of aero questioning as to whether there would be some sort of vortex in the entrance – but the air flow is obviously enough to keep this thing cool.

Golf VR6 Turbo Gatebill Mantorp-40

Then at last the air can be sucked through the massive radiator. I’m guessing having this extra weight over the backend helps with distribution across the platform, as the VR6 engine and turbo are no lightweights up front. Although there’s also the trick 4WD system helping to even things out as well.

Handled
Golf VR6 Turbo Gatebill Mantorp-36

When you look closer at the Golf shell it actually seems to be a pretty good place to start a project like this, as the interior is essentially one large box for you to create a good working environment within. Here you can see how the seating positions have been pushed back to once again help with the weight distribution. You can also see how far the steering column has been extended.

Golf VR6 Turbo Gatebill Mantorp-33

With the whole dashboard and bulkhead area having been stripped back, a floor-mounted pedal box has been installed. This sort of dedicated hardware means you can rely on it to perform when thrashing around a track. Because in the heat of the moment you don’t really want a pedal snapping as you stamp on it.

Golf VR6 Turbo Gatebill Mantorp-30

As you’d expect it’s strictly business in here, and unless you really know your VWs you’d never actually guess this was a Golf. You can see the gear indicator display at the base of the screen, and the clip on the dash pod in front of the driver is designed to hold a tablet, which has a virtual dash display and is fed by the MAXX engine management system. Although, since these pictures were taken Stefan has picked up SYVECS S6 ECU to replace it, as the latter has some cool added functions he wants to try.

Golf VR6 Turbo Gatebill Mantorp-38

An original VW Syncro system wouldn’t be up to handling the power figures the VR6 is capable of producing now. Originally Stefan was running an O2J gearbox modified with parts from SQS Racing in the Czech Replubic, and although it was a 6-speed dogbox it’s got that trick sequential gear shift mounted to it. Unfortunately a week or two after this shoot – again at Mantorp Park – the ‘box went bang. Something about the power being too much for the 02J! So now there’s an 02M transmission being fitted during the winter months.

Golf VR6 Turbo Gatebill Mantorp-16

There are now also Peloquin front and rear differentials all the way from Athens, Georgia, in the US, with a Golf 4MOTION final drive and SQS Racing heavy-duty driveshafts. So it’s a real international line-up which has come together to make it all work. The Haldex ECU has been deleted and replaced with an SQS solenoid which is adjustable.

Golf VR6 Turbo Gatebill Mantorp-17

This means Stefan can choose from anywhere between a perfect 50/50 power delivery split to 70/30 front-to-rear. Although he can’t go more than 50 per cent at the back.

Golf VR6 Turbo Gatebill Mantorp-11

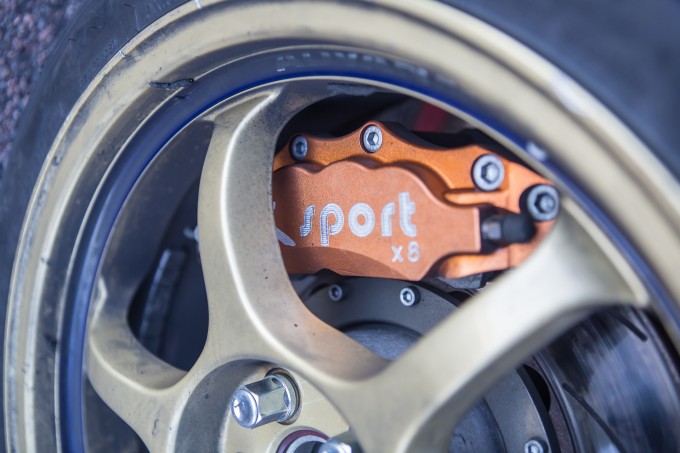

Brembo 4-piston calipers have been adapted to fit at the rear and K-Sport 8-piston calipers do the job at the front. I didn’t get an all-up weight from Stefan, but having seen him in action they do the job of slowing him down just perfectly.

Golf VR6 Turbo Gatebill Mantorp-43

Stefan’s Golf is a direct representation of the components that went in to creating it. If you take them one-by-one they all do their job perfectly well – and we’ve all heard names like Advan, Precision Turbo, Sparco and Brembo before. But then mixed in with them there some not so easily recognised. Put the lot together though and you can see how my theory of evolution works.

Golf VR6 Turbo Gatebill Mantorp-31

So it’s a Frankenstein mix of parts, slightly battle worn and a renegade in the pits. But there’s one element which sums this build up better than any other for me – the attitude it took to build it. See that sticker that says ‘FULL PUNG’? Pung is Swedish slang for ‘balls’. That’s a motto for life right there!

Bryn Musselwhite
bryn@speedhunters.com
Instagram: Speedhunterbryn

Cutting Room Floor
Golf VR6 Turbo Gatebill Mantorp-9
Golf VR6 Turbo Gatebill Mantorp-12
Golf VR6 Turbo Gatebill Mantorp-13
Golf VR6 Turbo Gatebill Mantorp-18
Golf VR6 Turbo Gatebill Mantorp-19
Golf VR6 Turbo Gatebill Mantorp-21
Golf VR6 Turbo Gatebill Mantorp-24
Golf VR6 Turbo Gatebill Mantorp-28
Golf VR6 Turbo Gatebill Mantorp-32
Golf VR6 Turbo Gatebill Mantorp-35
Golf VR6 Turbo Gatebill Mantorp-39
Golf VR6 Turbo Gatebill Mantorp-41
ADVERTISEMENT

Comments

Add comment

E-mail is already registered on the site. Please use the Login form or enter another.

You entered an incorrect username or password

Sorry, you must be logged in to post a comment.

18 comments

by Oldest
by Best by Newest by Oldest
1

I really love volkswagens especially this one :)

2

I really like the diversity of builds within the Euro car scene, you will literally see everything from USDM, Euro, and JDM. Thanks for the post!

3
Speedhunters_Bryn

nwbdwb Pleasure, glad you liked it!

4

What I like about this build is that it's not the cleanest thing in the world and it shows in the photographs. I get the impression this thing is just abused and run hard like it should be. Also a fan of the way the vents come in through the roof, something different that I have never seen before. The interior shot of it looked like some kind of lab experiment.

Definitely a fan of this build.

5

Love this build from the boosted VR6 to the roof scoop and aero.
Definitely make a VW fan of me yet.

6
turbo BEAMS ae86

wow, very nice to see VW build for fast, not for stance!  quite rarely thing,,god bless you

7
Speedhunters_Bryn

@turbo BEAMS ae86 There are some killer VWs out there built solely for performance, we need to show you more :)

8

How long did it take him to build? This thing has bad ass mofo written all over it. From the radiator in the rear, to the air inlets on the the top and side, big brakes and sequential box. Overall, my favorite fact is the platform he chose. You'd never take the mk3 as an overall best choice for a performance candidate. Between this and the 4 door civic track car, I'm loving SpeedHunters!

9
Speedhunters_Bryn

Lumpy Idle Haha, it does have bad-ass mofo written all over it! I'm glad somebody else can see that :)

Stefan didn't do the initial build, he's refined and stripped it down again this winter. I'm actually trying to contact the original builder about his new car, so will ask how long when I get through.

10

i like it but why for no 30/70 F/R split bet it handle better... just my 2...

11

The intakes are NACA ducts, their specific purpose is to produce the maximum airflow for the minimum drag.

12

LavarBowers Because the transmission doesn't have a "real" center diff - it's just a PTO on the front diff and a clutch pack at the rear. The prop shaft gets the same torque/power as the front wheels and the Syncro/Haldex/SQS-valve can only transmitt that power or bleed it away - never more! The curse of Syncro/Haldex systems really...

13

MrSOLOMON85 Me too :)

14
Speedhunters_Bryn

sivis Thanks for that link! Aero fascinates me but I profess to know very little so go with logic and work from there.

15

Is there any video footage of this monster?

16

Is a 205/40/17 tire the widest that can be stuffed under the arches? Seems a little narrow for a high horsepower, track beast like this. How about some 225s at least?

17

@PolishFury I'm guessing that the tire width was limited to 215 because the arches weren't built for just wider wheels.  My speculation is that the widebody arches are also to absorb the wider track of the 4-motion driveline that had been swapped in.  I know for a fact that 16x7.5 et35 can easily accommodate 225/45/16 on a stock body golf/gti.

18

The driver seat is not a Mirage!!! It's a polish company Mirco :)  I'm proud that polish parts are used in such a great project.
